Available Sizes: Infratech WD-Series 240V Dual Element Heaters - White
Overall Dimensions: 61-1/4 in long, W-shaped body about 8-3/16 in wide and 3 in deep, per the Infratech W and WD-Series CAD drawing
The Infratech WD6024WH is a 61-1/4 in, 6,000 W dual element electric infrared heater in a white finish, built for covered patios, porches, pool cabanas and outdoor dining areas that need strong, even warmth from a higher ceiling. Its two quartz elements warm people and surfaces rather than the air, and the W-shaped body can be wall mounted, ceiling mounted, pole mounted or recessed flush into a ceiling with the Infratech W-61 frame.
Features
- 6,000 W from two 3,000 W quartz elements, 20,472 BTU
- Mounts up to 14 ft high; Infratech rates the WD-60 for about 11 x 11 ft of average coverage
- Half power or full power with a duplex or stack switch, or variable output with solid state controls
- Wall, ceiling, pole or flush mount; mounting brackets included
- 304 stainless steel body in a white finish (Infratech offers eight standard colors plus custom colors)
- UL listed for indoor and outdoor use; made in the USA
Key Specifications
| Model / SKU | Infratech WD-Series WD6024, White (WD6024WH); Infratech part 21-2300 in stainless |
| Watts | 6,000 (two 3,000 W elements, replacement element E-3024) |
| Voltage / amps | 240 V, 25 A |
| Heat output | 20,472 BTU |
| Coverage | About 11 x 11 ft average (Infratech WD-60 chart) |
| Mounting height | 10 to 14 ft recommended for the WD-60 |
| Mounting | Wall, ceiling, pole (22-1255) or flush (W-61 frame 18-2305); brackets included |

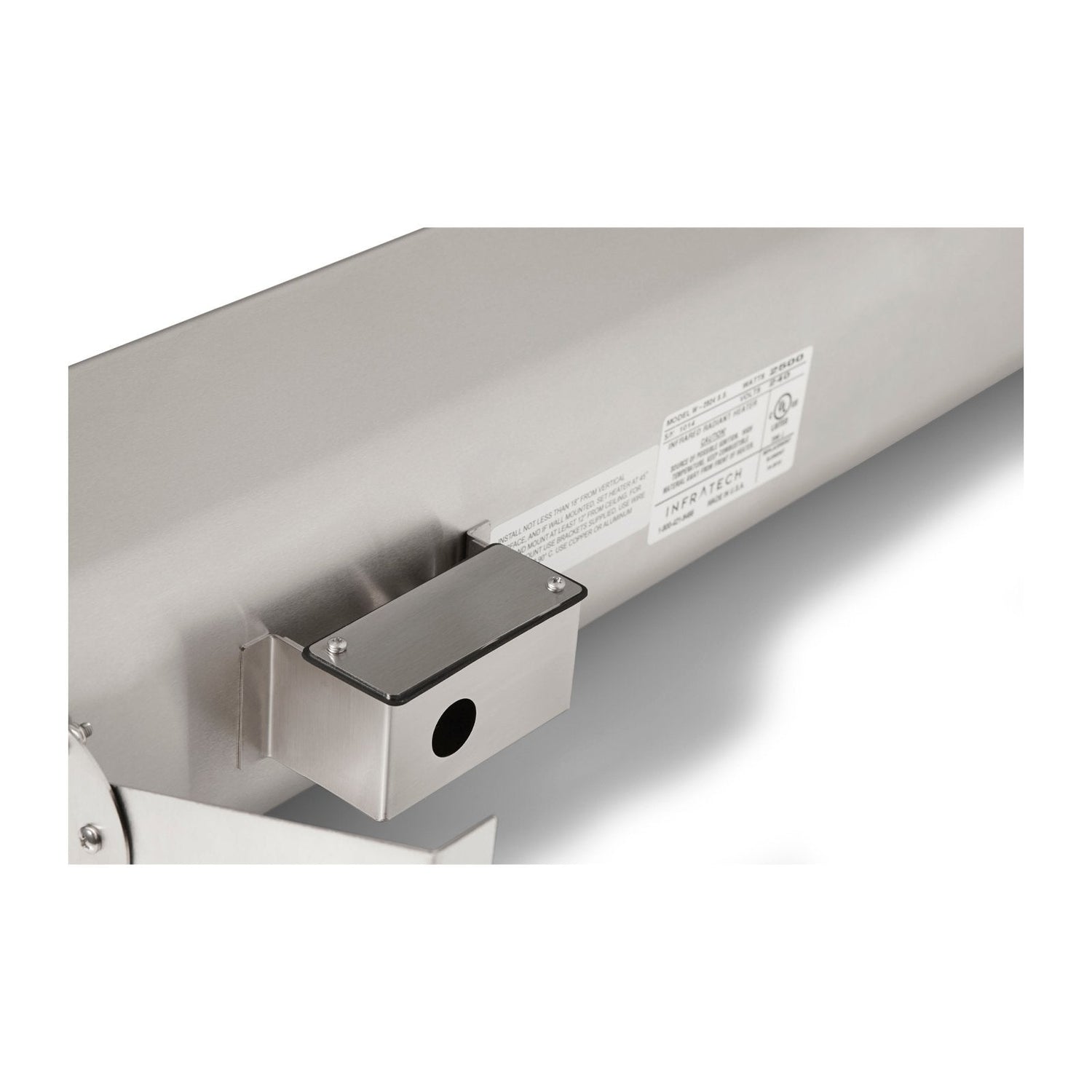

| Wiring | Hardwired by a licensed electrician to the NEC; 1/2 in knock-out on the body |
| Listing | UL listed for indoor and outdoor use |
Dimensions and Cutout
| Length | 61-1/4 in (155.5 cm) |
| Body width | 8-3/16 in (20.2 cm) |
| Body depth | 3 in (7.6 cm); about 9-3/8 in to the bracket tops |
| Clearances | 6 in behind the heater, 18 in from the sides and ends, 36 in in front, per the Infratech CAD drawing |
What Is Included and What You Will Need
- Infratech WD6024 heater in white
- Mounting brackets (Infratech includes brackets with all heaters)
- You will need: a dedicated 240 V circuit hardwired by a licensed electrician with a disconnect means, and a control rated for the load (a duplex switch, or a dual INF regulator running one 12.5 A element per channel)
Optional Accessories
- Infratech INF Input Heat Regulator Dual Switch w/ Flush Mount and Weather Proof Gang Box 240 Volt - 14 4215
- Infratech INF Input Heat Regulator Dual Switch w/ Stainless Steel Wall Plate and Gang Box 240 Volt - 14 4205
- Infratech 61.25-Inch W and WD Series Heater Flush Mount Frame (Stainless Steel) - 18 2305
- Infratech 8-Foot Pole Mount for 61.25-Inch Heaters (Heater Not Included) - 22 1255
- Infratech Replacement 240 Volt 3000 Watt Quartz Element for W3024, WD6024, C3024, and CD6024 Heaters - E3024
Installation Notes
Infratech requires the heater to be permanently installed and hardwired by a licensed electrician, with all connections to the National Electrical Code. Keep at least 6 in clear behind the heater, 18 in from the sides and ends, and 36 in in front to combustible materials. Infratech heaters are UL listed for mounting as low as 6 ft (7 ft suggested) and CUL listed as low as 8 ft; for this 6,000 W model Infratech recommends 10 to 14 ft.
For a recessed look, the Infratech W-61 flush mount frame (18-2305) fits this 61-1/4 in heater in a flat ceiling with at least 2 x 8 in joists, inside a five-sided pocket lined with 5/8 in drywall rated for one hour; heaters cannot be flush mounted in a sloped ceiling. Infratech INF input regulators handle up to 15 A, so a dual INF regulator can run the two 12.5 A elements separately. In New York City, a hardwired outdoor heater is electrical work for a licensed electrician, and terrace or rooftop installs in multifamily buildings often need board or building approval.
Laying out heat for a covered patio or cabana? Book a design consultation.
Documentation
- Infratech Heater Reference Catalog (W and WD-Series specifications, clearances, dimensions and flush mount frames)
- Infratech Heater Comparison Guide (C/CD vs W/WD)
Frequently Asked Questions
How high should I mount it?
Infratech recommends 10 to 14 ft for the WD6024.
Can it be recessed into the ceiling?
Yes, with the Infratech W-61 flush mount frame in a flat ceiling with a fire-rated drywall pocket.
Can I run half power?
Yes. Wire the two elements to a duplex switch or a dual INF regulator to run one or both.
Does it plug in?
No. It must be hardwired on a 240 V circuit by a licensed electrician.
Related reading: Patio heater buying guide, Best patio heater for a covered patio, Bromic vs Infratech patio heaters.
Warranty
Infratech covers its W and WD-Series heaters with a three (3) year manufacturer's warranty, per the current Infratech heater comparison sheet. Register the heater with Infratech and keep proof of purchase to validate coverage.
