Description

Available Sizes:

Grandview 230, 2.3 cu ft (Current Size)Grandview 300, 3.0 cu ft

Grandview 230 is rated up to 76,000 BTU/h with logs up to 18 inches; Grandview 300 is rated up to 100,000 BTU/h with logs up to 21 inches. Base kits, clearances and hearth requirements are model specific; compare the specifications below.

Overall Dimensions: 25-1/8 in W x 26-5/8 in D x 32-1/2 to 33-1/2 in H on legs (35 in on the pedestal), per the IronStrike brochure

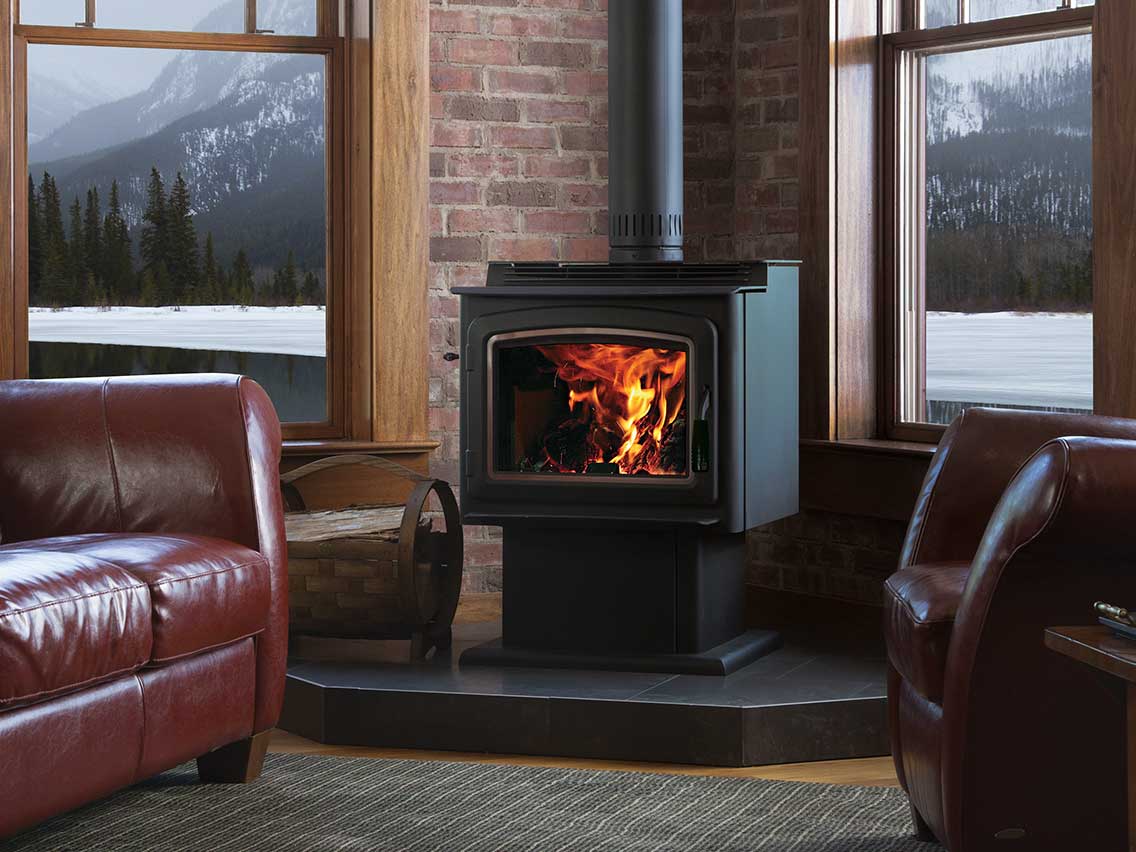

The IronStrike Grandview 230 (GV230GL) is the smaller Lodge Collection freestanding wood stove, with a 2.3 cu ft firebox that takes logs up to 18 in. A Thermal Fin heat exchanger with 32 percent more surface area than a standard stove design, an air-boost timer for easier starts and reloads, and a tall ceramic glass door with air wash help it deliver up to 76,000 BTU/h for roughly 1,200 to 2,200 sq ft. It is a non-catalytic, EPA certified and Washington State approved stove that sits on your choice of legs or a pedestal.

Key Specifications

Model Grandview 230 (GV230GL), Lodge Collection, cat. no. F3831
Fuel Dry seasoned cord wood
Firebox 2.3 cu ft; 17 in W x 19 in D x 12-1/2 in H max.
Log length Up to 18 in (16 in W x 18 in D max.)
Heat output Up to 76,000 BTU/h with cord wood; 28,200 BTU/h EPA test load
Heating capacity 1,200 to 2,200 sq ft (approximate)
Maximum burn time 12 hours (approximate)
Efficiency 80% per the IronStrike brochure
Emissions 1.7 g/hr, compliant with 2020 EPA particulate standards
Glass viewing area 16-1/2 in W x 11-5/16 in H
Stovepipe 6 in diameter, single or double wall
Listing PFS Corporation, tested to UL 1482 and ULC S627 (report 14-182); approved for residential, manufactured home and alcove installations
Shipping weight 385 lb

Dimensions and Cutout

Width / depth 25-1/8 in / 26-5/8 in
Height by base Lakeview legs 32-13/16 in; Coastal legs 32-1/2 in; Olympic legs 33-1/2 in; pedestal 35 in
Clearances (US, single-wall connector) Flue collar 16 in to back wall, 22 in to side wall, 16 in in a corner; back of stove 0 in
Clearances (US, double-wall connector) Flue collar 10 in to back wall, 20 in to side wall, 15 in in a corner
Hearth pad (US) At least 38-5/8 in deep and 33 in wide, 16 in in front of the stove, 8 in from the door opening and 4 in to the sides
Alcove At least 52 in wide and 72 in high, no more than 48 in deep (IronStrike brochure)

Features

  • Thermal Fin heat exchanger with 32% more surface area than a standard stove design
  • Air-boost timer that adjusts the air intake for easier startup and reloading
  • Tall opening with ceramic glass and an integral air wash
  • Precision-cut heavy-gauge steel and high-density firebrick
  • One-touch control
  • Choice of Lakeview, Coastal or Olympic legs, or a pedestal; ash drawer optional
  • Door trim and louvers in Brushed Nickel, Nickel or standard black; optional 700 CFM blower

What Is Included and What You Will Need

  • Included: Grandview 230 stove
  • Required: a leg kit or pedestal base, a 6 in chimney connector and listed chimney, and hearth protection sized per the table above
  • Optional: blower, outside air kit, ash drawer, door trim and deco trim kits

Installation Notes

Plan the stove location from the IronStrike clearance and hearth pad tables, which change with single-wall or double-wall connector pipe and with corner or alcove placement. Use dry seasoned wood only, and have a certified hearth installer set the stove and chimney with an inspection under local code. New York City does not permit new wood-burning fireplaces or wood-burning heaters (Local Law 38 of 2015); we sell this model for installations outside the five boroughs where local code allows it. Book a free design consultation and we will help you plan the installation.

Documentation

Frequently Asked Questions

How big a space can it heat?

IronStrike rates it at about 1,200 to 2,200 sq ft, depending on the home, wood and installation.

What size logs does it take?

Up to 18 in.

Can it go in an alcove?

Yes. IronStrike approves alcove installs at least 52 in wide and 72 in high, no more than 48 in deep, with the listed clearances.

Can it be installed in New York City?

No. New wood-burning heaters and fireplaces are not permitted in the five boroughs.

Related reading: Are Wood-Burning Fireplaces Legal in NYC? and NYC Fireplace Code Guide.

Warranty

IronStrike stoves carry a Limited Lifetime Warranty from Innovative Hearth Products on the body, firebox and ceramic glass, with shorter terms on other parts: cast iron heat exchanger five years, refractory and screens two years, plating two years and removable air tubes seven years. Coverage requires the stove to be installed and run per the manual and without grates or irons that raise the fire. See the warranty in the IronStrike manual for full terms.
