Marquis Vantage Freestanding Direct Vent Gas Stove FDV45
Marquis Vantage Freestanding Direct Vent Gas Stove FDV45 - Natural Gas / Millivolt is backordered and will ship as soon as it is back in stock.
- See it in person at our Queens showroom, 147+ live displays.
- Factory-authorized Marquis by Kingsman dealer. You keep the full manufacturer warranty.
- Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Description
Description
Overall Dimensions: 27-1/8 in. W x 20-5/16 in. D x 33-1/2 in. H

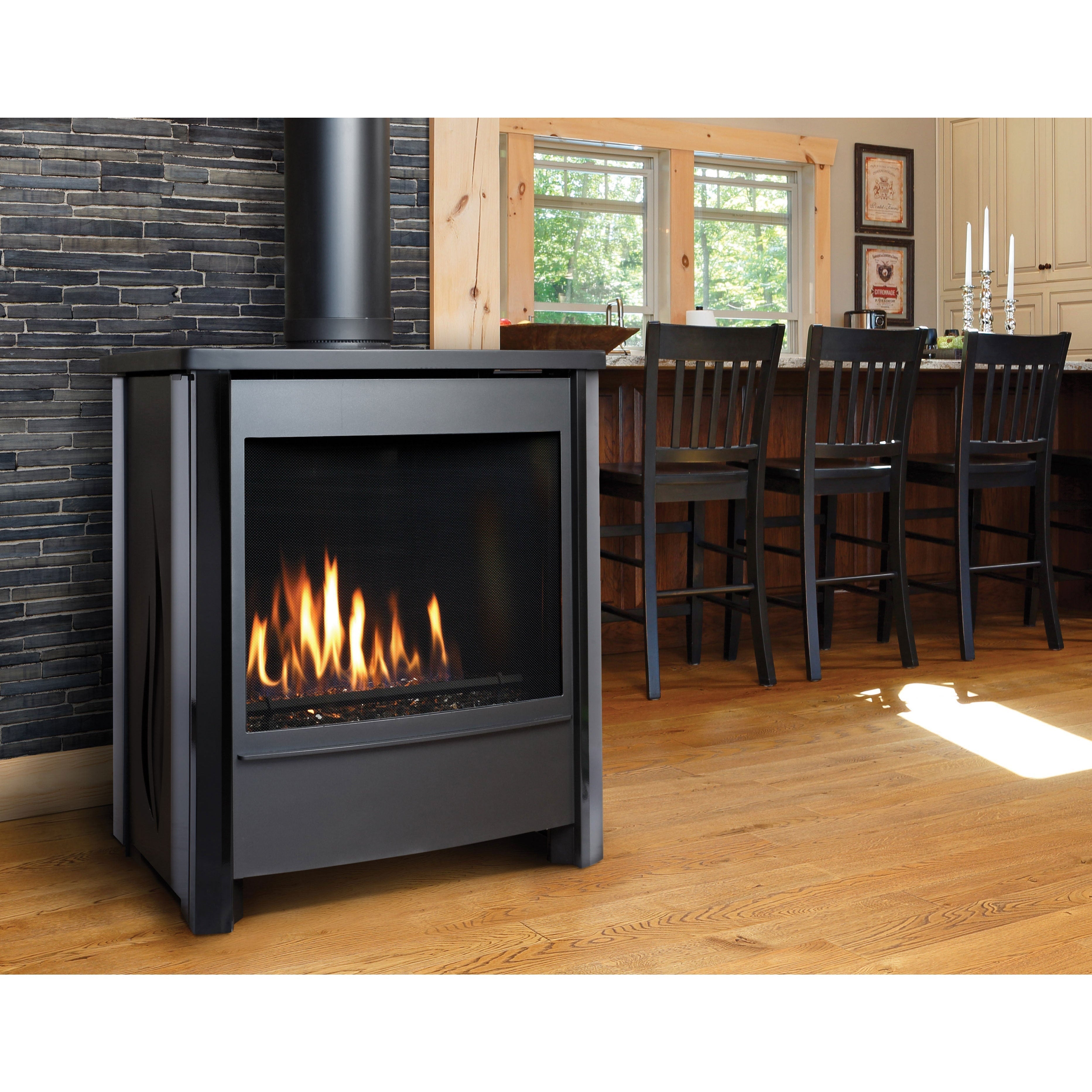

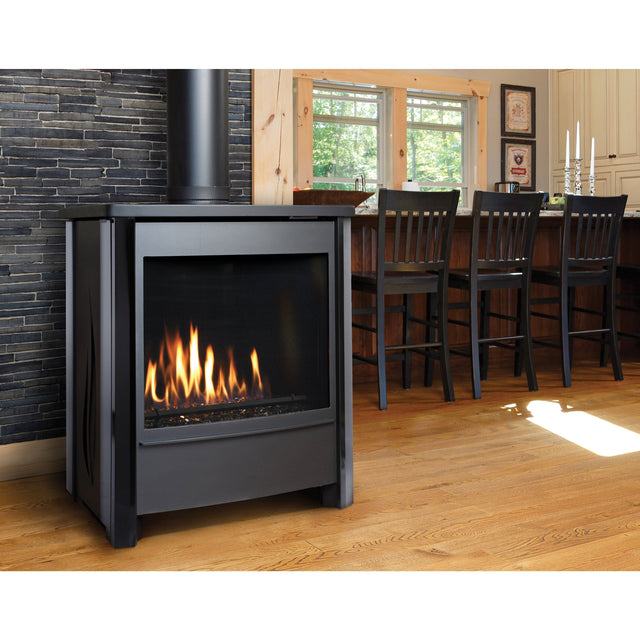

This contemporary freestanding direct vent gas stove (model FDV451) has clean, squared lines, a 20 in. by 16-15/16 in. glass view and a choice of fronts, side panels, liners and media, so it can look modern with bronze glass or traditional with oak logs.
It runs 23,750 to 34,500 BTU/h on natural gas and 24,500 to 31,000 BTU/h on propane with a dual burner, and vents horizontally or vertically. Choose the control option above: Millivolt (standing pilot, works without power), IPI Proflame 1 (intermittent pilot, upgradeable) or IPI Proflame 2 (full-function remote with flame, fan and thermostat control, factory installed).
Key Specifications
| Model | FDV451N, NE, NE2 (natural gas); FDV451LP, LPE, LPE2 (propane) |
|---|---|
| Input | NG 23,750 to 34,500 BTU/h; LP 24,500 to 31,000 BTU/h |
| Efficiency | FE (CSA P.4.1-15) 65.89% / 67.72% NG, 72.14% / 74.06% LP |
| Type | Freestanding direct vent gas stove |
| Glass | Heat radiating ceramic glass, 20 in. W x 16-15/16 in. H view |
| Controls | Millivolt, IPI Proflame 1 or IPI Proflame 2 with remote |
| Venting | 4 in. / 7 in. direct vent, horizontal or vertical |
| Gas inlet | 3/8 in. NPT, from the back or bottom |
| Approvals | Mobile home approved (direct vent model); approved for bedroom or bed-sitting room installation |
Dimensions and Cutout
| Width | 27-1/8 in. at the top, 26 in. at the base |
|---|---|
| Depth | 20-1/8 in. at the top, 20-5/16 in. at the base |
| Height | 33-1/2 in. |
| Glass view | 20 in. W x 16-15/16 in. H |
| Clearances | 36 in. front, 15-1/2 in. sides, 2-1/2 in. back, 71-1/2 in. floor to ceiling |
| Alcove | 48 in. deep, 71-1/2 in. tall and 58 in. wide minimum |
Features
- Contemporary squared design with a large front view
- Dual burner system with a realistic flame pattern
- Front choices in charcoal with flat black or stainless accents, with matching side panels
- Oak log set, bronze glass or cannonball media options
- Traditional or herringbone brick liner, or reflective porcelain liner
- Millivolt or IPI valves run during a power failure with Hi-Low flame adjustment
- Proflame II models (NE2, LPE2) include a remote with flame, fan, thermostat and smart thermostat control
- Safety screen barrier
What Is Included and What You Will Need
- Included: stove body, burner and controls for the option you select
- Typically ordered to complete the unit: F450FBL door front, F451SDSBL side doors and media such as the LOGF451 oak log set with F45LG log grate
- Optional liners: F451RLT traditional, F451RLH herringbone or F451PL reflective porcelain
- Optional: F45FK2 fan kit
- Required: 4 in. x 7 in. direct vent kit and termination
- Required: gas line to the 3/8 in. NPT inlet with shutoff; household power for the optional fan
Installation Notes
The FDV451 vents 4 in. x 7 in.: Kingsman 4 in. x 7 in. flex vent kits, or M&G DuraVent DirectVent Pro, Ameri-Vent, BDM Pro Form or Selkirk Direct Temp with the approved adapter. Keep 36 in. in front, 15-1/2 in. at the sides and 2-1/2 in. at the back, with at least 71-1/2 in. from floor to ceiling. The gas line can enter from the back or bottom to a 3/8 in. NPT inlet, and glass media is limited to 15 lb. A qualified gas installer must do the work to local codes. In New York City, direct vent gas stoves are installed under the NYC Fuel Gas Code by a licensed plumber with DOB filing where required, and the vent termination location usually decides feasibility. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
What do I need to order to complete the stove?
The FDV451 is built from a stove body plus a door front, side panels and media. Marquis notes components may be ordered separately; we put the full list together with you.
Can I use glass media instead of logs?
Yes. Bronze glass or cannonball media are options, with a 15 lb maximum of glass media and the pilot area left uncovered.
Which control option should I choose?
Millivolt runs without power, IPI Proflame 1 lights the pilot only when needed, and Proflame 2 (NE2, LPE2) adds a factory-installed full-function remote.
How much clearance does it need?
36 in. in front, 15-1/2 in. at the sides and 2-1/2 in. at the back, with at least 71-1/2 in. from the floor to the ceiling.
Related reading: Direct Vent Gas Fireplace Buying Guide and Gas Fireplace Cost Installed.
Warranty
Kingsman (Marquis) Basic One Year Warranty: for the first year after installation, any defective component part is replaced, with labor paid on Kingsman's rate schedule through an authorized dealer (accent light bulbs, gasketing and paint excluded). Limited Lifetime Warranty: the heat exchanger, combustion chamber and burner are warranted for as long as the original owner owns the stove; labor, material, freight and handling on lifetime-warranty repairs are not covered. Coverage applies while the unit stays at its original installation site in the continental United States, Alaska, Hawaii or Canada.
