Montigo DelRay 36 Linear Direct-Vent Gas Fireplace - DRL3613NI
Montigo DelRay 36 Linear Direct-Vent Gas Fireplace - DRL3613NI - Natural Gas is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 45-1/4 in. W x 12-3/4 in. D x 26-3/4 in. H
The Montigo DelRay 36 Linear (DRL3613NI) is the Basic version of Montigo's single-sided direct vent linear fireplace: a concealed burner under ice fireglass, a 36-1/2 in. by 14-11/16 in. view and a modern, minimal look for living rooms and open-plan spaces.
It is rated at 16,000 BTU/h on natural gas or propane with a 71% P.4.1-15 efficiency, frames into a 14-1/4 in. deep wall, and vents with 4 in. / 7 in. pipe through the roof or an exterior wall. Remote control, fans, black reflective glass and battery backup are Montigo options for the Basic model.
Key Specifications
| Model | DRL3613NI (natural gas); propane option adds the GCA010 conversion kit |
|---|---|
| Version | DelRay Basic Linear, single-sided direct vent |
| Input | 16,000 BTU/h (NG and LP) |
| Efficiency | 71% (P.4.1-15) |
| Viewing area | 36-1/2 in. x 14-11/16 in. |
| Media | Concealed burner with ice fireglass, standard |
| Venting | 4 in. / 7 in. direct vent, roof or exterior wall |
| Electrical | 115V, 60 Hz, less than 12 A |
| Certification | CSA/ANSI Z21.88-2019 / CSA 2.33-2019, vented gas fireplace heater for indoor use |

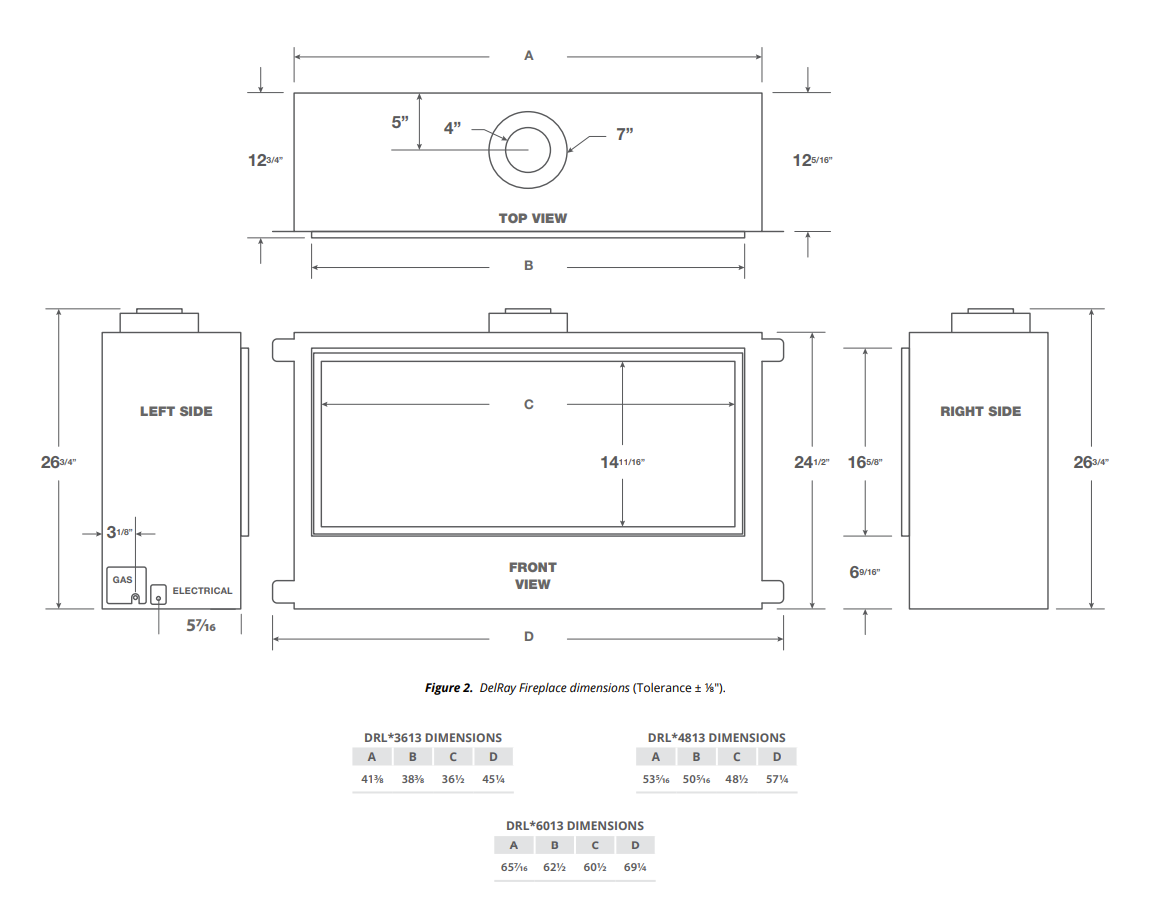

Dimensions and Cutout
| Front width | 45-1/4 in. (framing 43-3/8 in.) |
|---|---|
| Back width | 41-3/8 in. |
| Height | 26-3/4 in. (framing 33-11/16 in.) |
| Depth | 12-3/4 in. (framing 14-1/4 in.) |
| Viewing area | 36-1/2 in. x 14-11/16 in. |
| Clearances | 0 in. to floor; mantel and wall projections per the rating plate and installation manual |
Features
- Concealed burner with ice fireglass
- 36-1/2 in. wide linear view
- 16,000 BTU/h with 71% efficiency

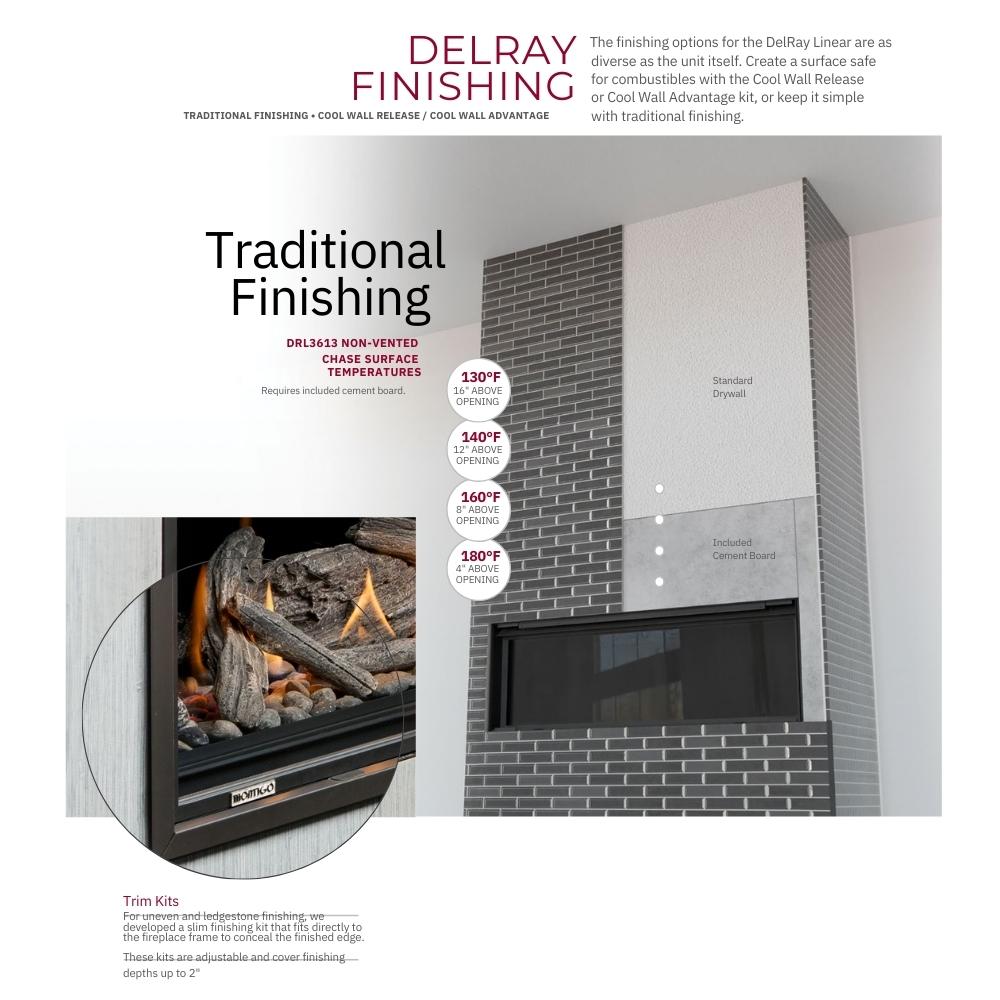

- Cement board included for finishing, per Montigo
- Vents through the roof or an exterior wall

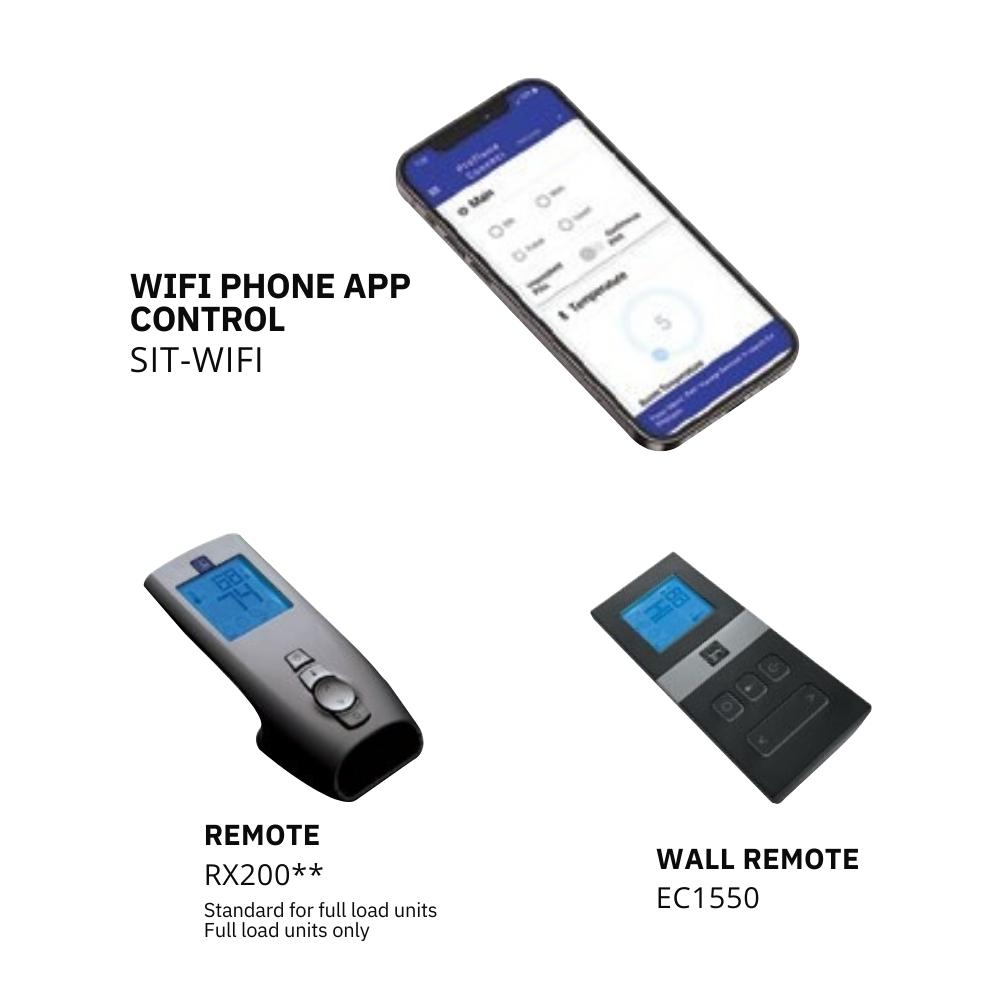

- Optional multi-function remote, Wi-Fi app control and remote-controlled fans
- Optional black reflective glass, halogen downlighting and micro mesh safety screen
- Optional speckled stones, driftwood or glass media, trim kits and heat management
What Is Included and What You Will Need
- Included: DelRay 36 Basic firebox with concealed burner, ice fireglass and cement board
- Propane option above adds the GCA010 conversion kit
- Optional Montigo accessories: remote control, fans, battery backup, black reflective glass, micro mesh safety screen, trim kits and heat management
- Required: Montigo-approved 4 in. / 7 in. direct vent pipe and termination; non-approved parts void the warranty
- Required: gas line and 115V power
Installation Notes

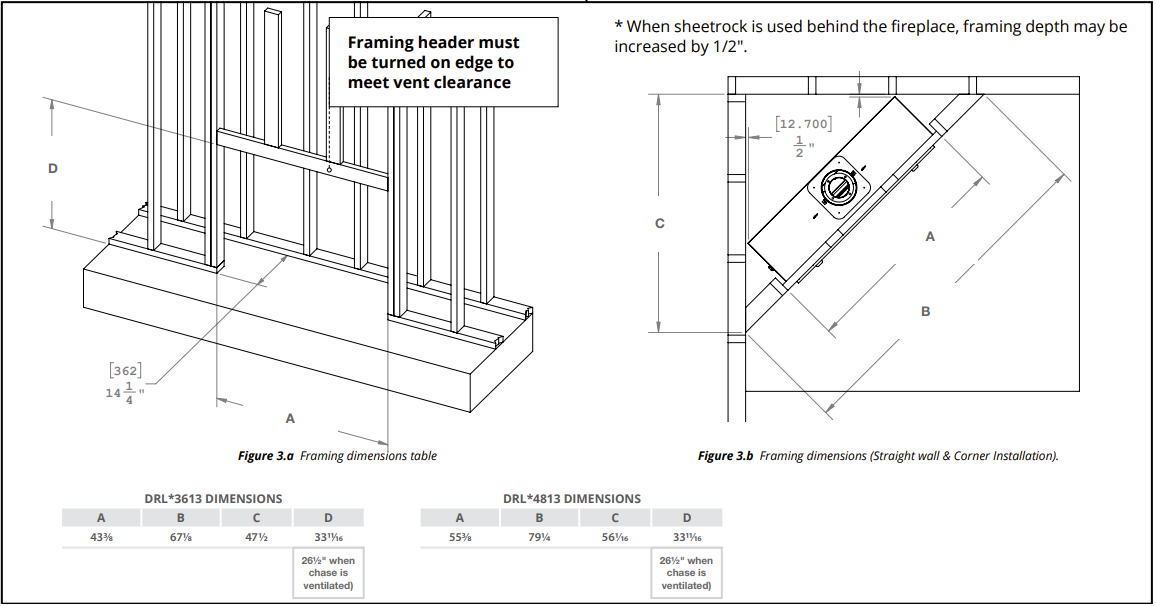

The DelRay 36 frames 43-3/8 in. W x 33-11/16 in. H x 14-1/4 in. D and vents with Montigo-approved 4 in. / 7 in. pipe through the roof or an exterior wall; check termination locations in Appendix A of the manual. Montigo strongly recommends planning for heat above the fireplace when a TV or art will hang there, and the manual covers heat management and mantel clearances. Installation must be done by a qualified, licensed gas installer. In New York City, direct vent gas fireplaces are installed under the NYC Fuel Gas Code by a licensed plumber with DOB filing where required, and the vent termination location usually decides feasibility. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
What is the difference between DelRay Basic and Full Load?
Both share the same firebox and BTU rating. The Full Load adds the multi-function remote, remote-controlled fans, micro mesh screen, black reflective glass and halogen downlighting as standard; on the Basic these are options.
Natural gas or propane?
The DRL3613NI is natural gas. The propane option adds Montigo's GCA010 conversion kit, installed by a qualified technician.
Can I hang a TV above it?
Yes, with planning. Montigo covers TV and mantel placement in the manual and recommends heat management for TV walls.
Does it need electricity?
Yes. Plan for a 115V supply; the rating plate lists less than 12 A.
Related reading: Direct Vent Gas Fireplace Buying Guide and Linear vs. Traditional Fireplace.
Warranty
Montigo Residential Warranty Program, per the DelRay manual: the firebox, heat exchanger and main burner are covered for 15 years, with 1 year of labor; gas controls, electrical components, remotes, media, glass, finishes and safety barriers are covered for 1 year, parts and labor. Montigo venting carries 15 years and Montigo terminations 10 years, each with 1 year of labor. Coverage requires installation by a licensed professional, and using non-Montigo approved vent parts voids the warranty. Montigo's warranty terms require the fireplace to be purchased, installed and serviced annually by an authorized Montigo dealer for coverage to remain valid.
