Montigo  |  SKU: DRL4813NI

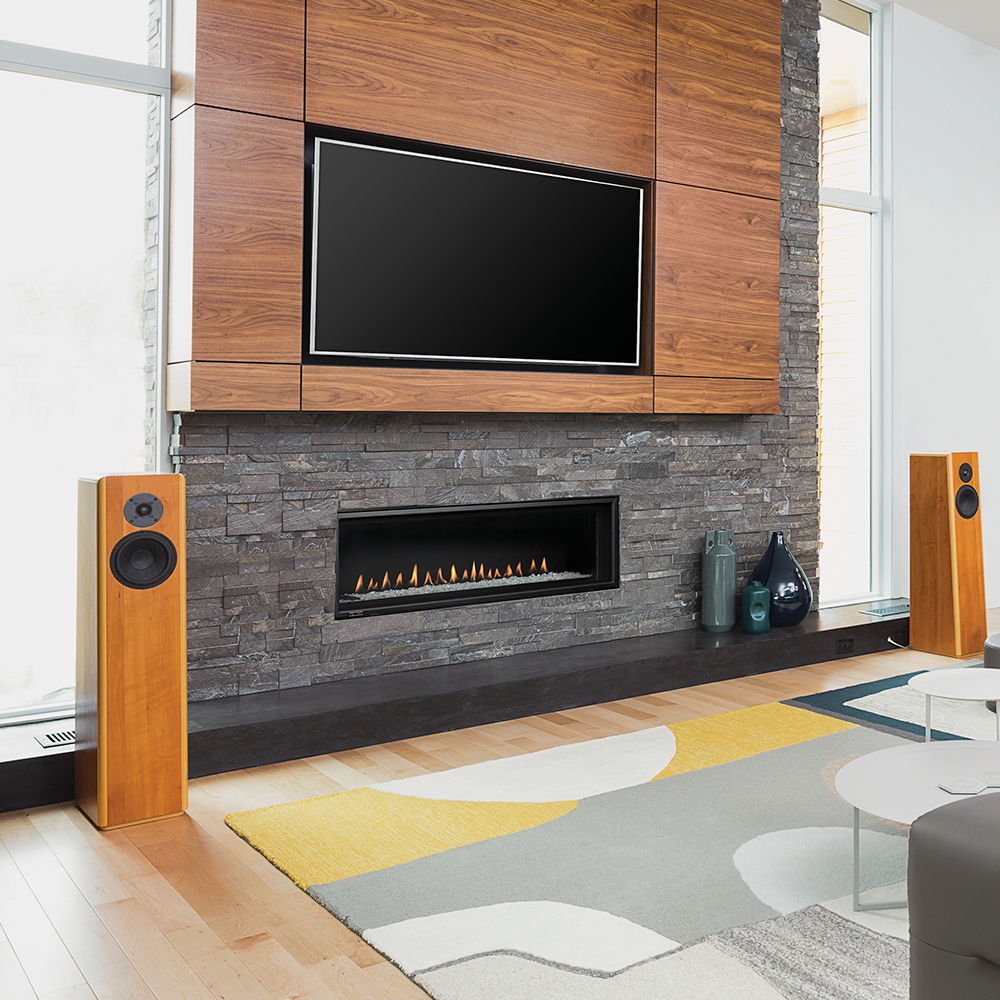

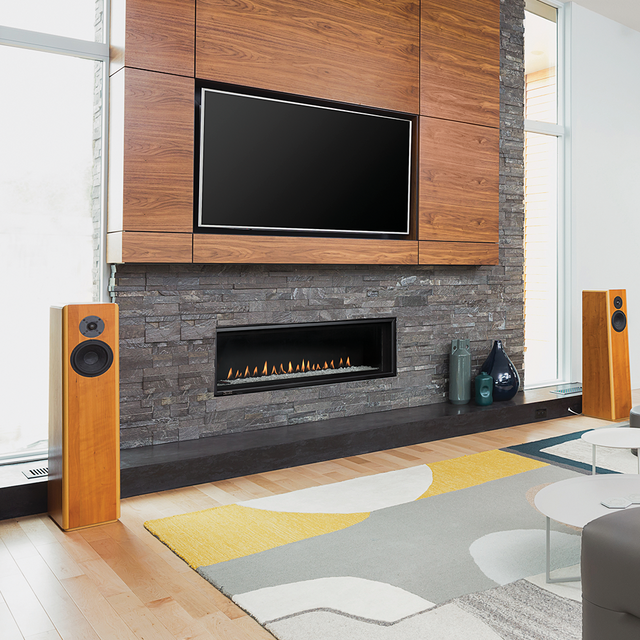

Montigo DelRay 48 Linear Direct-Vent Gas Fireplace - DRL4813NI

$3,919.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

This item is available for pick-up or local delivery only (NYC Tri-State NJ CT & Long Island). Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Local delivery or pick-up across NYC, Long Island, NJ and CT. Delivery is free on this item.
  • Factory-authorized Montigo dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Local Delivery
  • Our team & trucks deliver locally within 60 miles of our showroom. (NYC Tri-State including all of Suffolk County)
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 days
  • $49.95 Flat-Rate Local Shipping on orders under $999
  • Setup & Assembly available for most items at checkout

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
Call for a free quote 877-692-3765

Visit our sister site to learn more about our showroom products like Direct Vent Gas Fireplaces, www.NYCFireplaces.com

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Explore other Montigo DelRay Linear sizes: 36 inch | 48 inch (this size) | 60 inch

Overall Dimensions: 57-1/4 in. W x 12-3/4 in. D x 26-3/4 in. H (framing 55-3/8 in. W x 14-1/4 in. D x 33-11/16 in. H), per Montigo

The Montigo DelRay 48 Basic Linear (DRL4813NI) is a single-sided direct vent linear gas fireplace with a 48-1/2 in. x 14-11/16 in. view, a concealed burner and ice fireglass. It is a value-focused way to get a clean modern flame in new construction or a renovation, with a shallow 14-1/4 in. framing depth and 4 in./7 in. venting. Remote, fans, trim, media and propane conversion are added as options so you pay only for what you use.

Key Specifications

Model DRL4813NI (natural gas); propane via conversion kit GCA019 (propane variant)
Input 21,000 BTU/h natural gas; 19,000 BTU/h propane
Efficiency (P.4.1-15) 63% natural gas; 60% propane
Viewing area 48-1/2 in. x 14-11/16 in.
Venting Direct vent, 4 in./7 in. (5 in./8 in. alternate components per manual)
Burner Concealed burner with ice fireglass
Electrical 120 VAC, 60 Hz
Gas pressure NG minimum inlet 5.5 in. w.c., manifold 3.5 in. w.c.; LP minimum inlet 11 in. w.c., manifold 10 in. w.c.
Certification CSA/ANSI Z21.88-2019 / CSA 2.33-2019

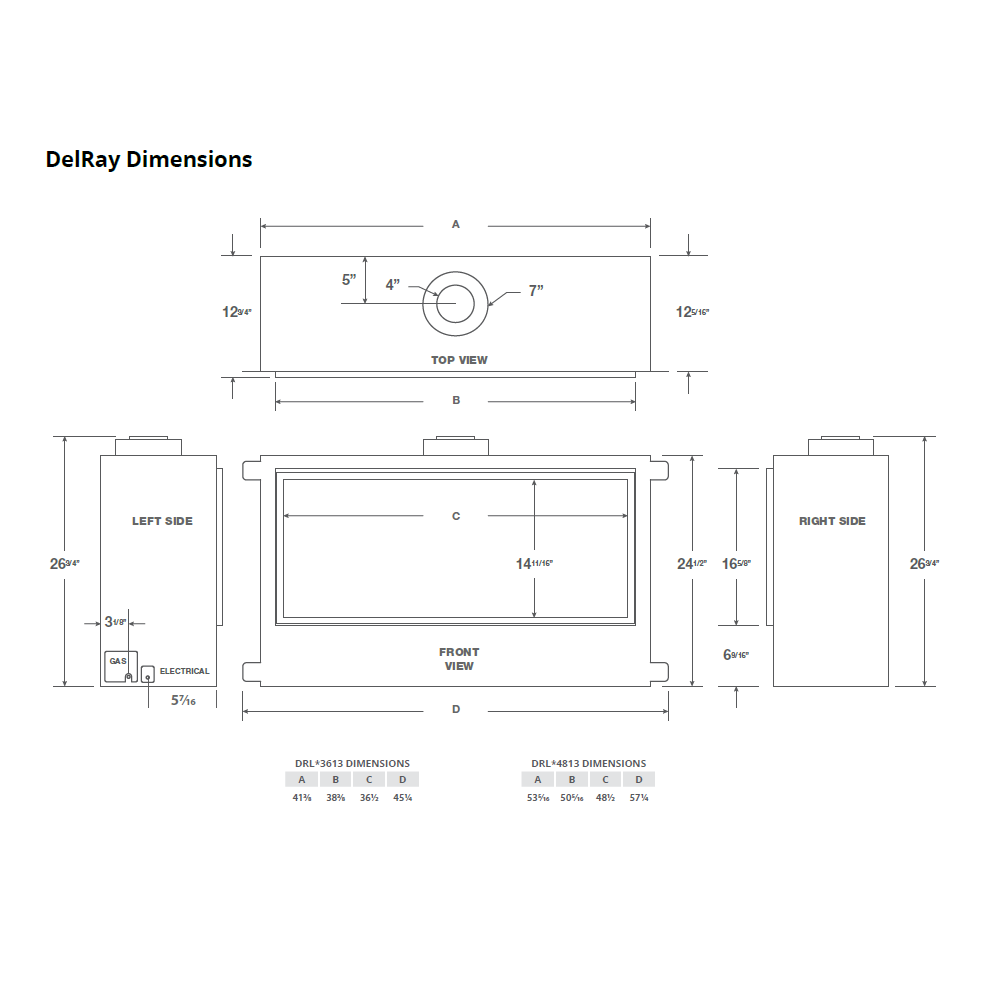

Dimensions and Cutout

Unit (front W x back W x H x D) 57-1/4 in. x 53-7/16 in. x 26-3/4 in. x 12-3/4 in.

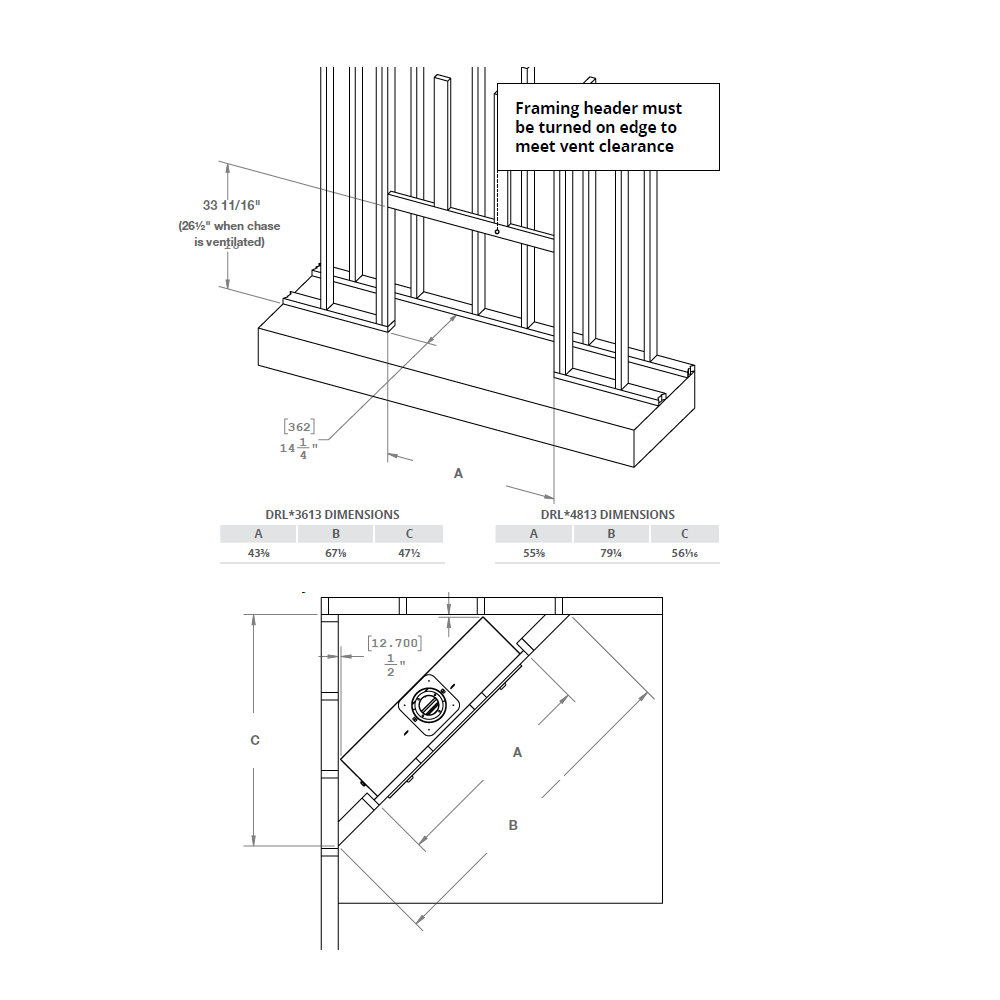

Framing (W x H x D) 55-3/8 in. x 33-11/16 in. x 14-1/4 in.
Vent limits Up to 34 ft total (V + H), 34 ft maximum vertical, 20 to 26 ft maximum horizontal depending on configuration; power vent for longer runs
Finishing Combustible facing can come down to the glass opening per Montigo; cement board included

Features

  • 48-1/2 in. wide linear flame with concealed burner
  • Ice fireglass media standard
  • Shallow 14-1/4 in. framing depth
  • 4 in./7 in. direct venting, wall or roof termination
  • Combustible finish down to the glass opening
  • Approved for manufactured (mobile) homes per Montigo

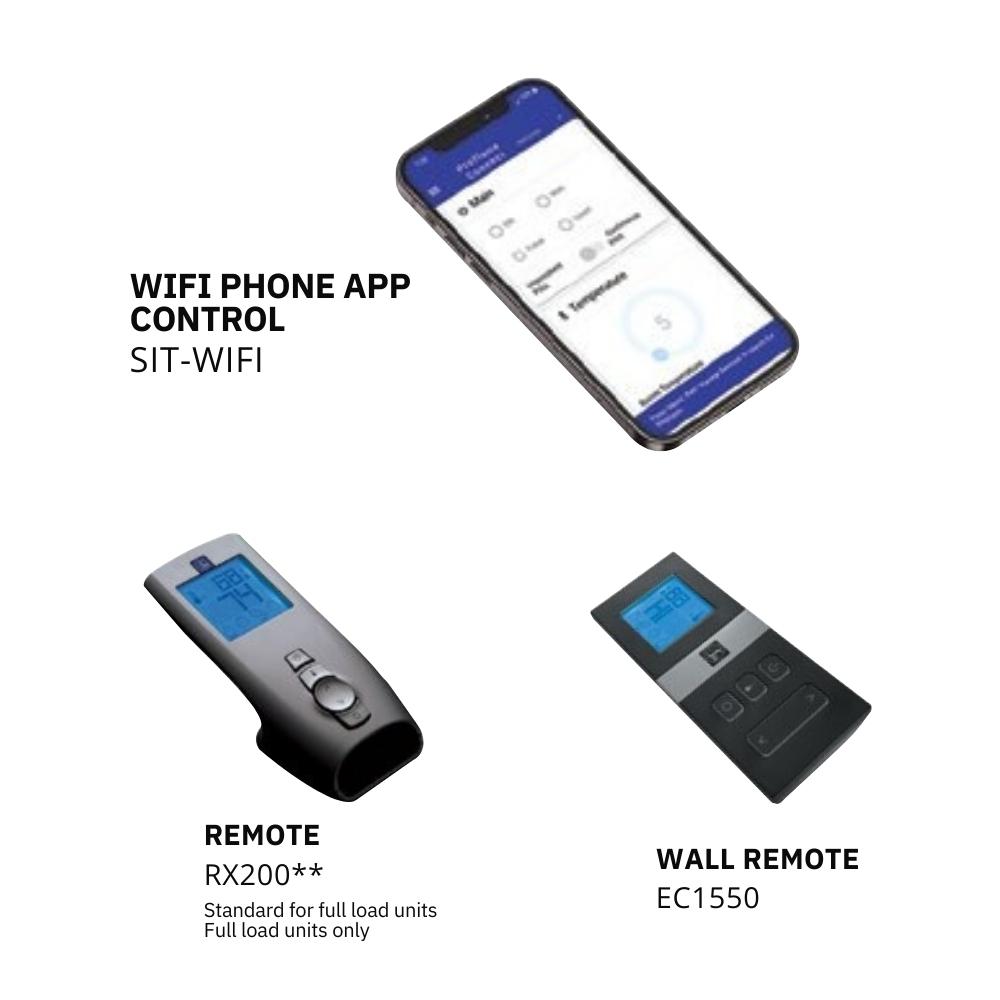

  • Options: remote control, fans, micro mesh screen, black reflective glass, battery backup, trim kits, stones, driftwood or glass media, heat management, Wi-Fi app

What Is Included and What You Will Need

  • Included (Basic): fireplace with concealed burner, ice fireglass, cement board
  • Required: Montigo 4 in./7 in. direct vent pipe and termination, 120 VAC supply, gas line with shutoff
  • Propane variant: includes the GCA019 propane conversion kit SKU
  • Optional: remote, fans, micro mesh safety screen, black reflective glass, battery backup, adjustable trim kits, alternate media

Installation Notes

A qualified gas installer must vent the DelRay with approved Montigo pipe inside the manual's limits (34 ft V + H) and supply 120 VAC power. In New York City, gas work requires a licensed master plumber and permits, and direct vent fireplaces like this are a common NYC-compliant choice. Book a free design consultation and we will help you plan the layout, utilities and installation.

Documentation

Frequently Asked Questions

What is the difference between DelRay Basic and Full Load?

Same burner and BTU. Full Load adds a multi-function remote, remote-controlled fans, micro mesh screen, black reflective glass, downlighting and battery backup as standard; on Basic they are options.

How much heat does it make?

21,000 BTU/h on natural gas and 19,000 BTU/h on propane per Montigo.

What vent pipe does it use?

4 in./7 in. direct vent, up to 34 ft total vent run.

Can I put wood trim right up to it?

Montigo allows combustible facing down to the glass opening; follow the manual clearances for mantels.

Related reading: Direct Vent Gas Fireplace Buying Guide and Linear vs Traditional Fireplace.

Warranty

Montigo residential warranty (manual XG0226, Appendix B): firebox and heat exchanger 15 years parts, 1 year labor; main burner 15 years, 1 year labor; Montigo venting 15 years and terminations 10 years; ignition and electrical components, media, glass thermal breakage, refractory and safety barriers 1 year. Covers appliances installed in the United States and Canada. Montigo's warranty terms require the fireplace to be purchased, installed and serviced annually by an authorized Montigo dealer for coverage to remain valid.
