Montigo DelRay 38 Square Direct-Vent Gas Fireplace - DRSQ38NI
Montigo DelRay 38 Square Direct-Vent Gas Fireplace - DRSQ38NI - Natural Gas is backordered and will ship as soon as it is back in stock.
Description
Description

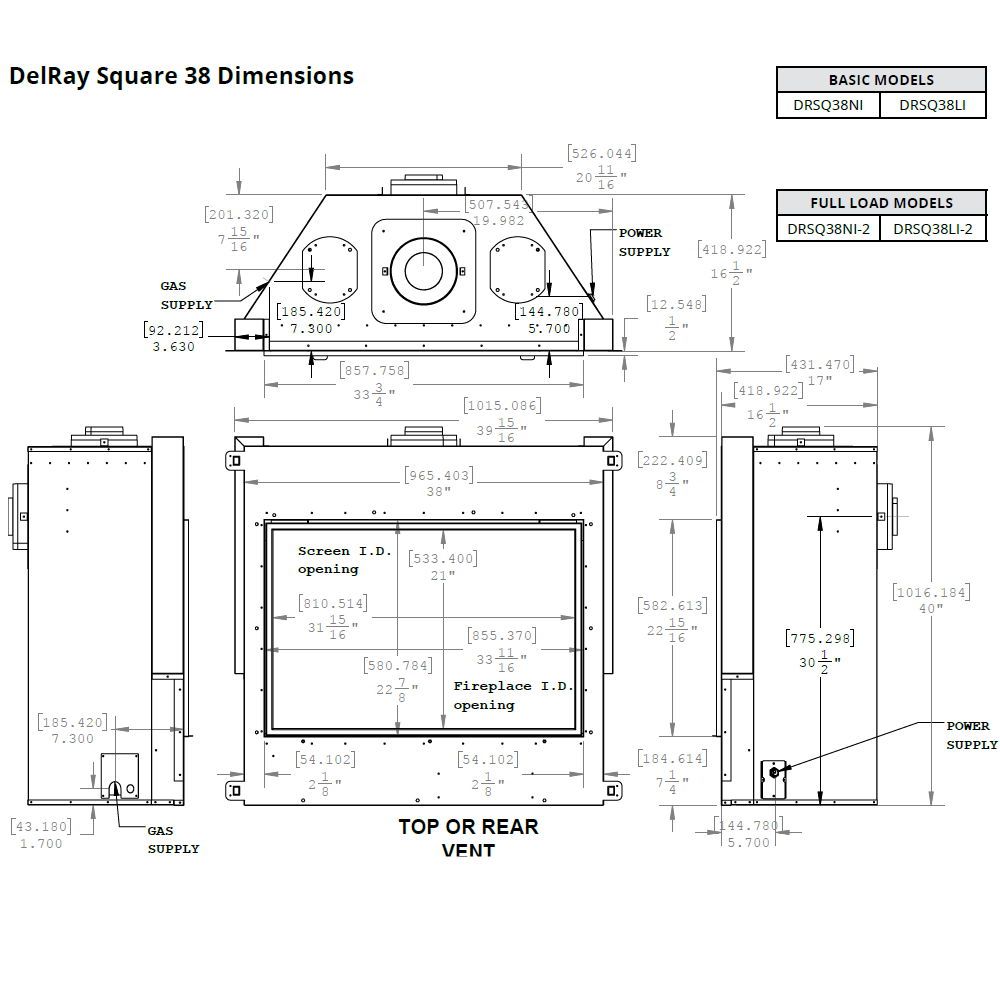

Overall Dimensions (framing): 40-3/16 in. W x 44-7/16 in. H x 18 in. D

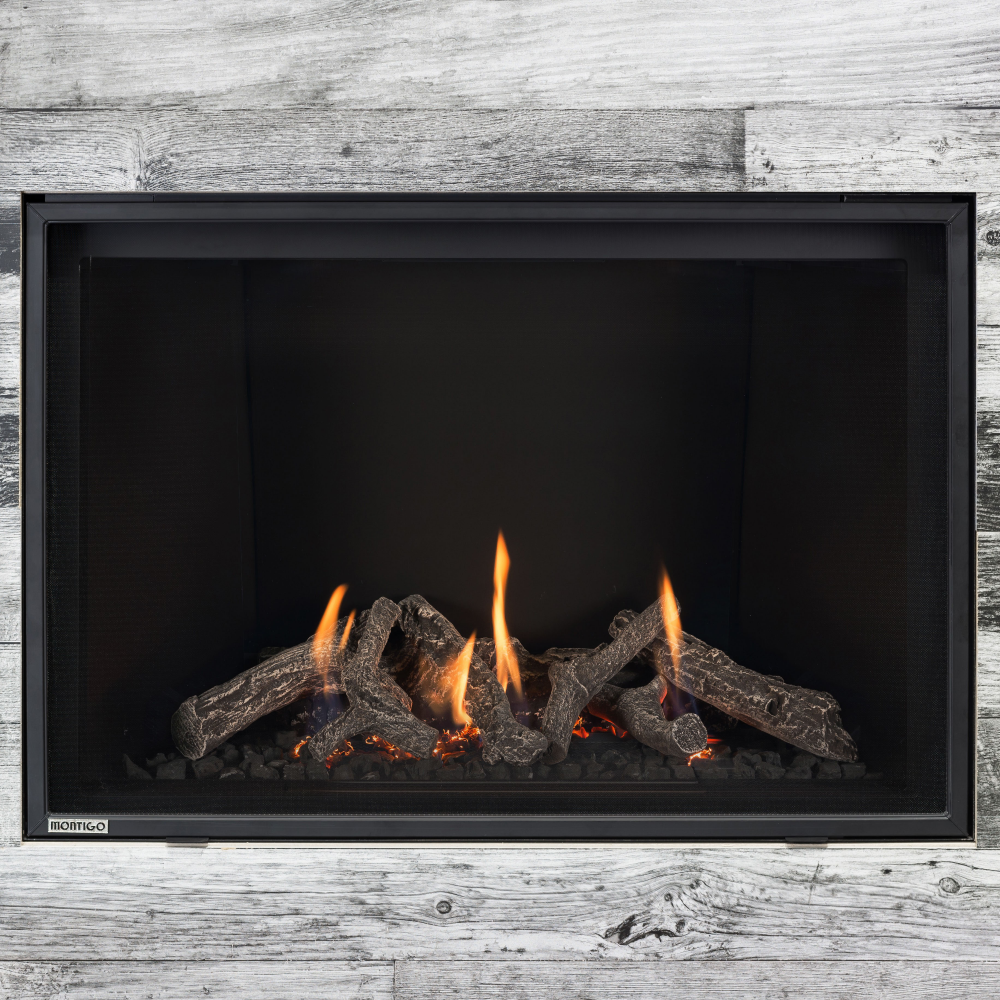

The Montigo DelRay 38 Square Basic (DRSQ38NI) is a single-sided direct vent gas fireplace with a square face, a 33-11/16 in. x 22-7/8 in. glass view and a concealed universal burner. Montigo rates the Basic model at 20,500 BTU/h on natural gas and 16,500 BTU/h on propane.
Basic models run from a wall on/off switch; the remote is optional. It vents with 5 in. x 8 in. direct vent pipe through the top or rear, or 4 in. x 7 in. top vent with Montigo's reduced conversion.
Key Specifications
| Model | DRSQ38NI (natural gas Basic); propane with the GCA020 conversion kit |
|---|---|
| Input | 20,500 BTU/h max, 14,500 min natural gas; 16,500 BTU/h max, 13,500 min propane |
| Efficiency | 63.4% natural gas; 61.8% propane |
| Glass viewing area | 33-11/16 in. x 22-7/8 in. |
| Burner | Concealed universal burner |
| Venting | Direct vent, 5 in. / 8 in. top or rear; 4 in. / 7 in. top vent with reduced conversion |
| Control | Wall on/off switch (15 ft low-voltage wire supplied); remote optional |
| Electrical | 115 V, 60 Hz, under 12 A |
| Certification | CSA/ANSI Z21.88-2019 / CSA 2.33-2019 |

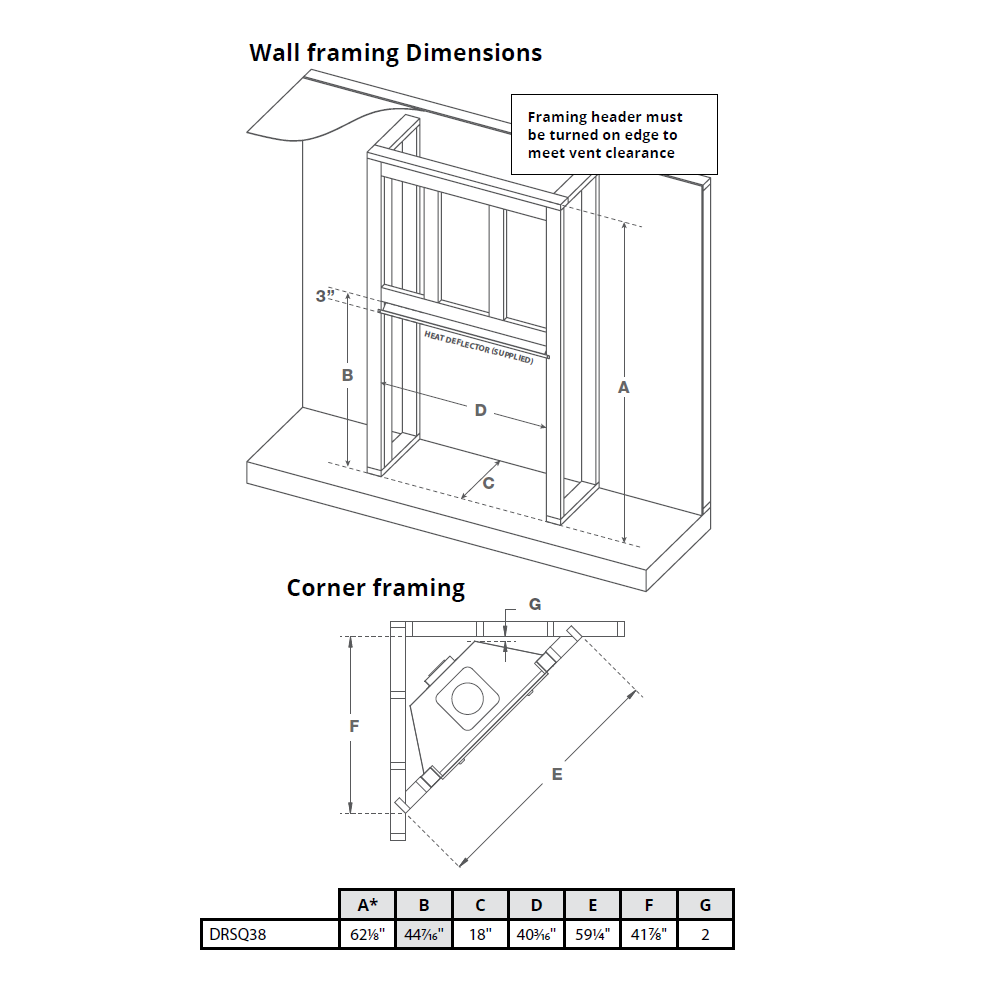

Dimensions and Cutout
| Framing (W x H x D) | 40-3/16 in. x 44-7/16 in. x 18 in. minimum |
|---|---|
| Minimum height for top vent | 62-1/8 in. |
| Clearances | 21 in. to ceiling top vent, 17 in. rear vent; 1-1/2 in. back; 0 in. sides and floor; 6 in. mantel; 1 in. around vent pipe, 2 in. above horizontal runs |
| Vent run (top vent) | 34 ft maximum total, 32 ft vertical, 25 ft horizontal, 4 elbows maximum with 3 ft deducted per elbow |
| Rear vent | 18 in. maximum horizontal; not permitted with 4 in. / 7 in. |
Features
- Concealed universal burner for a clean flame display
- Square face with a 33-11/16 in. x 22-7/8 in. view
- Top or rear direct venting, or co-linear into a masonry chimney

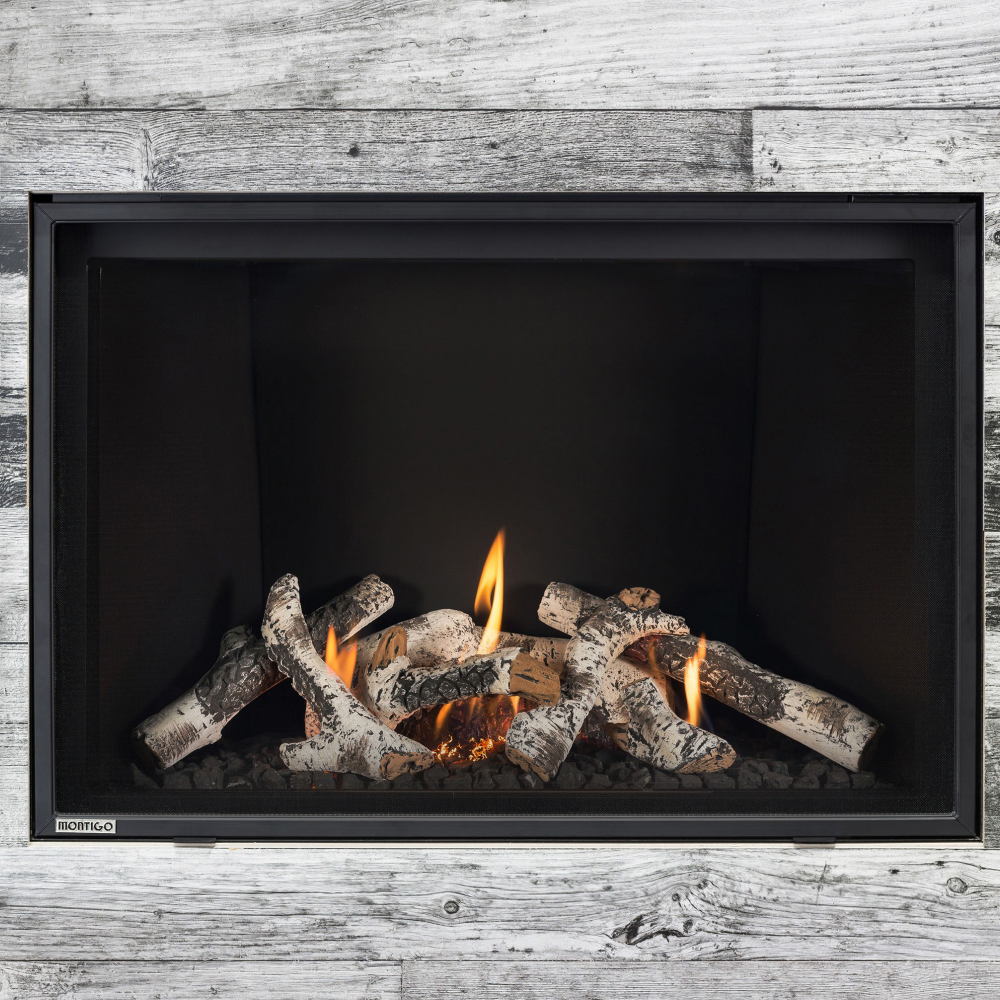

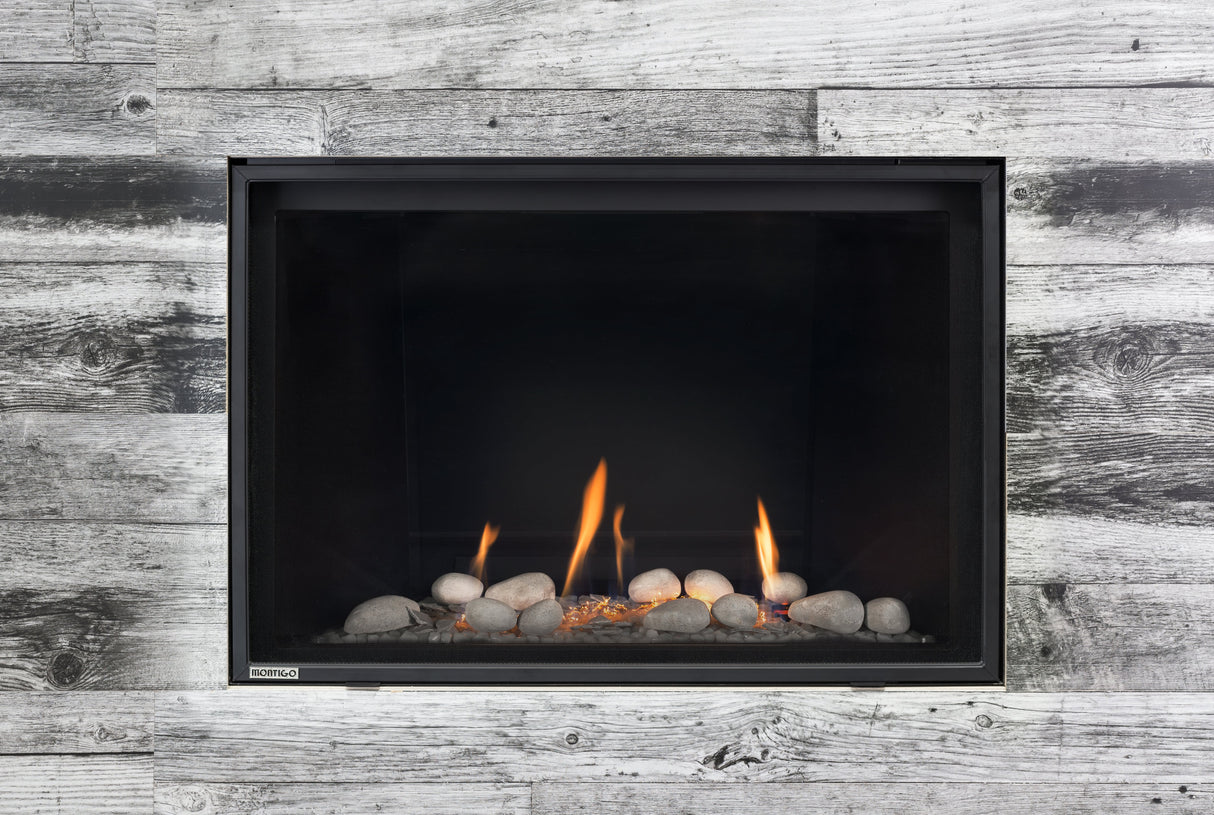

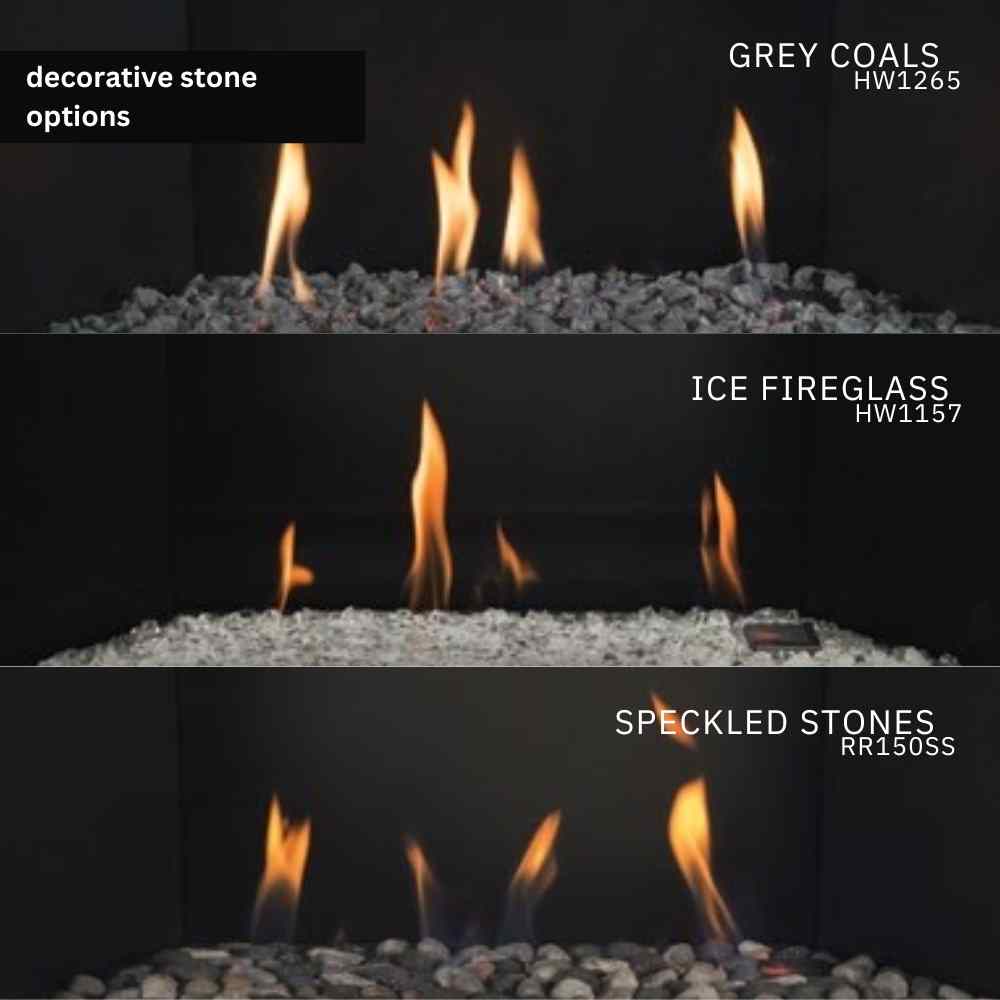

- Media choices from Montigo include logsets, contemporary scenes, speckled stones and glass

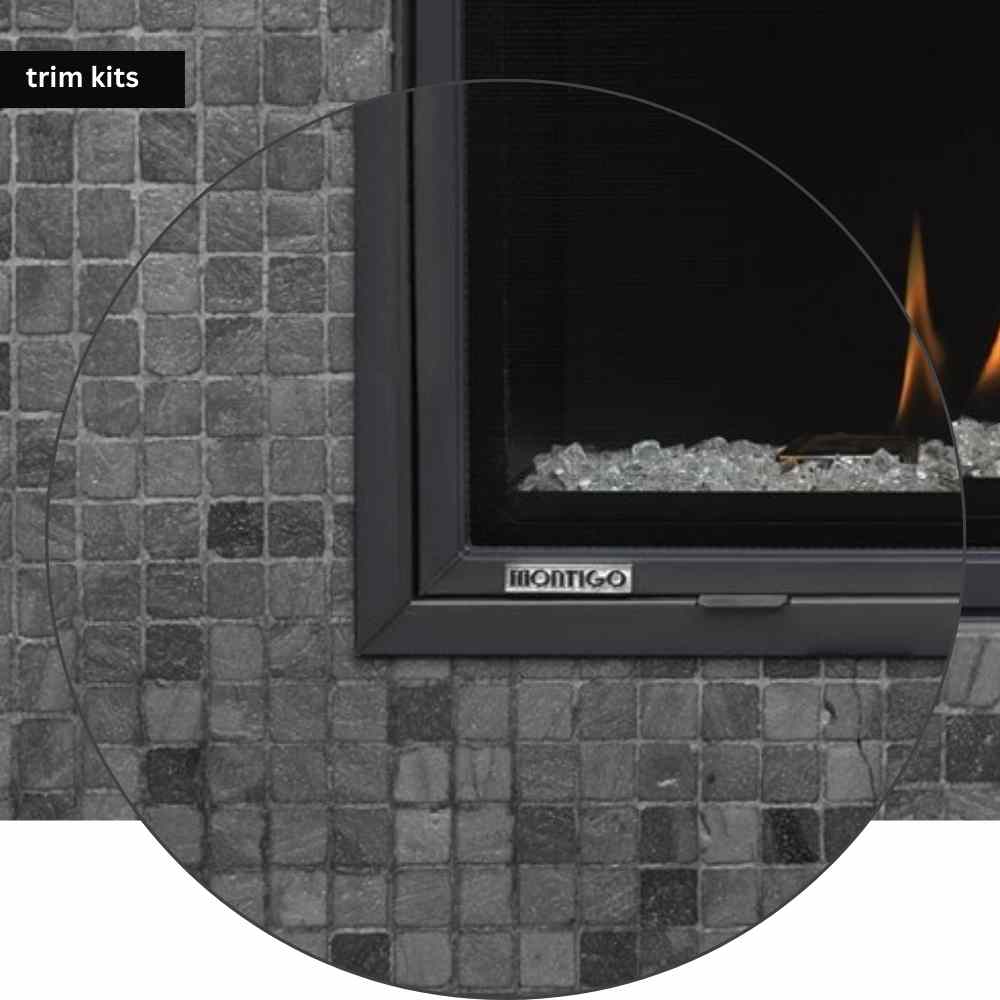

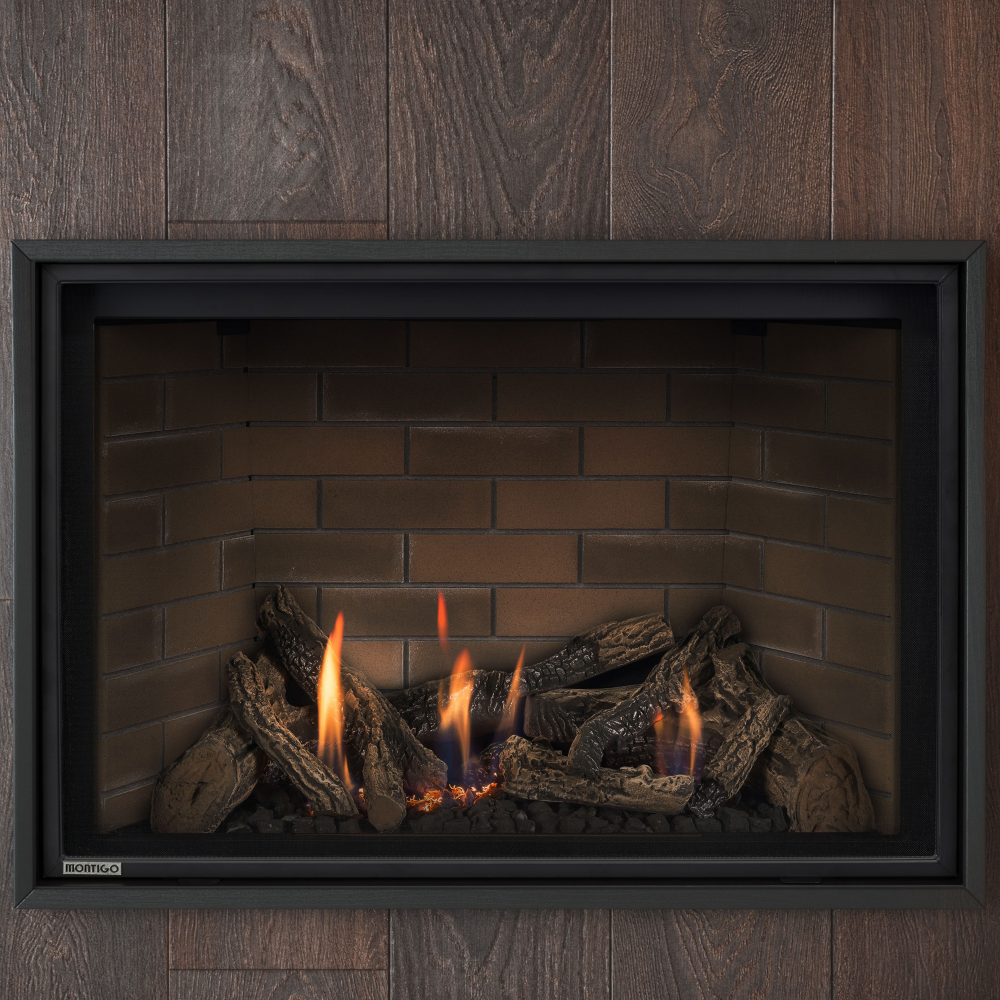

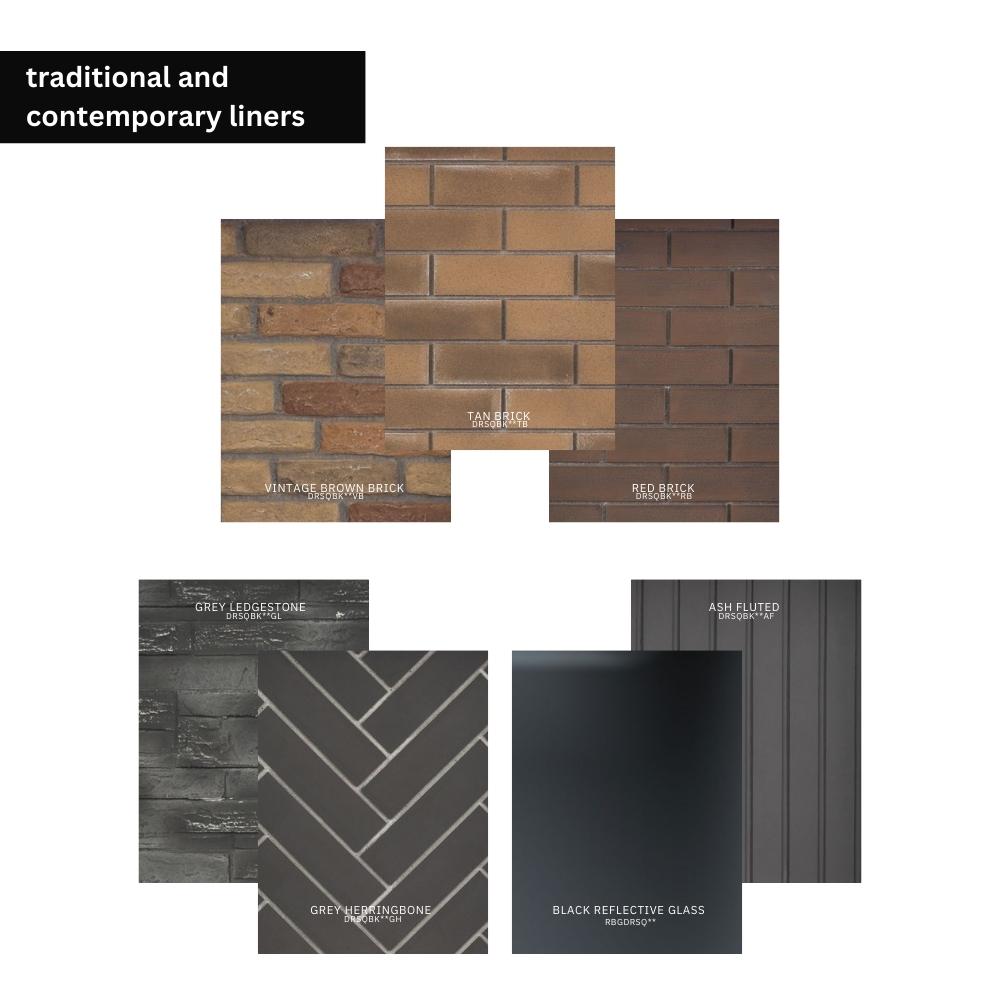

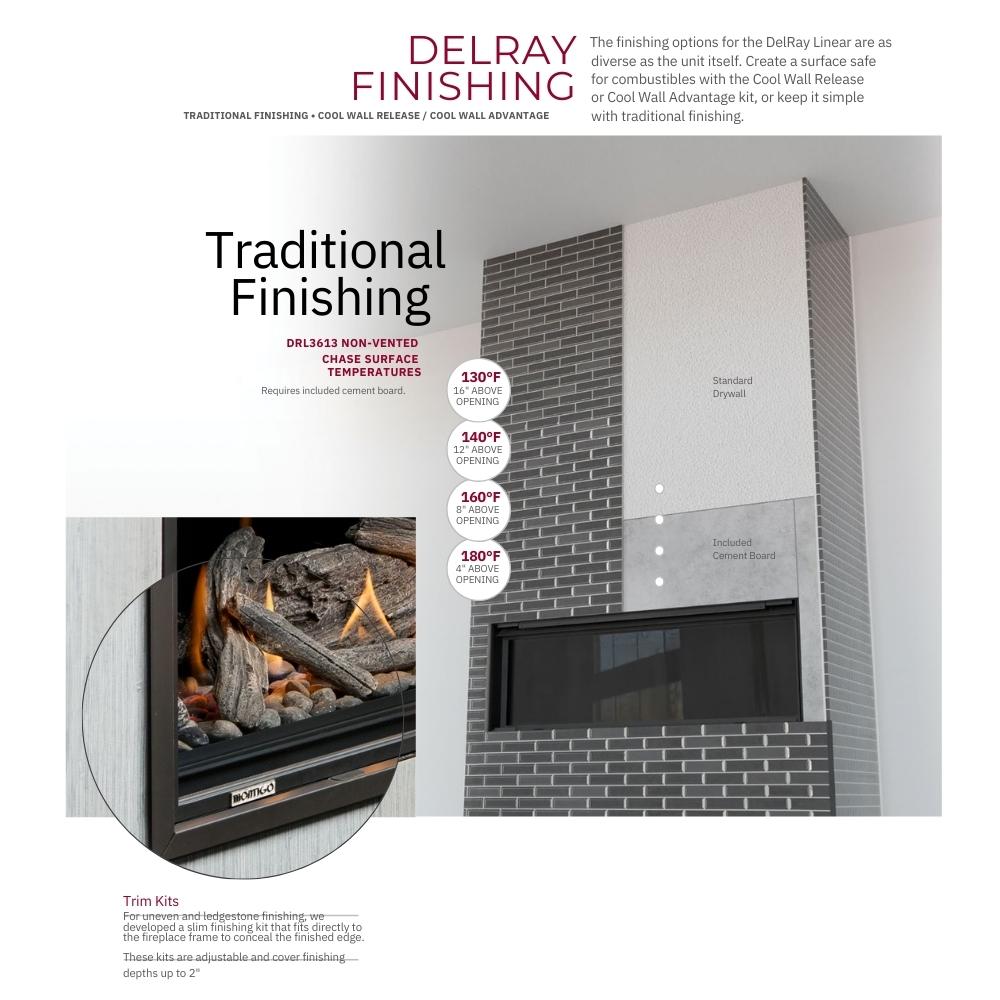

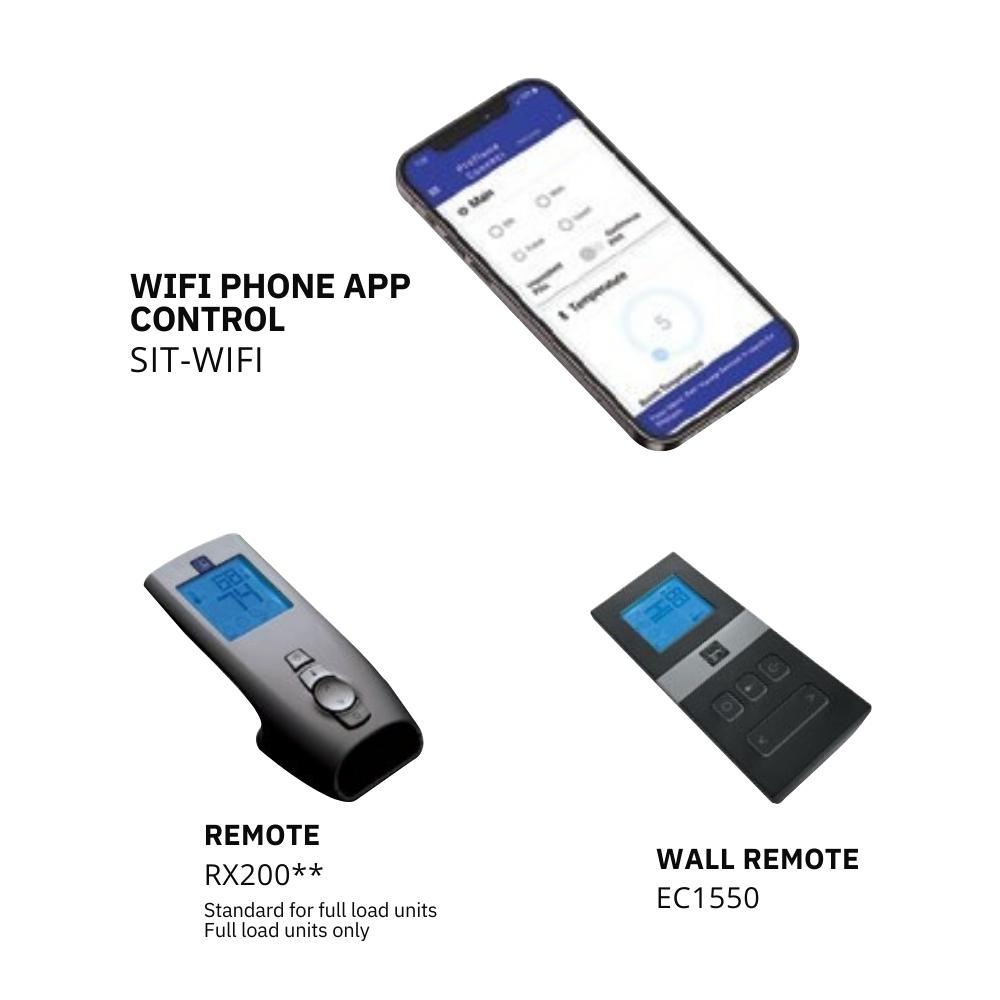

- Optional remote, heat management kit, adjustable trim kit and brick or reflective liners
What Is Included and What You Will Need
- Included per the manual: fireplace, 3 in. heat deflector, noncombustible cement board, restrictor, 15 ft low-voltage wire for the wall switch
- Required: a Montigo media system (not included on this listing)
- Required: 5 in. x 8 in. direct vent pipe and termination, Montigo vent or an approved alternate; Duravent 5 in. x 8 in. DirectVent Pro terminations such as 58DVA-HC and 58DVA-VCH, where the manual approves them
- Required: gas supply and a 115 V circuit; propane conversion with GCA020 by a qualified technician
Installation Notes
Frame to 40-3/16 in. x 44-7/16 in. x 18 in. and keep the clearances in the Montigo manual. Over non-wood combustible flooring, put a wood or metal panel under the full footprint. Keep the rear vent restrictor fully open and use only Montigo-approved vent parts. Gas and venting work must be done by a licensed installer. In New York City, gas work requires a licensed master plumber and permits, and sealed direct vent fireplaces like this one are a common code-compliant choice. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
How much heat does the Basic 38 make?
20,500 BTU/h on natural gas and 16,500 BTU/h on propane per the Montigo manual.
What is the difference from the Full Load?
Full Load adds a Proflame 2 remote, fans and downlighting and is rated 24,000 BTU/h; Basic uses a wall switch.
Is media included?
No. A Montigo logset, contemporary scene or glass media is needed.
Can it vent with 4 x 7 pipe?
Yes, top vent only, with Montigo's reduced 4 in. x 7 in. conversion.
Related reading: Direct Vent Gas Fireplace Buying Guide and Gas Log Set Buying Guide.
Warranty
Montigo limited warranty per the DelRay Square installation manual, Appendix B: 15 years on the firebox, heat exchanger and main burner (1 year labor), 15 years on Montigo venting, 10 years on Montigo terminations, and 1 year on gas controls, electrical components, media, glass, refractory and safety barriers. Unapproved venting parts or modifications void the warranty. Montigo's warranty terms require the fireplace to be purchased, installed and serviced annually by an authorized Montigo dealer for coverage to remain valid.
