Description
Description
Explore other Montigo DelRay Full-Load Square sizes: 34 inch | 38 inch (this size) | 42 inch | 46 inch
Overall Dimensions (framing): 40 3/16 in W x 18 in D x 44 7/16 in H

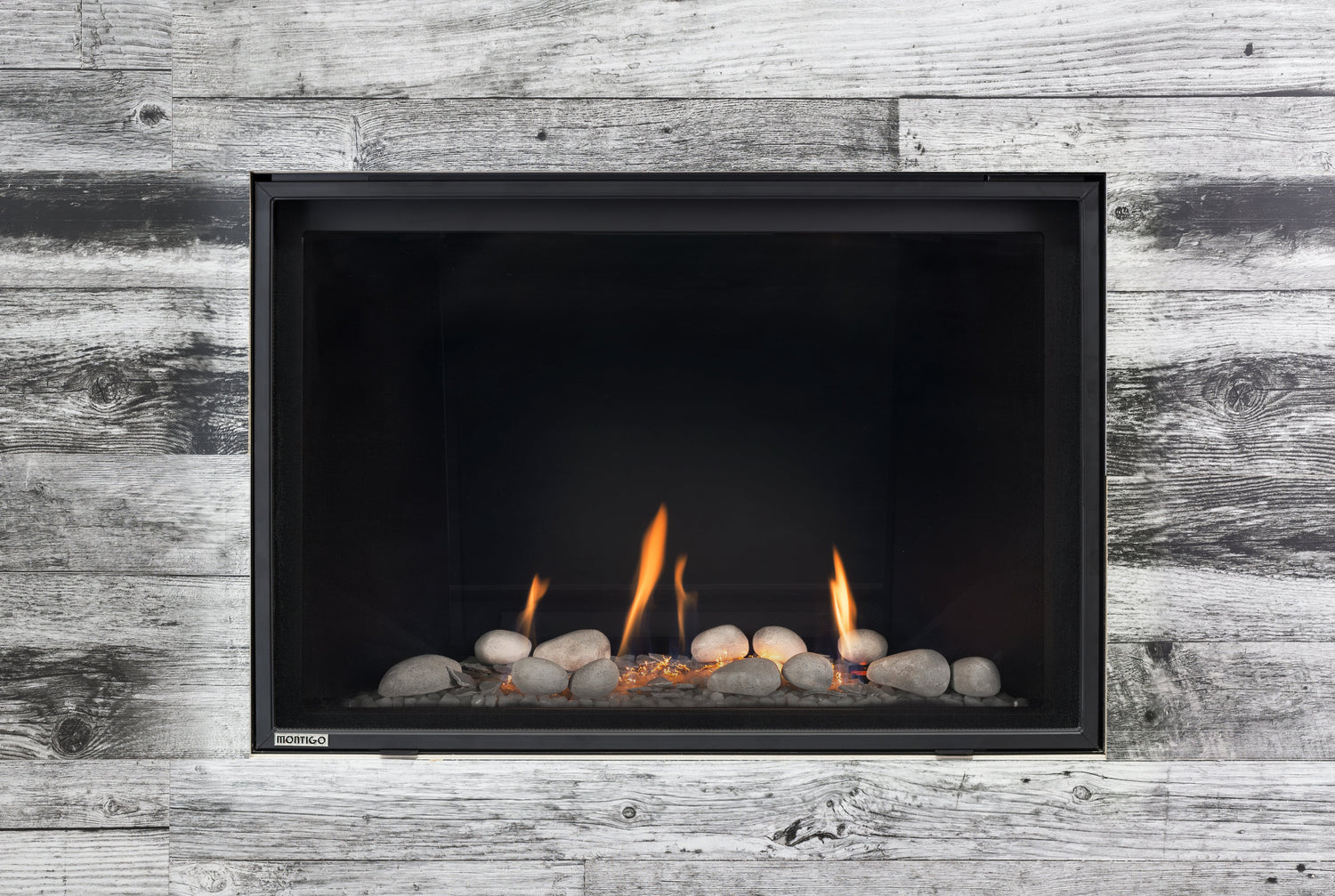

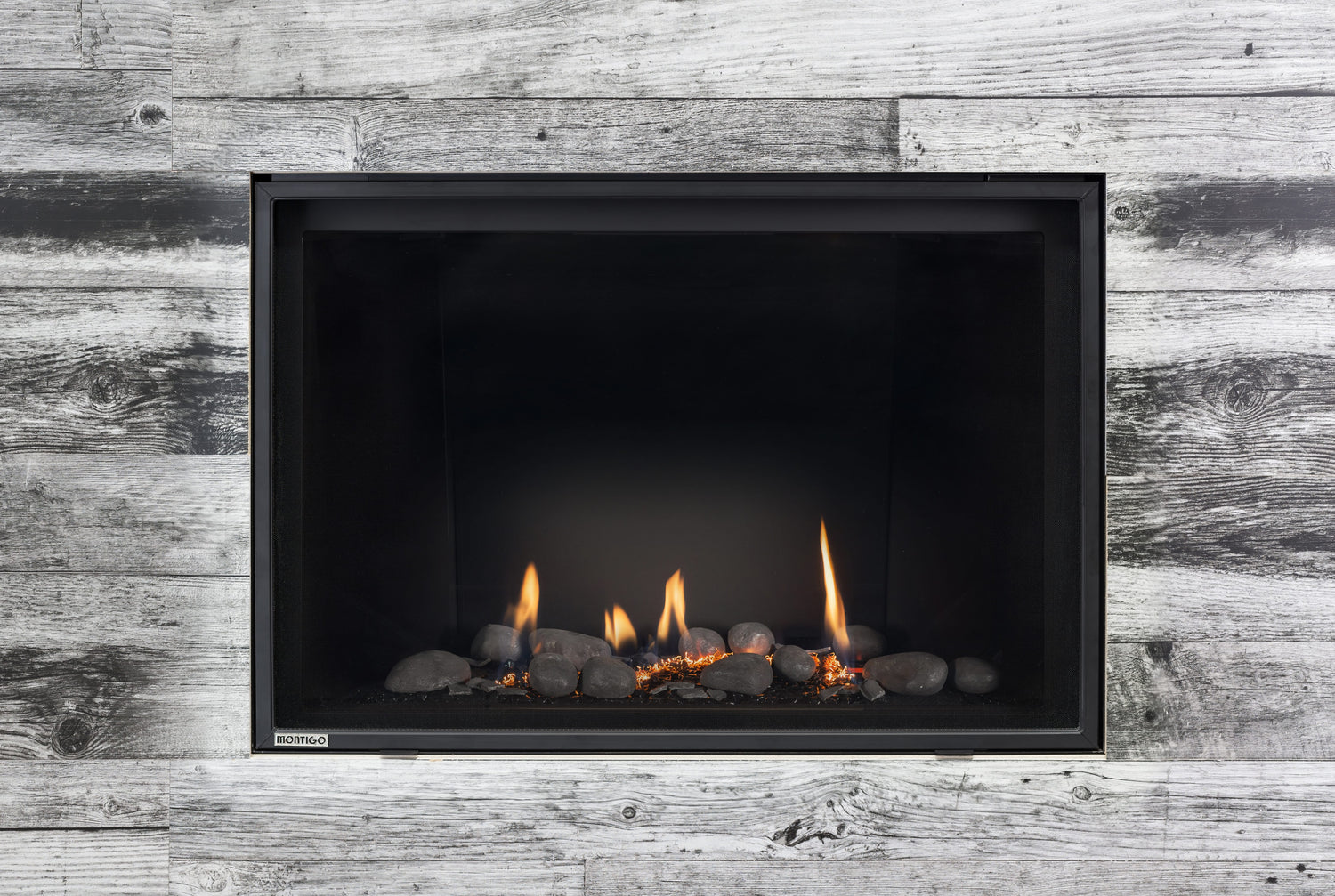

The Montigo DelRay Full-Load 38 Square (DRSQ38NI-2) is a direct vent gas fireplace with a refined square face, a concealed universal burner and a 33 11/16 in x 22 7/8 in viewing area. The Full-Load package adds a multi-function remote, remote-controlled fans, halogen downlighting and battery backup, so it is ready for a living room where the fireplace is the focal point.
Key Specifications
| Model | DRSQ38NI-2 (natural gas), propane model with conversion kit |
|---|---|
| Input | 24,000 BTU/hr natural gas, 19,500 BTU/hr propane |
| Efficiency | 65% natural gas, 61.5% propane (per listing) |
| Viewing Area | 33 11/16 in x 22 7/8 in |
| Venting | Direct vent, 5 in / 8 in co-axial |
| Burner | Concealed universal burner |
| Electrical | 115 V, 60 Hz |
| Safety Screen | Micro mesh safety screen |
| Certification | CSA/ANSI Z21.88, CSA 2.33 |

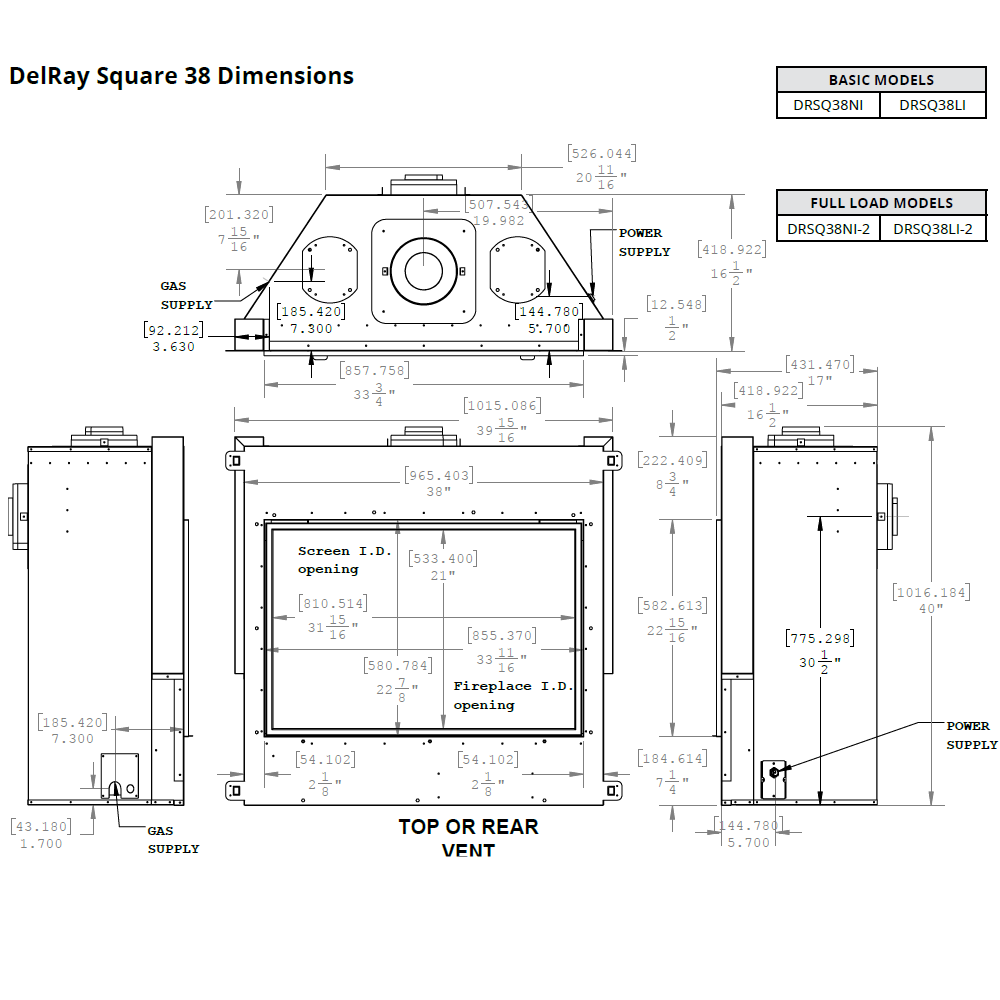

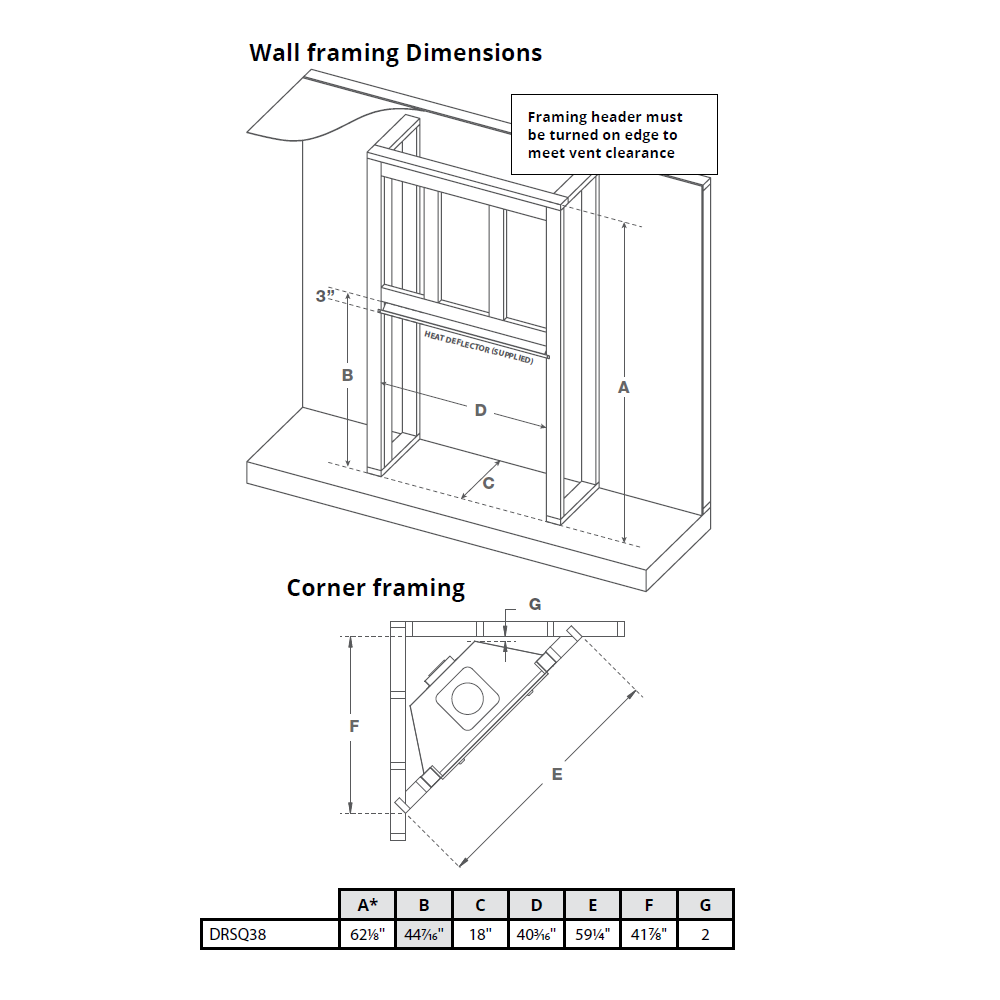

Dimensions and Cutout
| Framing Width | 40 3/16 in (listing shows 40 in) |
|---|---|
| Framing Height | 44 7/16 in |
| Framing Depth | 18 in |
| Viewing Area | 33 11/16 in x 22 7/8 in |
The manual lists a minimum 62 1/8 in vertical dimension for top venting and rear venting and co-linear venting options. Confirm all framing and vent runs against the installation manual.
Features
- Concealed universal burner for a clean flame display

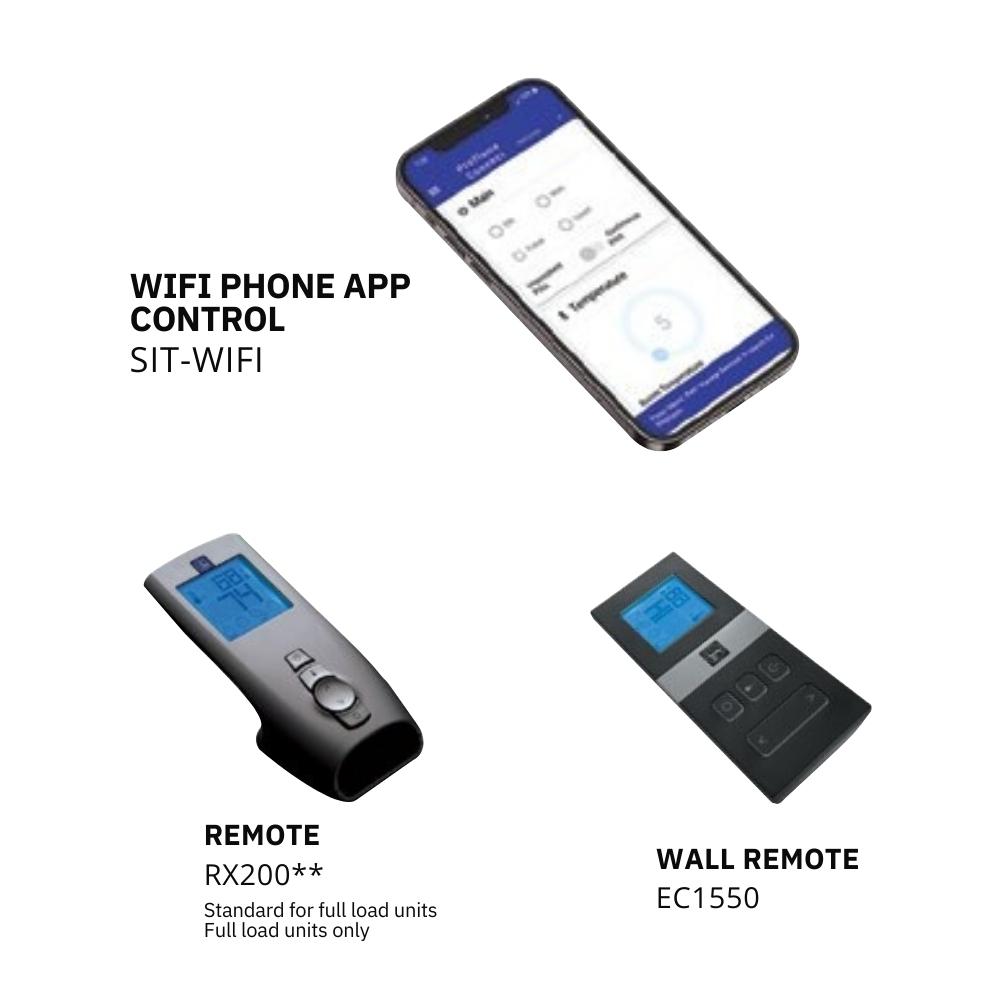

- Multi-function remote for flame height, heat and lighting
- Remote-controlled fans for heat distribution
- Halogen downlighting that glows when the fireplace is off
- Battery backup for operation during power outages
- Micro mesh safety screen

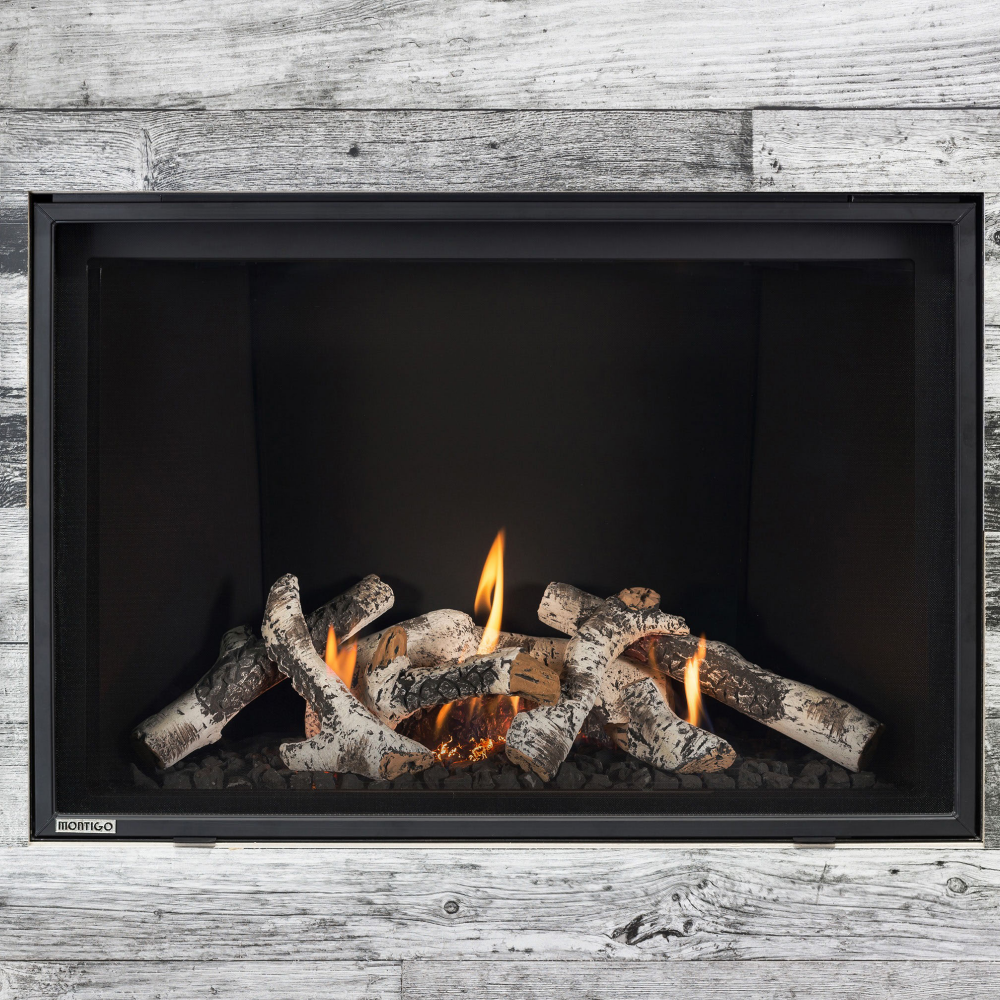

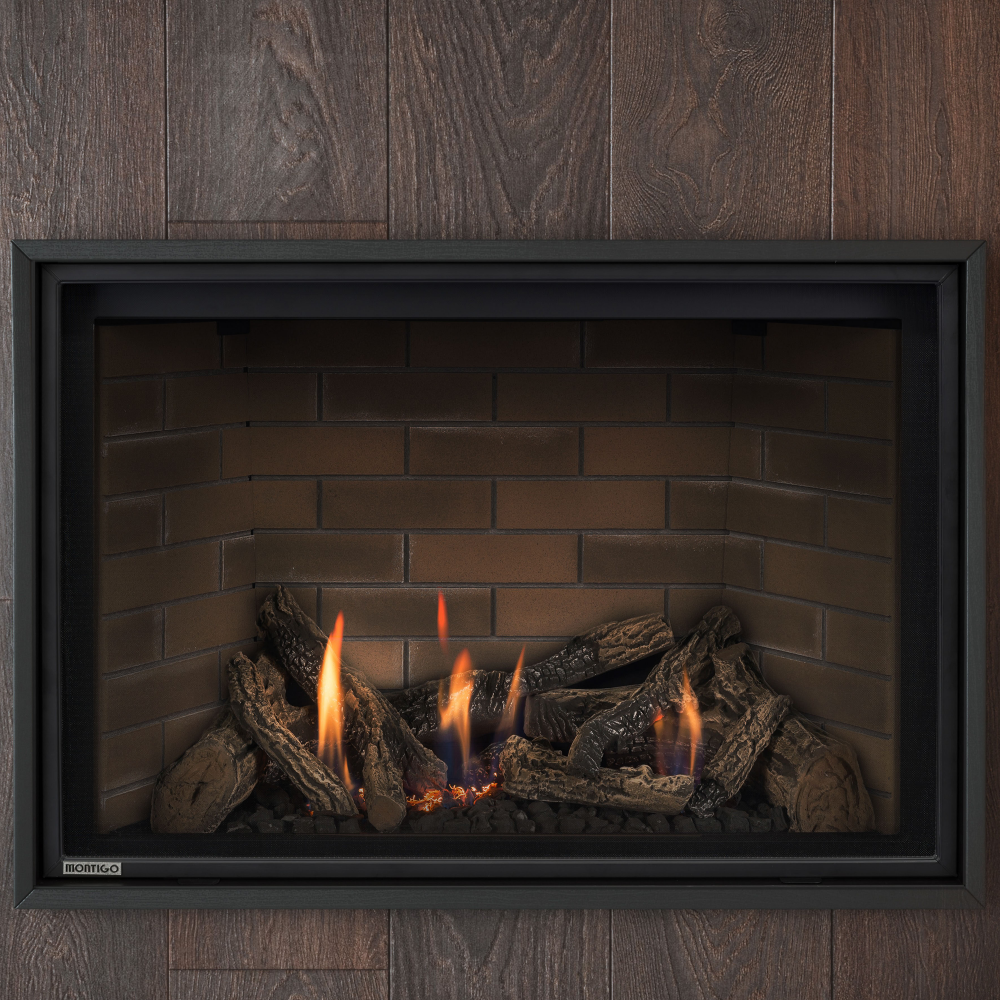

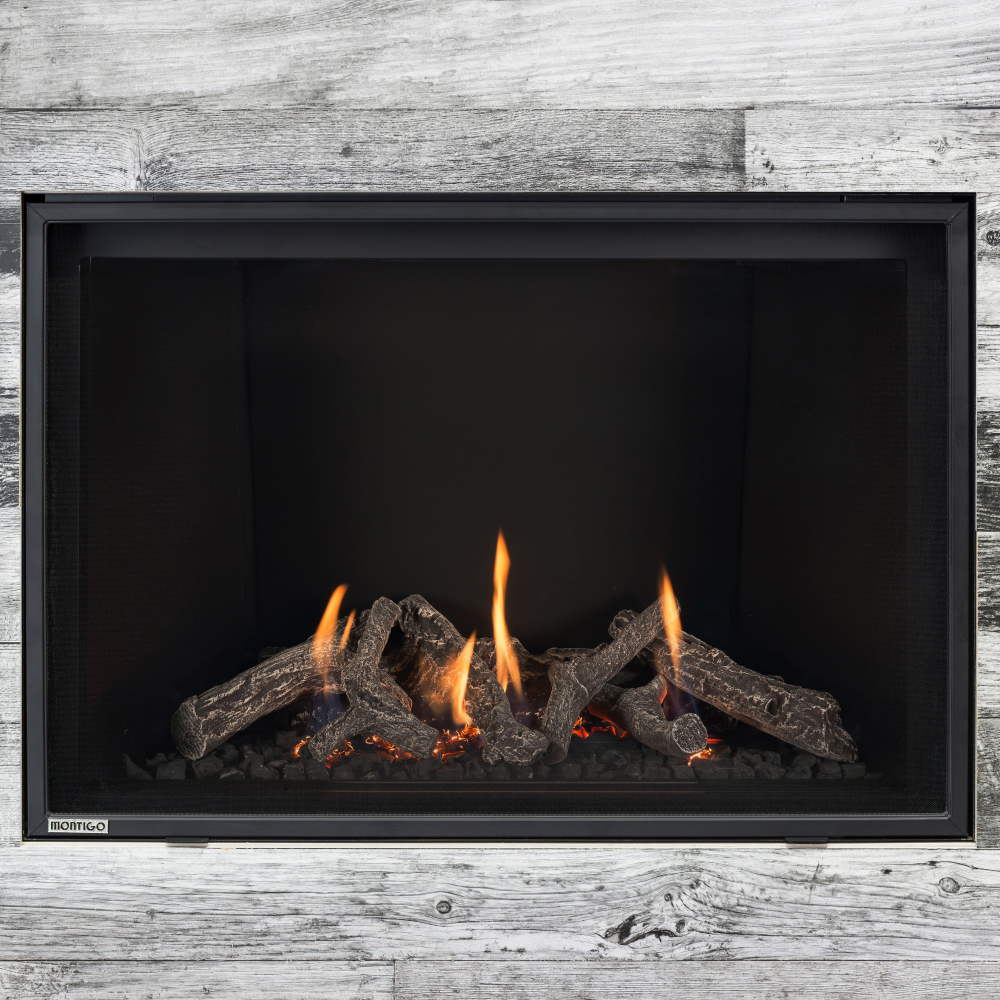

- Media choices include logsets, speckled stones, glass media and contemporary scenes

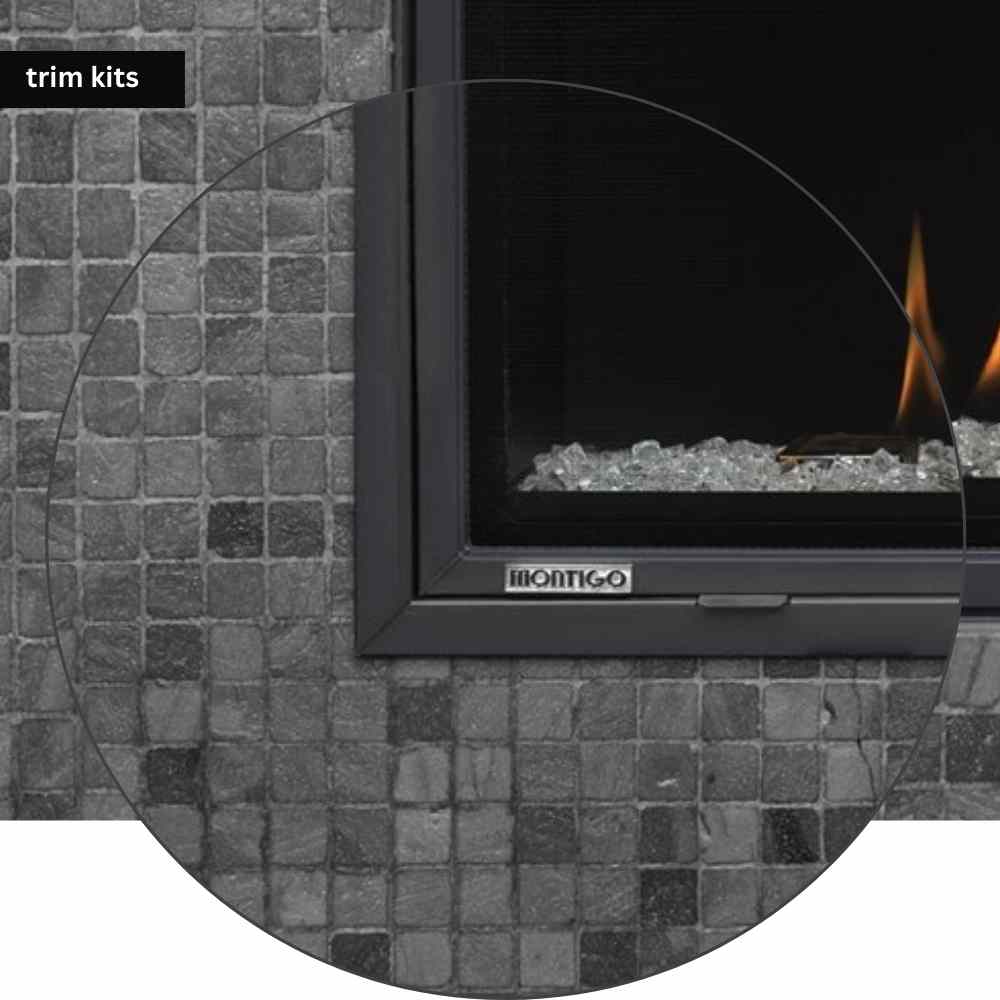

- Optional heat management kit, trim kits and WiFi control
What Is Included and What You Will Need
- Included per listing: fireplace, multi-function remote, remote-controlled fans, micro mesh safety screen, halogen downlighting, battery backup
- Needed, sold separately: 5 in / 8 in direct vent pipe and termination (Montigo vent kits such as PVK05 are listed in the manual), gas line, 115 V power, media and trim kit of your choice
- Optional: heat management kit, WiFi module, propane conversion kit
Installation Notes
This is a direct vent appliance for natural gas, convertible to propane with the Montigo conversion kit. Follow the installation manual for venting, mantel projections, clearances and finishing materials, and use a licensed installer. In New York City, installation must also meet NYC code. Book a design consultation to plan the vent run and layout.
Documentation
Frequently Asked Questions
What is the heat output?
24,000 BTU/hr on natural gas and 19,500 BTU/hr on propane.
Does it need a chimney?
No. It is direct vent, using 5 in / 8 in co-axial pipe through a wall or roof.
Can it be run on propane?
Yes, with the Montigo propane conversion kit.
Does it work in a power outage?
The listing states it has battery backup for reliable operation during outages.
Related reading: Direct Vent Gas Fireplace Buying Guide, Linear vs. Traditional Fireplaces.
Warranty
Montigo limited warranty per the manual: 15 years on the firebox, heat exchanger and main burner (1 year labor), 15 years on Montigo venting (1 year labor), 10 years on Montigo terminations, and 1 year on gas controls, electrical components, media, glass, refractory and safety barriers. Montigo's warranty terms require the fireplace to be purchased, installed and serviced annually by an authorized Montigo dealer for coverage to remain valid.
