Montigo  |  SKU: DRSQ42NI-2

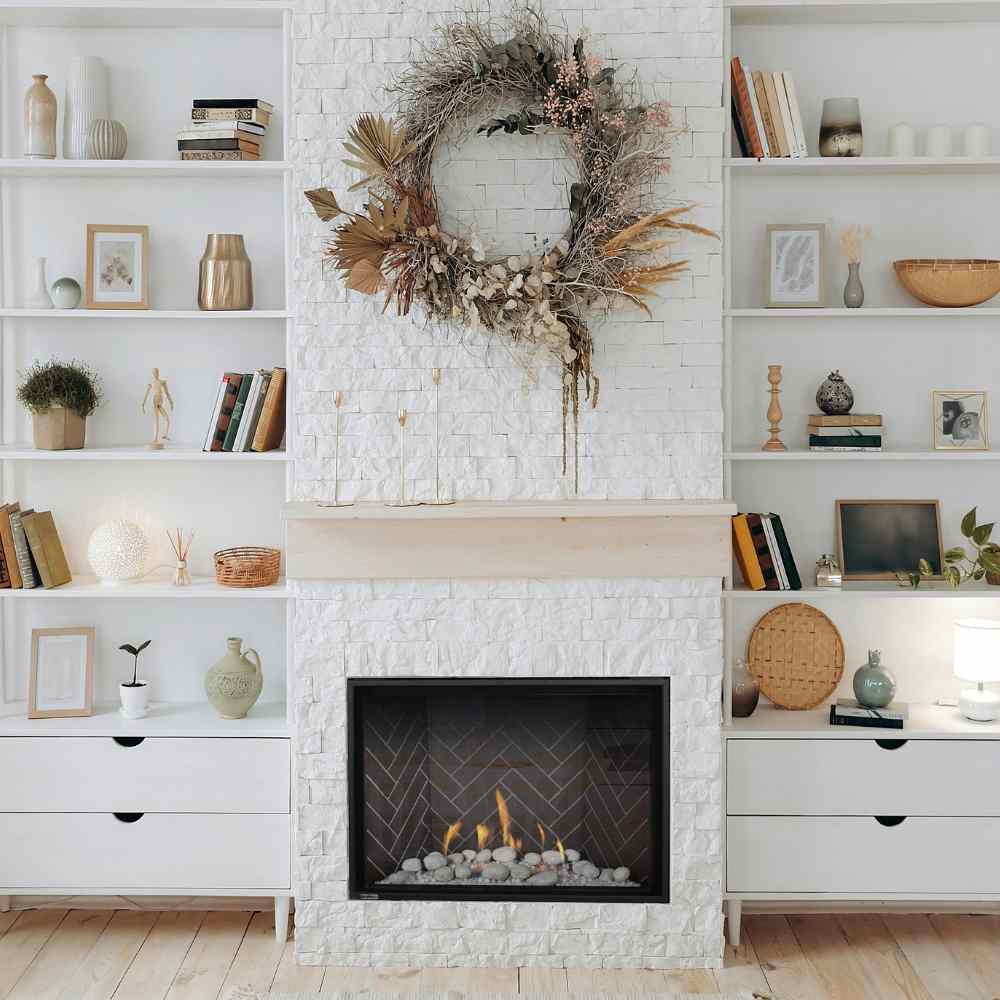

Montigo DelRay Full-Load 42 Square Direct-Vent Gas Fireplace - DRSQ42NI-2

$6,519.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

This item is available for pick-up or local delivery only (NYC Tri-State NJ CT & Long Island). Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Local delivery or pick-up across NYC, Long Island, NJ and CT. Delivery is free on this item.
  • Factory-authorized Montigo dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Local Delivery
  • Our team & trucks deliver locally within 60 miles of our showroom. (NYC Tri-State including all of Suffolk County)
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 days
  • $49.95 Flat-Rate Local Shipping on orders under $999
  • Setup & Assembly available for most items at checkout

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
Call for a free quote 877-692-3765

Visit our sister site to learn more about our showroom products like Direct Vent Gas Fireplaces, www.NYCFireplaces.com

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Explore other Montigo DelRay Full-Load Square sizes: 34 inch | 38 inch | 42 inch (this size) | 46 inch

Overall Dimensions: 42 in. W x 19-1/2 in. D x 43-3/16 in. H

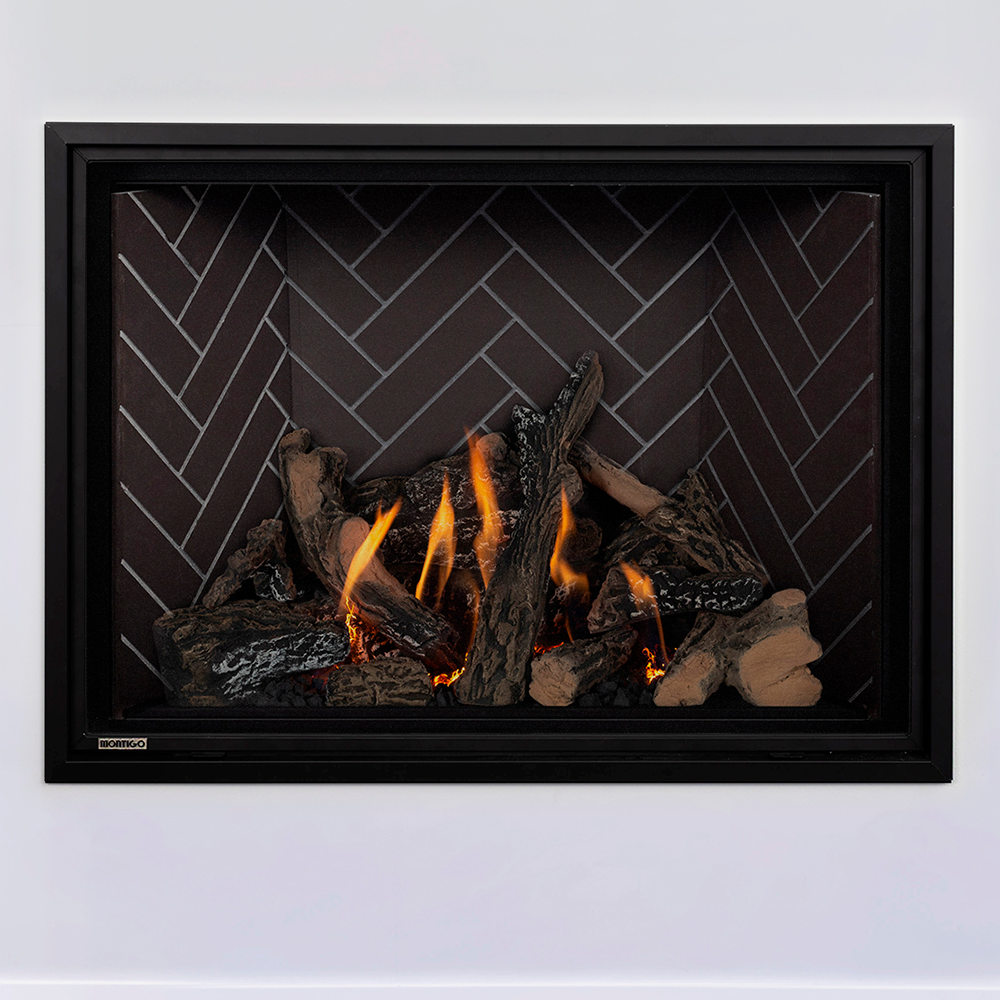

The DelRay Full-Load 42 Square is a single-sided direct vent gas fireplace with a tall 37-11/16 in. x 26-7/8 in. opening and a concealed universal burner that takes a traditional logset, a contemporary scene, speckled stones or glass media. It suits a living room or den where you want classic fireplace proportions with modern controls. The Full-Load package makes the remote with Hi-Lo flame, fans, halogen downlighting, micro mesh screen and battery backup standard, items that are options on the Basic DRSQ42NI.

Key Specifications

Model DRSQ42NI-2 (natural gas); propane listing DRSQ42LI-2. Our propane option pairs the DRSQ42NI-2 with conversion kit GCA027
Input 32,500 BTU/h natural gas; 27,000 BTU/h propane
Efficiency (P.4.1-15) 63.1% natural gas; 63% propane
Viewing area 37-11/16 in. W x 26-7/8 in. H

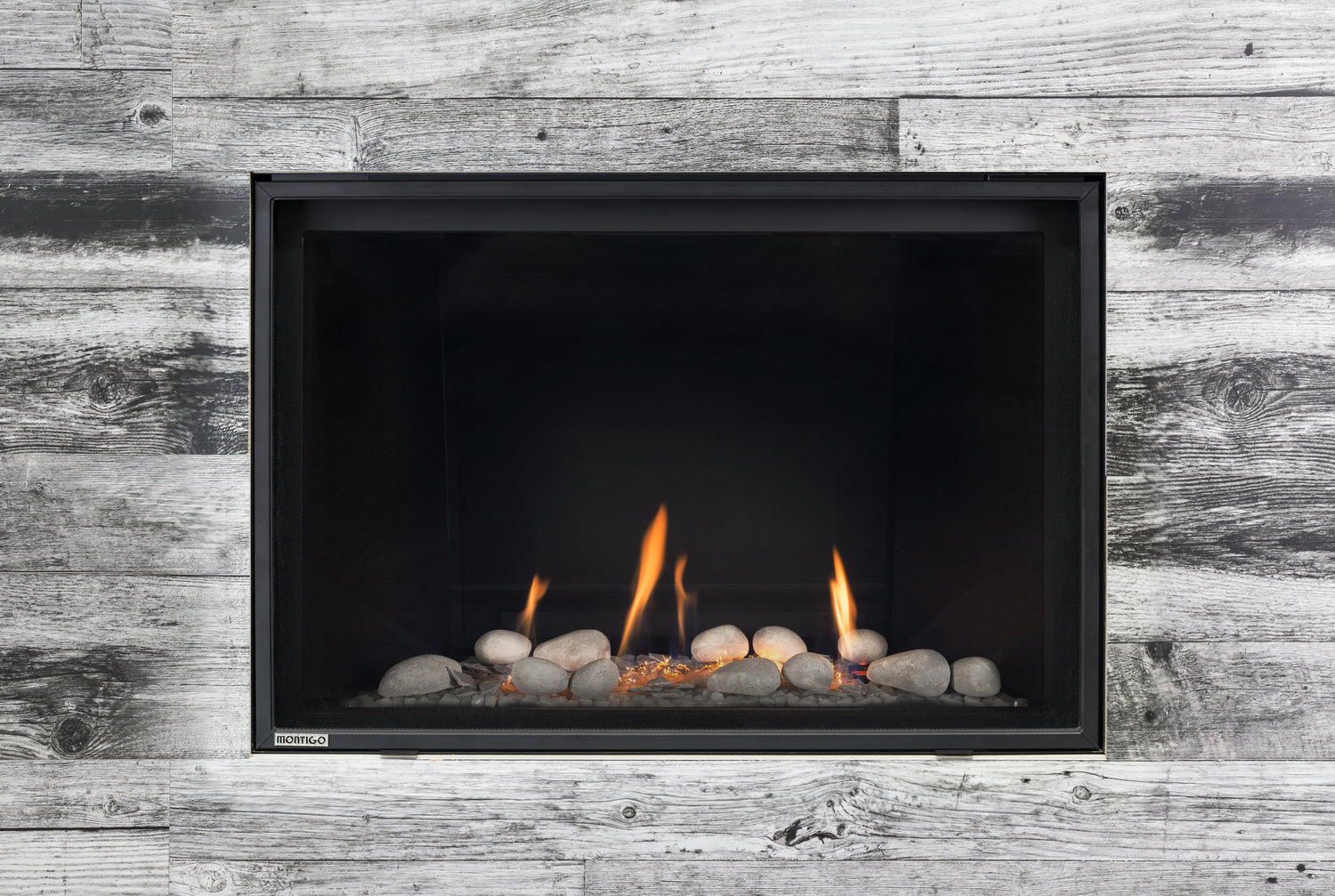

Burner and media Concealed universal burner for logsets, contemporary scenes, speckled stones or glass media
Controls Multi-function remote with remote Hi-Lo flame, remote-controlled fans, battery backup
Venting Direct vent, 5 in. / 8 in., top or rear vent
Electrical 115V, 60 Hz, less than 12 A
Certification ANSI Z21.88 vented gas fireplace heater

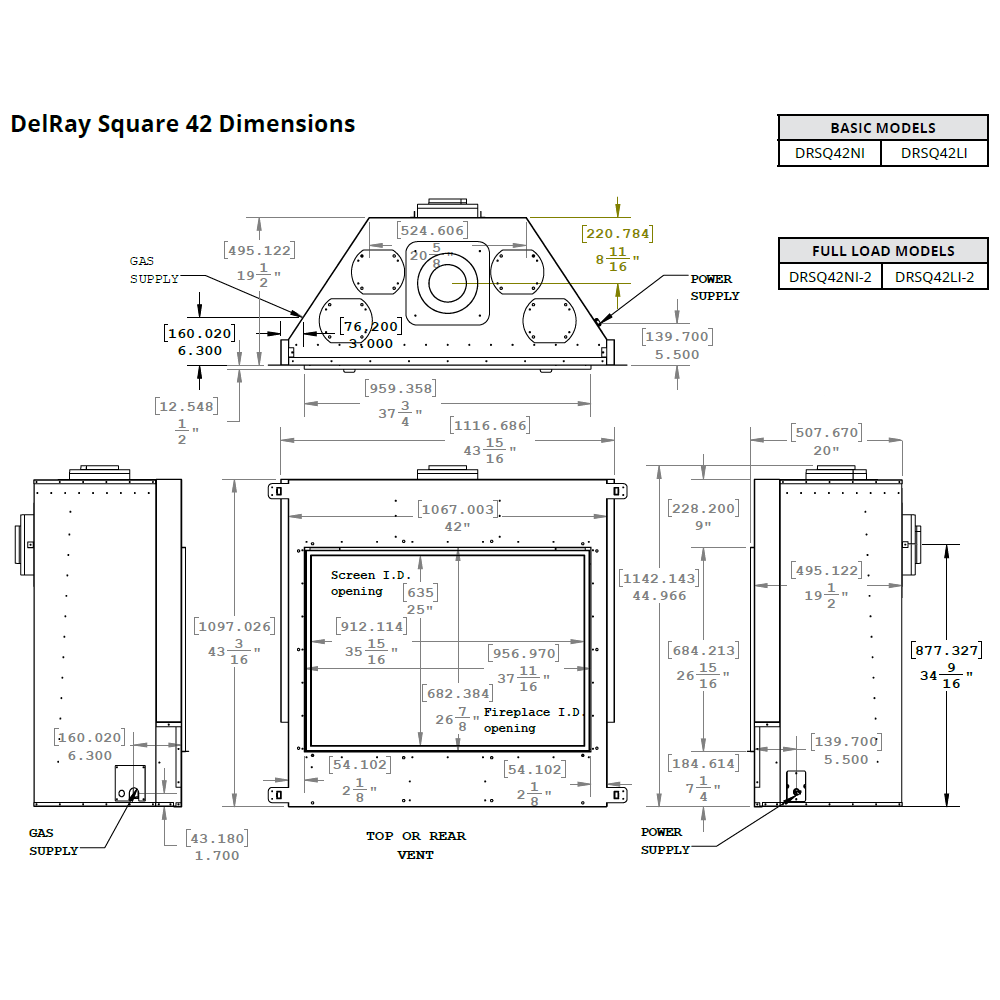

Dimensions and Cutout

Unit (W x H x D) 42 in. x 43-3/16 in. x 19-1/2 in.; back width 20-5/8 in.
Framing (W x H x D) 45 in. x 51 in. x 21 in. minimum per the manual framing table (spec sheet quick dimensions list 22 in. depth)
Minimum enclosure height 72 in.; some vent layouts with more vertical rise need a taller enclosure
Clearances 28 in. from the top of the unit to the enclosure ceiling; 0 in. to the floor; 1 in. around vent pipe and 2 in. above horizontal runs; header must be installed on edge
Vent limits (top vent) Up to 34 ft total, 32 ft vertical and 25 ft horizontal, maximum four elbows; longer runs need a power vent

Features

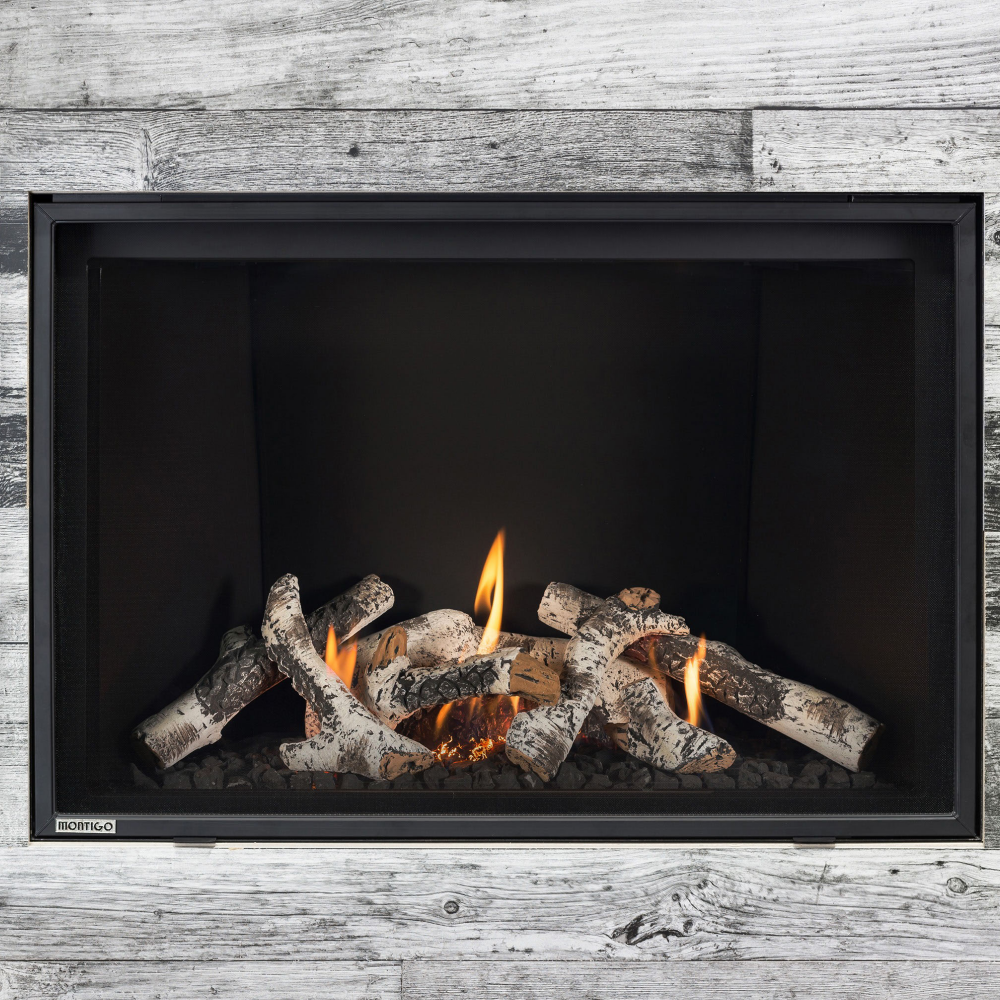

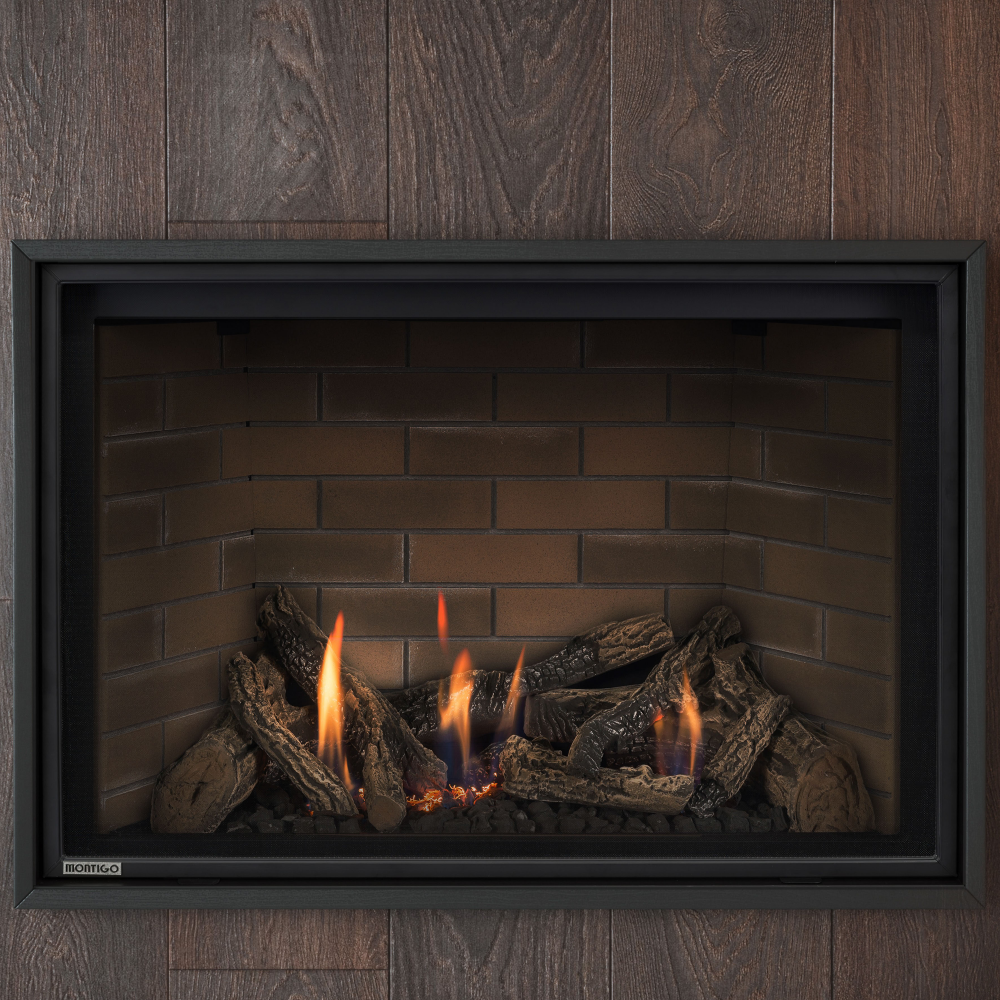

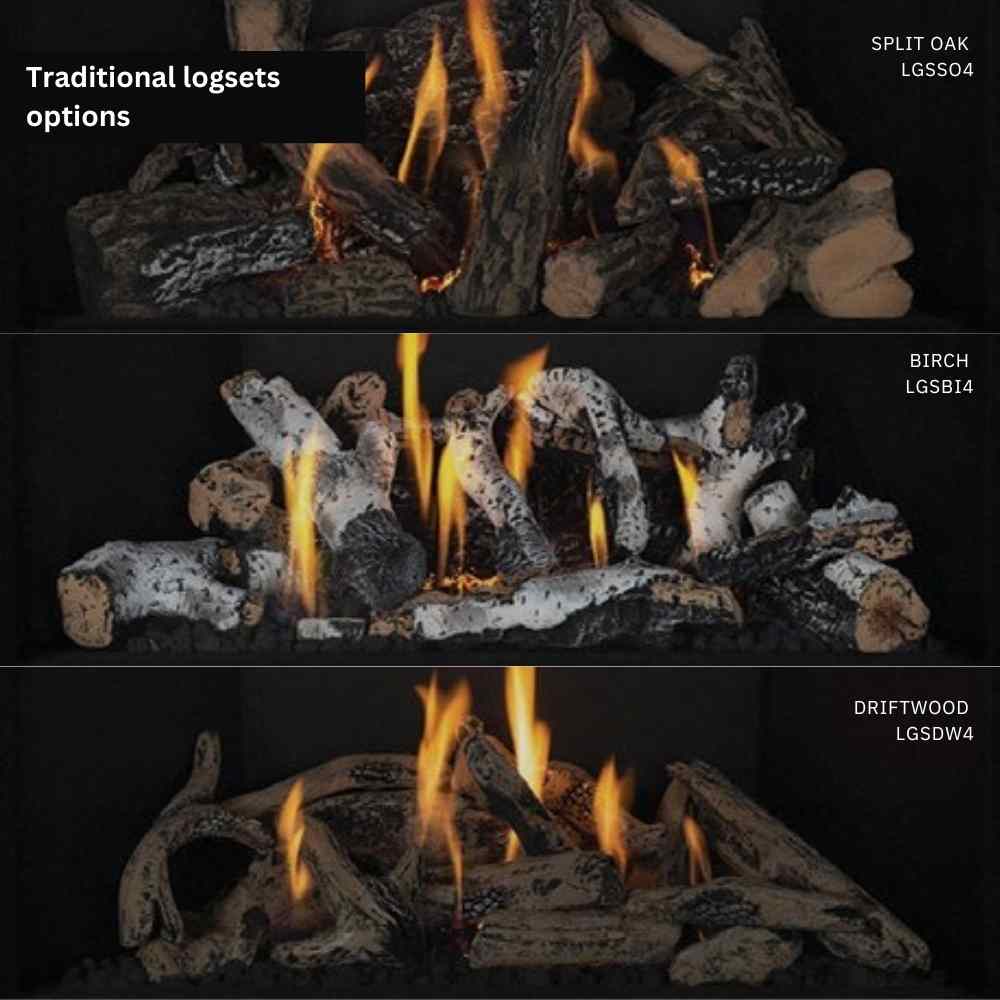

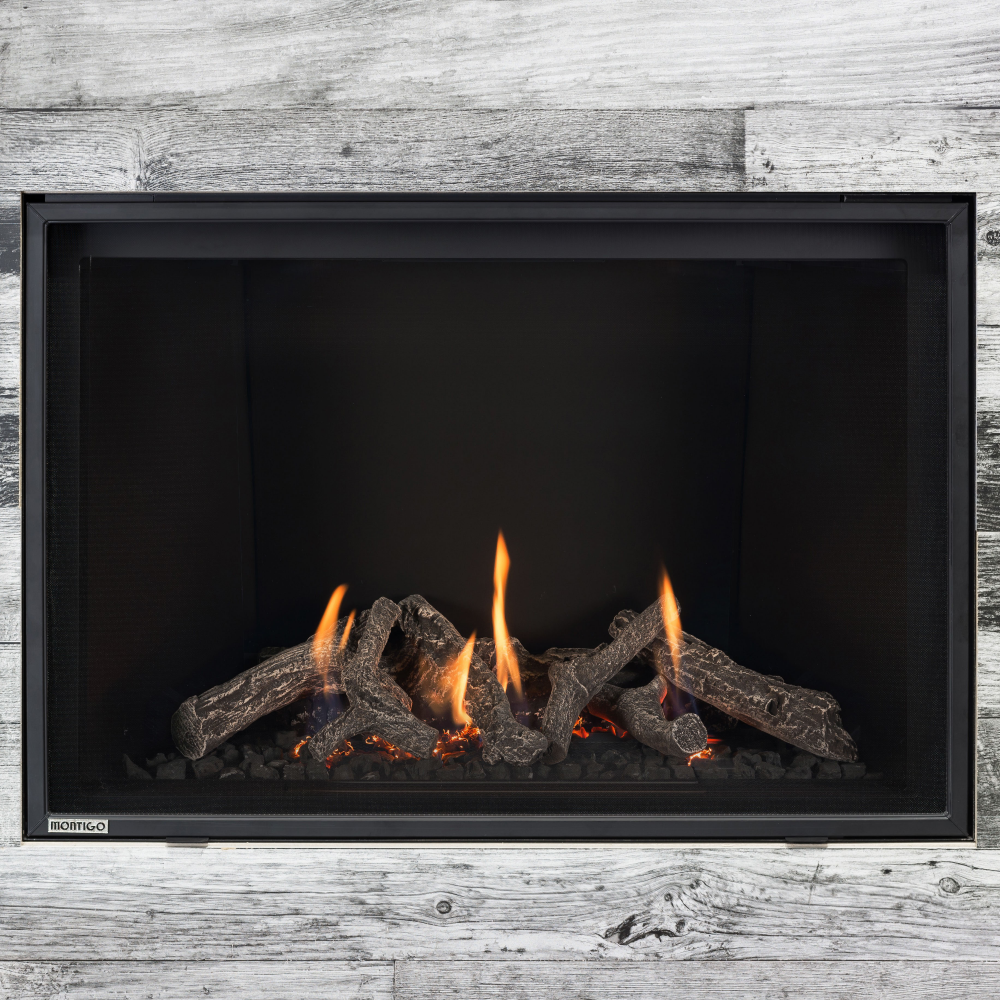

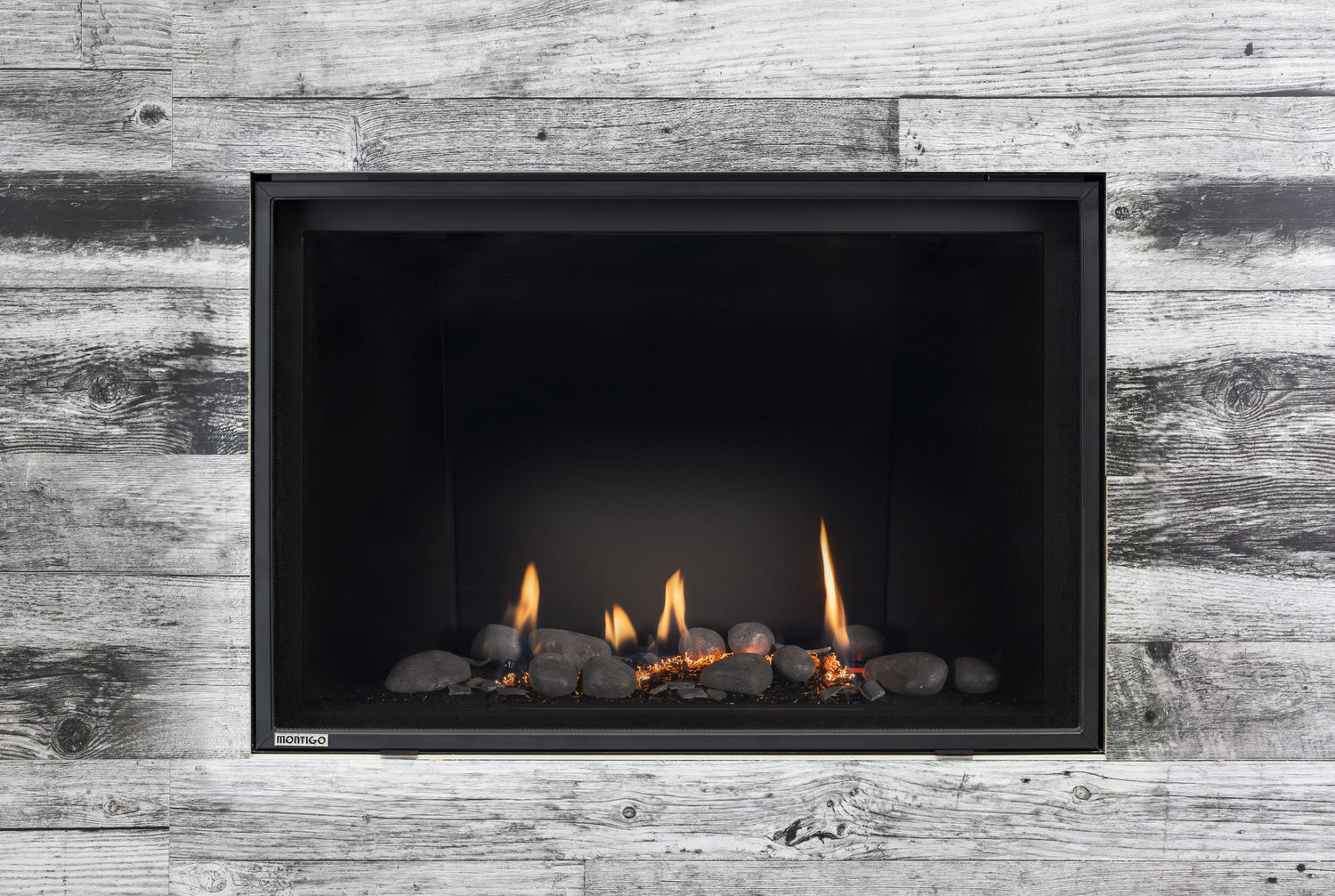

  • Concealed universal burner that accepts traditional logsets (Split Oak, Birch, Driftwood), contemporary scenes, speckled stones or glass media
  • Multi-function remote control with remote Hi-Lo flame adjustment
  • Remote-controlled fans to move heat into the room
  • Halogen downlighting that lights the firebox even with the flame off
  • Micro mesh safety screen in front of the glass
  • Battery backup so the fireplace runs during a power outage

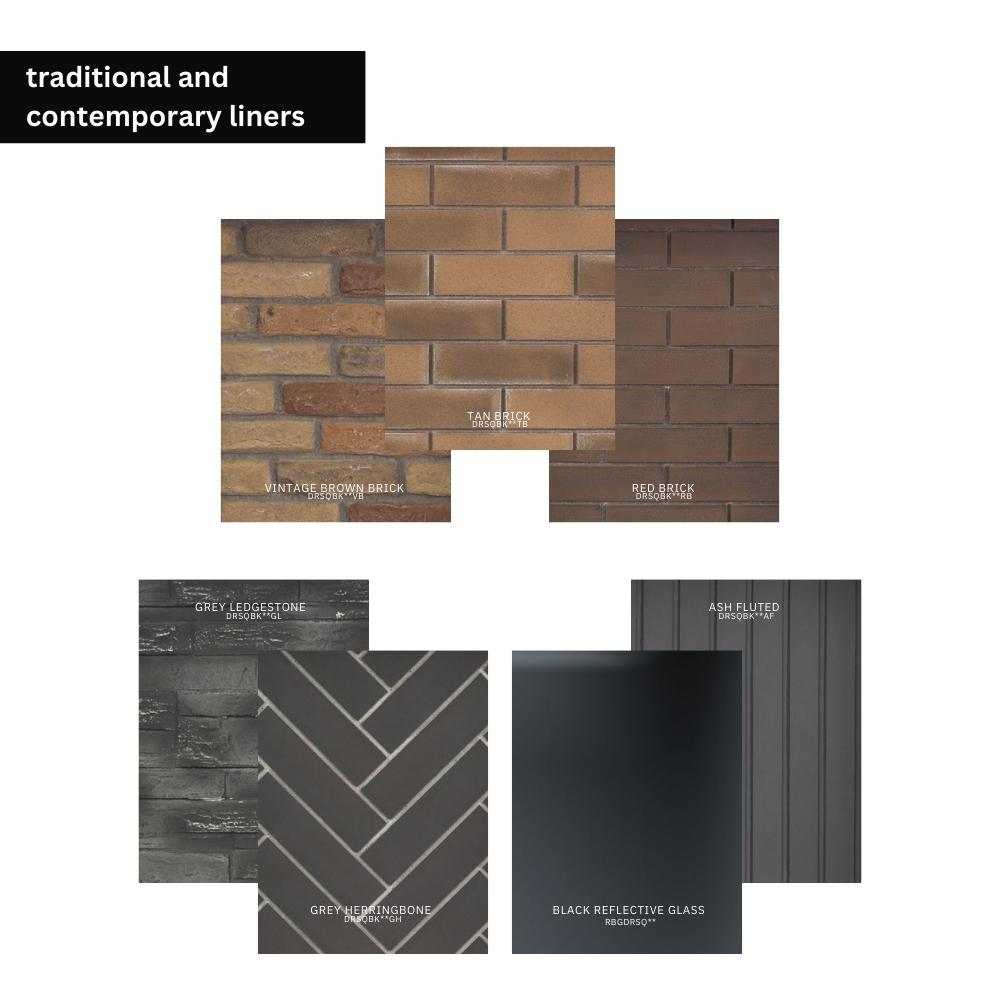

  • Optional liners: grey herringbone, grey ledgestone, ash fluted, black glass, vintage brick, tan brick and red brick

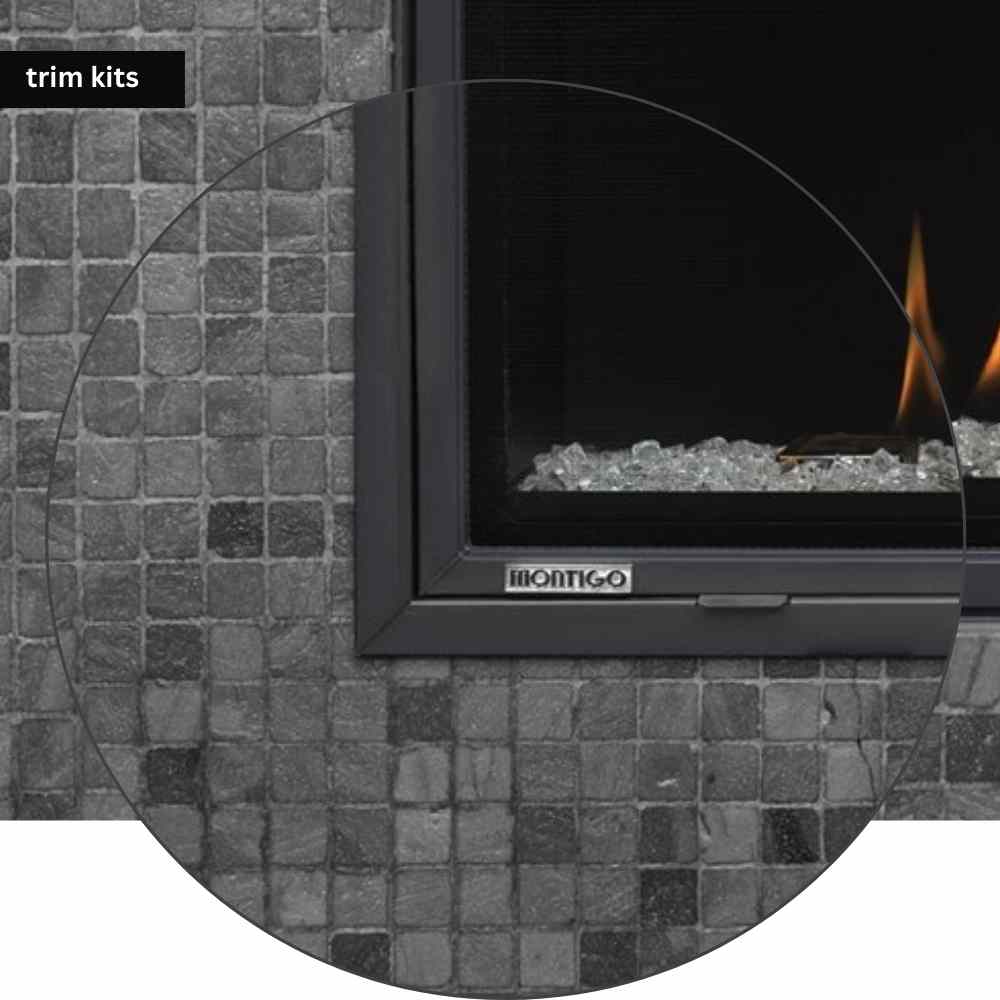

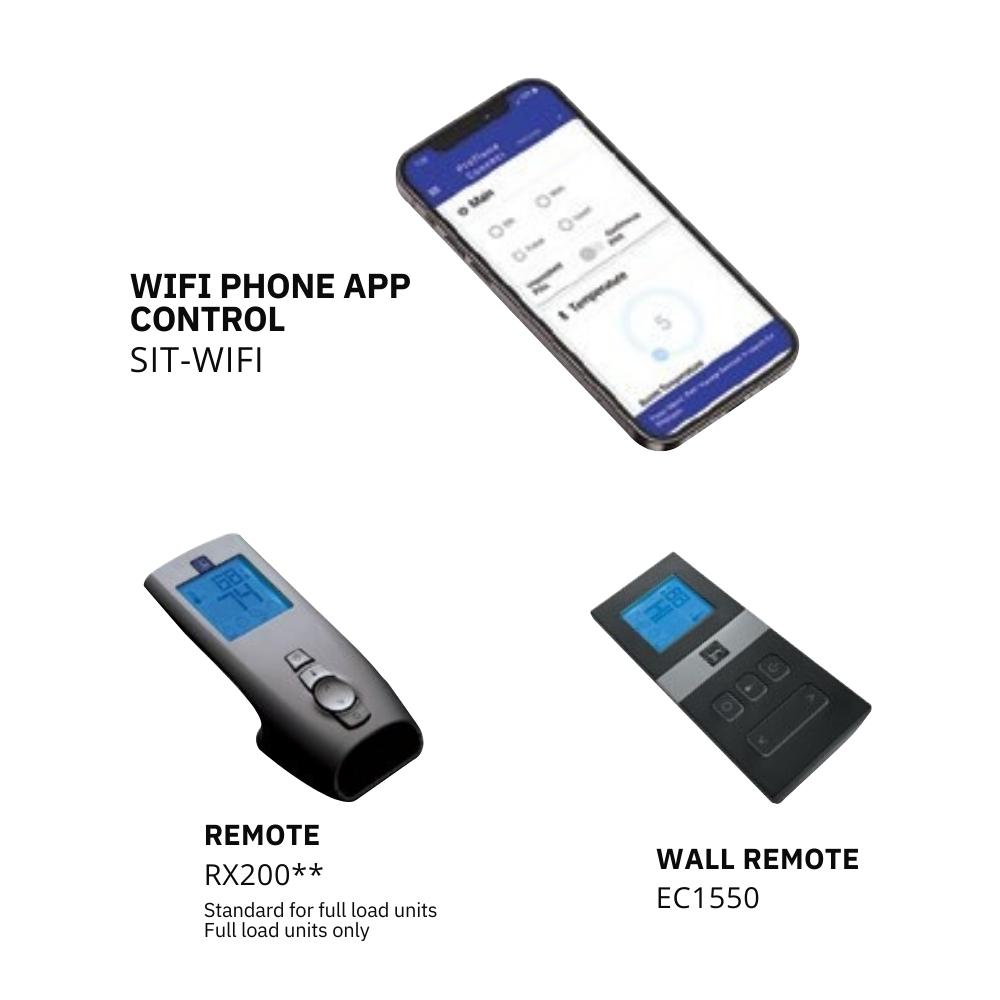

  • Optional heat management, adjustable trim kits, EC1550 wall remote and SIT-WiFi phone app control (full-load units)

Fireplace and Stove Glass Safety

What Is Included and What You Will Need

  • Included: DRSQ42 firebox with concealed universal burner, multi-function remote, fans, halogen downlighting, micro mesh safety screen, battery backup and the supplied stud heat deflector
  • Required: a media package. Montigo lists logsets, contemporary scenes, speckled stones and glass media as options for this burner, so confirm your media and liner choice with our team when you order
  • Required: 5 in. / 8 in. direct vent pipe and a wall or roof termination, either Montigo vent or an approved alternate listed in the manual (DuraVent DirectVent Pro connects through adapter 58DVA-AD-M1). We carry 58DVA-HC horizontal and 58DVA-VCH vertical caps, 58DVA-36 pipe and 58DVA-E90 elbows
  • Required for propane: the propane option above (conversion kit GCA027), installed by a qualified technician
  • Required: a gas supply line and a 115V, 60 Hz circuit at the fireplace
  • Optional: adjustable trim kit for a framed finish, liner panels, heat management kit, EC1550 wall remote, SIT-WiFi app control

Installation Notes

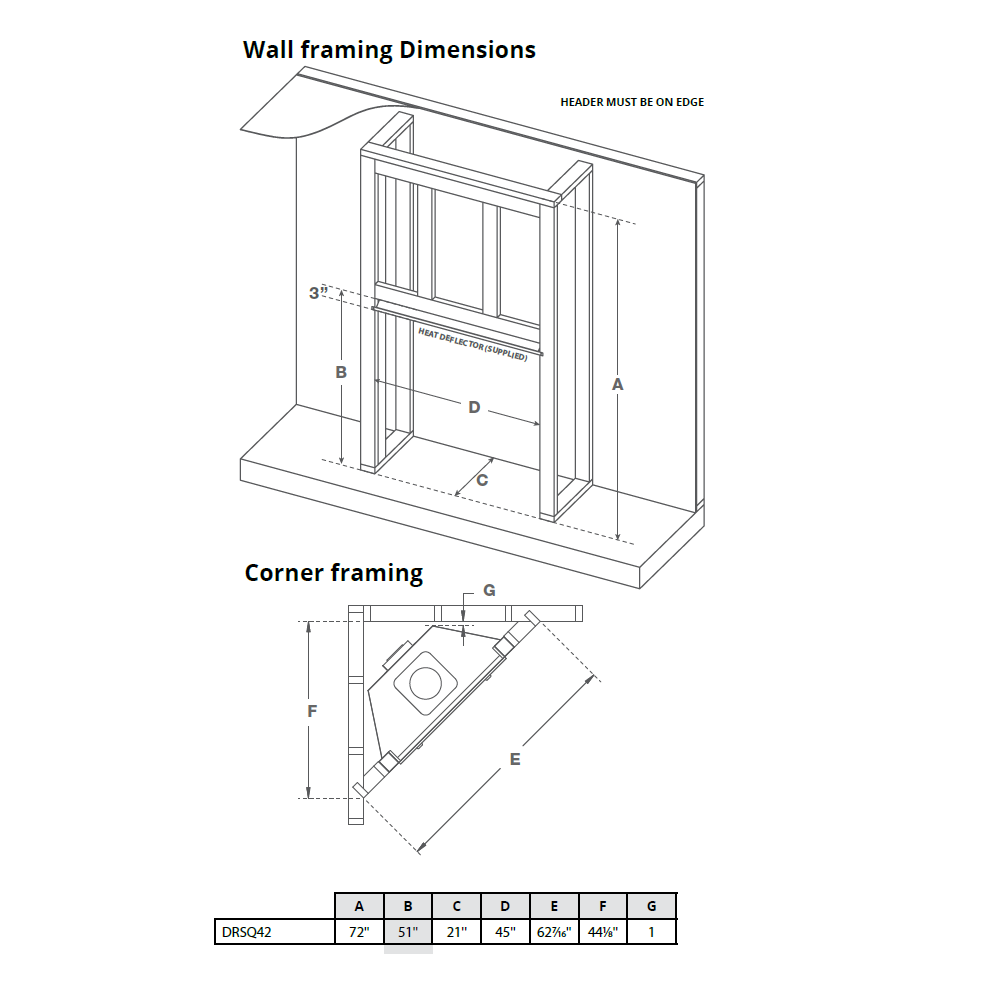

Frame to the minimum opening in the manual (45 in. W x 51 in. H x 21 in. D, 72 in. enclosure height) with the header on edge, and install the stud heat deflectors unless a cool wall release or Cool Wall Advantage kit is used. If the unit sits on carpet, vinyl or other combustible flooring besides wood, it must rest on a wood or metal panel the full width and depth of the fireplace. Mantel heights follow the charts in Section 6 of the manual. Installation must be done by a qualified, licensed gas installer. In New York City, direct vent fireplaces fall under the NYC Fuel Gas Code, with a licensed master plumber and DOB filing where required; the termination location usually decides feasibility in apartments and townhouses. We confirm venting and permitting during a fireplace design consultation.

Documentation

Frequently Asked Questions

Does the DelRay 42 come with logs or stones?

The burner is media-ready, and Montigo sells the logsets, contemporary scenes, speckled stones and glass media as options. Tell us the look you want and we will confirm the media and liner package with your order.

What is the difference between the Full-Load DRSQ42NI-2 and the Basic DRSQ42NI?

Both share the same firebox, 32,500 BTU/h rating and 37-11/16 in. x 26-7/8 in. opening. The Full-Load adds a standard multi-function remote with remote Hi-Lo flame, fans, micro mesh screen, battery backup and halogen downlighting, and it is the version that supports WiFi app control.

Will it work during a power outage?

Yes. Battery backup keeps the ignition and remote working when power is out; the fans and downlighting need the 115V supply.

Can it run on propane?

Yes. On propane it is rated 27,000 BTU/h. Choose the propane option above, which includes the conversion kit.

Related reading: Direct Vent Gas Fireplace Buying Guide and Gas Log Set Buying Guide.

Warranty

Montigo Residential Warranty Program (per the manual): firebox, heat exchanger and main burner 15 years, with 1 year of labor; gas controls, electrical components, remotes, media, glass, finishes and safety barriers 1 year, parts and labor. Transferable while the fireplace stays in its original installation; requires installation by a licensed professional and annual service by an authorized Montigo dealer. Montigo's terms also require the fireplace to be purchased and installed through an authorized Montigo dealer.
