Napoleon Arlington Direct Vent Cast Iron Gas Stove | GDS20
Napoleon Arlington Direct Vent Cast Iron Gas Stove | GDS20 - Electronic Ignition / None / None is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 19-1/4 in. W x 25-3/8 in. H x 18-1/2 in. D

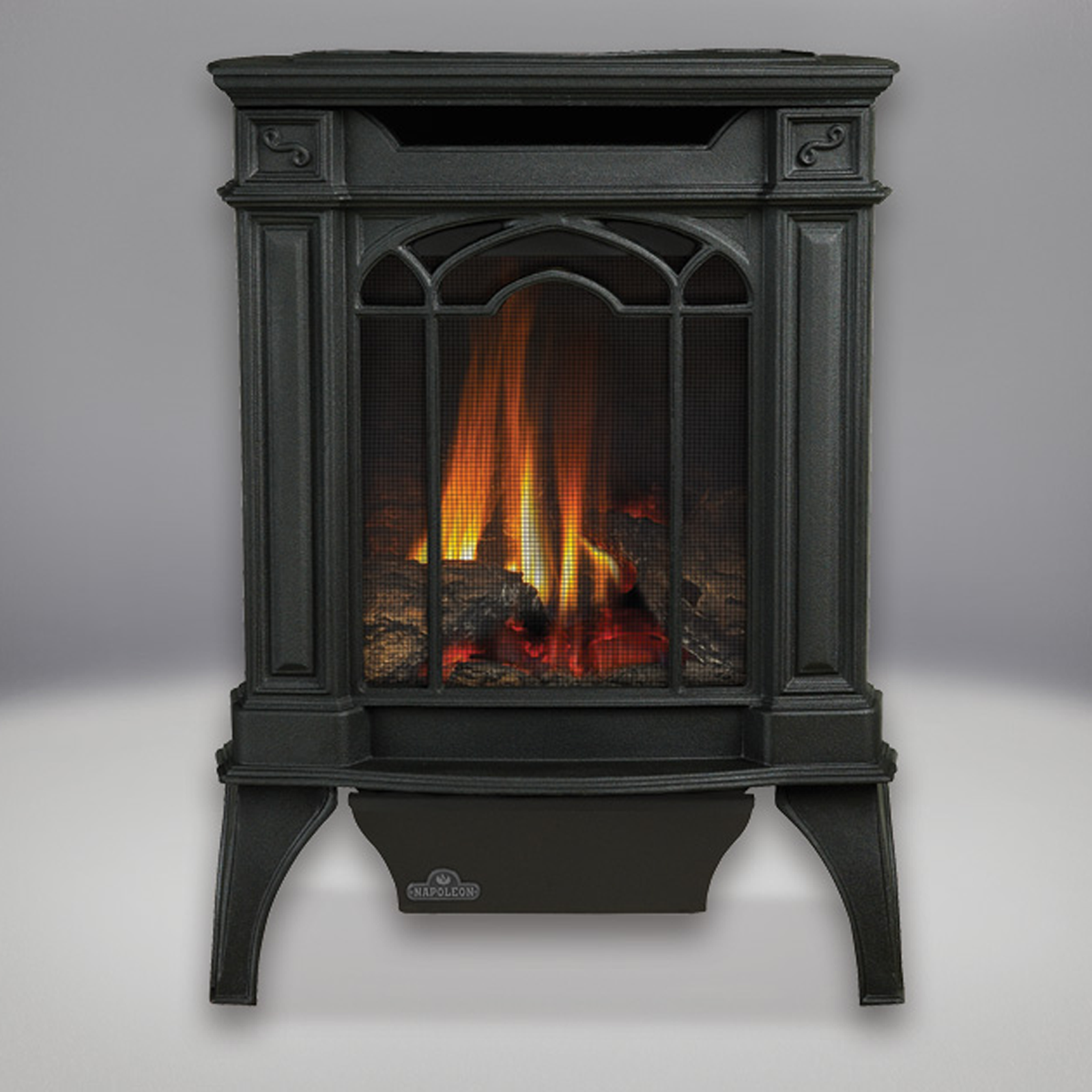

The Napoleon Arlington (GDS20) is a compact freestanding cast iron gas stove that vents directly outdoors with 4 in. x 7 in. direct vent pipe. Napoleon rates the natural gas model at 20,000 BTU/h input and 14,000 BTU/h output.
Choose electronic ignition (GDS20NE), which uses intermittent pilot ignition with an optional continuous pilot mode, or millivolt ignition (GDS20NSB) with a standing pilot that runs from a wall switch or millivolt thermostat. The GS-65KT blower and the F45 or F60 remotes can be added on this listing.
Key Specifications
| Models | GDS20NE / GDS20NNE (electronic), GDS20NSB / GDS20NNSB (millivolt); propane versions GDS20PE / GDS20PSB |
|---|---|
| Input, natural gas | 20,000 BTU/h |
| Output, natural gas | 14,000 BTU/h |
| Glass viewing area | 13 x 14 in. (per Napoleon spec sheet) |

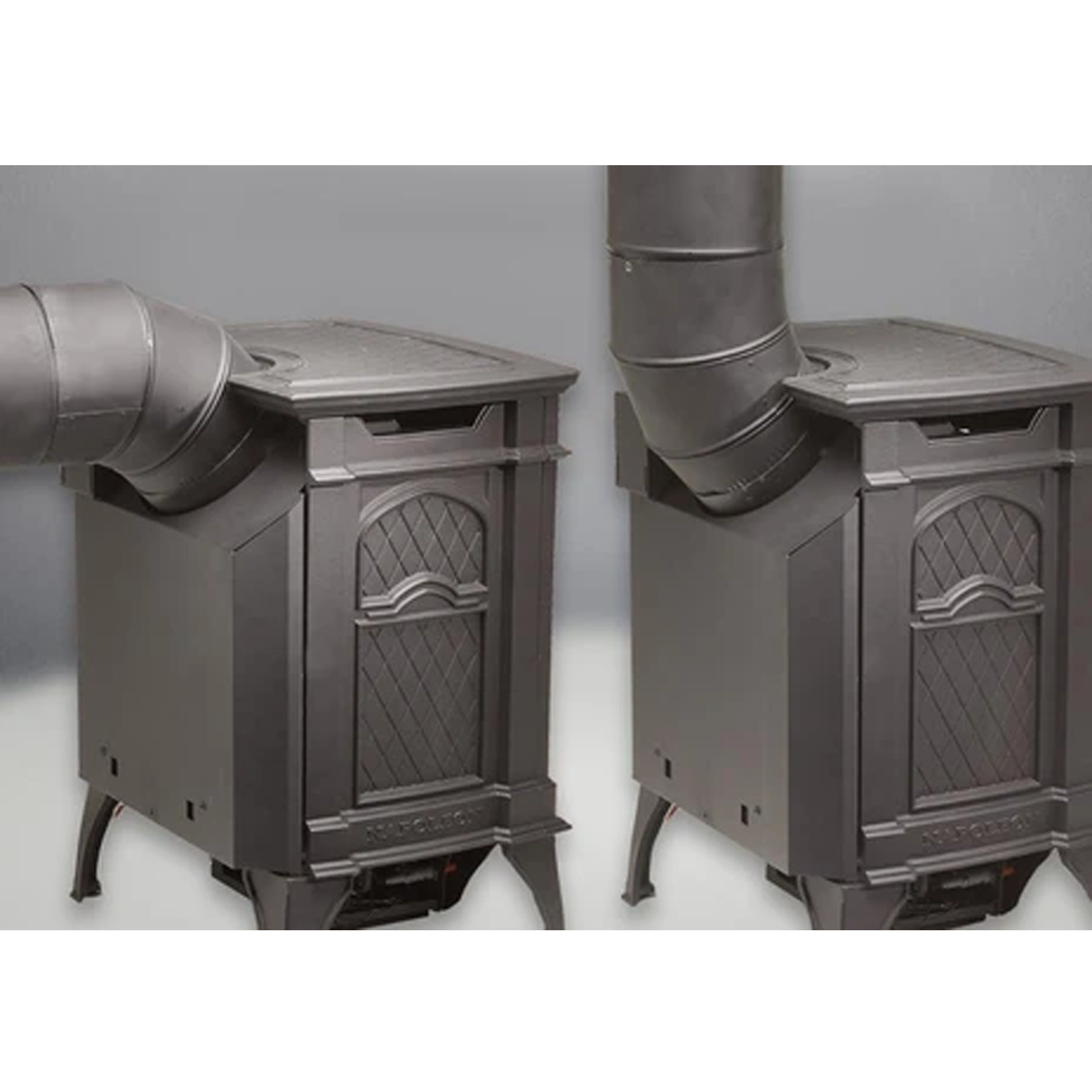

| Venting | Direct vent, 4 in. exhaust / 7 in. intake; up to 20 ft horizontal or 40 ft vertical with flexible vent |
| Electrical | 115 V, 60 Hz, under 12 A (electronic models) |
| Gas pressure | NG inlet 4.5 to 7 in. w.c., manifold 3.5 in. w.c.; LP inlet 11 to 13 in. w.c., manifold 10 in. w.c. |
| Certification | CSA 2.22 / ANSI Z21.50 vented decorative gas appliance; approved for bedroom, bathroom, closet and recessed installation |

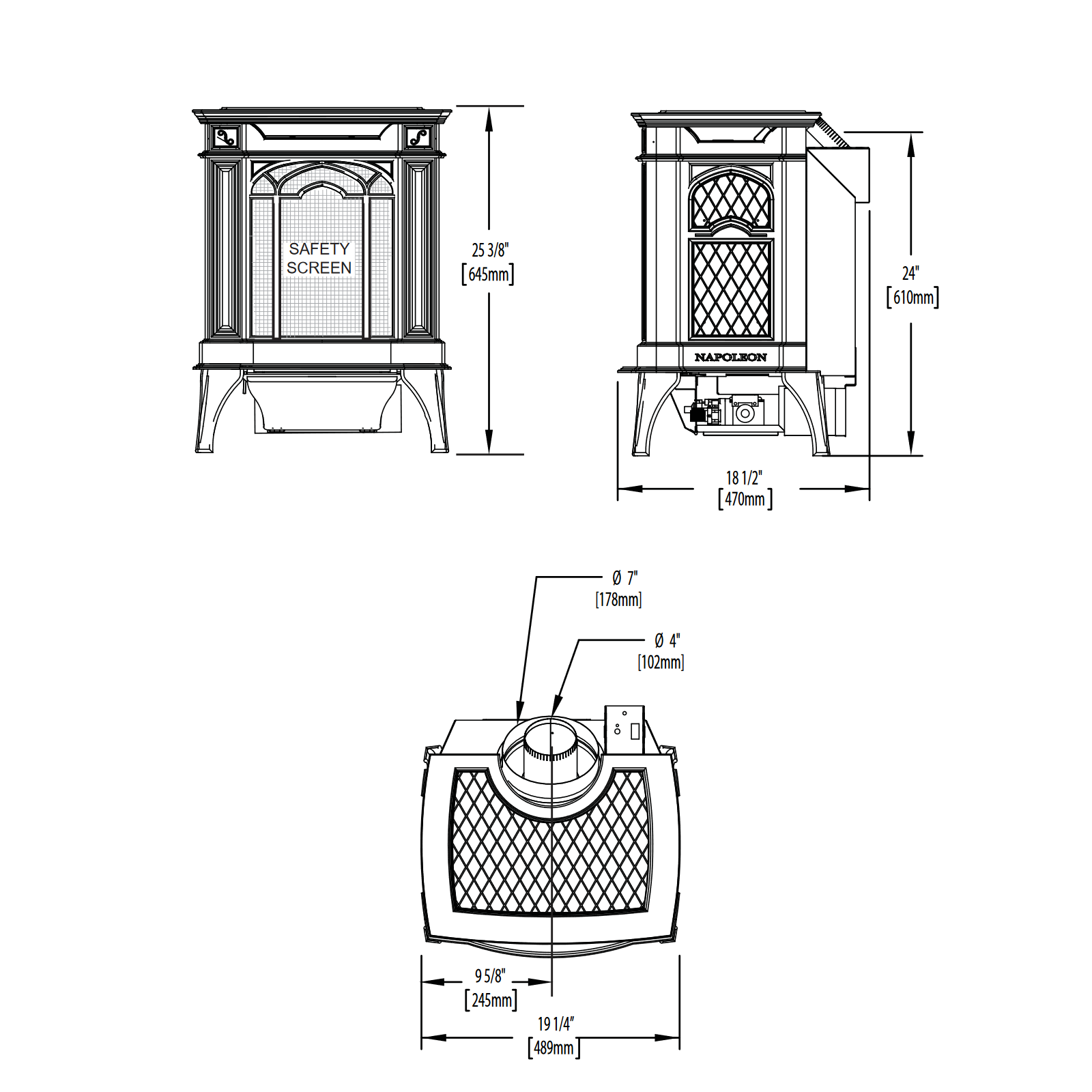

Dimensions and Cutout
| Stove (W x H x D) | 19-1/4 in. x 25-3/8 in. x 18-1/2 in. |
|---|---|
| Vent collars | 4 in. exhaust, 7 in. intake |
| Minimum vertical rise | 25-3/8 in. plus any rise, per manual |
| Ceiling clearance | 48 in. from appliance top |
| Vent clearances | Horizontal pipe 1 in. sides and bottom, 2 in. top; vertical pipe 1 in. all around |
| Front clearance | Keep objects at least 48 in. from the face |
| Floor protection | Metal or wood panel over carpet or vinyl, full width and depth |
Features
- Compact cast iron stove body
- Electronic intermittent pilot ignition with optional continuous pilot mode, or millivolt standing pilot
- Sealed direct vent combustion with outside air
- Glass door with safety screen
- Optional GS-65KT blower kit
- Optional Napoleon F45 on/off remote or Napoleon F60 thermostatic remote
- Field conversion to propane with a Napoleon conversion kit
What Is Included and What You Will Need
- Included: stove, glass door, safety screen and hot-glass barrier, horizontal firestop spacer
- Required: approved 4 in. x 7 in. direct vent pipe and termination, gas line with shutoff (FC-12 gas flex connector and shut-off available), power for electronic models
- Optional: GS-65KT blower, remote control, propane conversion kit

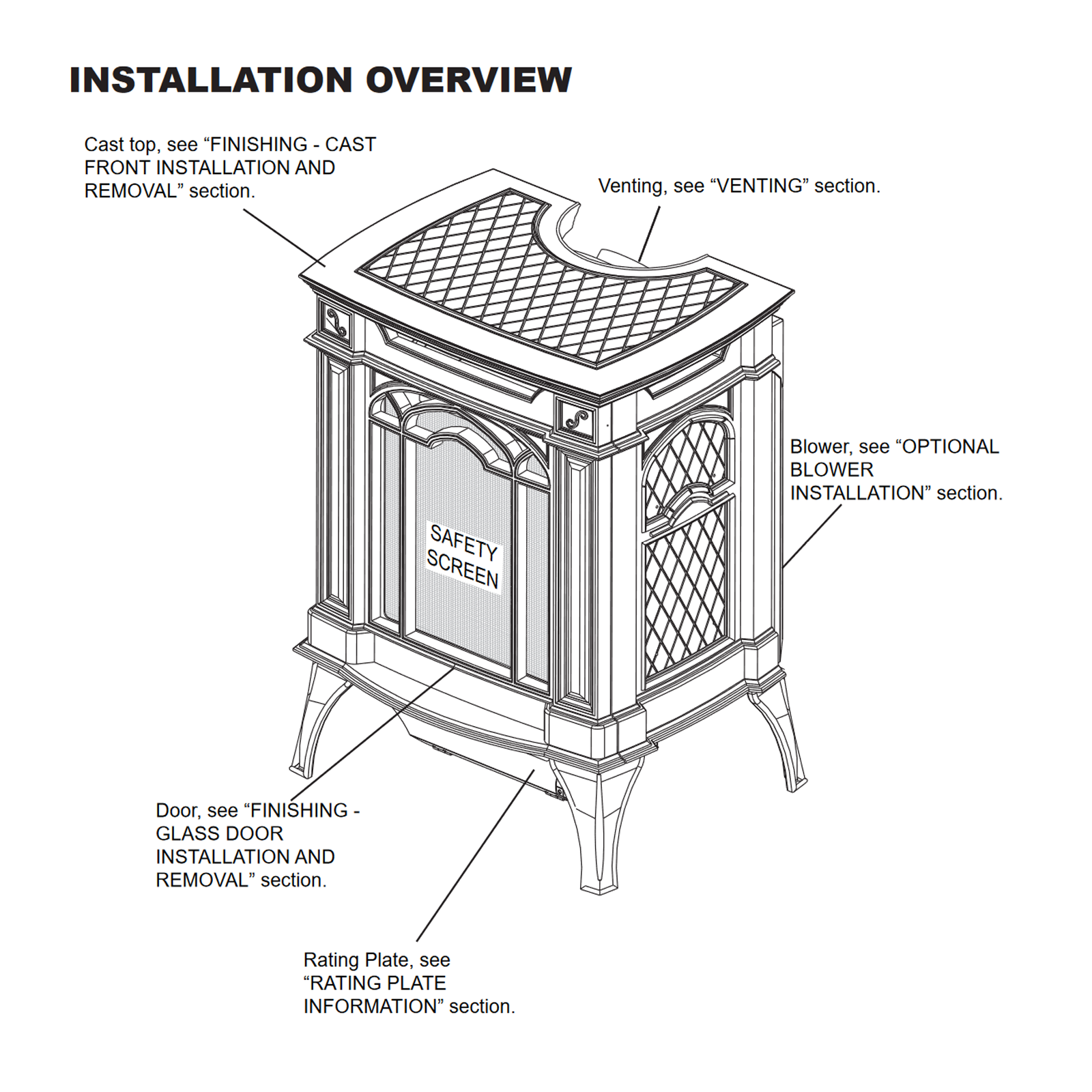

Installation Notes
Place the stove with the clearances in the Napoleon manual, protect combustible floors, and vent with approved 4 in. x 7 in. direct vent pipe within the 20 ft horizontal and 40 ft vertical limits. Electronic models need a 115 V supply. A qualified gas installer must connect and commission the stove. In New York City, gas work requires a licensed master plumber and permits, and sealed direct vent appliances like this one are a common code-compliant choice. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
How much heat does the Arlington make?
Napoleon rates the natural gas model at 20,000 BTU/h input and 14,000 BTU/h output.
Does it need a chimney?
No. It is a direct vent stove that uses 4 in. x 7 in. coaxial pipe through a wall or roof.
Electronic or millivolt?
Millivolt runs without house power on a standing pilot. Electronic uses intermittent pilot ignition and a 115 V supply.
Can it go in a bedroom?
The manual approves bedroom, bathroom and bed-sitting room installation, subject to local code.
Related reading: Direct Vent Gas Fireplace Buying Guide and Gas Fireplace Cost Installed.
Warranty
Napoleon backs its gas stoves with the President's Limited Lifetime Warranty. Coverage terms, exclusions and registration requirements are in the warranty section of the installation manual.
