Description
Description
Overall Dimensions: 65" W x 36" D x 87" H

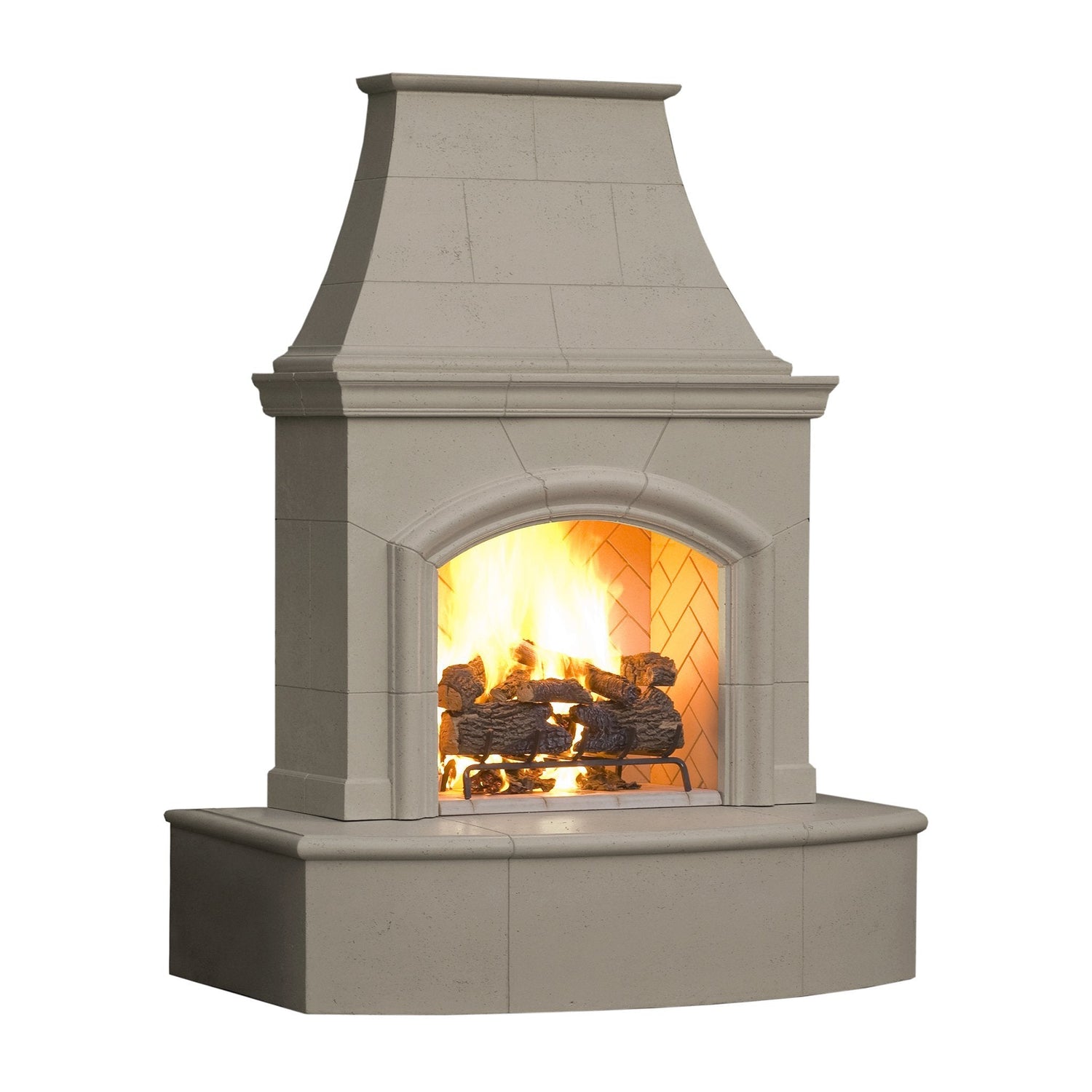

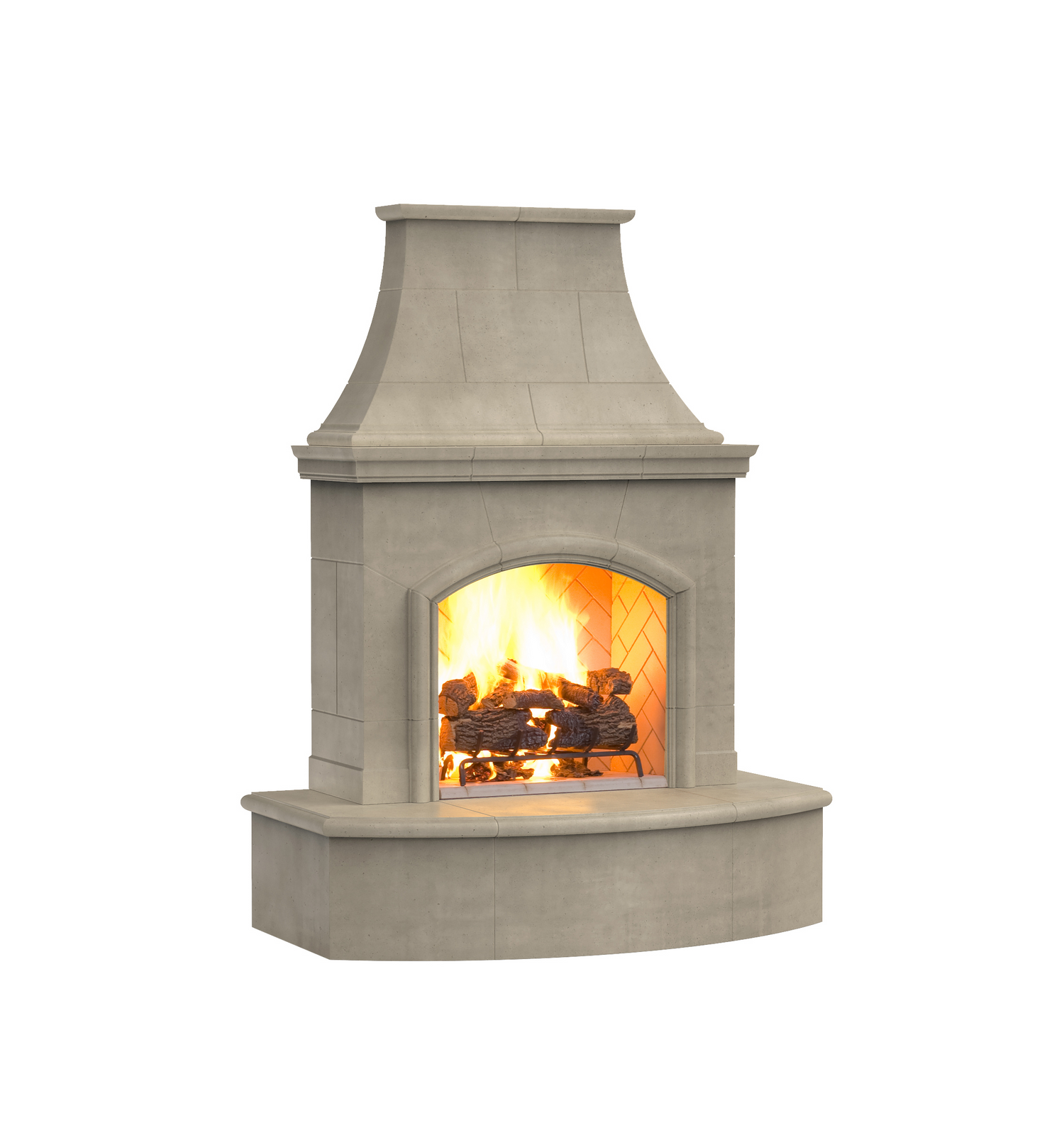

The Phoenix is American Fyre Designs' statement outdoor fireplace: a vented, full-size fireplace cast in glass fiber reinforced concrete (GFRC), with an arched firebox, a 16-inch bullnose hearth and a tall flared chimney that rises to 87 inches. It gives a patio or courtyard the focal point of a built masonry fireplace without the masonry site work, and it suits larger yards where the height reads as architecture rather than bulk. It ships in seven pieces that bolt together on site and takes the vented gas burner and log set of your choice, sold separately.
Key Specifications
| Model | 017 series (vented); SKU pattern 017-01-[recess]-[finish]-[valve location]C |
| Type | Vented outdoor gas fireplace enclosure (burner purchased separately) |
| Compatible burners | American Fyre Designs G45 stainless (log set or glass models): match-lit up to 24", valve models up to 18/20"; G22 stainless: match-lit up to 24", valve models up to 18" |
| Fuel | Natural gas or propane, set by the burner you choose |
| Material | Glass fiber reinforced concrete (GFRC), hand-applied finish |
| Finishes | Cafe Blanco, Black Lava, Smoke |
| Recess option | None, hearth only, or hearth and body (2" recess for stone or tile) |
| Gas key location | Left or right, with gas source from the back or underneath |
| Certification | Complies with ANSI Z21.97 / CSA 2.41 when installed with select R.H. Peterson vented gas appliances |
| Weight | 1,100 lbs, shipped as 7 pieces on one pallet |
Dimensions and Cutout
| Overall | 65" W x 36" D x 87" H (with standard 16" radiused bullnose hearth) |
| Firebox | See the dimension drawing in the installation manual |
| Venting | Vents through the integral GFRC chimney; optional GFRC rain vent cap |
| Clearances to combustibles | 6" at the sides and 6" at the rear; 36" in front of the hearth; no overhead clearance permitted (do not install under overhead combustible material) |
Features
- Arched firebox with four herringbone firebox liners included for a classic brick look
- 87" flared chimney gives the presence of a built masonry fireplace
- Optional 2" recess lets your mason face the hearth, the body or both with stone or tile to match the house
- Choose the gas key location (left or right) and gas entry (back or underneath) to suit the site
- Takes a vented log set or fire glass, depending on the burner you pair with it
- Handcrafted in the USA by American Fyre Designs (R.H. Peterson Co.)
What Is Included and What You Will Need
- Included: hearth, body, vented chimney, set of four herringbone firebox liners with shims, and assembly hardware
- Required: a vented burner system, sold separately, such as the G45 Vented Stainless Steel Burner System
- Required: a vented log set or fire glass sized to the burner
- Required: a gas supply line, 1/2" minimum inside diameter (larger for runs over 20 ft), installed by a licensed plumber

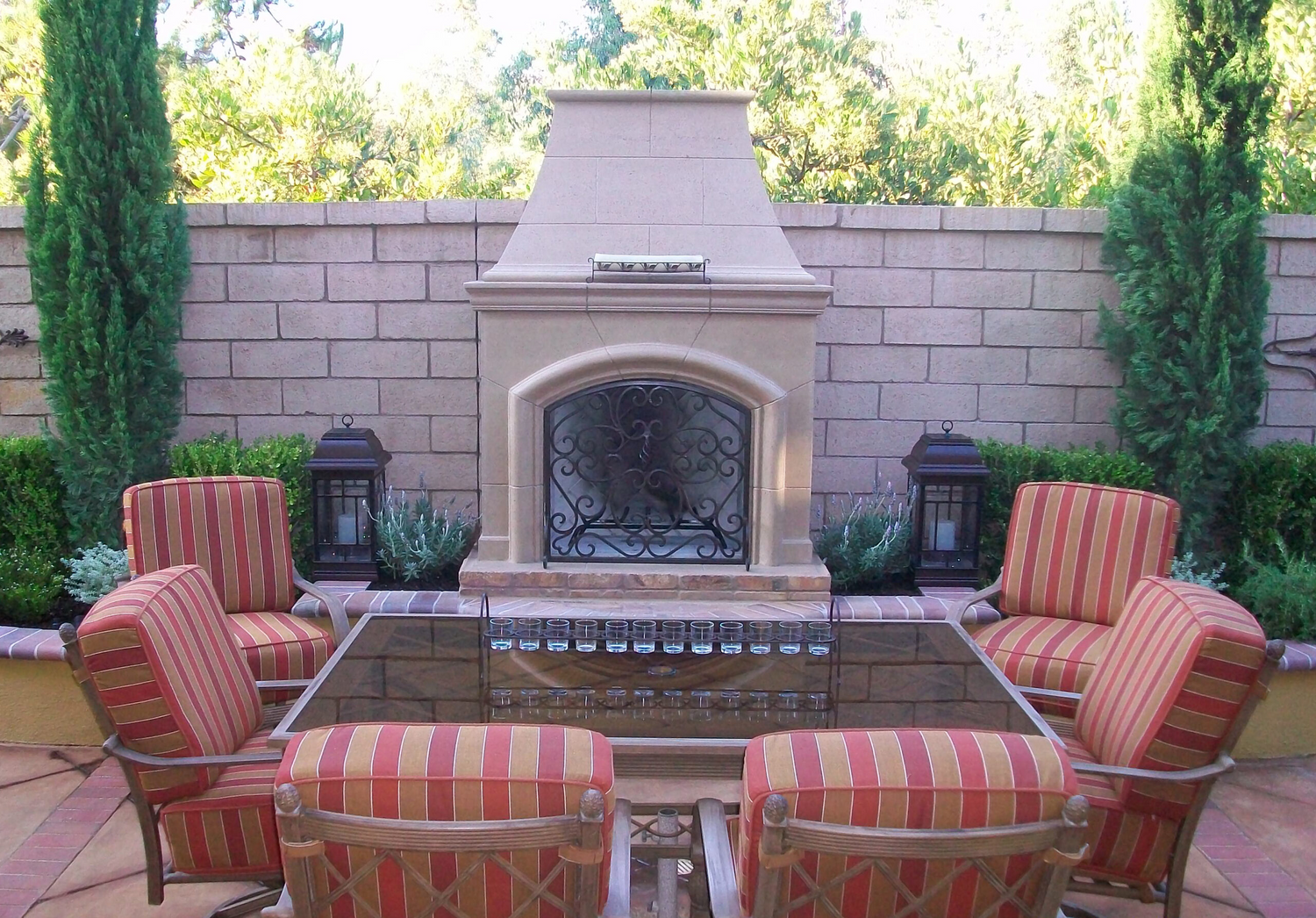

- Optional: Phoenix GFRC chimney rain vent cap and arched black scroll screen
Installation Notes
Outdoor use only, on a hard, level surface. Vented models may not be installed under any overhead combustible material; keep 6" from the hearth sides and the rear to combustible construction and 36" clear in front of the hearth. Natural gas needs 5" to 10.5" w.c. at the inlet and propane 11" to 13" w.c. The fireplace ships on one pallet and American Fyre Designs recommends two or more people for assembly; pieces are heavy, so plan access to the back yard. In New York City, gas piping to an outdoor fireplace is a licensed master plumber job under permit, and we confirm placement and code questions during a design consultation. We install throughout NYC, Long Island, Westchester and New Jersey.
Documentation
Frequently Asked Questions
Is the burner included?
No. American Fyre Designs packages the fireplace and the gas appliance separately. Pair it with a vented burner such as the G45 system, then add a log set or fire glass.
Can I burn wood in it?
No. Solid fuel must not be burned in this unit, and the warranty excludes damage from burning wood. It is designed for natural gas or propane burners only.
Can it go under a covered patio?
No. The manual does not permit the vented Phoenix under overhead combustible material, and its clearance table allows no overhead clearance for vented models. Plan it for an open-sky location.
Phoenix or Mariposa?
Both share the same 65" x 36" footprint, firebox liners and burner options. The Phoenix chimney rises to 87" overall, the Mariposa to 67". Choose the Phoenix for a tall focal point and the Mariposa where height or views are a concern.
Related reading: Outdoor Fireplace Buying Guide.
Warranty
American Fyre Designs by R.H. Peterson Co. warrants the GFRC fireplace and burners for three years and all valves, electrical components, accessories and controls for one year (batteries, wind guards and screens excluded), from the date of purchase with proof of purchase. The warranty does not cover labor, damage from burning wood or any fuel other than natural gas or propane, or damage or discoloration from use in high wind.
