American Fyre Designs G45 Vented Stainless Steel Burner System
American Fyre Designs G45 Vented Stainless Steel Burner System - 16-Inch / Match Lit (Natural Gas only) is backordered and will ship as soon as it is back in stock.
Description
Description
The G45 stainless steel burner is the vented burner option American Fyre Designs lists for its Phoenix, Grand Phoenix, Mariposa and Contractor's Model outdoor fireplaces. It runs under a vented log set and comes as a match-lit natural gas burner or an assembled system with safety valve for natural gas or propane.
Features
- Stainless steel burner for AFD vented outdoor fireplaces

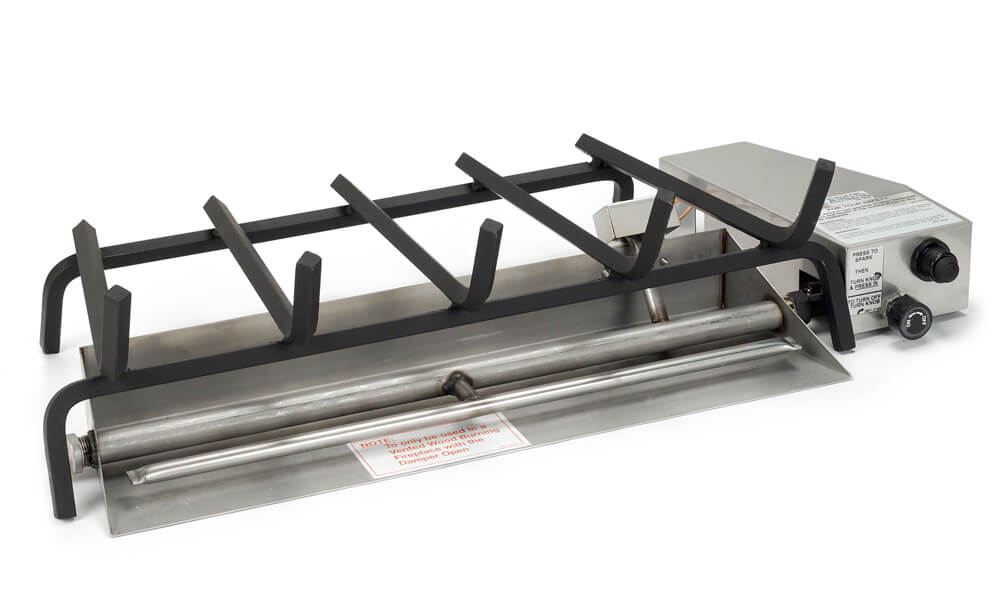

- Match-lit (natural gas only) or assembled with safety valve (NG or LP)
- Five sizes: 16, 18, 20, 24 and 30 in

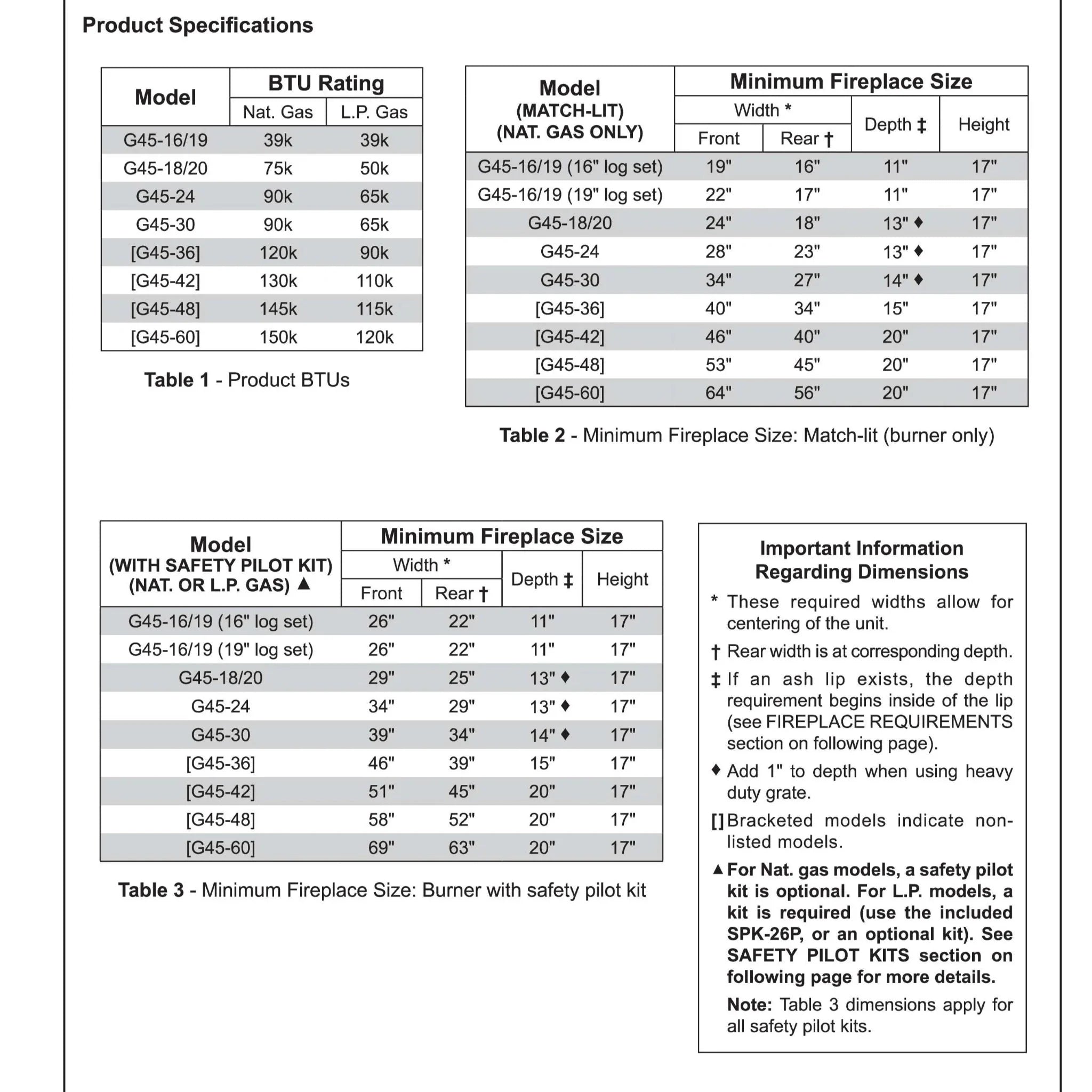

- For log set or glass models, per the AFD burner chart
Key Specifications
| Model / SKU | G45-xx-SS (match-lit), G45-xxNA-SS (NG valve), G45-xxPA-SS (LP valve) |
| Material | Stainless steel |
| Type | Vented burner system |
| Phoenix 017, Grand Phoenix 818, Mariposa 073 | Match-lit up to 24 in; valve up to 18/20 in |
| Contractor's Model 040, 045 | Match-lit up to 24 in; valve up to 18/20 in |
What Is Included and What You Will Need

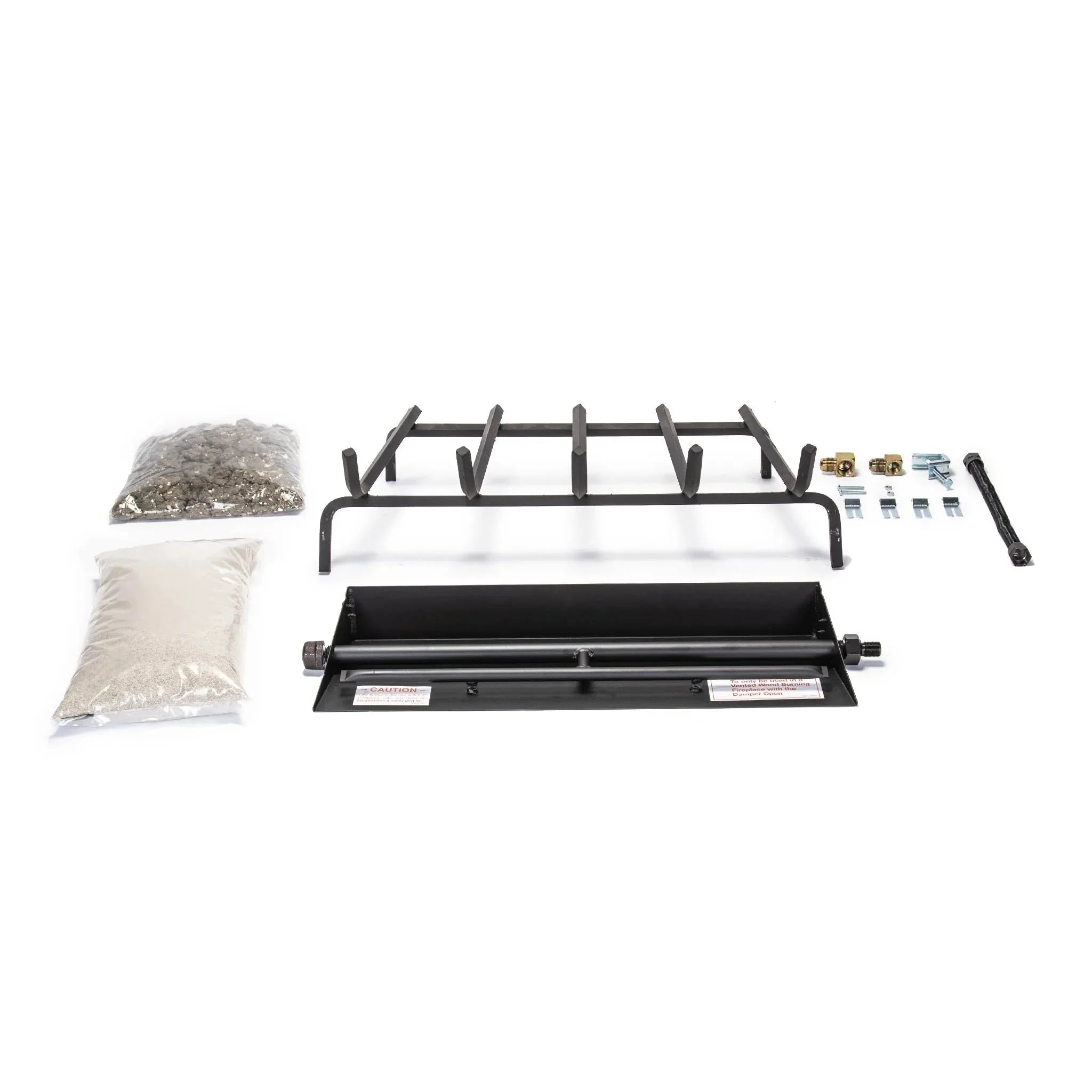

- One G45 burner in the size and configuration you select (valve factory assembled on NA and PA versions)
- You will need: a vented AFD fireplace, a vented log set and a qualified gas installer
Optional Accessories

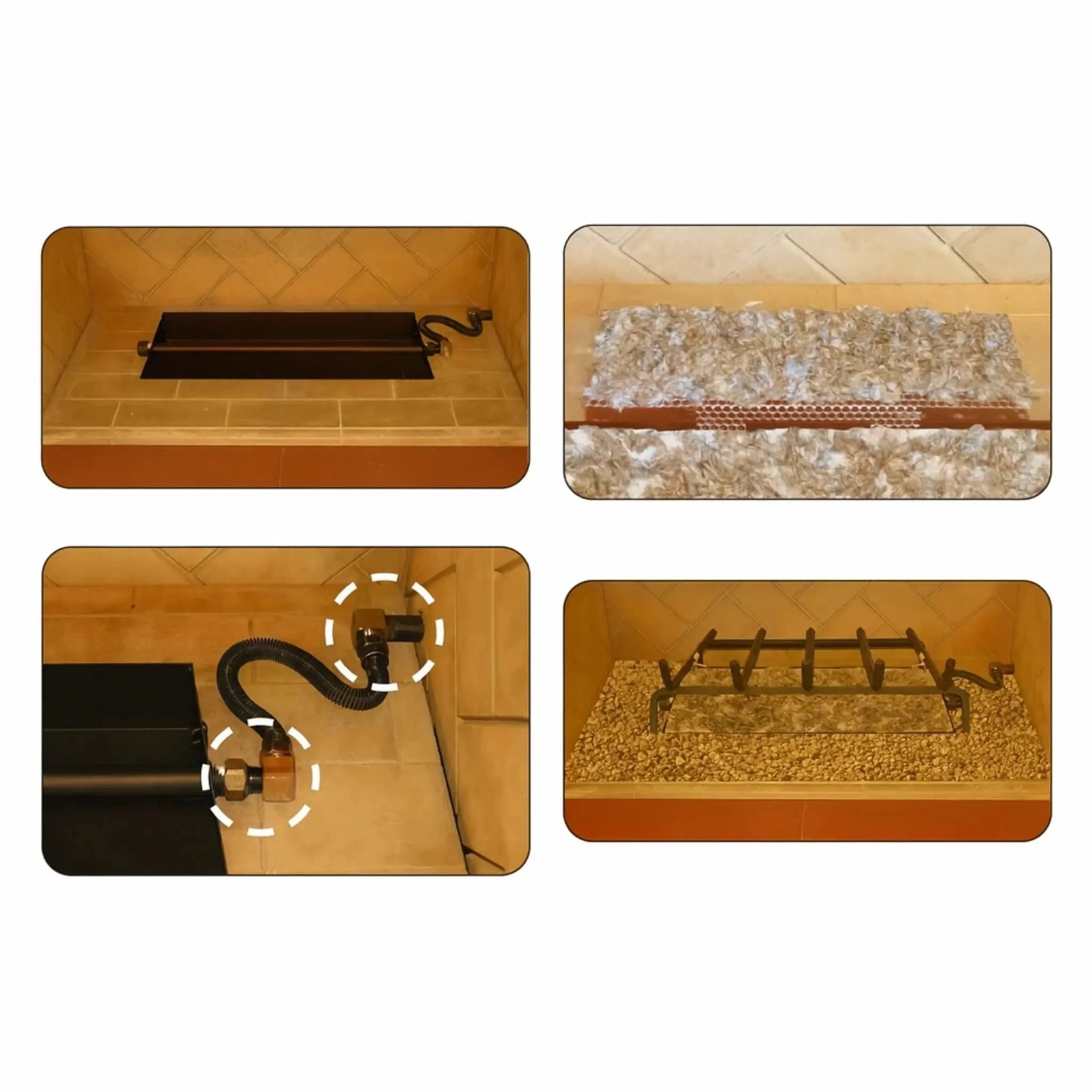

Installation Notes
The fireplace manual calls for installation by an NFI certified or other qualified installer. Vent-free versions of these fireplaces use the G10 or G21 burner instead.
Planning an outdoor fire feature? Book a design consultation.
Documentation
- American Fyre Designs Phoenix, Grand Phoenix and Mariposa Fireplace Manual H2-011 (burner options, scroll screen, warranty)
- American Fyre Designs Contractor's Model Fireplace Manual H2-023 (burner options)
Frequently Asked Questions
Which size do I need?
On the Phoenix, Grand Phoenix, Mariposa and Contractor's Model, AFD allows match-lit up to 24 in and valve models up to 18/20 in.
Can I use it in a vent-free fireplace?
No. Vent-free AFD fireplaces take the G10 or G21 burner.
Related reading: Outdoor fireplace buying guide, Gas log set buying guide.
Warranty
R.H. Peterson Co. warrants American Fyre Designs gas logs, burners and GFRC fire features for three years, and electrical components, valves, accessories and controls for one year, to the original purchaser from the date of purchase with proof of purchase. Labor is not covered. Damage from high winds or burning wood is excluded.
