Superior Fireplaces  |  SKU: 12-12DM

Superior 12-inch Section Double Wall Pipe Snap Lock 12-12DM

$157.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Flat-rate shipping from $19.95. Free on orders over $999.
  • Factory-authorized Superior Fireplaces dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Explore other 12DM double-wall chimney pipe length options: 12 inch (current size) | 18 inch | 24 inch | 36 inch | 48 inch

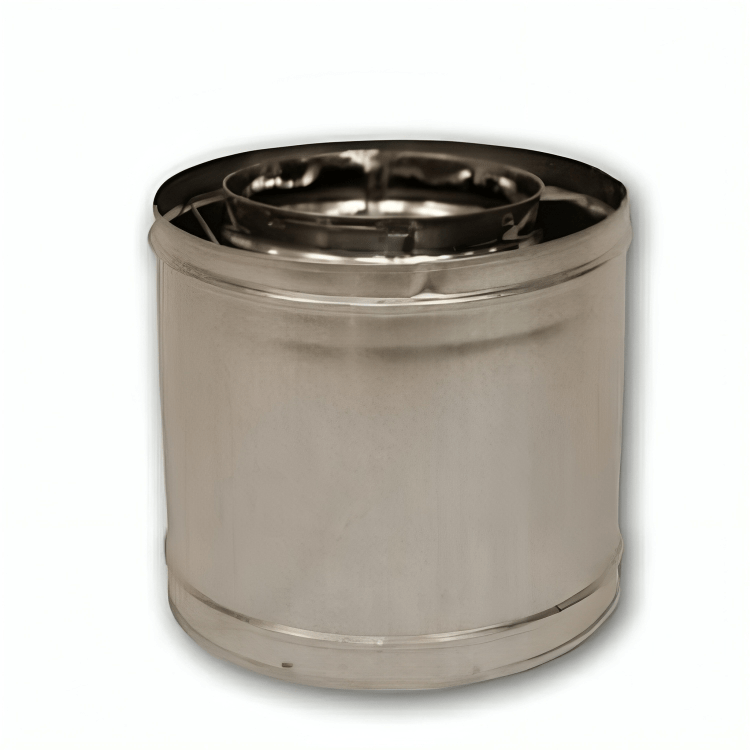

The Superior 12-12DM is a 12 in. double wall chimney section for the IHP 12 in. snap-lock wood-burning chimney. Each section pairs a 12-3/8 in. stainless steel inner flue with a 15 in. galvanized outer pipe and a wire spacer, and adds 10-5/8 in. of height once joined (lineal gain, per the manual).

Features

  • 12 in. section, 10-5/8 in. lineal gain
  • 12-3/8 in. stainless inner flue, 15 in. galvanized outer pipe
  • Snap-lock joints, no screws on straight runs

Key Specifications

Model 12-12DM (catalog F0932)
Type Double wall chimney section, snap lock
Lineal gain 10-5/8 in. (manual chart)
Fits Superior WRT6000, WRE6000 and WRT8048 12 in. chimney (manuals)

Superior Fireplaces Authorized Dealer

What Is Included and What You Will Need

  • Included: one 12-12DM section, per current listing
  • Required: a Superior WRT6000, WRE6000 or WRT8048 wood-burning fireplace, plus the firestops, flashing and termination your run needs

Installation Notes

Fit the inner flue lanced side up, then the outer pipe hemmed end up, and pull up to check each joint locks. New York City does not permit new wood-burning fireplaces under Local Law 38 of 2015, so we sell Superior wood-burning fireplaces and their parts for installations outside the five boroughs where local code allows them.

Book a design consultation to plan a chimney run.

Documentation

Frequently Asked Questions

How much height does one section add?

10-5/8 in. once joined, per the lineal gain chart.

DM or HT?

Both fit the 12 in. system; Superior requires the HT parts in Canada.

Related reading: Are wood-burning fireplaces legal in NYC?, Fireplace mantel and media wall guide.

Warranty

Superior (IHP) fireplace warranties exclude vent components from the 20 year limited warranty, and parts not otherwise listed carry a 90 day warranty from the date of installation, per the IHP warranty printed in the WRT6000 manual. Ask us for the current written terms for your chimney system.
