Description
Description
The Superior DRL4060 (DRL4060TEN-B) is a 60-inch clean-face linear direct vent gas fireplace from the DRL4000 series, rated up to 40,000 BTU on natural gas, with reflective black glass media and a non-combustible fireboard included.
As the DRL4000 version it uses a straightforward ProFlame electronic ignition with wall-switch control, with a remote kit available. The firebox installs single-sided as standard, converts to see-through with the optional kit, and is listed for bedrooms, aftermarket mobile homes and manufactured homes.
Features
- 60-inch clean-face linear firebox
- Up to 40,000 BTU natural gas or 40,000 BTU propane, with a low setting of 28,000 BTU (NG)
- SIT ProFlame electronic ignition with selectable intermittent (IPI) or continuous (CPI) pilot, wall-switch wiring included, battery backup

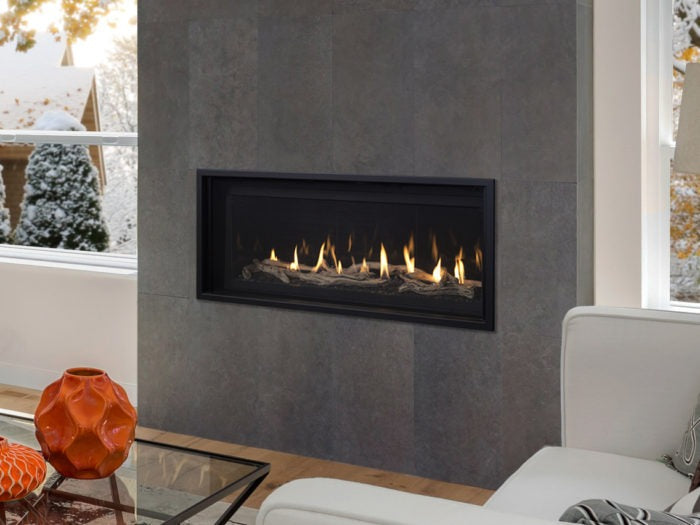

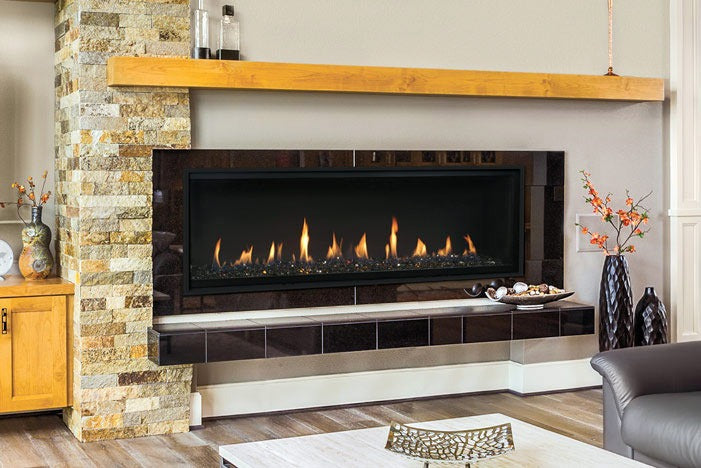

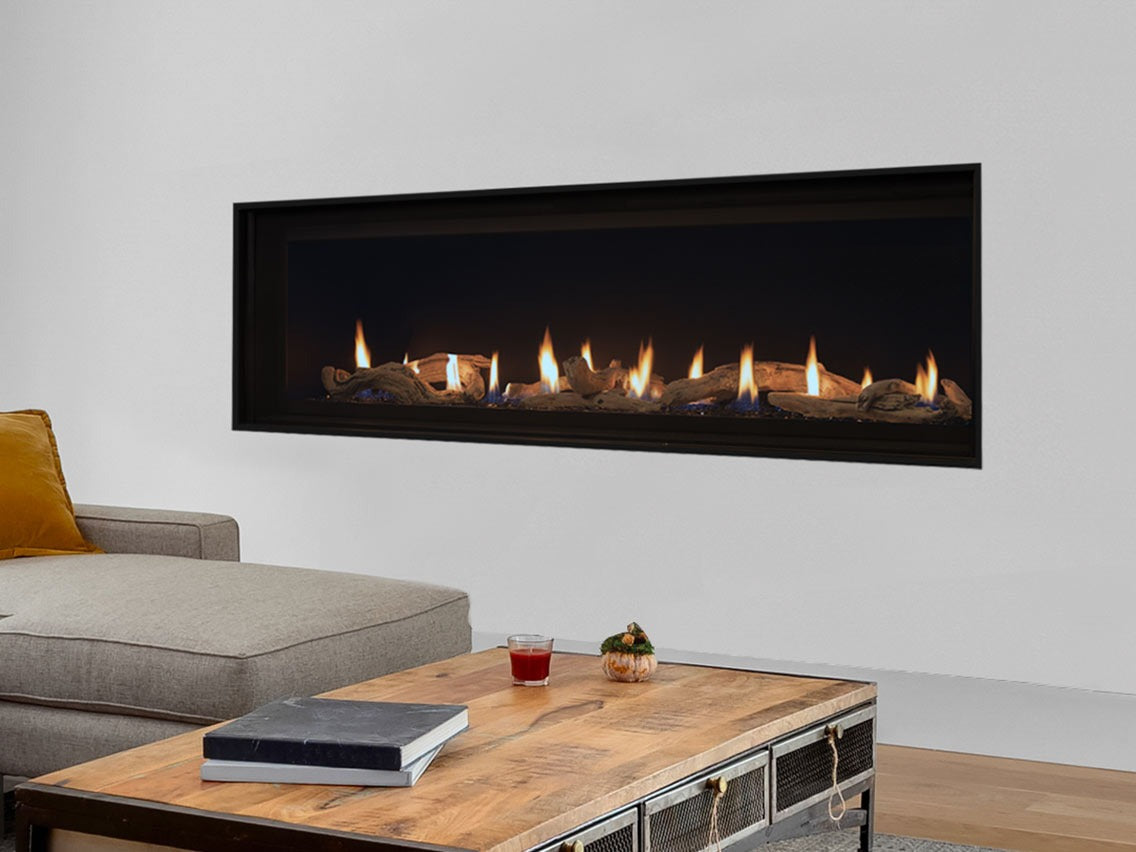

- Reflective black glass media included; Onyx Black, Diamond Crystal and Sapphire Blue glass, driftwood logs and river rock kits available

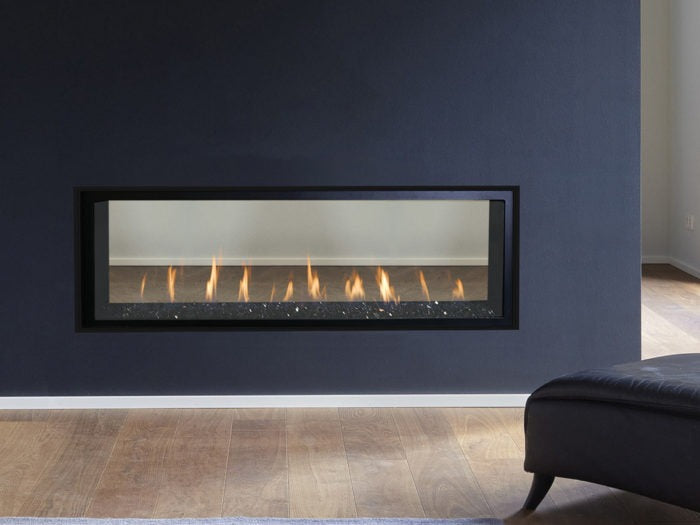

- Optional STK-LIN60-B see-through kit for a two-sided installation
- Optional HeatFlo kit moves heat away from the wall above for a recessed TV or art pocket
- Non-combustible fireboard supplied to finish the face
Key Specifications
| Model | Superior DRL4060 (DRL4060TEN-B) |
| Series | DRL4000 linear direct vent |
| Fuel | Natural gas; propane by field conversion kit GCK-M-4060BNP |
| Input, natural gas | 40,000 BTU/hr high, 28,000 BTU/hr low |
| Input, propane | 40,000 BTU/hr high, 30,000 BTU/hr low |
| Efficiency, natural gas | 55.1% P4, 52.6% AFUE |
| Efficiency, propane | 54.0% P4, 52.6% AFUE |
| Controls | SIT ProFlame electronic ignition with selectable intermittent (IPI) or continuous (CPI) pilot, wall-switch wiring included, battery backup |
| Venting | Direct vent, IHP 6 in. / 9 in. DV Lock pipe and terminations |
| Electrical | 120 VAC, 60 Hz unswitched supply |
| Media | Reflective black glass, 3 x 5 lb. bags |
| Weight | 470 lb |
| Listing | PFS TECO to ANSI Z21.88 / CSA 2.33 and CSA 2.17 as a vented gas fireplace heater |
| Warranty | 20 Year Limited (IHP) |
Dimensions and Cutout
| Overall width | 74 in. |
| Overall height | 48-1/4 in. |
| Framing width | 74-1/4 in. |
| Framing depth | 19-1/2 in. single-sided, 18-1/2 in. see-through |
| Framing height | 48-1/2 in. (44-3/4 in. with HeatFlo kit for a recessed wall pocket) |
| Minimum height, appliance base to ceiling | 84 in. |
| Side wall clearance | 14 in. minimum lets a combustible side wall project any length; at 8-1/4 in. it may project up to 12 in. |
| Source | Superior 901060-00 Rev. F spec sheet; confirm in the installation manual before framing |
What Is Included and What You Will Need
- Included: DRL4060 firebox with safety barrier, reflective black glass media (3 x 5 lb.), non-combustible fireboard (top, bottom and sides) with screws, two-conductor wall-switch wire, AA battery backup pack and literature
- Required: direct vent pipe and a termination (IHP 6 in. / 9 in. DV Lock), sold separately and sized to the vent plan
- Required: a 120 VAC unswitched electrical supply and a gas line sized for the input
- Required for propane: field conversion kit GCK-M-4060BNP
Optional Accessories
- Optional: STK-LIN60-B see-through kit (required for a see-through installation)
- Optional: HeatFlo convection kit HTFLO-LIN60, for a recessed TV or art pocket above the fireplace
- Optional: CGLK-BLK-LIN60 black reflective glass liner, TRMK-BLK-LIN60 black linear trim kit and FBK-LIN-B variable-speed blower kit
- Optional: GLO-BLACK, GLO-CRYSTAL or GLO-SAPPHIRE glass media, driftwood log set and river rock kits, and the OTRK-LIN on/off thermostat remote kit
Installation Notes
Install by a qualified gas fitter to the current Superior installation manual, including framing, mantel and side-wall clearances, venting, fireboard and the 120 VAC connection. A see-through installation needs the see-through kit and its own framing dimensions.
In New York City gas fireplace work requires a licensed master plumber and permit. Book a fireplace design consultation to plan the wall, venting route and any TV above.
Documentation
- Superior DRL4000 / DRL6000 60, 72, 84 Specification Sheet (901060-00 Rev. F)
- Superior DRL4000 60, 72, 84 Installation and Operation Manual (901080-00 Rev. J)
Frequently Asked Questions
Can it be see-through?
Yes, with the optional STK-LIN60-B see-through kit, installed with the see-through framing dimensions.
Can a TV go above it?
Yes, when the HeatFlo kit is installed and the TV manufacturer's temperature limits are respected. HeatFlo allows a recessed wall pocket above the fireplace.
What is the difference between the DRL4000 and DRL6000?
Both share the same firebox sizes. The DRL6000 adds the ProFlame II hand-held thermostat remote and platinum glass media; the DRL4000 uses wall-switch control with reflective black glass.
Related reading: Direct vent gas fireplace buying guide, Linear vs traditional fireplaces, Best fireplace under a TV.
Warranty
Innovative Hearth Products 20 Year Limited Warranty (installation manual): the fireplace body, firebox, barrier and ceramic glass are covered for 20 years from the date of installation. The burner, gas components and gaskets are covered for one year, optional blowers and remote controls for one year, tempered glass for one year and optional glass doors for 90 days; parts not otherwise listed carry a 90 day warranty. Labor is paid at prevailing IHP rates for each component's warranty period. Vent components, trim and paint are excluded. Refer to the manual for full terms.
