Trade-Wind | 42" 1250 CFM Outdoor Vent Insert with Blower
Trade-Wind | 42" 1250 CFM Outdoor Vent Insert with Blower is backordered and will ship as soon as it is back in stock.
Description
Description
Available Sizes: Trade-Wind L7200 Liners with 1200 CFM Internal Blower
Overall Dimensions: 42 in. W x 32 in. D; see the Trade-Wind installation instructions for exact dimensions

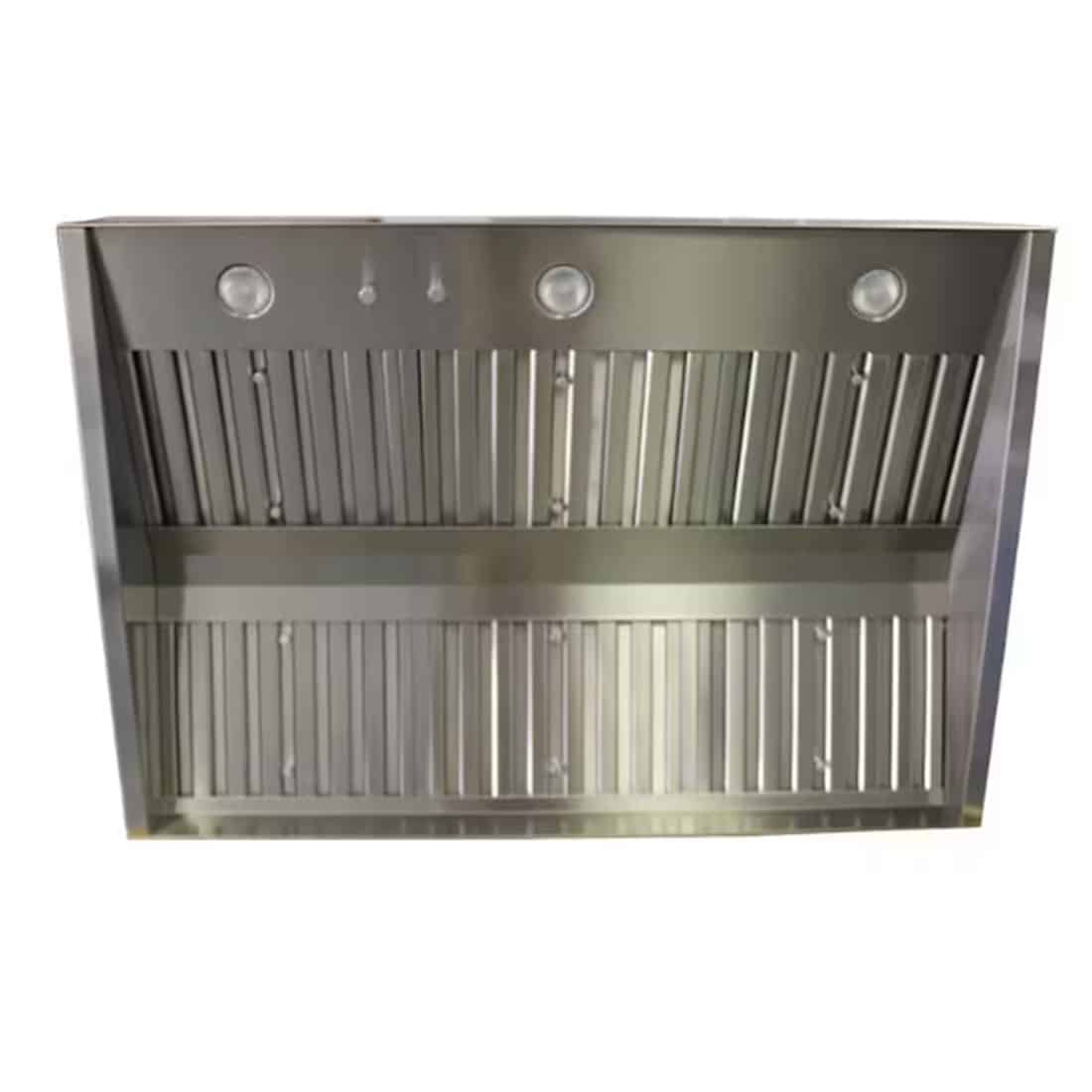

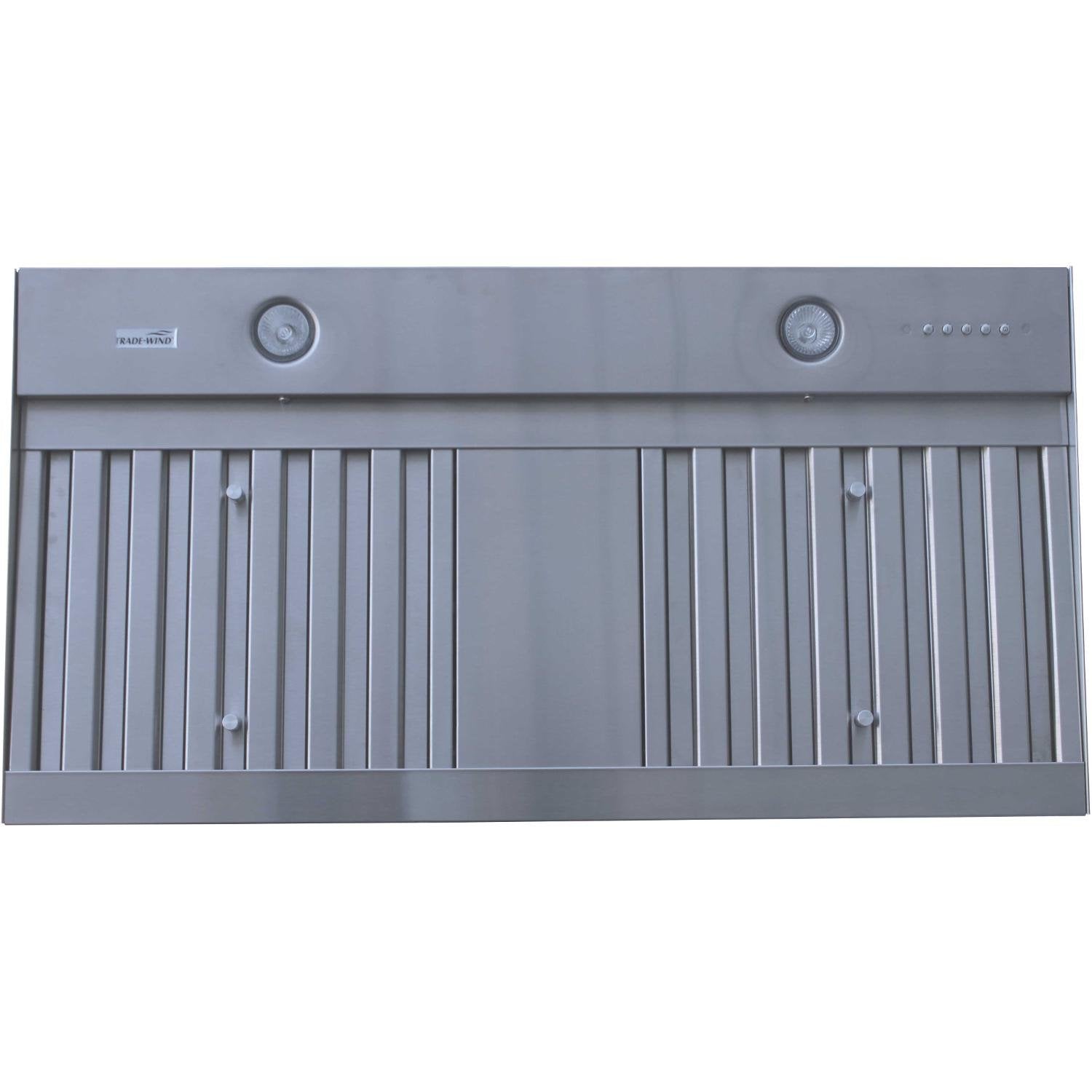

The Trade-Wind L7242-12 is a 42 in. stainless steel barbecue vent liner, the working insert that goes inside a custom masonry, stone or wood canopy over an outdoor grill. Its 32 in. depth gives a generous capture area, and stainless steel commercial baffle filters catch grease before it reaches the duct.
This model has internal blowers rated at 1,200 CFM with 3-speed control, pre-wired and ready to install. It exhausts through a 10 in. round top collar.
Key Specifications
| Model | L7242-12 |
|---|---|
| Series | Trade-Wind L7200 BBQ liner |
| Width | 42 in. |
| Depth | 32 in. |
| Blower | Internal, 1,200 CFM, 3-speed control |
| Lights | Dimmable 50 W halogen lights |
| Filters | Stainless steel commercial baffle filters, dishwasher safe (12 in. x 14 in.; four on smaller models, six or eight on larger ones) |
| Discharge | 10 in. round, top |
| Construction | Heavy gauge #304 stainless steel |
| Electrical | 120V, 60 Hz, individual grounded branch circuit on a 15 or 20 A breaker; 6.0 A three-speed fan control |
| Made in | Phoenix, Arizona, USA |
Dimensions and Cutout
| Width | 42 in. |
|---|---|
| Depth | 32 in. |
| Discharge | One 10 in. round collar |
| Electrical access | 0.875 in. holes centered 2.5 in. from the rear edge and 1.25 in. from each side |
| Canopy clearance | 36 in. above the cooking surface for a combustible canopy, 30 in. for a non-combustible canopy |
| Exact dimensions | See the Trade-Wind installation instructions |
Features
- 42 in. wide liner for a custom outdoor grill canopy
- 32 in. deep capture area
- 1,200 CFM internal blowers with 3-speed control
- Stainless steel commercial baffle filters
- Dishwasher-safe filters
- Dimmable 50 W halogen lights
- All-stainless design with no grease traps
- Made in Phoenix, Arizona
What Is Included and What You Will Need
- Included: L7242-12 liner with internal blowers, baffle filters and halogen lights
- Recommended: Trade-Wind DPR010 10 in. back-draft damper and a Trade-Wind duct silencer
- Needed: a custom canopy with framing and backing, 10 in. metal duct, exterior cap and a 120V circuit
Installation Notes
Trade-Wind does not allow the liner on a patio without a roof over the hood: it needs at least 3 ft of weatherproof roof coverage on every side not protected by an adjacent wall. The liner mounts inside a custom canopy: Trade-Wind specifies at least 36 in. from the cooking surface to a canopy built of combustible materials and 30 in. to a non-combustible canopy, with solid framing and backing to fasten to. Duct it to the outdoors only, with metal duct and sealed joints, never into a wall cavity or attic. It needs a 120V, 60 Hz individual grounded branch circuit on a 15 or 20 A breaker, and Trade-Wind recommends GFCI protection. In New York City, a hood on a terrace or rooftop usually means new duct penetrations and electrical work, so building approval and a licensed electrician are part of the plan. Book a design consultation and we will design the canopy, liner and duct run with you.
Documentation
- Spec Sheet (L7200 BBQ Liner)
- Install and User Guide (L7200 BBQ Liner)
- Trade-Wind L7200 BBQ Liner Spec Sheet
- Trade-Wind L7200 BBQ Liner Installation Instructions
Frequently Asked Questions
What is a vent liner?
A liner is the stainless insert with filters, lights and blower connection that installs inside a custom-built hood, so the canopy can match your outdoor kitchen.
Is the blower included?
Yes. This model has internal blowers rated at 1,200 CFM.
How high above the grill does it go?
Trade-Wind specifies at least 36 in. to a combustible canopy and 30 in. to a non-combustible canopy.
What warranty does it have?
Trade-Wind covers parts and labor for 3 years from purchase; light bulbs are excluded.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
Trade-Wind warranty, per the installation instructions (revised January 1, 2023) and spec sheet: 3 years on parts and labor from the date of purchase, to the original user, against defects in materials and workmanship; Trade-Wind will repair or replace the unit or the defective component. Light bulbs are not covered, and neither are problems from installation that does not follow Trade-Wind's instructions and Best Practices, such as undersized ducting or restrictive roof caps. Coverage is for normal residential use in the United States and Canada.
