Trade-Wind | 66" Stainless Steel Outdoor Vent Insert with Blower
Trade-Wind | 66" Stainless Steel Outdoor Vent Insert with Blower is backordered and will ship as soon as it is back in stock.
Description
Description
Available Sizes: Trade-Wind L7200 Liners with 2300 CFM Internal Blowers
Overall Dimensions: 64-1/2 in. W x 32 in. D x 8 in. H liner body (16-1/2 in. H including the blower housings), per Trade-Wind installation drawing

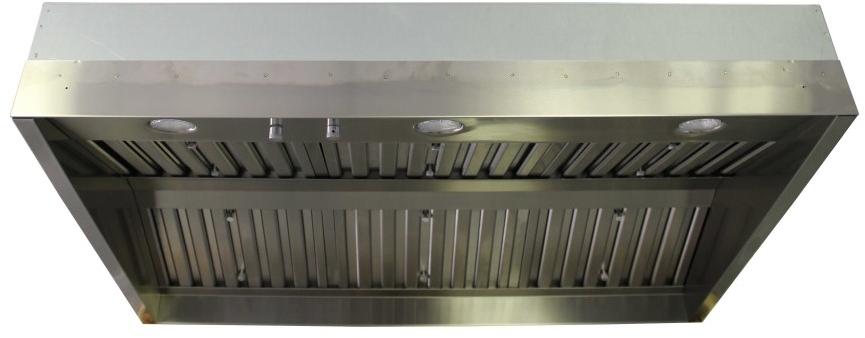

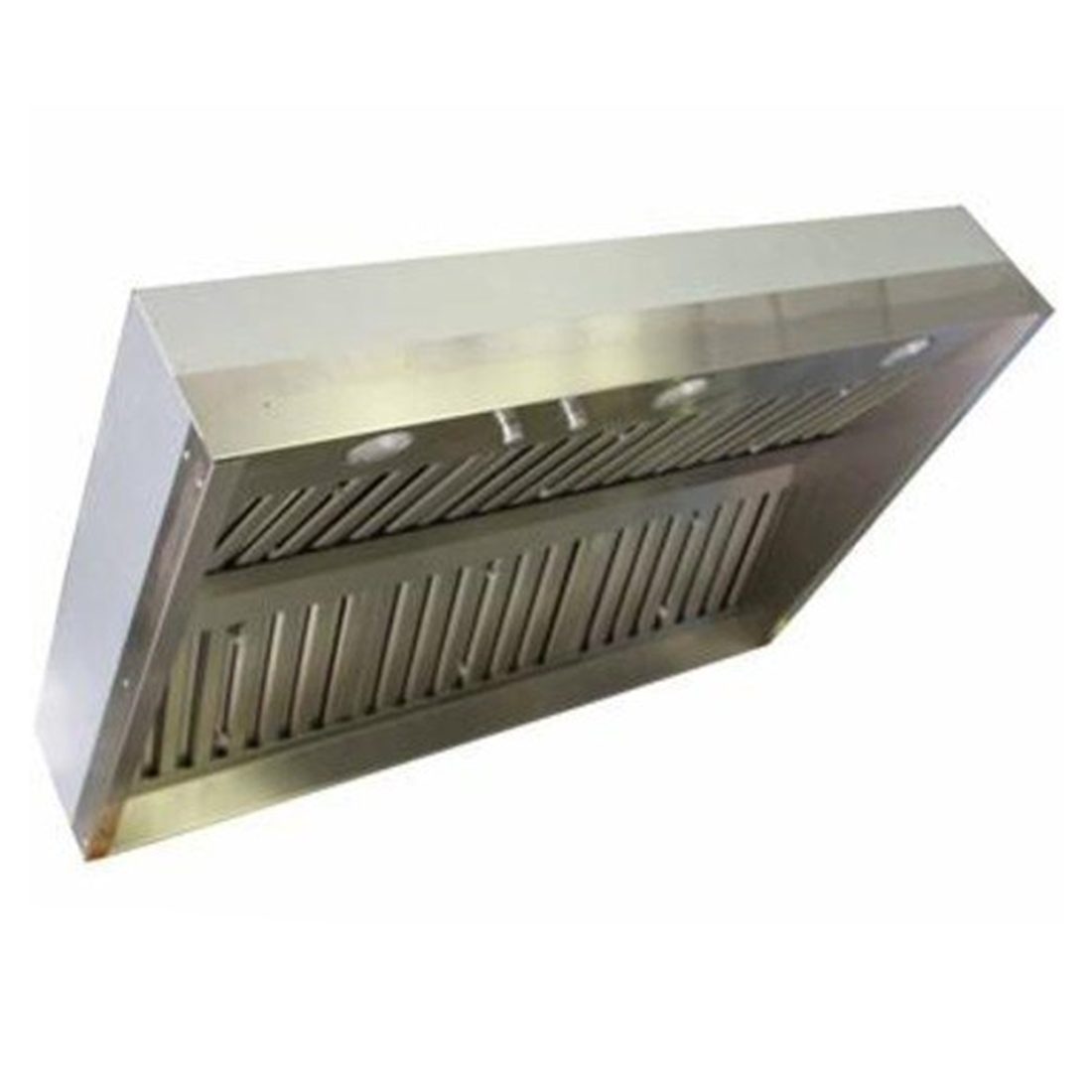

The Trade-Wind L7266-23 is a 66 in. class stainless steel BBQ hood liner (L7200 series) with two internal blowers rated 2300 CFM, built to be mounted inside a custom wood or non-combustible canopy over an outdoor grill. The 32 in. deep liner covers the full grill front to back, stainless baffle filters lift out for the dishwasher, and the unit arrives pre-wired with dimmable halogen lights and a three-speed control, so the canopy builder only frames, ducts and wires it.
Key Specifications
| Model | L7266-23 (L7200 series BBQ liner) |
| Nominal size | 66 in. class; liner body 64-1/2 in. wide |
| Blower | Two internal blowers, 2300 CFM, 3-speed control |
| Discharge | Top, two 10 in. round collars (single duct available on request from Trade-Wind) |
| Lights | Dimmable 50 W halogen, PAR 20 lamps |
| Filters | Dishwasher-safe stainless commercial baffle filters |
| Construction | #304 grade, 22-gauge stainless steel |
| Electrical | 120 V, 60 Hz individual grounded branch circuit on a 15 or 20 A breaker; GFCI protection recommended; 6.0 A three-speed fan control |
| Weight | 132 lb (per listing) |
Dimensions and Cutout
| Liner body (W x D x H) | 64-1/2 in. x 32 in. x 8 in. |
| Blower housings | Two 22 in. x 17-1/4 in. housings rising 8-1/2 in. above the body |
| Mounting height | Combustible canopy structure at least 36 in. above the cooking surface; non-combustible canopy at least 30 in. |
| Electrical access | Two 0.875 in. holes, centered 2.5 in. from the rear edge and 1.25 in. from each outside edge |
Features
- Two internal blowers deliver 2300 CFM
- Designed to fit inside a custom outdoor canopy
- 32 in. depth for full grill coverage
- #304, 22-gauge stainless steel
- Dishwasher-safe commercial baffle filters
- Dimmable 50 W halogen lights
- Pre-wired and ready to install
- All stainless exterior with no grease traps
What Is Included and What You Will Need
- Included: L7266-23 liner with two internal blowers, baffle filters, halogen light fixtures, pre-wired controls
- Required: a framed custom canopy with solid backing, two 10 in. rigid metal ducts to an approved roof or wall cap (no damper, no flex duct), a dedicated 120 V circuit, mounting screws (provided by others)
Installation Notes
The liner is screwed through its top and back into structural framing inside the canopy (no pre-drilled holes), then ducted vertically through two 10 in. collars per the Trade-Wind L7200 installation instructions and Best Practices. Trade-Wind requires at least 3 ft of weatherproof roof coverage on every side not protected by an adjacent wall, sealed metal ductwork run to the outdoors, and no back-draft damper in a BBQ application. In New York City, kitchen exhaust ducting through roofs or exterior walls typically needs building approval, and many terraces and rooftops have their own rules, so confirm the duct route early. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
What size canopy opening does it need?
The liner body is 64-1/2 in. wide and 32 in. deep, so frame the canopy to suit those dimensions and the blower housings above.
Is the blower included?
Yes. The -23 model has two internal blowers rated 2300 CFM.
How high above the grill?
At least 36 in. to a combustible canopy or 30 in. to a non-combustible canopy, per Trade-Wind.
How many ducts does it need?
Two 10 in. ducts as standard; Trade-Wind can supply a single-duct version on request.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
Trade-Wind L7200 Series BBQ Liner warranty (installation instructions): 3 years from the date of purchase against defects in materials and workmanship for the original user; Trade-Wind will repair or replace the unit or defective component. Faulty installation, undersized ducting, restrictive caps and use outside the United States are not covered.
