Description
Description
Available Sizes: Trade-Wind L7200 Liners with 2300 CFM Internal Blowers
Overall Dimensions: 72 in W x 32 in D x 16 1/2 in H (nominal 72 in size, including blower housings)

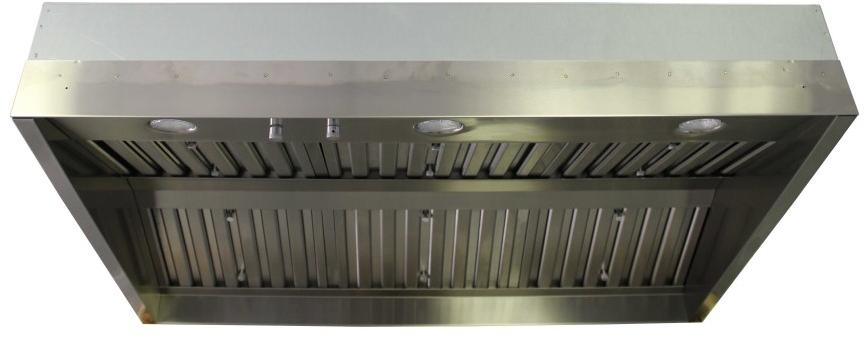

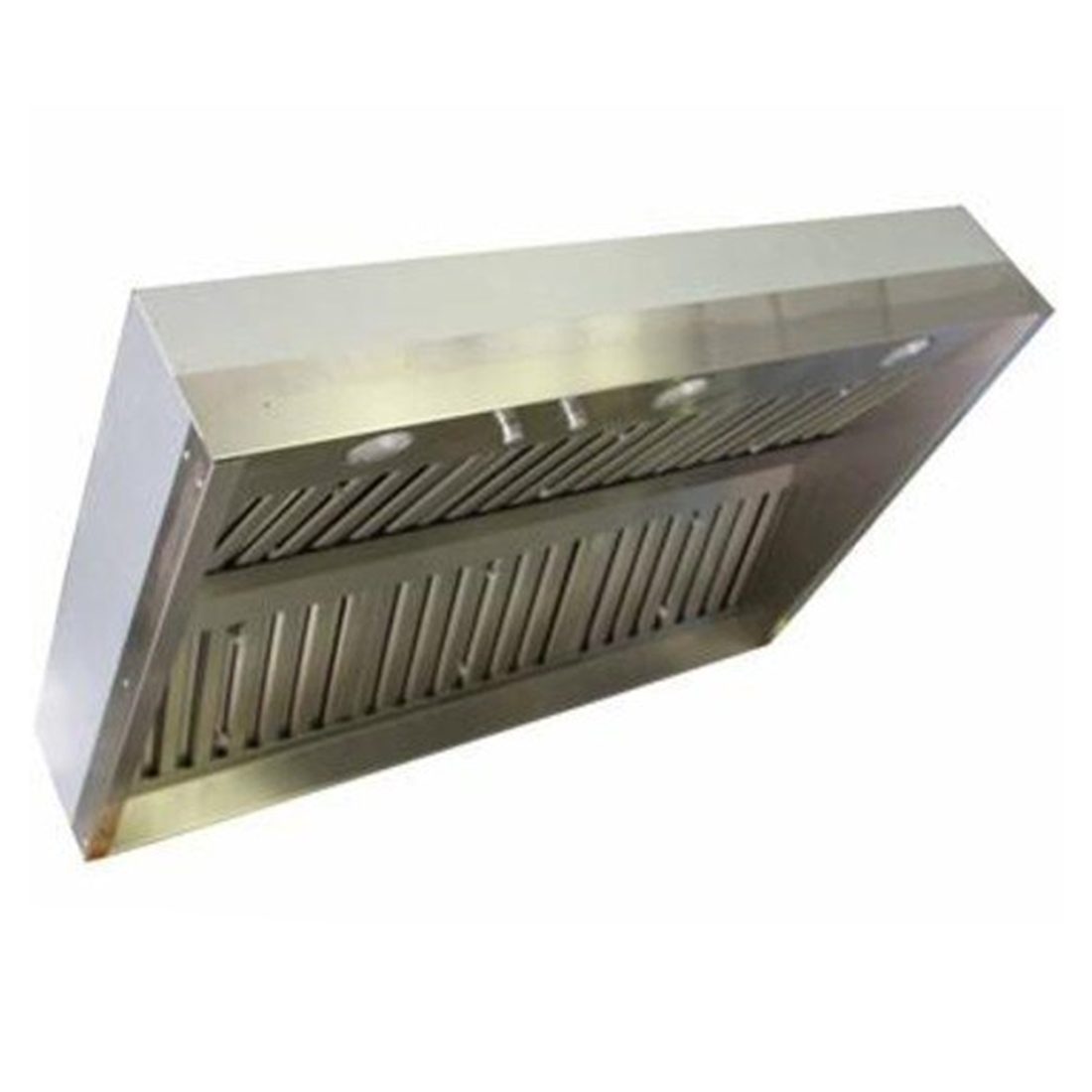

The Trade-Wind L7272-23 is a 72 in stainless steel BBQ liner with two internal blowers, made to be built into a custom outdoor hood or canopy over a grill. It suits outdoor kitchens where the designer wants a custom enclosure that matches the island, with the ventilation hardware already inside. The 32 in capture depth, 2300 CFM blowers and 304 stainless construction cover a wide grill line.
Key Specifications
| Model | L7272-23 (L7200 Series BBQ Liner) |
|---|---|
| Airflow | 2300 CFM |
| Blowers | Two internal blowers, 3-speed control |
| Lighting | Dimmable 50 watt halogen lights (PAR 20 lamps) |
| Filters | Stainless steel commercial baffle filters, 12 in x 14 in, dishwasher safe |
| Duct | Vertical exhaust through two 10 in round start collars (single duct available on request) |
| Material | Commercial stainless steel, 304 grade, 22 gauge |
| Electrical | 120V, 60 Hz, individual grounded branch circuit on a 15 or 20 amp breaker, GFCI protected; 6.0 amp three-speed fan control |
| Weight | 132 lbs (per current listing) |
Dimensions and Cutout
| Size | 72 in model; manufacturer drawing shows a 70 1/2 in wide body |
|---|---|
| Depth | 32 in |
| Height | 8 in body plus 8 1/2 in blower housings on top (16 1/2 in total) per manufacturer drawing |
| Mounting Height | In a custom canopy, the canopy structure should be at least 36 in above the cooking surface if combustible and at least 30 in if non-combustible. Always follow local code. |
| Wiring Access | 0.875 in electrical access holes, centered 2.5 in from the rear edge and 1.25 in from both outside edges |
Features
- Two internal blowers deliver 2300 CFM with 3-speed control
- 32 in depth for a large capture area
- Commercial stainless steel baffle filters, dishwasher safe
- Dimmable halogen lighting
- Pre-wired and ready to install, per the spec sheet
- Top discharge through two 10 in round collars
- All stainless steel exterior that is easy to keep clean
What Is Included and What You Will Need
- Included: the L7272-23 liner with internal blowers, baffle filters and halogen lighting.
- Needed: a custom hood or canopy to house the liner, with structure that supports the liner so it is not distorted, rigid metal ductwork, a roof or wall cap without a built-in damper, halogen lamps and a 120V GFCI protected circuit.
Installation Notes
Per the manufacturer, this liner must not be installed on a patio without a roof overhead. It needs a minimum of three feet of weatherproof roof coverage on all sides not protected by an adjacent wall, and all ductwork and roof openings must be sealed. Ducting must be rigid metal vented to the outdoors. The manufacturer's best practices say not to use any type of damper in a BBQ hood application. Installation and wiring must be done by a qualified installer and follow local code. Book a consultation and our team will help plan the canopy, duct run and electrical for your outdoor kitchen.
Documentation
Frequently Asked Questions
Is the L7272-23 a complete hood?
No. It is a liner that is installed inside a custom hood or canopy that you or your builder construct.
Does it include a blower?
Yes. The -23 models have internal blowers rated 2300 CFM. The L7272 without the suffix is the no-blower version.
How many ducts does it need?
Standard ducting on this size is two 10 in start collars. A single duct is available on request from the manufacturer.
Can it be installed in an open patio?
No. The manufacturer requires roof coverage over the liner to protect it from direct rain.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill.
Warranty
The manufacturer warrants its L7200 Series BBQ Liner to the original user against defects in materials and workmanship for three years from the date of purchase. The manufacturer will repair or replace the complete unit or any defective component at its option.
