Trade-Wind | 48″ Outdoor Vent Hood (Island Style)
Trade-Wind | 48″ Outdoor Vent Hood (Island Style) is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 48" W x 32" D x 24" H (hood body, duct cover extra)
The Trade-Wind P7248-ISL is a 48-inch pyramid-style island hood for outdoor kitchens, built in 304 stainless steel with a 32-inch front-to-back capture area. This is the remote-blower model: it is pre-wired for an in-line or remote blower and has no blower inside the hood, so it suits installations where you want the fan away from the cooking area. A telescoping duct cover is included for ceilings up to 10 feet.
Key Specifications
| Brand | Trade-Wind |
| Model | P7248-ISL |
| Series | P7200 Pyramid Island-Style BBQ Grill Hoods |
| Blower | In-line or remote blower required, not included (optional in-line blower delivers 1266 CFM) |
| Blower Control | Variable control |
| Lighting | 3 dimmable 50 watt halogen lights |
| Filters | Stainless steel commercial baffle filters, double bank, dishwasher safe |
| Discharge | 10" round, top only |
| Material | Commercial stainless steel (#304 grade, #4 brush finish) |
| Electrical | 120 V, 60 Hz, individual grounded 15 or 20 A branch circuit |
| Made In | Phoenix, AZ USA |
Dimensions and Cutout
| Width | 48" |
| Depth | 32" at the bottom, 16" at the top |
| Hood Height | 24" |

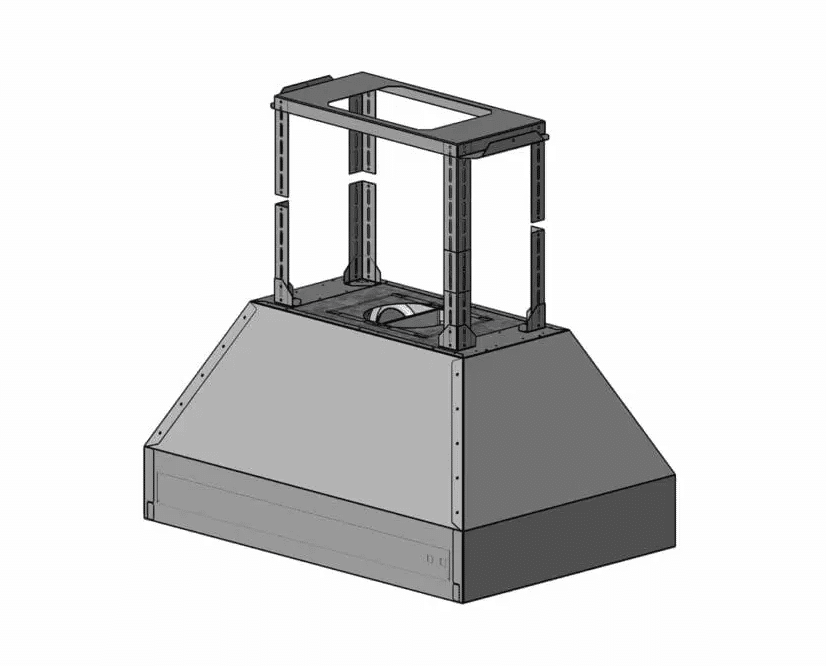

| Duct Cover | Telescoping two-piece, included for ceilings up to 10' |
| Mounting | Four top-corner holes for all-thread rod (supplied by others) |
All dimensions are nominal, plus or minus 1/8". For ceilings higher than 10', a chase or soffit must be built before installation to secure the duct cover. See the installation instructions for exact dimensions.
Features
- Pyramid island shape with a 32" front-to-back capture area

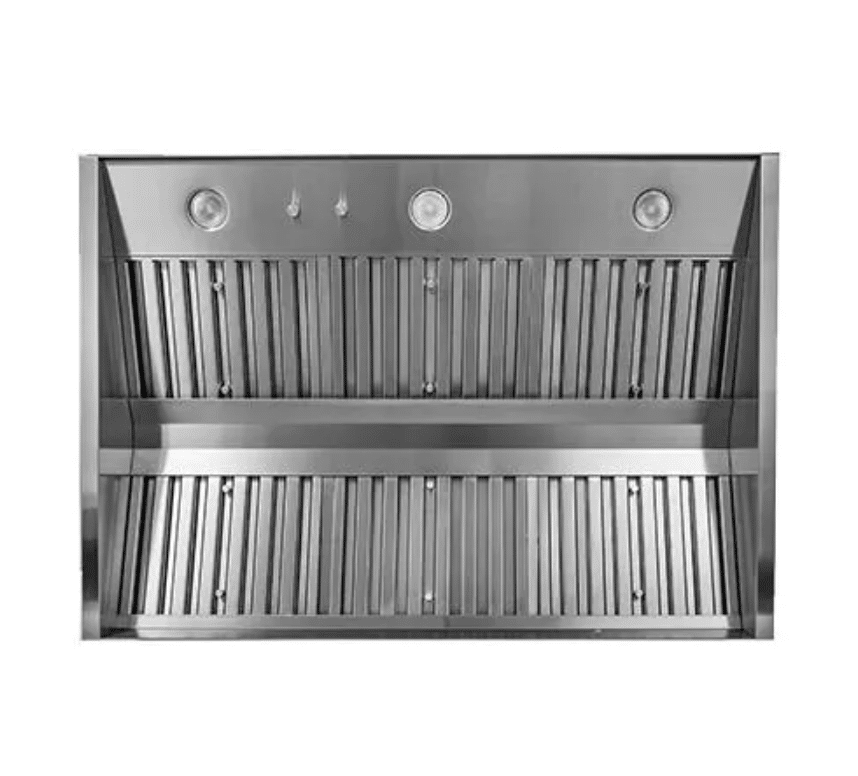

- Double bank of stainless steel baffle filters with easy-grip handles
- Dimmable 50 watt halogen lighting over the grill
- All-stainless exterior with no grease traps to clean
- Pre-wired for most in-line or exterior blowers
- Telescoping duct cover adjusts to ceiling height up to 10'
What Is Included and What You Will Need
- Included: island hood with baffle filters, halogen lighting, variable control and telescoping duct cover
- You will need: an in-line or remote blower, such as the Trade-Wind 1266 CFM In-Line Blower (PSD010XL)
- You will need: metal ductwork, a roof or wall cap without a damper, halogen bulbs, and all-thread rod for mounting
Special order. Call to inquire.
Installation Notes
Installation should be completed by a qualified installer and a licensed electrician. Vent the hood outdoors through metal ductwork only, and do not use a damper in a BBQ hood application. Install with at least 36" between the cooking surface and the hood structure for custom canopies; follow all published clearances. Provide a minimum of three feet of weatherproof roof coverage on all sides not protected from rain by an adjacent wall. Trade-Wind notes that performance is not guaranteed for island installations. Plan your layout in a design consultation.
Documentation
Frequently Asked Questions
Does this hood include a blower?
No. The P7248-ISL is the remote-blower model. Choose an in-line or remote blower; the 1266 CFM in-line blower is the manufacturer's optional pairing. For an internal blower, see the P7248-12-ISL.
What size duct does it use?
A single 10" round discharge, top only.
Can I use it under a low ceiling?
The duct cover telescopes and is included for ceilings up to 10'. Taller ceilings need a chase or soffit.
Is it only for island installs?
This is the island-style pyramid hood, with the 32" capture depth designed to cover the grill below.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill?
Warranty
Trade-Wind warrants its Kitchen Ventilation Products to the original user to be free of defects in materials and workmanship for three (3) years from the date of purchase. Trade-Wind will, at its option, repair or replace the complete unit or any defective component without charge.
