Trade-Wind | 36" T-Shaped Outdoor BBQ Vent Hood

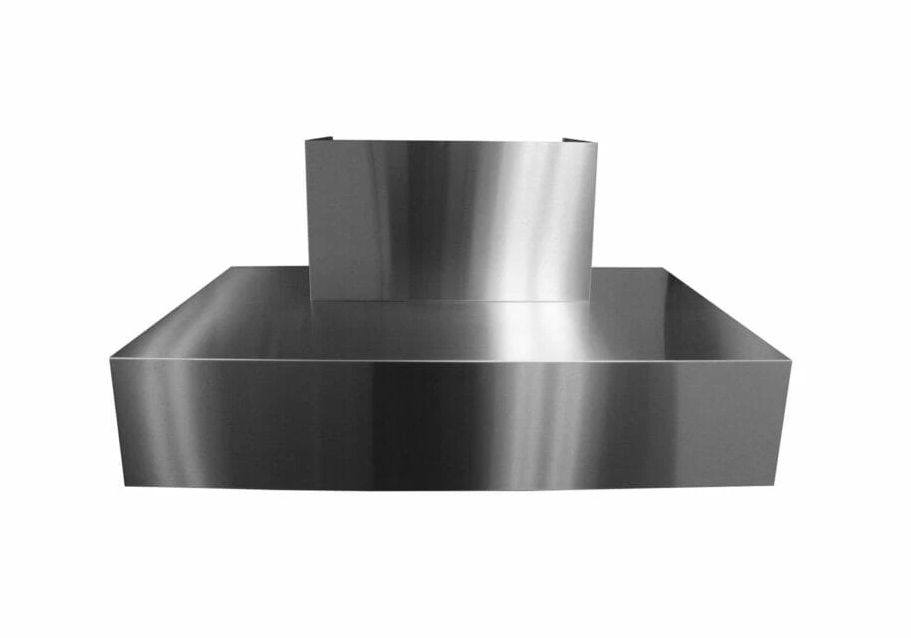

The Trade-Wind T7236-12 presents a T-shaped style 36-inch outdoor BBQ vent hood with a built-in 1200 CFM blower for an enhanced grilling experience. Included with this product is a 10-inch start collar and a duct cover suitable for ceilings up to 10 feet, making installation flexible and straightforward.
- Powerful internal blowers deliver 1200 CFM
- Heavy gauge commercial stainless steel (#304 grade with #4 brush finish)
- Four 12 by 14 baffle filters for enhanced performance (six on larger models)
- Dimmable 50 watt halogen lights
- Optional in-line blowers deliver 1266 CFM
In the realm of design specifications, the Trade-Wind T7236-12 is available in various widths, including 36, 42, and 48 inches, providing options to suit your specific outdoor kitchen requirements. Its spacious 32-inch hood depth ensures an exceptional capture area, effectively containing cooking byproducts and smoke.
The design of this vent hood incorporates stainless steel commercial baffle filters, not only boosting performance but also adding a professional touch to your outdoor kitchen. For an even more polished appearance, matching telescopic stainless steel duct covers are available, suitable for ceilings up to 12 feet, creating a seamless and stylish look.
When it comes to product features, the Trade-Wind T7236-12 is a reliable choice. It is equipped with powerful internal blowers capable of delivering a robust 1200 CFM, effectively managing smoke and odors while operating quietly and efficiently. Constructed from heavy gauge commercial stainless steel, specifically #304 grade with a #4 brush finish, this vent hood offers both durability and a pleasing aesthetic.
Featuring four 12 by 14 baffle filters (six on larger models), this hood ensures superior filtration performance, keeping your outdoor kitchen clean and free from grease buildup. Additionally, the inclusion of dimmable 50-watt halogen lights provides effective illumination for your cooking surface, ensuring optimal visibility during evening grilling sessions. For those seeking even more power, optional in-line blowers are available, delivering 1266 CFM.
In terms of installation and care, the Trade-Wind T7236-12 is designed for simplicity and convenience. Remote blower models come pre-wired for use with most in-line or exterior blowers, streamlining the setup process. Hoods with internal blowers are also pre-wired and ready for installation. The top-only 10-inch round discharge ensures efficient venting of cooking byproducts. For maintenance, the durable stainless steel baffle filters are dishwasher safe, making cleanup a breeze. The all-stainless steel exterior design not only enhances aesthetics but also simplifies cleaning while eliminating grease traps.
The Trade-Wind T7236-12 is a sophisticated and high-performing addition to your outdoor kitchen, offering a combination of design, power, and maintenance features that elevate your grilling experience to the next level.
Design Specs
- Available in 36, 42, and 48 widths
- Generously proportioned 32 depth of hood provides an exceptional capture area
- Design of the stainless steel commercial baffle filters adds a professional image
- Matching telescopic stainless steel duct covers are available for up to 12' ceilings
Product Features
- Powerful internal blowers deliver 1200 CFM
- Heavy gauge commercial stainless steel (#304 grade with #4 brush finish)
- Four 12 by 14 baffle filters for enhanced performance (six on larger models)
- Dimmable 50 watt halogen lights
- Optional in-line blowers deliver 1266 CFM
Installation & Care
- Remote blower models are pre-wired for use with most in-line or exterior blowers
- Hoods with internal blowers are all pre-wired and ready for installation
- Top only 10 round discharge
- Durable, dishwasher safe commercial stainless steel baffle filters
- All stainless steel exterior design is easy to keep clean and eliminates grease traps
Resources
Spec Sheet
Manual
Warranty
Trade-Wind warrants its Trade-Wind Kitchen Ventilation Products to the original user, to be free of defects in materials and workmanship for three (3) years from the date of purchase. Trade-Wind at its option, will repair or replace the complete unit or any defective component without charge.
