Warming Trends Crossfire CFB Original Brass Gas Fire Pit Burner Kit
Warming Trends Crossfire CFB Original Brass Gas Fire Pit Burner Kit - 60K BTU 7.375 x 7.375-Inch is backordered and will ship as soon as it is back in stock.
Description
Description
Burner sizes: 7.375 x 7.375 in. (60,000 BTU) to 46 x 45.875 in. (450,000 BTU), per listing

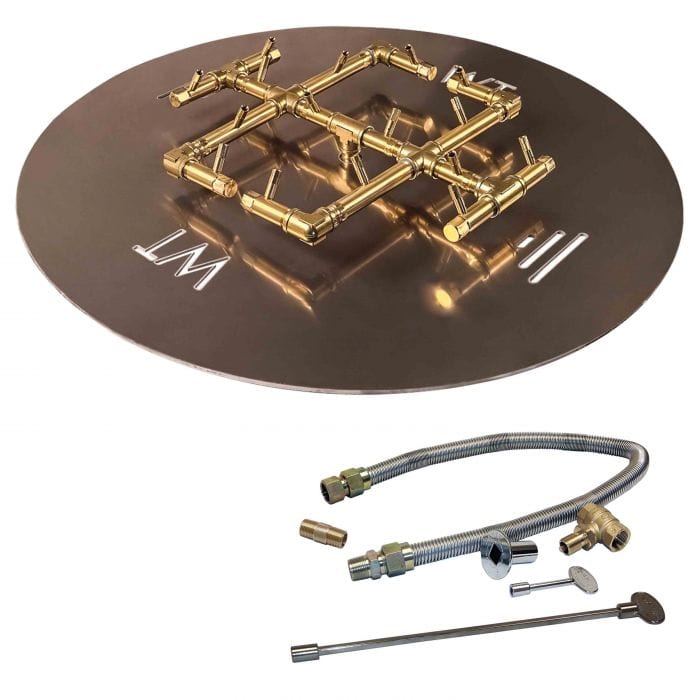

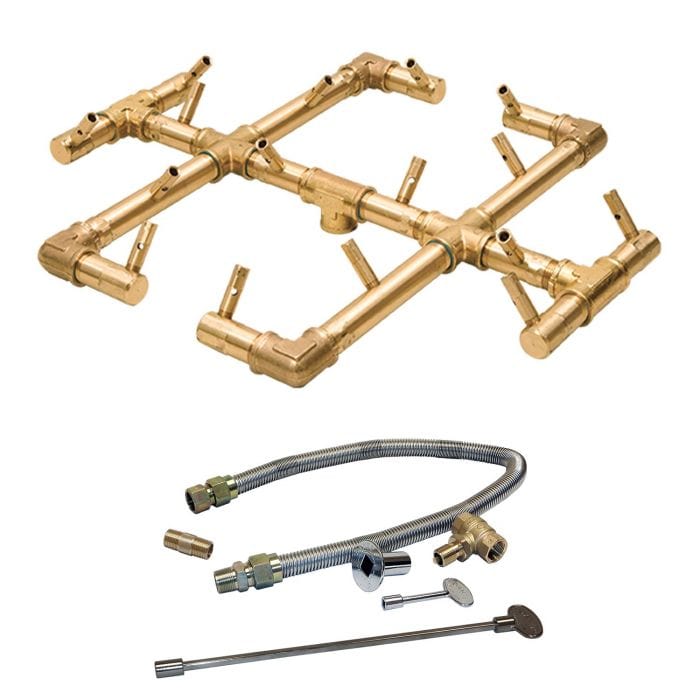

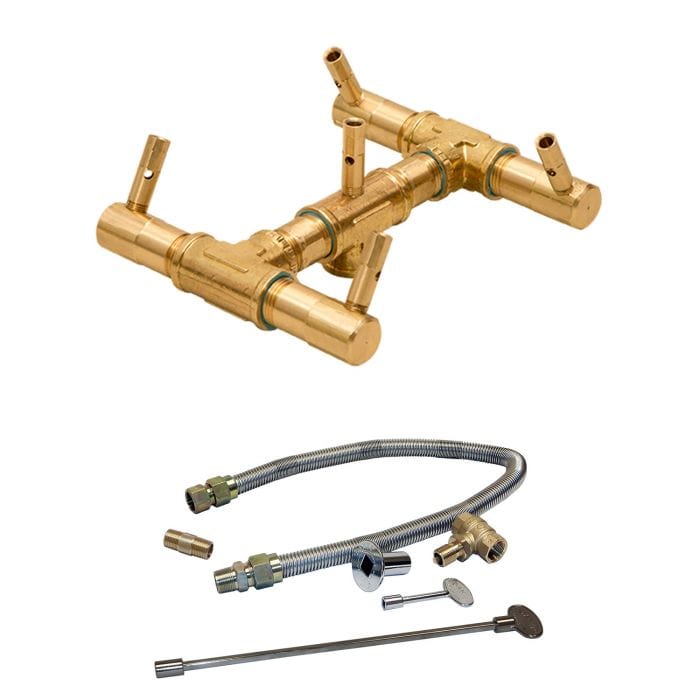

The Warming Trends CROSSFIRE CFB is the original-style brass burner for round and square gas fire pits. Its 100% brass body and jets mix gas and air for tall, bright flames, and each kit includes a flex line kit (two on larger sizes) and a key valve kit with a chrome flange and two keys for match lit operation.
Ten sizes run from 60,000 to 450,000 BTU to suit openings from 18 to 60 in. Every size offered on this listing is the natural gas version (NG in the SKU).
Key Specifications
| Model family | Warming Trends CROSSFIRE CFB original-style burner kit (10 sizes) |
|---|---|
| Burner material | 100% brass |
| Output | 60,000 to 450,000 BTU by size (select above) |
| Fuel | Natural gas versions on this listing (SKUs ending NGFK1 or NGFK2) |
| Ignition | Match lit with key valve |
| Gas inlet, match lit | NG 3.5 to 7.0 in. W.C. |
| Flex line | Single flex line kit (FK1) through CFB240, dual (FK2) on CFB290 and larger |
| Certification | CFB60, CFB60XL, CFB84, CFB120, CFB180, CFB240 and CFB290 are listed as certified match lit units in the Warming Trends Version 6 manual; CFB300 is listed only with electronic ignition; CFB350 and CFB450 are not listed |
Dimensions and Cutout

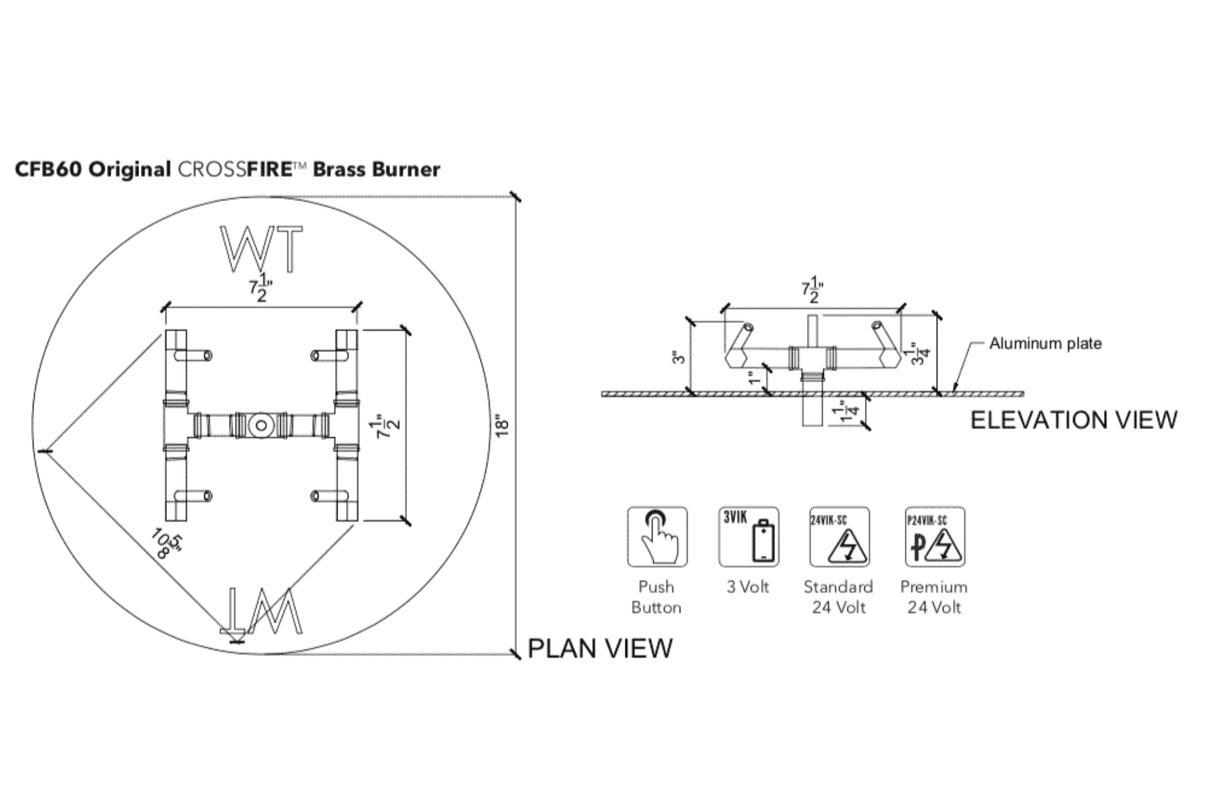

| CFB60 | 60,000 BTU; burner 7.375 x 7.375 in.; 1/2 in. inlet; 18 in. opening; WATERSTOP no |
|---|---|
| CFB60XL | 60,000 BTU; burner 7.25 x 5.875 in.; 1/2 in. inlet; 18 in. opening; WATERSTOP yes |

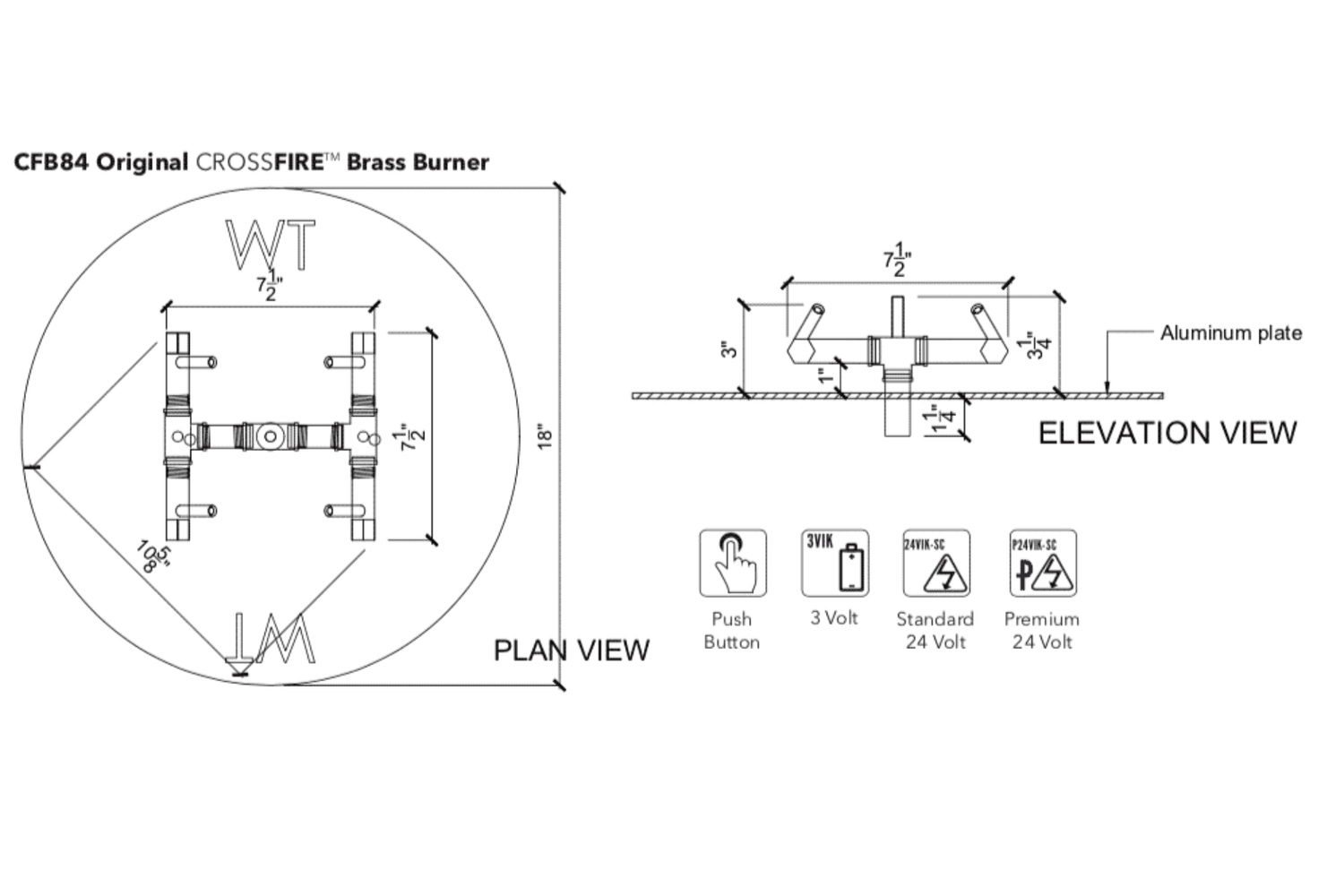

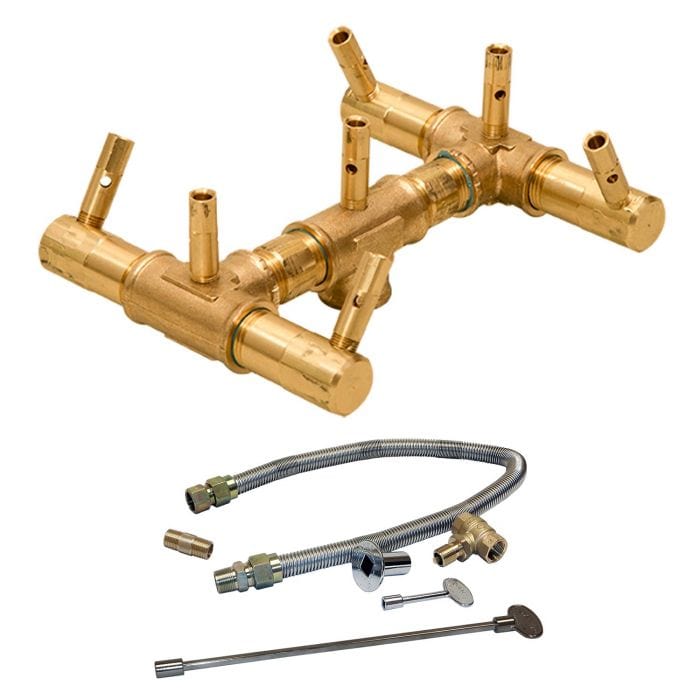

| CFB84 | 84,000 BTU; burner 7.375 x 5.875 in.; 1/2 in. inlet; 18 in. opening; WATERSTOP no |

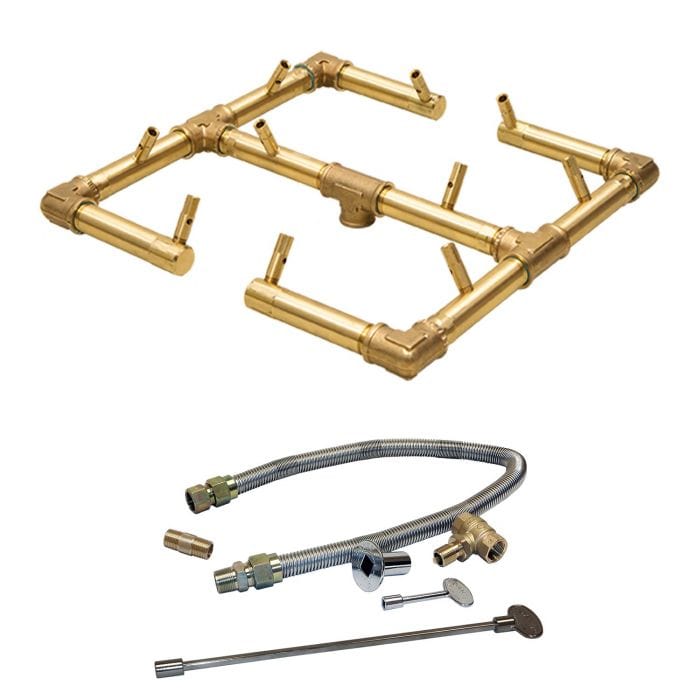

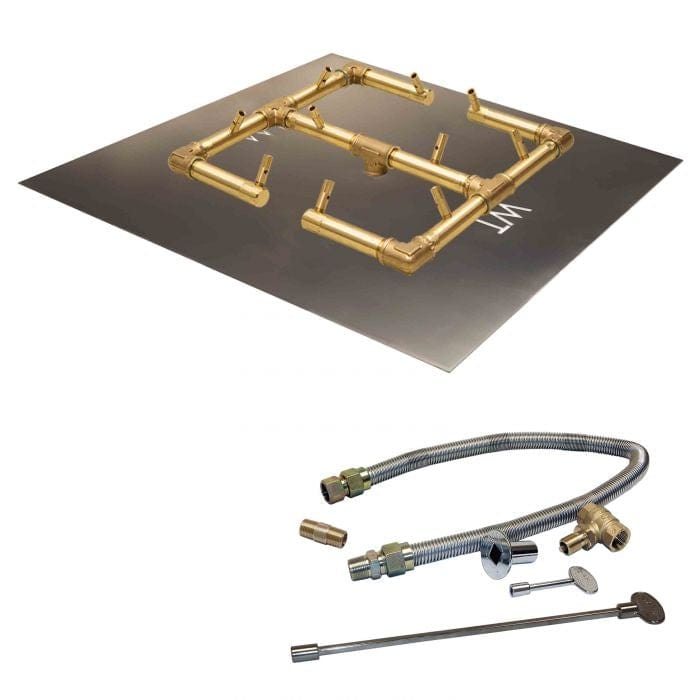

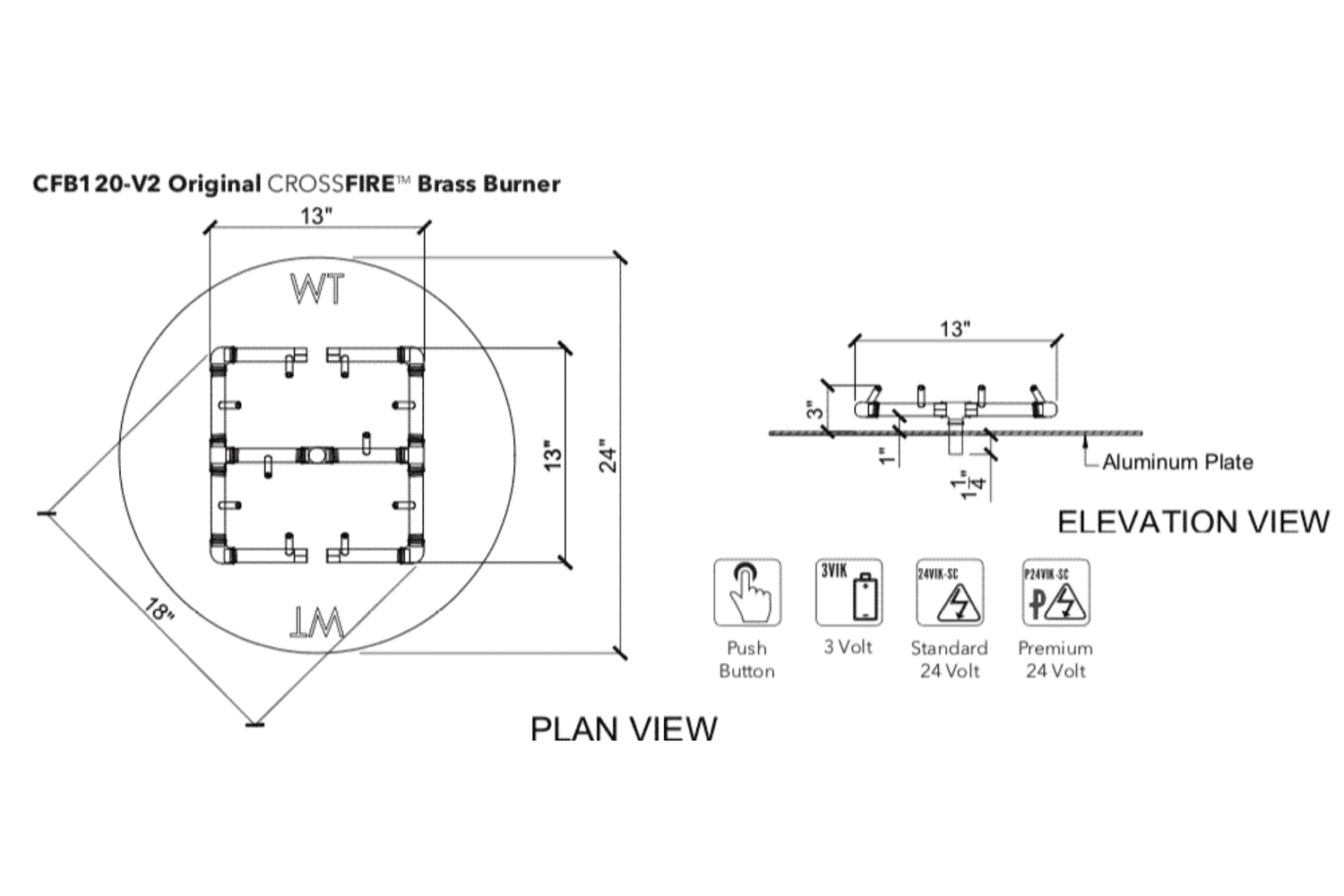

| CFB120 | 120,000 BTU; burner 13 x 13.25 in.; 1/2 in. inlet; 24 in. opening; WATERSTOP yes |

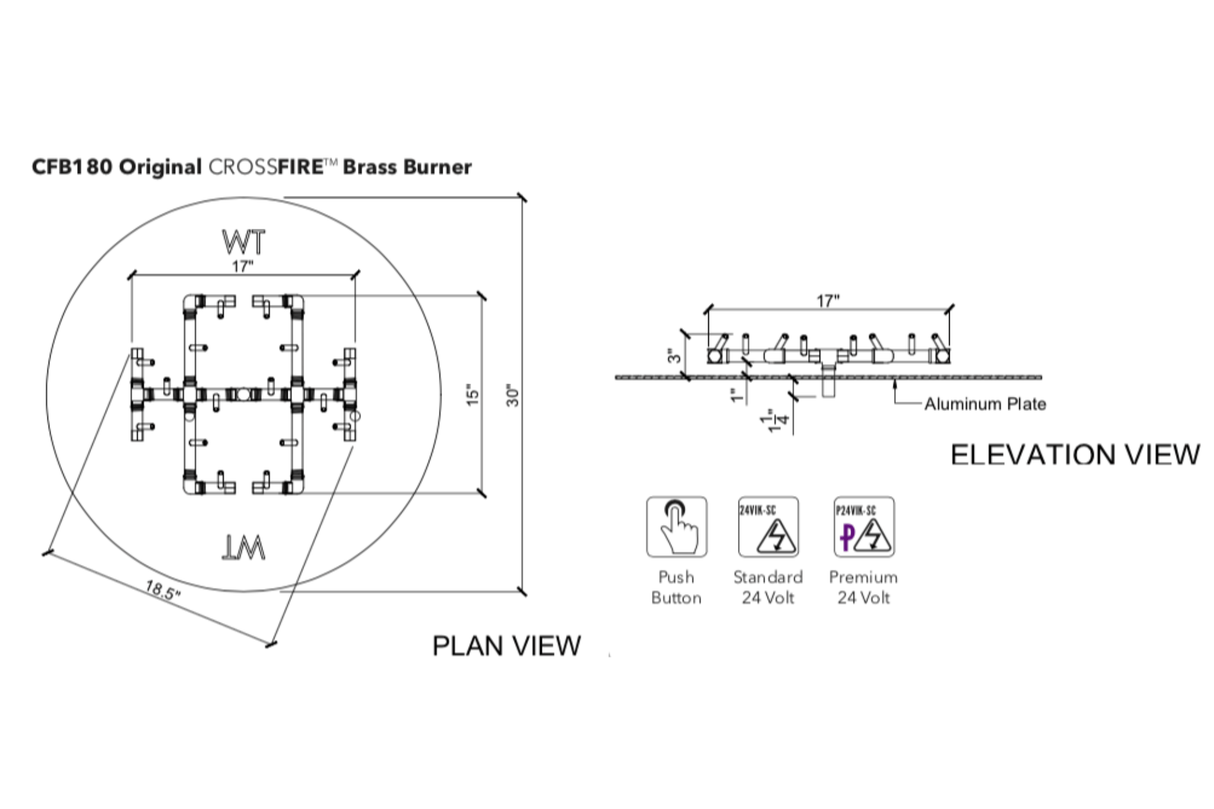

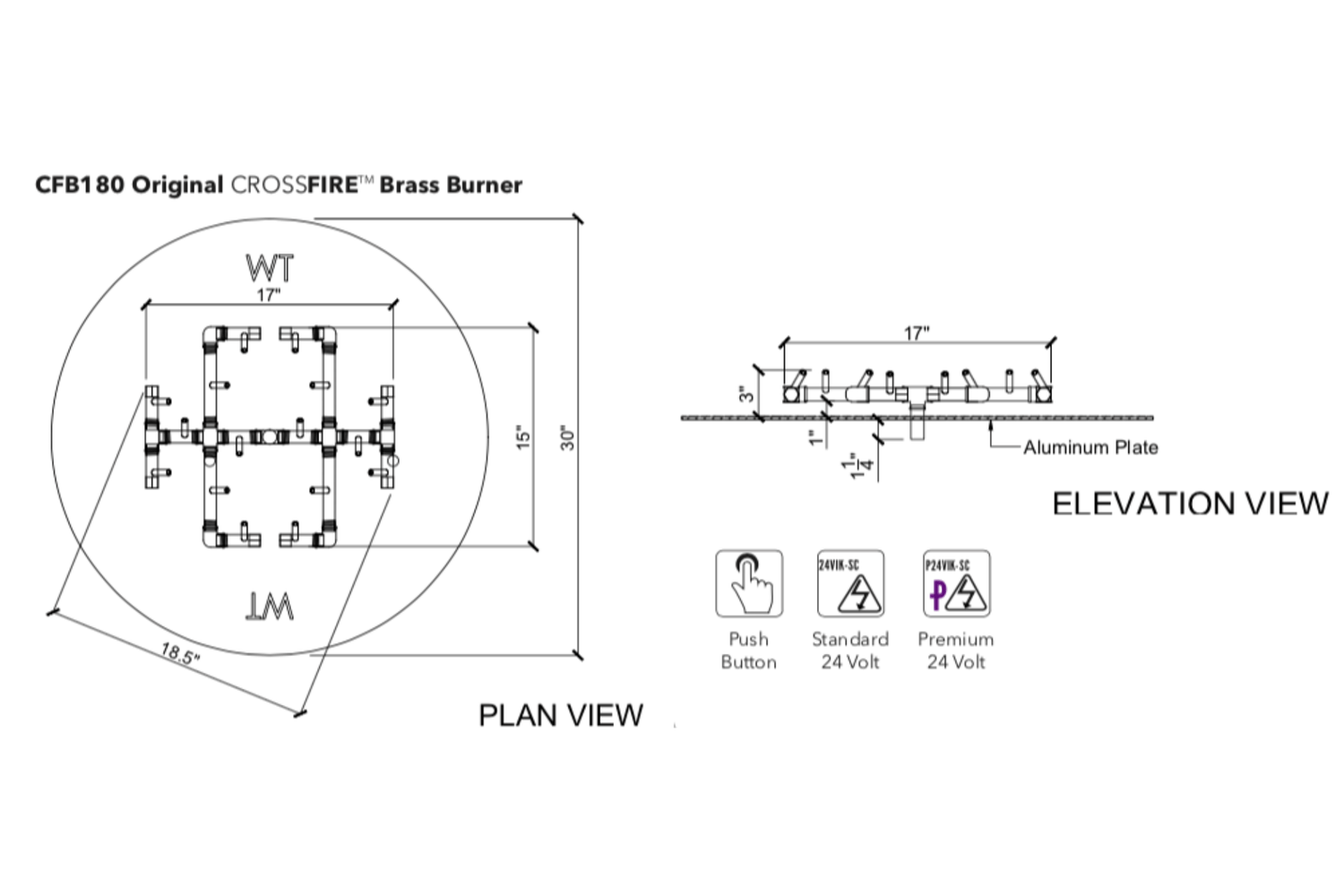

| CFB180 | 180,000 BTU; burner 17.25 x 16.5 in.; 1/2 in. inlet; 30 in. opening; WATERSTOP yes |

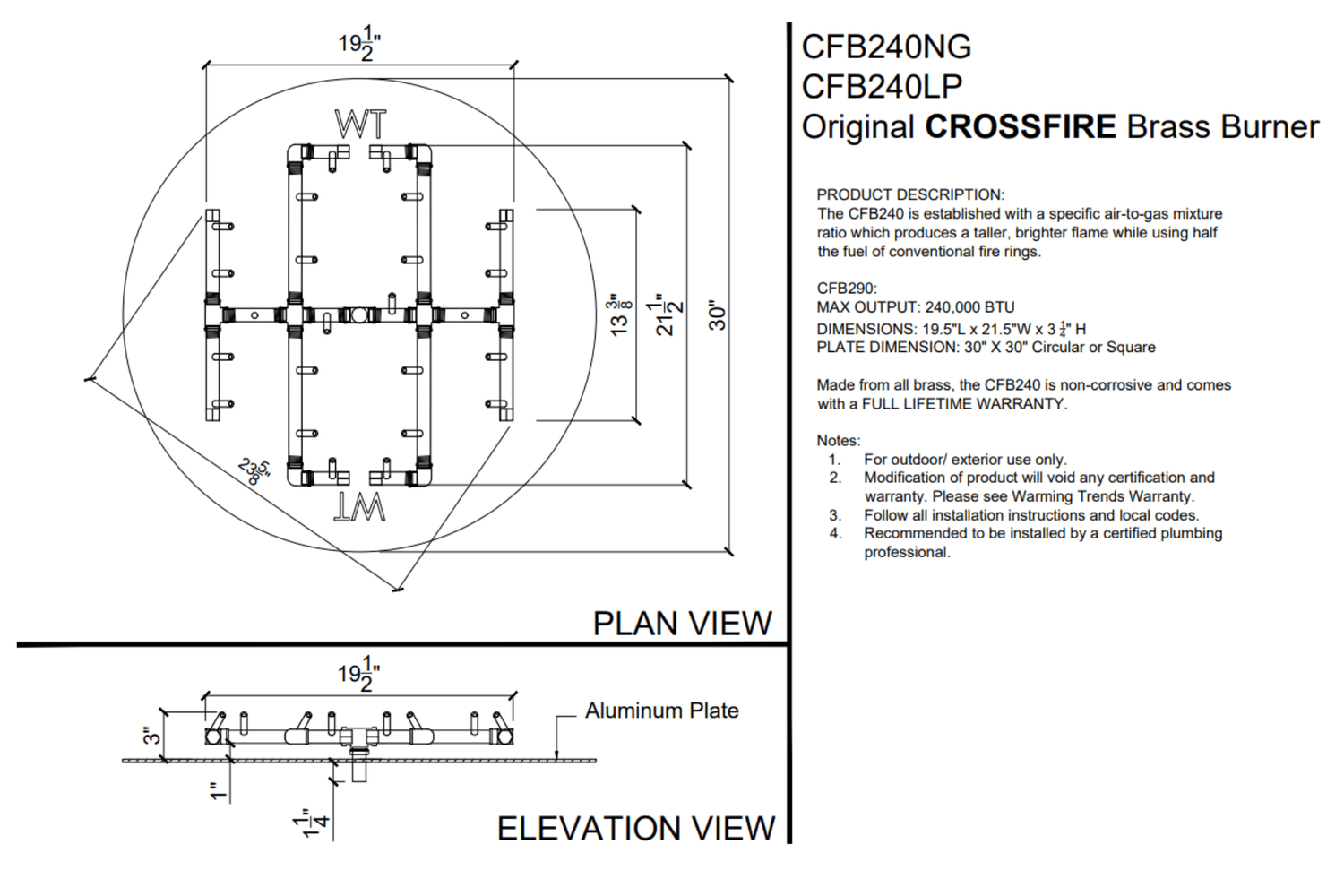

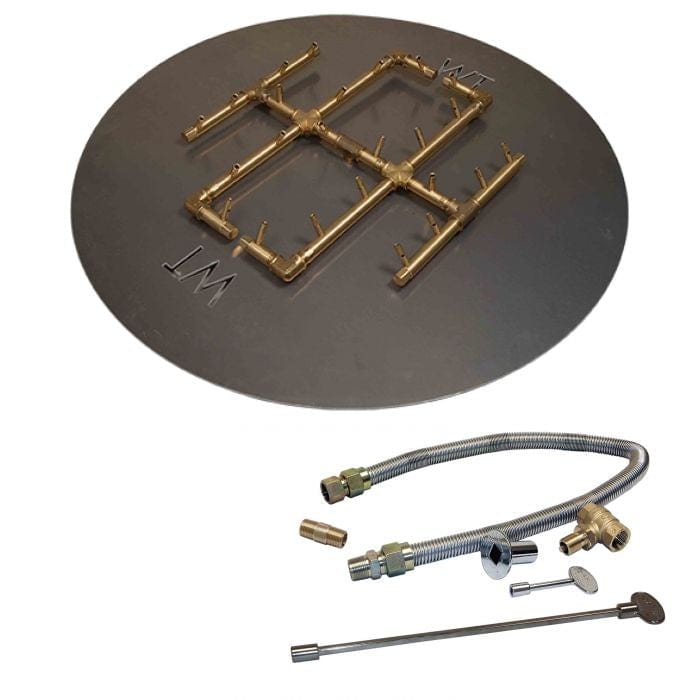

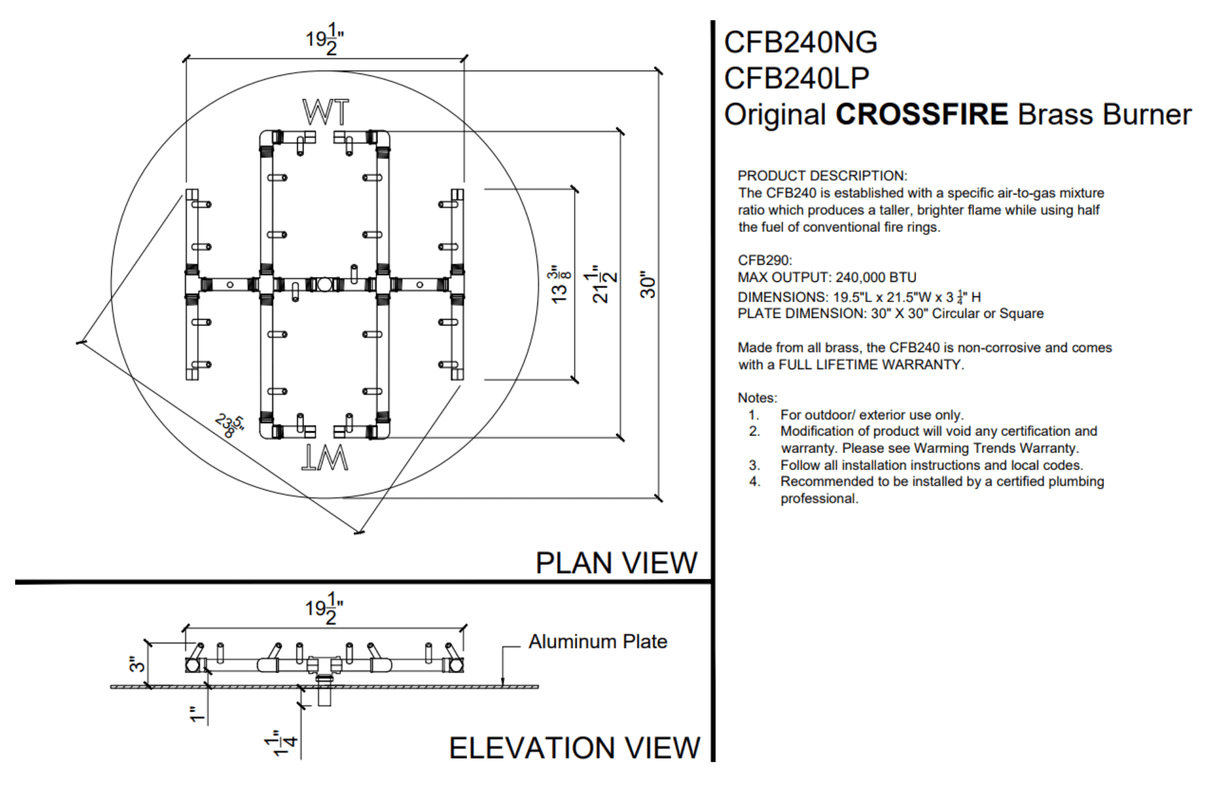

| CFB240 | 240,000 BTU; burner 18.75 x 21.5 in.; 1/2 in. inlet; 30 in. opening; WATERSTOP yes |

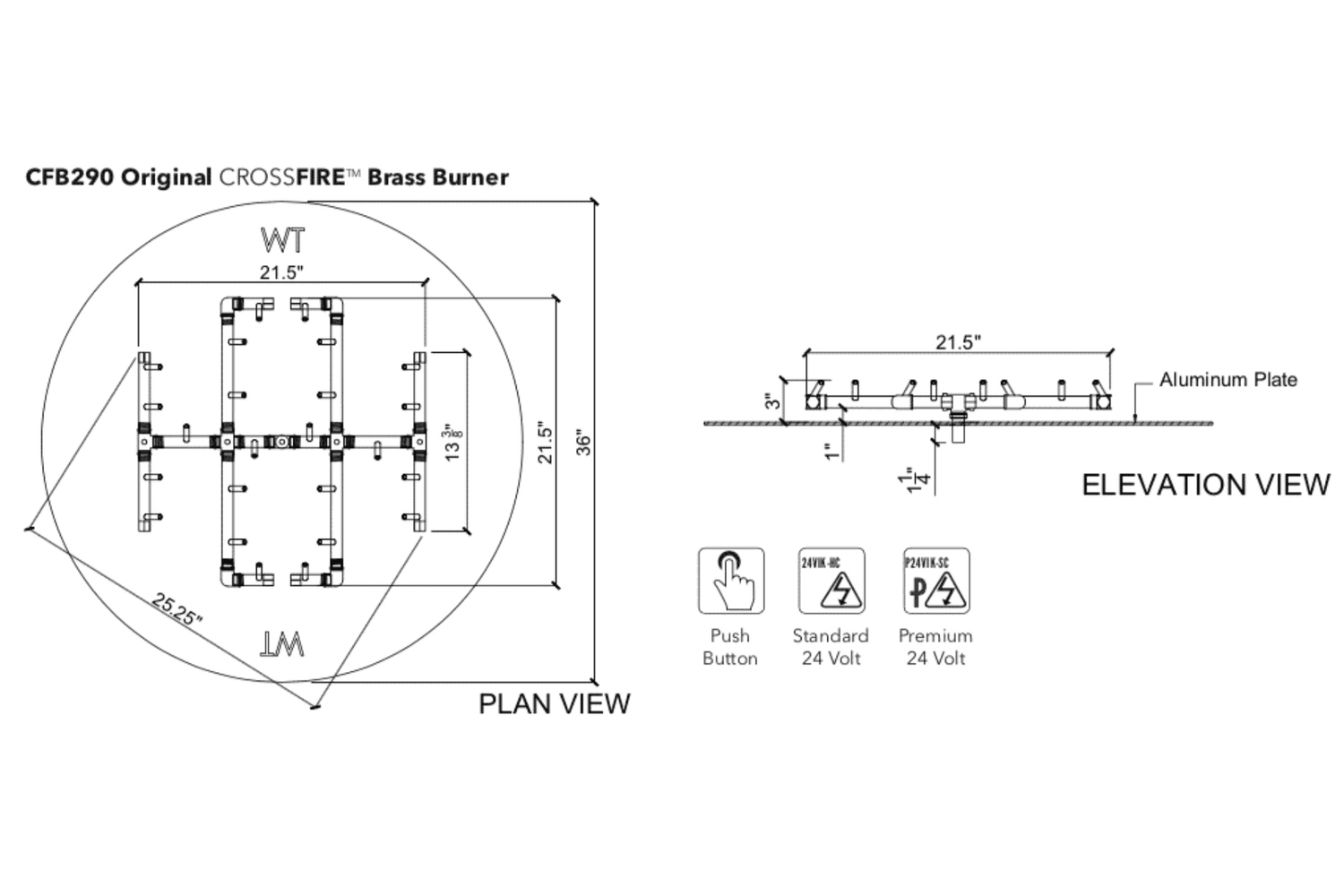

| CFB290 | 290,000 BTU; burner 21.75 x 21.5 in.; 1/2 in. inlet; 36 in. opening; WATERSTOP yes |

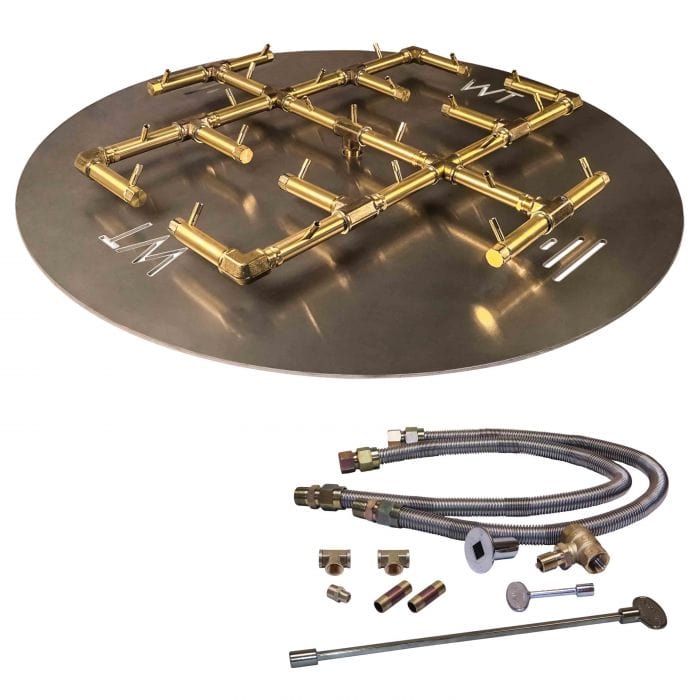

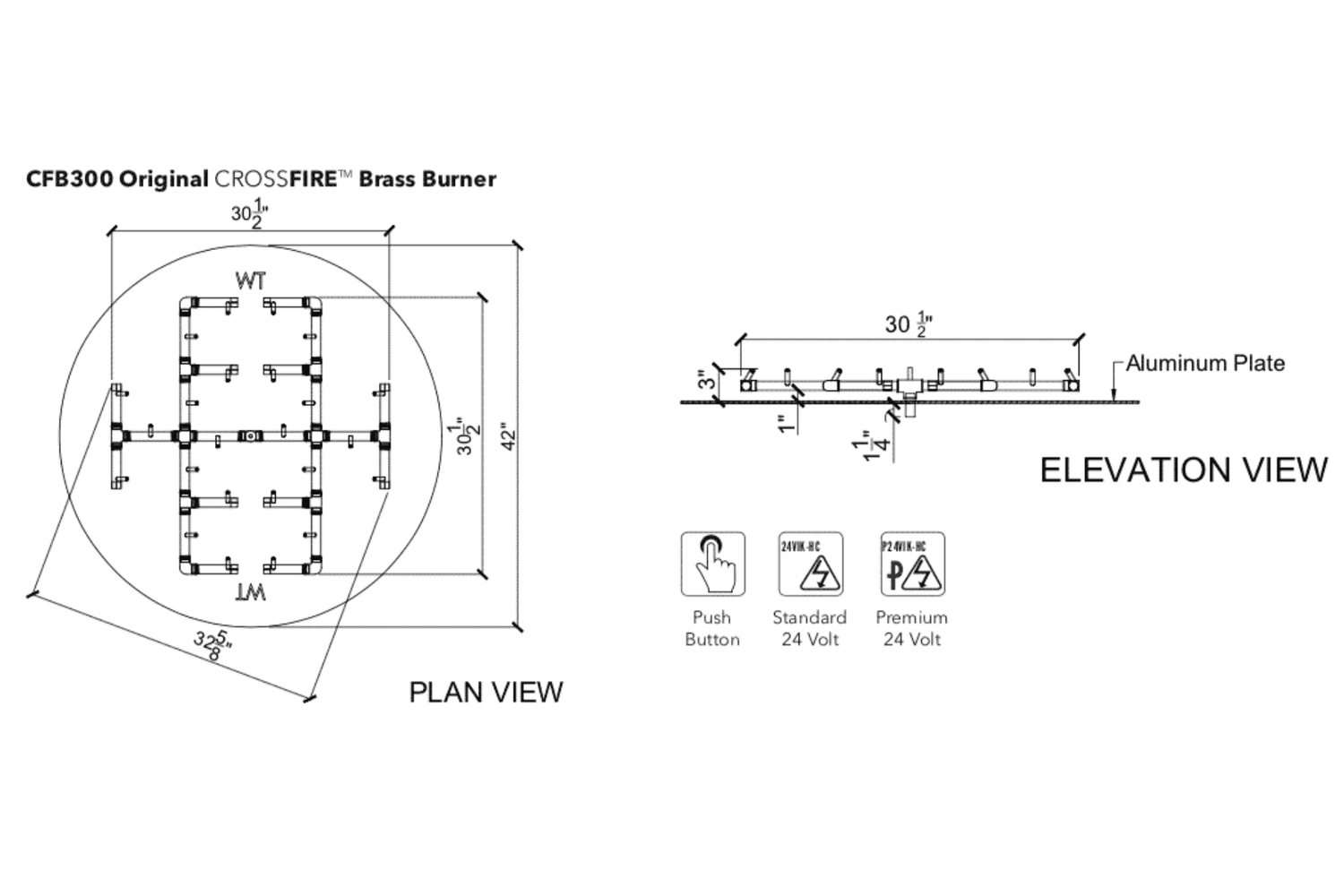

| CFB300 | 300,000 BTU; burner 30.5 x 30.5 in.; 3/4 in. inlet; 42 in. opening; WATERSTOP no |

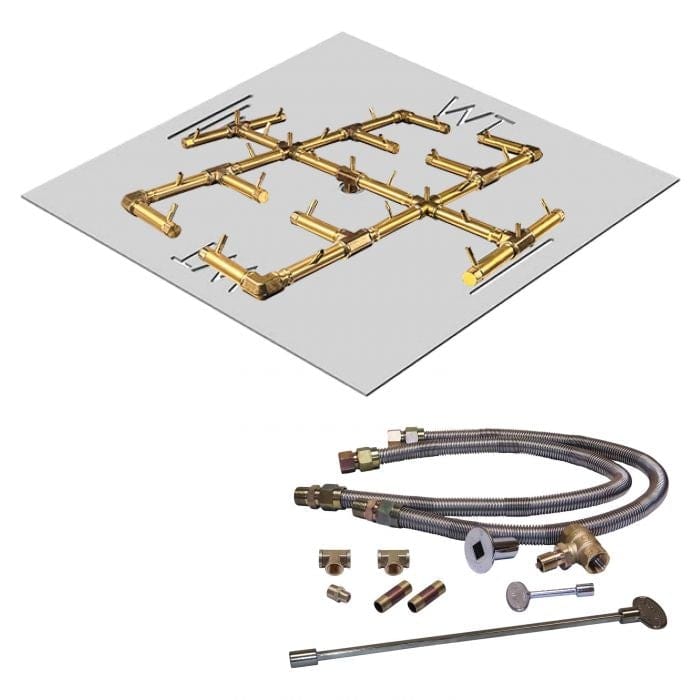

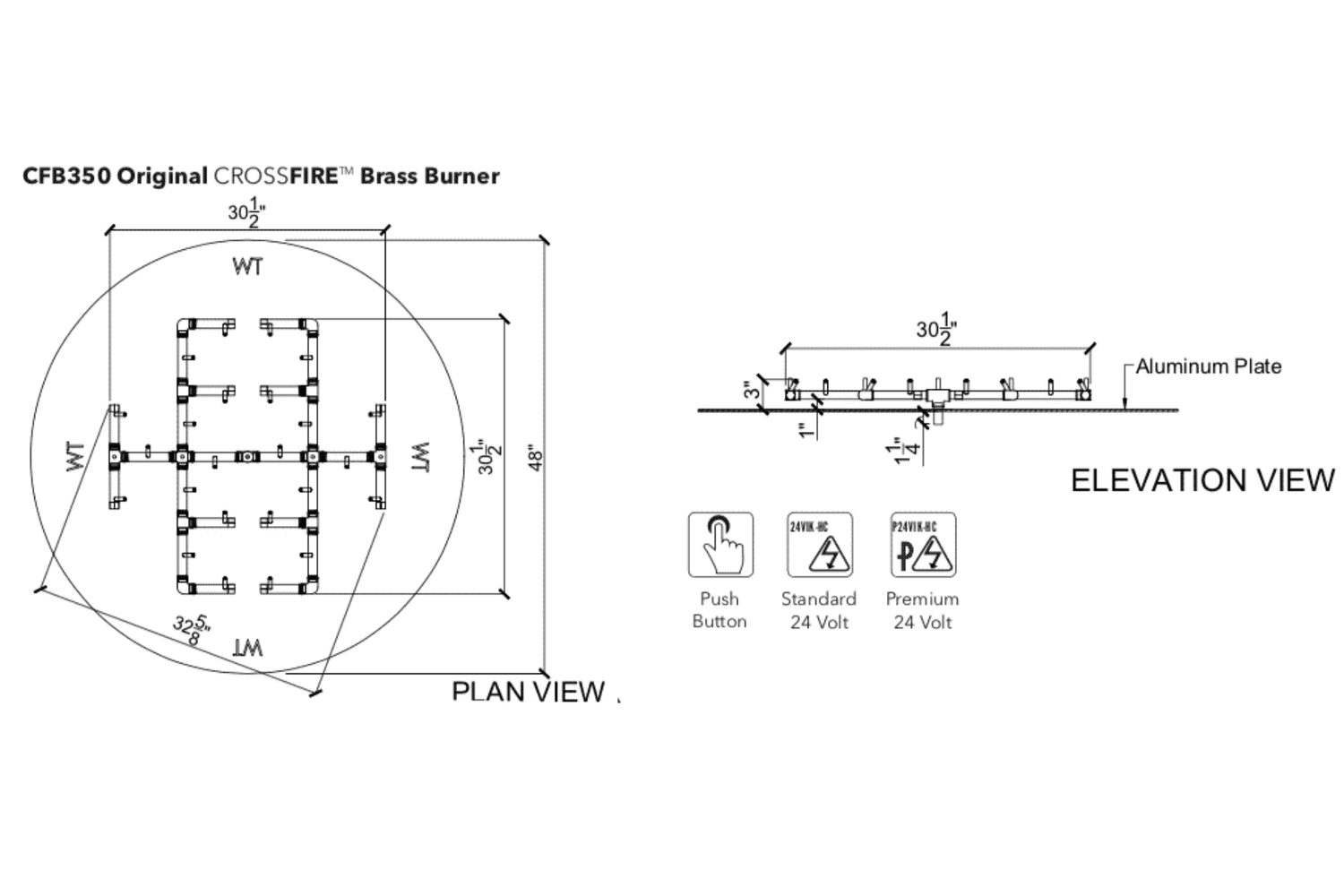

| CFB350 | 350,000 BTU; burner 31.125 x 31 in.; 3/4 in. inlet; 48 in. opening; WATERSTOP no |

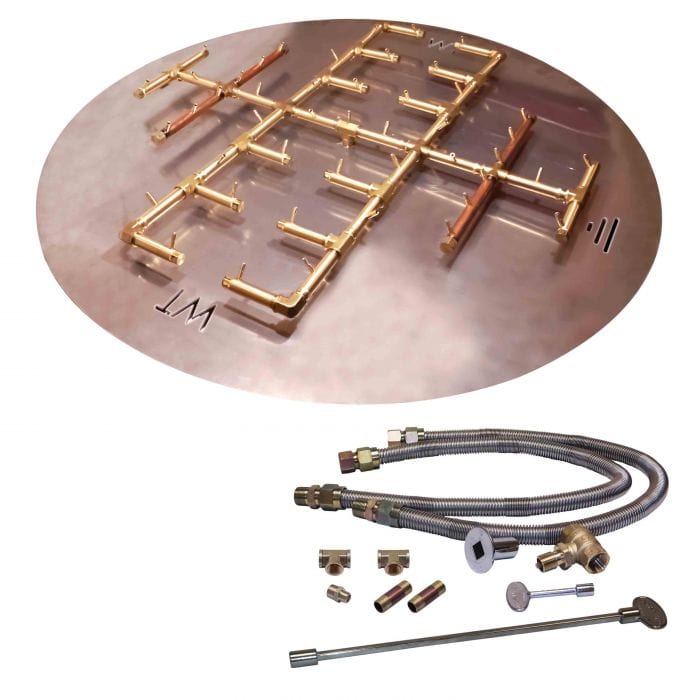

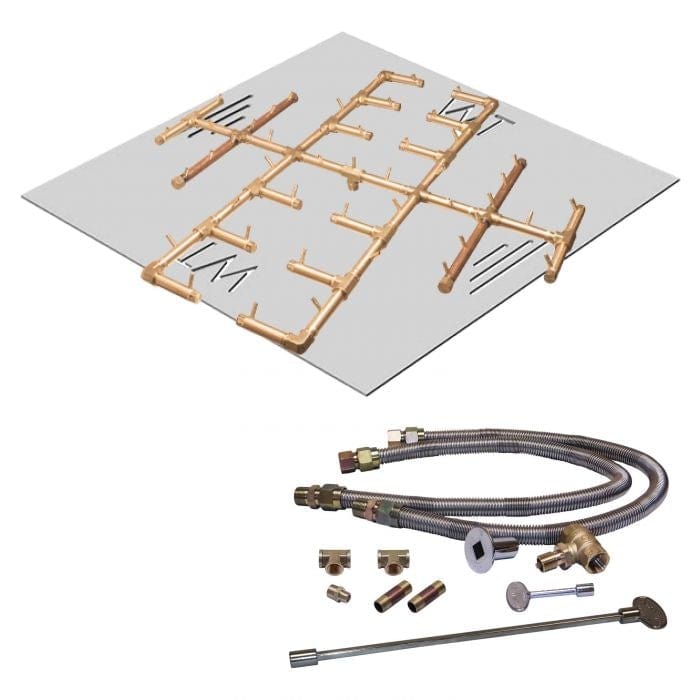

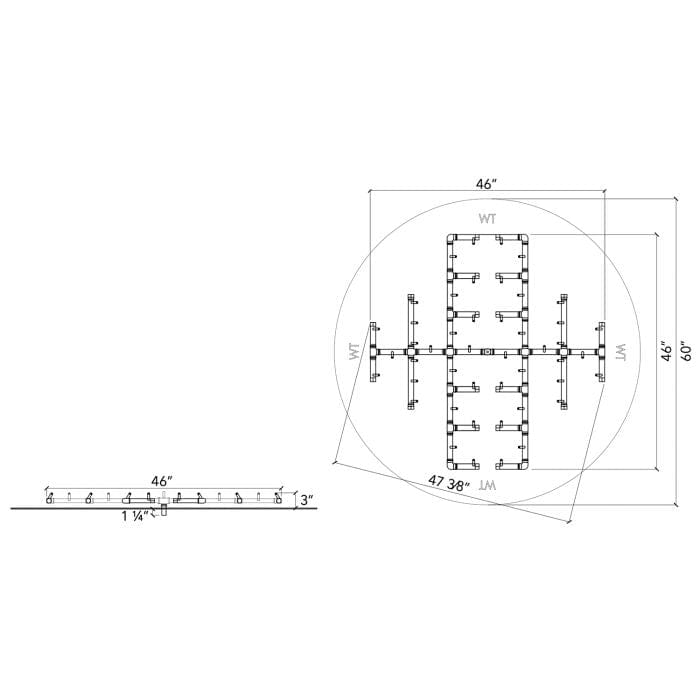

| CFB450 | 450,000 BTU; burner 46 x 45.875 in.; 3/4 in. inlet; 60 in. opening; WATERSTOP no |
| Sizes source | Burner sizes, inlets and openings per listing; openings match the Warming Trends burner size guide |
Features
- 100% brass CROSSFIRE burner that will not rust

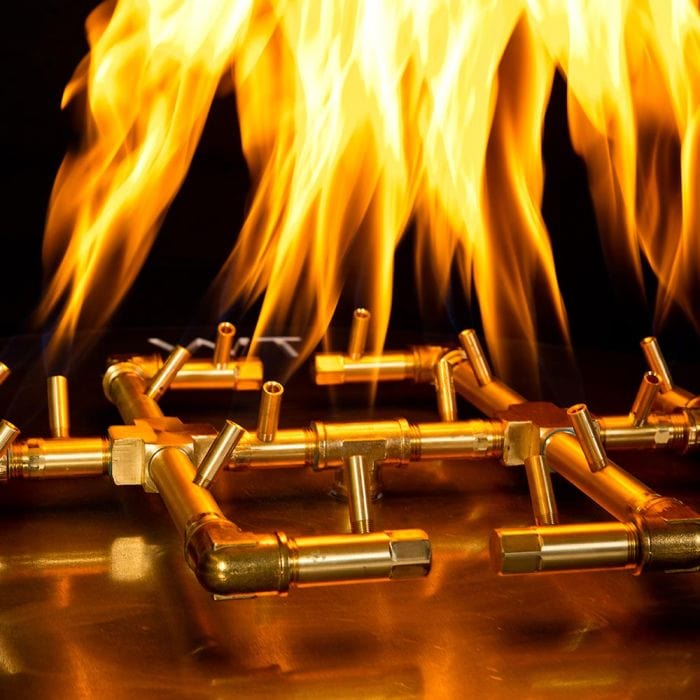

- Jetted design for tall, bright flames
- Match lit with key valve, no power needed
- 10 sizes from 60,000 to 450,000 BTU
- WATERSTOP fitting on the CFB60XL and CFB120 to CFB290
- Full lifetime burner warranty
What Is Included and What You Will Need

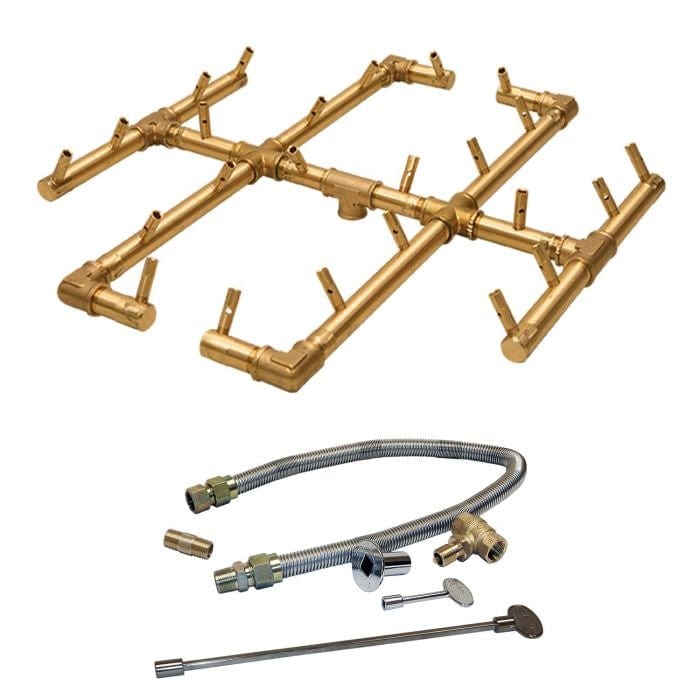

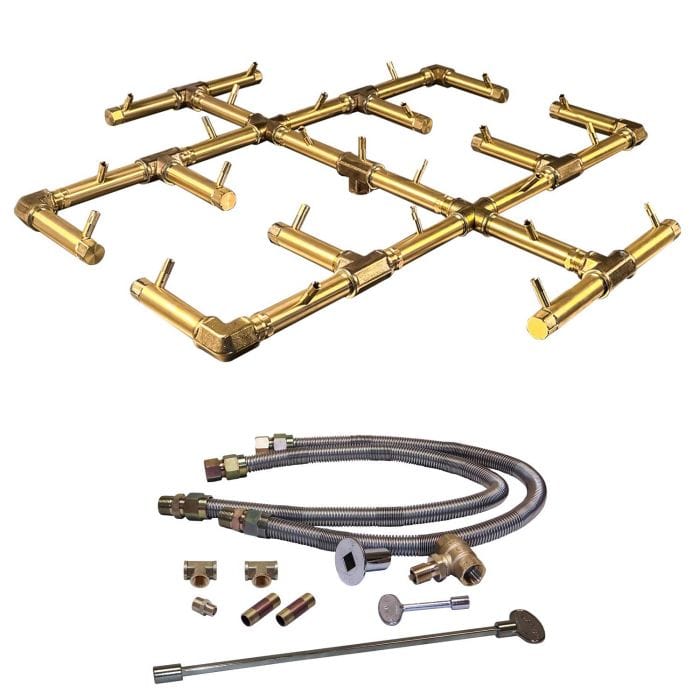

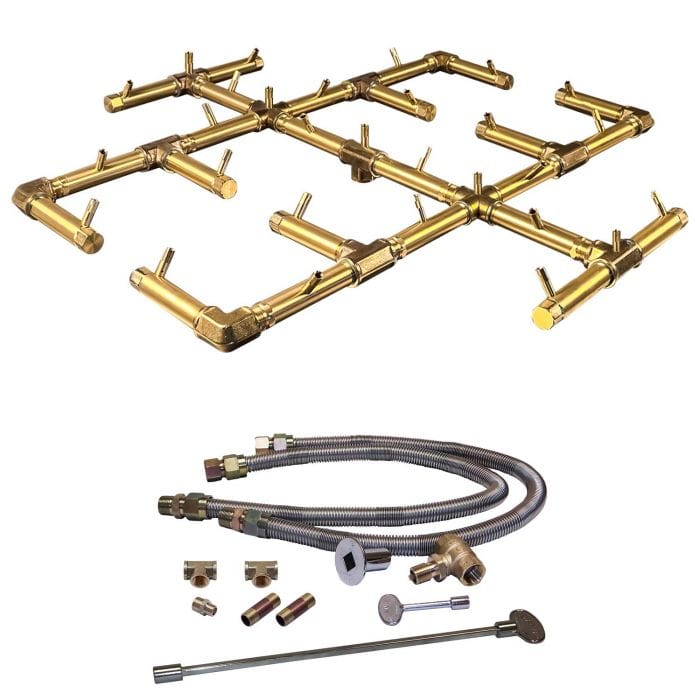

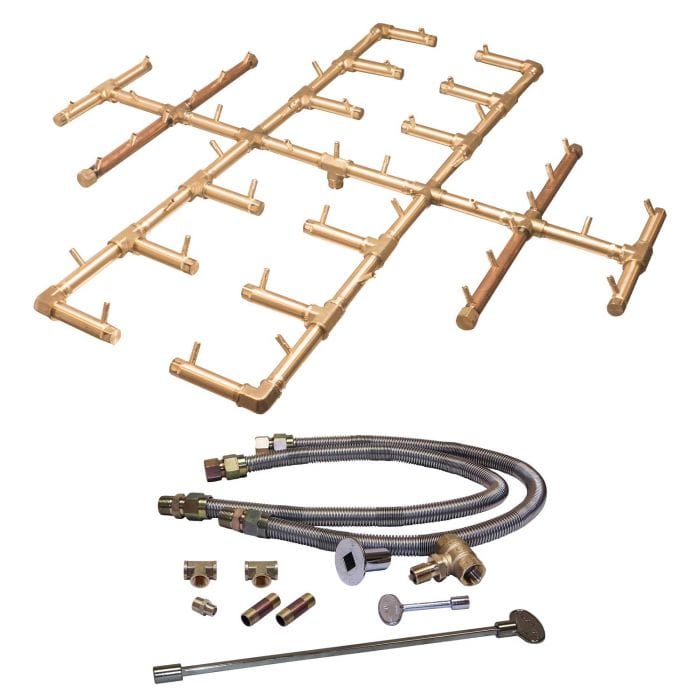

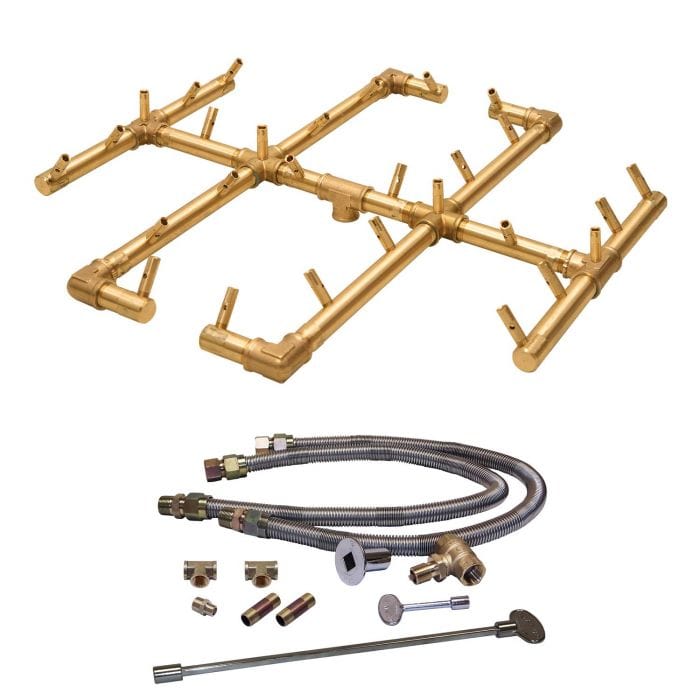

- Included: CROSSFIRE CFB brass burner, flex line kit (two flex lines on CFB290 and larger) and key valve kit with chrome decorative flange and two keys
- Not included: a burner plate or pan; Warming Trends sells round and square plates sized to each burner
- Required, sold separately: fire-rated media such as Warming Trends black lava rock (BLR) or rolled lava rock (LRR)
- Required: a non-combustible, vented enclosure and a natural gas line with an exterior shutoff, run by a licensed installer
- Optional: Warming Trends VENTBW vent kit for the enclosure
Installation Notes
Warming Trends requires a non-combustible enclosure with venting on at least two opposing sides, 18 sq in. minimum each, placed mid to low; the cavity must never be filled with gravel, crushed rock or concrete, and the burner should sit 4 to 6 in. below the top to protect the flame from wind. Support the plate or pan on blocks, bricks or L-brackets, never on the valve. Keep 36 in. horizontally and at least 84 in. overhead from combustible materials (Version 6 manual), fit a gas shutoff outside the fire feature, and have a licensed gas professional make the connection and leak test. Cover the burner with fire-rated media no more than 1/2 in. above the jets; never use gravel, pebbles or river rock. A center support under the plate is recommended for round or square plates over 30 in. For New York City addresses, outdoor gas fire features and their gas piping fall under the NYC Fuel Gas Code and Department of Buildings permitting, and propane at residences is restricted by the NYC Fire Code, so the approval path for a built-in fire pit must be confirmed before you buy. Book a design consultation and we will size the burner, plate and gas line.
Documentation
- Owner/Instruction Manual
- Burner Size Guide

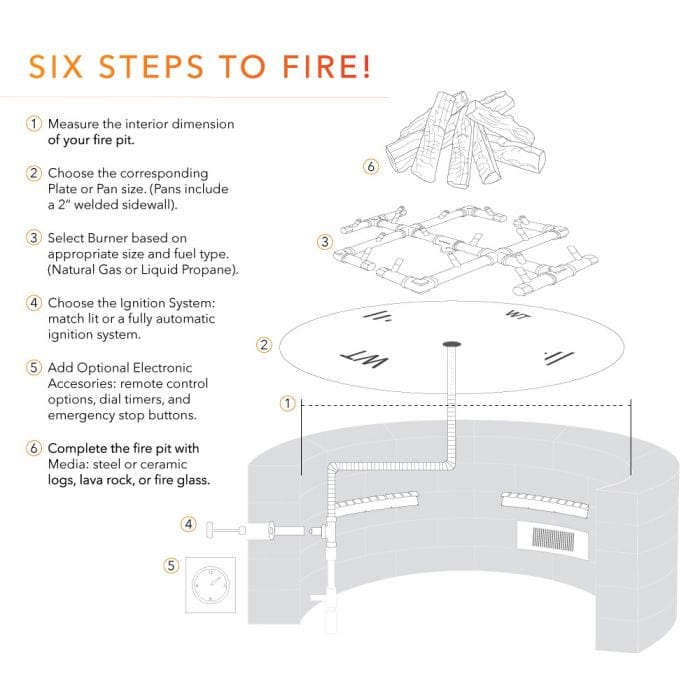

- 6 Steps To Fire
- Warming Trends Warranty
- Warming Trends Owner's Guide and Instruction Manual, Version 6 (6/26)
Frequently Asked Questions
Which size do I need?
Match the burner to the inside dimension of your fire pit: for example the CFB60 or CFB84 for 18 in., CFB120 for 24 in. and CFB180 or CFB240 for 30 in., per the Warming Trends burner size guide.
Is a plate included?
No. These kits are the burner, flex line and key valve. Add a Warming Trends plate sized to the burner if your fire pit does not have one.
Is propane available?
The sizes on this listing are natural gas versions. Ask us about propane.
What media can I use?
Fire-rated media made for fire features, such as lava rock or fire glass, placed on the plate rather than dumped over the burner and no more than 1/2 in. above the jets. Never use gravel, pebbles or river rock.
Related reading: Gas Fire Pit Buying Guide and Outdoor Fireplace Buying Guide.
Warranty
Warming Trends Full Lifetime Warranty on CROSSFIRE and other jetted brass burners, from the date of purchase and transferable with proof of ownership; Warming Trends repairs or exchanges a defective burner free during the warranty period. Misuse, installation defects, modification and indoor use are excluded, installation services are not covered, and electronics carry separate warranties. Burners and electronics must be covered when not in use or the warranty is void.
