Warming Trends Crossfire CFBCT Circular Tree-Style Brass Gas Fire Pit Burner Kit
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Warming Trends Crossfire CFBCT Circular Tree-Style Brass Gas Fire Pit Burner Kit - 120K BTU 11 x 10-Inch with WATERSTOP is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
- Flat-rate shipping from $19.95. Free on orders over $999.
- Factory-authorized Warming Trends dealer. You keep the full manufacturer warranty.
- 30-day returns, no restocking fee.
- Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Free & Flat Rate Shipping
Free & Flat Rate Shipping
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 transit days
- $19.95-$99.95 Flat-Rate Shipping on orders under $999
- Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
- Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Warming Trends Crossfire CFBCT Circular Tree-Style Brass Gas Fire P...
Warming Trends Crossfire CFBCT Circular Tree-Style Brass Gas Fire Pit Burner Kit - 120K BTU 11 x 10-Inch with WATERSTOP is backordered and will ship as soon as it is back in stock.
Description
Description
Burner sizes: 11 x 10 in. (120,000 BTU) to 30.25 x 34 in. (440,000 BTU), per listing

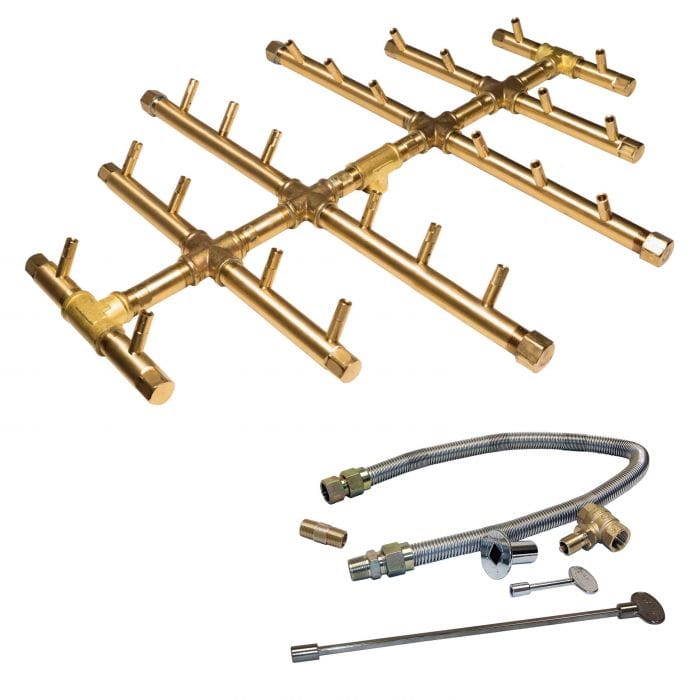

The Warming Trends CROSSFIRE CFBCT circular tree-style burner branches its brass flame arms across a round footprint, filling a round fire pit with fuller flame than a single ring. Each kit includes the 100% brass burner, a flex line kit and a key valve kit with a chrome flange and two keys for match lit operation.
Four sizes from 120,000 to 440,000 BTU suit round openings from about 18 to 42 in. Every size offered on this listing is the natural gas version (NG in the SKU).
Key Specifications
| Model family | Warming Trends CROSSFIRE CFBCT circular tree-style burner kit (4 sizes) |
|---|---|
| Burner material | 100% brass |
| Output | 120,000 to 440,000 BTU by size (select above) |
| Fuel | Natural gas versions on this listing (SKUs ending NGFK1 or NGFK2) |
| Ignition | Match lit with key valve |
| Gas inlet, match lit | NG 3.5 to 7.0 in. W.C. |
| Flex line | Single flex line kit (FK1) through CFBCT240, dual (FK2) on CFBCT440 |
| Certification | CFBCT models are not listed among the certified units in the Warming Trends Version 6 manual |
Dimensions and Cutout

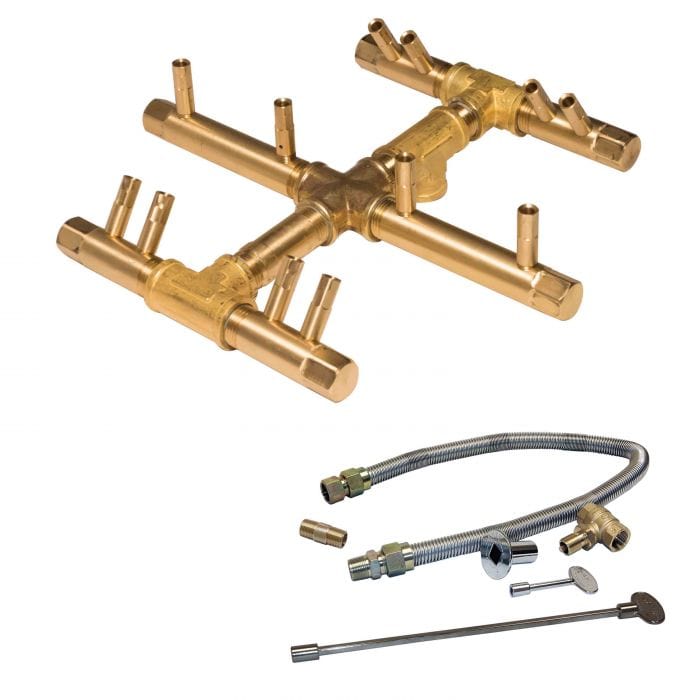

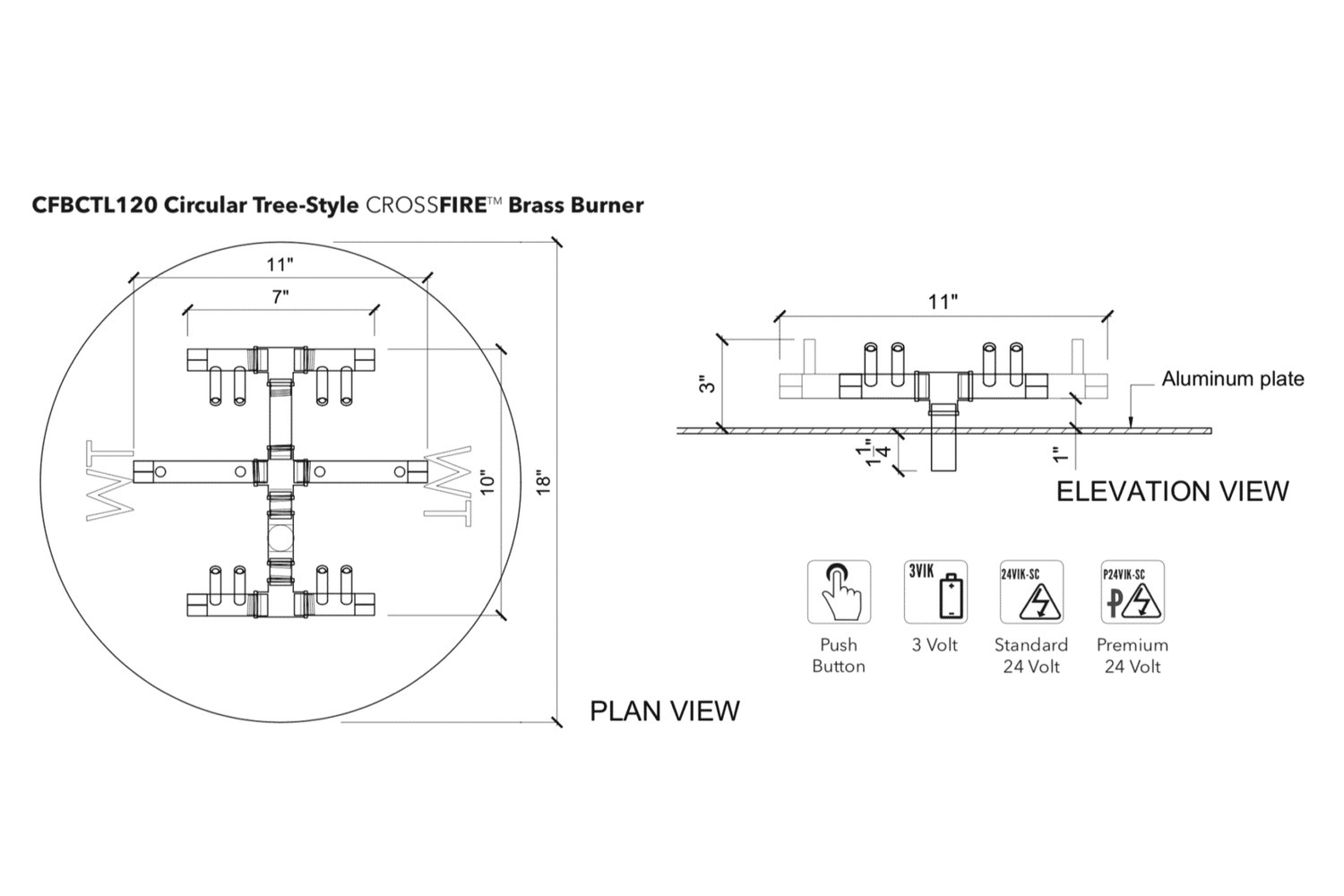

| CFBCTL120 | 120,000 BTU; burner 11 x 10 in.; 1/2 in. inlet; WATERSTOP yes |
|---|---|

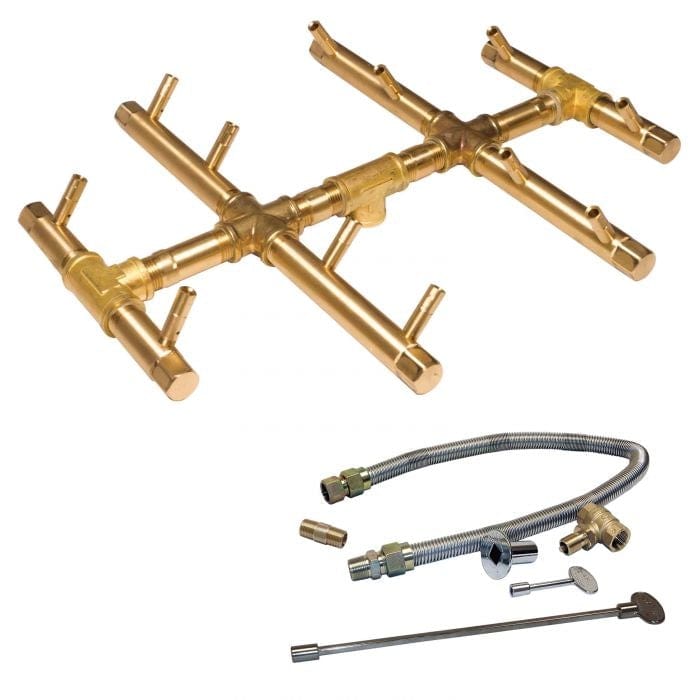

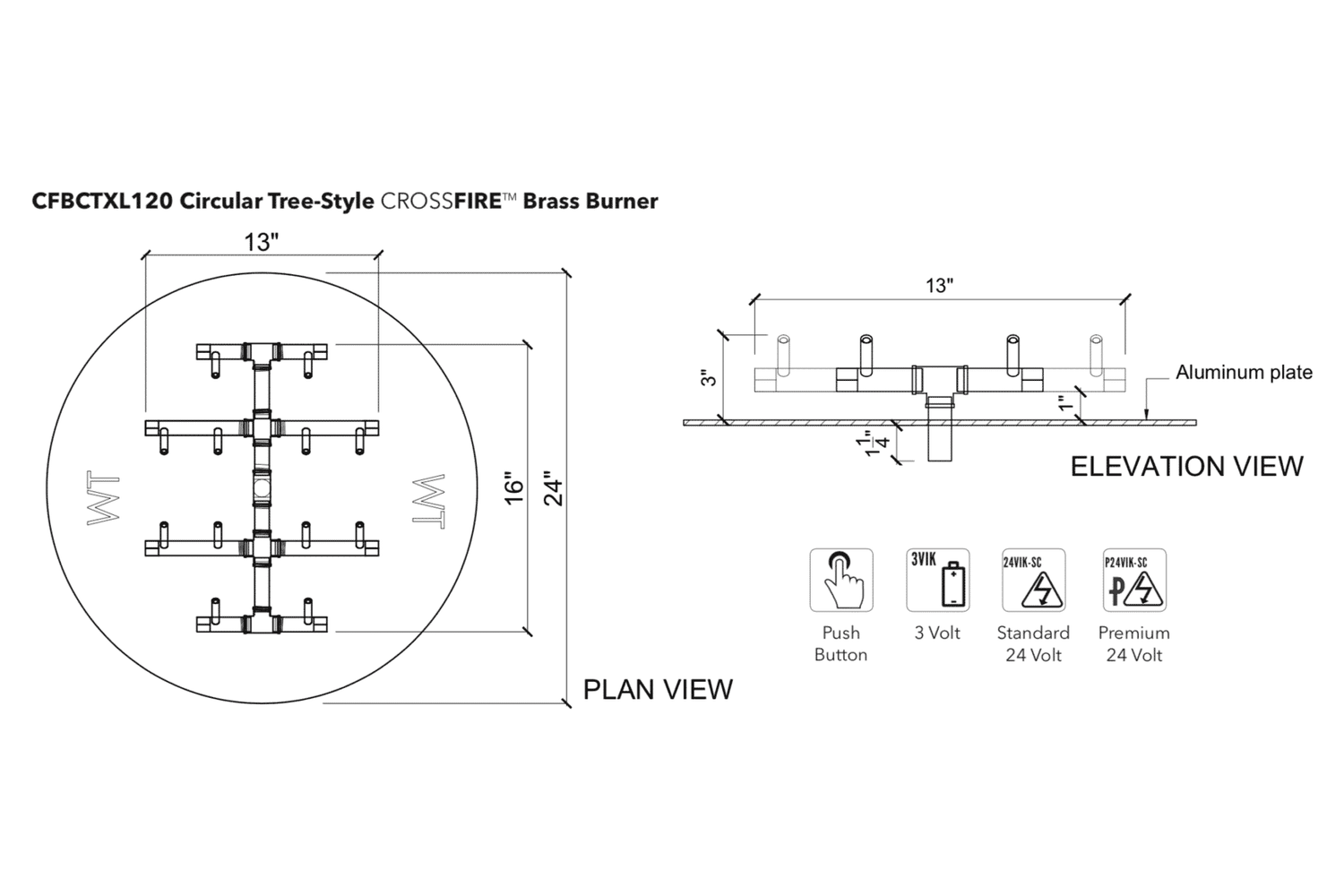

| CFBCTXL120 | 120,000 BTU; burner 13 x 16 in.; 1/2 in. inlet; WATERSTOP yes |

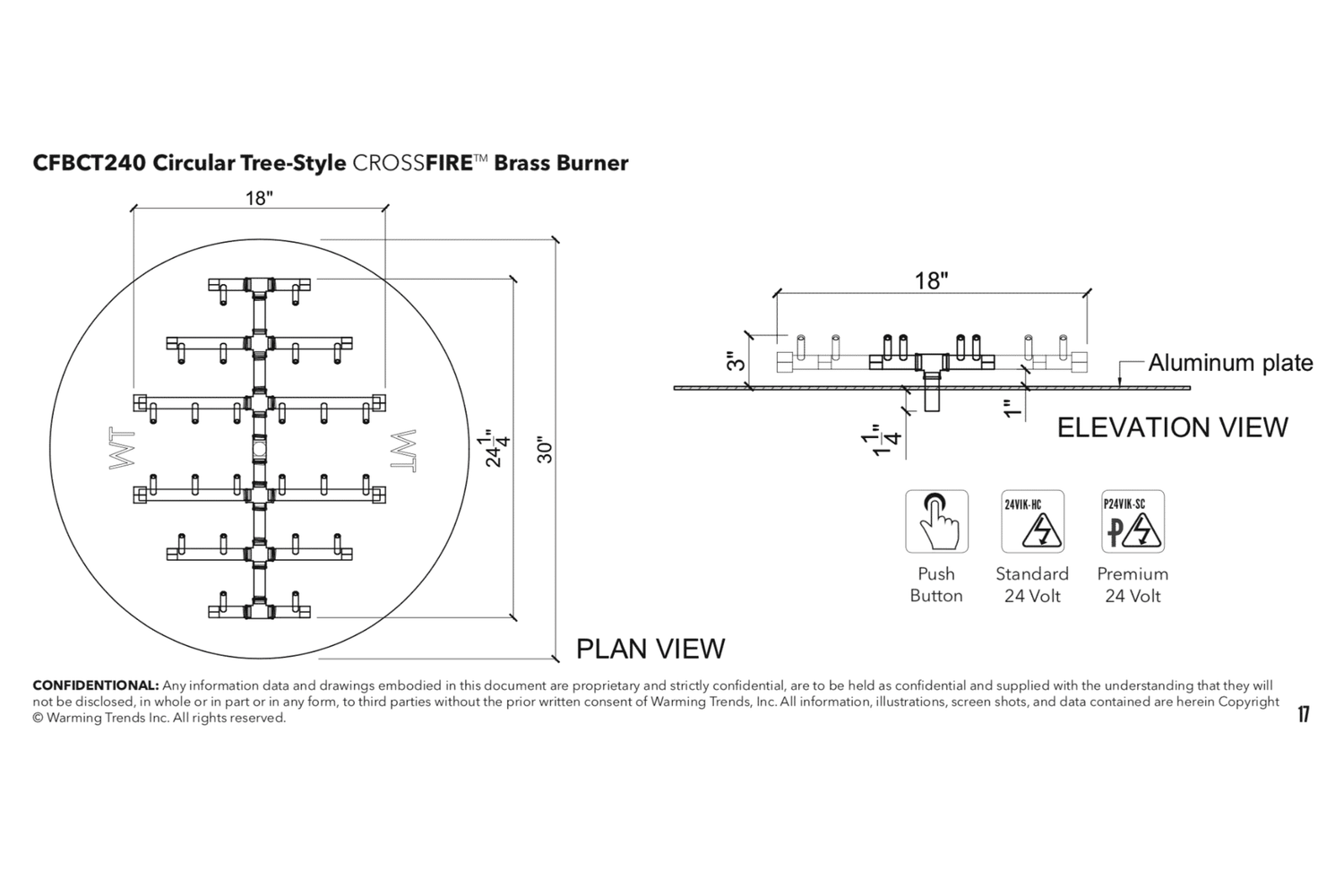

| CFBCT240 | 240,000 BTU; burner 18 x 24.25 in.; 1/2 in. inlet; WATERSTOP yes |

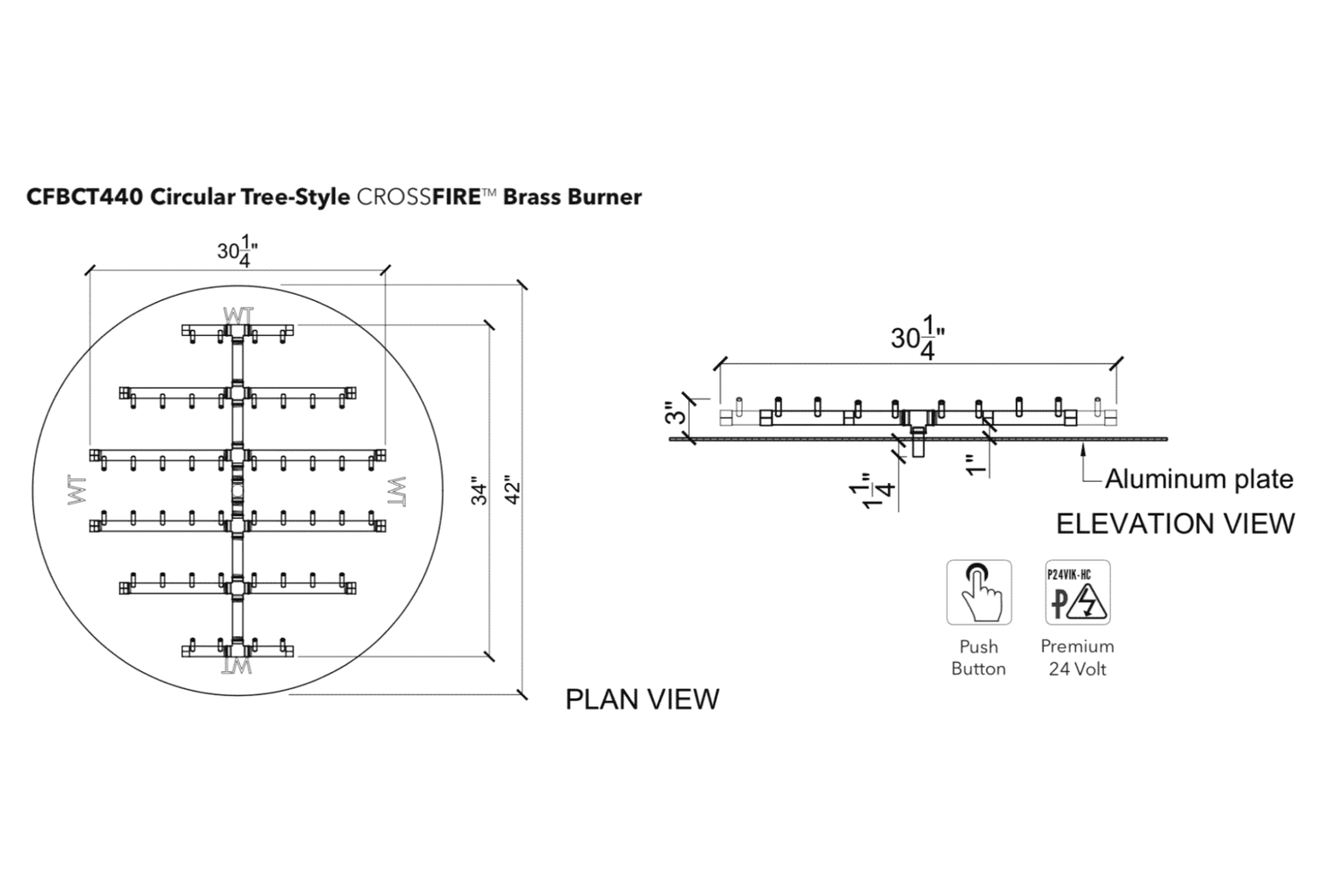

| CFBCT440 | 440,000 BTU; burner 30.25 x 34 in.; 3/4 in. inlet; WATERSTOP no |
| Round opening (size guide) | CFBCTL120 18 in.; CFBCTXL120 24 in.; CFBCT240 30 in.; CFBCT440 42 in. |
| Sizes source | Burner sizes and inlets per listing; openings per the Warming Trends burner size guide |
Features
- Circular tree-style CROSSFIRE burner for round fire pits
- 100% brass, will not rust

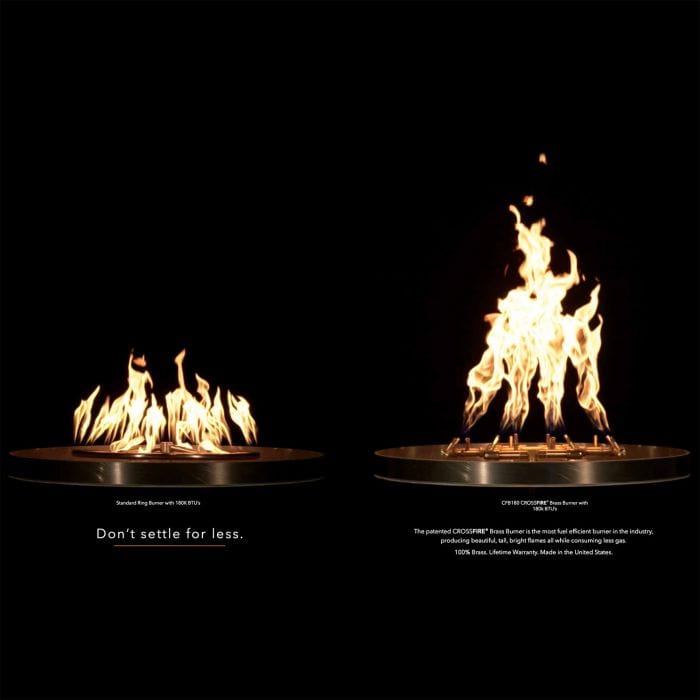

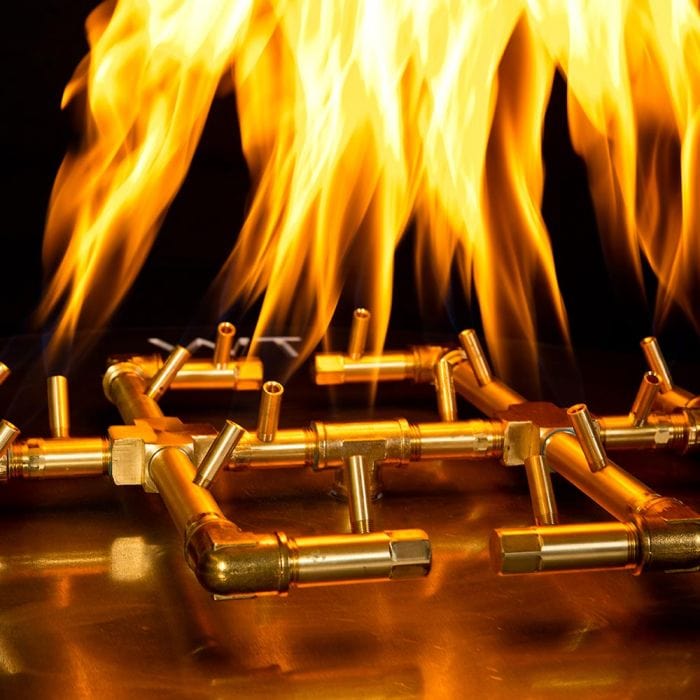

- Jetted design for tall, bright flames
- Match lit with key valve, no power needed
- 4 sizes from 120,000 to 440,000 BTU
- Full lifetime burner warranty
What Is Included and What You Will Need

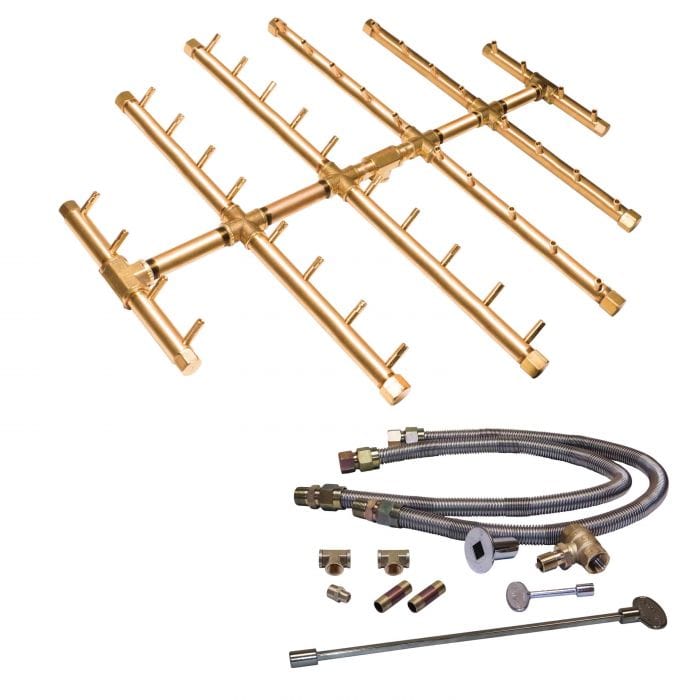

- Included: CROSSFIRE CFBCT brass burner, flex line kit (two flex lines on the CFBCT440) and key valve kit with chrome decorative flange and two keys

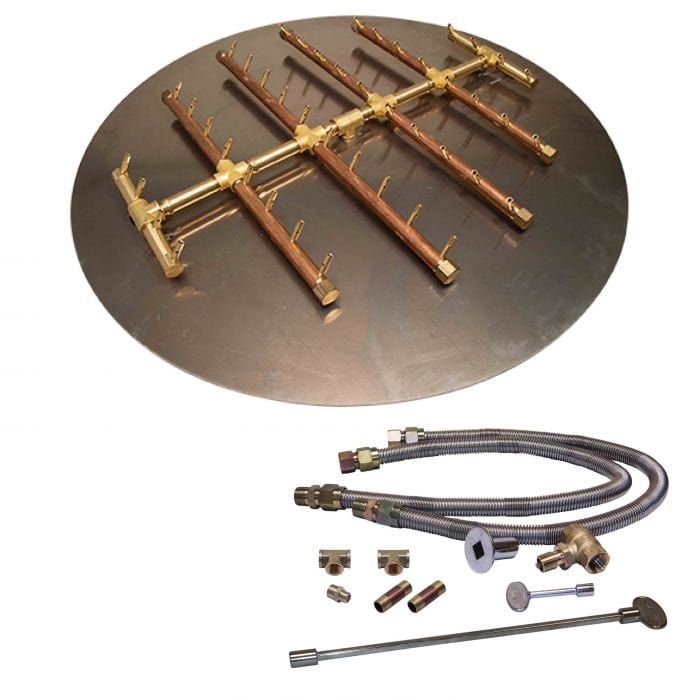

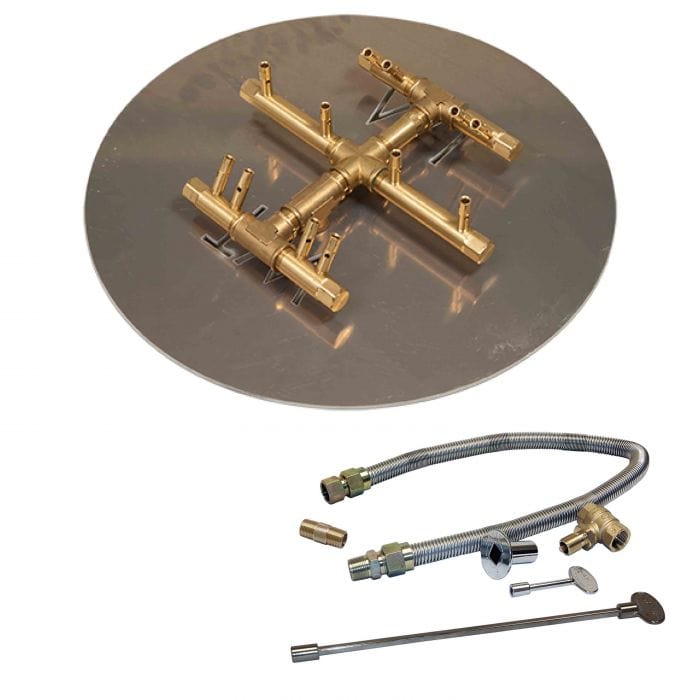

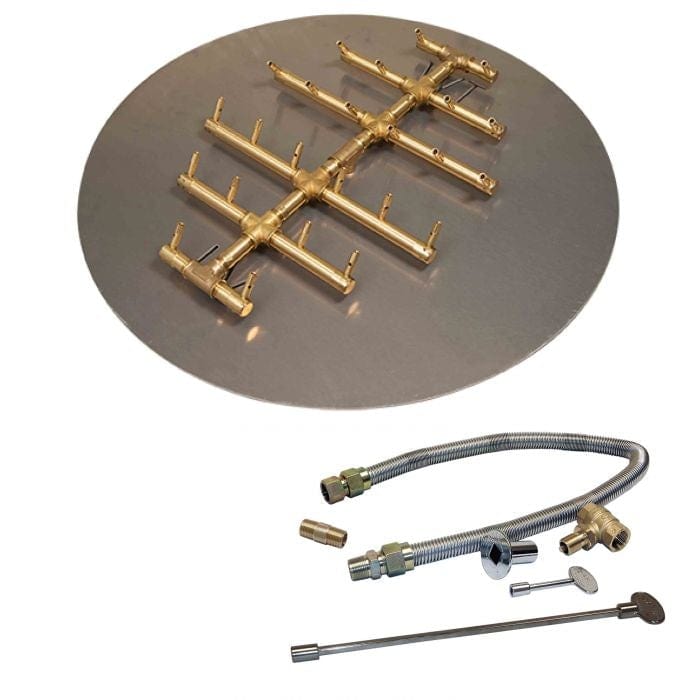

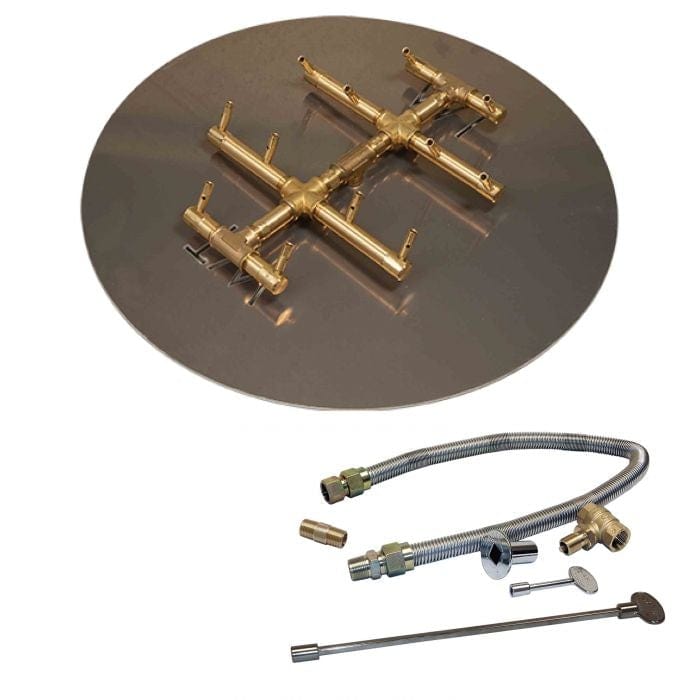

- Not included: a burner plate or pan; Warming Trends sells circular plates sized to each burner
- Required, sold separately: fire-rated media such as Warming Trends black lava rock (BLR) or rolled lava rock (LRR)
- Required: a non-combustible, vented enclosure and a natural gas line with an exterior shutoff, run by a licensed installer
Installation Notes
Warming Trends requires a non-combustible enclosure with venting on at least two opposing sides, 18 sq in. minimum each, placed mid to low; the cavity must never be filled with gravel, crushed rock or concrete, and the burner should sit 4 to 6 in. below the top to protect the flame from wind. Support the plate or pan on blocks, bricks or L-brackets, never on the valve. Keep 36 in. horizontally and at least 84 in. overhead from combustible materials (Version 6 manual), fit a gas shutoff outside the fire feature, and have a licensed gas professional make the connection and leak test. Cover the burner with fire-rated media no more than 1/2 in. above the jets; never use gravel, pebbles or river rock. A center support under the plate is recommended for round plates over 30 in. For New York City addresses, outdoor gas fire features and their gas piping fall under the NYC Fuel Gas Code and Department of Buildings permitting, and propane at residences is restricted by the NYC Fire Code, so the approval path for a built-in fire pit must be confirmed before you buy. Book a design consultation and we will size the burner, plate and gas line.
Documentation
- Owner/Instruction Manual
- Manual De Instrucciones
- Burner Size Guide

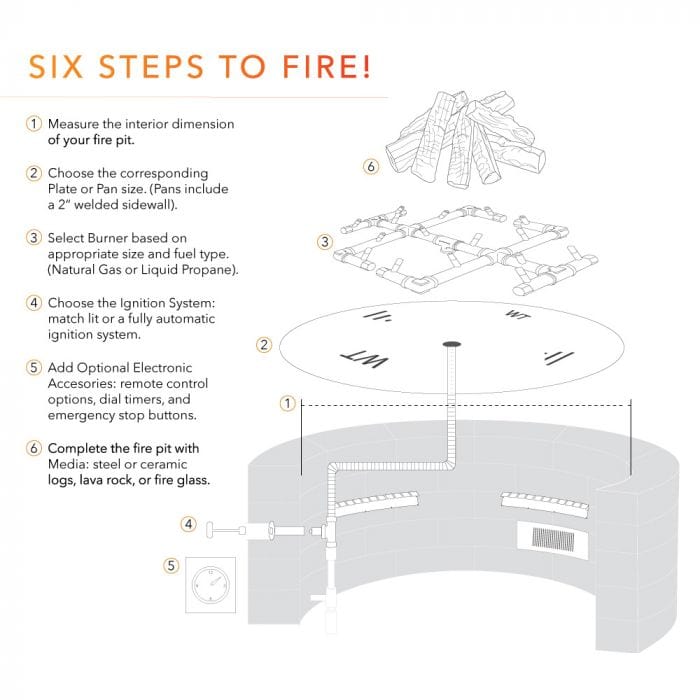

- 6 Steps To Fire
- Warming Trends Warranty
- Warming Trends Owner's Guide and Instruction Manual, Version 6 (6/26)
Frequently Asked Questions
Which size fits my fire pit?
Per the Warming Trends size guide: CFBCTL120 for an 18 in. round interior, CFBCTXL120 for 24 in., CFBCT240 for 30 in. and CFBCT440 for 42 in.
Is a plate included?
No. Add a Warming Trends circular plate sized to the burner if your fire pit does not already have one.
Is propane available?
The sizes on this listing are natural gas versions. Ask us about propane.
What media can I use?
Fire-rated media made for fire features, such as lava rock or fire glass, placed on the plate rather than dumped over the burner and no more than 1/2 in. above the jets. Never use gravel, pebbles or river rock.
Related reading: Gas Fire Pit Buying Guide and Outdoor Fireplace Buying Guide.
Warranty
Warming Trends Full Lifetime Warranty on CROSSFIRE and other jetted brass burners, from the date of purchase and transferable with proof of ownership; Warming Trends repairs or exchanges a defective burner free during the warranty period. Misuse, installation defects, modification and indoor use are excluded, installation services are not covered, and electronics carry separate warranties. Burners and electronics must be covered when not in use or the warranty is void.
