Available Sizes: XO Pro Style Wall Mount Ducted Hood with 1200 CFM & LED Lights
42" (Current Size) | 48"
Overall Dimensions: 42 in. W x 33 in. D x 18 in. H

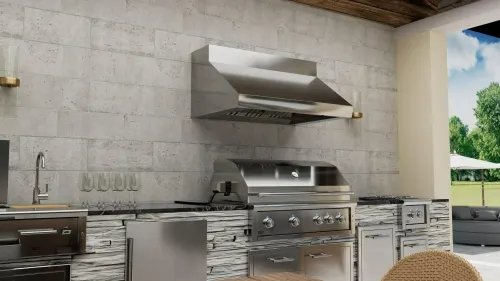

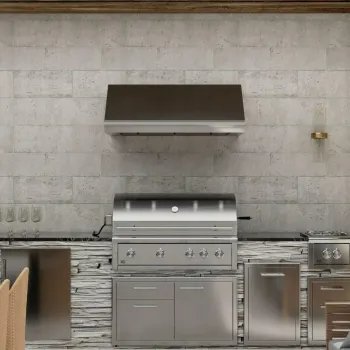

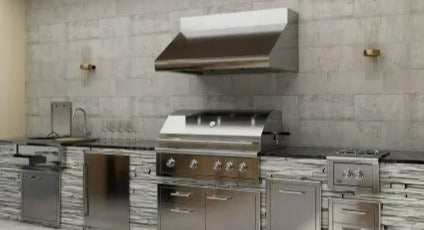

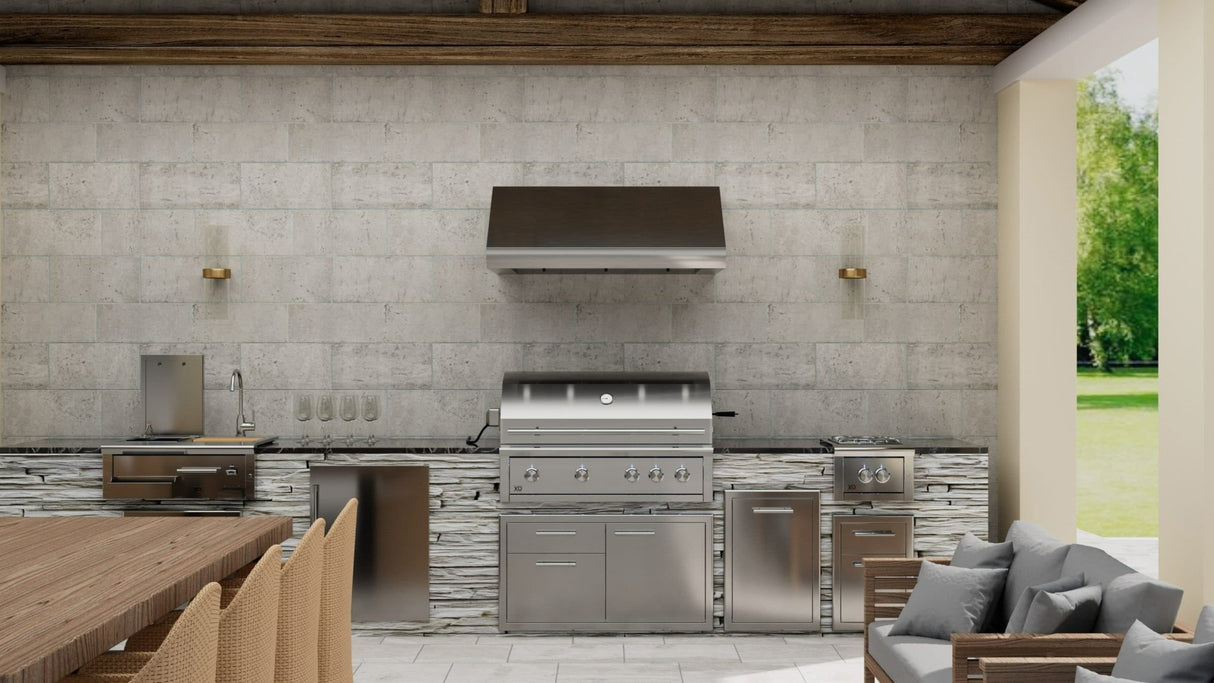

The XO 42 in. Pro Style outdoor wall mount hood (XOGV42S) uses two blowers rated up to 1,200 CFM together to pull smoke and grease away from a grill on a covered patio. At 33 in. deep it reaches out over a grill set about 6 in. from the wall for better capture.
Four LED lamps light the cooking surface, commercial-grade baffle filters lift out for the dishwasher, and a 10 in. round duct exits through the top or rear. XO sizes the hood about 3 in. wider than the grill on each side, so the 42 in. model suits a grill up to about 36 in. wide.
Key Specifications
| Model | XOGV42S |
|---|---|
| Airflow | Two blowers, up to 1,200 CFM total |
| Controls | Two independent 2-speed controls (per listing) |
| Sound | 2.5 to 9.0 sones (per listing) |
| Lighting | Four LED lamps |
| Filters | Commercial-grade stainless baffle filters, dishwasher safe |
| Duct | 10 in. round, vertical or horizontal discharge |
| Electrical | 115 VAC, 60 Hz, 8.5 A on a dedicated GFCI branch circuit |
| Construction | 304 stainless steel with welded seams |
| Weight | 142.2 lb gross |
Dimensions and Cutout
| Hood (W x D x H) | 42 in. x 33 in. x 18 in. |
|---|---|
| Mounting height | 30 to 42 in. above the cooking surface |
| Sizing rule | About 3 in. wider than the grill on each side (up to about a 36 in. grill) |
| Overhead | 60 in. minimum from cooking surface to non-combustible overhead; backsplash and overhead must be non-combustible |
| Wall support | Wall structure must support 350 lb |
| Duct run | 10 in. smooth metal duct, under 100 ft equivalent length, never reduced |
Features
- Up to 1,200 CFM from two blowers
- 33 in. depth for better smoke capture
- Four LED lamps
- Dishwasher-safe baffle filters
- Top or rear discharge through a 10 in. round duct
- 304 stainless steel with welded seams

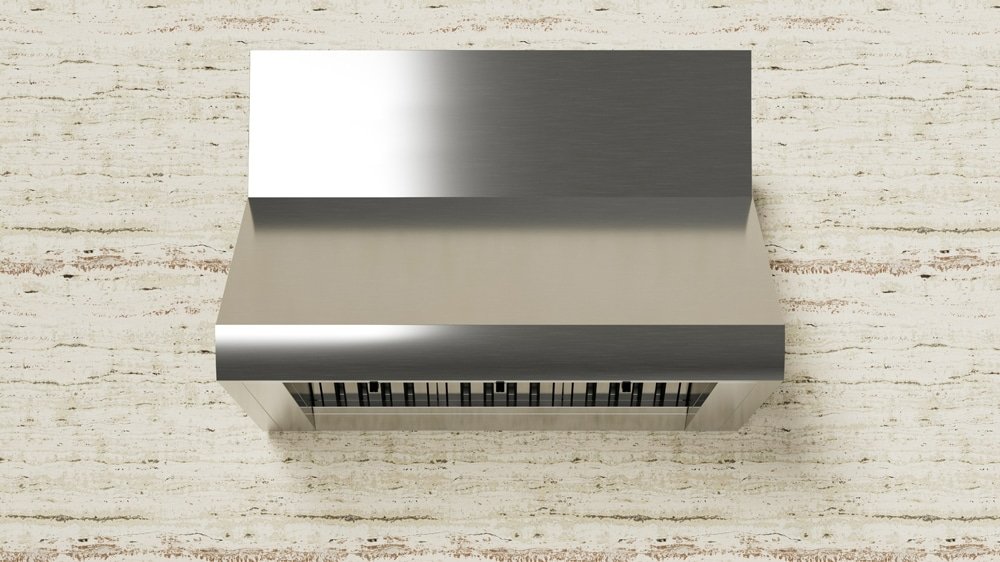

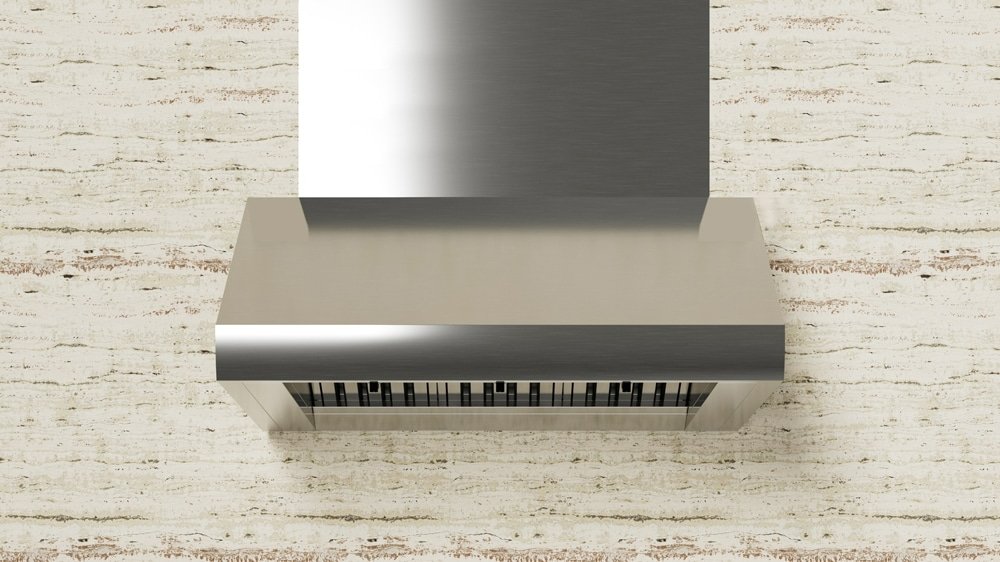

- Optional duct covers: XOGV42X6DC (6 in.), XOGV42X12DC (12 in.) and a telescoping cover
What Is Included and What You Will Need
- Included: 42 in. hood with two blowers, LED lamps and baffle filters
- Optional on this listing: 6 in. or 12 in. duct cover, or a telescoping cover
- Required: 10 in. round metal duct and termination, a dedicated GFCI-protected 115 V circuit with a disconnect, and a wall rated for 350 lb
- Pairs with: XO Pro Luxury 36 in. built-in grill
Installation Notes
Mount the hood 30 to 42 in. above the cooking surface on a non-combustible wall that can carry 350 lb, run 10 in. smooth metal duct under 100 ft equivalent length, and wire it to a dedicated GFCI-protected branch circuit with a disconnect, per the XO hood manual. In New York City, the wiring must be done by a licensed electrician and wall or roof penetrations may need building approval. Book a design consultation and we will size the hood and duct run with you.
Documentation
Frequently Asked Questions
What size grill fits under the 42 in. hood?
XO sizes the hood about 3 in. wider than the grill on each side, so up to about a 36 in. grill.
How high should it be mounted?
30 to 42 in. above the cooking surface.
What duct does it need?
10 in. round smooth metal duct, never reduced, under 100 ft equivalent length.
Does it need its own circuit?
Yes. XO calls for a dedicated GFCI-protected 115 V branch circuit.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
XO two-year parts and labor limited warranty per the hood manual, for the original purchaser at the original installation location in the 48 continental United States; open box, floor models and commercial use are excluded.
