Description
Description
Overall Dimensions: 30 in. W x 23-9/16 in. D x 25-3/8 in. H (cutout 28-3/4 in. W x 24 in. D x 10-7/8 in. H), per XO spec sheet

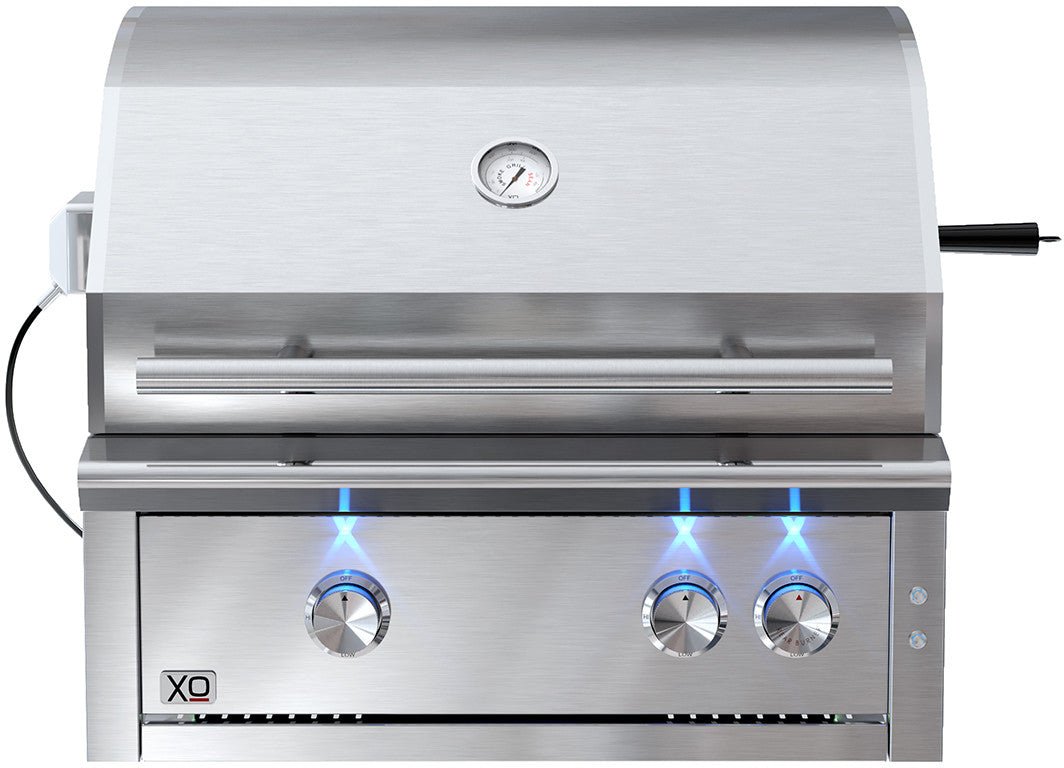

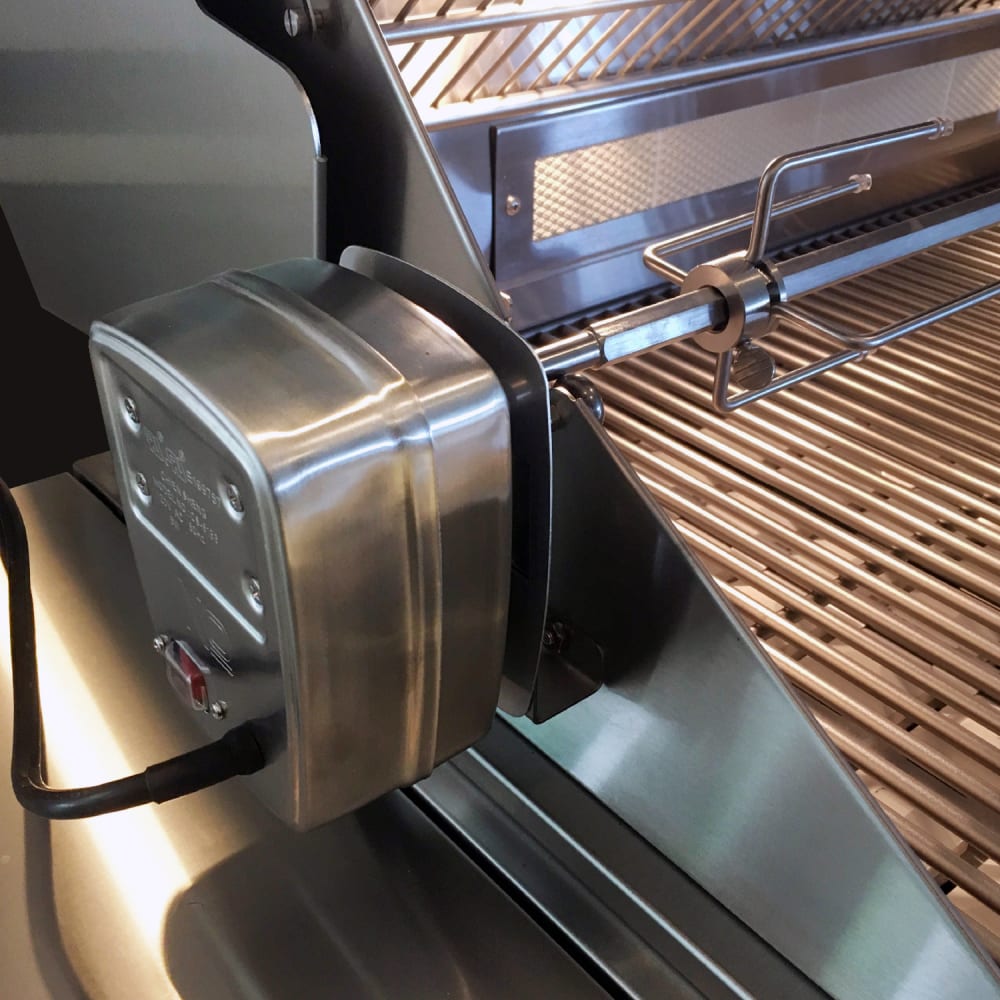

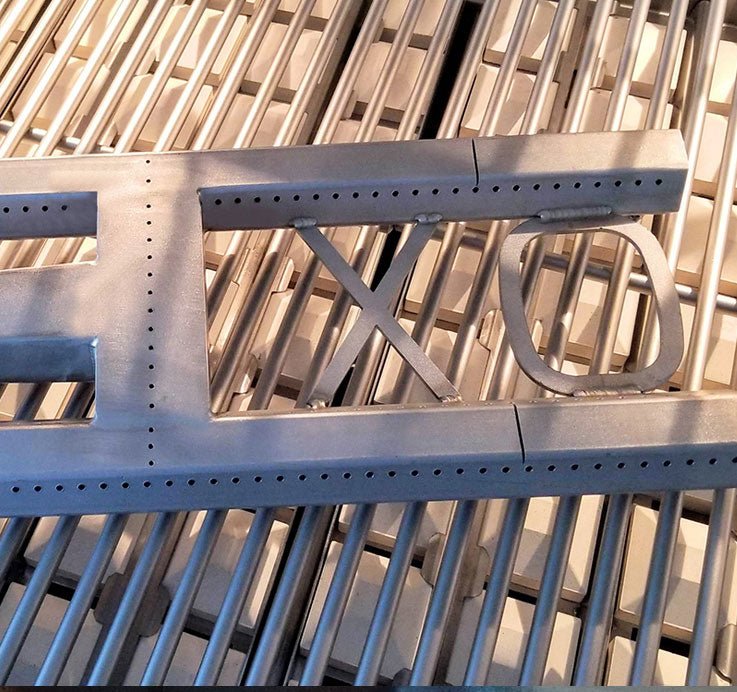

The XO Pro Luxury 30 (XOGRILL30) is a compact built-in gas grill with two cooking zones: a 22,000 BTU cast 304 stainless main burner and a 22,000 BTU variable infrared sear burner that XO says reaches 1,000 F in about a minute. An 11,000 BTU rear infrared burner drives rotisserie cooking.
Welded 304 stainless construction, a spring-assist hood, Flame Thrower ignition and blue LED controls with halogen interior lamps round it out. Choose natural gas or propane, with an optional cover.
Key Specifications
| Model | XOGRILL30N (natural gas), XOGRILL30L (propane) |
|---|---|
| Main burner | 1 cast stainless steel burner, 22,000 BTU |
| Sear burner | 1 variable infrared sear burner, 22,000 BTU |
| Rear burner | Infrared rotisserie burner, 11,000 BTU |

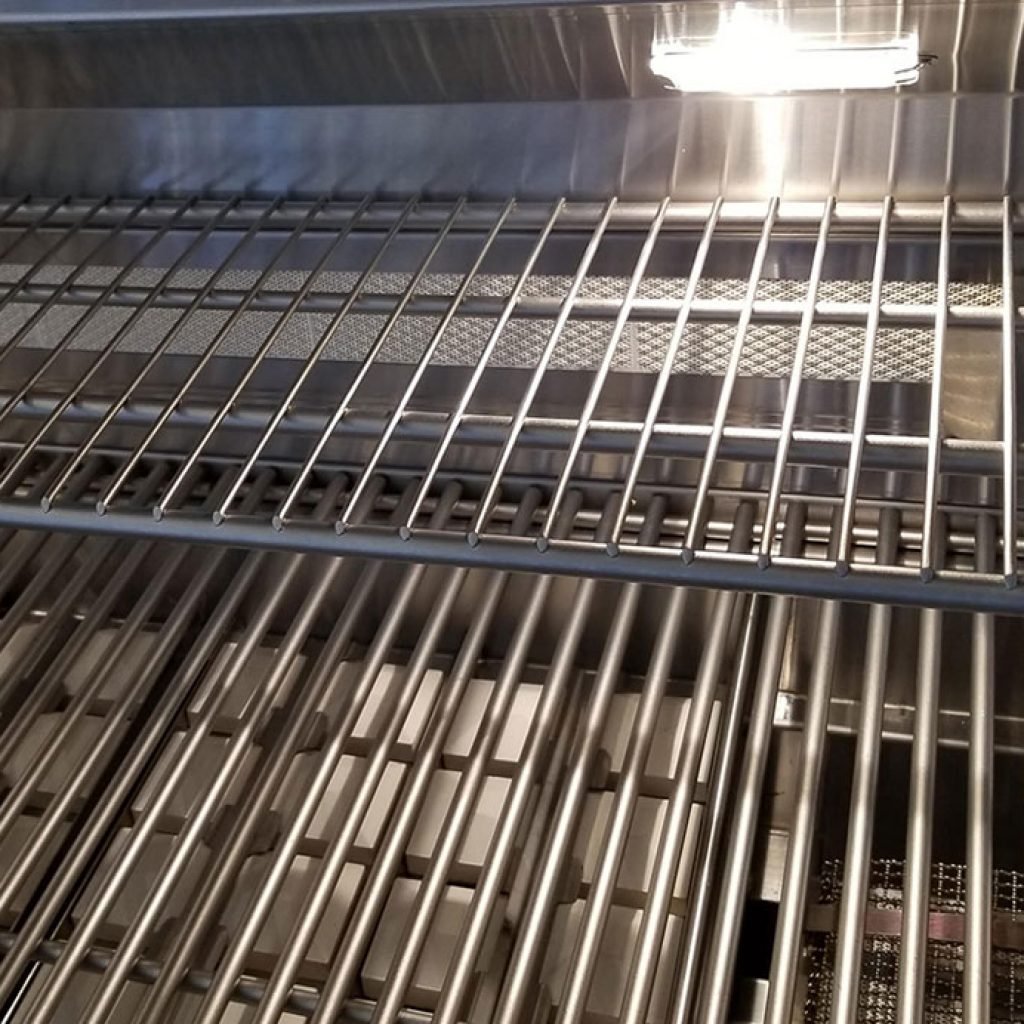

| Cooking area | 598 sq. in. main, 851 sq. in. total with warming rack |

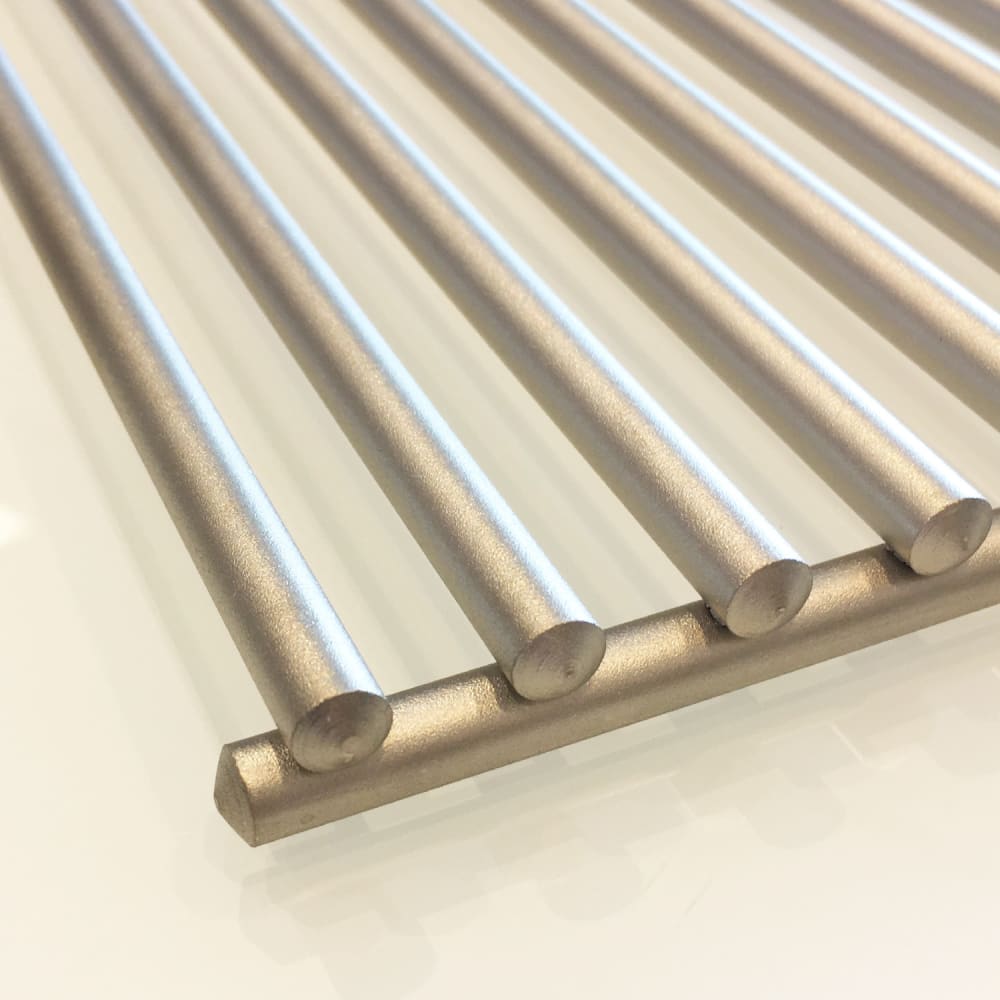

| Grates | Welded 5/16 in. 304 stainless grates; removable heat zone divider |
| Ignition | Push-and-turn Flame Thrower ignition, no battery |
| Lighting | Blue LED control lights and halogen interior lamps; 115 V for lighting |
| Certification | ETL listed |
Dimensions and Cutout
| Grill head (W x D x H) | 30 in. x 23-9/16 in. x 25-3/8 in. |
|---|---|
| Island cutout (W x D x H) | 28-3/4 in. x 24 in. x 10-7/8 in. |
| Insulated jacket | XOG30JACKET required where combustible materials are present |
| Clearance to combustibles | 14 in. at the sides and 16 in. at the back |
| Behind the hood | At least 5 in. so the hood can open |
Features

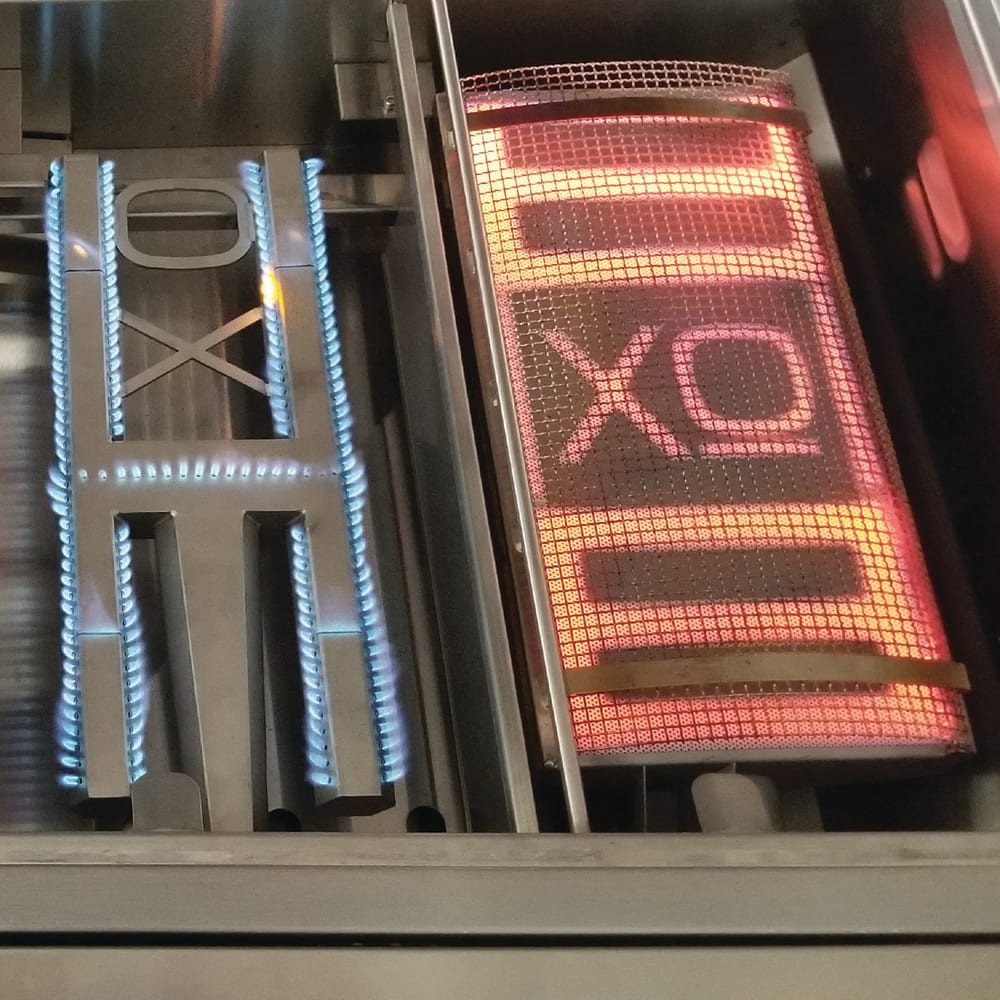

- Two cooking zones: cast stainless main burner and infrared sear burner
- Sear burner reaches 1,000 F in about a minute per XO

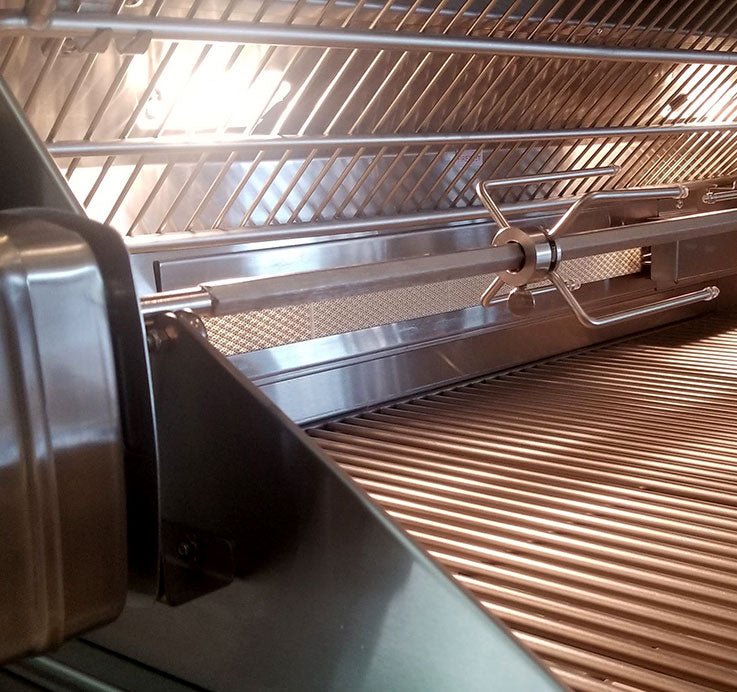

- 11,000 BTU rear infrared rotisserie burner

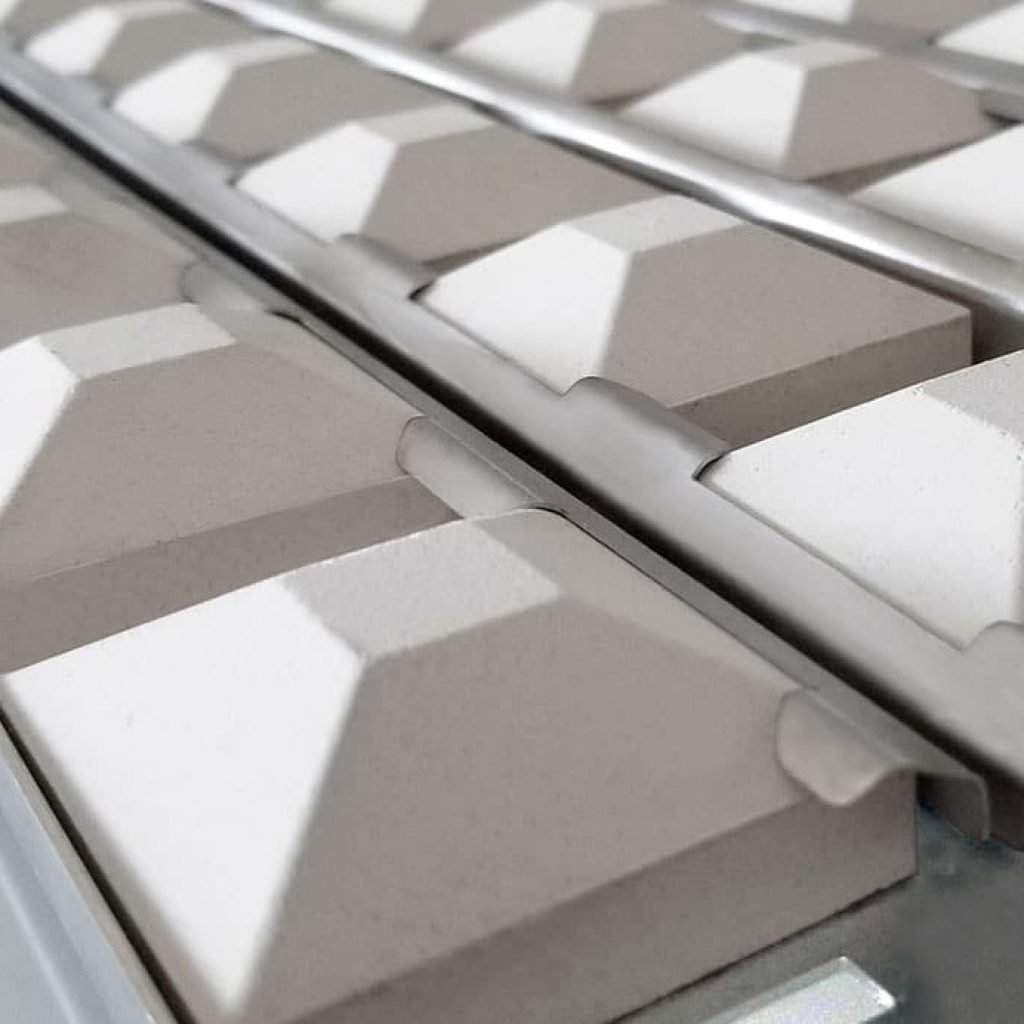

- Ceramic briquettes to vaporize drippings and reduce flare-ups
- Welded 304 stainless grates and spring-assist hood

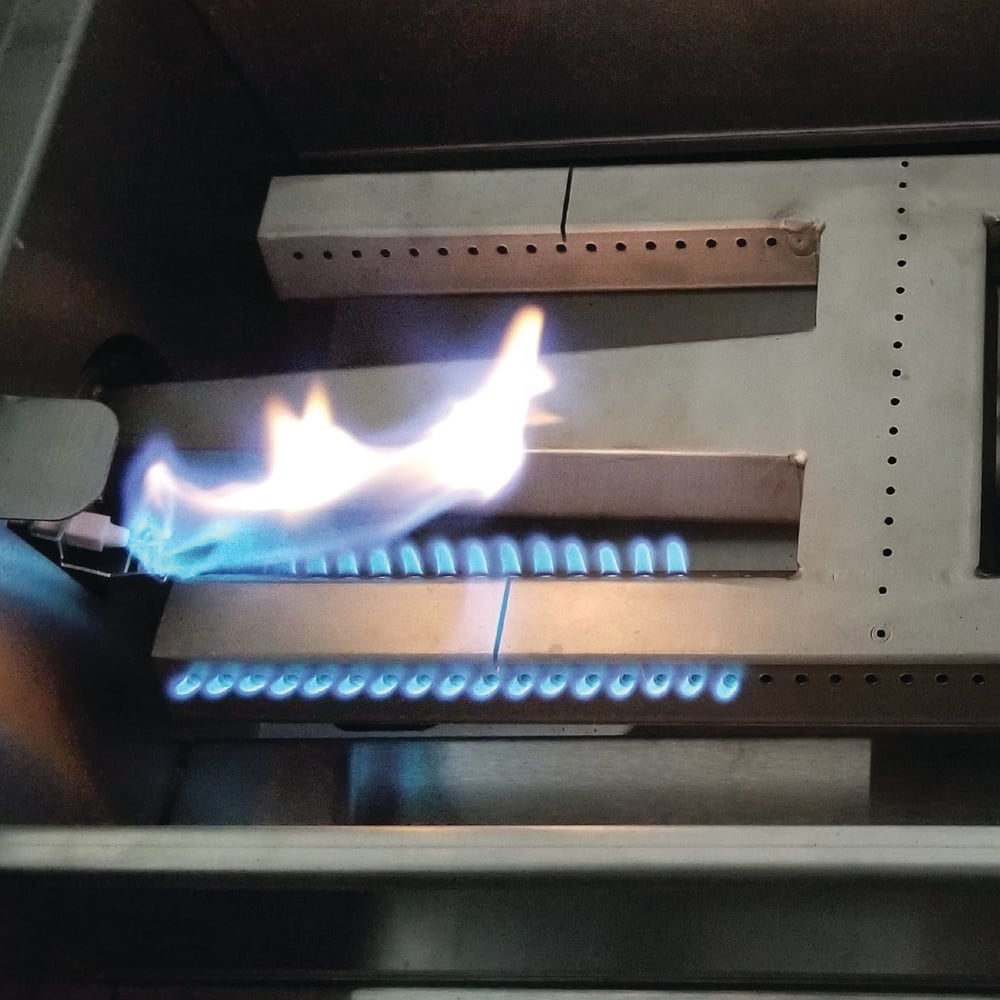

- Flame Thrower ignition with no battery

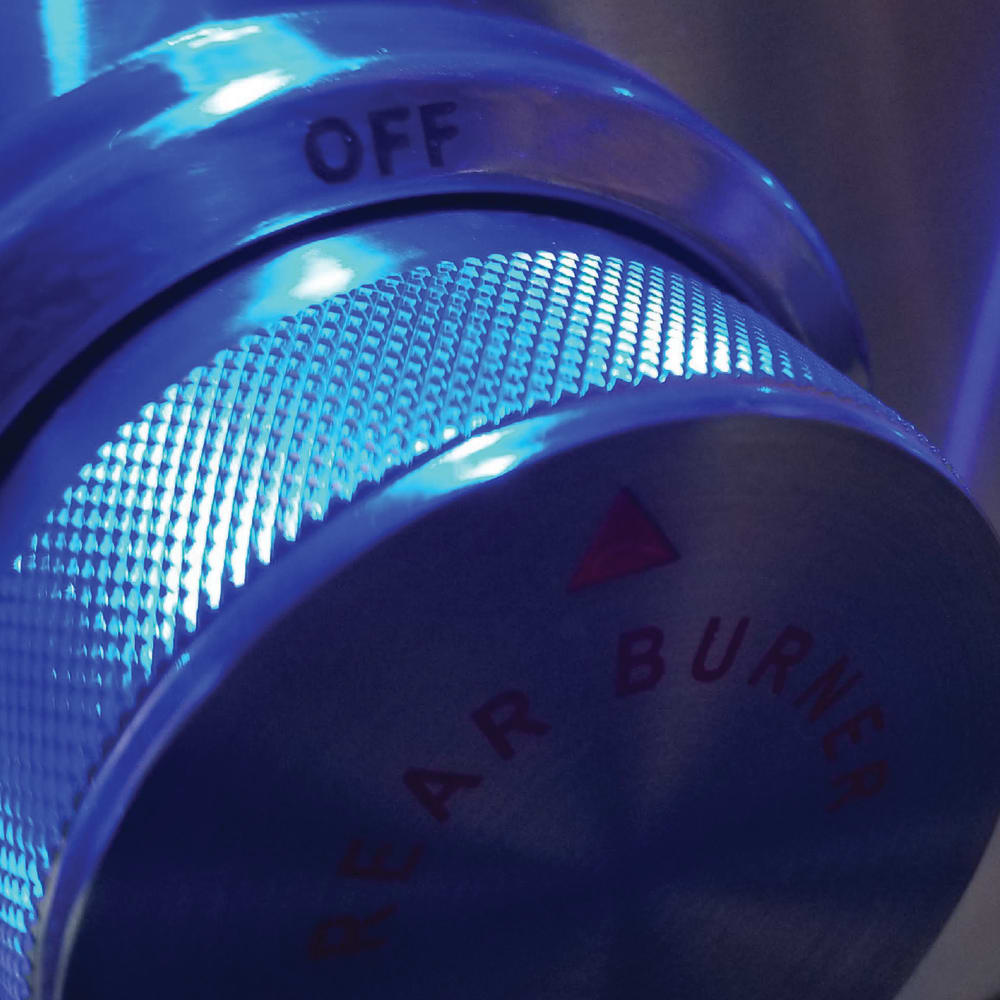

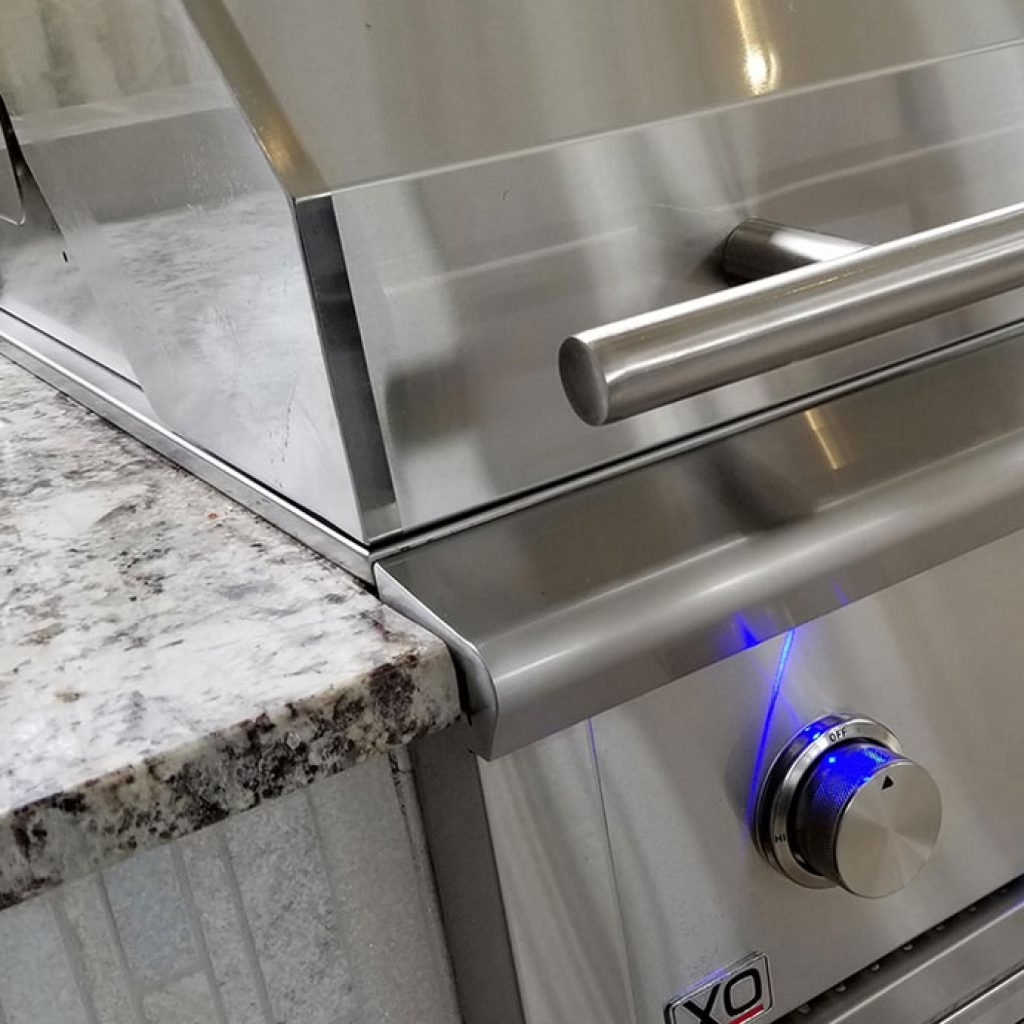

- Blue LED controls and halogen interior lamps
What Is Included and What You Will Need
- Included: XOGRILL30 grill head with grates, briquettes, heat zone divider, warming rack and the regulator for the fuel chosen
- Rotisserie: XO's spec sheet lists the motor and spit with the grill while the owner's manual lists the kit as optional; we confirm what ships with your order
- Required: island cutout 28-3/4 x 24 x 10-7/8 in., XOG30JACKET in combustible construction, a gas supply and an outdoor GFI outlet for the lights
- Optional: XO heavy-duty stainless hex grate for the XOGRILL30 and the fitted cover on this listing
Installation Notes
Cut the island to 28-3/4 x 24 x 10-7/8 in., use the XO insulated jacket wherever combustible materials are present, and keep 14 in. at the sides and 16 in. at the back from combustible construction. XO says never to use the grill under overhead combustible construction, in an enclosed area, or on a balcony, deck or patio above the ground floor, which affects many New York City terraces and roofs. Gas connections should be made by a qualified installer, and NYC gas piping requires a licensed master plumber and permit. Book a consultation and we will review the island and gas run with you.
Documentation
Frequently Asked Questions
What cutout does it need?
28-3/4 in. W x 24 in. D x 10-7/8 in. H, with the XOG30JACKET in combustible construction.
Is the rotisserie included?
XO's spec sheet and manual differ, so we confirm the rotisserie kit with your order.
How hot does the sear burner get?
XO says about 1,000 F in about a minute.
Can I use it on a roof deck?
XO's manual says never above the ground floor on a balcony, deck or patio, so ask us about your site.
Related reading: Built-In Gas Grill Buying Guide and Infrared vs Traditional Grill Burners.
Warranty
Per XO's limited warranty for residential use: lifetime on the cast stainless steel main burners and fabricated stainless steel housing; five years on briquette trays, stainless grates, drip pans and gas valves; two years on all other grill components. Original purchaser only, non-transferable, online registration within 90 days.
