Fire Magic Electric EL500 30-Inch Post Mount Electric Grill w/ Single Touchscreen Control, Digital Timer, & Bluetooth - EL500s-3Z1E-P6
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Fire Magic Electric EL500 30-Inch Post Mount Electric Grill w/ Single Touchscreen Control, Digital Timer, & Bluetooth - EL500s-3Z1E-P6 is backordered and will ship as soon as it is back in stock.
Choose with help from our Maspeth showroom. Read customer reviews on Google.
Pickup currently unavailable at Maspeth, NY Showroom
- Northeast shipping. Eligible orders over $999 ship free within our 11-state area; other eligible orders have a flat rate at checkout. Product exclusions apply. Shipping details.
- Factory-authorized Fire Magic dealer. You keep the full manufacturer warranty.
- 30-day returns, no restocking fee.
- Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Maspeth, NY 11378
- Monday–Friday
- 9:00 AM–5:00 PM
- Saturday
- 10:00 AM–3:00 PM
- Sunday
- Closed
Call ahead to confirm the model you want to see and pickup readiness.
Shipping & Delivery Area
Shipping & Delivery Area
- Online shipping is limited to Maine, Vermont, New York, New Hampshire, Massachusetts, Connecticut, Pennsylvania, New Jersey, Maryland, Delaware and Rhode Island.
- Eligible orders over $999 receive free standard shipping; eligible orders of $999 or less have a flat rate shown at checkout.
- Our own trucks deliver eligible local orders up to 120 miles. e-NRG fuel, white-glove delivery and assembly have separate eligibility, distance limits and charges.
- For other states, or when no delivery option appears, call 718-326-4328 for a quote before ordering.
- Read the shipping policy for details.
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Fire Magic Electric EL500 30-Inch Post Mount Electric Grill w/ Single Touchscreen Control, Digital Timer, & Bluetooth - EL500s-3Z1E-P6 is backordered and will ship as soon as it is back in stock.
Description
Description

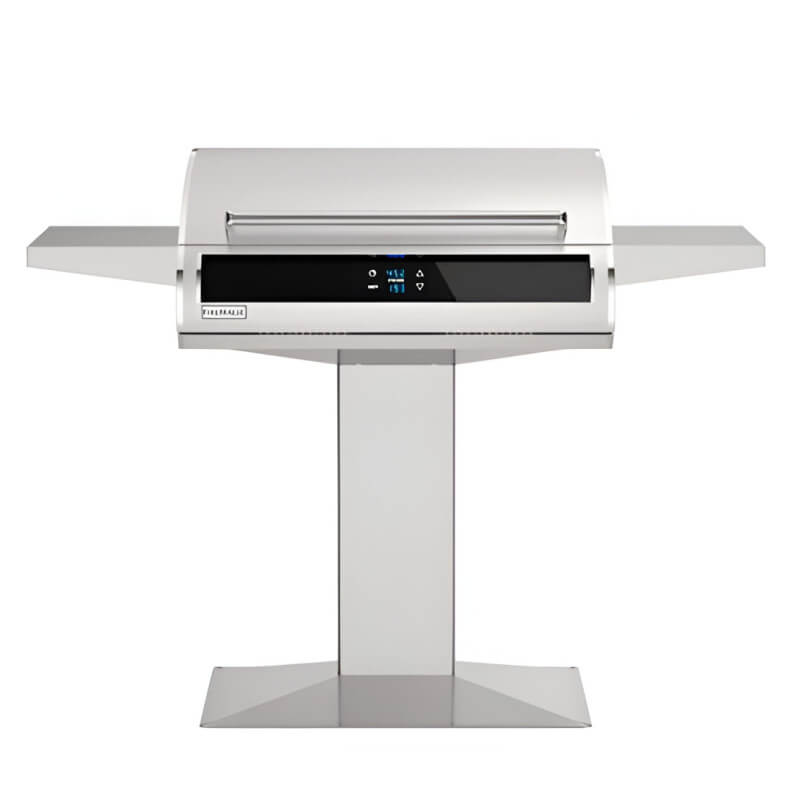

The Fire Magic EL500s-3Z1E-P6 is a 240 volt electric grill on a stainless steel patio post with two side shelves, so you get Fire Magic Diamond Sear grilling up to 700 degrees F anywhere you can run a dedicated electrical circuit, with no gas line or propane tank.
This single-control model uses one black glass touchscreen with a digital thermometer and Bluetooth, so the grill can be monitored and adjusted from a smartphone. It preheats in under 15 minutes and is made in the USA.
Features
- Single thermostatic touch control with digital thermometer and Bluetooth smartphone control
- Temperature range up to 700 degrees F with less than 15 minute preheat
- Patented Diamond Sear stainless cooking grids, 480 sq. in. main grilling area plus a 150 sq. in. warming rack
- Patio mount post base in standard (P6) 37 in. shelf height with two rigid side shelves
- 304 stainless steel construction, made in the USA
- Meat probe with bamboo storage box, large pull-out drip tray with liners and grid lifter included
Key Specifications
| Model | Fire Magic EL500s-3Z1E-P6 (single control, standard height post) |
| Fuel | Electric, 240VAC |
| Appliance rating | 240VAC / 6,000 watts / 25 amp / 60 Hz (owner's manual) |
| Circuit required | Dedicated 240VAC, 30 amp minimum, single-phase, 60 Hz GFCI circuit breaker, grounded 3-wire |
| Controls | Single black glass touchscreen thermostatic control, digital thermometer, Bluetooth |
| Maximum temperature | 700 degrees F |
| Heating elements | 2 |
| Cooking grids | Diamond Sear stainless steel, 30 x 16 in. |
| Main grilling area | 480 sq. in. |
| Warming rack | 150 sq. in. |
| Total grilling area | 630 sq. in. |
| Meat probe | Included |
| Magic View window | Not available on this single control model |
| Construction | 304 stainless steel |
| Made in | USA |
Dimensions and Cutout
| Height, lid closed | 43-1/2 in. |
| Height, lid open | 57-4/5 in. |
| Floor to top of shelf | 37 in. (P6 standard height) |
| Overall width with shelves | 56-1/8 in. |
| Post base width | 30-1/4 in. |
| Post base depth | 20-1/4 in. |
| Maximum depth | 23-3/4 in. |
What Is Included and What You Will Need
- Included: EL500s grill head with stainless patio mount post base, two rigid side shelves, patio mount hardware kit with lag shields and lag screws, warming rack, meat probe with bamboo storage box, drip tray with liners and grid lifter (the unit ships in two boxes)
- Required: a dedicated 240VAC, 30 amp minimum single-phase GFCI circuit with an outdoor rated, in-use covered electrical disconnect or plug and receptacle (not included), installed by a licensed electrician
- Required: a level surface that accepts the lag shields and lag screws for the post base
Optional Accessories
- Optional: Fire Magic protective cover 3665F for the post mount grill (not the built-in 3662F cover)
- Optional: Fire Magic post mount wind deflector 23116-19
- Under overhead construction: a vent hood of at least 1200 CFM, such as the Fire Magic 36-VH-7 36-inch vent hood with the 36-VH-7-02 spacer and 36-VH-7-DC duct cover
Installation Notes
Keep at least 8 in. from a rear wall and 24 in. from side or corner walls. Under combustible overhead construction an exhaust hood is required, with a minimum 30 in. between the countertop and the hood; under non-combustible overhead construction a hood is highly recommended. Wiring can be run underground and up the post or brought in externally.
In New York City the dedicated 240 volt GFCI circuit must be installed by a licensed electrician, and an electric grill is often the practical choice for terraces and rooftops where propane is restricted. Book an outdoor kitchen design consultation to plan power and placement.
Documentation
- Fire Magic EL500s Stand-Alone Post Installation and Owner's Manual
- Fire Magic EL500 Electric Grill Brochure
Frequently Asked Questions
What electrical service does it need?
A dedicated 240VAC, 30 amp minimum, single-phase, 60 Hz GFCI circuit breaker. The appliance is rated 6,000 watts and 25 amps.
How is the post installed?
The post base is secured to the ground with the included lag shields and lag screws; power can come up through the post from underground or from an external source.
What is the difference between the single and dual control models?
This EL500s-3Z1E-P6 has one touchscreen control for the whole grill. The dual control EL500s-4Z1E-P6 has two independently controlled zones.
Related reading: Built-in vs freestanding grills, What size grill do I need?.
Warranty
Fire Magic limited warranty by R.H. Peterson Co. (EL500s owner's manual): cooking grids and grill housings are warranted for as long as the original purchaser owns them (lifetime); heating elements for five (5) years; other grill components (except ignition and electronic parts) for three (3) years; the EL500 under-glass touch screen electronic controls for two (2) years; and other electronic components (including lights, thermometers and thermostats) and accessories for one (1) year.
The warranty applies to the original purchaser for single family residential installations in the United States or Canada, requires proof of purchase and professional installation per the manual, and does not cover labor. Refer to the manual for full terms.
Think beyond the appliance
Build your complete setup
Choose the level of help you need. We’ll confirm the exact model, compatible parts and a clear quote before you commit.
The appliance
Know your model and configuration? Shop the appliance and review exactly what is included.
The complete setup
Ask us to pair the appliance with the correct trim, venting, cover, cart or other model-specific accessories.
The installed project
For projects within our service area, ask for a quote covering product selection, compatible components and installation.
These are planning options, not pre-priced bundles. Accessories, delivery and installation are separate unless your written quote includes them.
Buy with the whole project in mind
Make sure this model fits your project
A few details now can help you avoid ordering the wrong size, fuel type or installation components.
1. Confirm fit
Check finished dimensions, opening or cutout measurements and the manufacturer’s required clearances.
2. Match the fuel and connections
Confirm the exact model’s fuel type, electrical requirements and any venting or ventilation requirements.
3. Complete the setup
Check what is included. Ask us to quote compatible accessories, delivery and installation separately where needed.
See the work. Hear from customers.
Explore completed installations and independent Google reviews to learn about working with NYC Fireplaces & Outdoor Kitchens.
Questions to settle before you order
How do I know which size and configuration to order?
Have your dimensions, photos, fuel or power details and preferred model ready. Contact our showroom before ordering if fit or compatibility is unclear. Follow the manufacturer’s installation instructions.
Does the price include everything I need?
Check the product description and selected configuration for included parts. Venting, trim, surrounds, covers, carts, fuel and installation may be separate. Ask for a complete quote before purchasing.
Can you deliver and install it?
Delivery and installation depend on your address and the product. Review our shipping policy and call for an installation quote. Confirm availability and timing before booking work. Read shipping details. Read return terms.
Product, accessory and installation prices are separate unless the offer explicitly includes them. Compatibility must be confirmed for the exact model.
