Kingsman ZCV42 42" Zero Clearance Clean View Direct Vent Gas Fireplace | Ceramic Glass

Overall Dimensions: 42-7/16" W x 18-7/16" D x 40-7/8" H; framing 42-1/2" W x 41" H x 18-1/2" D

The Kingsman ZCV42 with ceramic glass is a 42-inch zero clearance direct vent gas fireplace built as a dedicated Clean View appliance, for new construction or renovation. It offers a large 33-11/16" x 27-3/16" viewing area, up to 29,500 BTU, and millivolt or electronic ignition that keeps operating in a power failure.

Key Specifications

Dimensions and Cutout

Features

• Dedicated Clean View appliance with a large glass viewing area
• Millivolt or IPI valve system operates during a power failure, with high and low heat and flame adjustment
• Safety screen barrier included

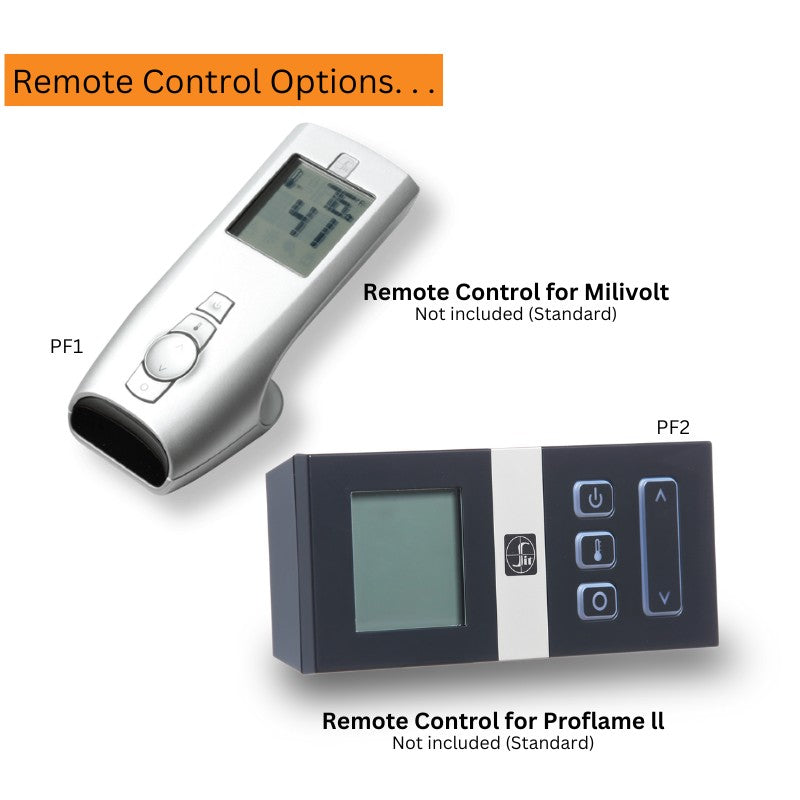

• ProFlame 2 models include a remote with flame, fan, thermostat and smart thermostat control, per the listing
• Optional vented chase for cool touch walls or reduced mantel clearances, per the listing and manual

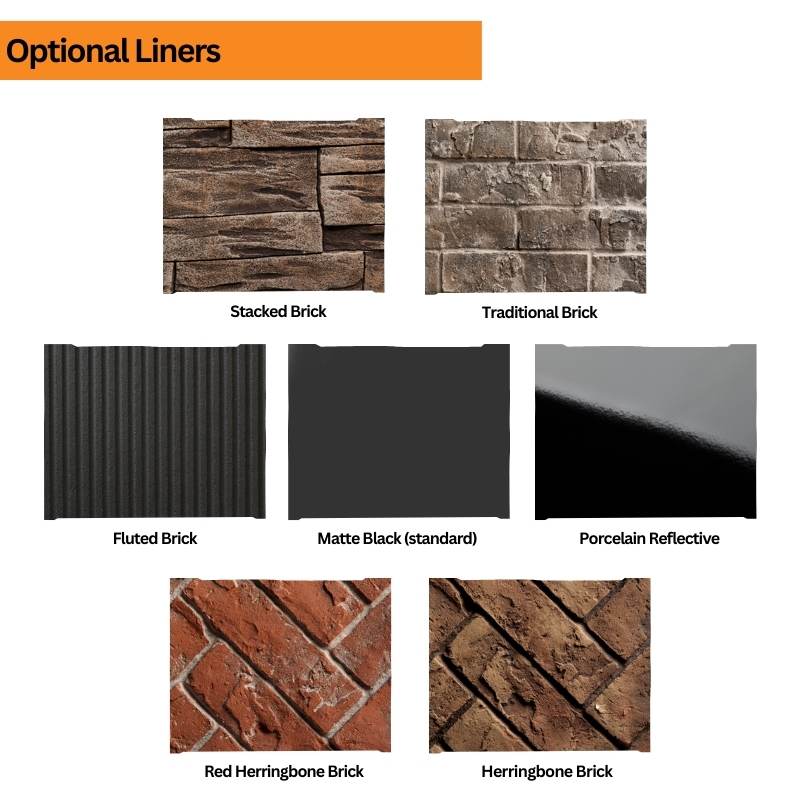

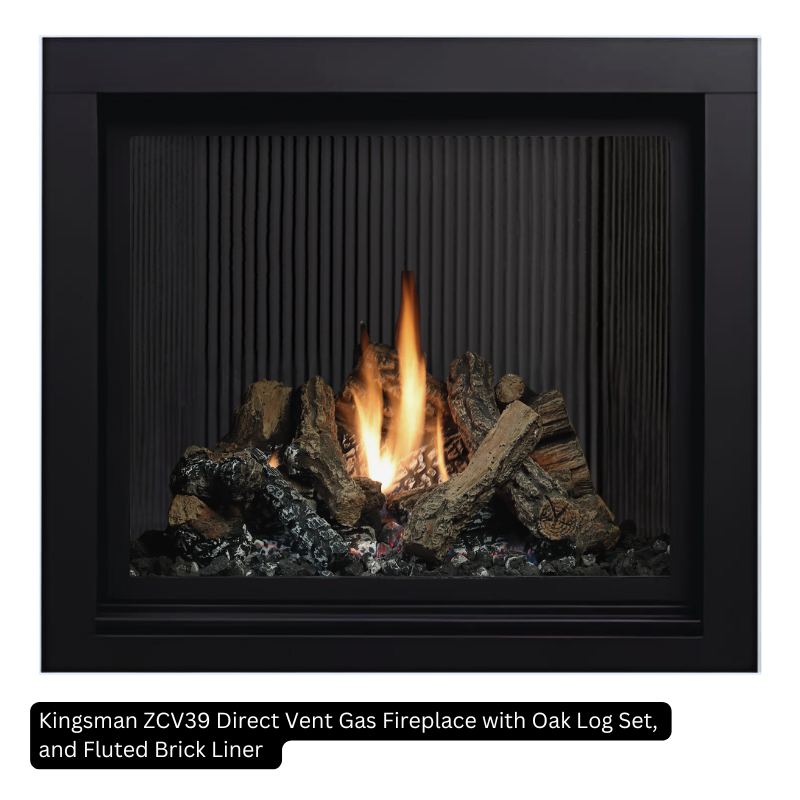

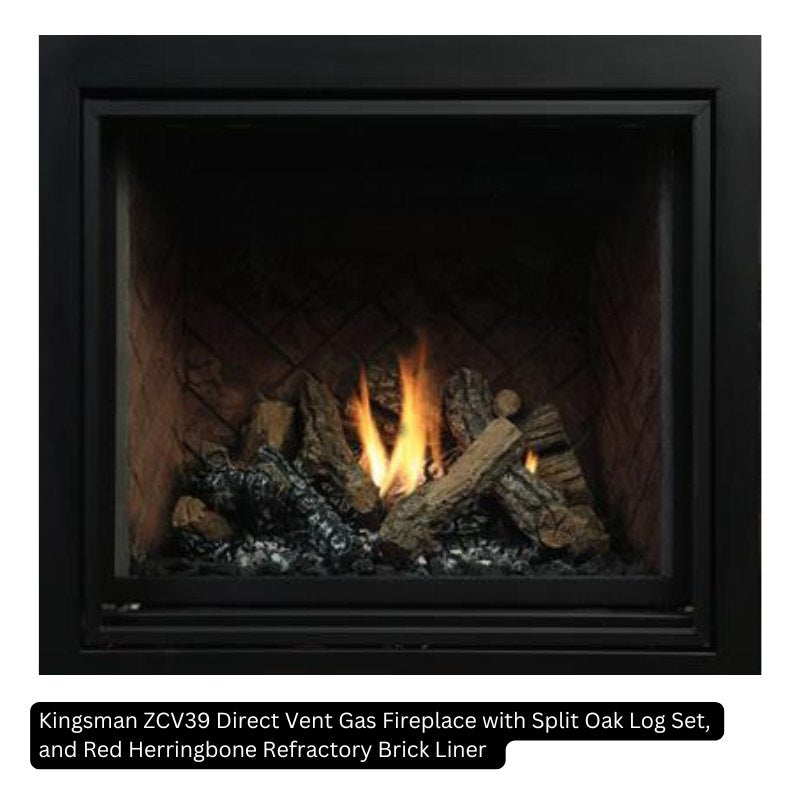

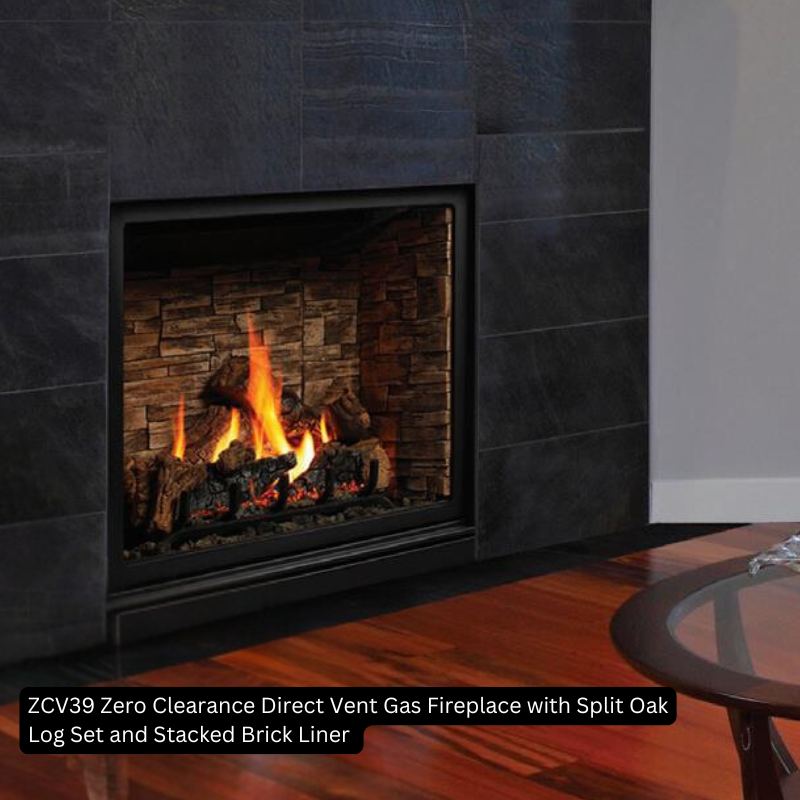

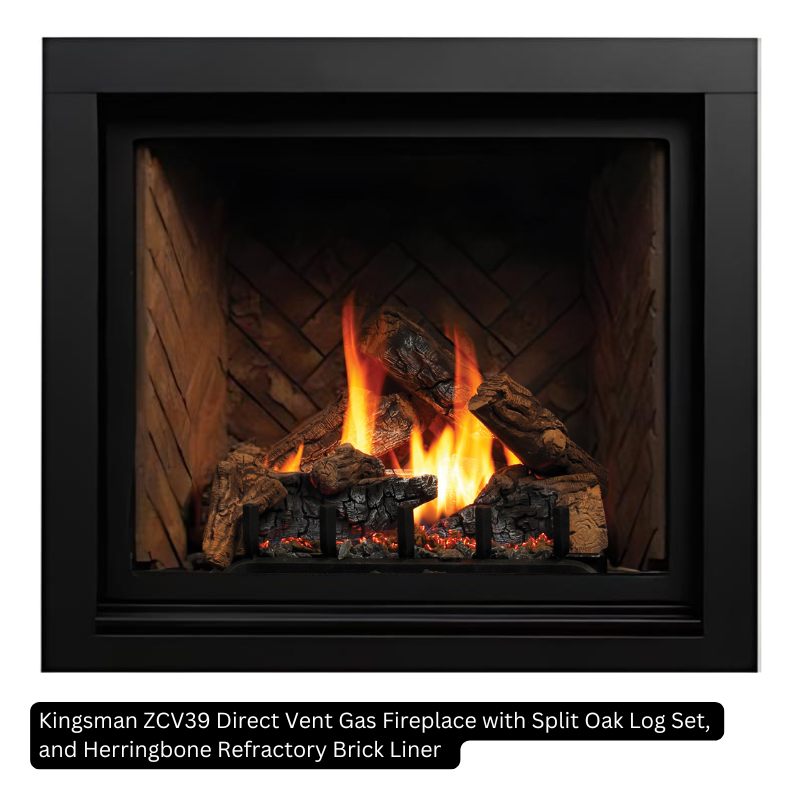

• Seven liner choices and a wide range of media, log sets, designer doors and surrounds
• Heat activated fan kit with variable speed control available

What Is Included and What You Will Need

• Included: the fireplace with safety screen and the liner you select; ProFlame 2 models add the remote control

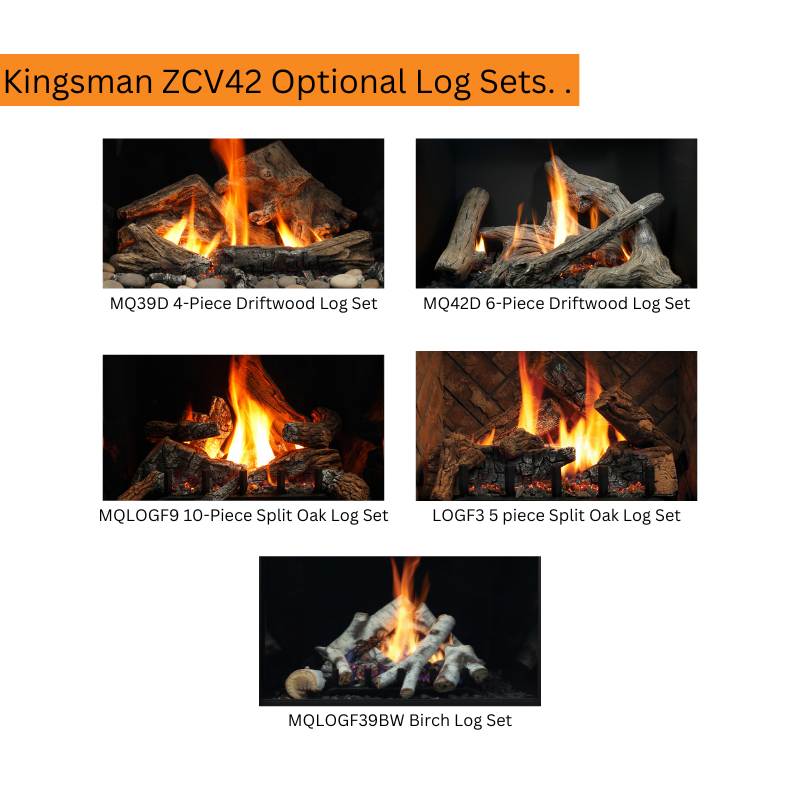

• Required: media or a log set, which the listing shows as a required choice made in a separate Media Options step
• Required: Kingsman or approved 4 in and 7 in direct vent pipe and termination, a gas line, and a qualified installer

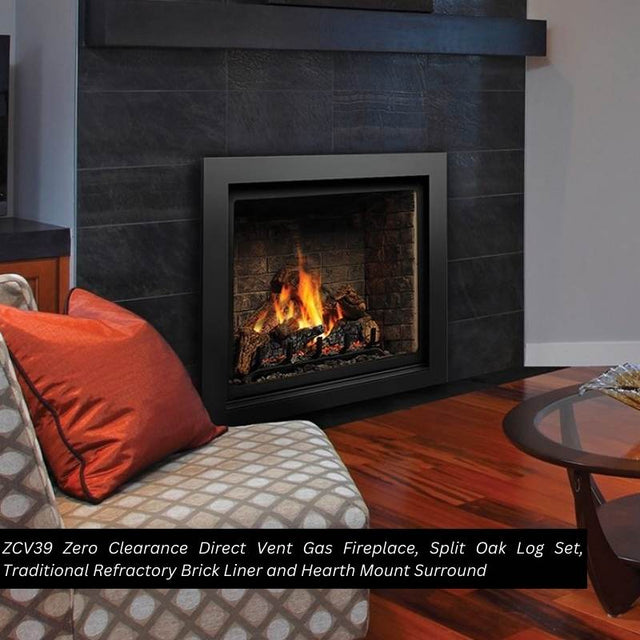

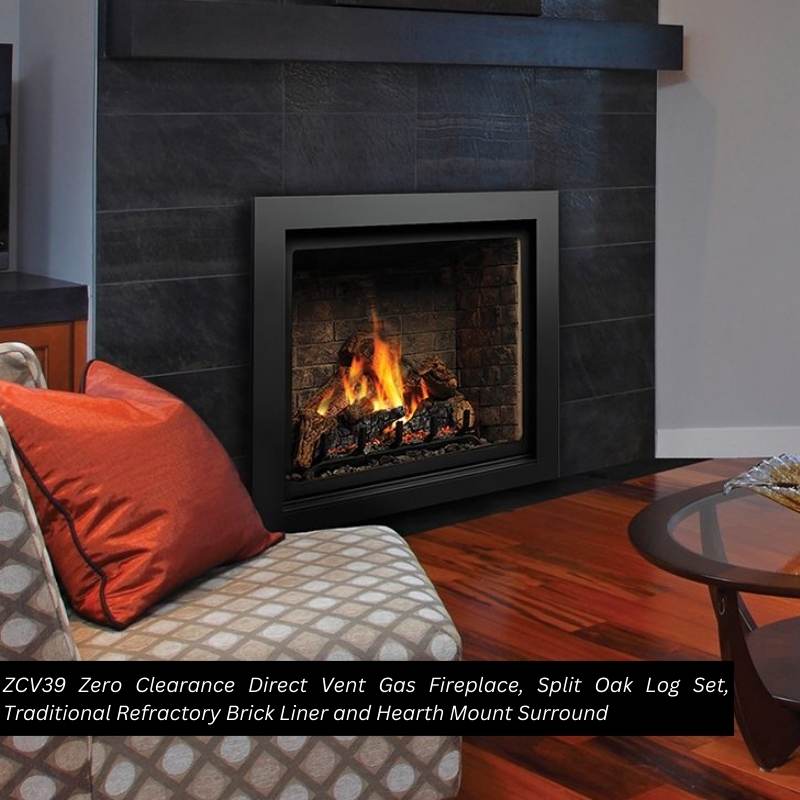

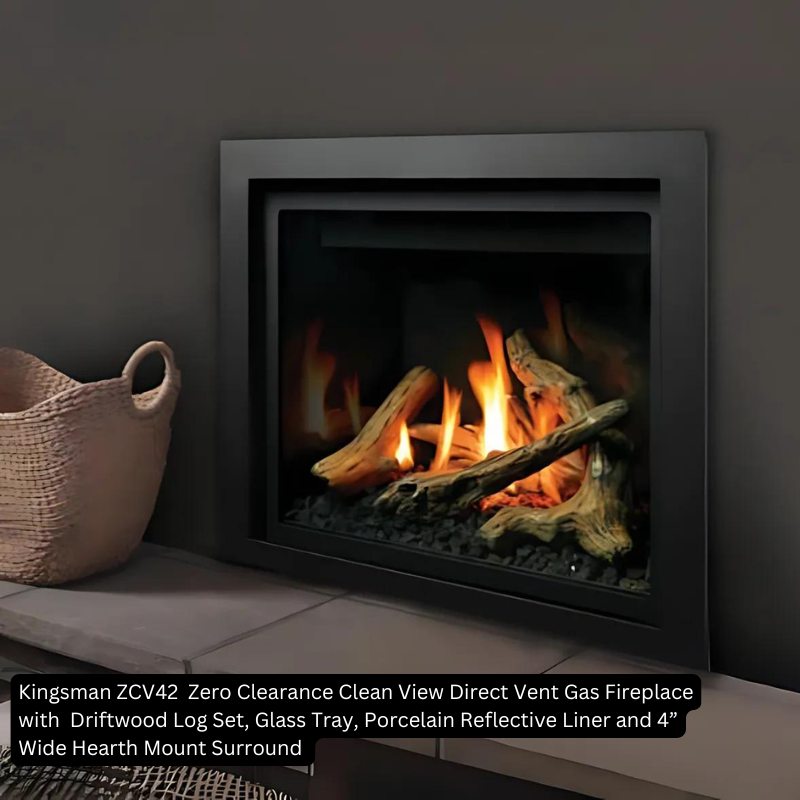

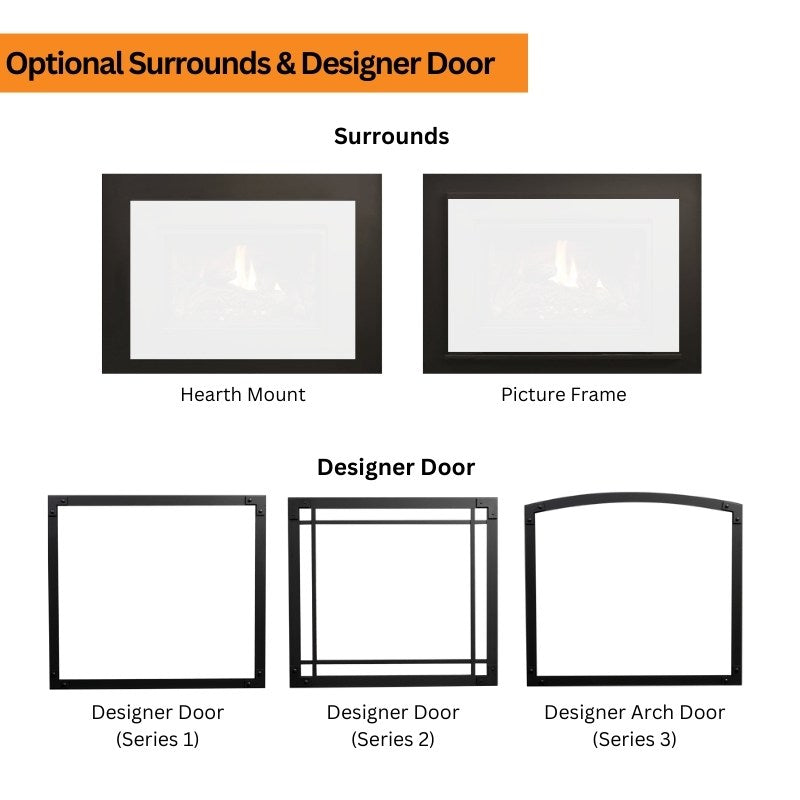

• Optional: fan kit, picture frame surrounds, hearth mount surround, glass tray media accessory, millivolt remote, programmable thermostat

Installation Notes

Install natural gas or propane only as shown on the rating plate. Choose a non-vented or vented chase before framing, because the manual gives separate framing, clearance, mantel and facing requirements for each. Keep vertical vent pipe 1 inch from combustibles and follow the manual for mantel heights and facing materials. In New York City, gas fireplace work must be done by a licensed professional under a DOB permit, and the direct vent route should be planned before ordering. Book a free design consultation and we will confirm framing, venting and approvals for your building.

Documentation

• Installation Manual

Frequently Asked Questions

What is the difference between the ceramic and tempered glass ZCV42?

The ceramic glass models are the NH and NHE series. Kingsman requires Robax ceramic or coated Neoceram for replacement glass on them, while the N and NE series use tempered glass.

Does it work in a power failure?

Yes. The millivolt and IPI valve systems operate during a power failure, and the optional wall mount battery holder supports IPI models.

Can I mount a TV above it?

Kingsman offers a vented chase option for cooler walls and reduced mantel clearances. Follow the manual for the chase, mantel height and facing requirements, and check your TV maker limits.

Is media included?

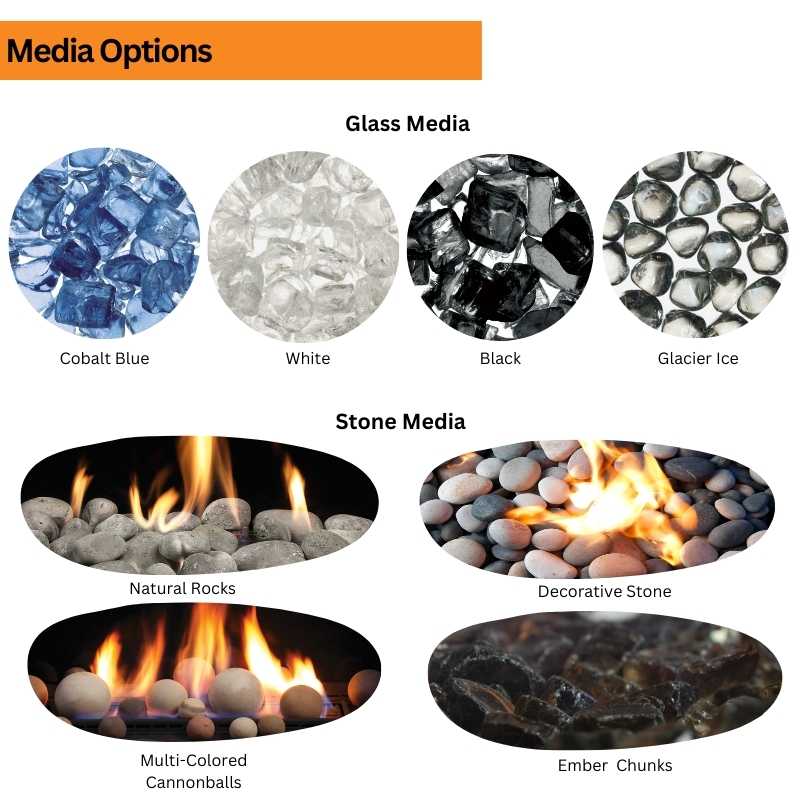

No. This listing sets media as a required separate choice, so pick logs, rocks, stones or glass before ordering.

Related reading: Direct Vent Gas Fireplace Buying Guide and NYC Fireplace Code Guide.

Warranty

Per the Kingsman manual: a basic one year warranty replaces any component found defective in materials or workmanship, including labour, excluding accent light bulbs, gasketing, glass fronts and paint. The heat exchanger, combustion chamber and burner are covered for the period the original owner owns the product, with replacement parts only (labour, freight and handling are not covered).
