Montigo DelRay 60 Linear Direct-Vent Gas Fireplace - DRL6013NI
Montigo DelRay 60 Linear Direct-Vent Gas Fireplace - DRL6013NI - Natural Gas is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 69-1/4 in. W (front) x 12-3/4 in. D x 26-3/4 in. H

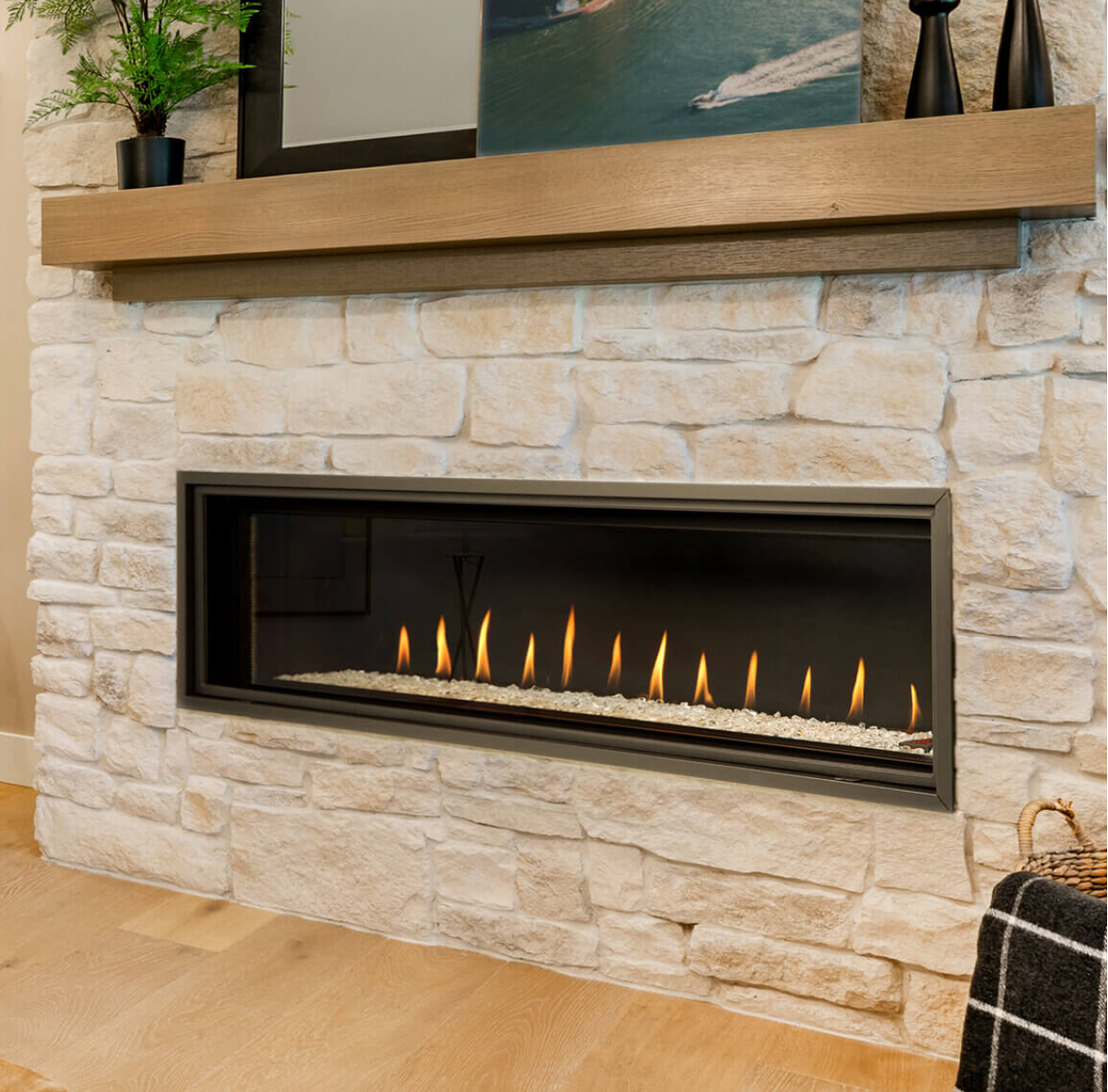

The Montigo DelRay 60 is a linear direct vent gas fireplace with a 60-1/2 in. wide glass view, made for a long feature wall in an open living room, family room or lounge. A concealed burner over ice fireglass gives a clean, floating flame, and the model is available in natural gas or propane with a long list of options to tune the look and the heat.
Key Specifications
| Model | DRL6013NI (natural gas); propane via conversion kit (DRL6013LI) |
| Type | Single-sided linear direct vent gas fireplace |
| Input | 28,000 BTU/h natural gas; 25,000 BTU/h propane |
| Efficiency | 67% natural gas; 64% propane (spec sheet) |
| Glass viewing area | 60-1/2 in. x 14-11/16 in. |
| Burner | Concealed burner with ice fireglass |
| Venting | Direct vent, 4 in. / 7 in. co-linear |
| Electrical | 115V, 60 Hz, less than 12 A |
| Certification | CSA/ANSI Z21.88-2019 / CSA 2.33-2019 |

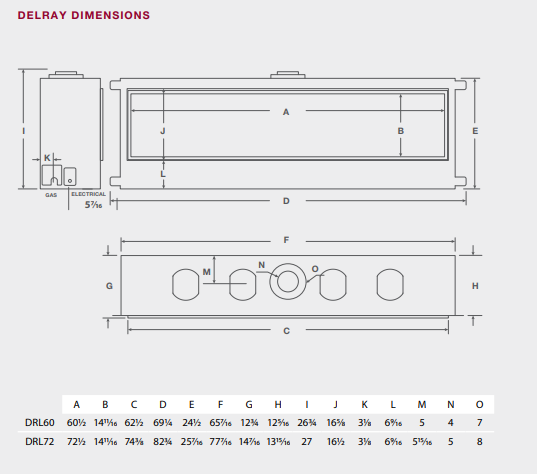

Dimensions and Cutout
| Unit (front W x H x D) | 69-1/4 in. x 26-3/4 in. x 12-3/4 in. (back width 65-7/16 in.) |

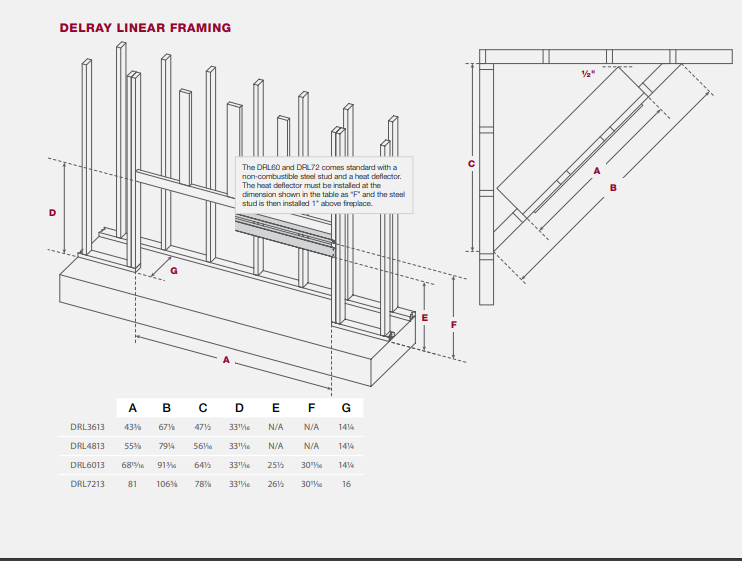

| Framing (W x H x D) | 68-15/16 in. x 33-11/16 in. x 14-1/4 in. |
| Clearances | 36 in. top to enclosure ceiling; 2 in. rear; 1-3/4 in. sides; 0 in. floor; 1 in. around vent pipe and 2 in. above horizontal runs |
| Combustible mantel | Up to 6 in. high and 11 in. deep (see manual) |
| Vent run | 34 ft maximum total (vertical plus horizontal), up to 26 ft horizontal, maximum four elbows with 3 ft deducted per elbow |
Features
- Wide 60-1/2 in. glass view with a modern linear flame
- Concealed burner with ice fireglass
- Cement board listed with the basic configuration on the Montigo spec sheet
- Optional remote control, fans, micro mesh safety screen and battery backup

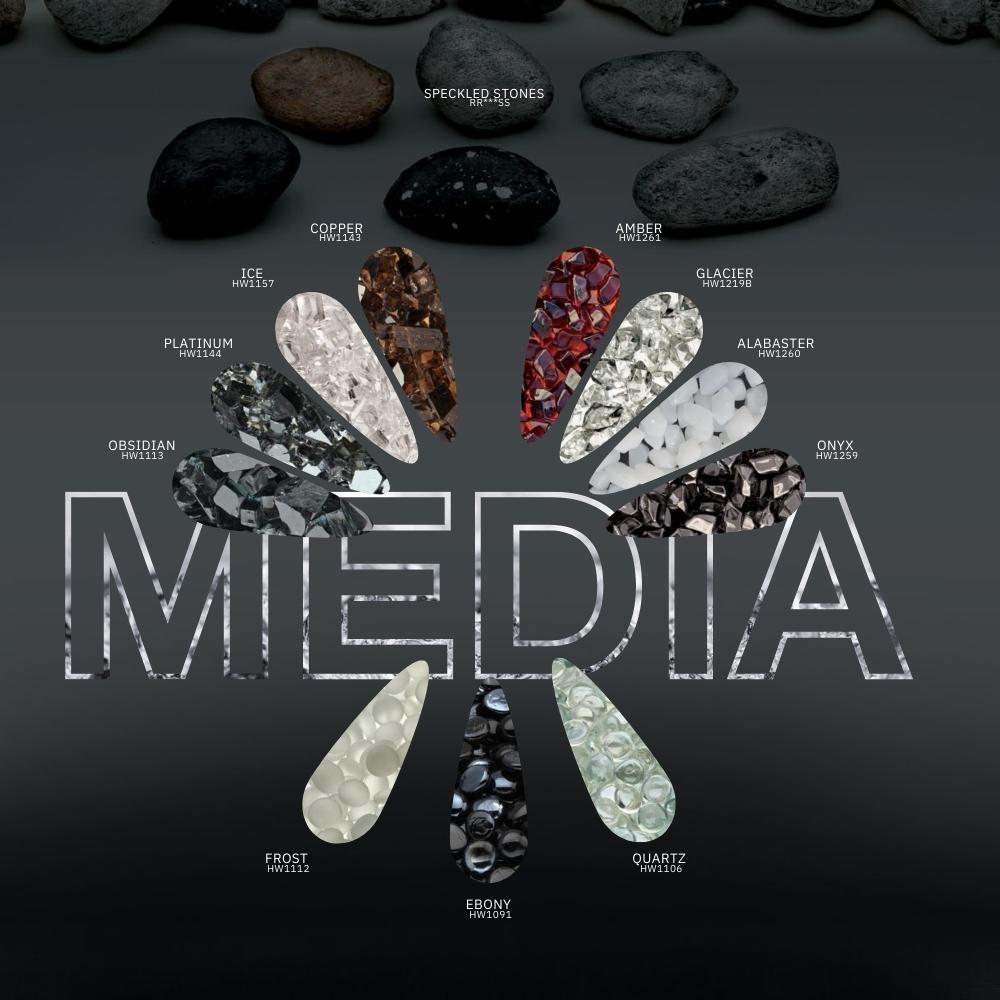

- Optional black reflective glass, speckled stones, driftwood or additional glass media

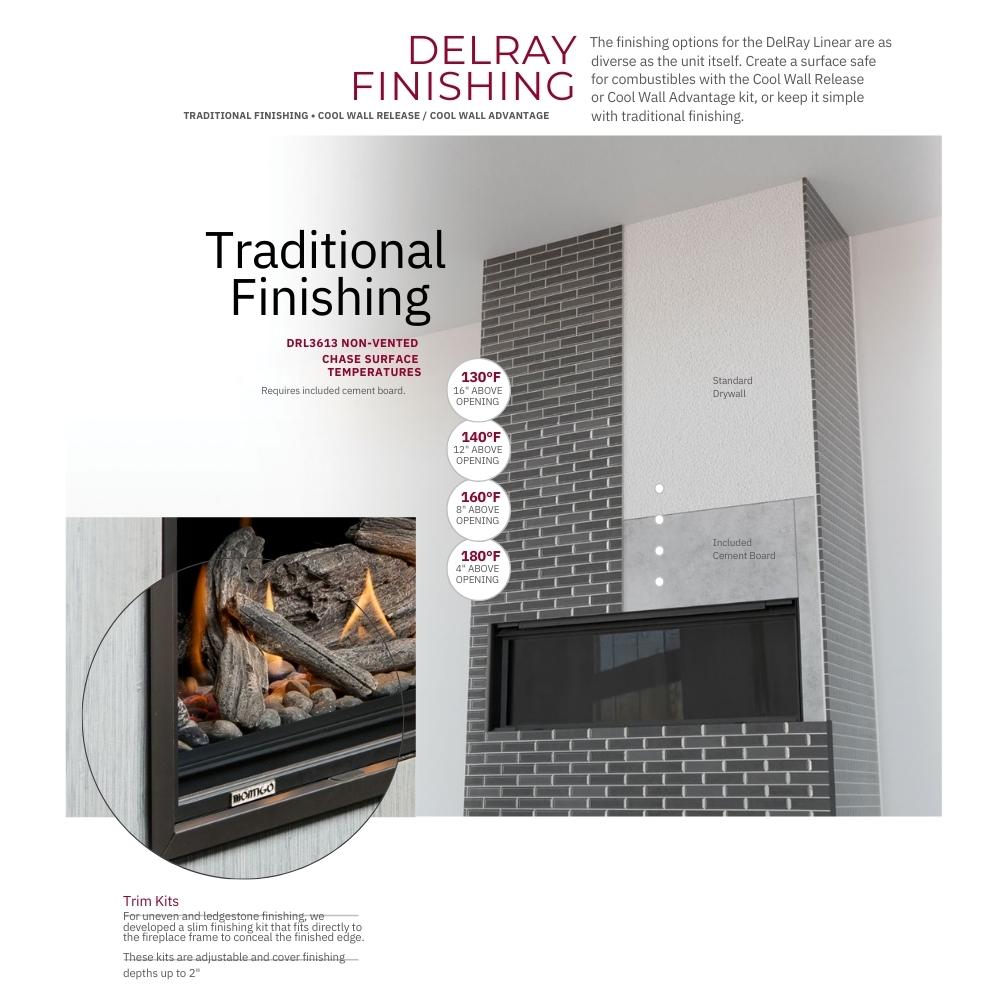

- Adjustable trim kits for a clean finish on uneven walls
- Optional heat management kit to direct warmth
- Hot-glass barrier included for households with children or at-risk individuals
Videos
Fireplace and Stove Glass Safety
What Is Included and What You Will Need
- Included per the manual: hot-glass barrier, 15 ft of low-voltage wire for the wall switch, and the steel stud with heat deflector for the DRL60
- Required: a single-pole ON/OFF wall switch supplied by the installer, a gas supply sized for the unit and a 115V circuit
- Required: 4 in. / 7 in. direct vent pipe and termination, either Montigo vent or an alternate approved in the manual. Duravent 4 in. x 6-5/8 in. components such as 46DVA-HC, 46DVA-VCH, 46DVA-36 and 46DVA-E90 connect through Montigo's 46DVA-AD-M1 and M2 adapters
- Propane: conversion kit (the propane option above includes GCA047)
- Optional: remote, fans, battery backup, trim kit (DRLT), black reflective glass (RBGDRL), media and heat management
Installation Notes
Frame to the dimensions above with the steel stud and heat deflector installed, and use a noncombustible hearth or a wood or metal panel under the unit where the manual requires it. Use only Montigo-approved venting parts, since the manual warns that unapproved parts void the warranty. Gas and venting work must be done by a licensed installer. In New York City, direct vent gas fireplaces must meet the NYC Fuel Gas Code and need a permitted installation. Book a consultation and we will confirm venting and framing before you order.
Documentation
- Spec Sheet
- Installation Manual
- Montigo DelRay Linear DRL6013 product page (manufacturer site)
- DRL6013 dimension drawing (manufacturer site)
Frequently Asked Questions
Is a remote included?

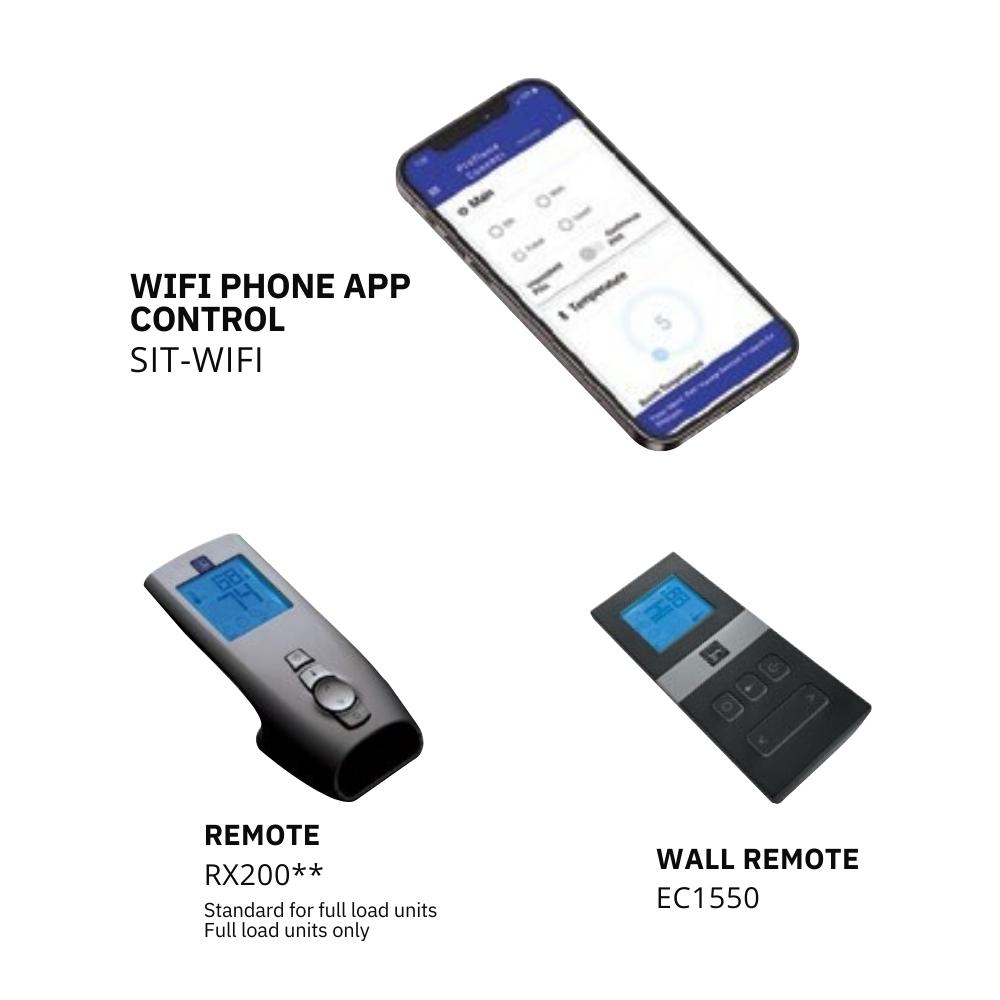

The basic DelRay 60 lists the remote as an option. Montigo offers the RX200 remote and, on full load units, the EC1550 wall remote and SIT-WIFI app control.
How far can I vent the DelRay 60?
The manual allows up to 34 ft total with a maximum of 26 ft horizontal and four elbows, each of which takes 3 ft off the allowed run.
Can it run on propane?
Yes. It is rated 25,000 BTU/h on propane. Choose the Propane option, which includes the conversion kit.
Related reading: Direct Vent Gas Fireplace Buying Guide and Linear vs. Traditional Fireplace.
Warranty
Per the current listing, Montigo provides a 15-year limited warranty on the firebox, heat exchanger and main burner, with 1-year coverage on gas controls, electronic ignition and other electrical components. Montigo publishes its residential warranty at montigo.com/warranty-certification, and the manual notes that unapproved parts void the warranty, so confirm the full terms before purchase. Montigo's warranty terms require the fireplace to be purchased, installed and serviced annually by an authorized Montigo dealer for coverage to remain valid.
