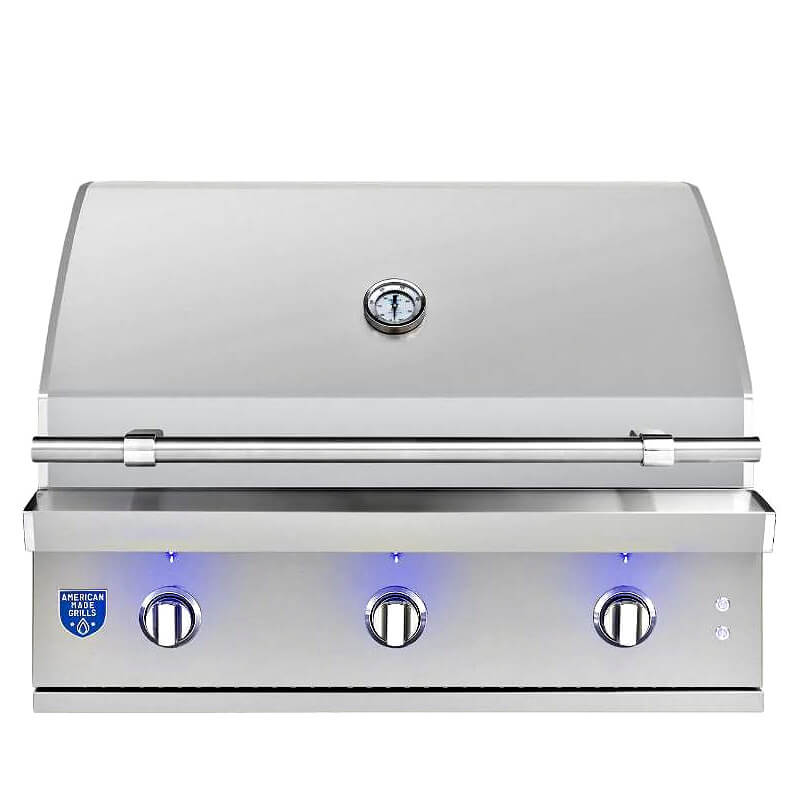

American Made Grills Atlas 36 Inch Built In Gas Grill

Overall Dimensions: 36" W x 26" D x 26" H

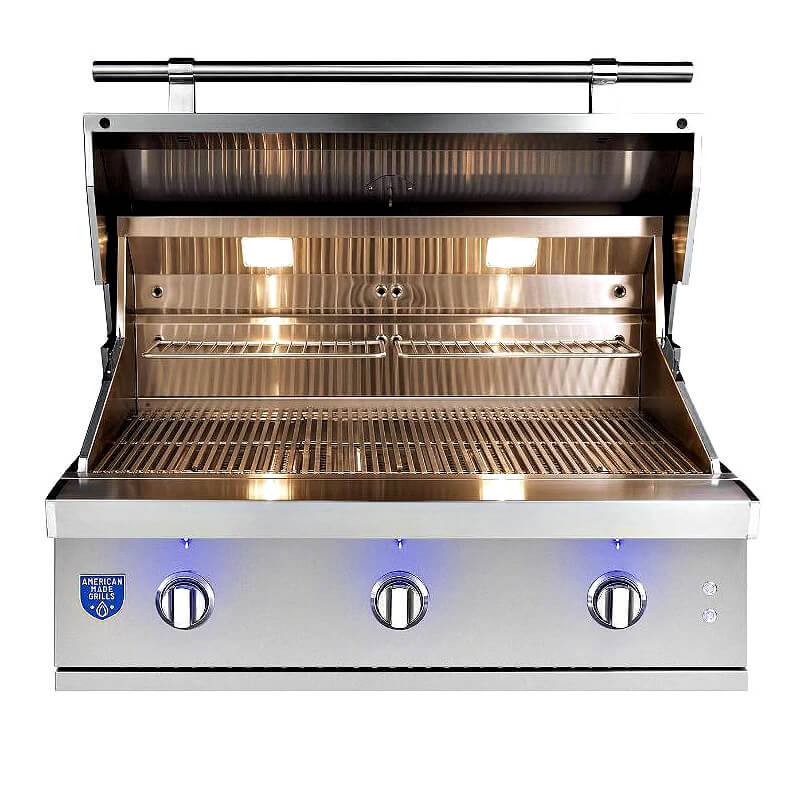

The American Made Grills Atlas 36-Inch Built-In Gas Grill (ATS36-B) is the entry point to American-built grilling: a full 304 stainless steel grill head with an 18-gauge double-lined hood, three stainless U-tube burners and an easy-clean ceramic briquette system. It is the right choice for a homeowner who wants a USA-made, lifetime-warrantied grill for a 36-inch island without paying for a back burner or spring hood. Choose natural gas or propane above.

Key Specifications

Dimensions and Cutout

Features

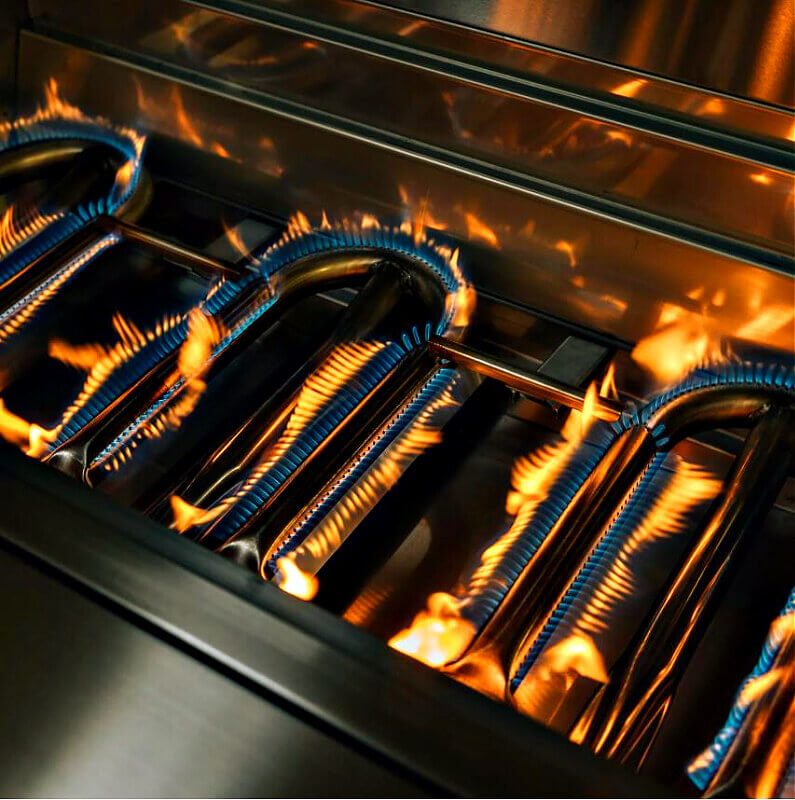

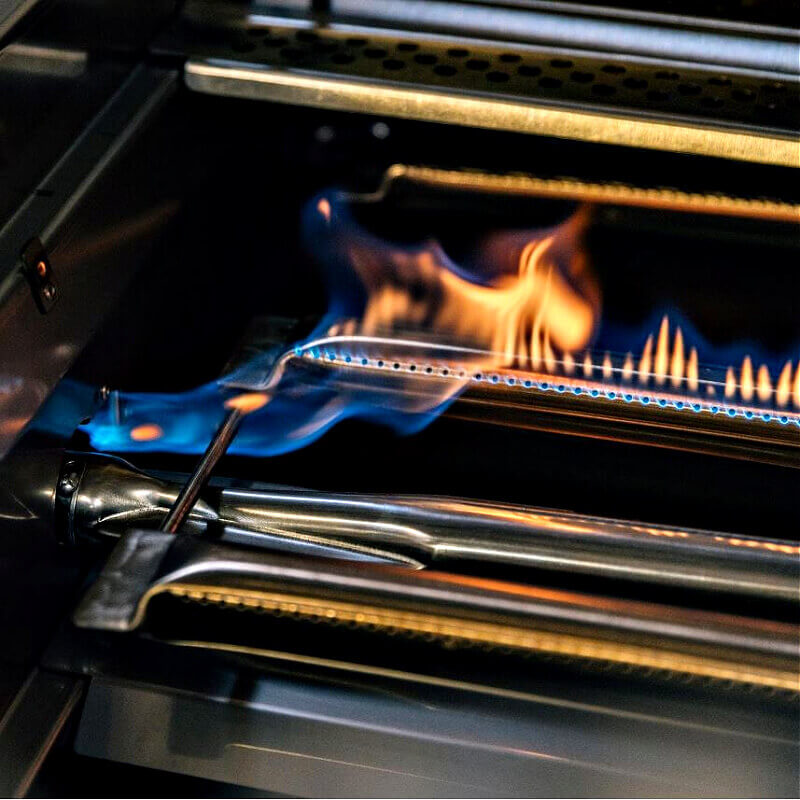

• Three 18,000 BTU stainless U-tube burners with multi-port flame control

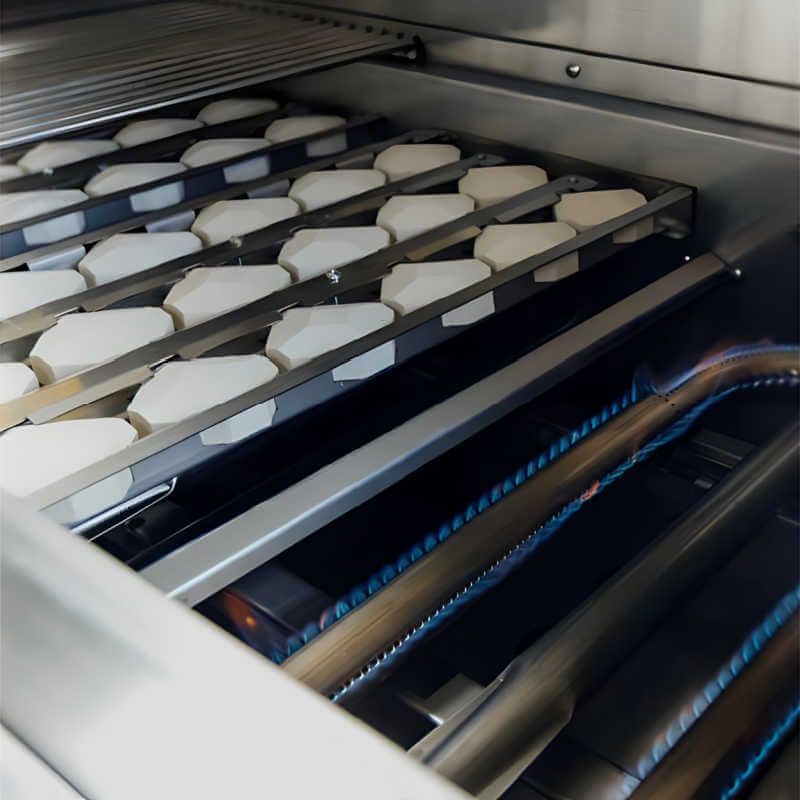

• Easy-Clean briquette system that vaporizes drippings and protects the burners

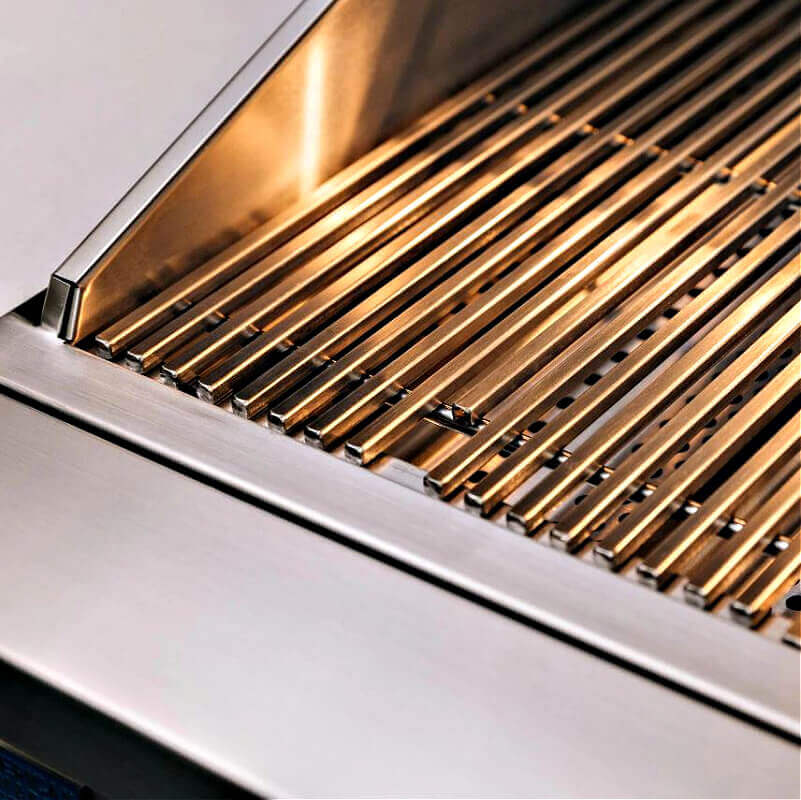

• Heavy 8 mm square grates for even contact and sear marks

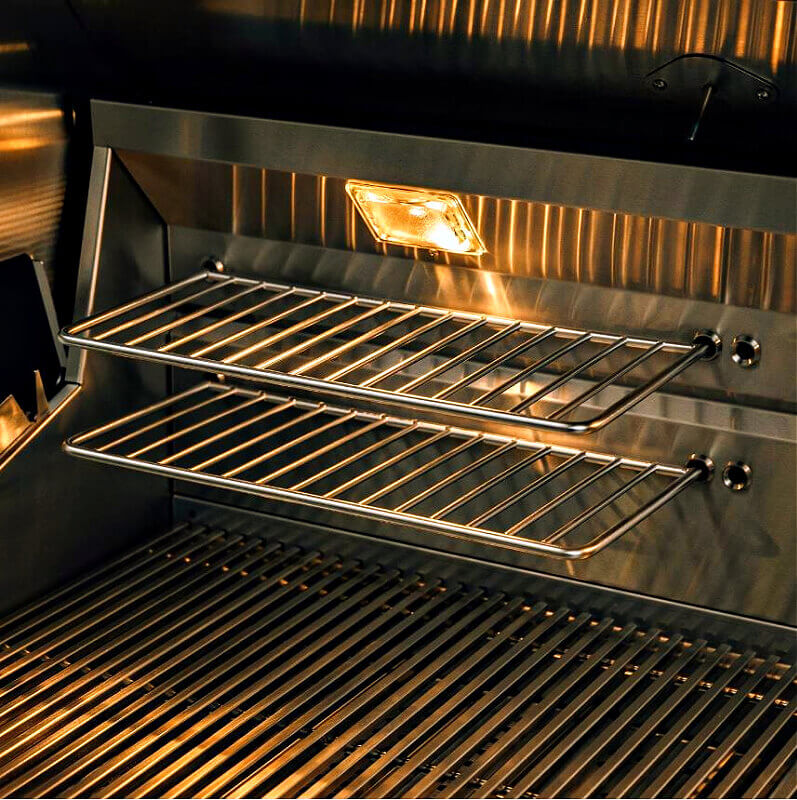

• Two multi-position warming racks
• Flame Thrower ignition for a reliable start

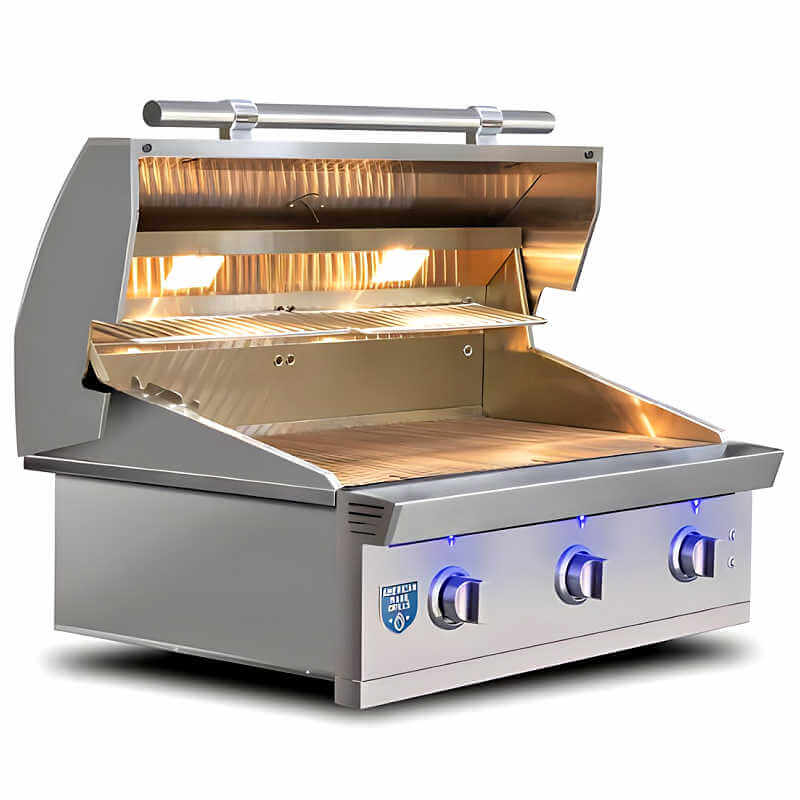

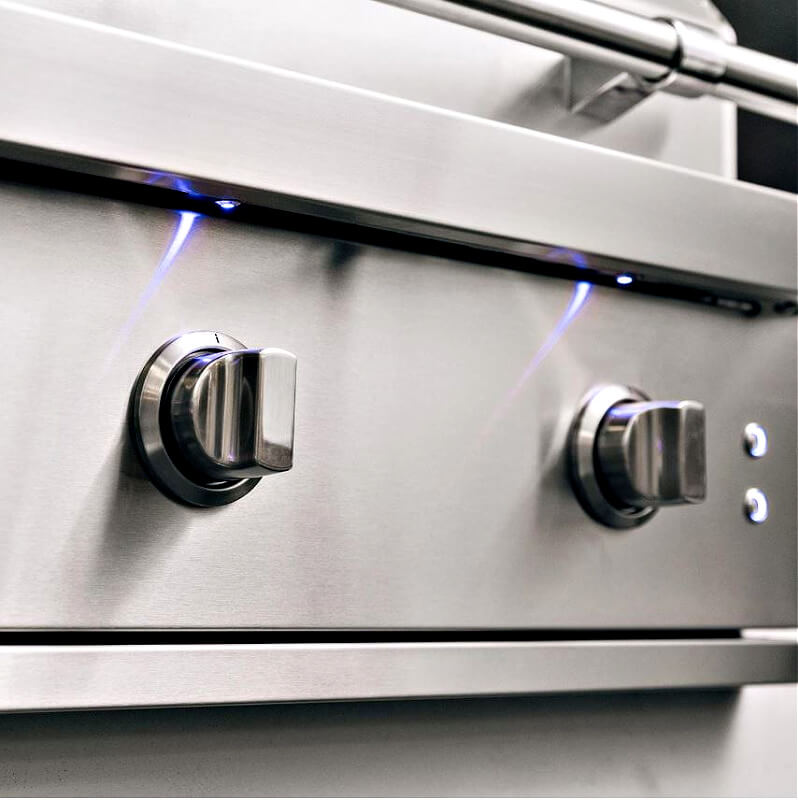

• Interior halogen lights and blue LED knob lights for night grilling
• Removable drip tray
• Optional drop-in infrared sear burner fits in place of the left main burner

What Is Included and What You Will Need

• Included per the Atlas manual: grill head, 3 cooking grates, 3 burner covers, 2 warming racks, drip tray, 3 burners (installed), grill head cover, and the NG regulator (natural gas models) or an LP hose and regulator for a standard 20 lb cylinder (propane models)
• Required: a non-combustible island, or the Atlas 36 Insulated Grill Liner (GL-ATS36) for combustible framing; a gas supply sized for the full BTU load with a shutoff valve; a 120V outlet for the lights
• Optional: Atlas 36 Rotisserie Kit (ROTKIT-ATS36), Atlas Drop-In Infrared Sear Burner (IRB-ATS), Atlas 36 Built-In Grill Cover and the Atlas Double Side Burner (ATSSB2)

Installation Notes

Outdoor use only. The island must be non-combustible unless the GL-ATS36 liner is used. Keep 18 inches of side and rear clearance to combustible walls, 4 inches to a non-combustible backsplash and 5 feet to overhead construction; an exhaust hood is highly recommended. Natural gas units must use the supplied NG regulator, and the gas line must never connect directly to the grill without a regulator. Gas piping must meet the National Fuel Gas Code and local code, and in New York City the gas connection must be made by a licensed master plumber under permit. Book a design consultation to have us plan the island, gas and electrical around this grill.

Documentation

• Warranty Information
• Owner's Manual
• American Made Grills 2026 Cutout Sheet (PDF)
• American Made Grills Product Manuals

Frequently Asked Questions

Does the Atlas 36 have a rotisserie burner?

No. The Atlas has no infrared back burner. A rotisserie kit is sold separately.

Atlas or Estate: what do I give up?

The Atlas skips the Estate's infrared back burner, spring-assisted hood and heat zone separators, and uses 8 mm instead of 9 mm grates. Both are built in the USA with the same Gold Standard warranty structure.

Can I add a sear burner later?

Yes. The IRB-ATS drop-in infrared sear burner replaces the left main burner, per the Atlas manual.

What cutout do I need?

34" wide, 19-3/4" deep and 10" high per the 2026 AMG cutout sheet, or 37" x 22" x 11" with the insulated liner.

Related reading: Built-In Gas Grill Buying Guide and 36 vs 42 Inch Built-In Grill.

Warranty

American Made Grills (AMD Direct) Gold Standard Lifetime Warranty with replacement parts 100% non-prorated: lifetime on construction and manufacturer defects, stainless steel construction, cooking grates, burners, burner covers, valves, flame tamers, heat zone separators, temperature gauges, hood springs and briquette systems; 3 years on all other parts and electrical, including LED bulbs, wire harness, switches, transformer and halogen light. Registration within 30 days is required, labor is not covered, and discoloration, surface rust and misuse are excluded.
