Description
Description
Available Sizes: American Made Grills Atlas Built-In Gas Grills
36 inch (Natural Gas or Propane) | 42 inch (Natural Gas) (Current Size) | 42 inch (Propane)
Overall Dimensions: 42 in W built-in grill head (cutout depth and height per the AMG cutout sheet)

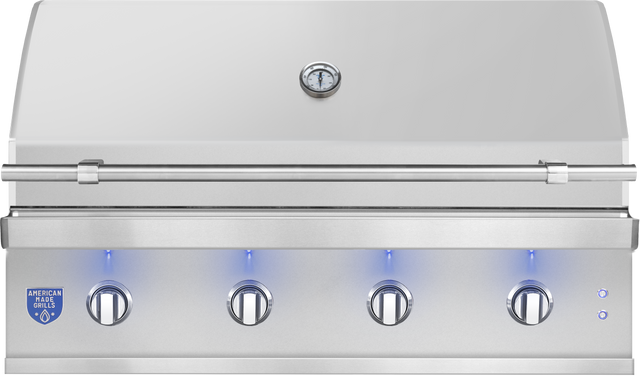

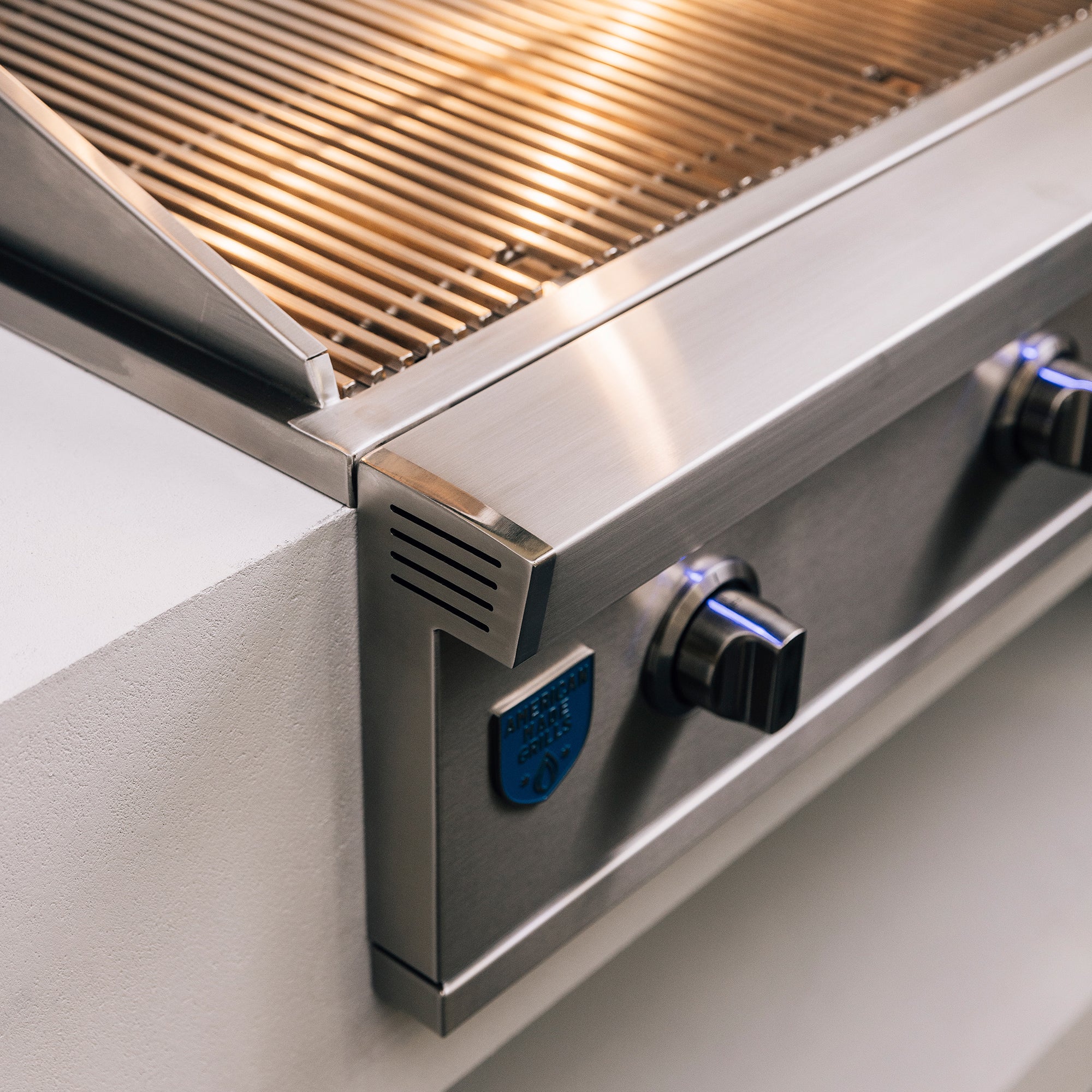

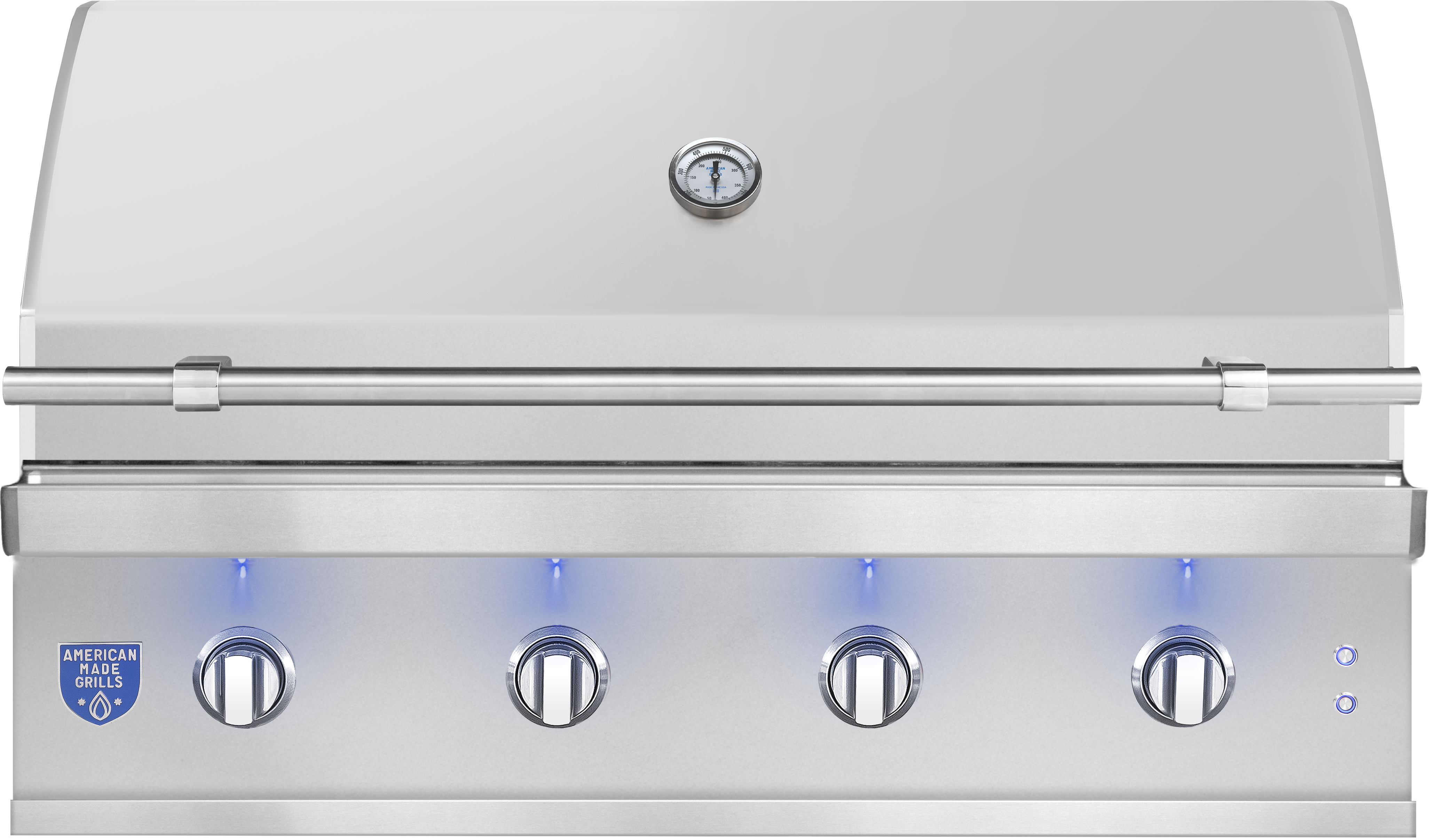

The American Made Grills Atlas 42 is a built-in natural gas grill with three 18,000 BTU U-tube burners and 853 square inches of cooking area, made in the USA from #304 stainless steel. It is aimed at the buyer anchoring a larger outdoor kitchen island who wants a lifetime warranty and a clean, integrated look. Heavy-duty 8mm square grates, two multi-position warming racks, interior halogen lights and LED-lit knobs come standard, and a sear burner and rotisserie kit are available as add-ons.
Key Specifications
| Model | ATS42-B-NG (natural gas) |
| Fuel | Natural gas |
| Main burners | 3 U-tube burners, 18,000 BTU each |
| Total heat output | 54,000 BTU/h |
| Cooking area | 853 sq in total |
| Cooking grates | Heavy-duty 8mm square |
| Construction | #304 stainless steel; 18-gauge double-lined hood with full-width handle (not spring assisted per current listing) |
| Ignition | Flame Thrower ignition |
| Lighting | Interior halogen cooking lights and LED lights over each knob |
| Weight | Not published by American Made Grills |
Dimensions and Cutout
| Width | 42 in |
| Cutout | See the AMG 2026 cutout sheet linked below; the width, depth and height rows could not be read reliably from the sheet text, so confirm with us before you build the island |
| Clearance to walls | 4 in to non-combustible walls, 14 in to protected combustible walls, 18 in to combustible walls (right, left and rear), per the AMG Atlas manual |
| Overhead | At least 5 ft to overhead construction; an exhaust hood of at least 1200 CFM is required under combustible overhead |
| Gas supply pressure | Natural gas 4 to 7 in w.c. (regulator set to 4.0) |
Features

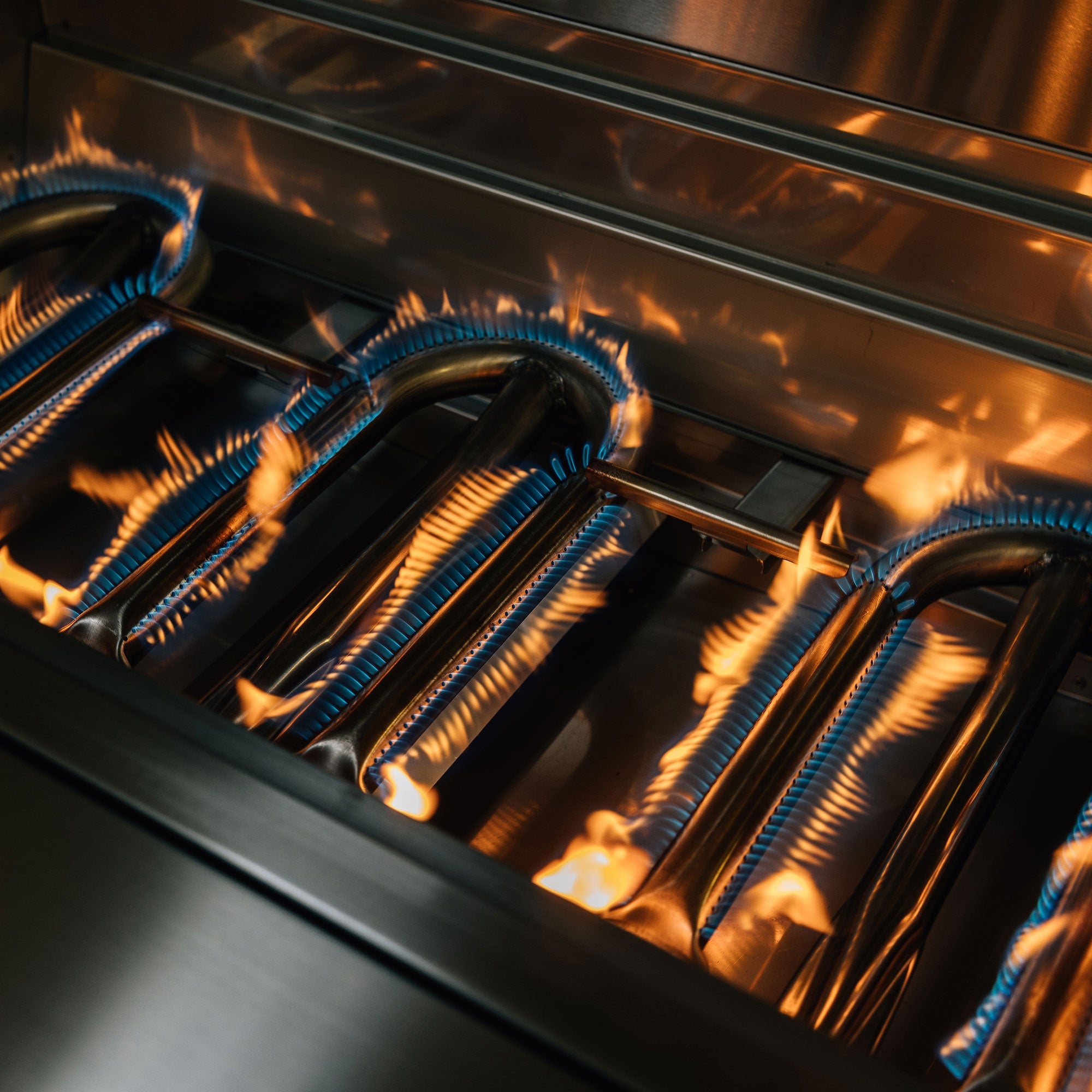

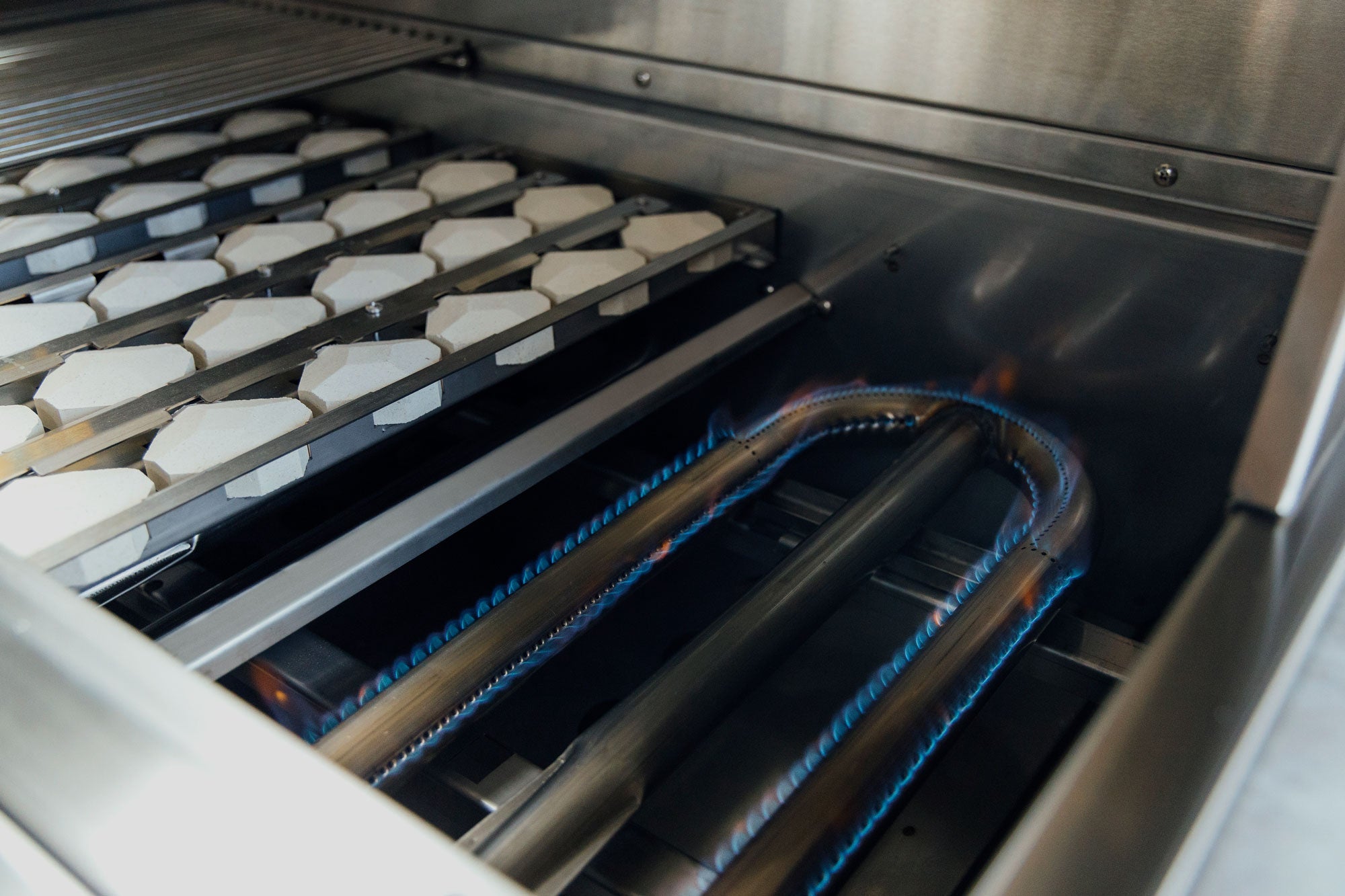

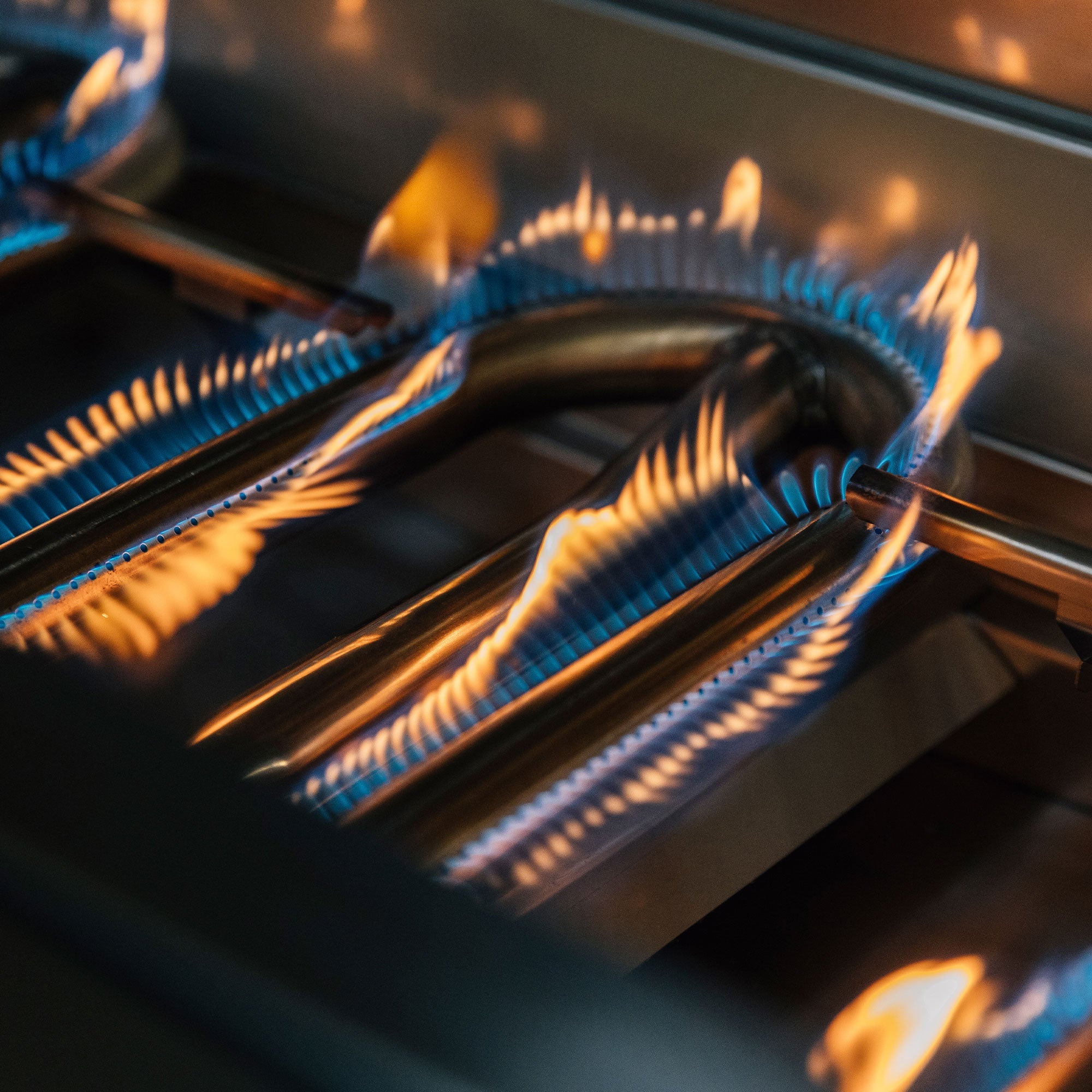

- Three 18,000 BTU U-tube burners with easy-clean briquette trays
- 853 sq in of cooking area with heavy-duty 8mm square grates
- Patented Flame Thrower ignition lights every burner
- Interior halogen lights and LED knob lights for night cooking
- Two multi-position warming racks with built-in rack storage
- Removable, dishwasher-safe drip tray
- Built, factory tested and serviced in the USA
What Is Included and What You Will Need
- Included: Atlas 42 grill head, briquette trays, two warming racks, removable drip tray and a weather-proof vinyl grill head cover
- Option above: Deluxe Grill Cover (GRILLCOV-ATS42D)
- Required: a natural gas supply installed by a qualified installer, a power outlet for the lighting transformer, and a non-combustible island built to the AMG cutout
- Optional: AMG drop-in 18,000 BTU infrared sear burner, 40 lb rotisserie kit, griddle plate and smoker tray; ask us for availability. The Atlas double side burner pairs with it in the same island
Installation Notes
Build the island with non-combustible materials, keep the wall and overhead clearances above, and make the gas connection with the supplied regulator set for natural gas. In New York City, gas work must be done by a licensed master plumber under a DOB permit. We install in NYC, Long Island, Westchester and New Jersey. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
- Owner's Manual
- Cutout Dimensions
- American Made Grills Atlas 42 product page
- American Made Grills warranty information
Frequently Asked Questions
How many BTUs does the Atlas 42 have?
Three 18,000 BTU U-tube burners for 54,000 BTU total.
Does it have an infrared burner?
No infrared main or rear burner is listed. An 18,000 BTU drop-in sear burner and a rotisserie kit are available as options.
Can I convert it to propane?
Natural gas and propane are separate models. Choose the fuel when you order; the regulator must be set for that fuel.
What is the cutout size?
Use the AMG cutout sheet, and we will confirm the exact opening with you before you build.
Related reading: Built-In Gas Grill Buying Guide and How to Measure a Built-In Grill Cutout.
Warranty
American Made Grills backs this grill with its Gold Standard Lifetime Warranty on construction and manufacturer defects, stainless steel construction, cooking grates, burners, burner covers, valves, flame tamers, heat zone separators, temperature gauges and briquette systems. Other parts and components, including electrical parts, are warranted for three years. Replacement parts are 100 percent non-prorated and labor is not included. Refer to the manufacturer's manual and warranty page for full terms.
