Description
Description
Cutout: 54.3 x 11.8 in (1380 x 300 mm), per the Bromic Platinum Electric 4500W manual

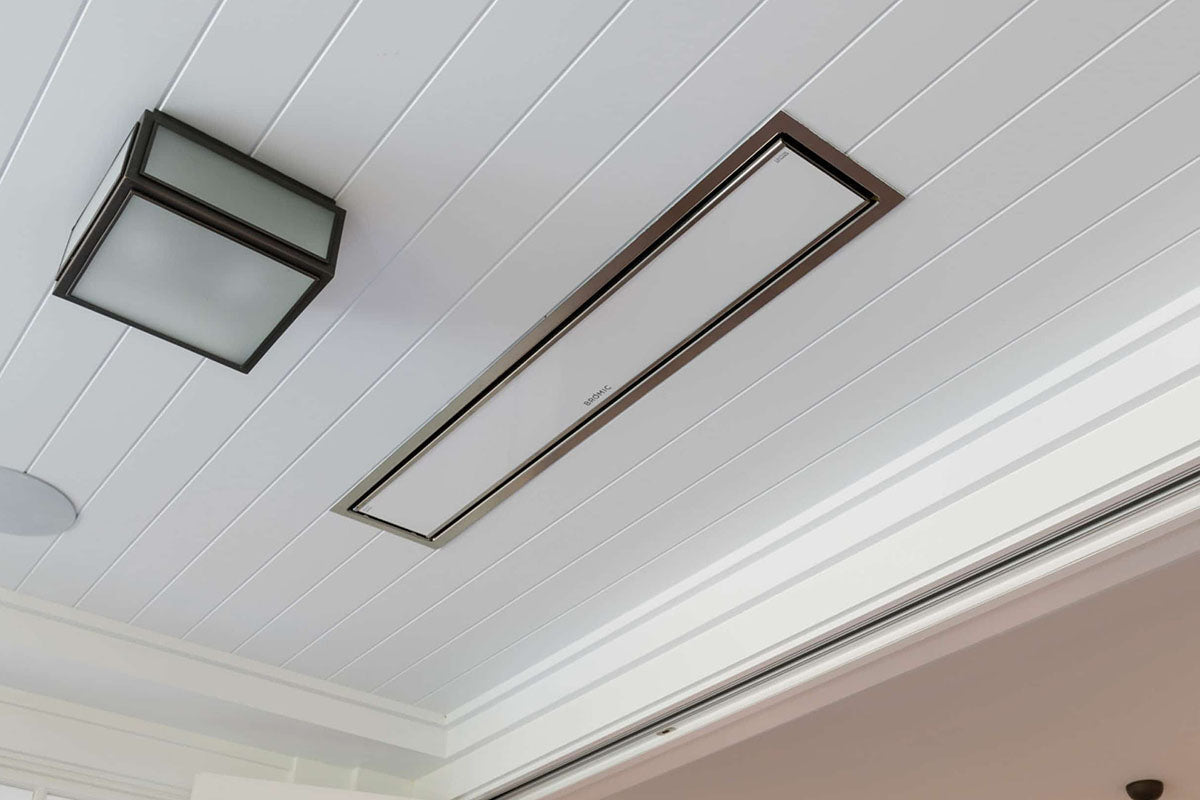

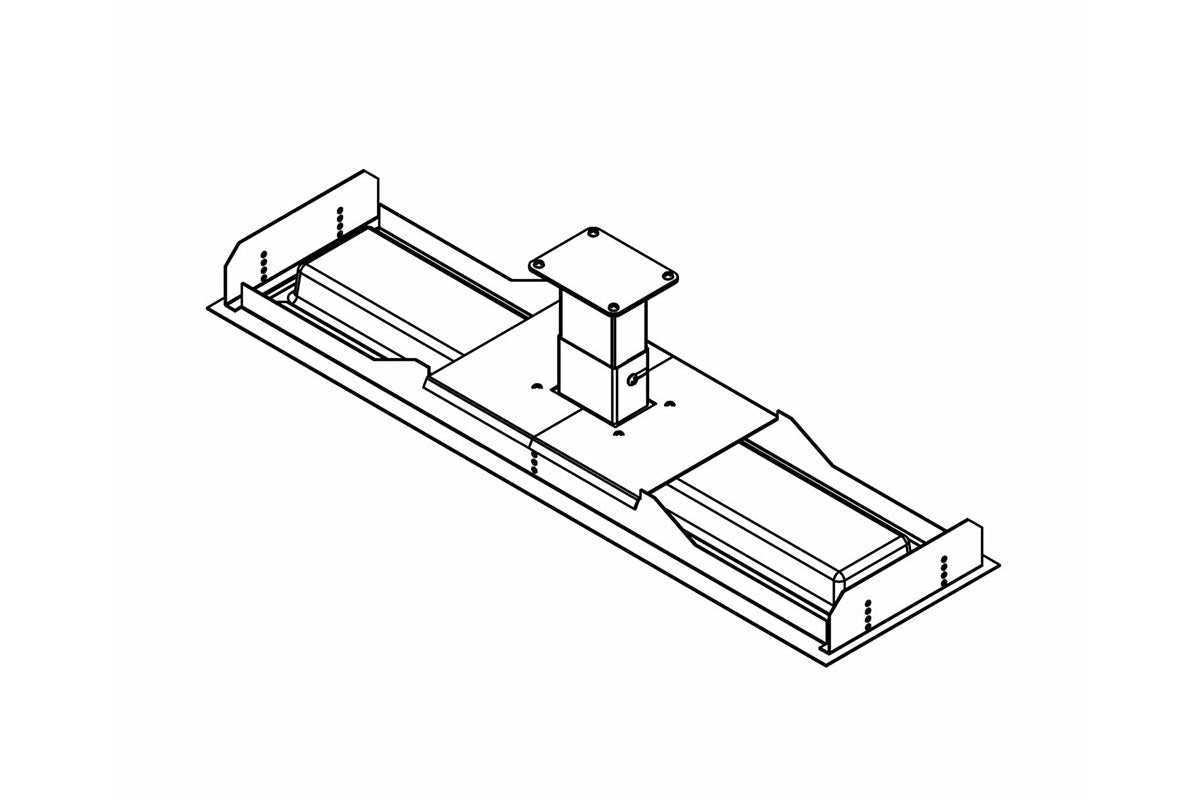

The Bromic BH3623000 is the standard US and Canada ceiling recess kit for the Platinum Smart-Heat Electric 4500W heater: a brushed 304 stainless frame that sets into a ceiling cutout so only the glass face of the heater shows.
Features
- Fits the Bromic Platinum Smart-Heat Electric 4500W heater (Bromic recess kit table)
- Brushed 304 stainless steel
- For ceiling surfaces 0.4 to 1.2 in (10 to 30 mm) thick
- Frame fastens to non-combustible structural members
Key Specifications
| Model / SKU | Bromic BH3623000 |
| Application | Standard, Platinum Electric 4500W (EU/UK/US/CA) |
| Material | Brushed 304 stainless steel |
| Ceiling thickness | 0.4 to 1.2 in (10 to 30 mm) |
| Heater | Sold separately |
Dimensions and Cutout
| Ceiling cutout | 54.3 x 11.8 in (1380 x 300 mm) |
| Clearance in the cavity | 13.8 in (350 mm) above the glass face; 10.8 in (275 mm) each side to combustibles |
| Mounting height | Heater face at least 94 in (2400 mm) above the floor, 20 in (500 mm) from the nearest wall |
What Is Included and What You Will Need

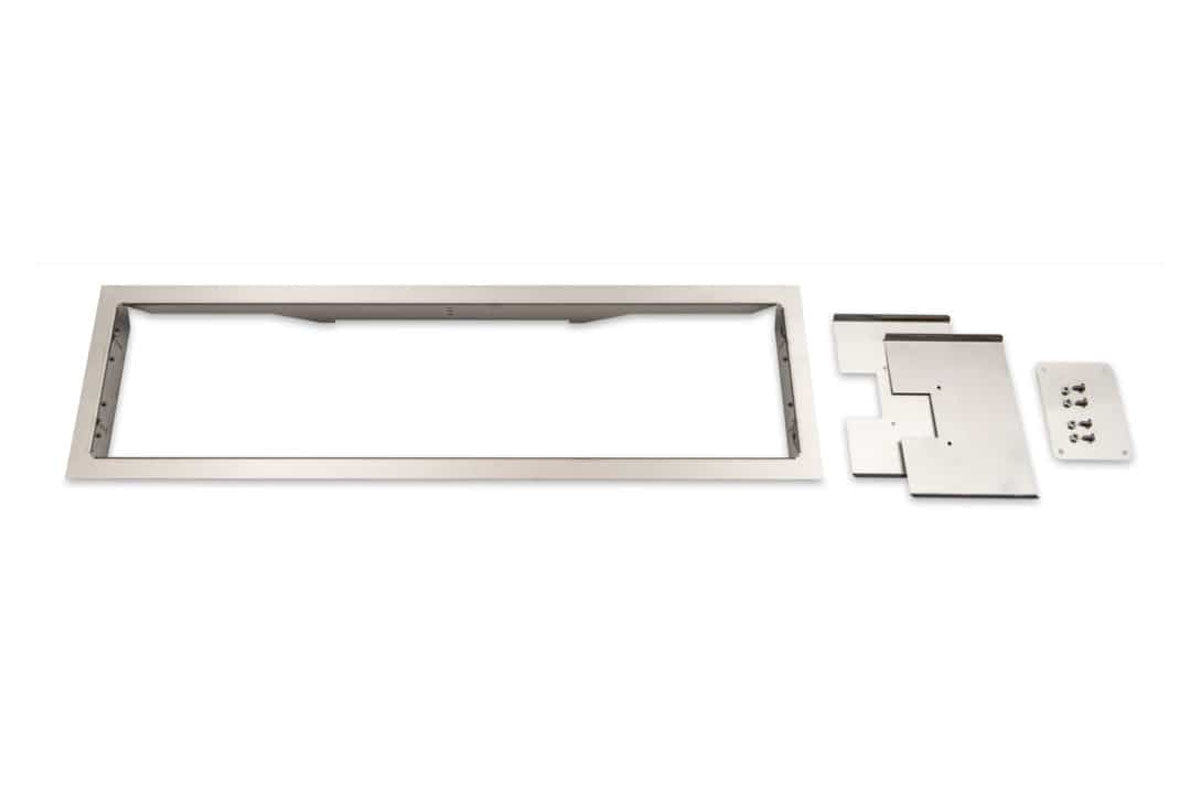

- Bromic BH3623000 ceiling recess frame and hardware
- You will need: the Platinum Electric 4500W heater, a framed ceiling cutout and a licensed electrician
Optional Accessories
- Bromic Platinum Electric 4500W heater, black
- Bromic Platinum Electric 4500W heater, white
- Bromic Platinum 4500W low clearance recess kit
Installation Notes
Fasten the frame into non-combustible joists or battens, keep the cavity dry, never cover the heater with insulation and do not notch joists, per the Bromic manual. Bromic heaters are hard wired by a licensed electrician; in New York City that work needs an electrical permit.
Planning heat for a covered patio? Book a design consultation.
Documentation
Frequently Asked Questions
Does it fit the 2300W or 3400W Platinum?
No. Those heaters use the BH3130017 and BH3130027 kits.
What if my cavity is shallower than 13.8 in?
Use the Bromic Low Clearance Recess Kit, which has a cooling fan.
Related reading: Patio heater buying guide, Best patio heater for a covered patio.
Warranty
Authorized Bromic dealers list a one year Bromic warranty on heater parts and accessories against defects in materials or workmanship, for the original purchaser, labor not included. The heater has its own warranty.
