Hargrove Premium Products  |  SKU: 36SNDS2B8, KCS3611DS

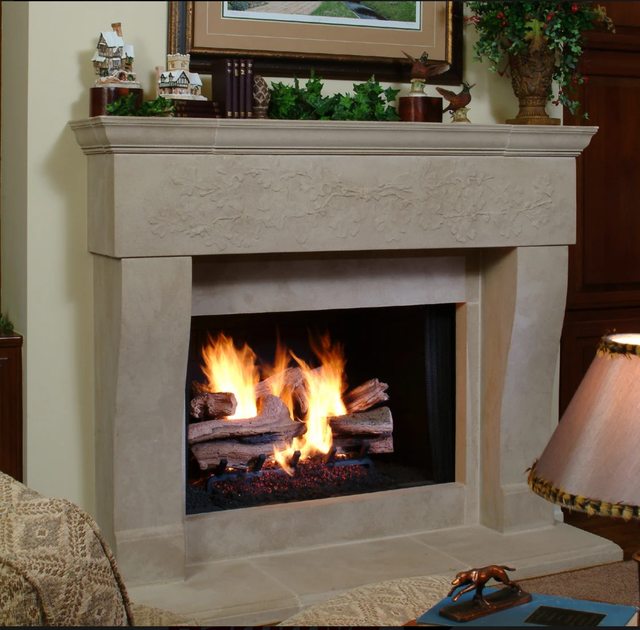

Hargrove 36 Inch Stacked Large Vented Log Set Hi Cap Millivolt - 36SNDS2B8

Regular price $3,219.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Choose with help from our Maspeth showroom. Read customer reviews on Google.

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days

Northeast shipping only: ME, VT, NY, NH, MA, CT, PA, NJ, MD, DE and RI. For any other state, call 718-326-4328 for a shipping quote before ordering. Product and local-service restrictions apply. Shipping details.

400+ five-star Google reviews
  • Northeast shipping. Eligible orders over $999 ship free within our 11-state area; other eligible orders have a flat rate at checkout. Product exclusions apply. Shipping details.
  • Factory-authorized Hargrove Premium Products dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Visit our Maspeth, Queens showroom
58-30 Maspeth Ave
Maspeth, NY 11378
Monday–Friday
9:00 AM–5:00 PM
Saturday
10:00 AM–3:00 PM
Sunday
Closed

Call ahead to confirm the model you want to see and pickup readiness.

Shipping & Delivery Area

  • Online shipping is limited to Maine, Vermont, New York, New Hampshire, Massachusetts, Connecticut, Pennsylvania, New Jersey, Maryland, Delaware and Rhode Island.
  • Eligible orders over $999 receive free standard shipping; eligible orders of $999 or less have a flat rate shown at checkout.
  • Our own trucks deliver eligible local orders up to 120 miles. e-NRG fuel, white-glove delivery and assembly have separate eligibility, distance limits and charges.
  • For other states, or when no delivery option appears, call 718-326-4328 for a quote before ordering.
  • Read the shipping policy for details.

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns

  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Available Sizes: 36″ listing (Current Size)

Open your log style below for compatible separate-size listings. Each link selects the matching fuel and control/stack configuration. Use this listing’s selector for its own options. Configurations without a matching available alternate are omitted.

Kodiak high-capacity millivolt-pilot packages. Links preserve the selected log style, fuel and double/triple-stack configuration. The 48″/60″ listings are natural gas only; no propane rows link to those sizes. Kodiak Split propane and Timbers triple-stack combinations are omitted where not actually offered. Burner input, log counts, firebox depth and chimney requirements differ; verify the destination specifications.

Kodiak Char

Natural Gas · Double Stack: 24″ 30″ 48″ 60″

Propane · Double Stack: 24″ 30″

Natural Gas · Triple Stack: 30″ 48″ 60″

Propane · Triple Stack: 30″

Kodiak Split

Natural Gas · Double Stack: 24″ 30″ 48″ 60″

Natural Gas · Triple Stack: 30″ 48″ 60″

Propane · Triple Stack: 30″

Kodiak Timbers

Natural Gas · Double Stack: 24″ 30″

Propane · Double Stack: 24″ 30″

Overall Dimensions: 36 in set for a 36 in fireplace opening; burner and opening dimensions are in the spec sheet and manual below

The Hargrove 36 Inch Double Stack is a large vented gas log set for a spacious wood-burning-style fireplace. It pairs a large ember bed burner with an elevated main burner under refractory logs in Kodiak Char, Kodiak Split or Kodiak Timbers styles, and it can be expanded with Hargrove's triple stack add-on for a third tier of logs. A high-capacity millivolt valve with a wall switch means it runs without household power.

Key Specifications

Model 36SNDS2B8 (natural gas double stack); 36SPDS2B8 (propane)
Log styles Kodiak Char, Kodiak Split, Kodiak Timbers (by variant)
Configuration Double Stack, or Triple Stack with the add-on burner
Burner 36SNDS double stack, valve code 2B
Input 130,000 BTU optimum for the 36 in double stack per the installation manual; the spec sheet lists 250,000 BTU
Valve and pilot High capacity millivolt safety pilot with wall switch; standing pilot
Gas inlet pressure Natural gas 7 in w.c. minimum, 10-1/2 in w.c. maximum; propane 10 in w.c. minimum, 14 in w.c. maximum
Venting Vented only: damper must stay fully open while burning
Materials Refractory logs rated above 2000 degrees Fahrenheit
Certification Not certified, per the spec sheet
Weight 67 lb for the 36SNDS double stack burner (spec sheet)

Dimensions and Cutout

Set size 36 in nominal, for a 36 in fireplace opening
Fireplace opening See the opening chart in the installation manual; check double or triple stack depth before ordering
Flue Minimum free chimney opening of 8 in diameter (50 sq in)
Front burner to opening At least 4 in from the front edge of the front burner
Damper Fully open during operation; an optional damper stop holds it open at least 3 in
Screen A fire screen is required

Features

  • Large ember bed burner with an elevated main burner for a full, stacked fire
  • Choose Kodiak Char, Kodiak Split or Kodiak Timbers logs
  • Refractory logs rated to withstand temperatures above 2000 degrees Fahrenheit
  • Standing pilot with a factory-installed millivolt safety pilot
  • Wall switch turns the main burner on and off
  • Valve system mounts directly to the burner or gas line
  • Expandable to a triple stack with Hargrove's add-on burner

What Is Included and What You Will Need

  • Included: log set, burner system with valve and pilot, and the parts listed in the Hargrove installation manual
  • Required: a fully vented, non-combustible fireplace approved for wood, a gas supply and a licensed installer
  • Required for media: silica sand for natural gas or vermiculite for propane in the burner pans, plus the rockwool embers and volcanic cinders that finish the set, as described in the installation manual
  • Optional: Triple Stack add-on, available as a variant of this product

Installation Notes

Center the burner under the flue with the burner pipes visible from the front, connect the supply with the aluminum connector, and leak test every joint with soapy water. Natural gas inlet pressure should be 7 in w.c. minimum and propane 10 in w.c. minimum. Light with a match held beside the burner, and keep the damper open until all flames are out. A fire screen is required and the clearances to combustibles in the manual must be followed. In New York City, gas work must be done by a licensed master plumber under permit, so confirm your fireplace and flue before ordering. Book a free design consultation and we will help you plan the layout, utilities and installation.

Documentation

Frequently Asked Questions

What is the difference between double and triple stack?

Double stack uses a large ember bed burner and an elevated main burner. The triple stack add-on adds a third tier of logs at the back of the fireplace.

Does it need electricity?

No. It uses a millivolt pilot system with a wall switch, so no household power is required.

Can it go in any fireplace?

It must be installed in a fully vented, non-combustible fireplace approved for wood, with the damper open at all times while it burns. Measure your opening against the manual's chart before ordering.

How hot does the BTU rating run?

The installation manual lists 130,000 BTU optimum for the 36 in double stack, while the spec sheet shows a higher figure. We can confirm with Hargrove for your fireplace.

Related reading: Gas log set buying guide and How to measure a fireplace opening.

Warranty

Per Hargrove: limited lifetime on the refractory logs for indoor installations, 5 years on the burner and grate, and 2 years on valves, remote controls and switching devices and other parts. All categories are 1 year for outdoor use. Defects must be reported within 30 days of discovery.
