Montigo Phenom 38 Basic Direct-Vent Gas Fireplace - PL38D
Montigo Phenom 38 Basic Direct-Vent Gas Fireplace - PL38D - Propane is backordered and will ship as soon as it is back in stock.
Description
Description

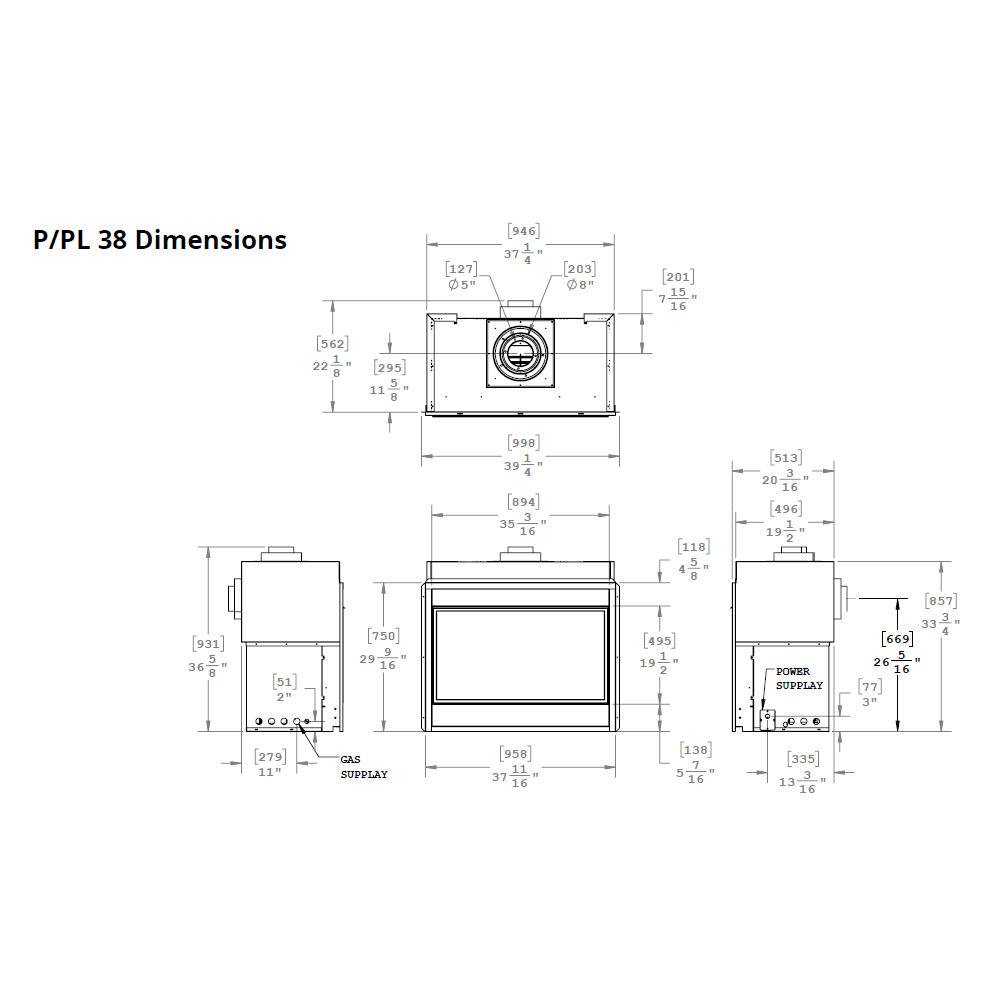

Framing Dimensions: 37-3/4 in. W x 34-1/4 in. H x 20-1/8 in. D, per Montigo installation manual
The Montigo Phenom 38 Basic (PL38DF) is a single-sided direct vent gas fireplace with a 35-1/4 in. x 19-3/8 in. glass opening, a concealed burner with ice fireglass and the Proflame 2 Basic control system. It is meant for buyers who want a modern, frameless flame they can finish with stone or tile right up to the frame, then add only the options they want: fans, remote, liner panels and media. Rated 25,000 BTU/h on natural gas or propane.
Key Specifications
| Models | PL38DFN-F (natural gas), PL38DFL-F (propane); store SKUs PL38DFNI / PL38DFLI |
| Input | 25,000 BTU/h natural gas or propane |
| Efficiency (P.4.1-15) | 58% |
| Glass opening | 35-1/4 in. x 19-3/8 in. |
| Venting | Direct vent, 5 in./8 in.; top or rear vent |
| Controls | Proflame 2 Basic |
| Electrical | 115 VAC, 60 Hz; battery pack holder |
| Gas pressure | NG minimum inlet 5.5 in. w.c., manifold 3.5 in. w.c.; LP minimum inlet 11 in. w.c., manifold 10 in. w.c. |
Dimensions and Cutout
| Framing (W x H x D) | 37-3/4 in. x 34-1/4 in. x 20-1/8 in. (Montigo web page lists 33-3/4 in. height) |

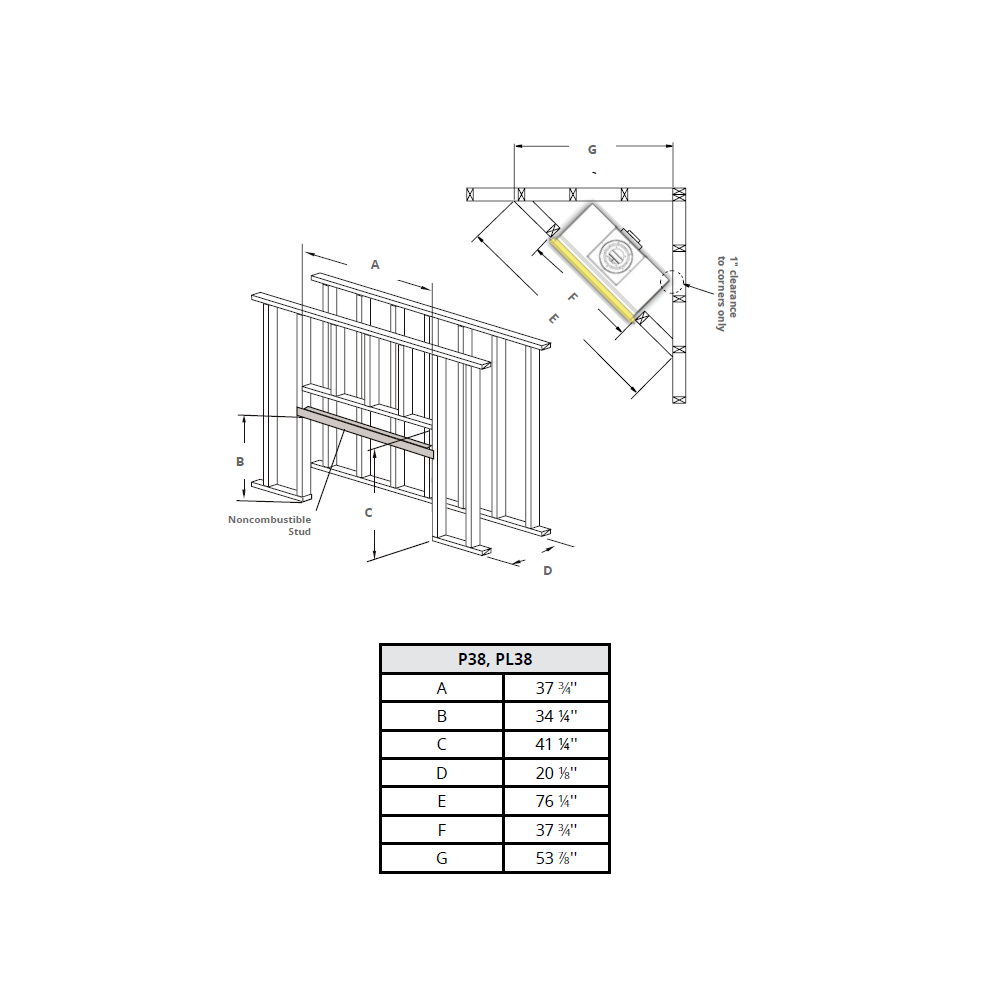

| Corner framing | 76-1/4 in. across the corner; 53-7/8 in. per wall |
| Clearances | 9 in. (top vent) or 17-1/2 in. (rear vent) above; 0 in. to sides, rear and floor; 1 in. all around for finishing per Section 6 |
| Vent runs | See top-vent and rear-vent graphs in manual XG0199 |
Features
- Concealed burner with ice fireglass
- Frameless face for stone or tile finishing up to the unit
- Proflame 2 Basic controls
- Top or rear venting with 5 in./8 in. pipe
- Optional black porcelain liner, fans, remote, battery backup

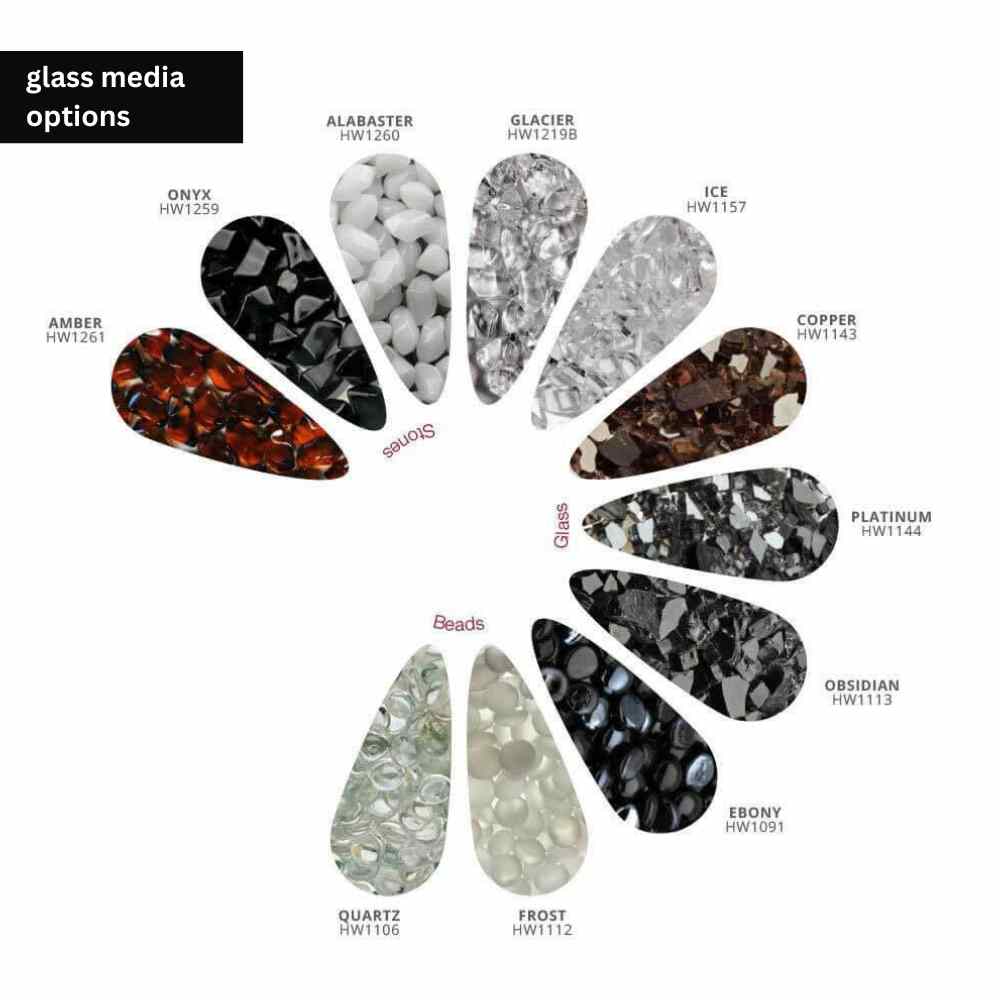

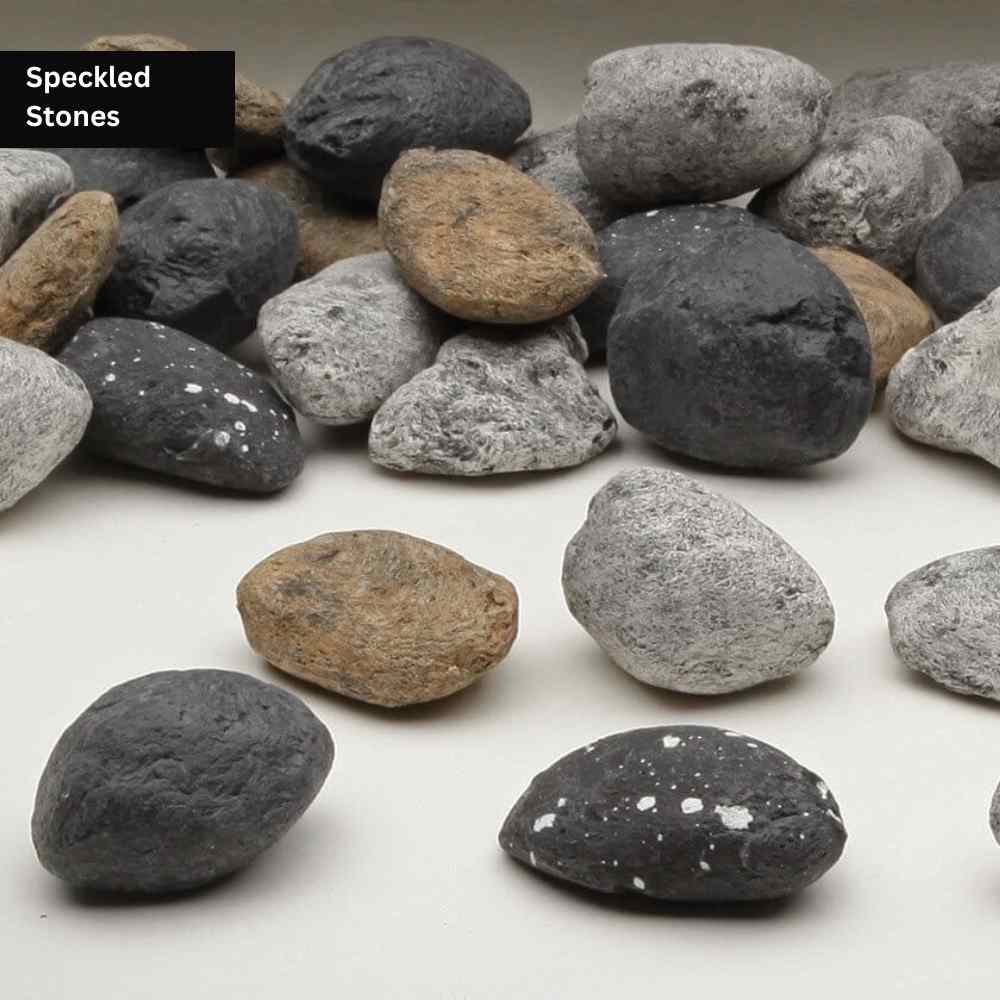

- Optional speckled stones, driftwood or glass media
- Optional satin black or stainless surrounds
What Is Included and What You Will Need
- Included: fireplace with concealed burner, ice fireglass, Proflame 2 Basic control, 14 ft low voltage wall switch wire
- Required: Montigo 5 in./8 in. direct vent pipe and termination, 115 VAC supply, gas line with shutoff

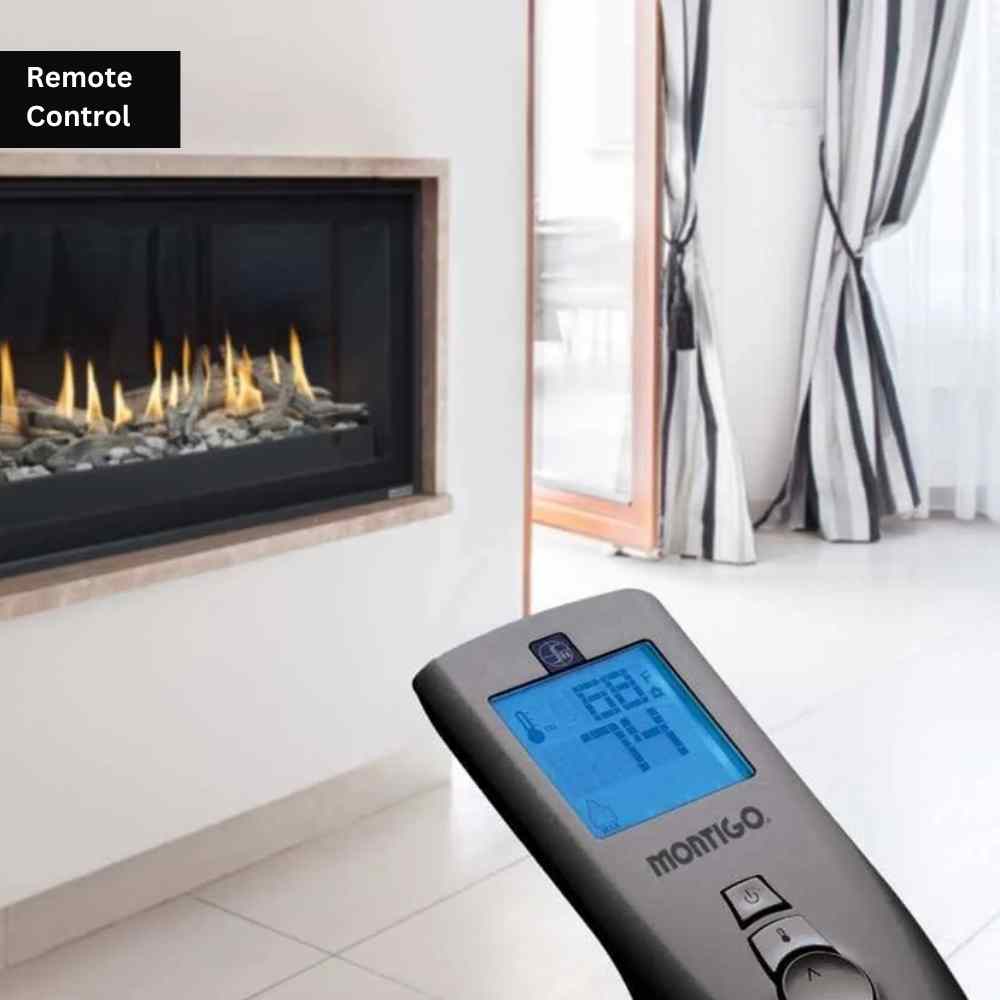

- Optional: remote control, fans, black porcelain liner, battery backup, surrounds, alternate media
Installation Notes
Install by a qualified gas technician with Montigo venting inside the manual vent graphs and the 9 in. or 17-1/2 in. top clearance for your vent direction. In New York City, gas work requires a licensed master plumber and permits, and direct vent units like this are a common NYC code-compliant choice. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
What is the difference between Phenom Basic and Full Load?
Basic (PL38DF) has the concealed burner, ice fireglass and Proflame 2 Basic controls; remote, fans, liner and battery backup are options. Full Load (P38DF) bundles more of them as standard.
How much heat does it produce?
25,000 BTU/h on either natural gas or propane, with 58% P.4.1-15 efficiency.
Can it go in a corner?
Yes. The manual gives corner framing of 76-1/4 in. across the corner.
What vent size does it use?
5 in./8 in. direct vent, top or rear.
Related reading: Direct Vent Gas Fireplace Buying Guide and Gas Fireplace Cost Installed.
Warranty
Montigo residential warranty (manual XG0199, Appendix B): firebox and heat exchanger 15 years parts, 1 year labor; main burner 15 years, 1 year labor; Montigo venting 15 years, terminations 10 years; ignition, electrical components, media, glass breakage and safety barriers 1 year. Montigo's warranty terms require the fireplace to be purchased, installed and serviced annually by an authorized Montigo dealer for coverage to remain valid.
