Montigo Phenom 52 Basic Direct-Vent Gas Fireplace - PL52D
Montigo Phenom 52 Basic Direct-Vent Gas Fireplace - PL52D - Natural Gas is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 52" W (unit width); framing 52" W x 37-1/2" H x 24-1/2" D (alcove)
The Montigo Phenom 52 Basic (PL52D) is a 52 inch single-sided direct vent gas fireplace with a concealed ribbon burner that takes glass media, driftwood or speckled stones. It uses the Proflame 2 basic control system and lets you finish the face with porcelain panels, rock or tile over the firebox frame for a minimalist look.
Key Specifications
| Model | PL52DFNI (natural gas), PL52DFLI (propane) |
| Input | 40,000 BTU/h (manual for the Phenom P52/PL52 series) |
| Efficiency | 56% (NG), 59% (LP) |
| Venting | Direct vent, 5"/10" standard, top or multi-elbow rear vent |
| Burner | Concealed ribbon burner with ice fireglass |
| Controls | Proflame 2 basic control system; remote and variable-speed fans are optional |
| Electrical | 120 VAC, 60 Hz, 6 A with 3.15 A fuse |
| Gas Inlet | 1/2" or 3/8" port |

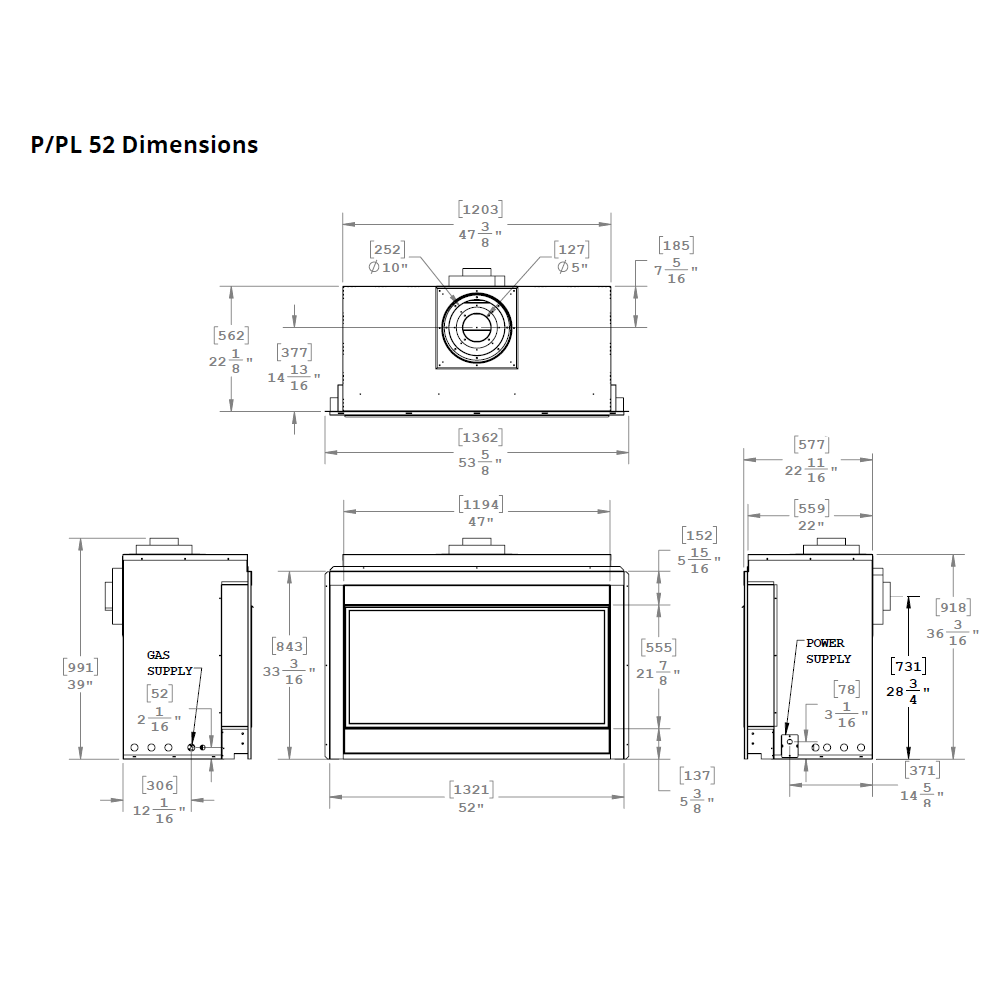

Dimensions and Cutout
| Unit Width | 52" |

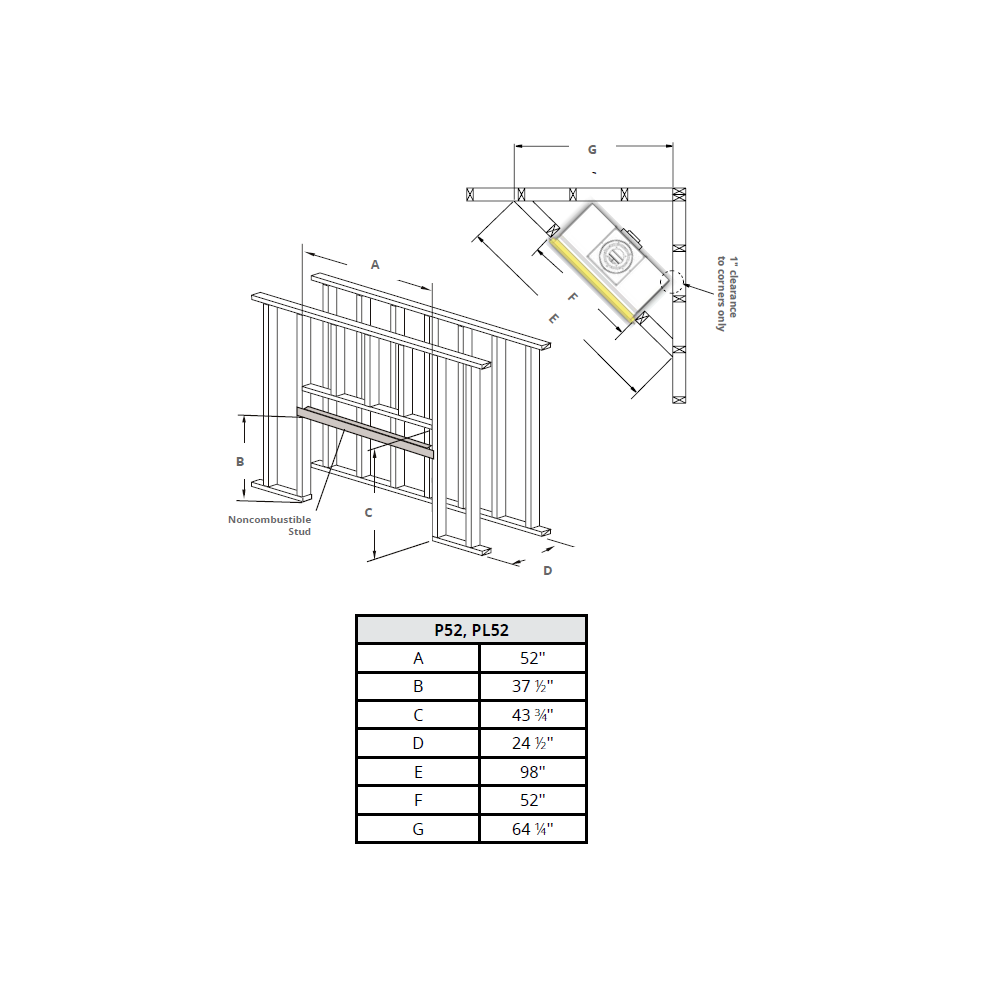

| Alcove Framing | 52" W x 37-1/2" H x 24-1/2" D (manual); 98" minimum alcove height |
| Vent | Roof termination up to 32 ft above the fireplace; up to two offsets in vertical runs |
| Unit Height and Depth | Not clearly stated in the manual; see the spec sheet drawing |
Features

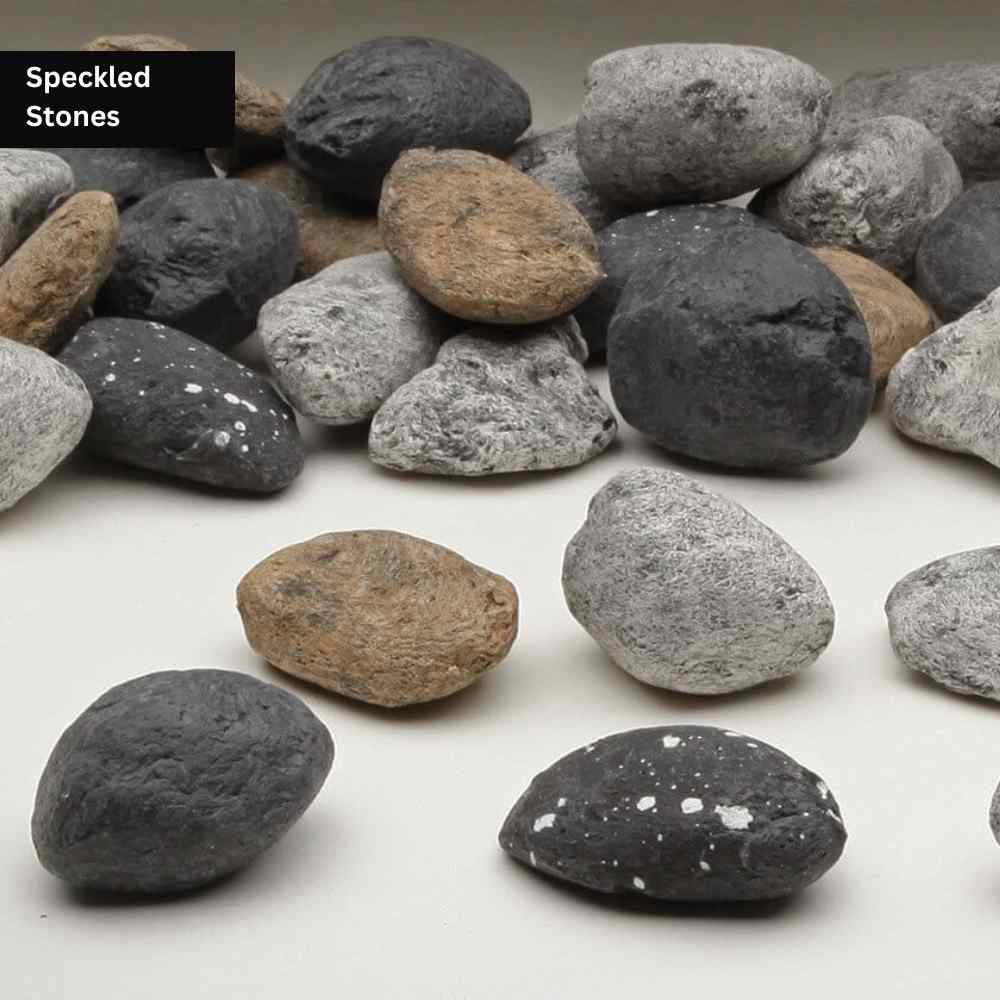

- Concealed ribbon burner with ice fireglass, plus driftwood and speckled stone options
- Proflame 2 basic control system with six flame levels and thermostat functions when the optional remote is added
- Porcelain panel, rock or tile finishing options
- Optional variable-speed comfort fans
- Hot-glass barrier included for child safety
What Is Included and What You Will Need
- Included per the manual: hot-glass barrier, safety screen, firestones, nailing flange extension, two standoffs and a pilot jumper cable
- Required: direct vent pipe and termination, a gas line and a 120 VAC supply

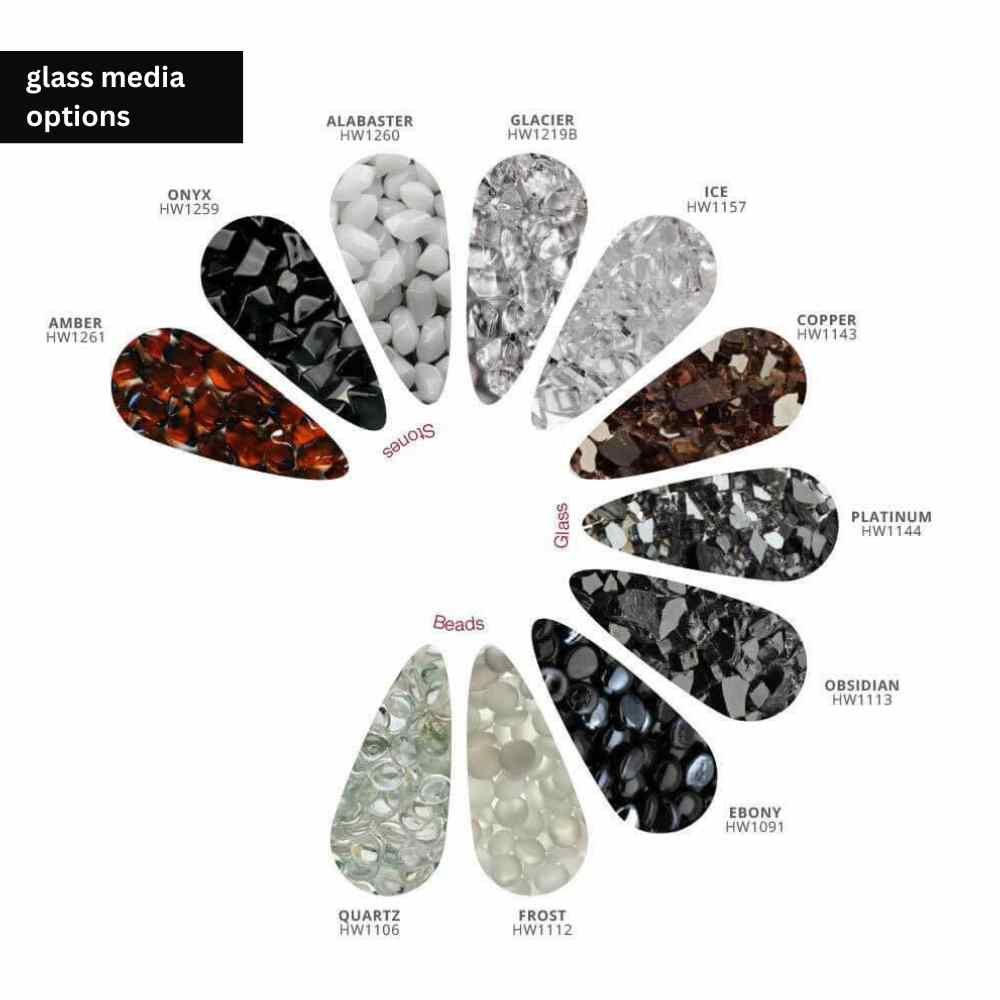

- Optional: Proflame 2 remote, variable-speed fans, log kits (LGS58 and LGS59), glass media and speckled stones
Installation Notes
The manual lists top clearance of 26 inches with a top vent, 1 inch at the rear, 2-1/2 inches at the sides and 0 inches at the floor. Combustible mantels are limited to a shaded zone defined in the manual. A licensed installer must set the unit and connect gas and venting. In New York City, a direct vent gas fireplace must meet the NYC Fuel Gas Code and be permitted. Schedule a consultation and we will confirm framing and venting before you order.
Documentation
Frequently Asked Questions
Does it include a remote?

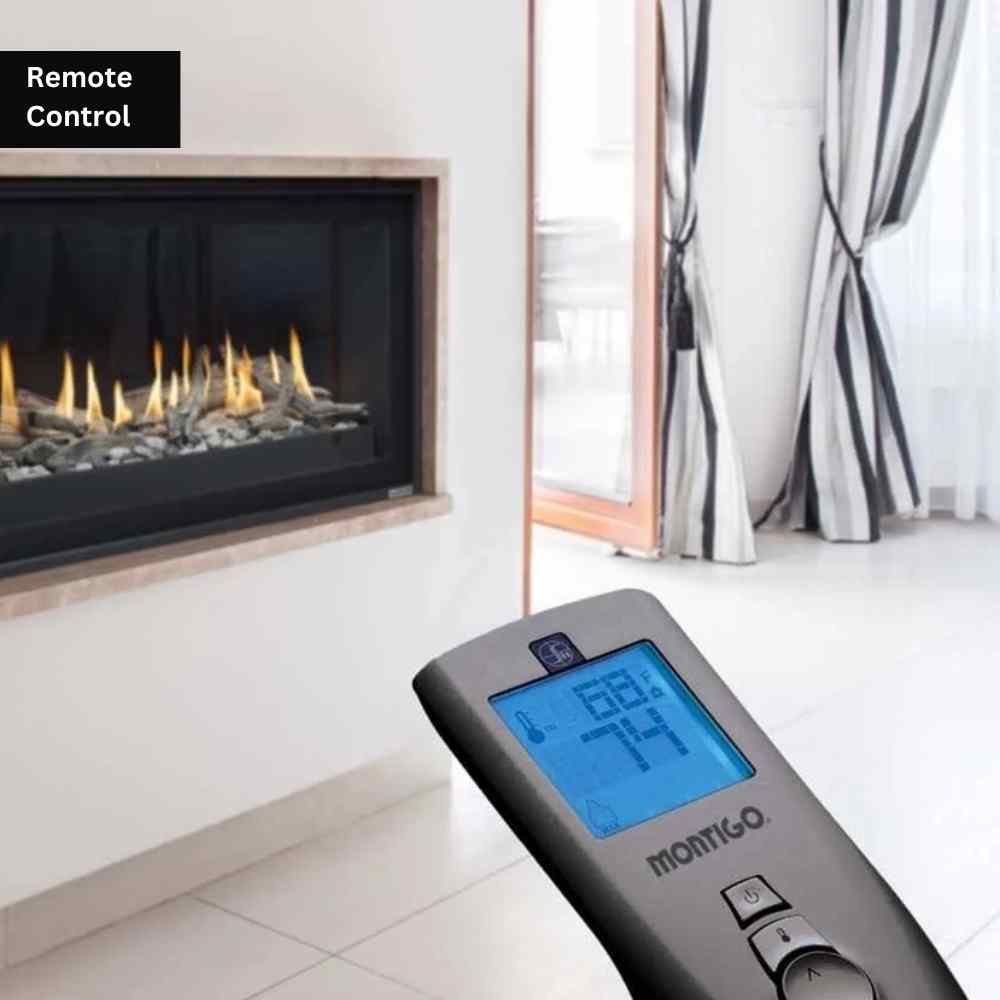

The basic package uses the Proflame 2 basic control system. The manual lists the Proflame 2 remote and variable-speed fans as optional, so confirm what you need when you order.
Can I finish it with tile or stone?
Yes. Rock or tile can go over the firebox frame, and porcelain panels are an option, within the clearances in the manual.
Can it vent out the back?
Rear venting is possible but must use multiple elbows. It cannot go straight through the wall.
Related reading: Direct Vent Gas Fireplace Buying Guide and Linear vs. Traditional Fireplace.
Warranty
Per the current listing, Montigo provides a 15-year limited warranty on the firebox, heat exchanger and main burner, with 1-year coverage on gas controls, electronic ignition and other electrical components. Montigo's warranty terms require the fireplace to be purchased, installed and serviced annually by an authorized Montigo dealer for coverage to remain valid.
