Description
Description
Overall Dimensions: 55-1/2 in. W x 24-3/4 in. H, glass 50 in. x 16-3/4 in., per Superior spec sheet 900994-01

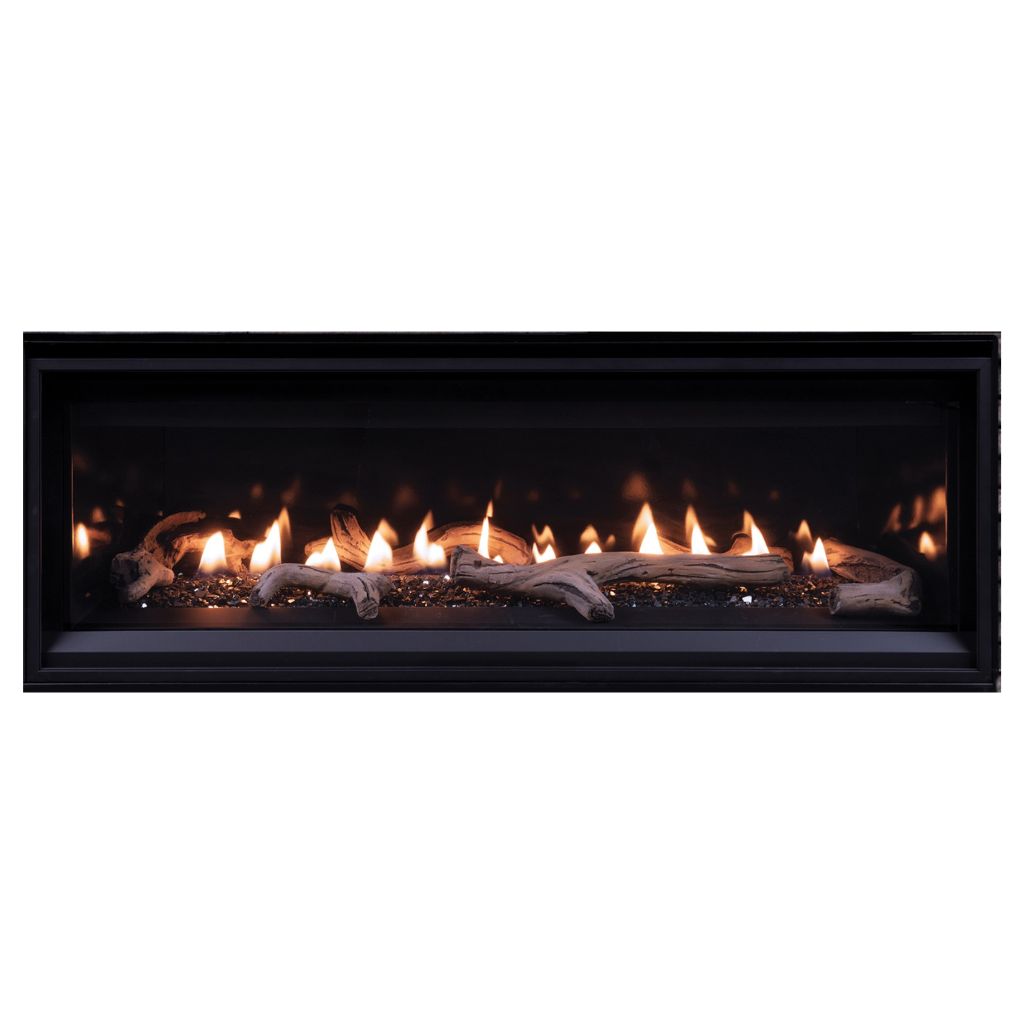

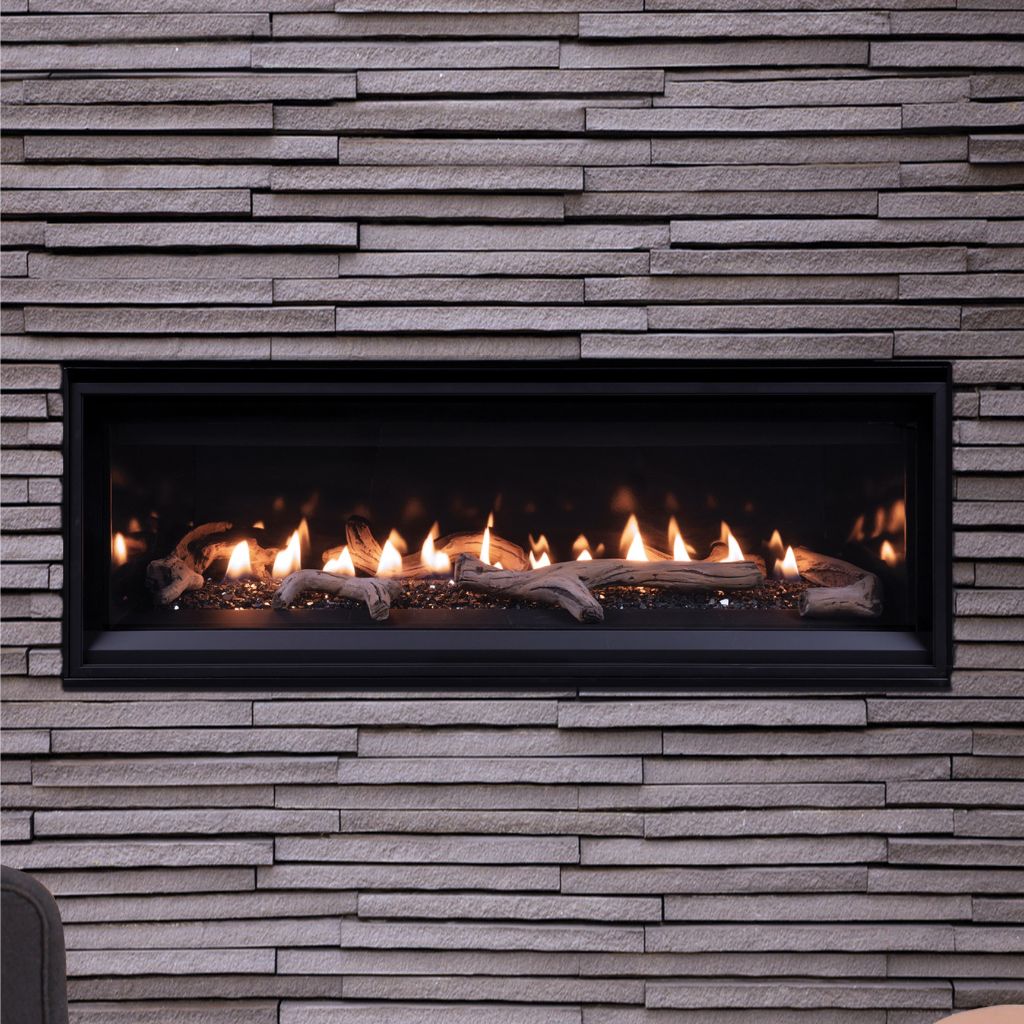

The Superior DRL2055 is the 55 inch model in the DRL2000 linear direct vent series, the clean-face base version of the DRL3500 without the factory lights and blower. It gives a 50 in. by 16-3/4 in. glass view over black glass media and is rated up to 23,000 BTU/h on natural gas, a good fit for a long, low media wall where the look matters more than maximum heat.
Electronic ignition runs on house power with an AA battery backup, and Superior's HeatFlo kit can move heat above the opening when a TV or art is planned close to the fire.
Key Specifications
| Models | DRL2055TEN (natural gas), DRL2055TEP (propane) |
|---|---|
| Input, natural gas | 19,000 to 23,000 BTU/h |
| Input, propane | 17,000 to 21,000 BTU/h |
| Efficiency | AFUE 69.4% NG / 64.8% LP; P4 62.7% NG / 64.4% LP |
| Glass viewing area | 50 in. W x 16-3/4 in. H |
| Venting | Direct vent, Secure Vent SV4.5 (4-1/2 in. inner pipe); up to 60 ft combined, 25 ft horizontal |
| Ignition | Electronic; external power required, 4 AA battery backup |
| Gas pressure | NG inlet 5 to 10.5 in. w.c.; LP inlet 11 to 13 in. w.c. |
| Certification | ANSI Z21.88 / CSA 2.33 vented gas fireplace heater (PFS TECO F19-008) |
| Shipping weight | 133 lb |
Dimensions and Cutout
| Unit width x height | 55-1/2 in. x 24-3/4 in. |
|---|---|
| Framing opening width | 55-7/8 in. minimum (about 1/8 in. extra per side recommended) |
| Other framing dimensions | Height, depth and chase dimensions are in the spec sheet framing table |
| Combustible shelf above (top vent, one 90 elbow) | 62 in. with Secure Vent, 64 in. with Secure Flex |
| Vent note | At least 1 ft of vertical rise directly off the unit is required on 55 in. models |
Features
- 55 in. linear clean-face design with a 50 in. wide glass view
- Black glass media included (7.5 lb)
- Electronic ignition with AA battery backup for outages
- 15 ft of two-conductor wire for a wall switch
- Top venting with Superior Secure Vent SV4.5 or Secure Flex
- HeatFlo kit option for heat above the opening
- Optional liners and alternate media
- Step-up DRL3555 adds factory lights and blower
What Is Included and What You Will Need
- Included: fireplace, 15 ft two-conductor wire, 2.75 in. non-combustible board with brackets, 7.5 lb black glass media, 2 vent restrictors, minimal vent run baffle
- Required: Secure Vent SV4.5 pipe and termination (sold separately), external power, gas line with shutoff
- Optional: Superior HeatFlo kit HTFLO-DV55, liners, alternate media, facade
Installation Notes
A qualified gas installer must frame and vent the DRL2055 with Superior Secure Vent components inside the manual limits, including the required 1 ft of rise off the unit, and supply external power. In New York City, gas work requires a licensed master plumber and permits, and sealed direct vent fireplaces like this one are a common code-compliant choice. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
- Superior DRL2000 / DRL3500 Specification Sheet 900994-01
- Superior DRL2000 / DRL3500 Installation and Operation Manual 900994-00
Frequently Asked Questions
What is the difference between the DRL2055 and DRL3555?
Superior lists the DRL3555 with lights and a blower and a higher 28,000 BTU/h natural gas rating; the DRL2055 is the base model without them.
Does it come with a remote?
No. The DRL2000 packaging list includes wall switch wire but no remote; the remote ships with DRL3500 models.
Does it work in a power outage?
Yes. Four AA batteries provide backup power for fireplace operation.
Can I mount a TV above it?
Superior offers the HeatFlo kit for 55 in. models to move heat above the opening; framing for the kit is in the spec sheet.
Related reading: Direct Vent Gas Fireplace Buying Guide and Linear vs Traditional Fireplace.
Warranty
Superior (Innovative Hearth Products) limited 20-year warranty on the gas appliance per installation manual 900994-00; component terms are listed in the warranty that ships with the fireplace.
