Trade-Wind | 66" Stainless Steel Outdoor Vent Insert (Blower Not Included)
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Trade-Wind | 66" Stainless Steel Outdoor Vent Insert (Blower Not Included) is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
- Local delivery or pick-up across NYC, Long Island, NJ and CT. Delivery is free on this item.
- Factory-authorized Trade-Wind dealer. You keep the full manufacturer warranty.
- 30-day returns, no restocking fee.
- Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Free & Flat Rate Local Delivery
Free & Flat Rate Local Delivery
- Our team & trucks deliver locally within 60 miles of our showroom. (NYC Tri-State including all of Suffolk County)
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 days
- $49.95 Flat-Rate Local Shipping on orders under $999
- Setup & Assembly available for most items at checkout
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
Call for a free quote 718-326-4328
Visit our sister site to learn more about our showroom products like Direct Vent Gas Fireplaces, www.NYCFireplaces.com
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Trade-Wind | 66" Stainless Steel Outdoor Vent Insert (Blower N...
Trade-Wind | 66" Stainless Steel Outdoor Vent Insert (Blower Not Included) is backordered and will ship as soon as it is back in stock.
Description
Description
Available Sizes: Trade-Wind L7200 Liners for Remote Blowers
Overall Dimensions: 64-1/2 in. W x 32 in. D x 8 in. H liner body for the 66 in. class, per Trade-Wind L7200 installation drawing

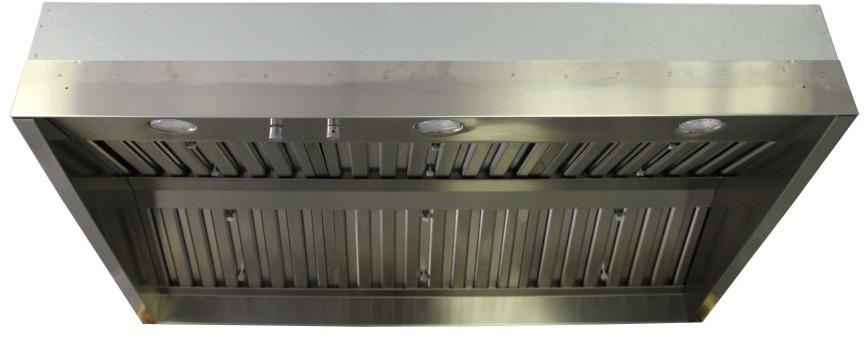

The Trade-Wind L7266 is a 66 inch class stainless steel BBQ hood liner (L7200 series) in its remote-blower version, pre-wired for most in-line or exterior blowers. It mounts inside a custom wood or non-combustible canopy over a long outdoor grill line, so the hood reads as part of the masonry or millwork rather than a stainless box.
Pairing it with a remote blower keeps motor noise away from the cooking area, and the 32 in. depth covers the grill front to back.
Key Specifications
| Model | L7266 (L7200 series BBQ liner, remote blower) |
|---|---|
| Nominal size | 66 in. class; liner body 64-1/2 in. wide |
| Blower | Not included; pre-wired for in-line or exterior blowers (Trade-Wind in-line blower rated 1266 CFM) |
| Discharge | Vertical, top round discharge (two 10 in. collars on larger models per spec sheet) |
| Lights | Dimmable 50 W halogen |
| Filters | Dishwasher-safe stainless commercial baffle filters |
| Construction | #304 grade, 22-gauge stainless steel |
| Electrical | 120 V, 60 Hz individual grounded branch circuit on a 15 or 20 A breaker; GFCI protection recommended |
Dimensions and Cutout
| Liner body (W x D x H) | 64-1/2 in. x 32 in. x 8 in. (per the L7200 drawing for 66 in. models) |
|---|---|
| Mounting height | Combustible canopy structure at least 36 in. above the cooking surface; non-combustible canopy at least 30 in. |
| Framing | Solid backing inside the canopy; the liner is screwed through its top and back |
Features
- Remote-blower liner, pre-wired for most in-line or exterior blowers
- Designed to fit inside a custom outdoor canopy
- 32 in. depth for full grill coverage
- #304, 22-gauge stainless steel
- Dishwasher-safe commercial baffle filters
- Dimmable 50 W halogen lights
- All stainless exterior with no grease traps
What Is Included and What You Will Need
- Included: L7266 liner with baffle filters and halogen light fixtures, pre-wired for a remote blower
- Required: a remote or in-line blower such as the Trade-Wind 1266 CFM in-line blower, a framed canopy with solid backing, rigid metal ducting to an approved cap (no damper), a dedicated 120 V circuit
Installation Notes
Frame the canopy to the liner dimensions, fasten the liner into structural framing and duct vertically per the Trade-Wind L7200 installation instructions and Best Practices, sizing the remote blower with the duct run. Trade-Wind requires at least 3 ft of weatherproof roof coverage on every side not protected by an adjacent wall and no back-draft damper in a BBQ application. In New York City, exhaust ducting through roofs or walls often needs building approval, so confirm the duct route early. Book a free outdoor kitchen design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
Is a blower included?

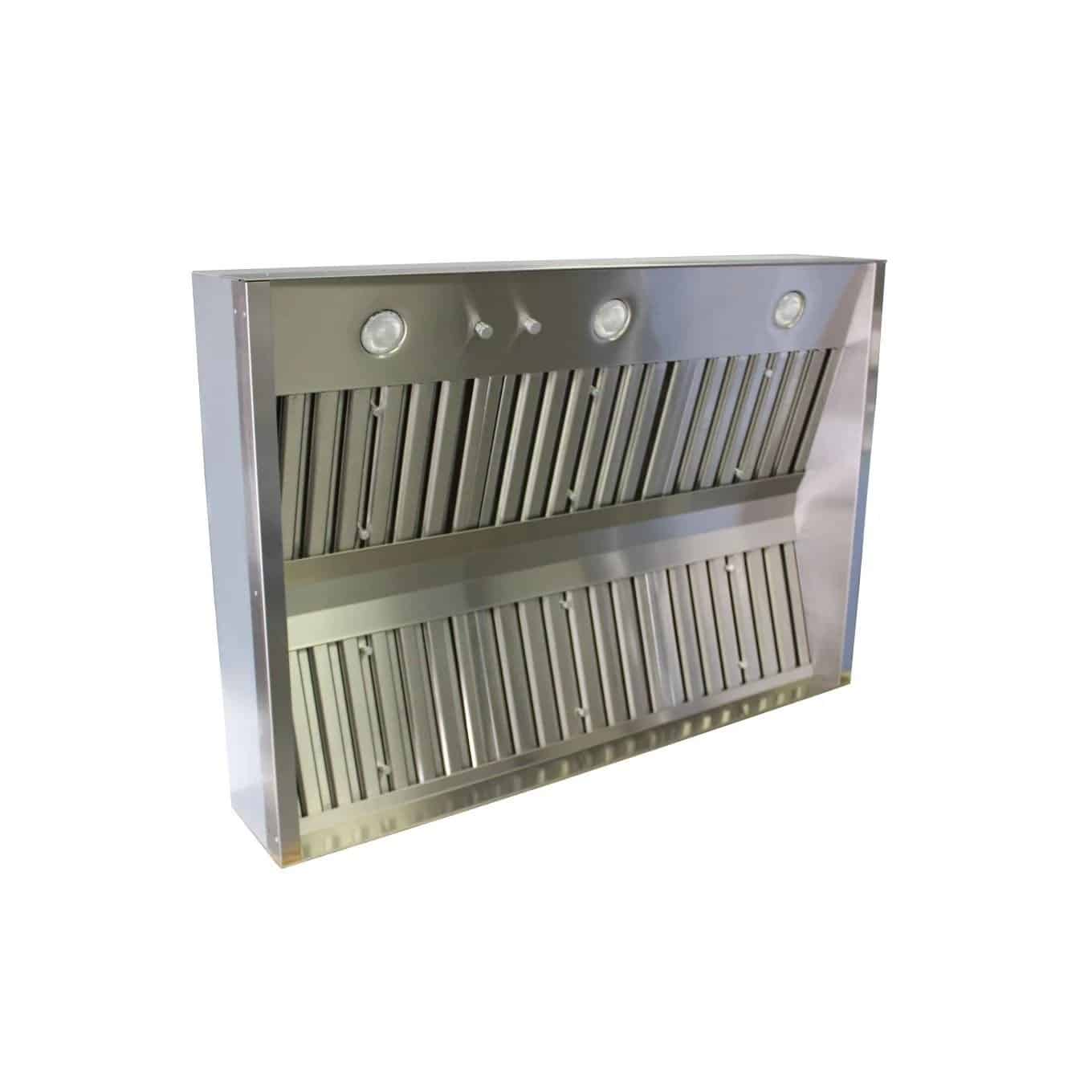

No. The L7266 is the remote-blower version; the L7266-23 has two internal blowers rated 2300 CFM.
What canopy opening does it need?
The liner body is 64-1/2 in. wide and 32 in. deep, so frame the canopy to suit those dimensions.
How high above the grill?
At least 36 in. to a combustible canopy or 30 in. to a non-combustible canopy, per Trade-Wind.
Can I use a damper?
No. Trade-Wind says not to use any damper in a BBQ hood application.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
Trade-Wind L7200 Series BBQ Liner warranty: 3 years from the date of purchase against defects in materials and workmanship for the original user. Faulty installation, undersized ducting and restrictive caps are not covered.
