Trade-Winds | 36" Barbecue Vent Hood Liner (Blower Not Included)
Trade-Winds | 36" Barbecue Vent Hood Liner (Blower Not Included) is backordered and will ship as soon as it is back in stock.
Description
Description
Available Sizes: Trade-Wind L7200 Liners for Remote Blowers
Overall Dimensions: 34-1/2 in. W x 32 in. D x 16-1/2 in. H including the 8-1/2 in. blower housing; 10 in. round top discharge (L7200 specification sheet)

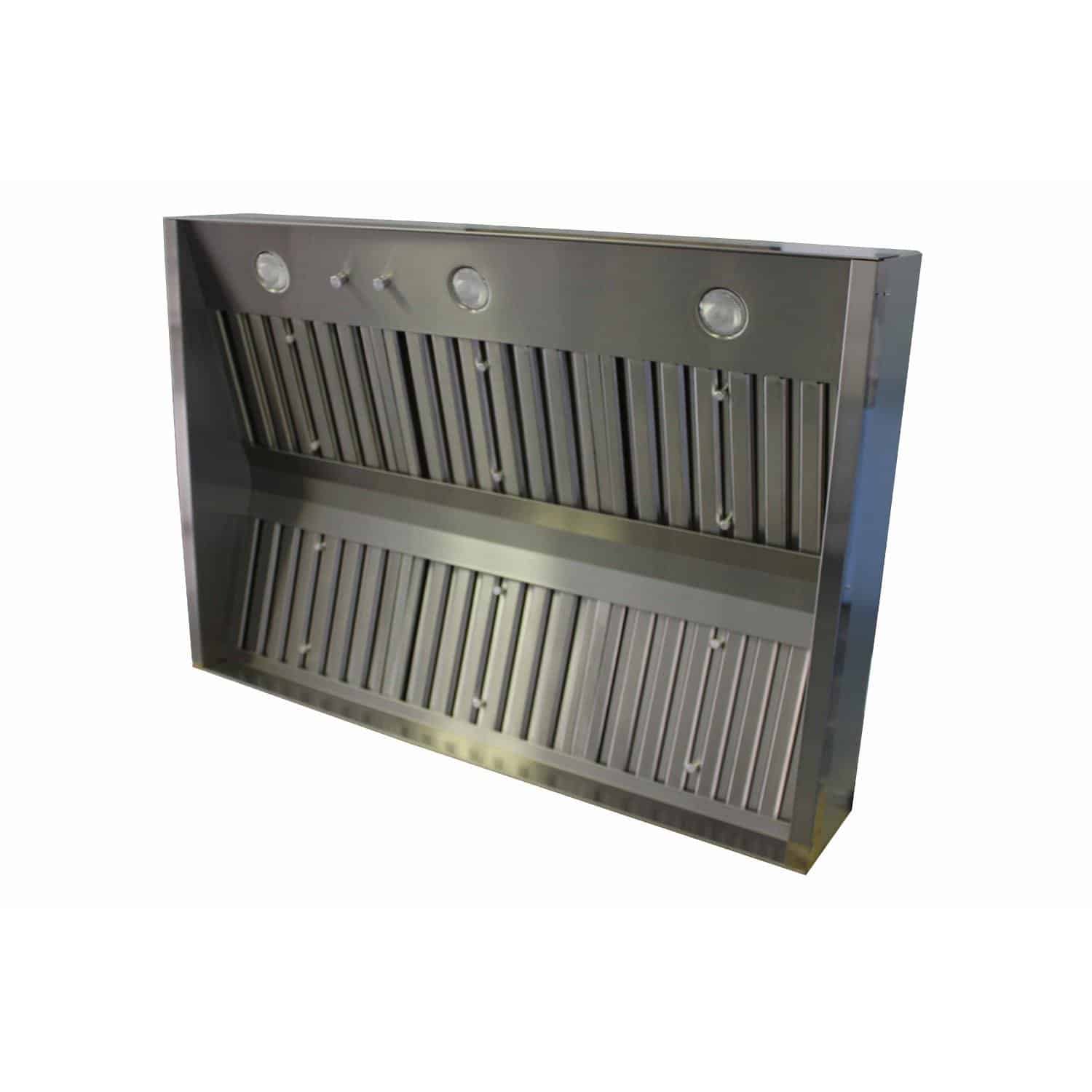

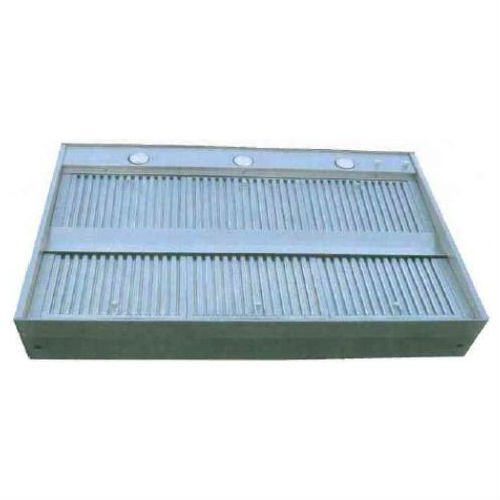

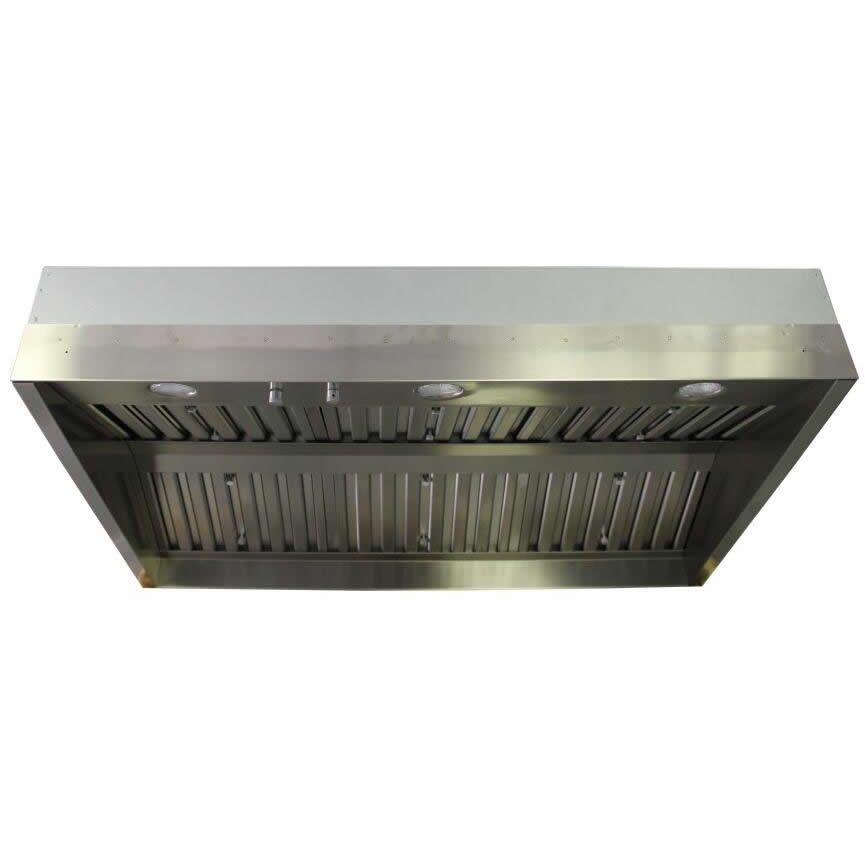

The Trade-Wind L7236 is a 36 in. BBQ grill liner from the L7200 series, built to drop into a custom outdoor hood or canopy over a grill. A generous 32 in. depth captures smoke and grease, and heavy-gauge #304 stainless steel with commercial baffle filters stands up to outdoor cooking.
This is the remote-blower version: it has no internal blower and is pre-wired for an in-line or exterior blower, such as Trade-Wind's 1,266 CFM PSD010XL. Dimmable halogen lights with variable light control light the grill.
Features
- 32 in. deep liner for a large capture area
- Remote blower model, pre-wired for in-line or exterior blowers
- Heavy-gauge #304 stainless steel
- Four 12 x 14 in. dishwasher-safe stainless steel baffle filters
- Dimmable 50 W halogen lights
- Top 10 in. round discharge
- cULus listed
Key Specifications
| Model | L7236 |
|---|---|
| Series | Trade-Wind L7200 BBQ grill liner |
| Type | Insert liner for custom outdoor hoods and canopies |
| Blower | Not included; in-line or exterior blower required (PSD010XL 1,266 CFM optional) |
| Fan control | 6.0 A three-speed control supplied |
| Discharge | 10 in. round, top |
| Filters | Four 12 x 14 in. stainless steel baffle filters |
| Lighting | Dimmable 50 W halogen (PAR 20) |
| Construction | #304 stainless steel |
| Electrical | 120V, 60 Hz, dedicated grounded circuit with 15 or 20 A breaker, GFCI protected |
| Listing | cULus |

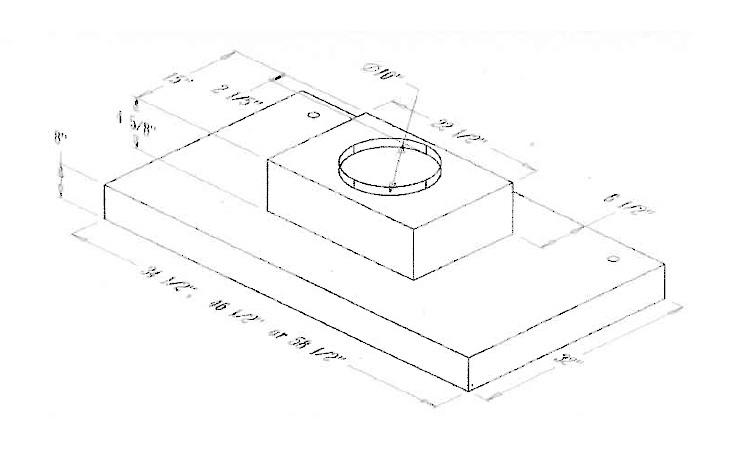

Dimensions
| Width | 34-1/2 in. |
|---|---|
| Depth | 32 in. |
| Liner height | 8 in., plus 8-1/2 in. blower housing (16-1/2 in. total) |
| Blower housing | 22 x 17-1/4 in. |
| Duct | 10 in. round, top discharge |
What Is Included and What You Will Need
- Included: L7236 liner with four baffle filters, halogen lights and three-speed control
- Required, sold separately: an in-line or exterior blower within the 6.0 A control rating, such as the Trade-Wind PSD010XL 1,266 CFM in-line blower
- Required: a custom hood or canopy with structural framing and backing, 10 in. metal duct and a roof or wall cap
- Recommended: DPR010 10 in. damper and spare 12 x 14 in. baffle filters
Installation Notes
Build the canopy with solid framing and tight backing where the liner is fastened; the liner has no pre-drilled holes. Trade-Wind requires a covered location: the unit must have at least 3 ft of weatherproof roof coverage on every side not protected by an adjacent wall, and all duct work and roof openings must be sealed against water. Mount it to a solid surface, keep a combustible canopy at least 36 in. above the cooking surface (30 in. for a non-combustible canopy), use metal duct only and vent to the outdoors. Wire it on a dedicated, grounded 120V circuit with a 15 or 20 A breaker, GFCI protected. In New York City buildings, new exhaust ducts and roof or wall penetrations usually need building and code review, so confirm the duct route with your building before ordering. Book a design consultation to plan the hood, blower and duct route.
Documentation
- L7200 Series BBQ Liner Specification Sheet
- L7200 Series BBQ Liner Installation Instructions (Rev. 7/28/16)
Frequently Asked Questions
Does it include a blower?
No. It is the remote-blower model and needs an in-line or exterior blower such as the PSD010XL.
What is a liner?
A liner is the working hood insert that mounts inside a custom canopy built from masonry, stone or other materials.
Can it go on an open patio?
No. Trade-Wind requires at least 3 ft of weatherproof roof coverage on every side not protected by a wall.
How high should it be mounted?
Keep a combustible canopy at least 36 in. above the cooking surface, or 30 in. for a non-combustible canopy.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
Trade-Wind limited warranty, per the installation instructions: 3 years from the date of purchase against defects in materials and workmanship, for the original user, with Trade-Wind repairing or replacing the complete unit or any defective component at its option. Light bulbs are not covered, and problems caused by undersized ducting, restrictive roof caps or unauthorized repairs are excluded.
