Trade-Wind | 72″ 2300 CFM Outdoor Vent Hood
Trade-Wind | 72″ 2300 CFM Outdoor Vent Hood - No / No is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 72 in. W x 32 in. D x 24 in. H
The Trade-Wind S7272CD is a 72 inch smooth front outdoor BBQ vent hood sold without a blower. It is the remote-blower version of the S7200 series: you add a separate in-line or exterior blower, which keeps the motor noise away from the cooking area. It is pre-wired for most in-line or exterior blowers up to 6 A, and it fits large covered outdoor kitchens with a long grill line.
Key Specifications
| Model | S7272CD |
| Blower | None included; requires a separate in-line or exterior blower (6 A maximum draw) |
| Airflow | Depends on the blower you choose; Trade-Wind lists its 1,266 CFM in-line blower as an option |
| Ducting | Two 10 in. round collars |
| Discharge | Convertible, top or rear |
| Material | #304 stainless steel, 22 gauge |
| Filters | Commercial stainless steel baffle filters, dishwasher safe |
| Electrical | 120V, 60 Hz, individual grounded branch circuit on a 15 or 20 A breaker; GFCI protection recommended |
Dimensions and Cutout
| Width | 72 in. |
| Depth | 32 in. at the hood bottom, 15 in. at the top |
| Height | 24 in. |
| Mounting height | 36 in. above the cooking surface |
| Overhang | Sides and front edge should extend 3 to 6 in. beyond the cooking surface |
| Duct covers | Telescopic cover for 10 ft ceilings; optional cover for 10 to 12 ft ceilings |
Features
- Remote blower design for quieter operation at the hood
- Pre-wired for most in-line or exterior blowers up to 6 A
- 32 in. deep canopy for a large capture area
- Top or rear discharge, with easy conversion to horizontal ducting
- Heavy gauge #304 stainless steel construction

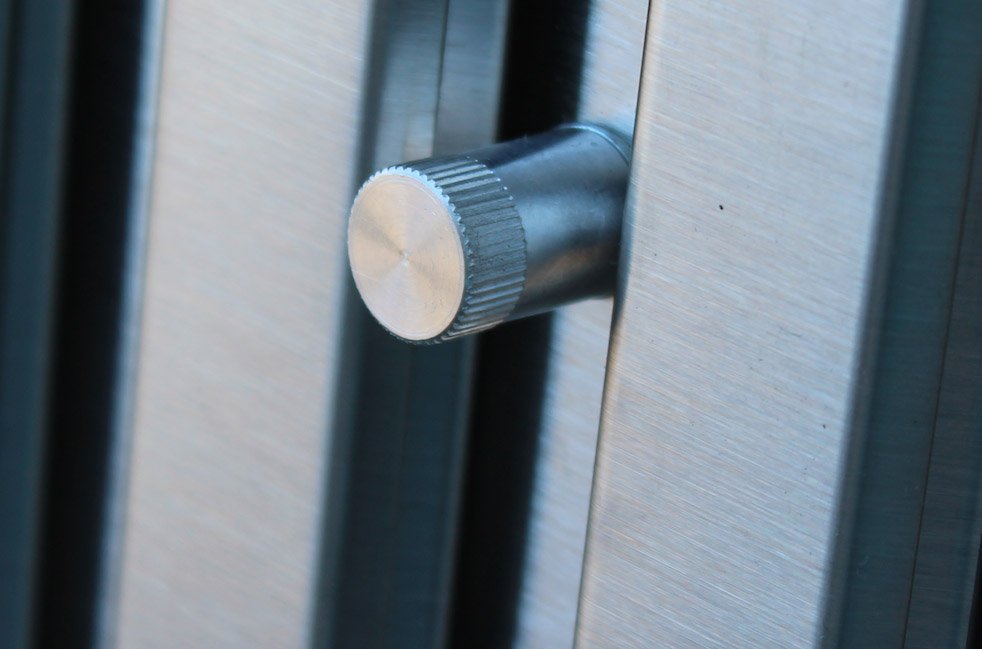

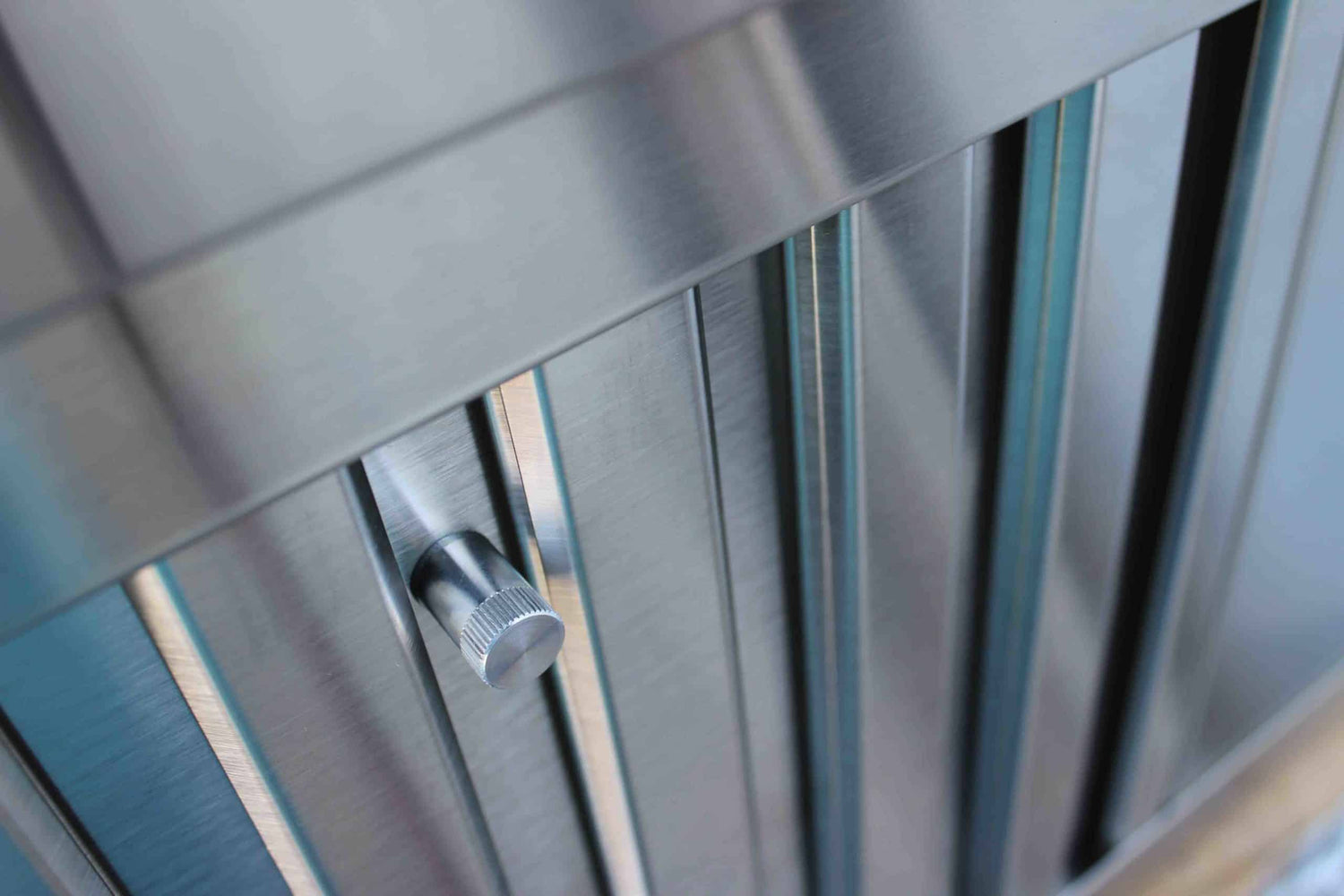

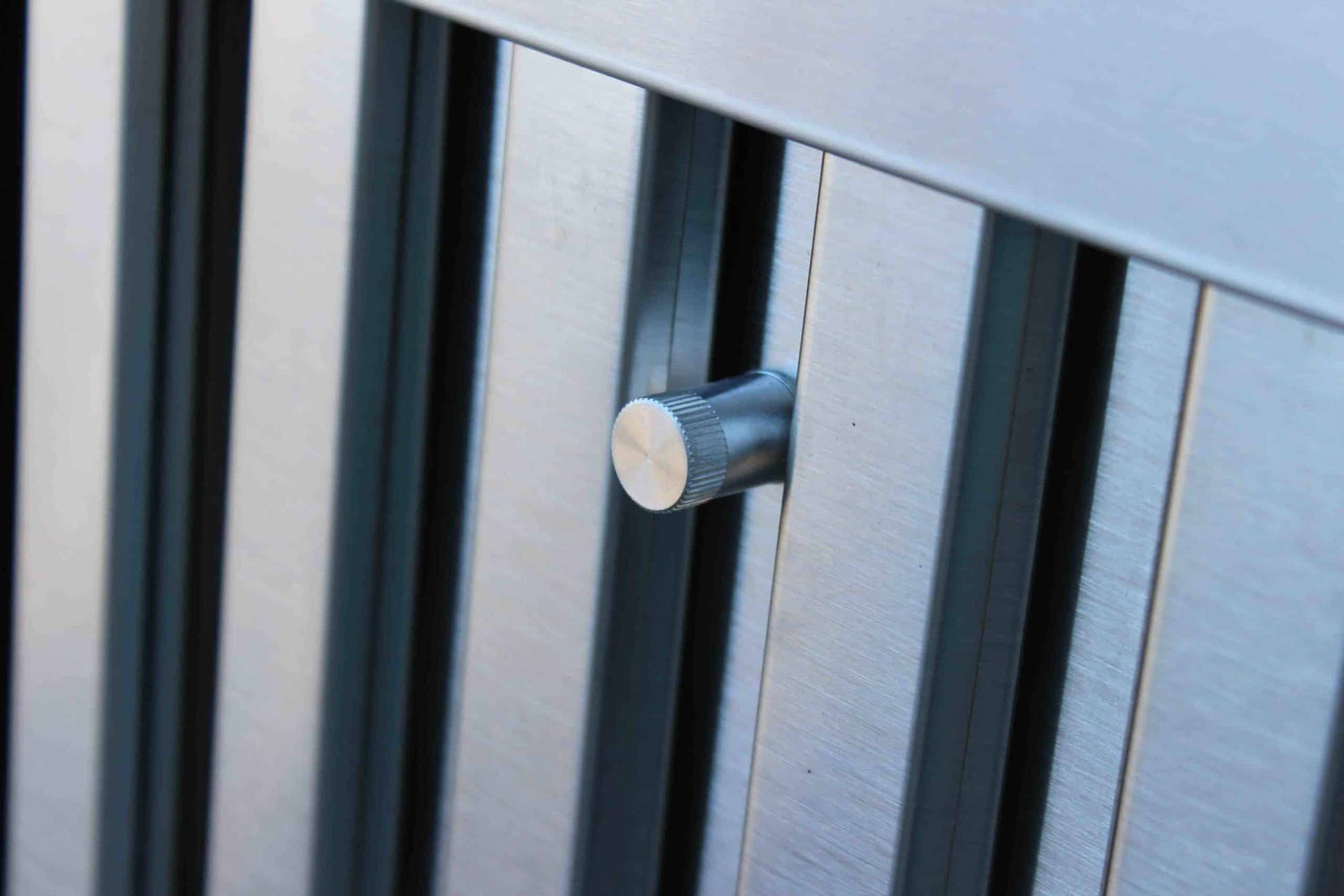

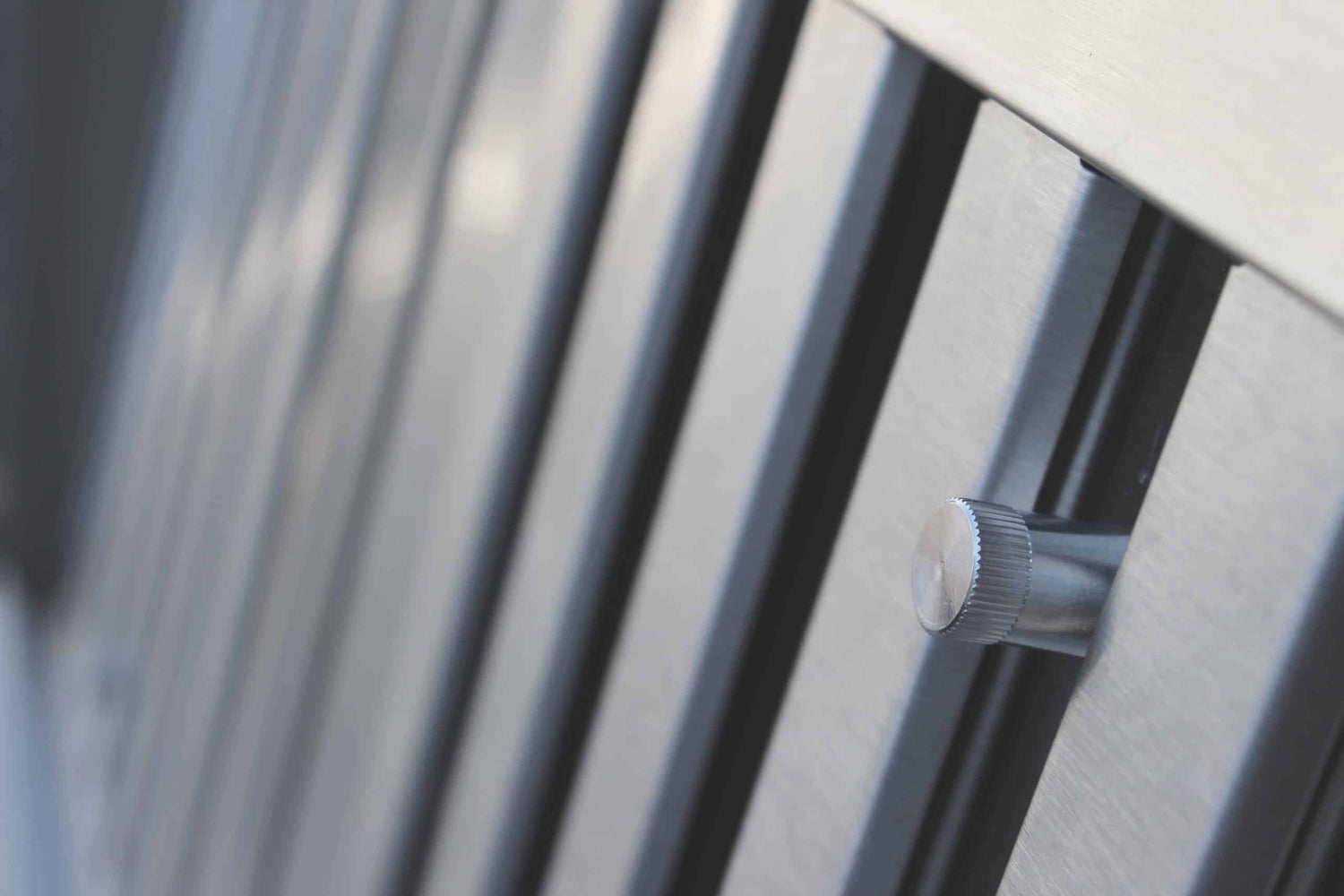

- Dishwasher safe commercial baffle filters with easy-grip handles
What Is Included and What You Will Need
- Included: 72 in. hood canopy with baffle filters
- Required: an in-line or exterior blower such as the Trade-Wind 1,266 CFM In-Line Blower, two 10 in. round duct runs, a 120V circuit, and at least 3 ft of weatherproof roof coverage on unprotected sides, per the manual
- Optional: two piece duct cover for 9 to 10 ft or 10 to 12 ft ceilings (see the variant options), 10 in. duct damper and 10 in. duct silencer
Installation Notes
Install per the Trade-Wind instructions, with the hood 36 in. above the cooking surface. Match the blower to the duct run before you order, because airflow depends on it. Ducting and the 120V wiring should be done by licensed trades. In New York City, the electrical work must be performed by a licensed electrician. Our team can help you size the system in a design consultation.
Documentation
Frequently Asked Questions
Does this hood come with a blower?
No. You need a separate in-line or exterior blower. If you want internal blowers, look at the S727223CD.
Which blower should I use?
Trade-Wind lists a 1,266 CFM in-line blower for this series. The right choice depends on your duct run and grill, so confirm with us before ordering.
How high should it be mounted?
Trade-Wind's instructions call for 36 in. above the cooking surface.
What duct size does it need?
Two 10 in. round ducts.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
Trade-Wind covers outdoor vent hoods against defects in materials and workmanship for three years from the date of purchase, for the original user. Light bulbs are not covered. See the Trade-Wind warranty page for full terms.
