Description
Description

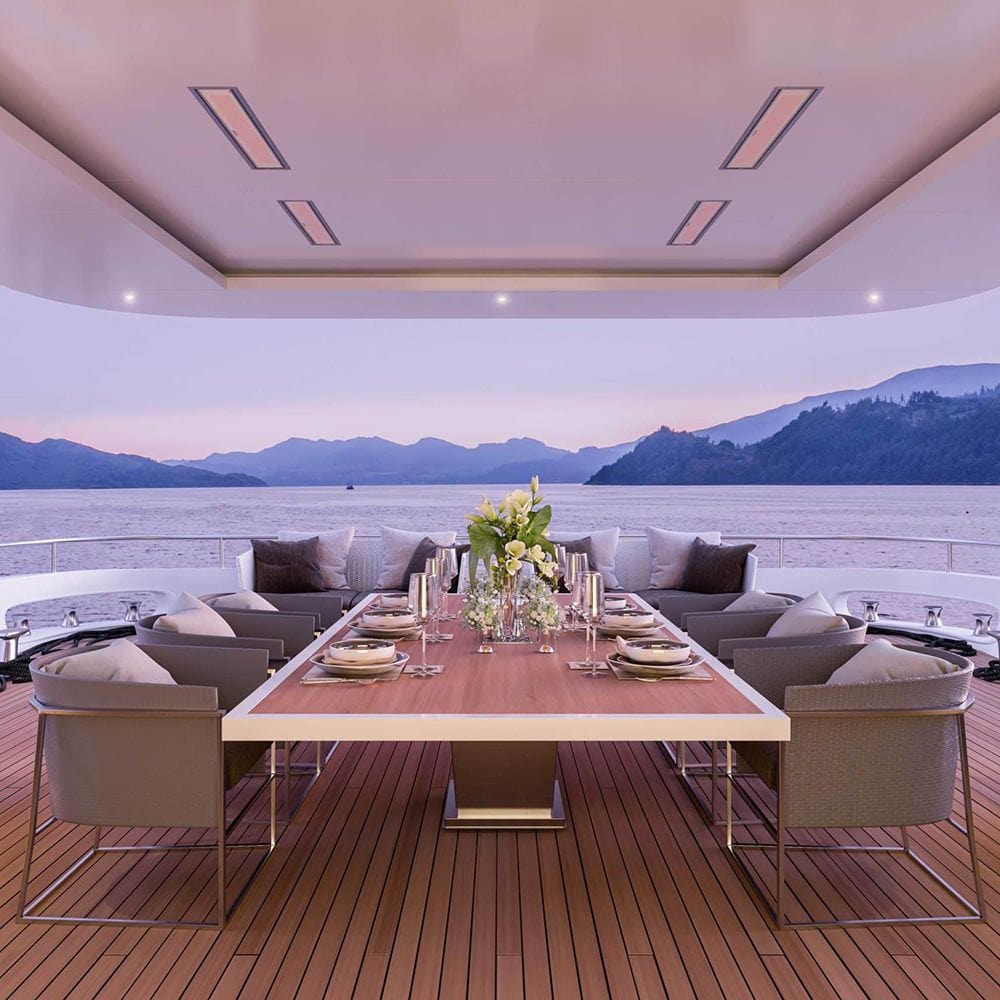

The Bromic BH3623001 is the marine grade ceiling recess kit for the Platinum Smart-Heat Electric 4500W marine heater. Built from brushed 316 stainless steel for coastal and pool-side sites, it sets the heater into a ceiling or soffit so only the radiant face shows, the clean built-in look for a covered terrace, cabana or outdoor kitchen ceiling.
Features
- Recesses the Platinum Smart-Heat Electric 4500W marine heater flush into the ceiling
- Brushed 316 marine grade stainless steel for coastal, pool-side and salt-air sites
- Suitable for ceiling surfaces 10 to 30 mm (0.4 to 1.2 in) thick
- Heater hangs from the ceiling frame on its own brackets, per the Bromic manual
- Pairs with Bromic Affinity Smart-Heat controls
Key Specifications
| Model / SKU | Bromic Platinum Electric Ceiling Recess Kit, marine, 4500W; BH3623001 |
| Fits | Bromic Platinum Smart-Heat Electric 4500W marine heater (sold separately) |
| Material | Brushed 316 stainless steel |
| Ceiling surface thickness | 10 to 30 mm (0.4 to 1.2 in); thicker ceilings need a Bromic alternative |
| UPC | 9320688217738 (current listing) |
Dimensions and Cutout
| Mounting height | Heater surface at least 2400 mm (94 in) above the floor |
| Wall and heater spacing | 500 mm (20 in) to the nearest wall on all sides; at least 500 mm between heaters |
| Cavity clearances | Per the clearance-to-combustibles diagrams in the Bromic manual |
What Is Included and What You Will Need

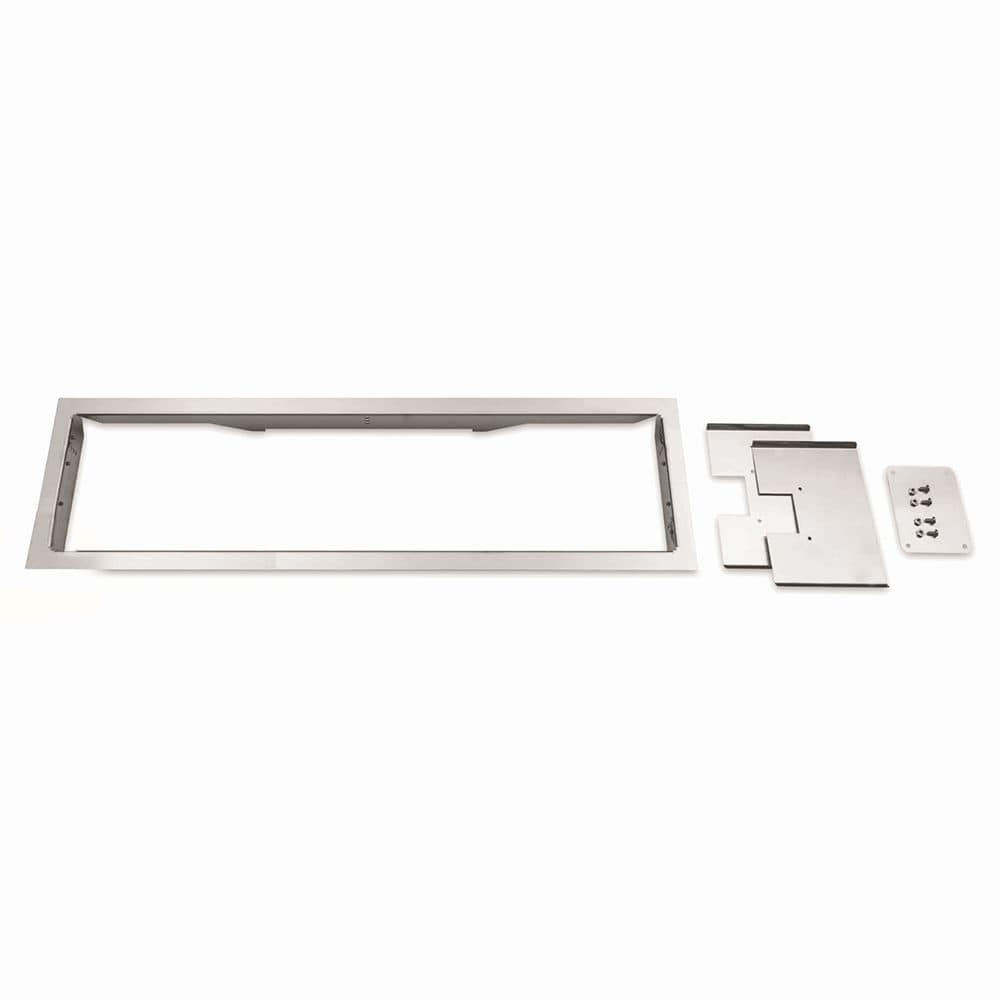

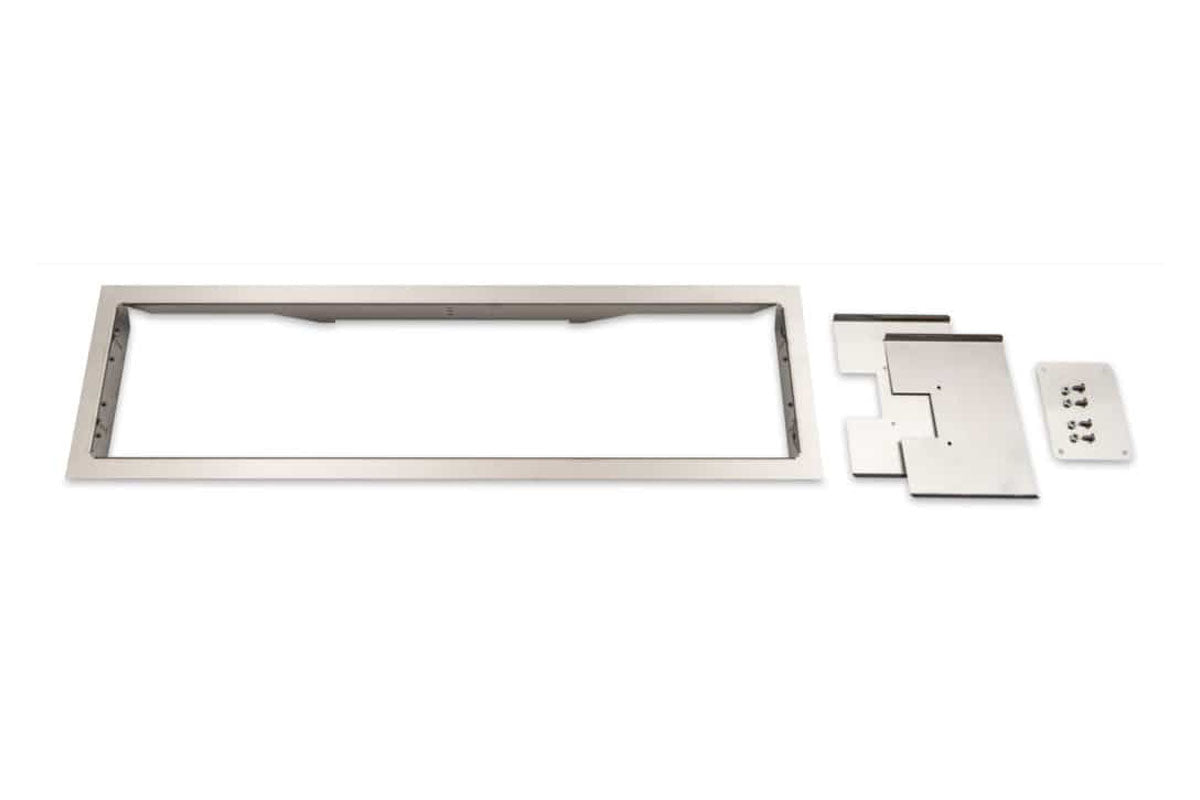

- Bromic BH3623001 marine ceiling recess frame kit
- You will need: the Bromic Platinum Electric 4500W marine heater, a ceiling cutout and framing to the manual, and a licensed electrician
Optional Accessories
- Bromic Heating Platinum Smart-Heat Marine Grade 53-Inch 4500W Dual Element 240V Electric Infrared Heater - White - BH3622003
- Bromic Platinum Smart-Heat Electric Marine Patio Heater
- Bromic Affinity Smart-Heat Control System
- Bromic Platinum Electric 4500W Ceiling Recess Kit
Installation Notes
Prepare the ceiling cutout and frame to the dimensions in the Bromic manual, then lift the heater into the frame from below. Never cover the heater with insulation, never cut or notch joists, beams or rafters, and protect the heater completely from water contact from above. Fasten the ceiling frame to non-combustible structural members that can carry the heater, per the 4500W manual.
In New York City, a new heater circuit on a terrace, balcony or roof requires a licensed electrician and an electrical permit, and co-op or condo boards often require approval, so plan the wiring before you order.
Planning heat for a covered terrace or pool house? Book a design consultation.
Documentation
- Bromic Platinum Smart-Heat Electric 4500W Instruction Manual v1.1 (recess kit table)
- Bromic Platinum Electric Marine Product Cut Sheet
Frequently Asked Questions
Is the heater included?
No. Order the Bromic Platinum Electric 4500W marine heater separately.
Why marine grade?
The 316 stainless steel resists salt and chlorine better than 304, for coastal and pool-side ceilings.
How high must it be mounted?
The heater surface must be at least 2400 mm (94 in) above the floor, per Bromic.
Related reading: Patio heater buying guide, Best patio heater for a covered patio.
Warranty
Per the current listing, Bromic covers the recess kit under its one year parts warranty on the heater series, for the original owner; labor is not included. Repairs must be carried out by a Bromic authorized service agent. See the Bromic warranty for full terms.
