Kingsman HBZDV4228 42" Zero Clearance Louvered Direct Vent Gas Fireplace

Overall Dimensions: 41-15/16" W x 37" H x 16-7/16" D; framing 42-3/8" W x 37-1/8" H minimum x 17" D

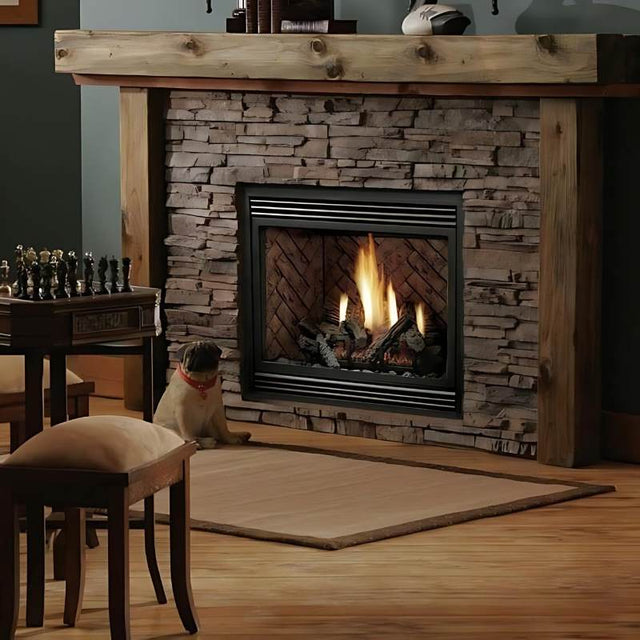

The Kingsman HBZDV4228 is a 42-inch zero clearance direct vent gas fireplace in its louvered configuration, with black louvers above and below the glass for a standard framed finish. It pairs a 28,000 BTU dual burner with a 33-3/8" x 20-5/16" glass viewing area, and runs on millivolt or electronic IPI ignition so it keeps working in a power failure.

Key Specifications

Dimensions and Cutout

Features

• Dual burner with a realistic flame pattern (per current listing)
• Millivolt or IPI valve system keeps operating in a power failure, with high and low heat and flame adjustment
• Flame sensor monitors the pilot and shuts off gas completely if the pilot is not sensed
• Safety screen barrier included
• Black louvers (grills) with matte black liner as standard, per the listing
• Liner options: matte black, traditional brick, herringbone brick or porcelain reflective
• Certified for installation in a bedroom or bed-sitting room under the manual, subject to local code

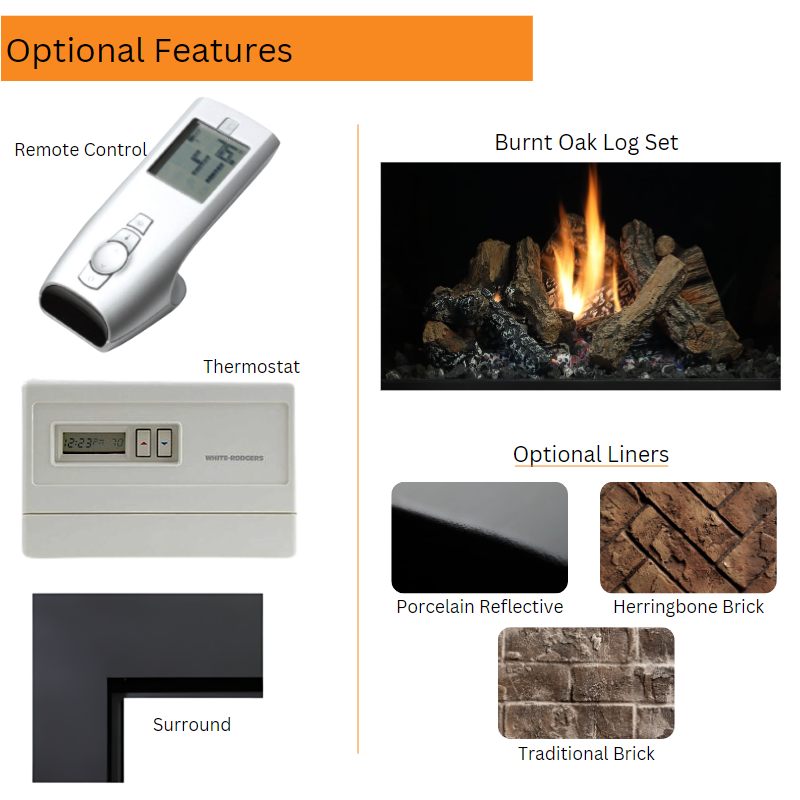

• Optional fan kit, remote controls, thermostats and wall mount battery holder

What Is Included and What You Will Need

• Included: the fireplace with safety screen and the black louvers, the liner you select, and the log set if you choose one
• Required per the Kingsman listing: a log set (LOGC44 is selectable here; the manual also lists LOGC42, LOGC43, MQROCK1 and MQRSP3 as compatible), and the listing also offers a No Thanks media choice for buyers supplying their own
• Required: Kingsman or approved 4 in and 7 in direct vent pipe and termination, a gas line, and a qualified installer
• Optional: fan kit, millivolt remote, electronic ignition remote, black surround for louvered fireplaces

Installation Notes

Install natural gas or propane only as shown on the rating plate; the unit is not convertible without a certified kit. Clearance to combustibles is 0 inches at the back, sides, floor and top, with vertical vent pipe 1 inch from combustibles and 60 inches from the bottom of the fireplace to the ceiling. Follow the manual for mantel heights and facing materials. In New York City, gas fireplace work must be done by a licensed professional under a DOB permit, and the direct vent route should be planned before ordering. Book a free design consultation and we will confirm framing, venting and approvals for your building.

Documentation

• Installation Manual

Frequently Asked Questions

Can I switch to Clean View later?

Kingsman lists a Clean View version of this fireplace, but the framing differs (42-3/8 x 37-1/8 x 17 inches louvered versus 42-7/16 x 43-1/8 x 19-1/2 inches Clean View), so settle the configuration before framing.

Do I need a log set?

The Kingsman listing marks the LOGC44 Burnt Oak set as required. The manual lists LOGC42, LOGC43, LOGC44, MQROCK1 and MQRSP3 as compatible with this model, so use one of those.

Does it work in a power failure?

Yes. The millivolt and IPI valve systems operate during a power failure, and the optional wall mount battery holder supports IPI models.

Can I use it in a bedroom?

The manual states it is certified for a bedroom or bed-sitting room, subject to your local codes.

Related reading: Direct Vent Gas Fireplace Buying Guide and NYC Fireplace Code Guide.

Warranty

Per the Kingsman manual: a basic one year warranty replaces any component found defective in materials or workmanship, including labour, excluding accent light bulbs, gasketing, glass fronts and paint. The heat exchanger, combustion chamber and burner are covered for the period the original owner owns the product, with replacement parts only (labour, freight and handling are not covered).
