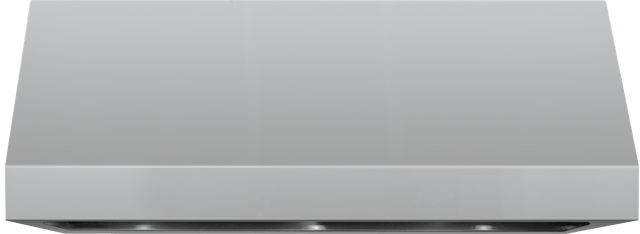

Summerset VH48-3 48-Inch 2,000 CFM Outdoor Vent Hood
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Summerset VH48-3 48-Inch 2,000 CFM Outdoor Vent Hood - Without Spacer Bracket is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
- Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
- Factory-authorized Summerset Grills dealer. You keep the full manufacturer warranty.
- 30-day returns, no restocking fee.
- Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Free & Flat Rate Shipping
Free & Flat Rate Shipping
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 transit days
- $19.95-$99.95 Flat-Rate Shipping on orders under $999
- Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
- Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

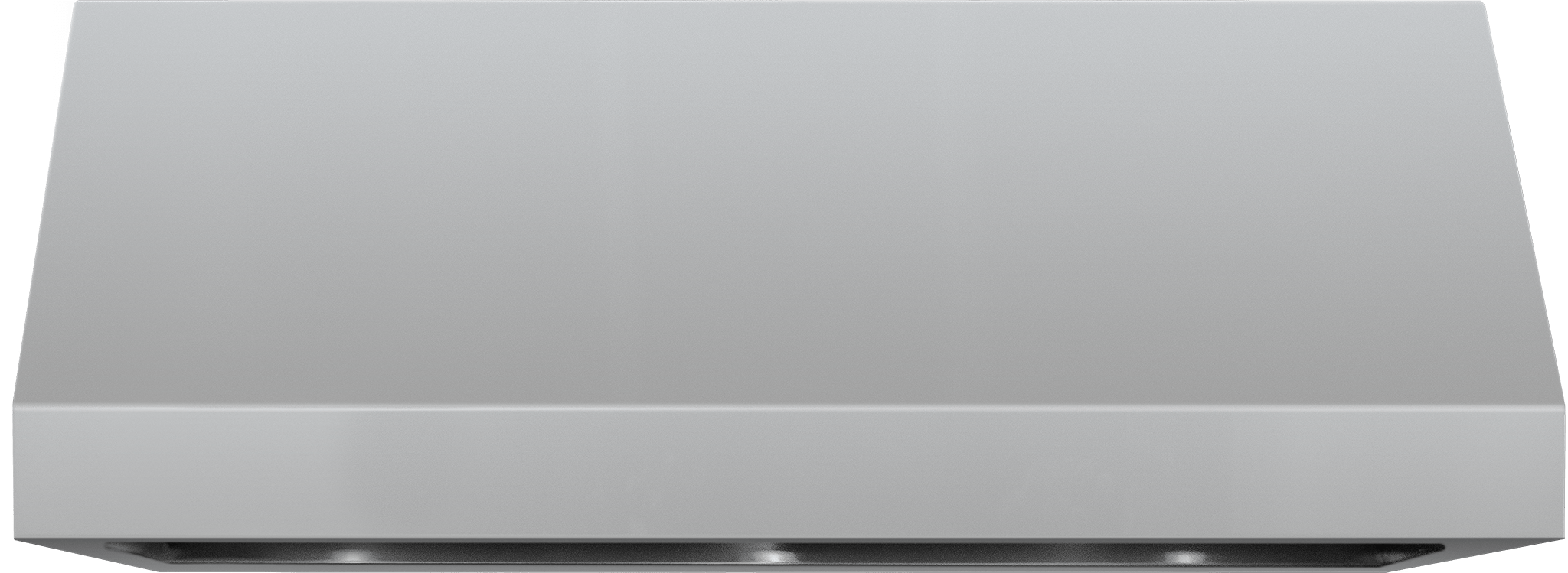

Summerset VH48-3 48-Inch 2,000 CFM Outdoor Vent Hood
Summerset VH48-3 48-Inch 2,000 CFM Outdoor Vent Hood - Without Spacer Bracket is backordered and will ship as soon as it is back in stock.
Description
Description
Explore other Summerset outdoor vent hood sizes: 36 inch | 42 inch | 48 inch (current size) | 60 inch
Overall Dimensions: 48 in. W (depth and height per current listing: 30 in. D x 18 in. H)

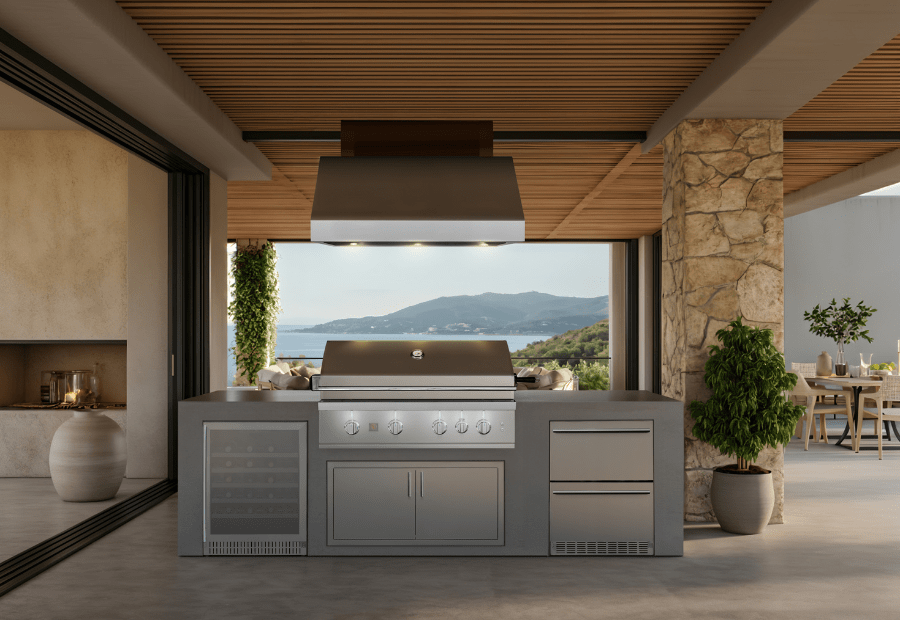

The Summerset VH48-3 is a 48 in. outdoor rated vent hood for covered outdoor kitchens. Two internal blowers move 2,000 CFM at 62 dB, pulling smoke, heat and grease out from over a grill up to about 42 in. wide when the hood is mounted above 32 in.

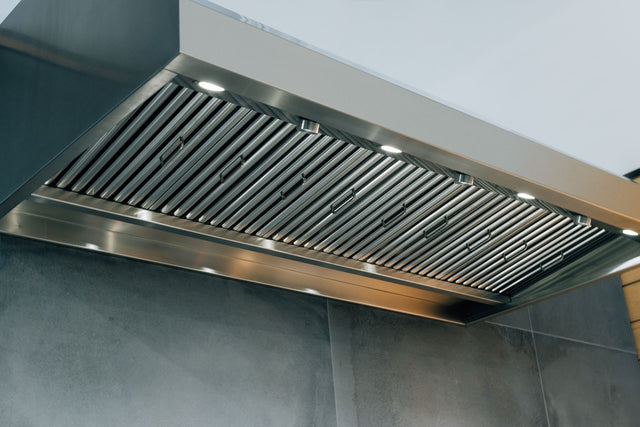

Four LED lights brighten the cooking surface, cleanable baffle filters lift out for washing, and two 8 in. round ducts exit through the top or rear. Spacer brackets of 4 in. or 8 in. can be added on this listing for extra mounting height.
Key Specifications
| Model | VH48-3 |
|---|---|
| Width | 48 in. |

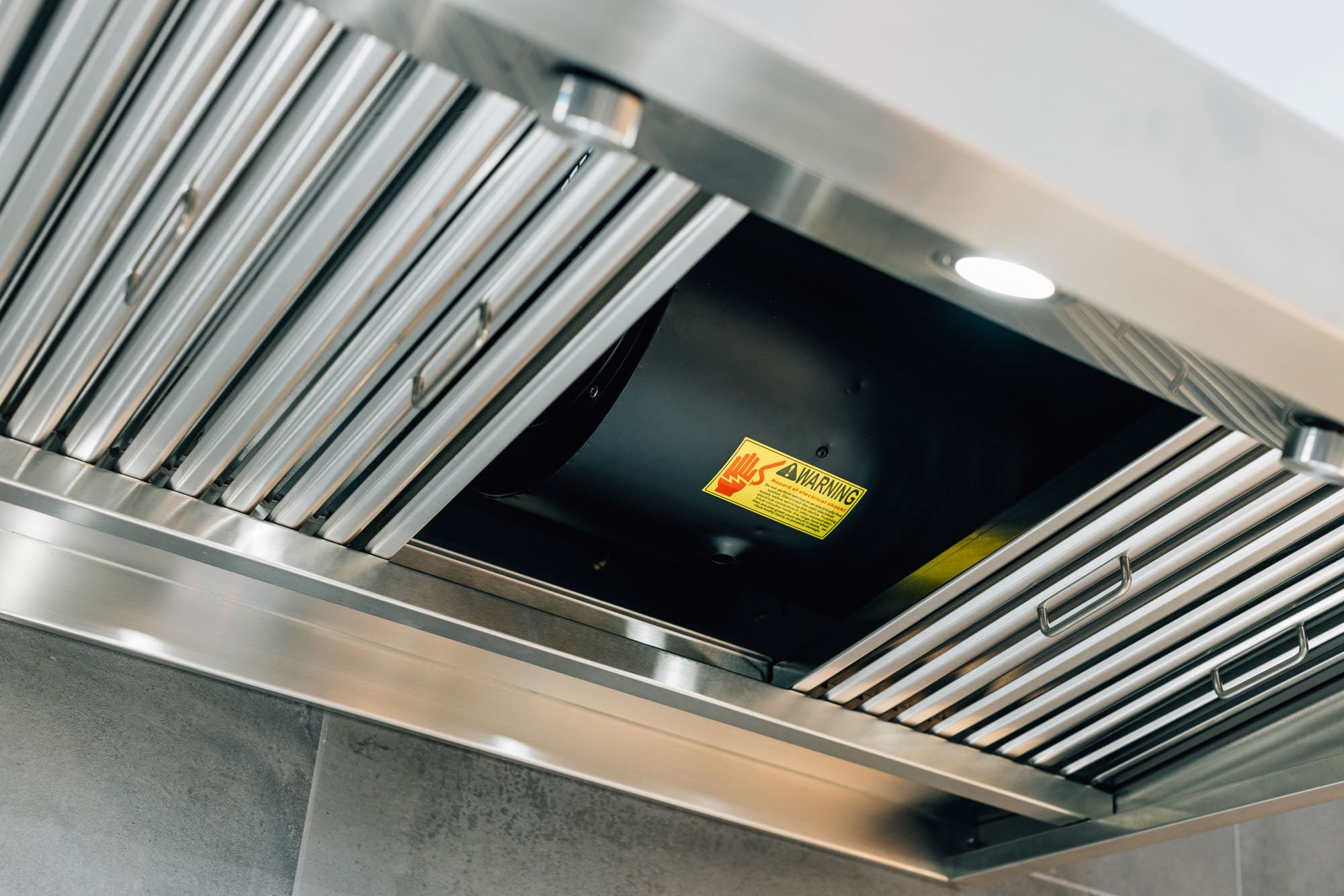

| Airflow | 2,000 CFM from two 1,000 CFM blowers (Summerset manual) |

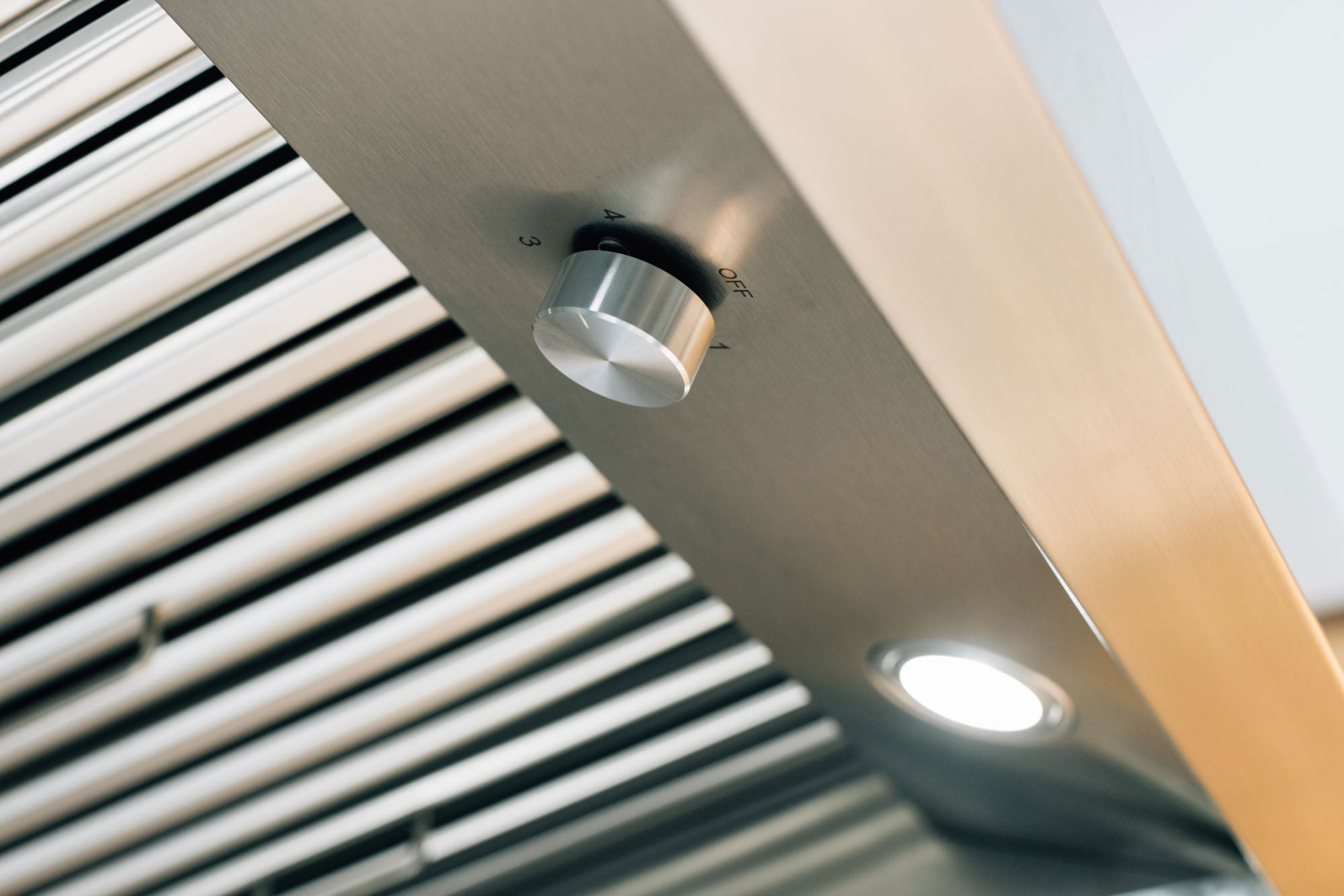

| Speeds | 4 (per listing); variable speed blower switch per manual |
| Sound level | 62 dB |
| Lighting | 4 LED lights, 3 W each |
| Filters | 4 baffle filters, 12 in. each |
| Ducting | Two 8 in. round ducts, top or rear venting |
| Electrical | 120 V, 60 Hz, 4 A (per Summerset vent hood manual) |
| Mounting height | 32 to 36 in. above the cooking surface |
Dimensions and Cutout
| Width | 48 in. |
|---|---|
| Depth and height | 30 in. D x 18 in. H per current listing; the Summerset manual lists 24-1/2 in. and 11-3/4 in. for the VH48-2, so confirm against the line drawing before framing |

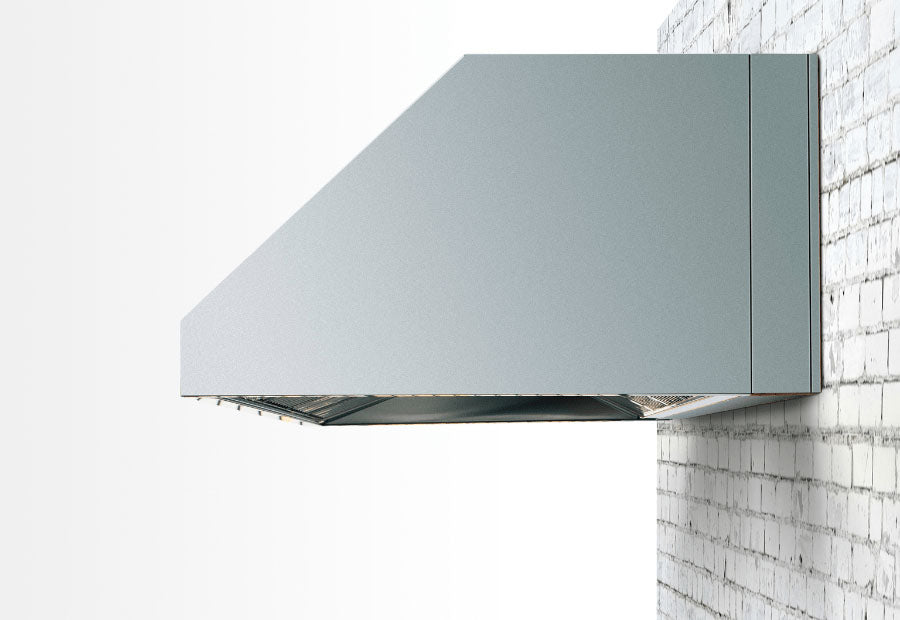

| Mounting | Wall mount; bottom of hood 32 to 36 in. above the cooking surface |
| Width rule | Mounted above 32 in., the hood should be at least 6 in. wider than the cooking appliance |
| Duct sizing | Two 8 in. round vent runs with the included transition collars |
Features
- 2,000 CFM from dual blowers
- Quiet 62 dB operation

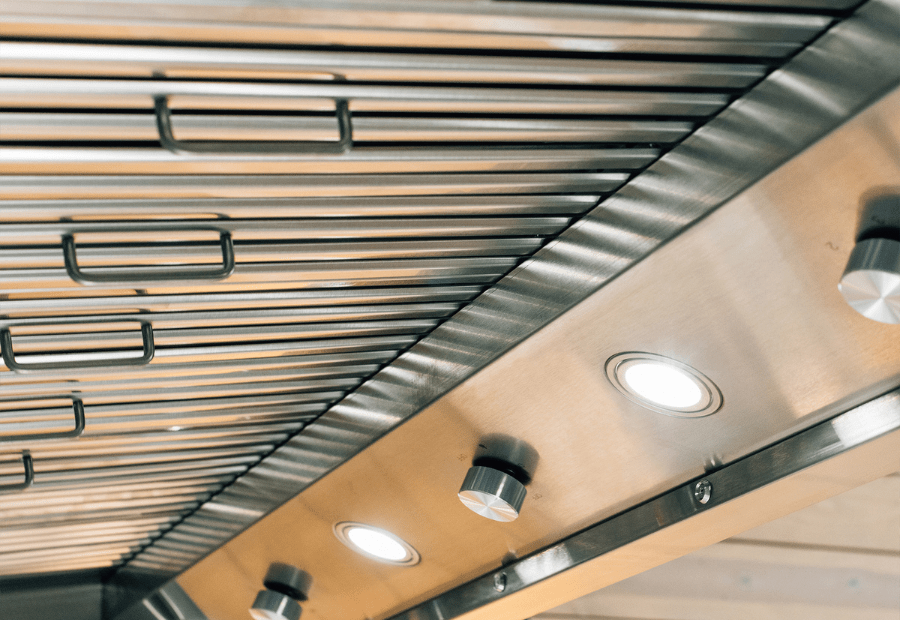

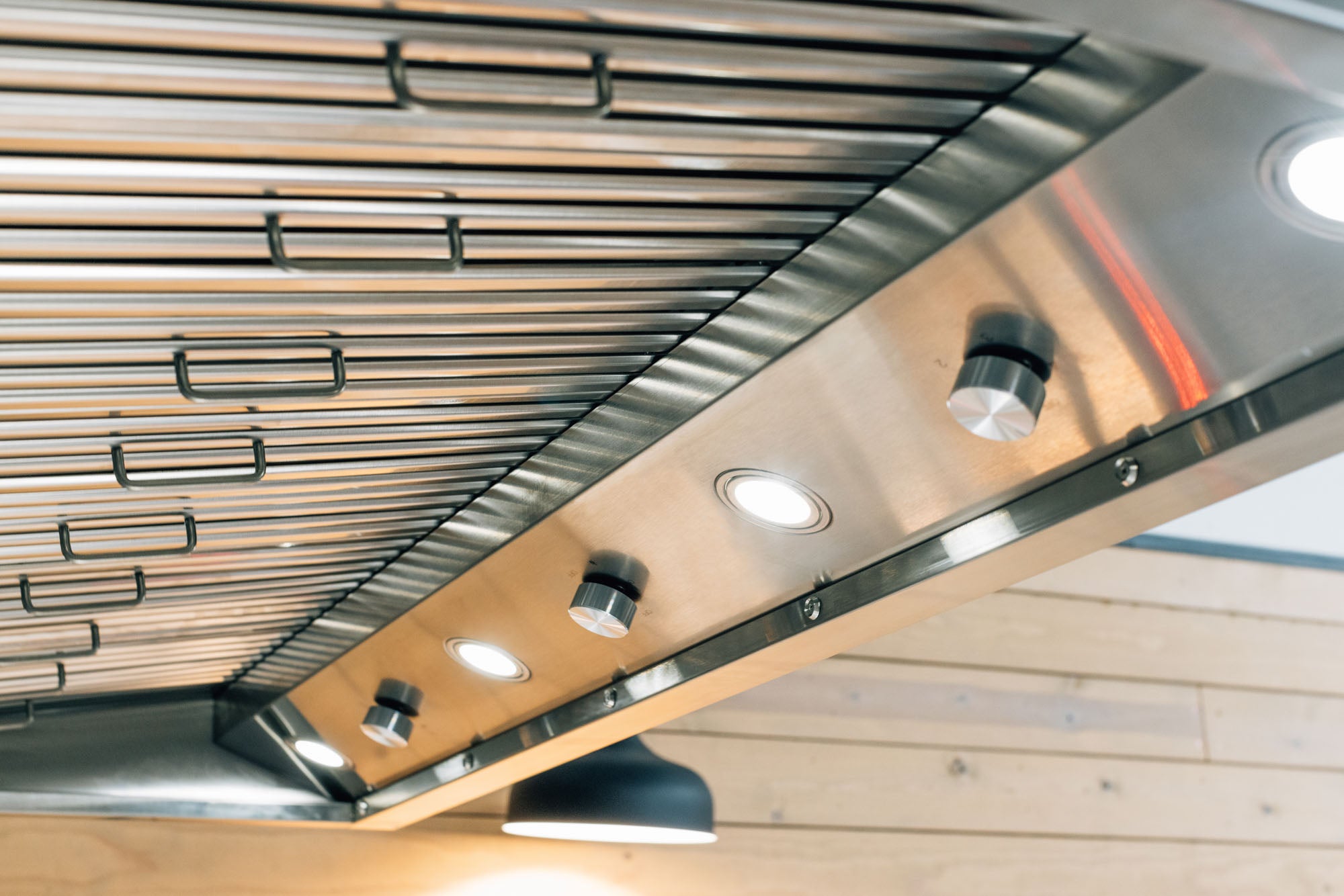

- Four LED lights over the cooking surface

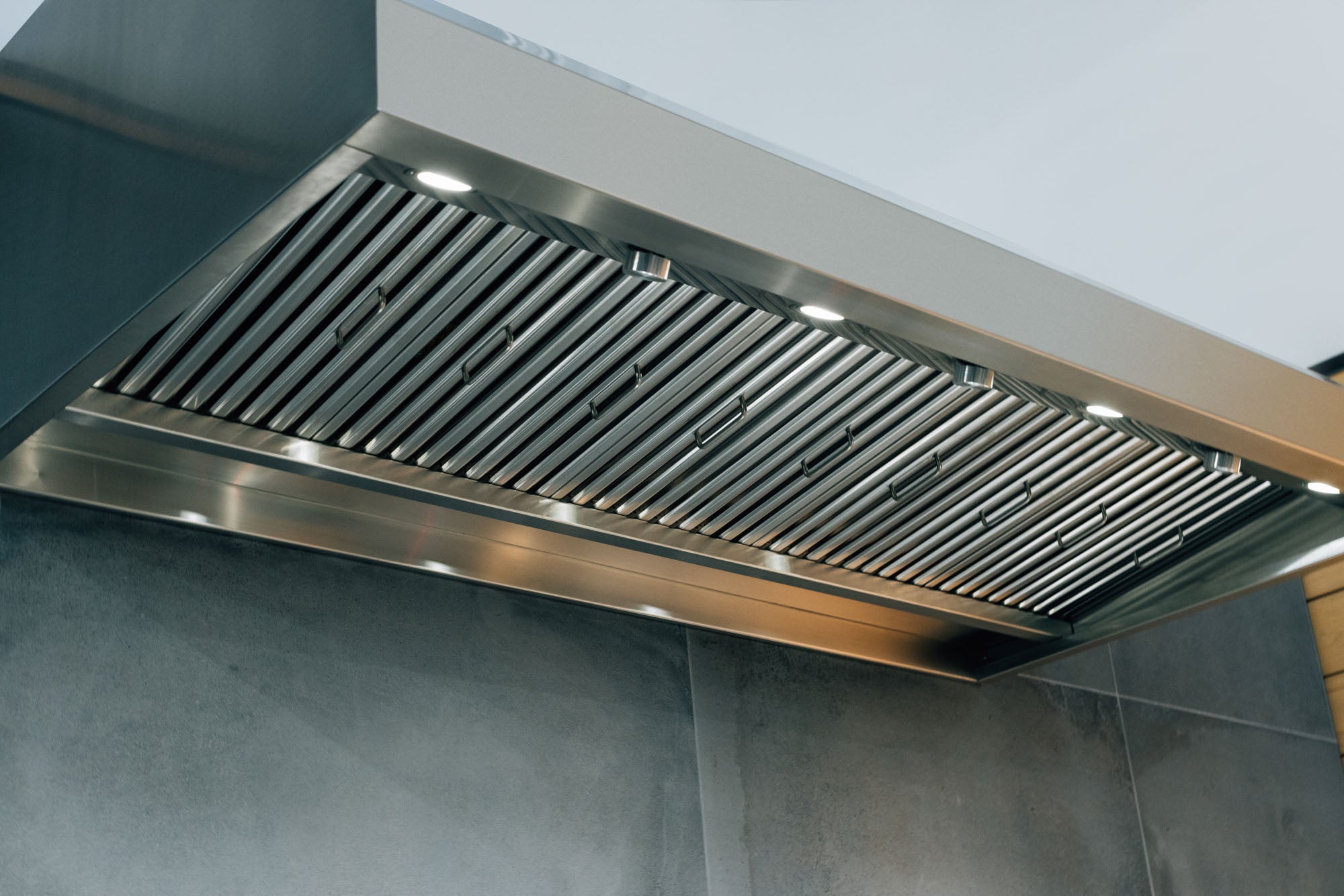

- Cleanable baffle filters
- Top or rear venting through two 8 in. ducts
- Stainless steel construction for outdoor use
- Optional 4 in. and 8 in. spacer brackets
What Is Included and What You Will Need
- Included: 48 in. vent hood with blowers, LED lights, baffle filters, two 8 in. transition collars, mounting bracket and owner's manual
- Choose the variant with no spacer, a 4 in. spacer bracket or an 8 in. spacer bracket
- Required: two 8 in. round duct runs and a 120 V supply, installed by licensed trades
- Optional: Summerset VH4272-DC 12-inch duct cover
Installation Notes
Plan the hood height before the grill: mounted above 32 in., Summerset says the hood should be at least 6 in. wider than the cooking appliance. Ducting, electrical and clearances must follow the Summerset manual and local code. In New York City, the 120 V wiring must be done by a licensed electrician and roof or wall penetrations may need building approval. Book a design consultation and we will size the hood and duct runs with you.
Documentation
Frequently Asked Questions
What size grill fits under a 48 in. hood?
Mounted above 32 in., the hood should be at least 6 in. wider than the grill, so up to about a 42 in. grill.
How high should it be mounted?
32 to 36 in. from the cooking surface to the bottom of the hood.
What ducting does it use?
Two 8 in. round duct runs, top or rear.
Do I need a hood outdoors?
Under a roof, pergola cover or other overhead construction, yes. See our guide below.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
Summerset backs this hood with its Gold Standard Lifetime Warranty, which Summerset describes as 100 percent non-prorated replacement parts. The current listing notes 3-year coverage on motors, lighting and wiring and requires registration with Summerset.
