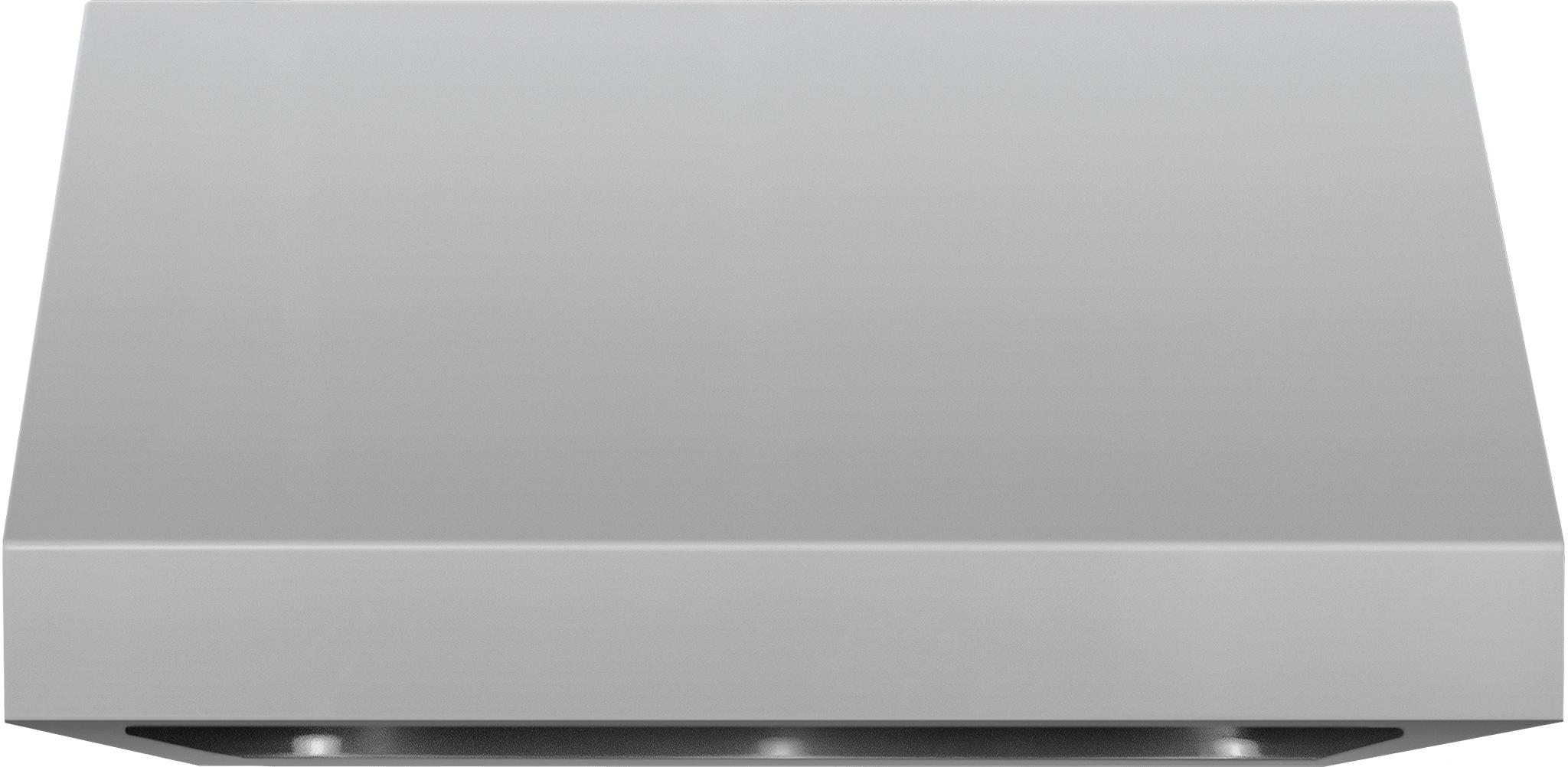

Summerset VH36-2 36-Inch 1,000 CFM Outdoor Vent Hood
Summerset VH36-2 36-Inch 1,000 CFM Outdoor Vent Hood - Without Spacer Bracket is backordered and will ship as soon as it is back in stock.
Description
Description
Explore other Summerset outdoor vent hood sizes: 36 inch (current size) | 42 inch | 48 inch | 60 inch
Overall Dimensions: 36 in. W x 30 in. D x 18 in. H

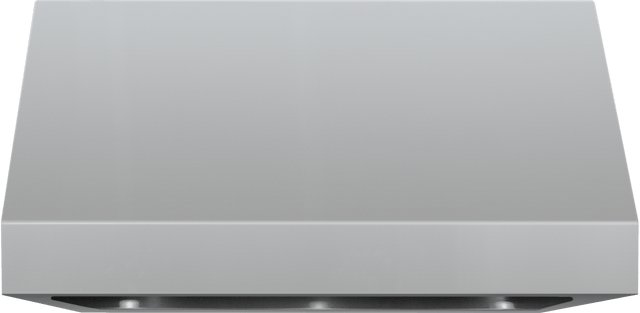

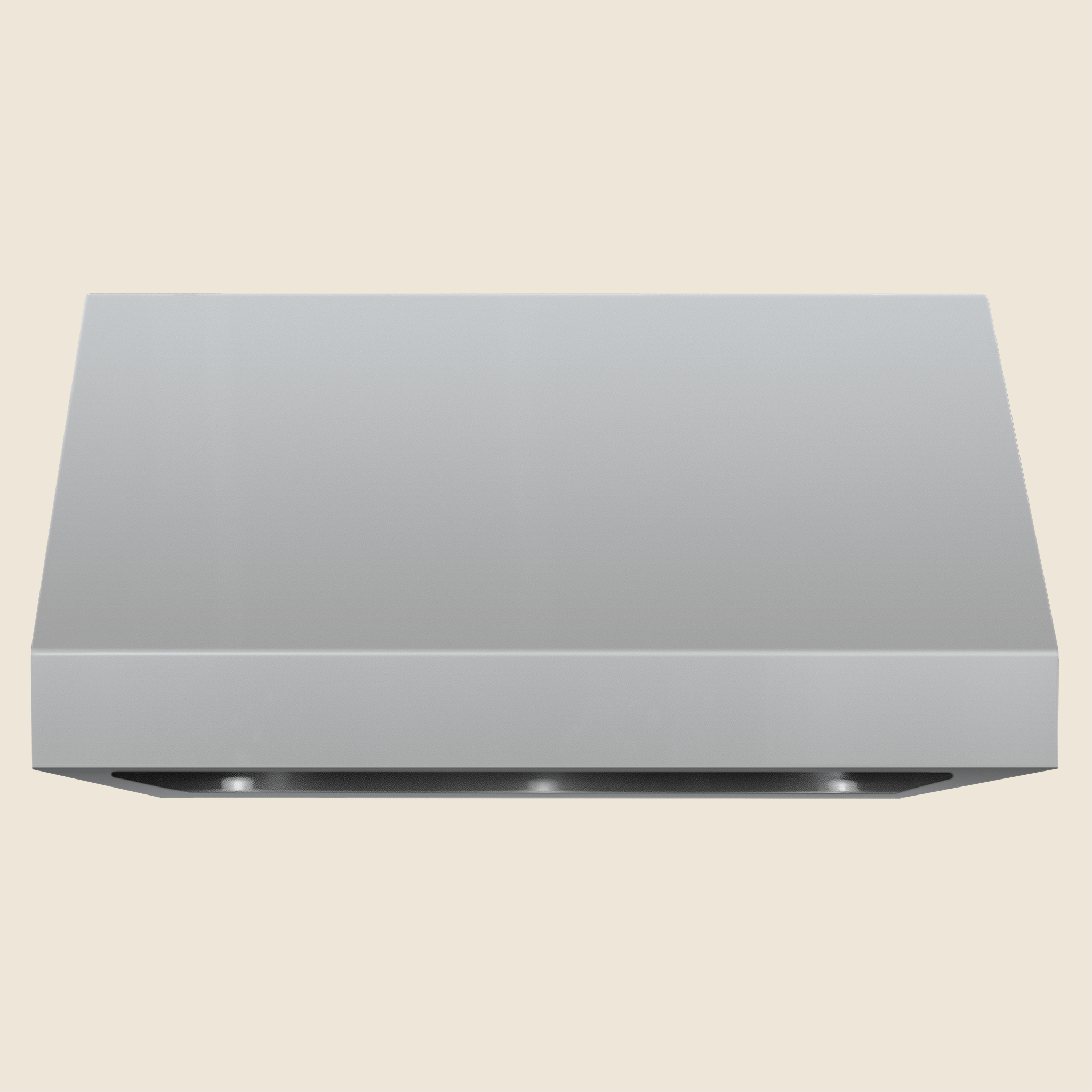

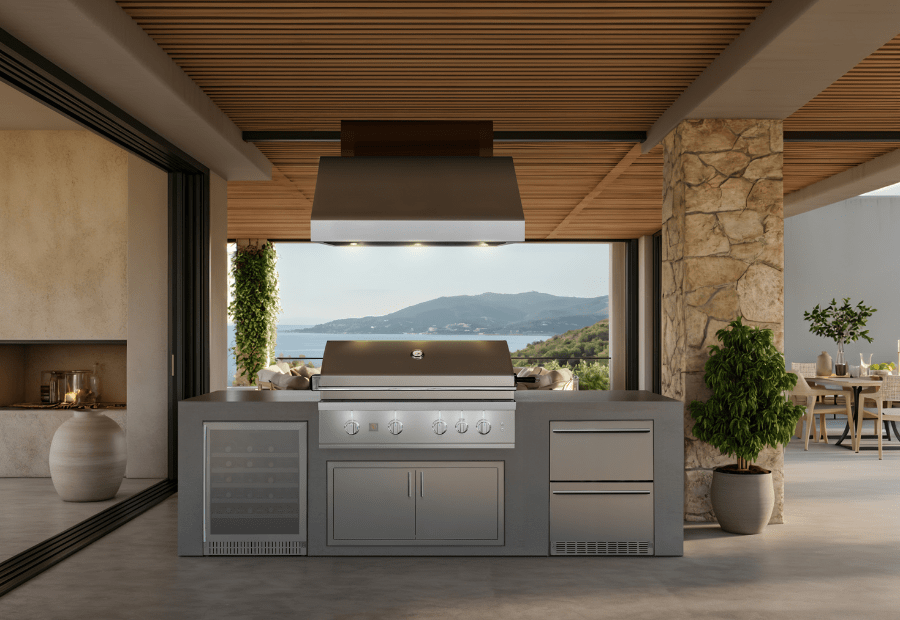

The Summerset VH36-2 is a 36 in. outdoor vent hood with a single 1,000 CFM centrifugal blower, sized for 30 in. to 36 in. grills under a pergola, pavilion or covered patio. Double-lined stainless steel and cleanable baffle filters are built for outdoor kitchens.
At 58 dB it is the quieter single-motor option in the AMD Direct line, with LED lighting and variable speed control. Mount it 32 to 36 in. above the cooking surface and duct it through the top or rear with 8 in. round pipe.
Key Specifications
| Model | VH36-2 |
|---|---|
| Type | 36 in. outdoor wall-mount vent hood, single motor |
| Airflow | 1,000 CFM, centrifugal blower |
| Electrical | 120V, 60 Hz, 246 W, 2 A |
| Noise | 58 dB |
| Lighting | LED, 3 W |
| Venting | Top or rear, one 8 in. round duct |
| Controls | Variable speed blower switch |
| Construction | Double-lined stainless steel with baffle filters, per current listing |
Dimensions and Cutout
| Hood (W x D x H) | 36 in. x 30 in. x 18 in. |
|---|---|
| Mounting height | 32 to 36 in. above the cooking surface |
| Width rule | At 32 to 36 in., the hood should be at least 6 in. wider than the grill |
| Ducting | 8 in. minimum round metal duct, no more than three 90 degree elbows, 24 in. straight between elbows |
Features

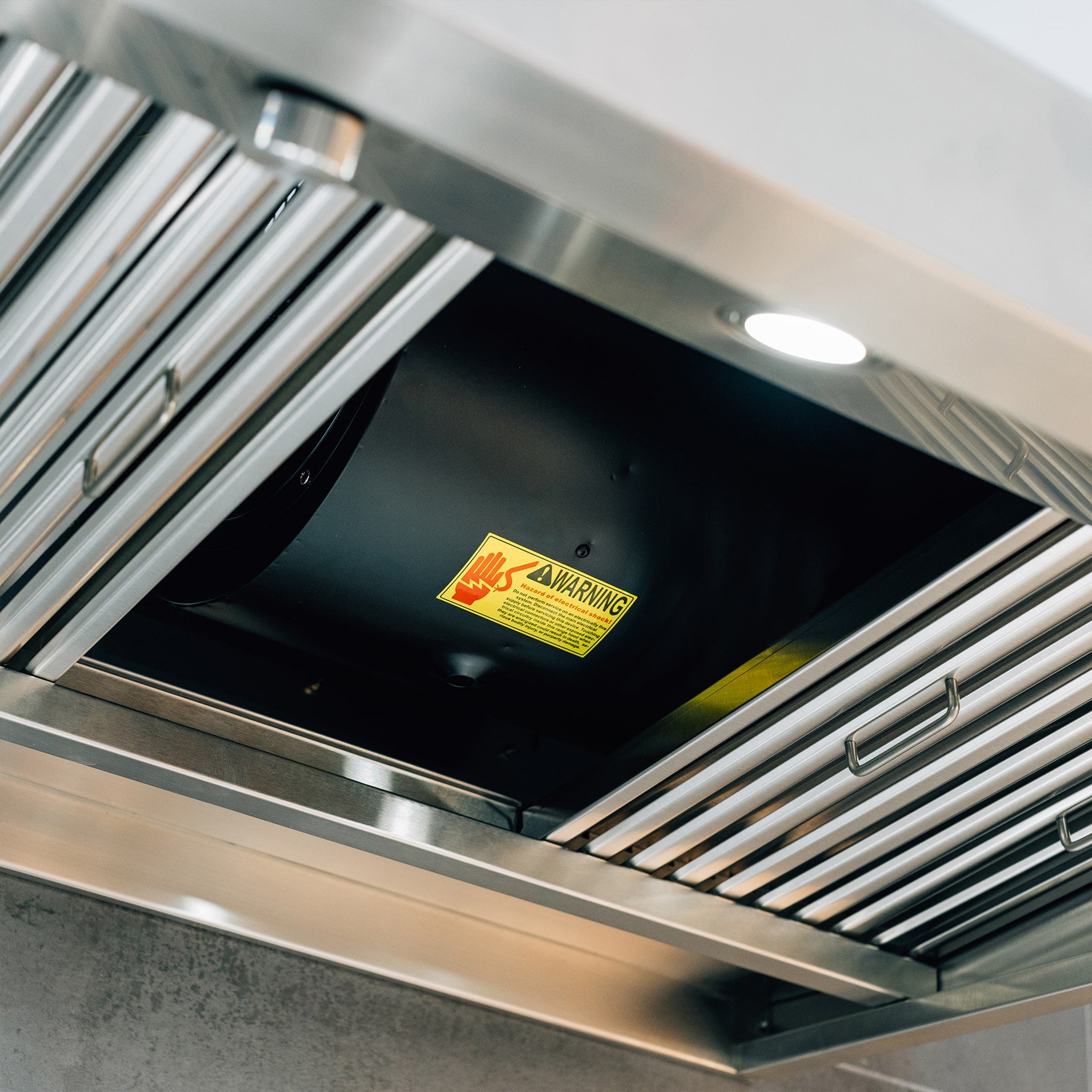

- 1,000 CFM single centrifugal blower
- 58 dB operation
- LED lighting

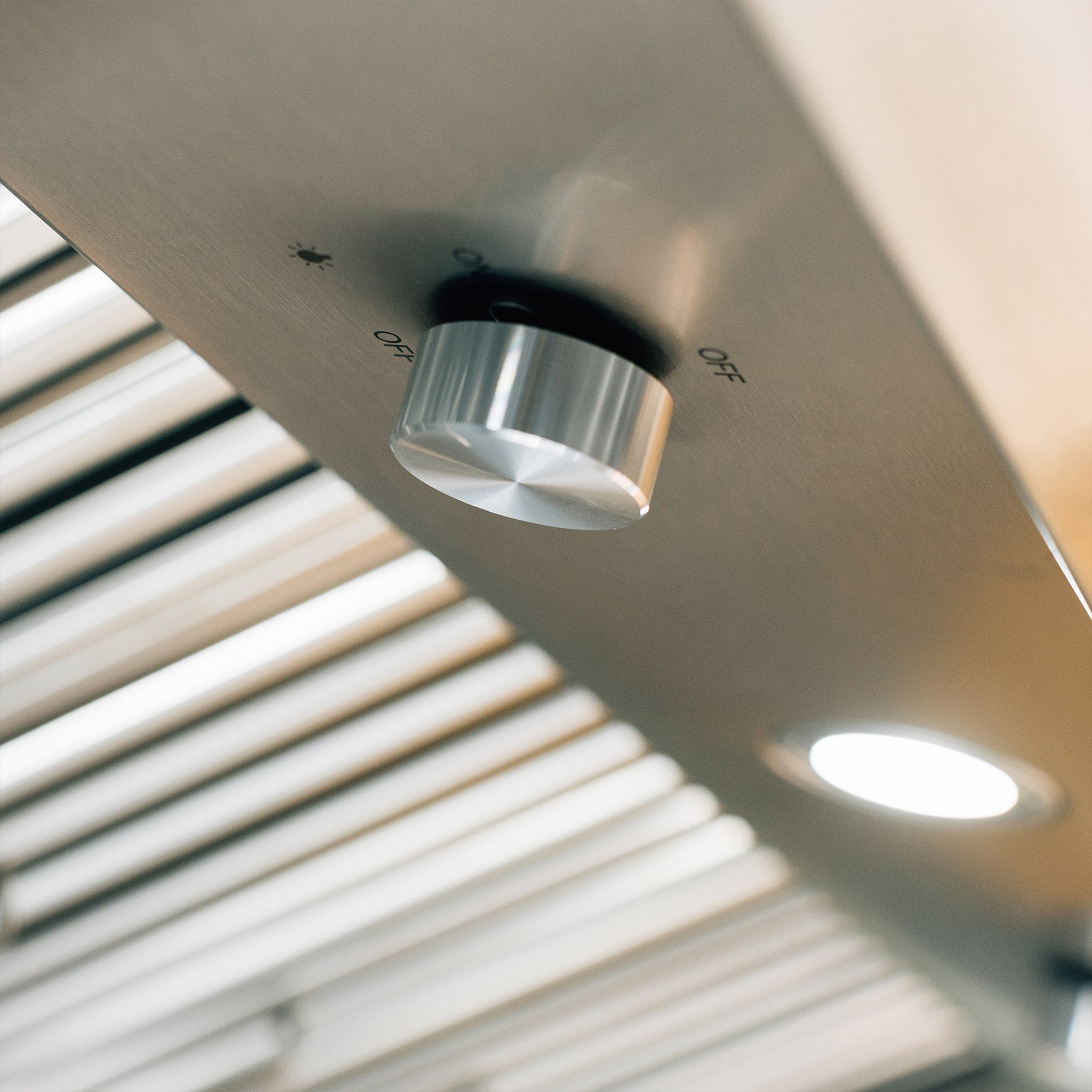

- Variable speed control
- Top or rear venting with one 8 in. duct
- Double-lined stainless steel construction, per current listing

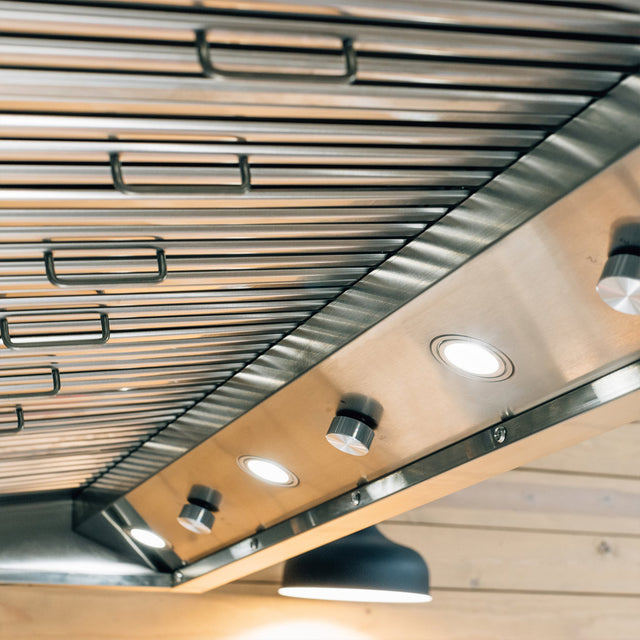

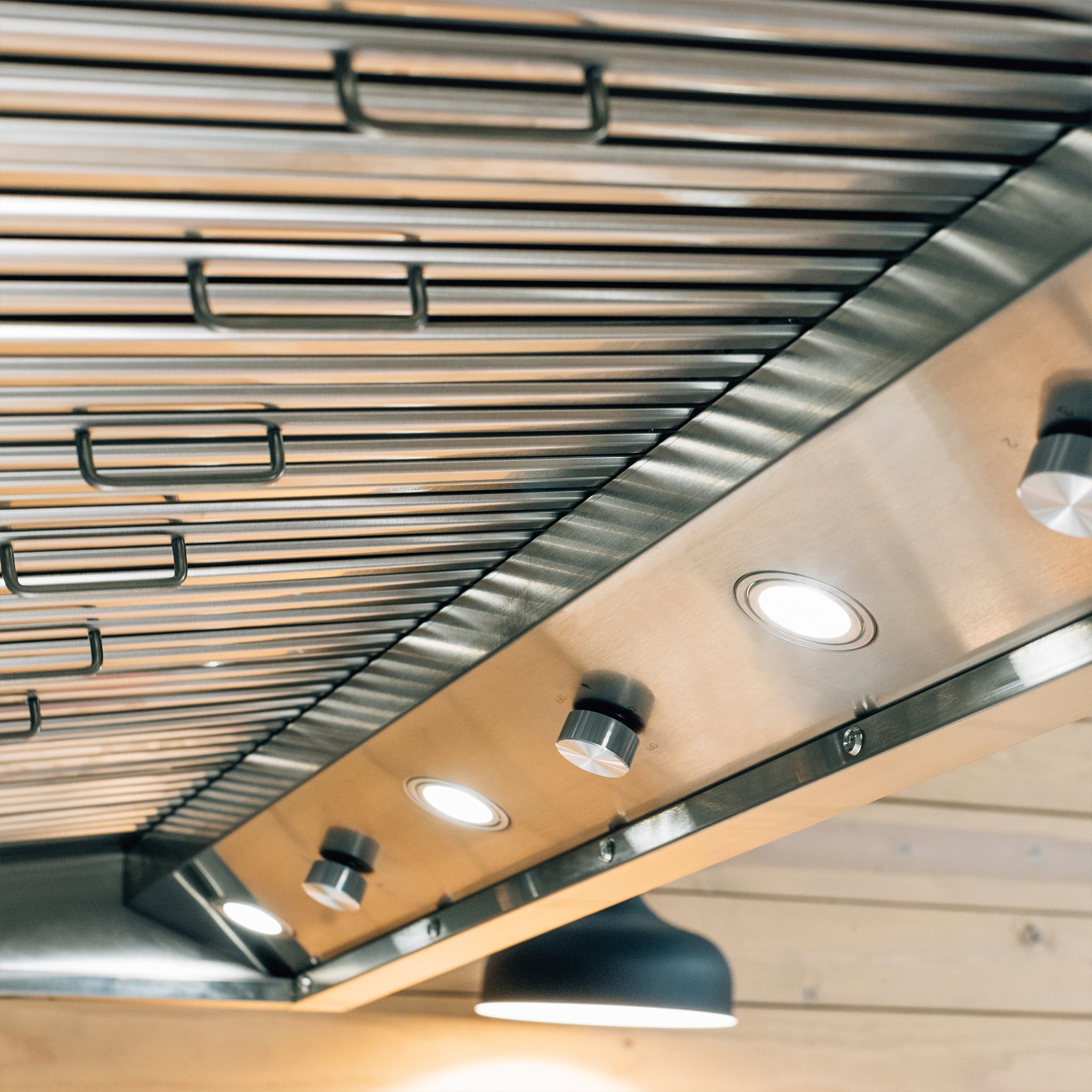

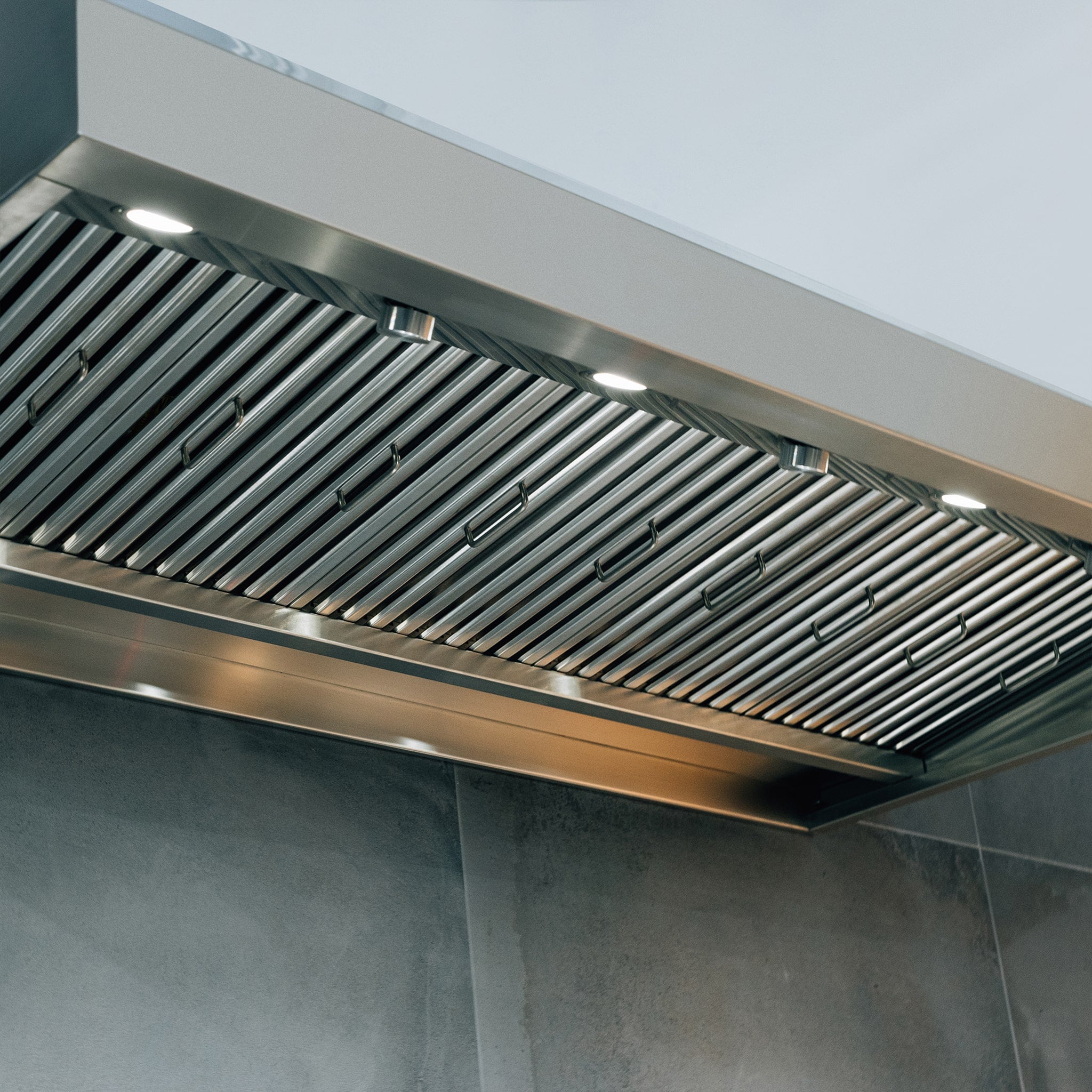

- Cleanable baffle filters
- Optional 4 in. or 8 in. spacer bracket and 12 in. duct cover
What Is Included and What You Will Need
- Included: vent hood with blower, filters and 1/2 in. mounting bracket, per current listing; filters are packed in a separate box inside the carton

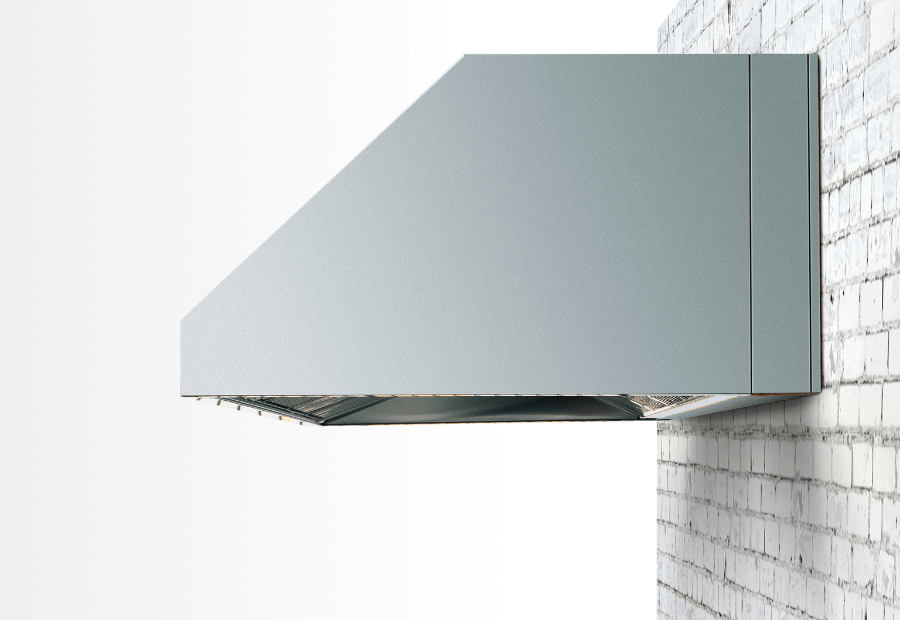

- Options above: 4 in. (VH36-2-SP4) or 8 in. (VH36-2-SP8) spacer bracket
- Optional: VH36-2-DC 12 in. duct cover
- Required: 8 in. rigid metal duct, an 8 in. roof or wall cap and a 120V circuit
Installation Notes
AMD recommends mounting the hood 32 to 36 in. above the grill's cooking surface and, at that height, at least 6 in. wider than the grill. Duct it with 8 in. rigid metal pipe, ideally vertically through the roof, with no more than three 90 degree elbows, no two elbows together and at least 24 in. of straight duct between them; never terminate in an attic or use plastic or 4 in. laundry caps. Secure it to studs or with toggle bolts. In New York City, a hood on a terrace or rooftop usually means new duct penetrations and electrical work, so building approval and a licensed electrician are part of the plan. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
- Owner's Manual
- Spacer Installation Guide
- Duct Cover Installation Guide
- Summerset Vent Hood Manual (2026)
Frequently Asked Questions
What size grill is it for?
Grills up to about 30 in. wide when mounted 32 to 36 in. up, since AMD wants the hood at least 6 in. wider than the grill; a 36 in. grill is best served by a wider hood.
How high should it be mounted?
32 to 36 in. above the cooking surface, per the AMD Direct vent hood manual.
What duct does it need?
One 8 in. round rigid metal duct, top or rear, with an 8 in. roof or wall cap.
What does the warranty cover?
AMD Direct covers vent hood stainless steel construction for 5 years and blowers, LED lighting, wiring and switches for 3 years, replacement parts only.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
AMD Direct vent hood warranty, per the AMD Direct warranty: 5 years on all stainless steel construction and 3 years on blowers, LED lighting, wiring harness and switches. Coverage is for the original purchaser at the original delivery site, requires online registration within 30 days of purchase, covers replacement parts only (no labor), and excludes discoloration, surface rust and corrosion.
