Summerset VH60-3 60-Inch 2,000 CFM Outdoor Vent Hood
Summerset VH60-3 60-Inch 2,000 CFM Outdoor Vent Hood - Without Spacer Bracket is backordered and will ship as soon as it is back in stock.
Description
Description
Explore other Summerset outdoor vent hood sizes: 36 inch | 42 inch | 48 inch | 60 inch (current size)
Overall Dimensions: 60 in. W (depth and height per current listing: 30 in. D x 18 in. H)

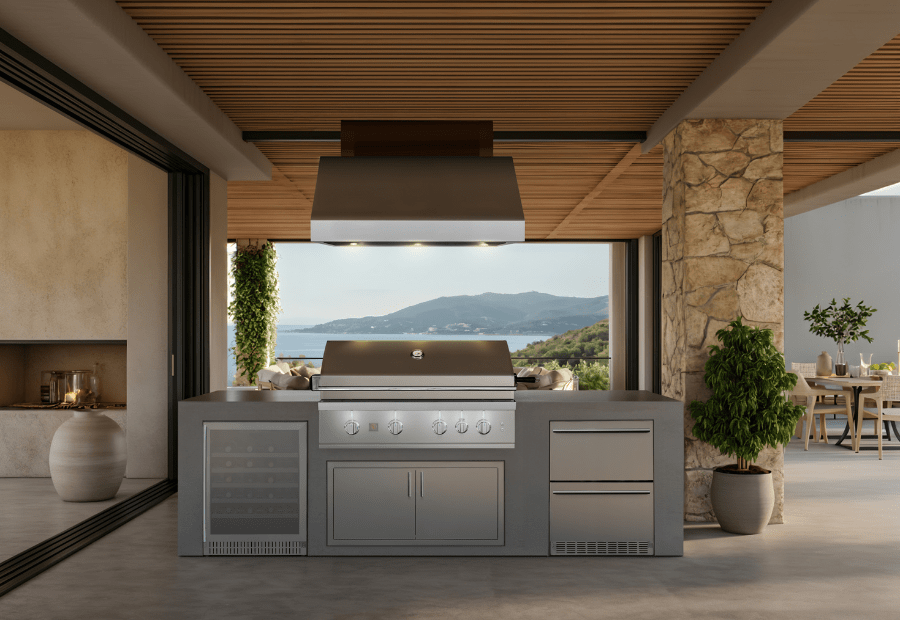

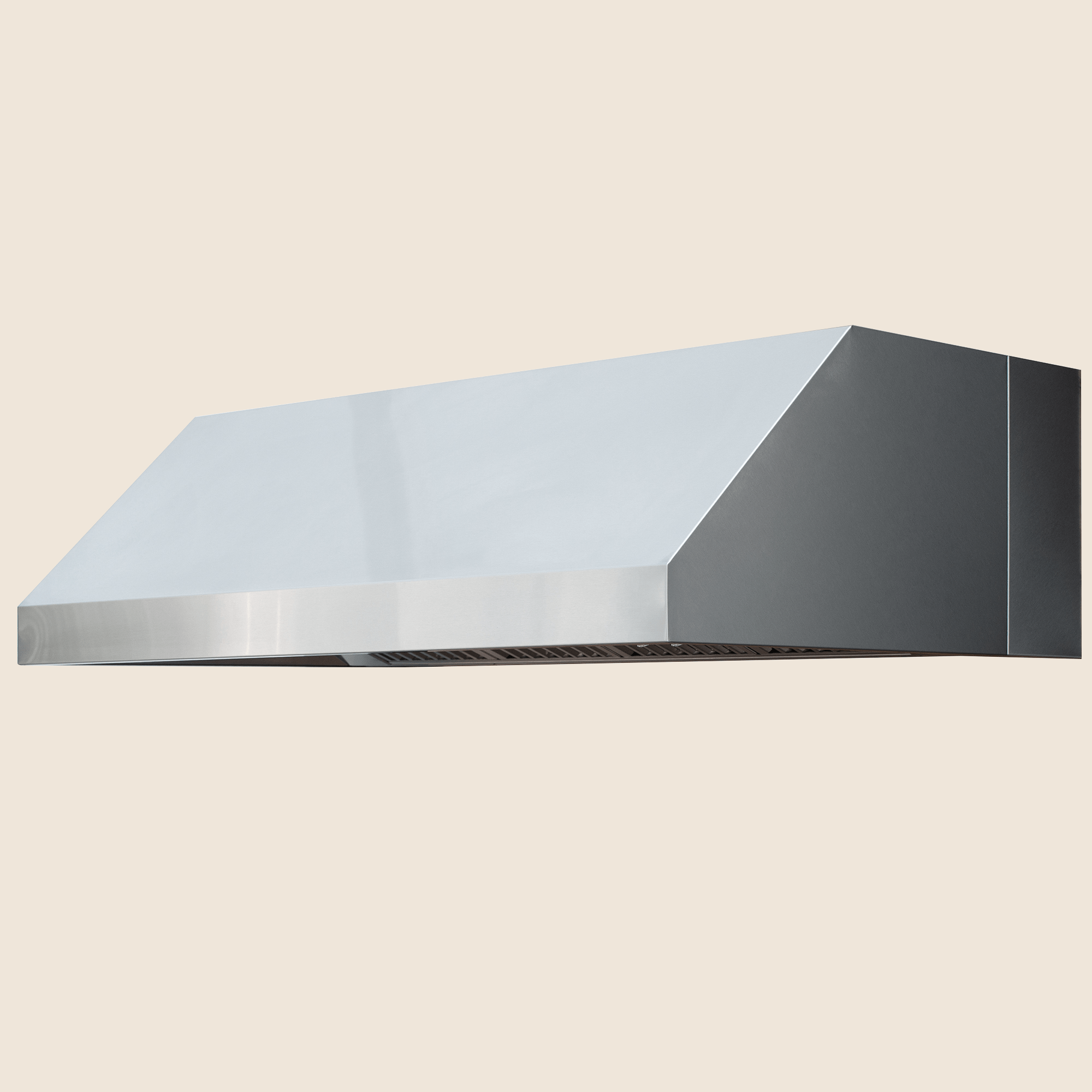

The Summerset VH60-3 is a 60 inch outdoor rated vent hood for covered outdoor kitchens. Two internal blowers move 2,000 CFM across four speeds at 62 dB, so smoke, heat and grease are pulled out from over a grill plus side burner or griddle. It is built for pergolas, pavilions and covered patios where a full-width grill line needs real ventilation.
Key Specifications
| Model | VH60-3 |
| Width | 60 in. |
| Airflow | 2,000 CFM from dual blowers (two 1,000 CFM centrifugal blowers per the Summerset manual) |
| Speeds | 4 |
| Sound level | 62 dB |
| Lighting | 4 LED lights |

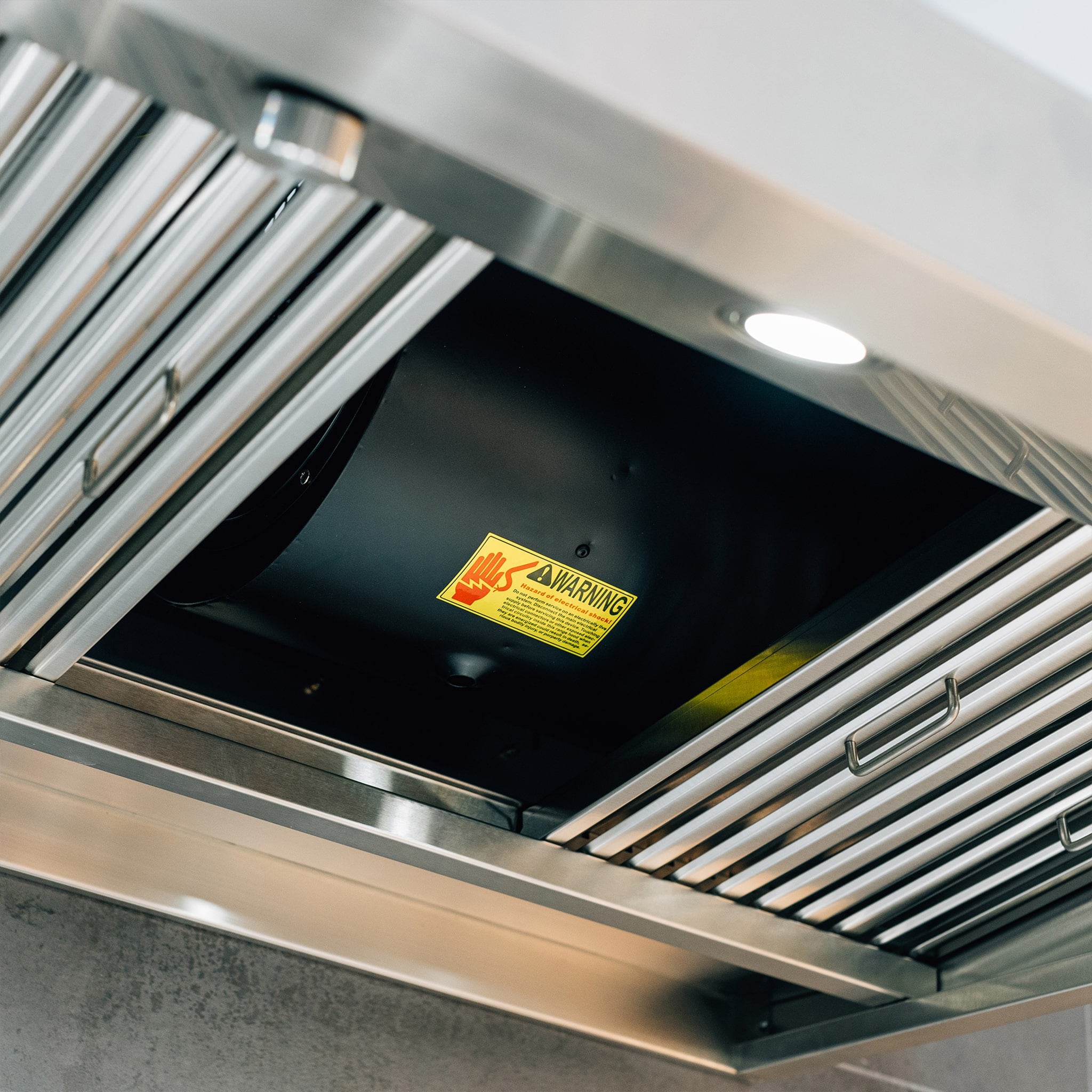

| Filters | Commercial-grade baffle filters |
| Ducting | Two 8 in. round ducts, top or rear venting |
| Electrical | 120V / 60 Hz, 4 A (per Summerset vent hood manual) |
| Material | Stainless steel (Summerset lists #443 construction with a #304 finish) |
| Mounting height | 32 to 36 in. above the cooking surface (per manual) |
Dimensions and Cutout
| Width | 60 in. |
| Depth and height | 30 in. D x 18 in. H per current listing; the Summerset manual lists 30-1/4 in. and 14-7/8 in. for the VH60-2, so confirm against the line drawings before framing |
| Mounting | Wall mount with included mounting bracket; the bottom of the hood sits 32 to 36 in. above the cooking surface |
| Duct sizing | Two 8 in. round vent runs; Summerset recommends a minimum 8 in. round vent |
Features
- 2,000 CFM from dual blowers
- Four speed settings
- Quiet 62 dB operation

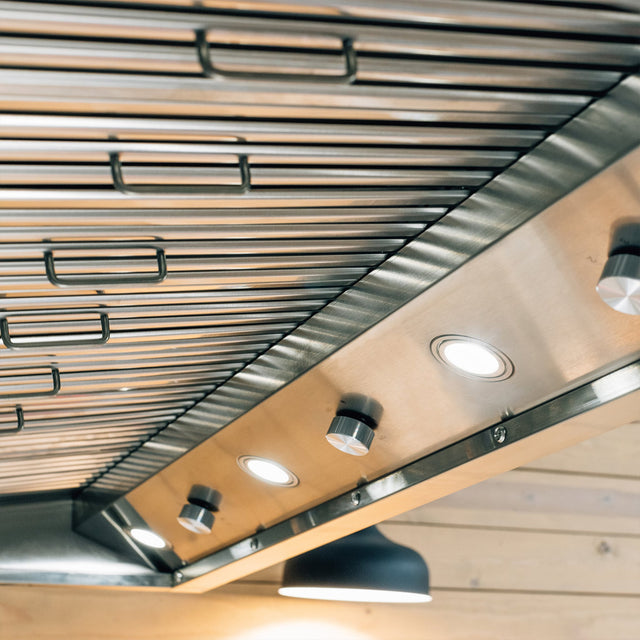

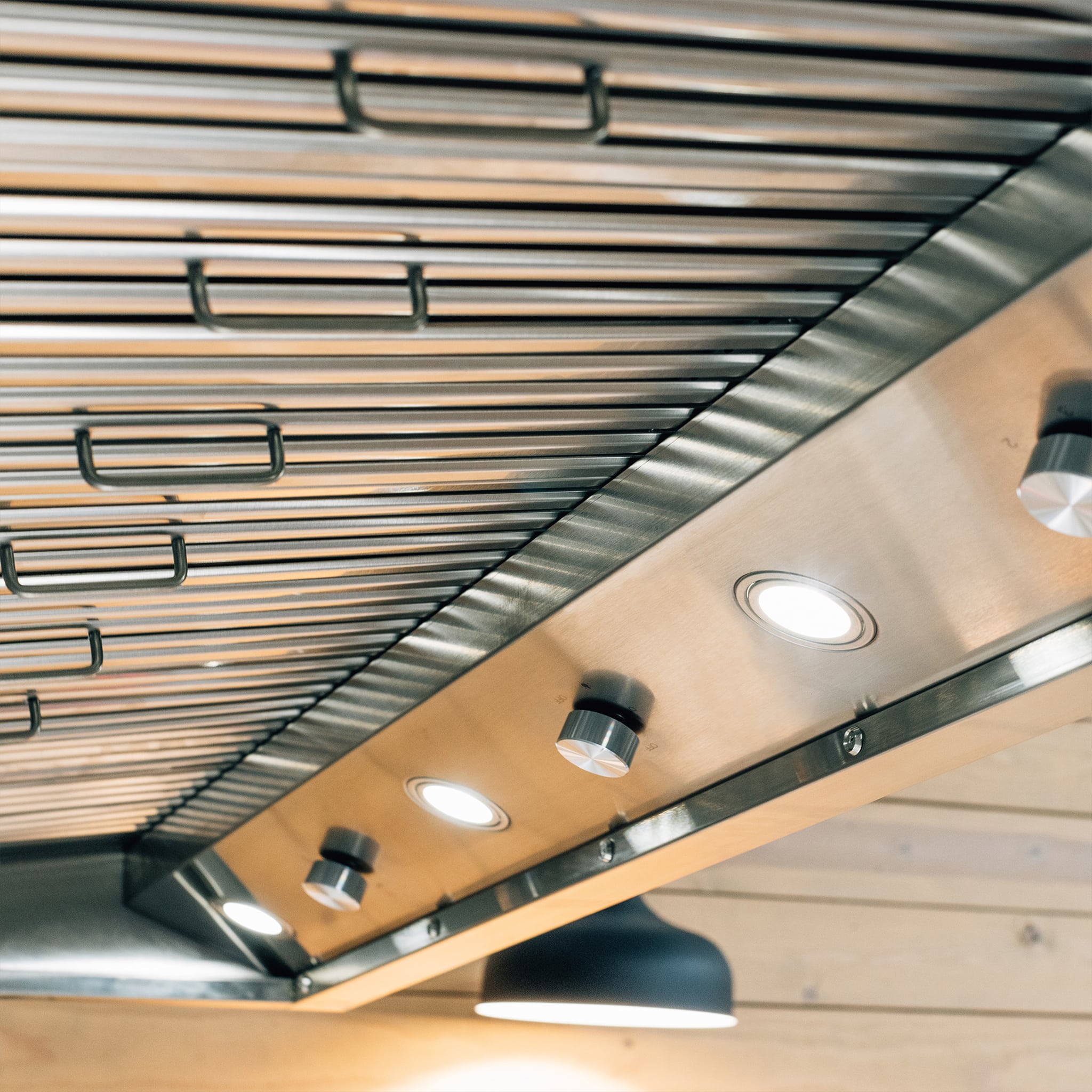

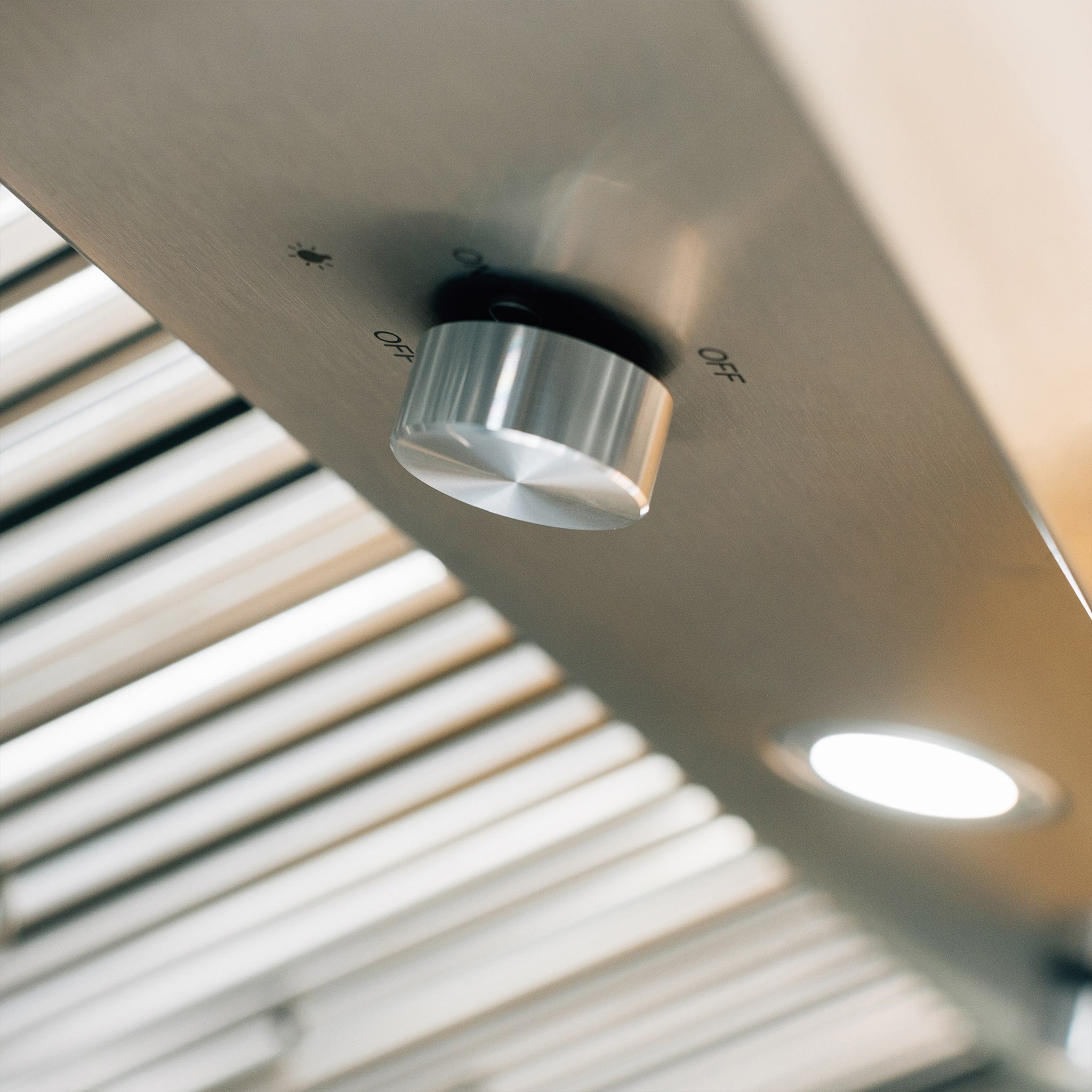

- Four LED lights over the cooking surface

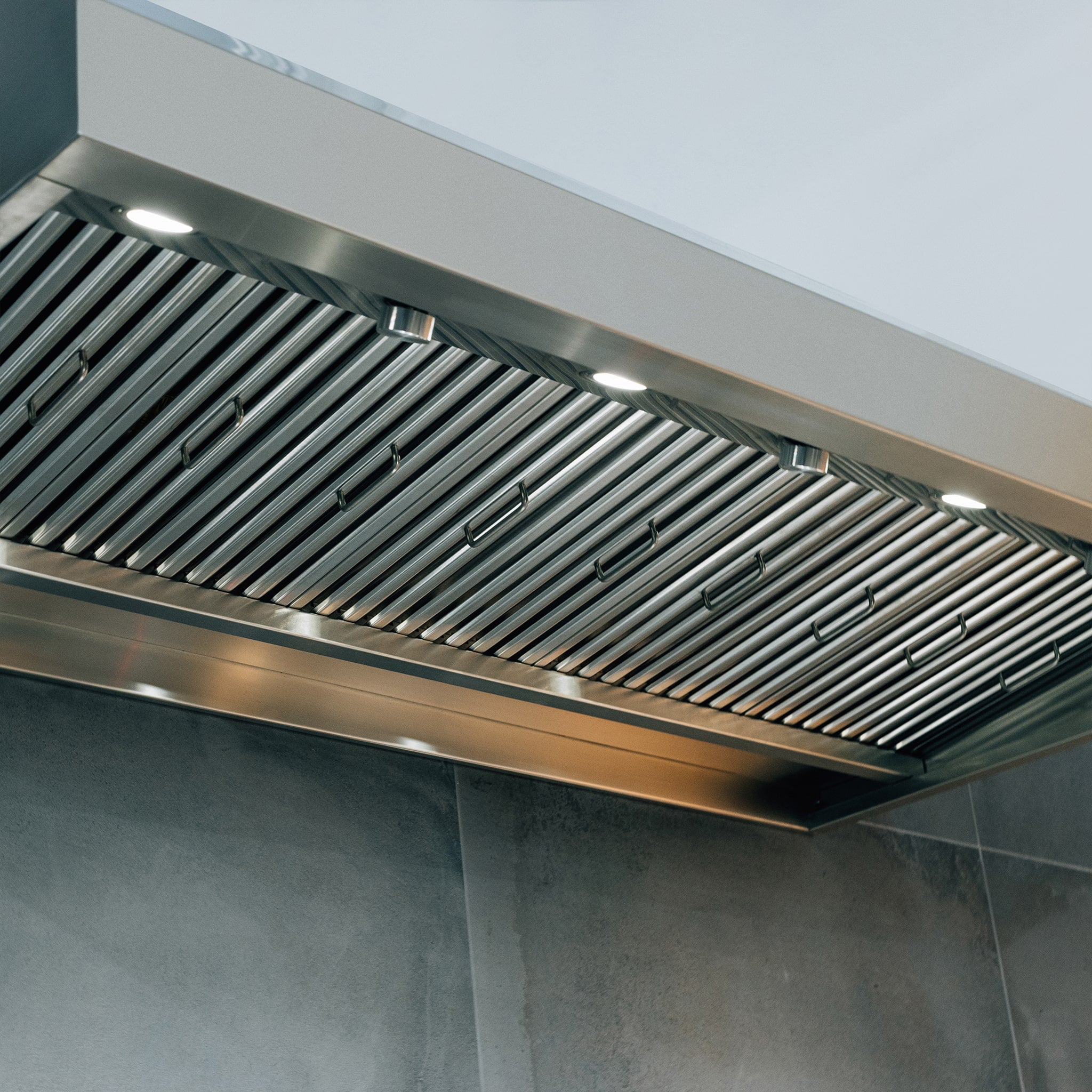

- Cleanable commercial-grade baffle filters
- Top or rear venting

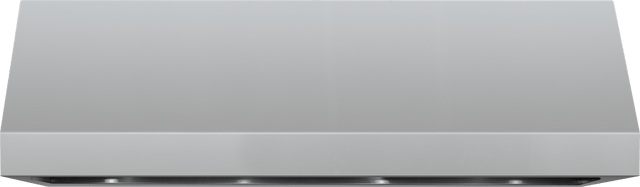

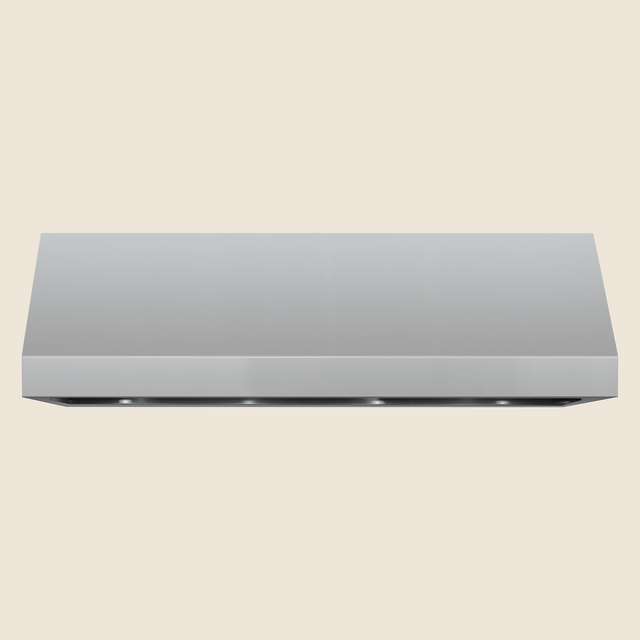

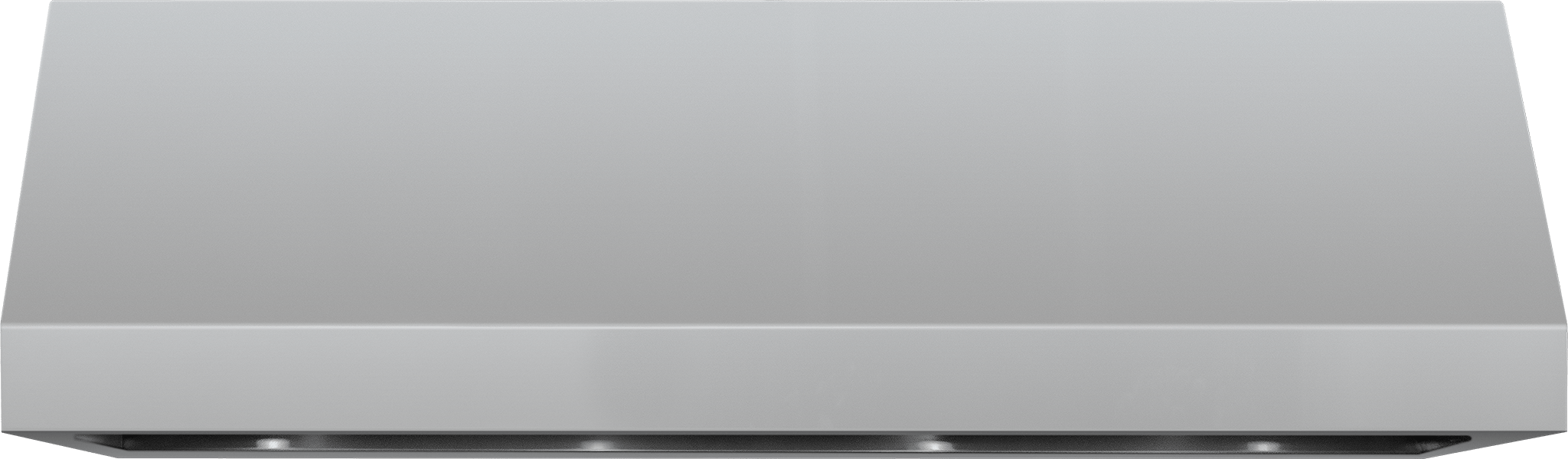

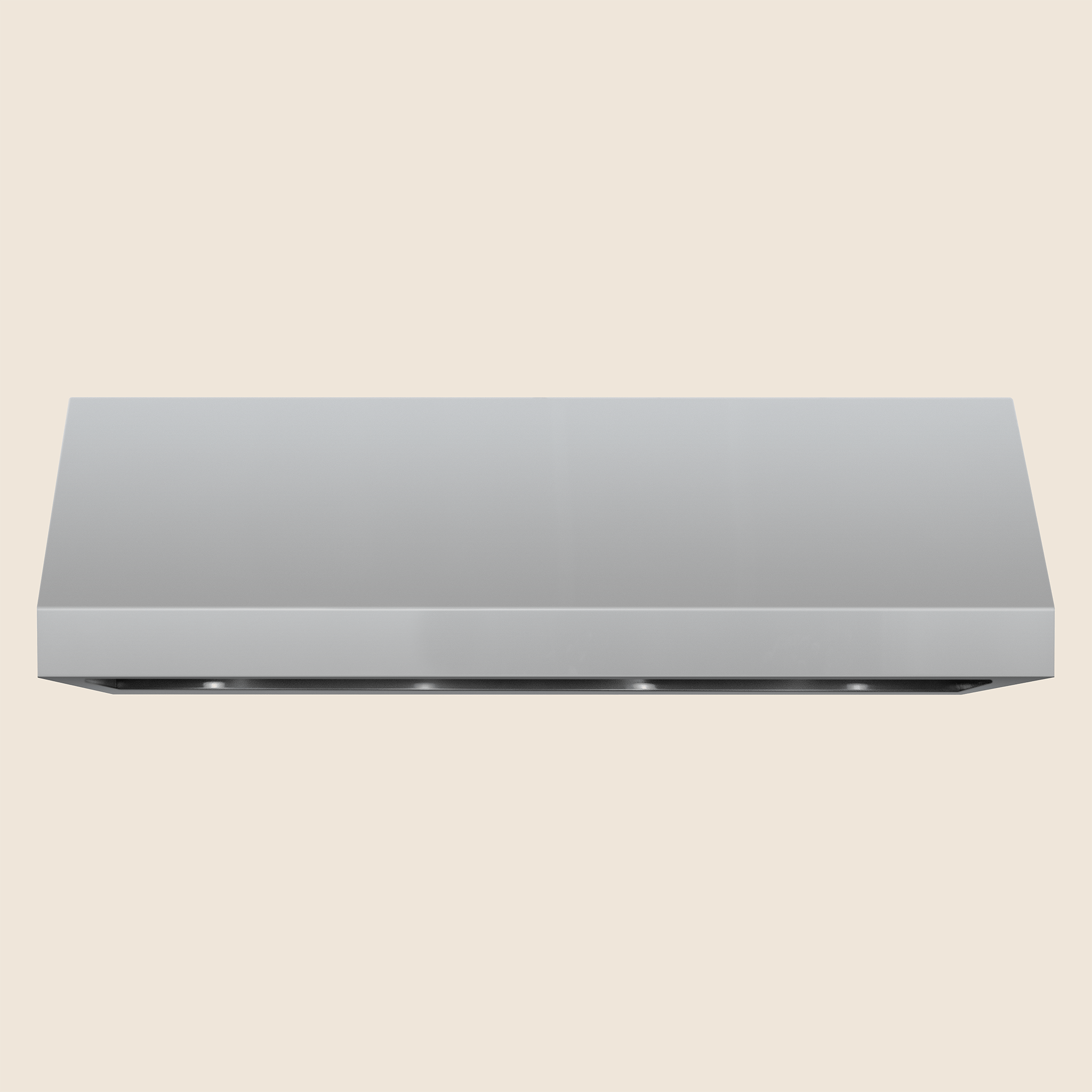

- Stainless steel construction for outdoor use
- Optional 4 in. and 8 in. spacer brackets for added mounting height
What Is Included and What You Will Need
- Included: 60 in. vent hood with blowers, LED lights, baffle filters, mounting bracket and owner's manual
- Choose the variant with no spacer, a 4 in. spacer bracket or an 8 in. spacer bracket
- Required: two 8 in. round duct runs and a 120V electrical supply, installed by licensed trades
- Optional: Summerset VH4272-DC 12-Inch Duct Cover for 42 to 72-Inch Vent Hoods
Installation Notes
Plan the hood height before the grill: if the hood is mounted above 32 in., Summerset says it should be at least 6 in. wider than the cooking appliance. Ducting, electrical and clearances to combustibles must follow the Summerset manual and local code. In New York City, the 120V wiring must be done by a licensed electrician. Our team can help you plan the layout in a design consultation.
Documentation
- Owner's Manual
- Spacer Installation Guide
- Duct Cover Installation Guide
- Summerset 60 in. Outdoor Rated Vent Hood product page
Frequently Asked Questions
Do I need a vent hood over an outdoor grill?
On a covered patio or under a pergola, yes, because smoke and heat otherwise collect under the roof. See our guide linked below.
How high should it be mounted?
Summerset's manual calls for the bottom of the hood to sit 32 to 36 in. above the cooking surface. The spacer bracket options add mounting height.
What size ducting does it use?
It uses two 8 in. round duct runs, with top or rear venting.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
Summerset backs this hood with its Gold Standard Lifetime Warranty, which Summerset describes as 100 percent non-prorated replacement parts. Review the Summerset warranty and registration terms for full details.
