Trade-Wind | 54″ 2300 CFM Outdoor Vent Hood with Blower Included
Trade-Wind | 54″ 2300 CFM Outdoor Vent Hood with Blower Included - No / No is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 54 in. W x 32 in. D x 24 in. H, per Trade-Wind S7200CD spec sheet

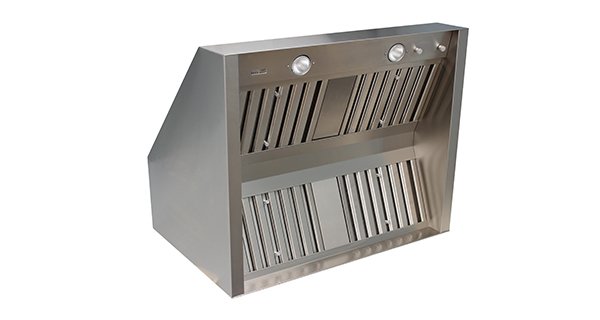

The Trade-Wind S725423CD is a 54 inch smooth-front outdoor BBQ grill hood from the S7200CD series with two internal blowers rated 2300 CFM combined. Its 32 in. depth covers the grill front to back, a double bank of stainless baffle filters catches grease, and the discharge converts from top to rear for horizontal ducting through a wall.
It suits a 42 to 48 inch grill or a grill and side burner run under a covered patio, and it is built in Phoenix, Arizona.
Key Specifications
| Model | S725423CD (S7200CD series) |
|---|---|
| Width | 54 in. |
| Blower | Two internal blowers, 2300 CFM combined, 3-speed control |
| Duct collar | 2 x 10 in. round; top discharge, convertible to rear |
| Lights | 3 dimmable 50 W halogen |

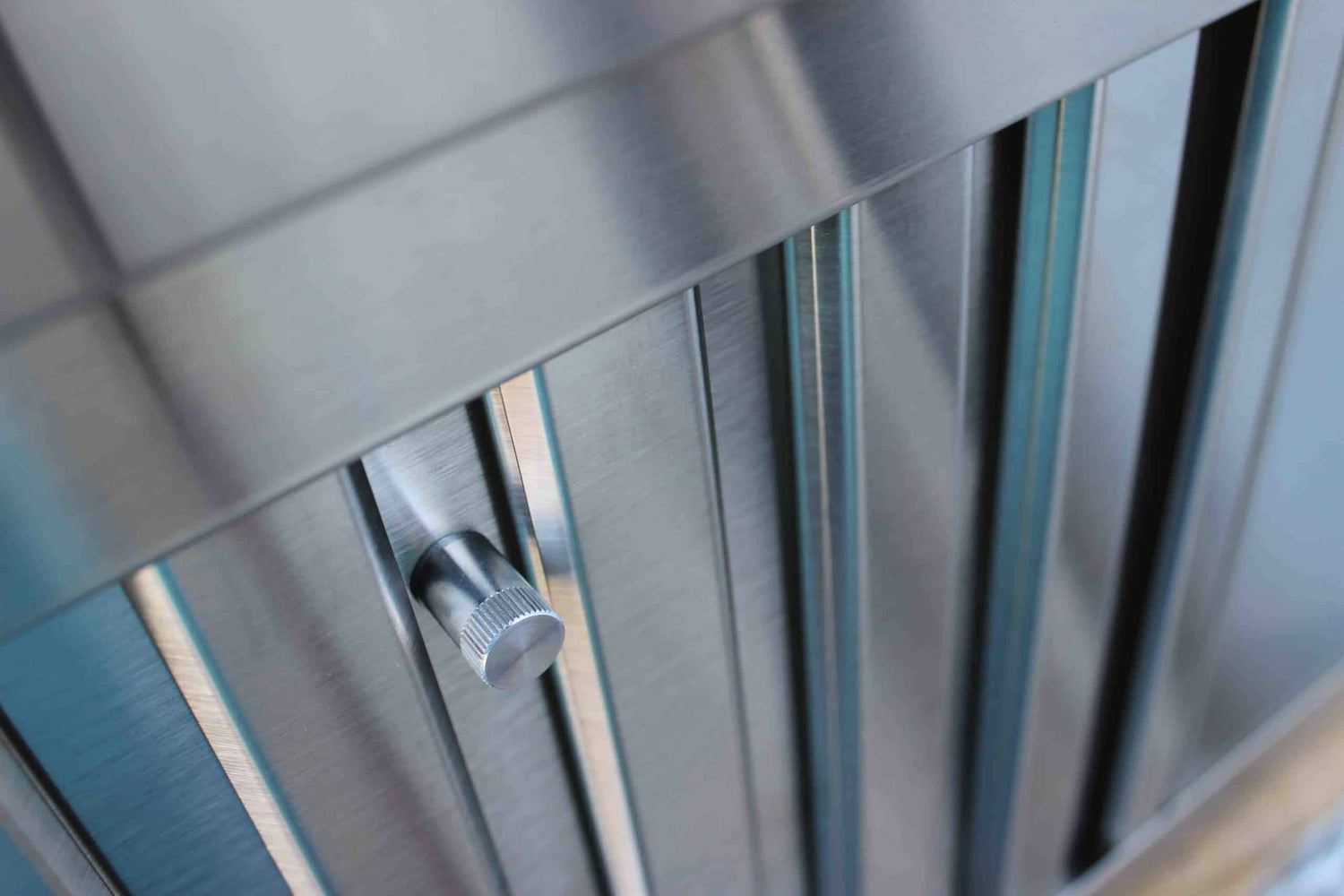

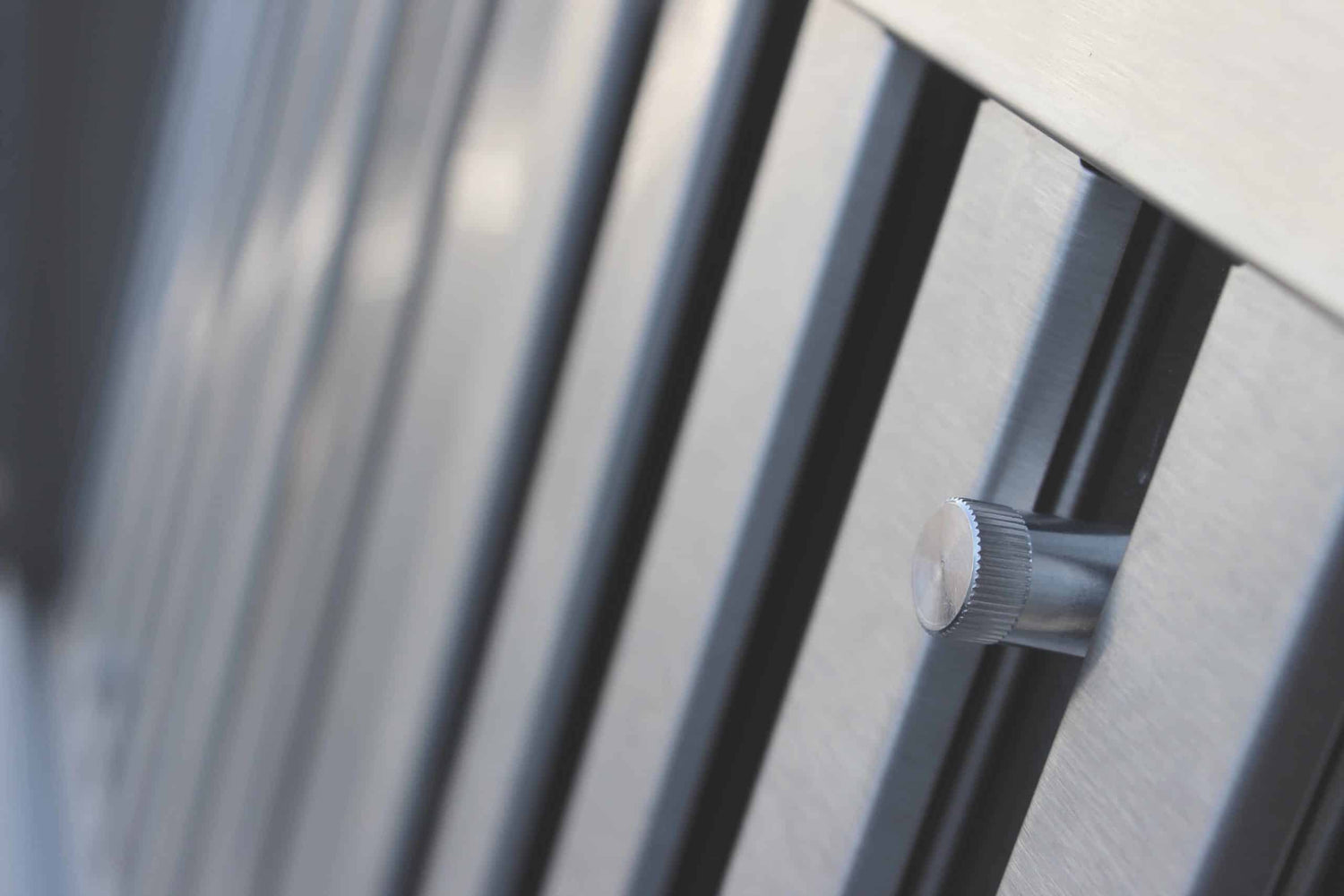

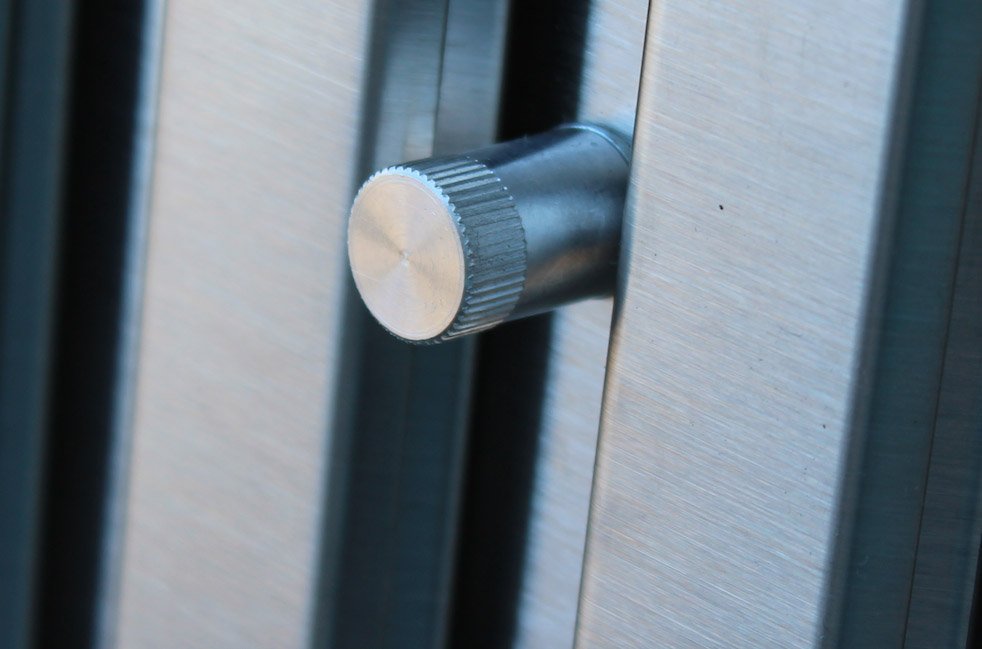

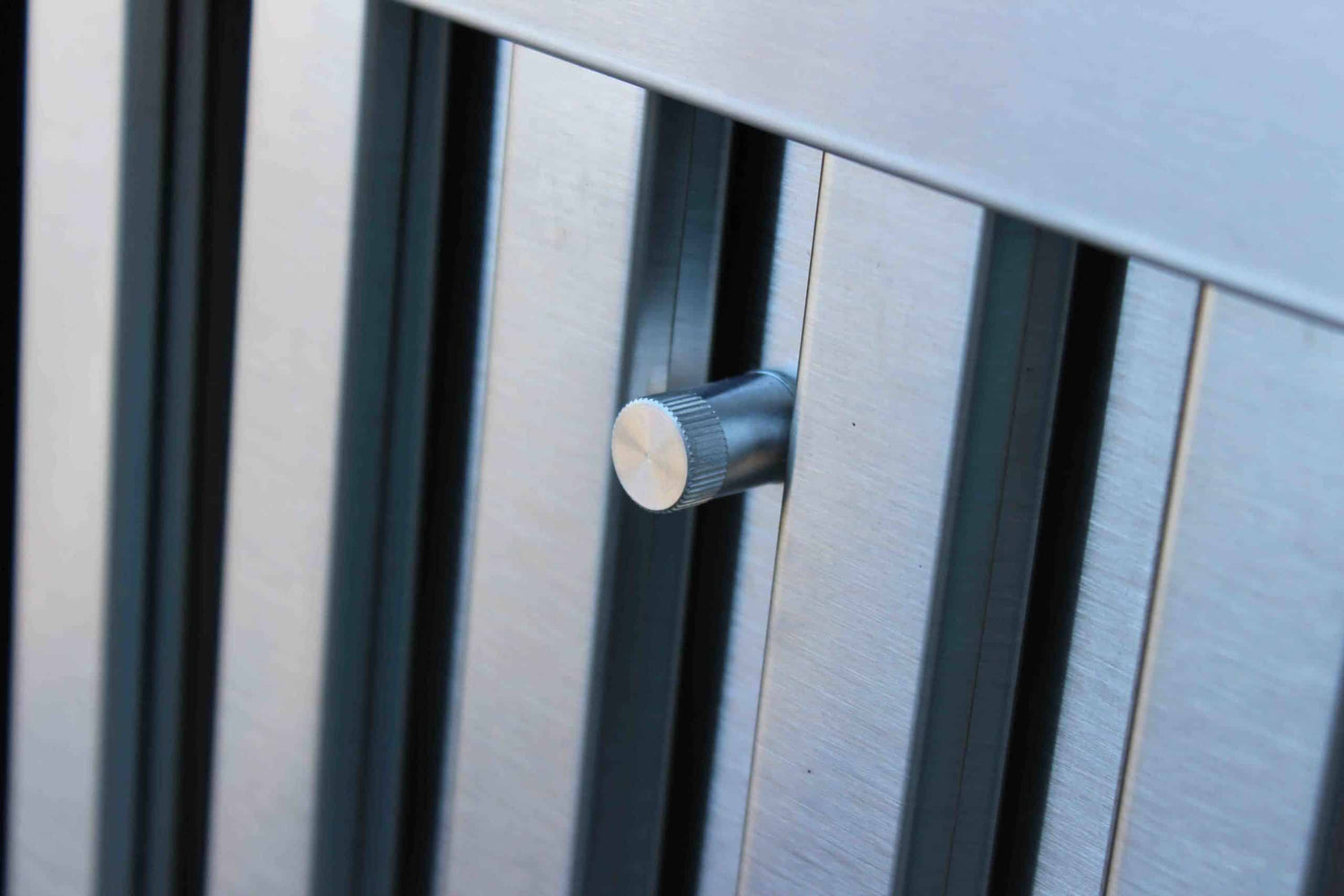

| Filters | Double bank of dishwasher-safe stainless baffle filters |
| Construction | #304 stainless steel and galvanized steel |
| Electrical | 120 V, 60 Hz individual grounded branch circuit on a 15 or 20 A breaker; GFCI protection recommended |
Dimensions and Cutout
| Hood (W x D x H) | 54 in. x 32 in. x 24 in. |
|---|---|
| Mounting height | 36 in. from cooking surface to the bottom of the canopy structure |

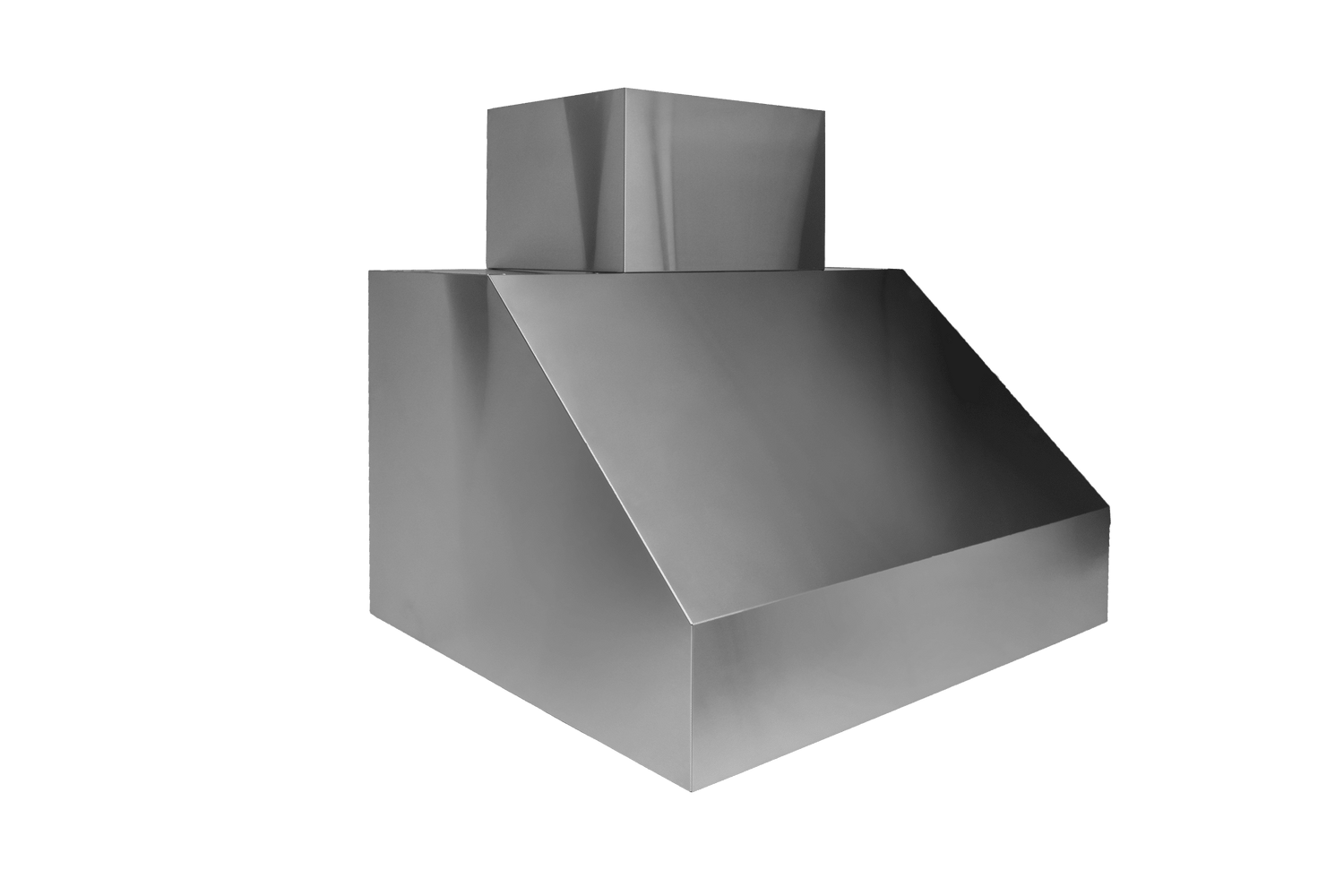

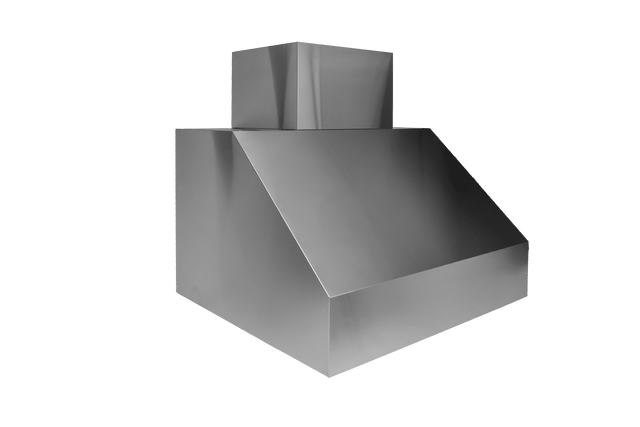

| Duct covers | Optional DC7201D for 9 to 10 ft ceilings or DC7200D for 10 to 12 ft ceilings (selectable above) |
| Weather protection | Minimum 3 ft of weatherproof roof coverage on unprotected sides |
Features
- 2300 CFM from two internal blowers
- 32 in. depth for full front-to-back grill coverage
- Top or rear discharge for vertical or horizontal ducting
- Double bank of dishwasher-safe baffle filters
- Three dimmable 50 W halogen lights
- 3-speed blower control
- Made in Phoenix, Arizona
What Is Included and What You Will Need
- Included: S725423CD hood with two internal blowers, baffle filters and halogen light fixtures
- Required: two 10 in. rigid metal ducts to an approved roof or wall cap (no flex duct, no damper), a dedicated 120 V circuit, a covered outdoor location
- Optional: DC7201D or DC7200D duct cover (selectable above)
Installation Notes
Mount the hood to solid framing 36 in. above the cooking surface and run two 10 in. rigid metal ducts as short and straight as possible to the outdoors, following the S7200CD installation instructions. Trade-Wind requires at least 3 ft of weatherproof roof coverage on every side not protected by an adjacent wall and no back-draft damper in a BBQ application. In New York City, exhaust ducting through roofs or walls often needs building approval, so confirm the duct route early. Book a free outdoor kitchen design consultation and we will help you plan the layout, utilities and installation.
Documentation
- Spec Sheet
- Install and User Guide
- S7200CD Series Specification Sheet (current)
- S7200CD Series Installation Instructions (current)
Frequently Asked Questions
Is the blower included?
Yes. The S725423CD has two internal blowers rated 2300 CFM combined. The S7254CD is the remote-blower version.
How high should it be mounted?
Trade-Wind specifies 36 in. from the cooking surface to the canopy structure.
Can it vent out the back?
Yes. The discharge converts from top to rear for horizontal ducting.
Can I use a damper or flex duct?
No. Trade-Wind says not to use any damper or flex duct in a BBQ hood installation.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
Trade-Wind warrants its ventilation products to the original user against defects in materials and workmanship for 3 years from the date of purchase. Light bulbs and faulty installation are not covered.
