Trade-Wind | 66″ 2300 CFM Outdoor Vent Hood with Blower
Trade-Wind | 66″ 2300 CFM Outdoor Vent Hood with Blower - Without Cover is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 66 in W x 32 in D x 24 in H

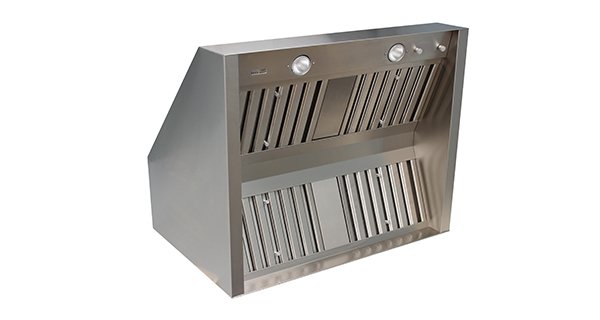

The Trade-Wind S726623CD is a 66 in smooth front, convertible discharge BBQ vent hood with two internal blowers, so no separate blower purchase is needed. It is made for covered outdoor kitchens and grill islands that need strong capture over a wide grill. Commercial grade 304 stainless steel and a 32 in front to back capture area make it a durable fit for built-in grill lines.
Key Specifications
| Model | S726623CD (S7200CD Series) |
|---|---|
| Airflow | 2300 CFM |
| Blower | Two internal blowers with 3-speed control |
| Lighting | 4 dimmable 50 watt halogen lights |
| Filters | 4 stainless steel baffle filters, dishwasher safe |
| Duct Collar | 2 x 10 in |
| Material | Commercial grade stainless steel (304) and galvanized steel |
| Electrical | 120V, 60 Hz, individual grounded branch circuit on a 15 or 20 amp breaker, GFCI protected; two 6.0 amp 3-speed fan controls |
| Weight | 168 lbs (per current listing) |
Dimensions and Cutout
| Overall | 66 in W x 32 in D x 24 in H (nominal, plus or minus 1/8 in) |
|---|---|
| Discharge | Convertible between top and rear discharge |
| Duct Covers | Optional telescopic duct covers for 9 to 10 ft ceilings (DC7201D) and 10 to 12 ft ceilings (DC7200D) |
| Mounting Height | Manufacturer recommends 36 in above the cooking surface. A custom canopy, combustible or non-combustible, should also sit 36 in above the cooking surface. Always follow local code. |
Features
- Two internal blowers with 3-speed control, rated 2300 CFM
- Straight-sided smooth front hood, 32 in front to back and 24 in tall
- Double bank of stainless steel baffle filters with easy-grip handles

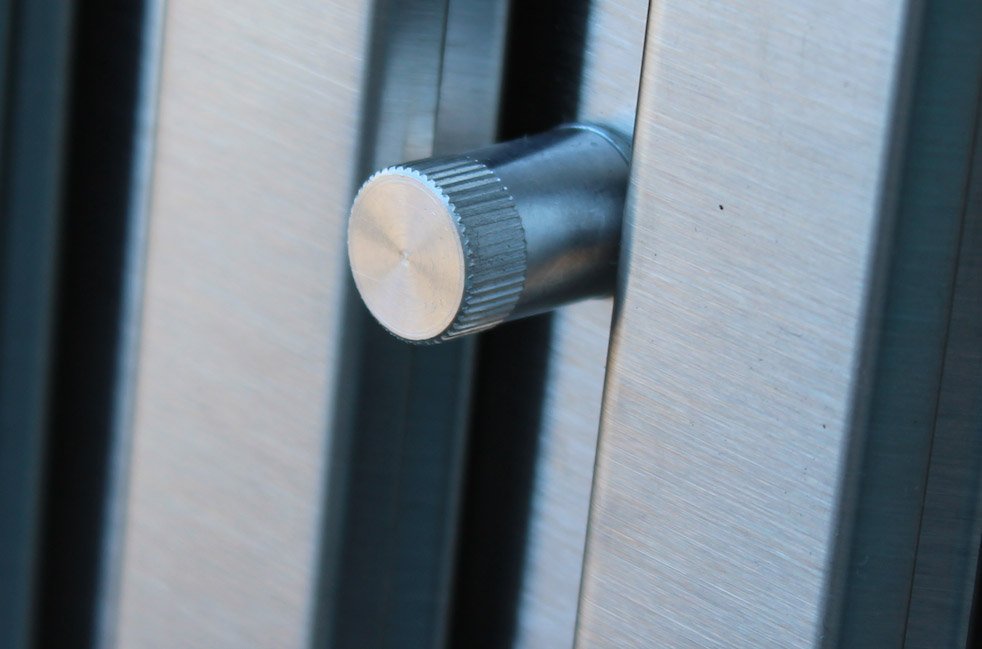

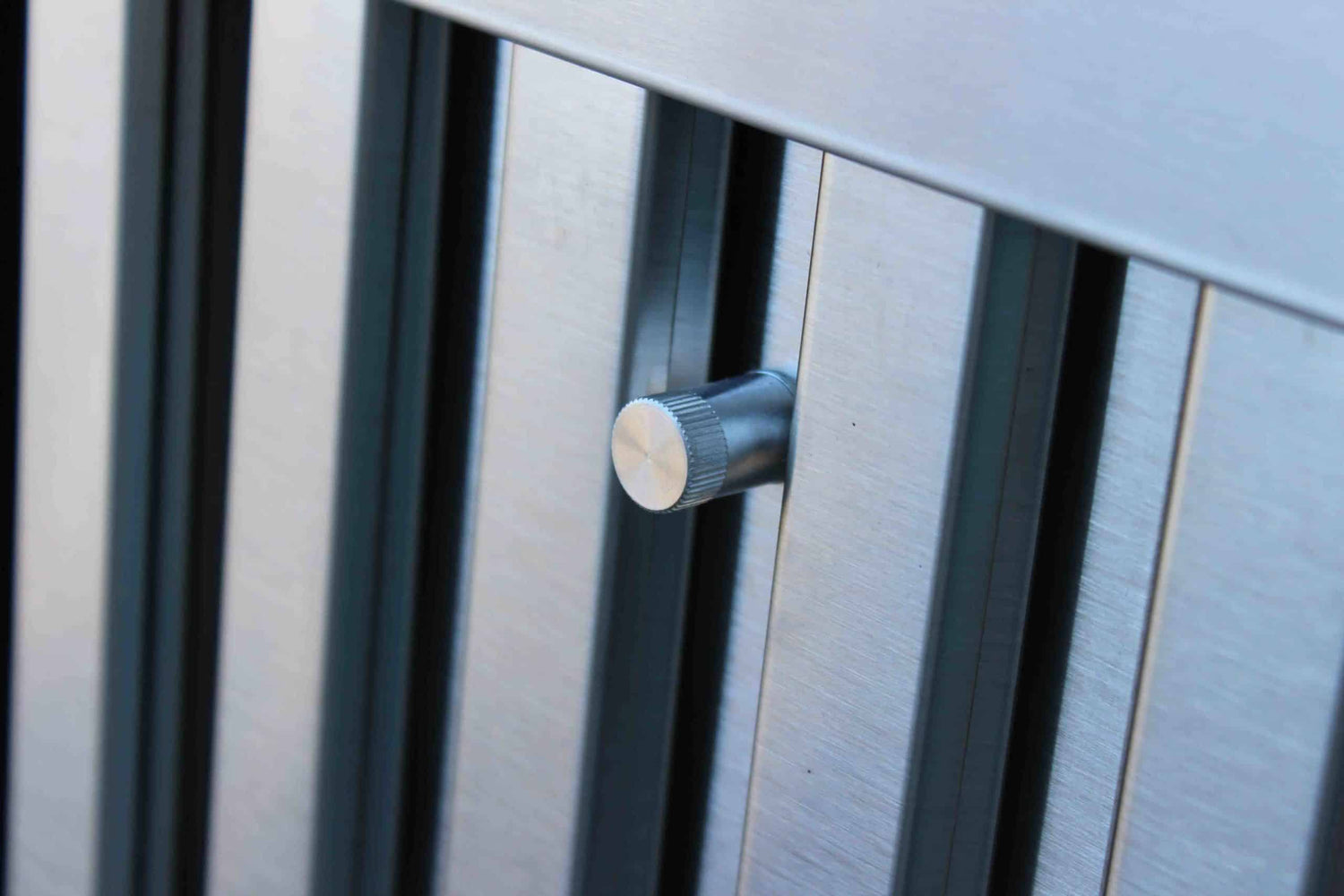

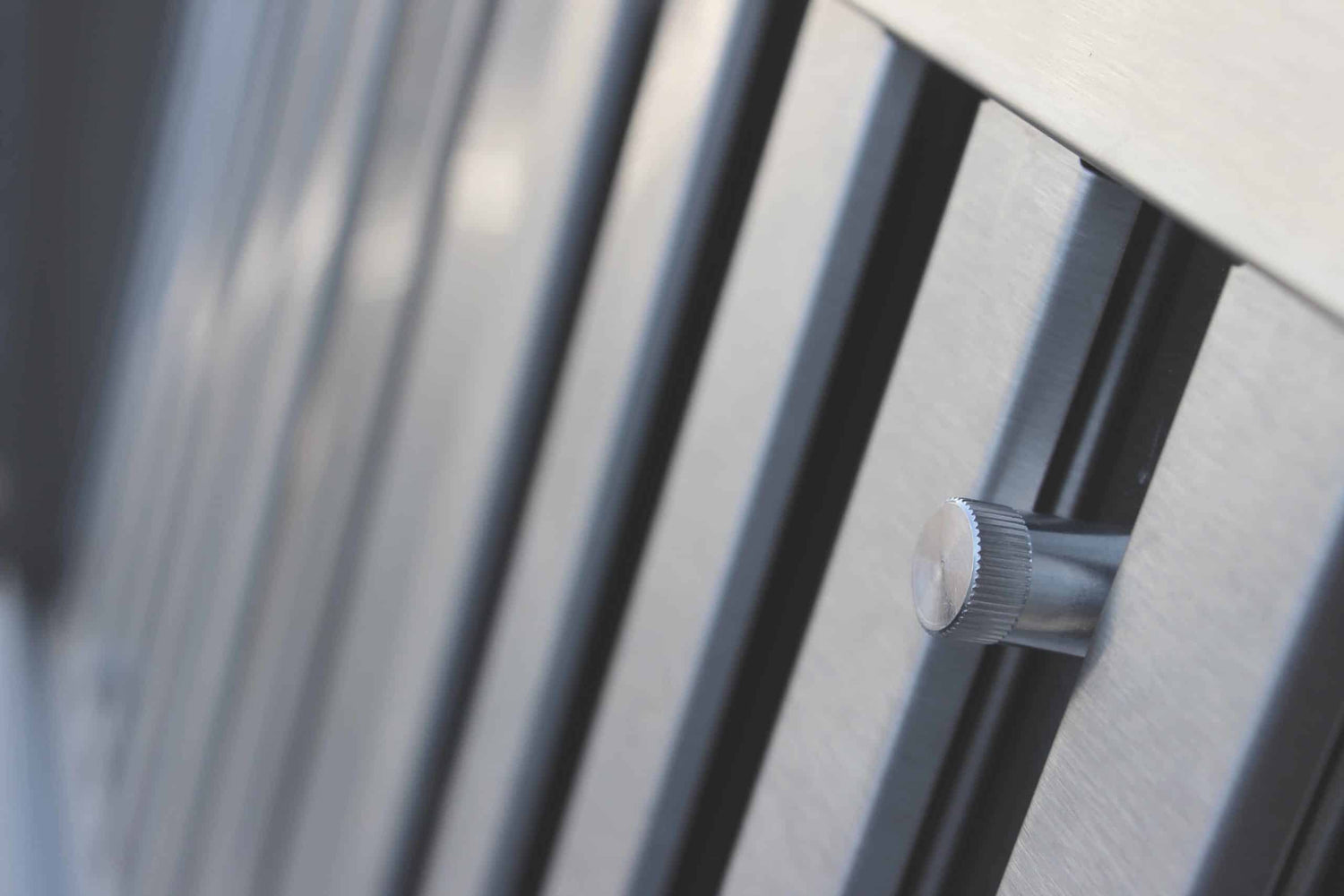

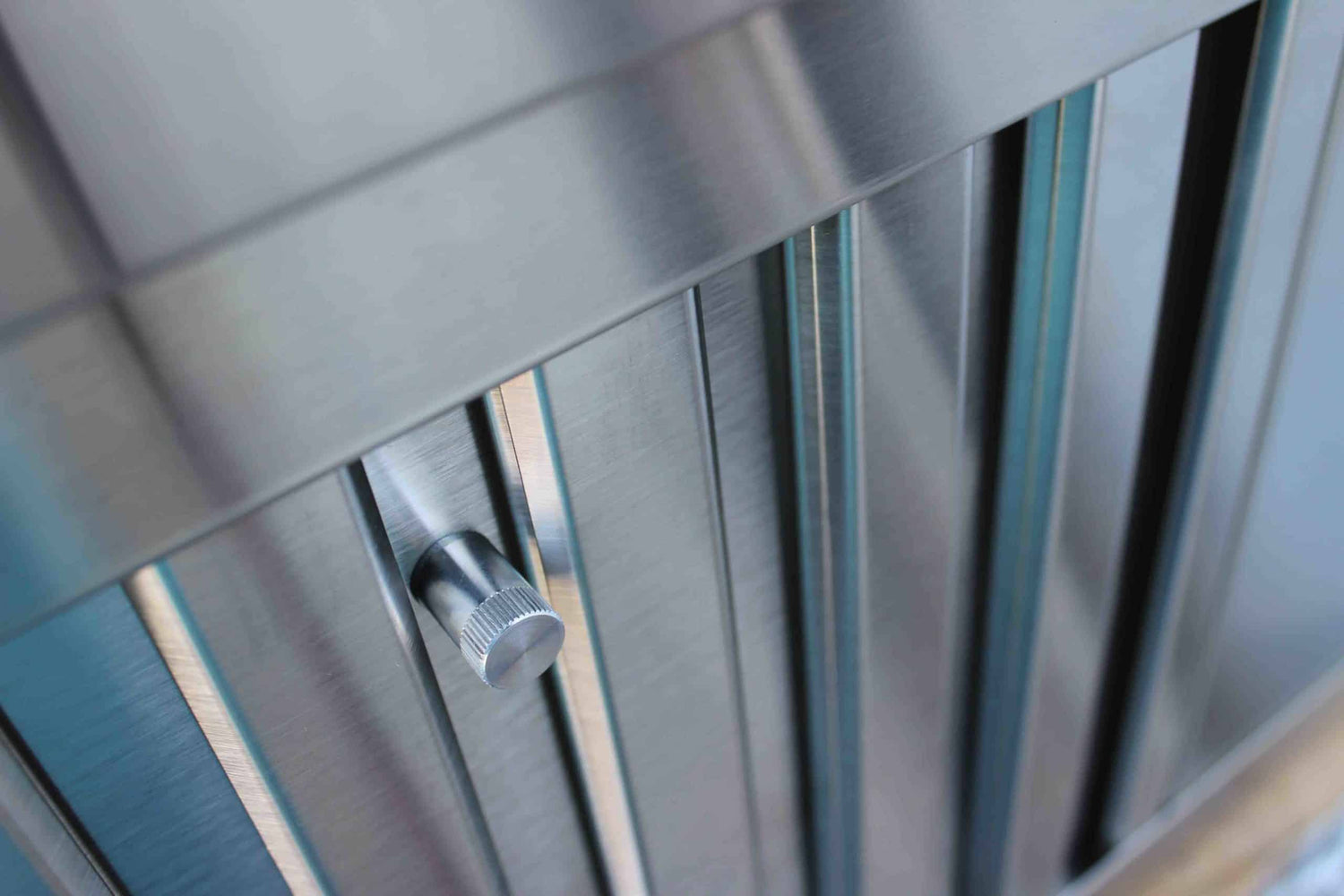

- Four dimmable halogen lights and slip-resistant control knobs
- Easy conversion to rear (horizontal) ducting
- Optional telescopic duct covers for 9 to 10 ft and 10 to 12 ft ceilings
- Manufacturer states it is made in Phoenix, Arizona, USA
What Is Included and What You Will Need
- Included: the S726623CD hood with internal blowers, baffle filters and halogen lighting. A duct cover is available as an option on this page.
- Needed: rigid metal ductwork, a roof or wall cap without a built-in damper, halogen bulbs and a 120V GFCI protected circuit.
Installation Notes
Per the manufacturer, this hood must not be installed on a patio without a roof overhead. It needs a minimum of three feet of weatherproof roof coverage on all sides not protected by an adjacent wall, and all ductwork and roof openings must be sealed. Ducting must be rigid metal vented to the outdoors. The manufacturer's best practices say not to use any type of damper in a BBQ hood application. Installation and wiring must be done by qualified installers and follow local code. Book a consultation and our team will help plan the duct run and canopy for your outdoor kitchen.
Documentation
Frequently Asked Questions
Does this hood include a blower?
Yes. It has two internal blowers with 3-speed control. The blower-ready version of this 66 in hood is the S7266CD.
Can it discharge out the back?
Yes. The S7200CD Series converts from top discharge to rear discharge without rewiring, using the steps in the installation manual.
Can it be installed in an open patio?
No. The manufacturer requires roof coverage over the hood to protect it from direct rain.
Are the filters dishwasher safe?
Yes. The baffle filters have detergent inlet and grease exit holes for dishwasher cleaning.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill.
Warranty
Trade-Wind warrants its ventilation products to the original user against defects in materials and workmanship for three years from the date of purchase. Trade-Wind will repair or replace the complete unit or any defective component at its option. Light bulbs are not covered.
