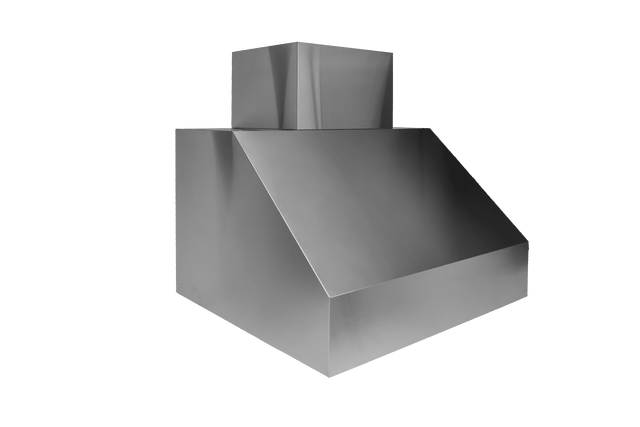

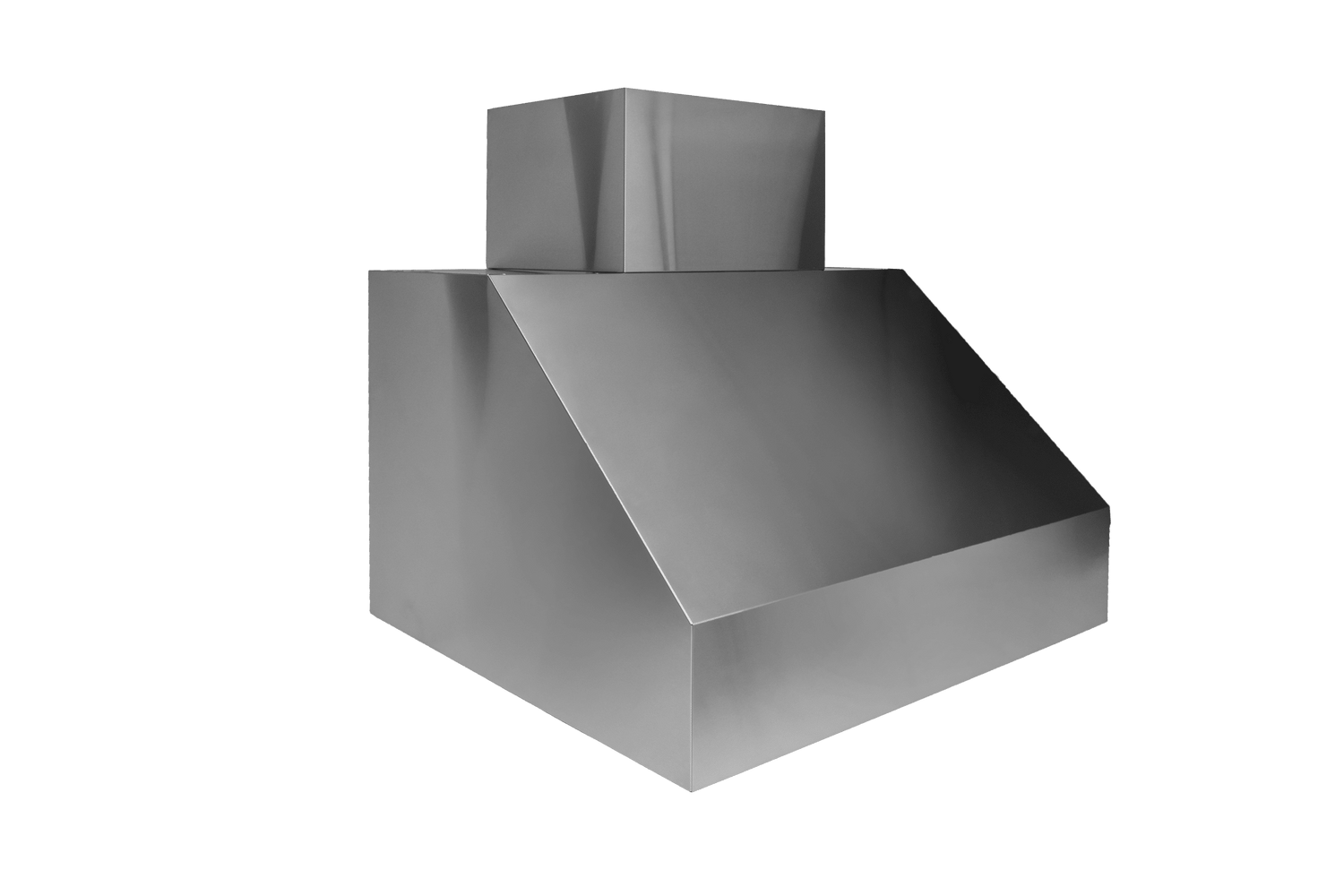

Trade-Wind | 60″ 2300 CFM Outdoor Vent Hood with Blower
Trade-Wind | 60″ 2300 CFM Outdoor Vent Hood with Blower - No / No is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 60 in. W x 32 in. D x 24 in. H, per Trade-Wind

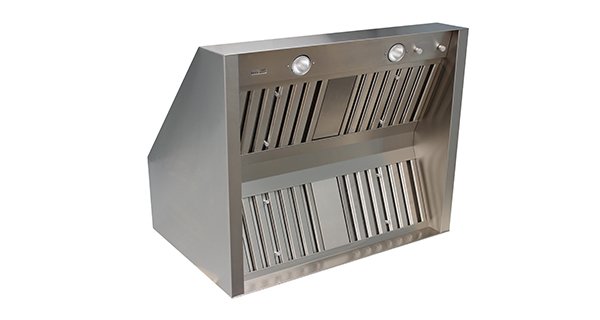

The Trade-Wind S726023CD is a 60 in. straight-sided outdoor BBQ grill hood from the S7200CD series with two internal blowers rated 2300 CFM combined, sized for large built-in grills and grill plus side burner runs. Its 32 in. front-to-back depth covers the full grill, a double bank of stainless baffle filters catches grease, and the discharge converts from top to rear for horizontal ducting through a wall. It is built in Phoenix, Arizona from #304 stainless and galvanized steel.
Key Specifications
| Model | S726023CD (S7200CD series) |
| Width | 60 in. |
| Blower | Two internal blowers, 2300 CFM combined, 3-speed control |
| Duct collar | 2 x 10 in. round; top discharge, convertible to rear |
| Lights | 4 dimmable 50 W halogen |
| Filters | Double bank of dishwasher-safe stainless baffle filters |
| Construction | #304 stainless steel and galvanized steel |
| Electrical | 120 V, 60 Hz individual grounded branch circuit on a 15 or 20 A breaker; GFCI protection recommended; supplied with two 6.0 A three-speed fan controls |
| Use | Outdoor covered patio or lanai; not for areas without a roof over the hood |
Dimensions and Cutout
| Hood (W x D x H) | 60 in. x 32 in. x 24 in. |
| Mounting height | 36 in. from cooking surface to the bottom of a combustible or non-combustible canopy structure |
| Duct covers | Optional DC7201D for 9 to 10 ft ceilings, DC7200D for 10 to 12 ft ceilings (selectable above) |
| Weather protection | Minimum 3 ft of weatherproof roof coverage on unprotected sides |
Features
- 2300 CFM from two internal blowers
- 32 in. depth for full front-to-back grill coverage
- 24 in. tall hood for a larger capture area
- Top or rear discharge for vertical or horizontal ducting

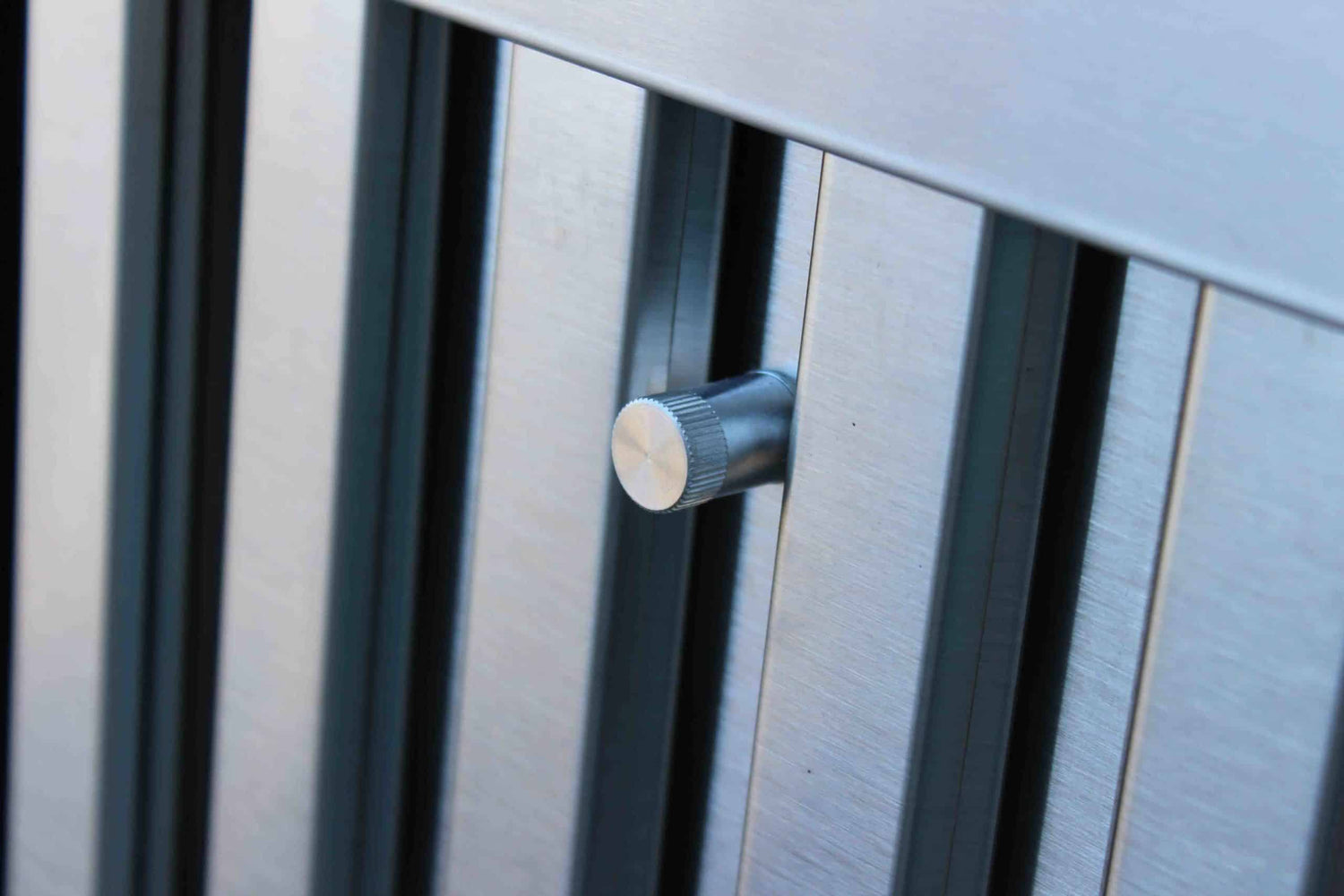

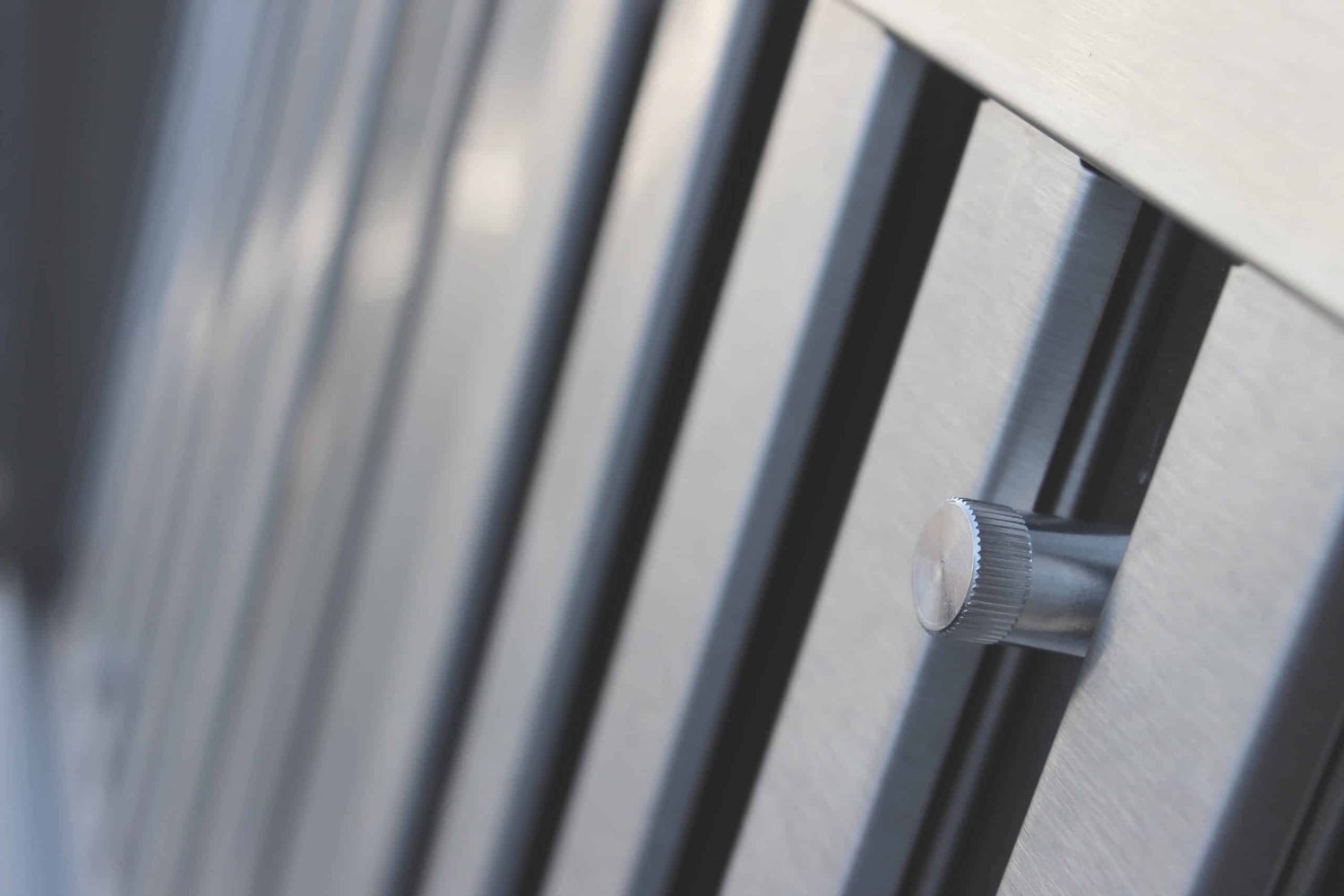

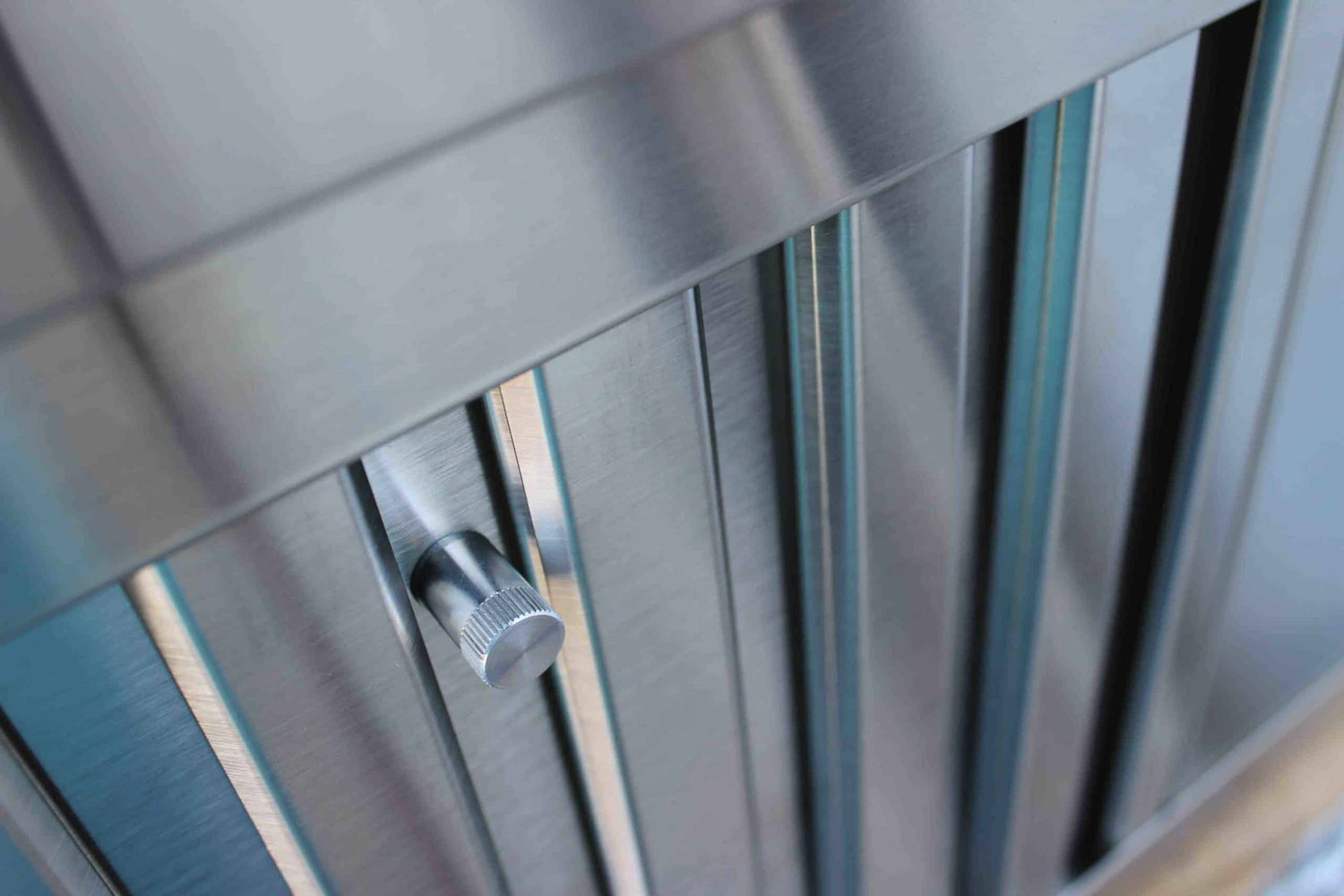

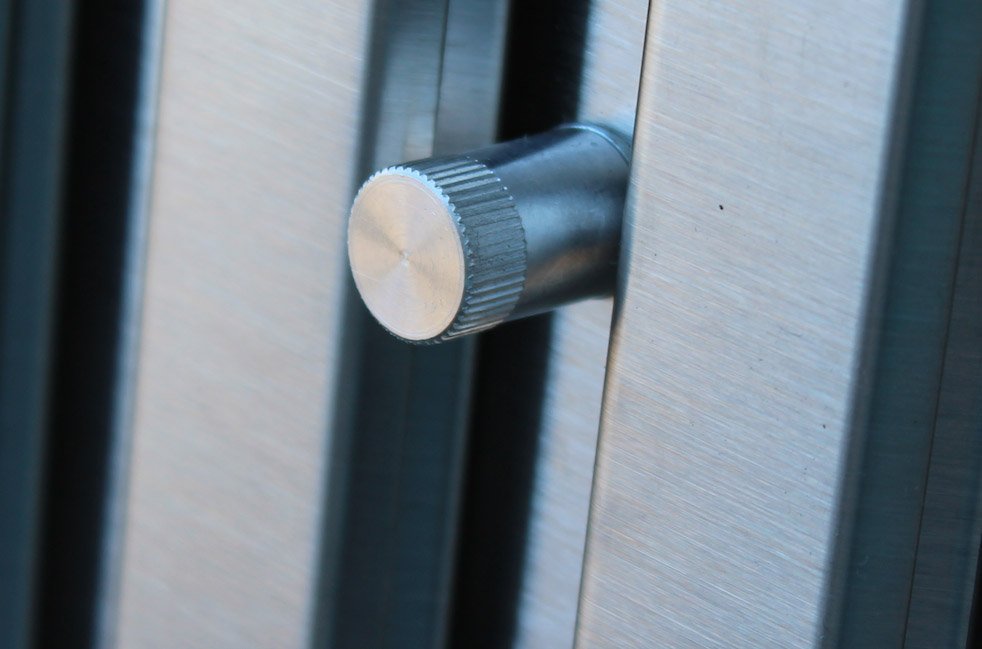

- Double bank of dishwasher-safe baffle filters with grip handles
- Four dimmable 50 W halogen lights
- 3-speed blower control and slip-resistant knobs
- Made in Phoenix, Arizona
What Is Included and What You Will Need
- Included: S726023CD hood with two internal blowers, baffle filters and halogen light fixtures
- Required: two 10 in. rigid metal ducts to an approved roof or wall cap (no flex duct, no damper), a dedicated 120 V circuit, a covered outdoor location
- Optional: DC7201D or DC7200D telescopic duct cover (selectable above)
Installation Notes
Mount the hood to solid framing at 36 in. above the cooking surface and run two 10 in. rigid metal ducts as short and straight as possible to the outdoors, following the S7200CD installation instructions and Best Practices addendum. Trade-Wind requires at least 3 ft of weatherproof roof coverage on every side of the hood not protected by an adjacent wall, sealed metal ductwork run to the outdoors, and no back-draft damper in a BBQ application. In New York City, kitchen exhaust ducting through roofs or exterior walls typically needs building approval, and many terraces and rooftops have their own rules, so confirm the duct route early. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
Is the blower included?
Yes. The S726023CD has two internal blowers rated 2300 CFM combined.
How high should it be mounted?
Trade-Wind specifies 36 in. from the cooking surface to the canopy structure.
Can it vent out the back?
Yes. The discharge converts from top to rear for horizontal ducting through a wall.
Can I use a damper or flex duct?
No. Trade-Wind says not to use any damper or flex duct in a BBQ hood installation.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
Trade-Wind limited warranty (installation instructions): ventilation products are warranted to the original user against defects in materials and workmanship for 3 years from the date of purchase; Trade-Wind will repair or replace the unit or defective component. Light bulbs, faulty installation and use outside the US and Canada are not covered.
