Trade-Wind | 72″ 2300 CFM BBQ Vent Hood with Smooth Front
Trade-Wind | 72″ 2300 CFM BBQ Vent Hood with Smooth Front - No / No is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 72 in. W x 32 in. D x 24 in. H

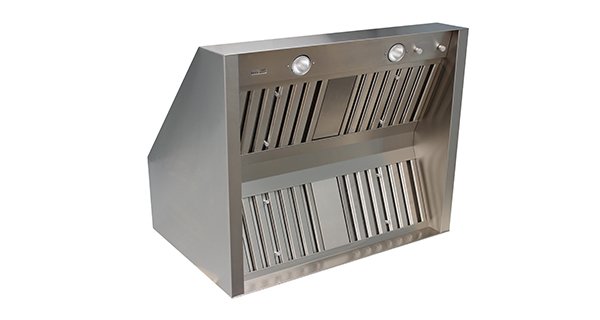

The Trade-Wind S727223CD is a 72 inch smooth front outdoor BBQ vent hood with internal sealed blowers rated at 2,300 CFM. The blowers arrive pre-wired and pre-assembled, so no separate blower purchase is needed. It is made for large covered outdoor kitchens with a long grill line, where a deep 32 inch canopy gives a wide capture area. Top or rear discharge lets you run the duct either way.
Key Specifications
| Model | S727223CD |
| Airflow | 2,300 CFM, internal sealed blowers (pre-wired, pre-assembled) |
| Fan controls | Two 3-speed fan controls, 6.0 A each |
| Ducting | Two 10 in. round collars |
| Discharge | Convertible, top or rear |
| Material | #304 stainless steel, 22 gauge |
| Filters | Commercial stainless steel baffle filters, dishwasher safe |
| Lighting | Dimmable lighting (Trade-Wind lists both four LED lights and 50 W halogen on its page) |
| Electrical | 120V, 60 Hz, individual grounded branch circuit on a 15 or 20 A breaker; GFCI protection recommended |
Dimensions and Cutout
| Width | 72 in. |
| Depth | 32 in. at the hood bottom, 15 in. at the top |
| Height | 24 in. |
| Mounting height | 36 in. above the cooking surface |
| Overhang | Sides and front edge should extend 3 to 6 in. beyond the cooking surface |

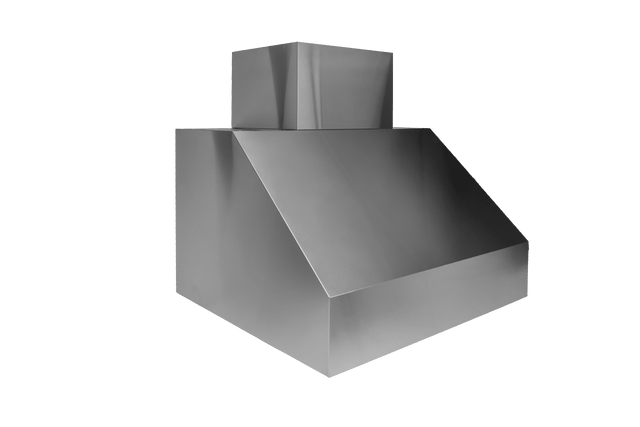

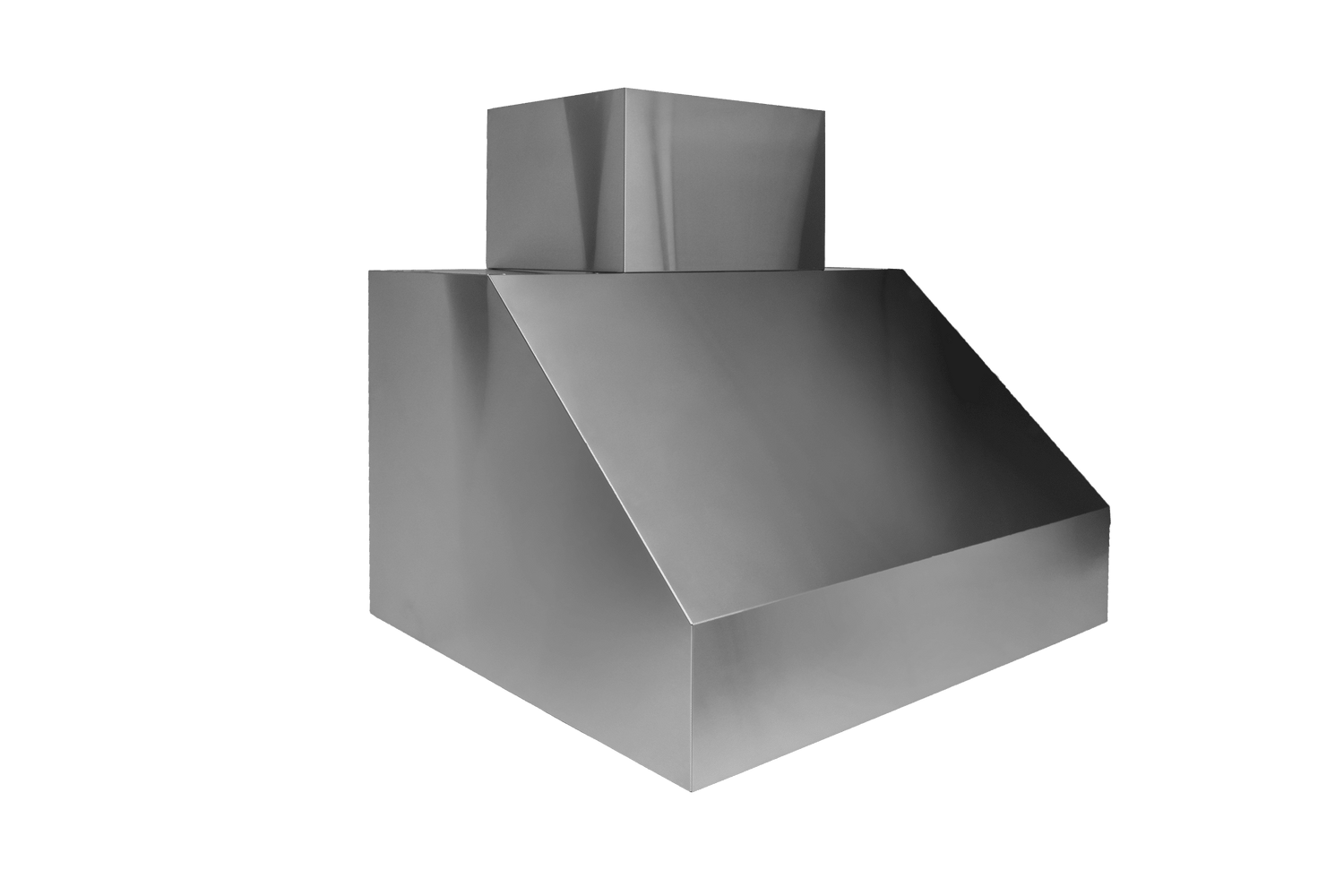

| Duct covers | Telescopic cover for 10 ft ceilings; optional cover for 10 to 12 ft ceilings |
Features
- 2,300 CFM from internal sealed blowers
- 32 in. deep canopy for a large capture area
- Top or rear discharge, with easy conversion to horizontal ducting
- Heavy gauge #304 stainless steel construction
- Dishwasher safe commercial baffle filters with easy-grip handles
- Dimmable lights over the cooking surface
- Pre-wired and pre-assembled blowers
What Is Included and What You Will Need
- Included: 72 in. hood with internal blowers, fan controls, lights and baffle filters
- Required: two 10 in. round duct runs, a 120V circuit, and at least 3 ft of weatherproof roof coverage on unprotected sides, per the manual
- Optional: two piece duct cover for 9 to 10 ft or 10 to 12 ft ceilings (see the variant options), 10 in. duct damper and 10 in. duct silencer
Installation Notes
Install per the Trade-Wind instructions, with the hood 36 in. above the cooking surface and canopy structures at the same height. Ducting and the 120V wiring should be done by licensed trades. In New York City, the electrical work must be performed by a licensed electrician. Our team can help you plan the layout in a design consultation.
Documentation
Frequently Asked Questions
Is a blower included?
Yes. The S727223CD has internal sealed blowers rated at 2,300 CFM. The S7272CD version is the remote-blower model.
Can it vent out the back?
Yes. Discharge converts between top and rear.
How high should it be mounted?
Trade-Wind's instructions call for 36 in. above the cooking surface.
What duct size does it need?
Two 10 in. round ducts, each providing 78.5 sq in. of discharge area.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
Trade-Wind covers outdoor vent hoods against defects in materials and workmanship for three years from the date of purchase, for the original user. Light bulbs are not covered. See the Trade-Wind warranty page for full terms.
