Trade-Wind | Pyramid 72" Outdoor BBQ Range Hood
Trade-Wind | Pyramid 72" Outdoor BBQ Range Hood - No / No is backordered and will ship as soon as it is back in stock.
Description
Description
Available Sizes: Trade-Wind P7200 Pyramid for Remote Blowers
Overall Dimensions: 72 in W x 32 in D x 24 in H

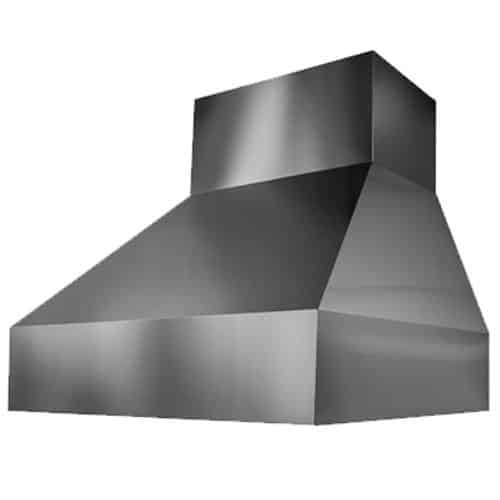

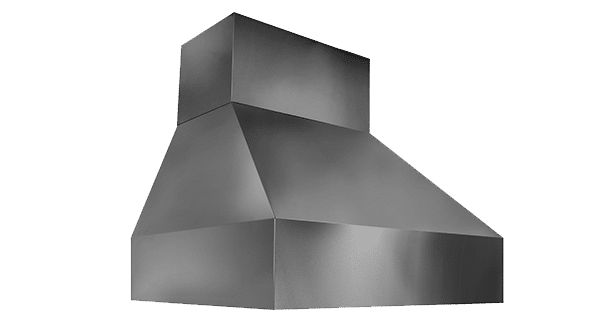

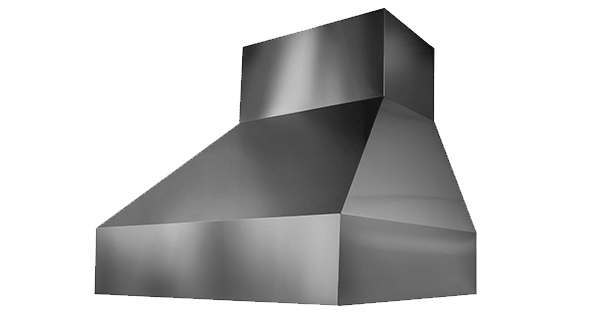

The Trade-Wind P7272 is a 72 in pyramid style outdoor BBQ vent hood, the largest in the P7200 series. It is blower-ready, so you pair it with an in-line or remote blower sized for your duct run. It suits wide grill lines in covered outdoor kitchens where the hood should look finished from the front and above.
Key Specifications
| Model | P7272 (P7200 Pyramid Series) |
|---|---|
| Blower | Not included. Designed for an in-line or remote blower with variable blower control; the optional Trade-Wind in-line blower delivers 1266 CFM |
| Lighting | 4 dimmable 50 watt halogen lights |
| Filters | 4 stainless steel baffle filters, dishwasher safe (per manufacturer spec sheet) |
| Duct Collar | 2 x 10 in |
| Material | Commercial grade stainless steel (304) and galvanized steel |
| Electrical | 120V, 60 Hz, individual grounded branch circuit on a 15 or 20 amp breaker, GFCI protected |
| Weight | 250 lbs (per current listing) |
Dimensions and Cutout
| Overall | 72 in W x 32 in D x 24 in H (nominal, plus or minus 1/8 in) |
|---|---|
| Duct Cover | Telescopic duct cover included for 9 to 10 ft ceilings; optional cover (PDC7272) for 10 to 12 ft ceilings |
| Discharge | Convertible between top and rear discharge |
| Mounting Height | Manufacturer recommends 36 in above the cooking surface. A custom canopy, combustible or non-combustible, should also sit 36 in above the cooking surface. Always follow local code. |
Features
- Pyramid hood shape with a telescopic duct cover included for 9 to 10 ft ceilings
- 32 in front to back capture area and 24 in height

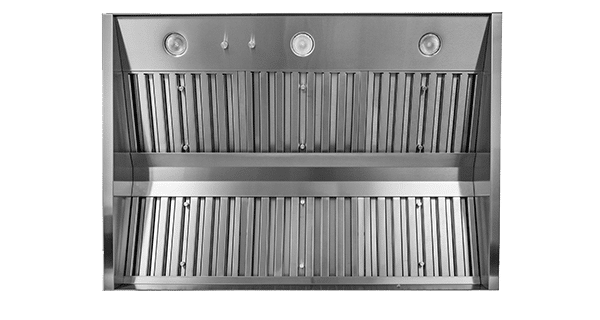

- Double bank of stainless steel baffle filters with easy-grip handles, dishwasher safe
- Four dimmable halogen lights and slip-resistant control knobs
- All stainless steel exterior that is easy to keep clean
- Easy conversion to rear (horizontal) ducting
- Manufacturer states it is made in Phoenix, Arizona, USA
What Is Included and What You Will Need
- Included: the P7272 hood with baffle filters, halogen lighting and a telescopic duct cover for 9 to 10 ft ceilings.
- Needed: an in-line or remote blower, rigid metal ductwork, a roof or wall cap without a built-in damper, halogen bulbs and a 120V GFCI protected circuit.
- Related accessory we sell: Trade-Wind 1266 CFM in-line blower PSD010XL.
- Trade-Wind does not sell roof or wall caps; the installation instructions include a drawing for a cap built locally.
Installation Notes
Per the manufacturer, this hood must be installed under a roof with a minimum of three feet of weatherproof coverage on all sides not protected by an adjacent wall, and all ductwork and roof openings must be sealed. Ducting must be rigid metal vented to the outdoors. The manufacturer's best practices say not to use any type of damper in a BBQ hood application. Installation and wiring must be done by a qualified installer and follow local code. Book a consultation and our team will help match the hood, blower and duct run to your outdoor kitchen.
Documentation
Frequently Asked Questions
Does the P7272 include a blower?
No. It is built for an in-line or remote blower. The version with internal blowers rated 2300 CFM is the P7272-23.
Is a duct cover included?
A telescopic duct cover for 9 to 10 ft ceilings is included per the manufacturer. A cover for 10 to 12 ft ceilings is available separately.
Can it discharge out the back?
Yes. The P7200 series converts from top discharge to rear discharge using the steps in the installation manual.
Can it be installed in an open patio?
No. The manufacturer requires roof coverage over the hood to protect it from direct rain.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill.
Warranty
Trade-Wind warrants its ventilation products to the original user against defects in materials and workmanship for three years from the date of purchase. Trade-Wind will repair or replace the complete unit or any defective component at its option. Light bulbs are not covered.
