Description
Description
Overall Dimensions: 34-1/8 in W x 25-3/4 in D x 13-5/8 in H above the countertop (hood closed)

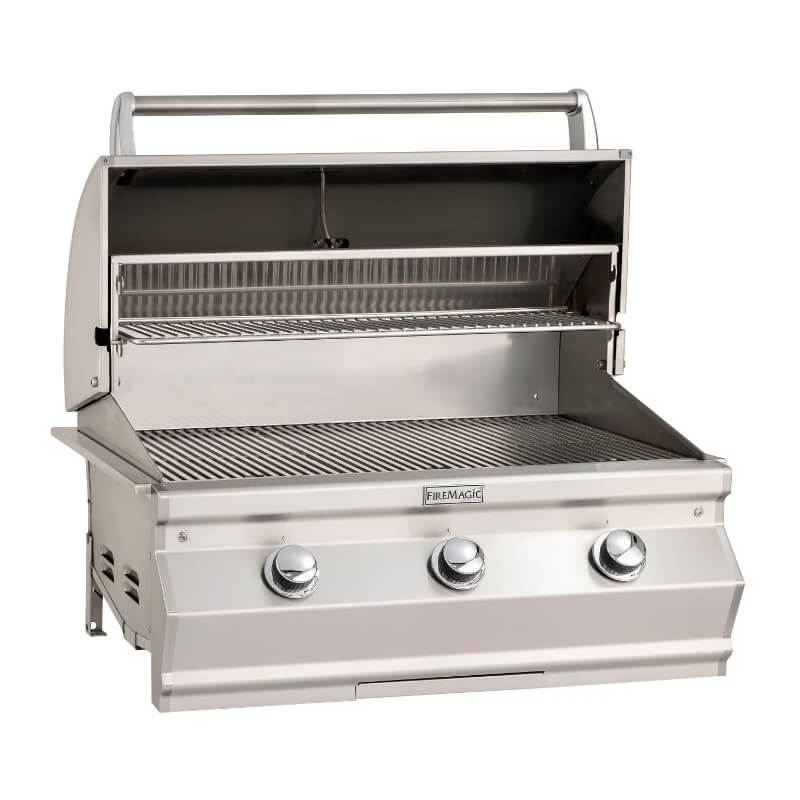

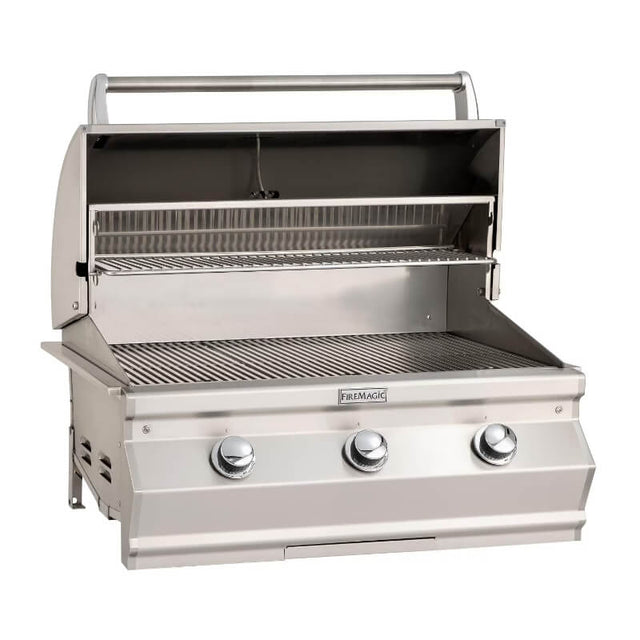

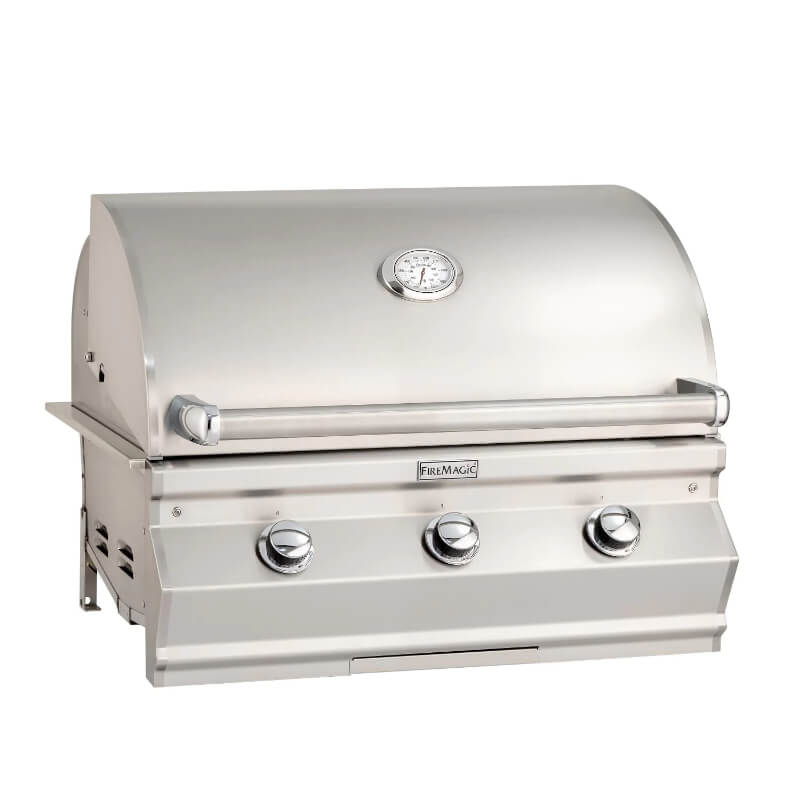

The Fire Magic Choice C540i is a built-in gas grill with a 30 x 18 in cooking surface, three stainless steel U-shaped burners and Diamond Sear cooking grids, framed in a satin stainless steel face. Turn-to-Light ignition needs no power or batteries, and a 240 sq in warming rack adds space for buns and sides. It drops into a 32 in island cutout, a good fit for a mid-size outdoor kitchen.
Key Specifications
| Model | C540i-RT1N (natural gas), C540i-RT1P (propane) |
|---|---|
| Main burners | Three stainless steel U-shaped burners, 57,000 BTU per Fire Magic |
| Cooking surface | 30 x 18 in (540 sq in) |
| Warming rack | 30 x 8 in (240 sq in), adjustable and removable |
| Cooking grids | Stainless steel Diamond Sear grids |
| Flavor grids | Stainless steel |
| Ignition | Choice Turn-to-Light, no power or batteries required |

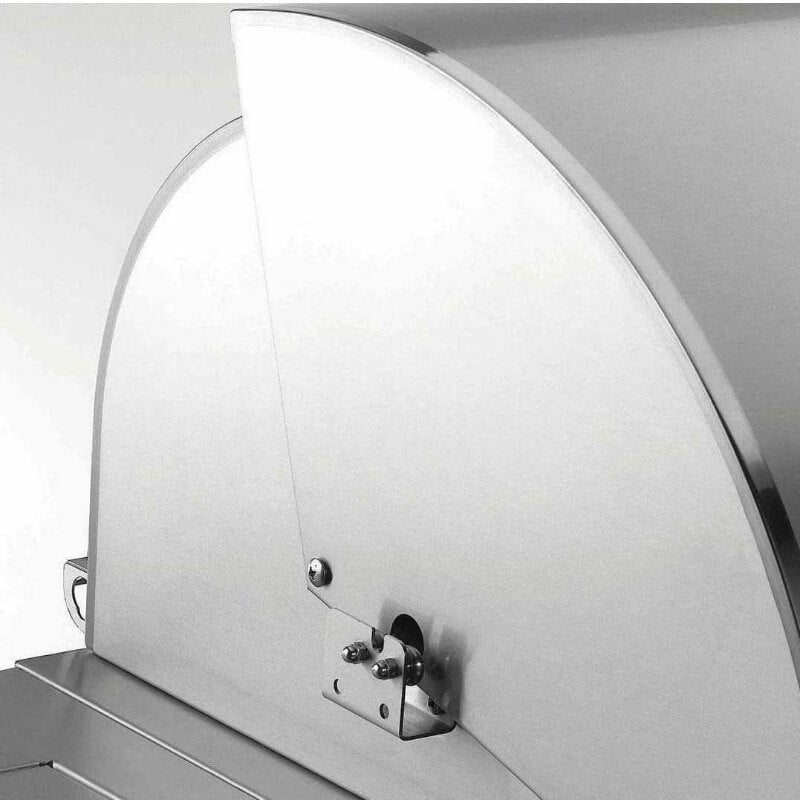

| Hood | Stainless oven lid with analog oven thermometer |
| Certification | ANSI Z21.58 / CSA 1.6 |
| Weight | Not published by Fire Magic |
Dimensions and Cutout
| Maximum width | 34-1/8 in (control panel 32-1/2 in) |
|---|---|
| Maximum depth | 25-3/4 in |
| Height above hanger bottom | 13-5/8 in hood closed, 20-3/4 in hood open |
| Non-combustible cutout (W x D x H) | 32 in x 19-1/2 in x 11-1/2 in (Fire Magic's product page lists 12 in H) |
| Control panel cutout | 33 in, for countertops with an overhang |
| Combustible enclosure | Insulating liner 23150-52 required; follow the liner's cutout |
| Clearances | 5 ft from countertop to overhead construction; rear wall 4 in non-combustible, 14 in protected combustible or 18 in combustible; 24 in to side walls; 6 in each side of the control panel |
| Gas supply | 1/2 in minimum ID line; natural gas 7 in w.c. normal (5 to 10-1/2); propane 11 in w.c. normal (10 to 13) |
Features

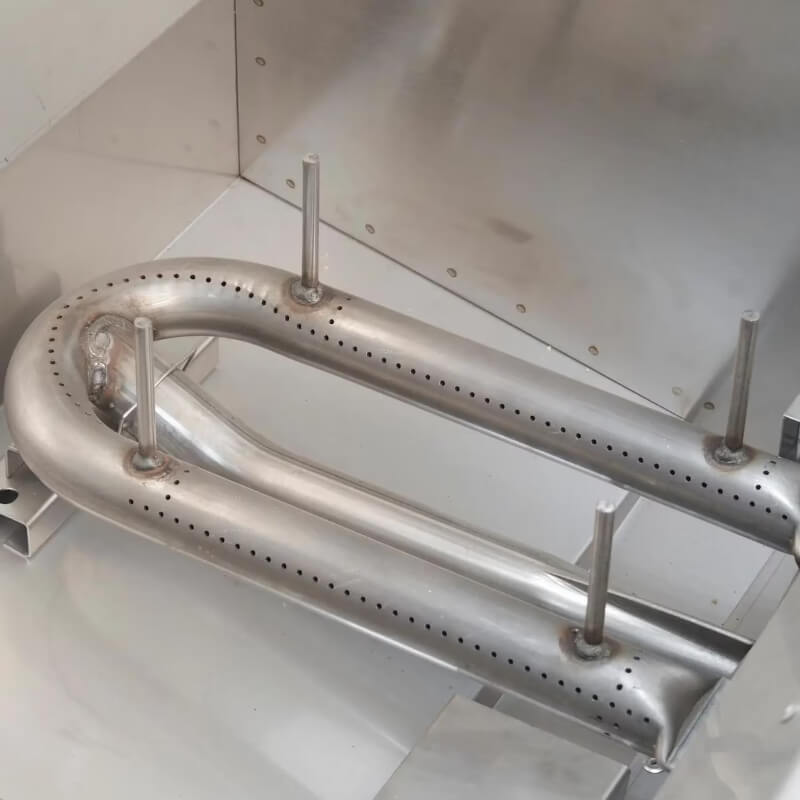

- Three stainless steel U-shaped burners spread heat across the 540 sq in surface

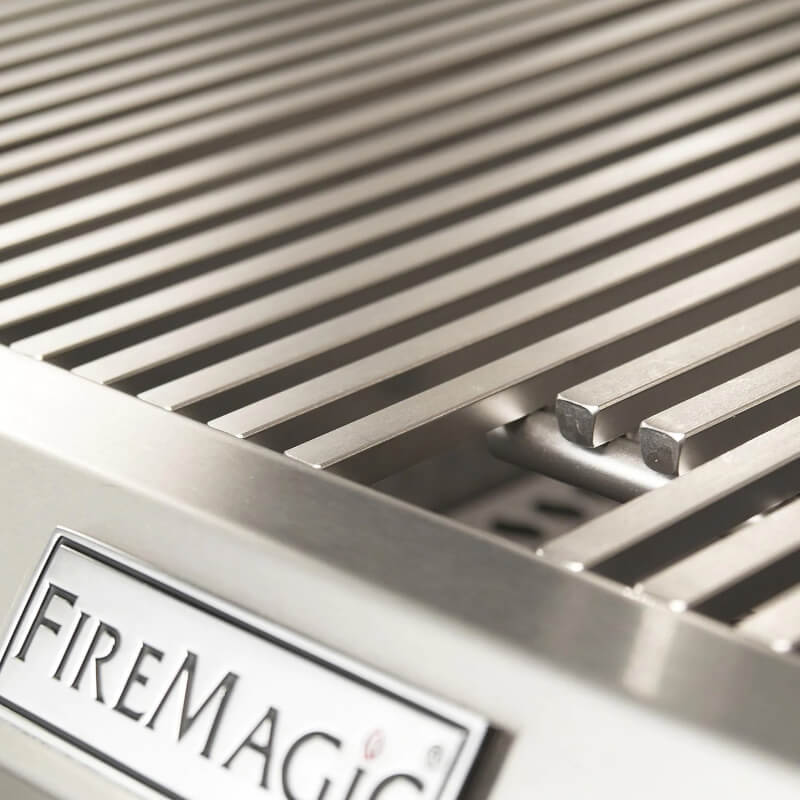

- Diamond Sear cooking grids for searing and smaller foods

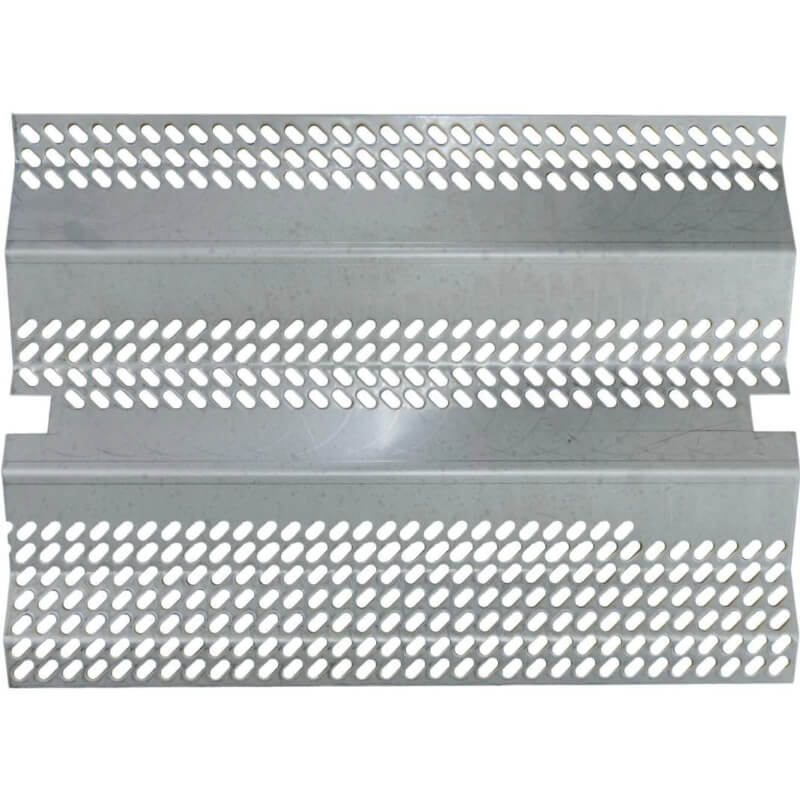

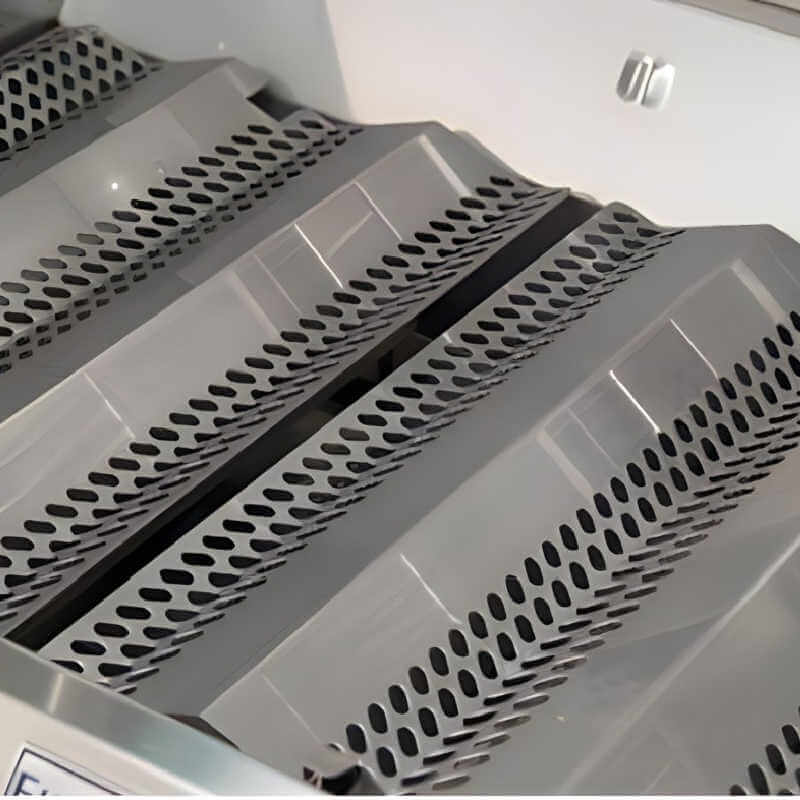

- Stainless steel flavor grids shield burners and vaporize drippings

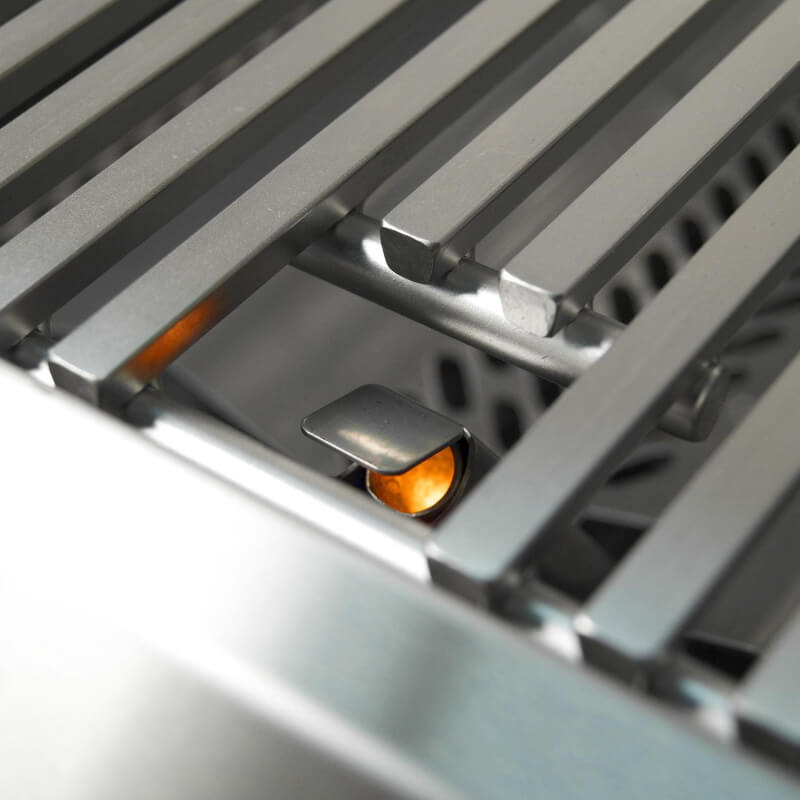

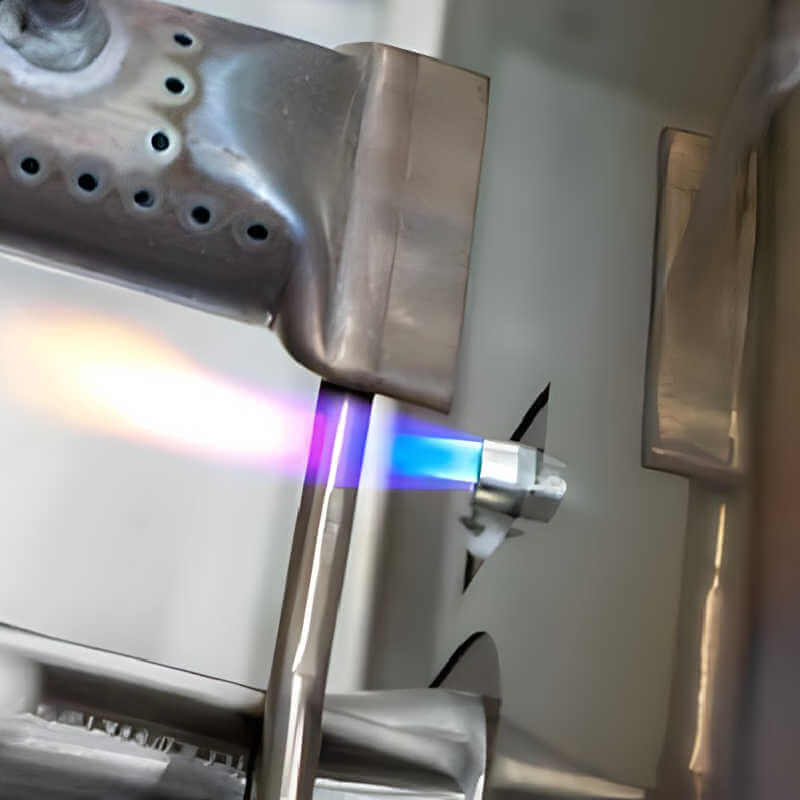

- Turn-to-Light ignition with no batteries or wiring

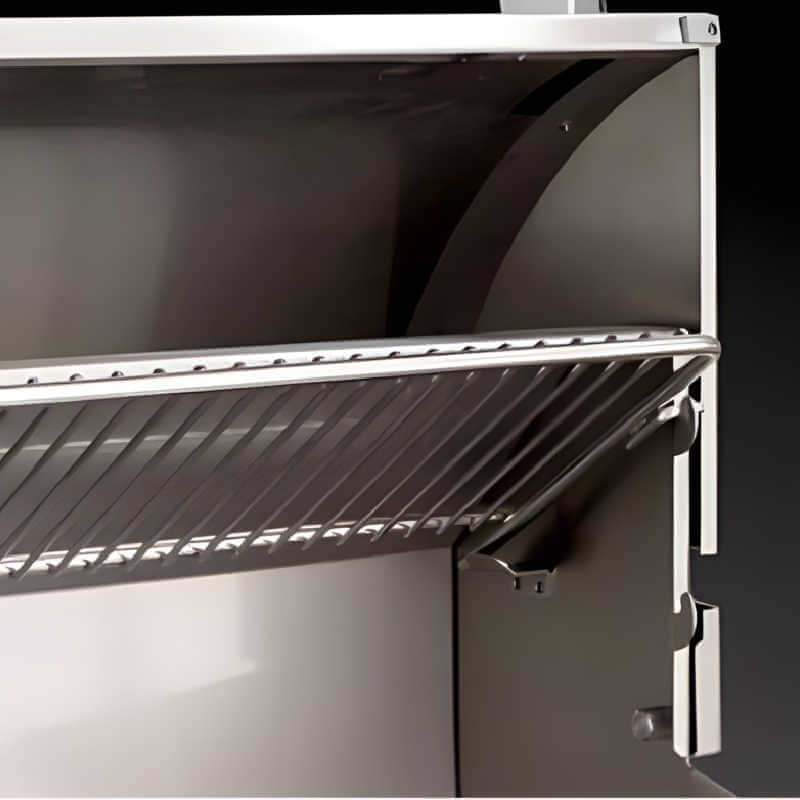

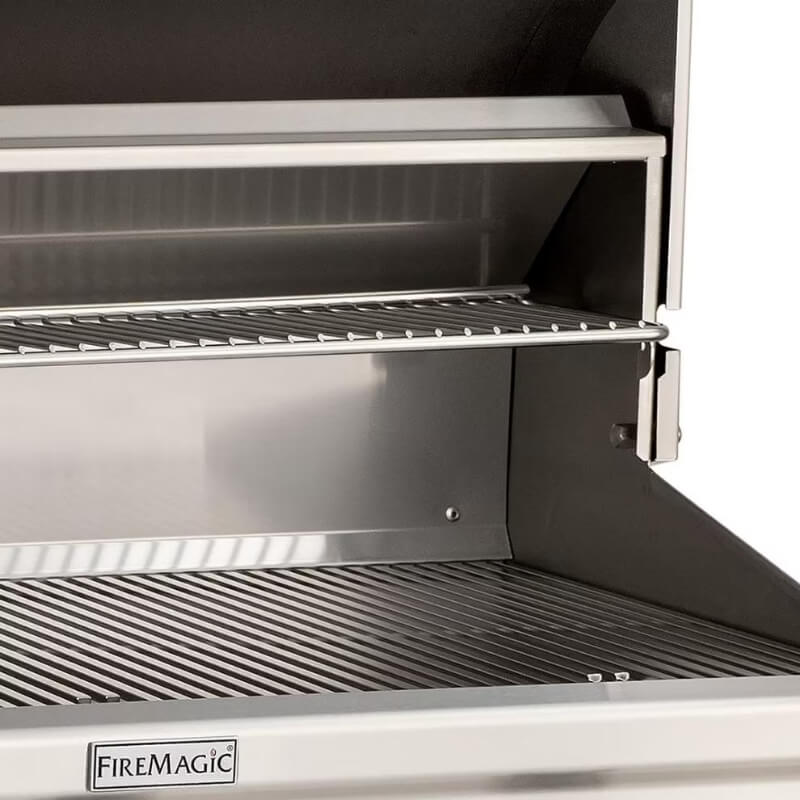

- Adjustable, removable warming rack

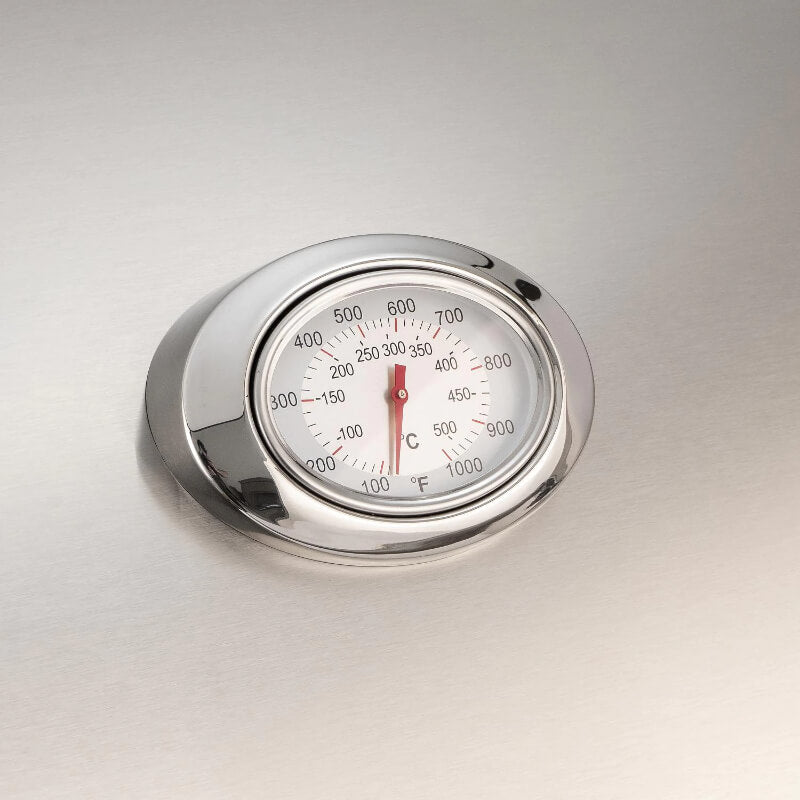

- Stainless oven lid with analog thermometer
What Is Included and What You Will Need
- Included: grill head with cooking grids, flavor grids and warming rack
- Required: a gas supply at the pressures above, installed by a qualified professional
- Combustible enclosure: the Fire Magic 23150-52 insulating liner
- Optional: grill cover 3643F, double side burner, 1 hour gas timer box, wind deflector 23732-20, and a 36-VH-7 or larger vent hood for covered areas
Installation Notes
Build the island to the cutout above with a non-combustible countertop, keep the front air inlet under the control panel clear, and orient the grill so the prevailing wind blows toward its front. Under a roof, Fire Magic highly recommends a hood larger than the cooking area with at least a 1200 CFM fan. Do not use a rubber hose inside the enclosure. In New York City, gas work for an outdoor grill must be done by a licensed master plumber under permit, and propane cylinders are restricted in many buildings. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
- Fire Magic Choice C540I User Manual (Rev 6)
- Fire Magic Choice Installation and Owner's Manual (Rev 7)
- Cutout Specs (Fire Magic 2020 Product Specifications Guide)
- Fire Magic Product Specifications Guide (current)
- Quick Start Guide (as linked on the original listing)
Frequently Asked Questions
What cutout does the C540i need?
32 in wide, 19-1/2 in deep and 11-1/2 in high in a non-combustible island, per the Choice manual. A combustible island needs the 23150-52 liner and its own cutout.
Does it need electricity?
No. Choice Turn-to-Light ignition needs no power or batteries.
How many BTU is it?
Fire Magic lists the main burners at 57,000 BTU across three U-shaped burners.
Can it go under a covered patio?
Fire Magic requires 5 ft of clearance to overhead construction and highly recommends a vent hood of at least 1200 CFM.
Related reading: Built-in gas grill buying guide and How to measure a built-in grill cutout.
Warranty
Per the Fire Magic limited warranty in the Choice manual, for single family residential use: Choice stainless steel U-shaped burners, cooking grids and the barbecue housing for as long as the original purchaser owns them; brass valves, manifold assemblies and inner liners 15 years; flavor grids 5 years; side burners and other components 3 years; ignition systems, electronic parts including thermometers, and accessories 1 year. Labor is not covered, and multi-user settings fall under a separate Multi-User warranty.
