Trade-Wind | 66″ 2300 CFM Outdoor BBQ Vent Hood
Trade-Wind | 66″ 2300 CFM Outdoor BBQ Vent Hood - No / No is backordered and will ship as soon as it is back in stock.
Description
Description
Available Sizes: Trade-Wind S7200CD Smooth Front for Remote Blowers
Overall Dimensions: 66 in W x 32 in D x 24 in H

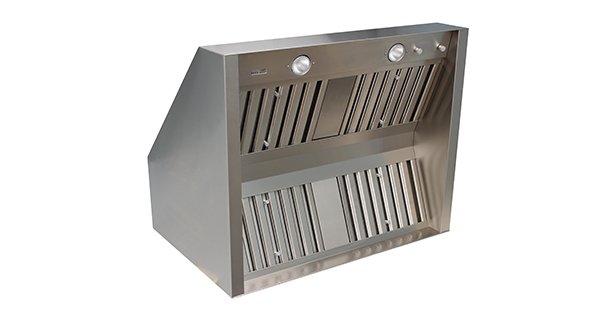

The Trade-Wind S7266CD is a 66 in smooth front, convertible discharge vent hood for covered outdoor kitchens and built-in grill islands. It is a blower-ready hood, so you choose an in-line or remote blower that suits your duct run. It is built from commercial grade 304 stainless steel with a double bank of baffle filters and a 32 in front to back capture area over the grill.
Key Specifications
| Model | S7266CD (S7200CD Series) |
|---|---|
| Width | 66 in |
| Front to Back | 32 in |
| Height | 24 in |
| Blower | Not included. Designed for an in-line or remote blower, with variable blower control |
| Airflow | 2300 CFM is the rating of the internal blower model S726623CD. Airflow on this hood depends on the blower you choose; the optional Trade-Wind in-line blower delivers 1266 CFM |
| Lighting | 4 dimmable 50 watt halogen lights |
| Filters | 4 stainless steel baffle filters, dishwasher safe |
| Duct Collar | 2 x 10 in |
| Material | Commercial grade stainless steel (304) and galvanized steel |
| Electrical | 120V, 60 Hz, individual grounded branch circuit on a 15 or 20 amp breaker, GFCI protected |
Dimensions and Cutout
| Overall | 66 in W x 32 in D x 24 in H (nominal, plus or minus 1/8 in) |
|---|---|
| Discharge | Convertible between top and rear discharge |

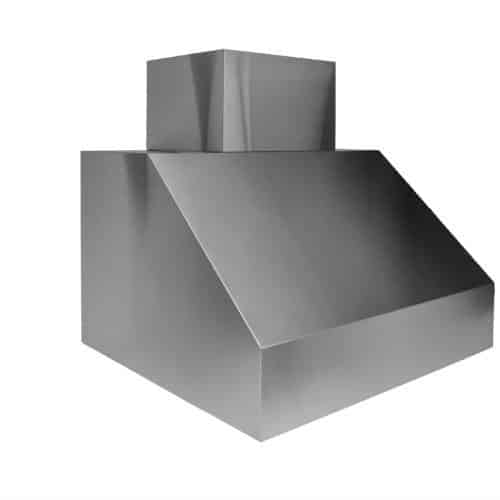

| Duct Covers | Optional telescopic duct covers for 9 to 10 ft ceilings (DC7201D) and 10 to 12 ft ceilings (DC7200D) |
| Mounting Height | Manufacturer recommends 36 in above the cooking surface. A custom canopy, combustible or non-combustible, should also sit 36 in above the cooking surface. Always follow local code. |
Features
- Straight-sided smooth front hood with a 32 in front to back capture area and 24 in height

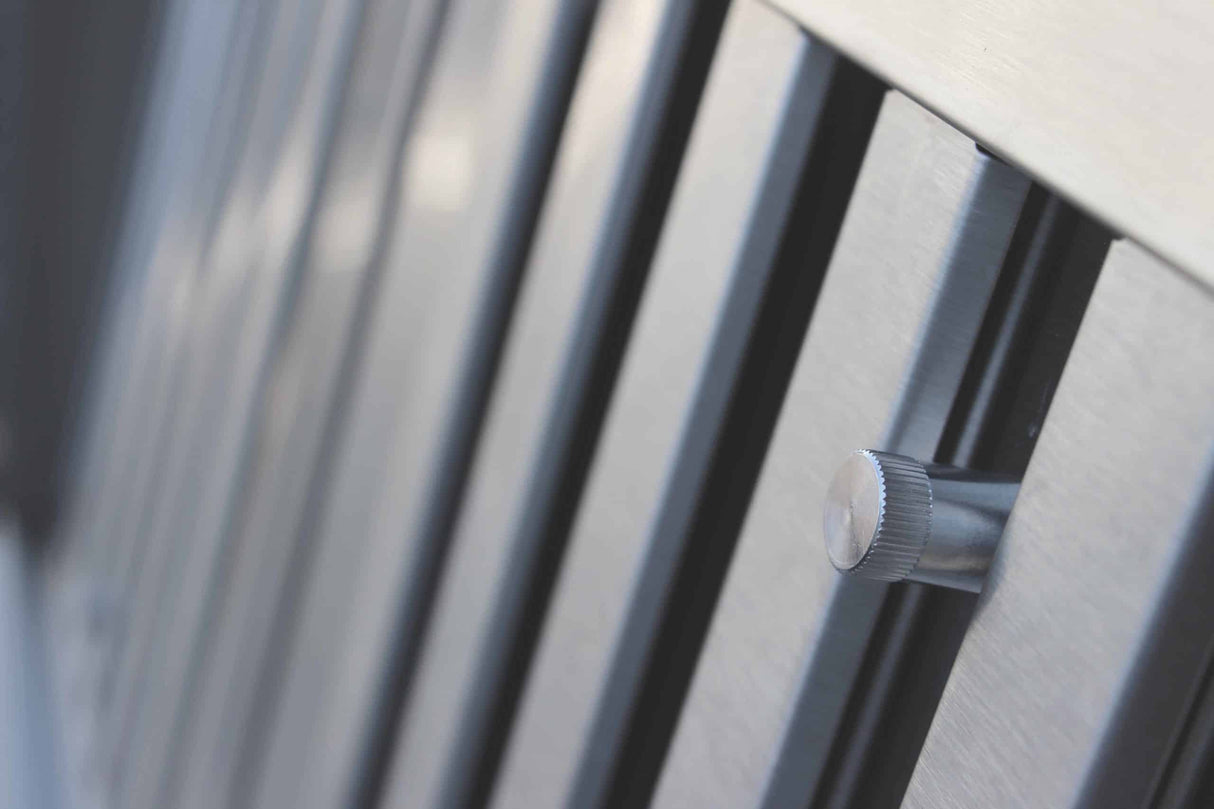

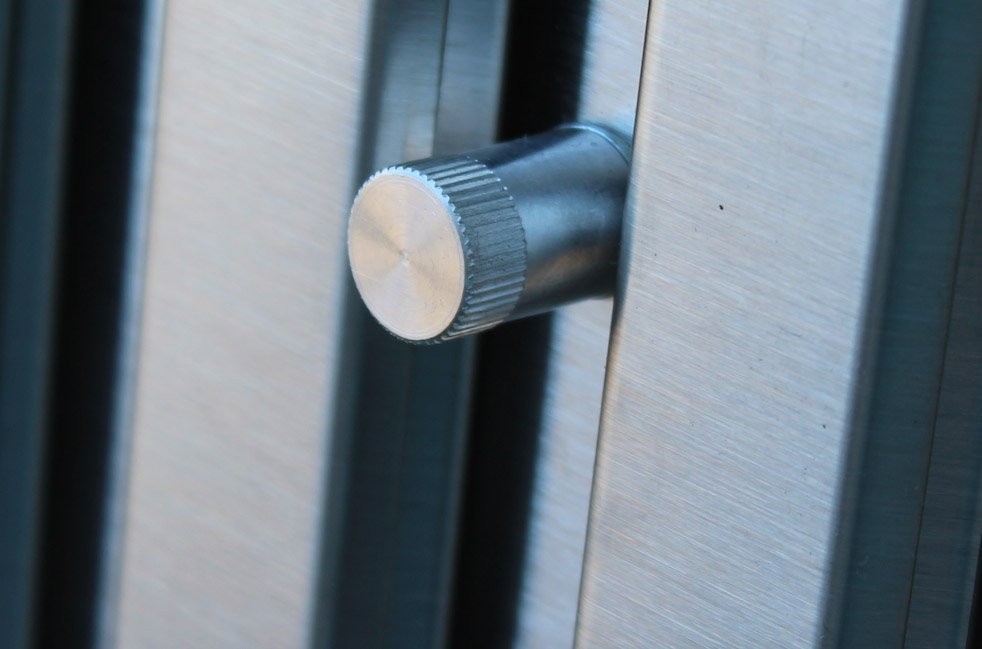

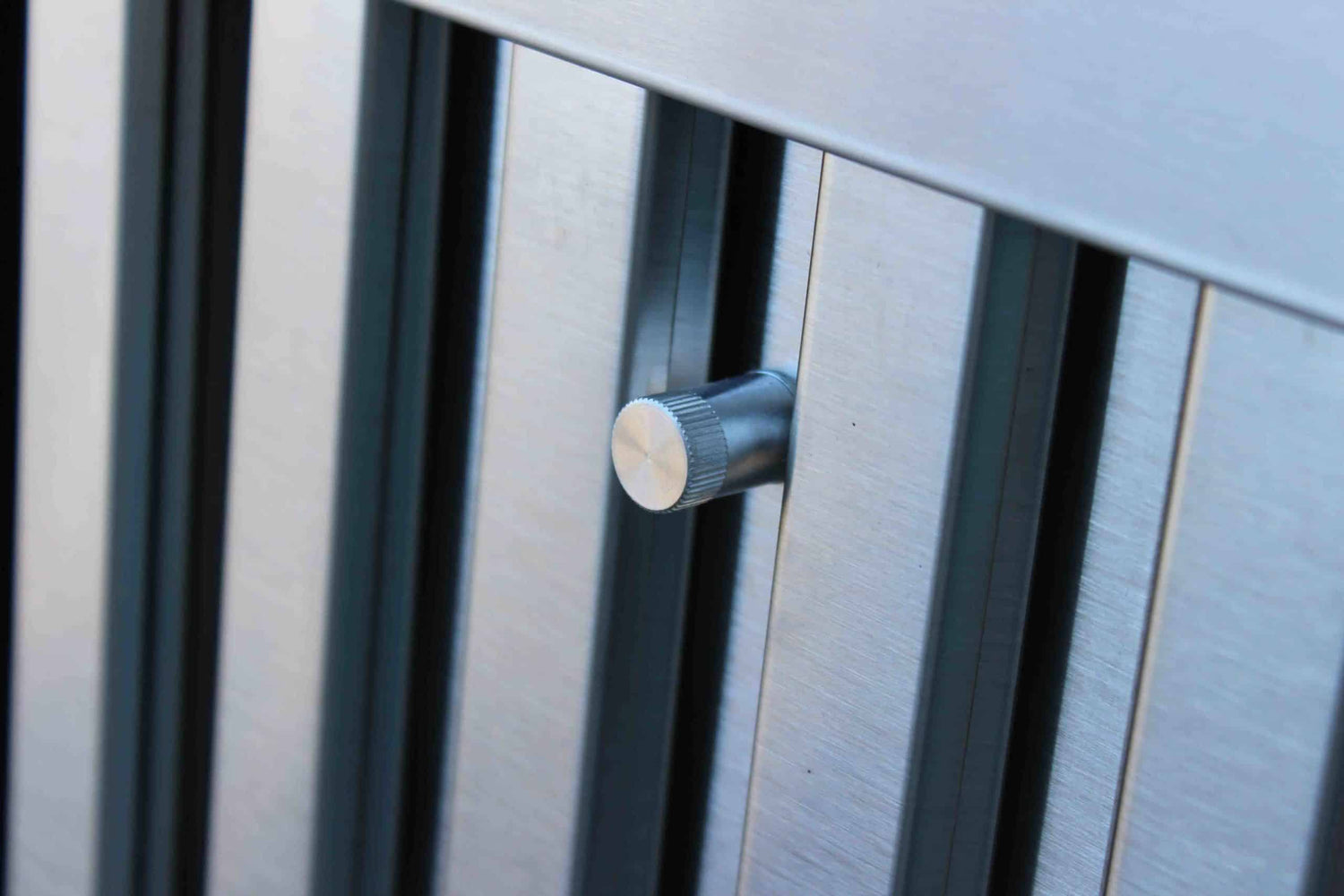

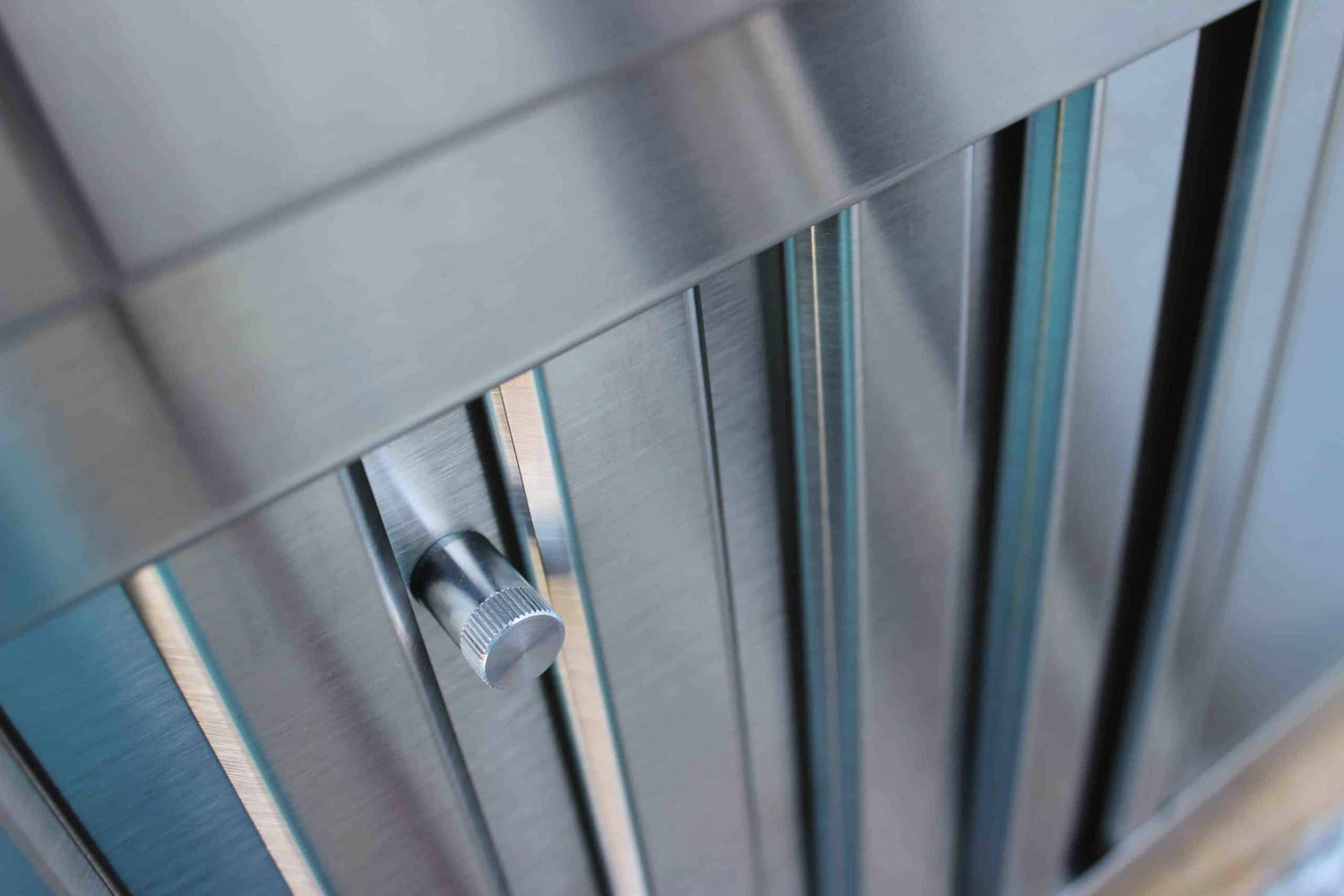

- Double bank of stainless steel baffle filters with two easy-grip handles
- Detergent inlet and grease exit holes in the filters for dishwasher cleaning
- Four dimmable halogen lights and slip-resistant control knobs
- Easy conversion to rear (horizontal) ducting
- Optional telescopic duct covers for 9 to 10 ft and 10 to 12 ft ceilings
- Manufacturer states it is made in Phoenix, Arizona, USA
What Is Included and What You Will Need
- Included: the S7266CD hood with baffle filters and halogen lighting. A duct cover is available as an option on this page.
- Needed: an in-line or remote blower, rigid metal ductwork, a roof or wall cap without a built-in damper, and a 120V GFCI protected circuit.
- Related accessory we sell: Trade-Wind 1266 CFM in-line blower PSD010XL.
Installation Notes
Per the manufacturer, this hood must not be installed on a patio without a roof overhead. It needs a minimum of three feet of weatherproof roof coverage on all sides not protected by an adjacent wall, and all ductwork and roof openings must be sealed. Ducting must be rigid metal vented to the outdoors. The manufacturer's best practices say not to use any type of damper in a BBQ hood application. Installation and wiring must be done by qualified installers and follow local code. Book a consultation and our team will help match the hood, blower and duct run to your outdoor kitchen.
Documentation
Frequently Asked Questions
Does the S7266CD come with a blower?
No. It is built for an in-line or remote blower. The internal blower version of this 66 in hood is the S726623CD.
Can it discharge out the back?
Yes. The S7200CD Series converts from top discharge to rear discharge without rewiring, using the steps in the installation manual.
Can I use it under an open sky?
No. The manufacturer requires roof coverage over the hood to protect it from direct rain.
Does it need a duct cover?
A telescopic duct cover is optional, and is sold in versions for 9 to 10 ft and 10 to 12 ft ceilings.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill.
Warranty
Trade-Wind warrants its ventilation products to the original user against defects in materials and workmanship for three years from the date of purchase. Trade-Wind will repair or replace the complete unit or any defective component at its option. Light bulbs are not covered.
