Description
Description
Available Sizes: Trade-Wind S7200CD Smooth Front for Remote Blowers
Overall Dimensions: 36 in. W x 32 in. D x 24 in. H; 15 in. deep top, 10 in. round duct collar (Trade-Wind installation drawing)

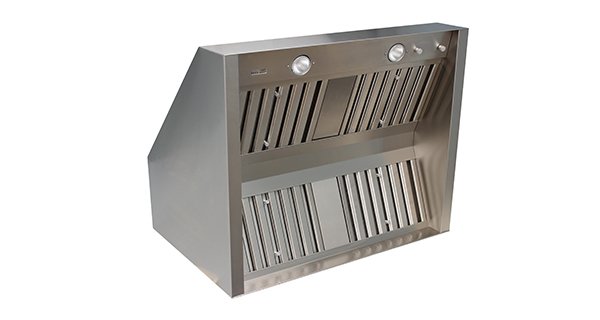

The Trade-Wind S7236CD is a 36 in. smooth-front wall-mount BBQ grill hood from the S7200CD series, built from heavy-gauge #304 stainless steel with a deep 32 in. capture area. Its convertible discharge vents through the top by default or converts to rear discharge without rewiring.
The S7236CD is the remote-blower version of this hood: it has no internal blower and is pre-wired for an in-line or exterior blower, such as Trade-Wind's 1,266 CFM PSD010XL. The 1,200 CFM internal-blower version is the S723612CD. Matching telescoping duct covers are offered above for 9 to 10 ft and 10 to 12 ft ceilings.
Features
- Smooth-front 36 in. BBQ hood with a 32 in. deep capture area
- Convertible discharge: top (default) or rear venting
- Heavy-gauge #304 stainless steel with #4 brushed finish

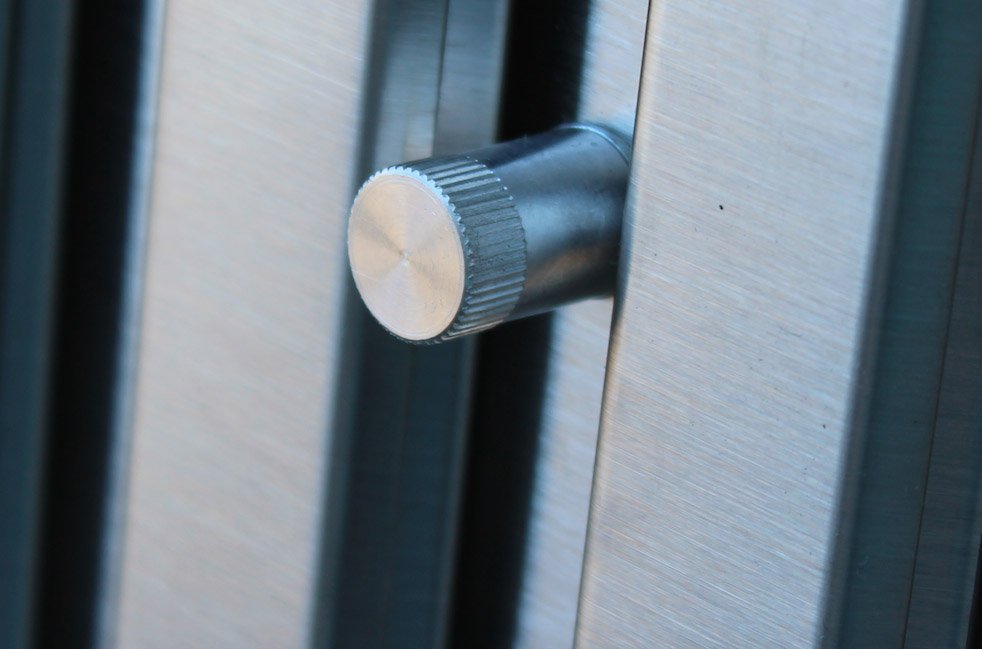

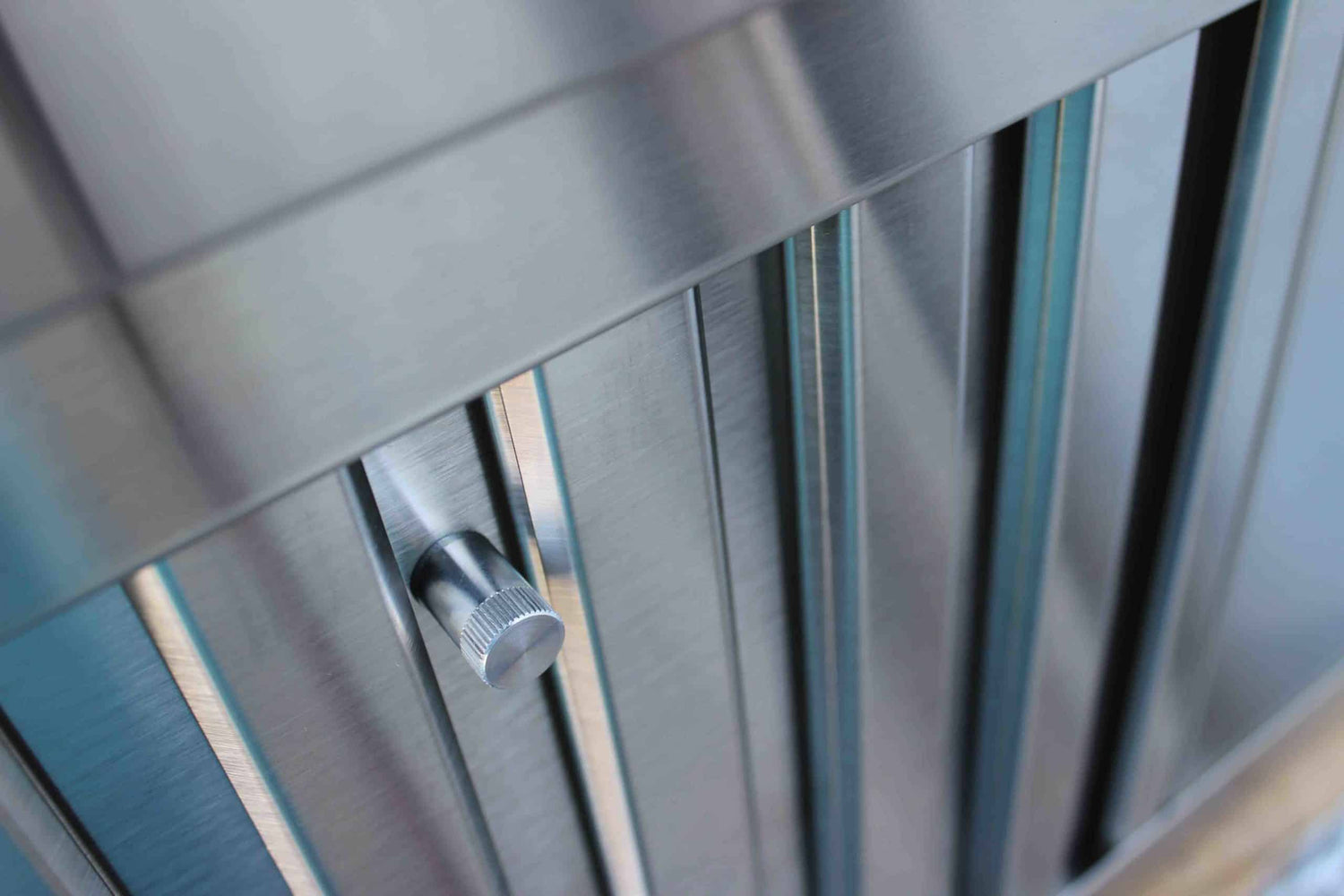

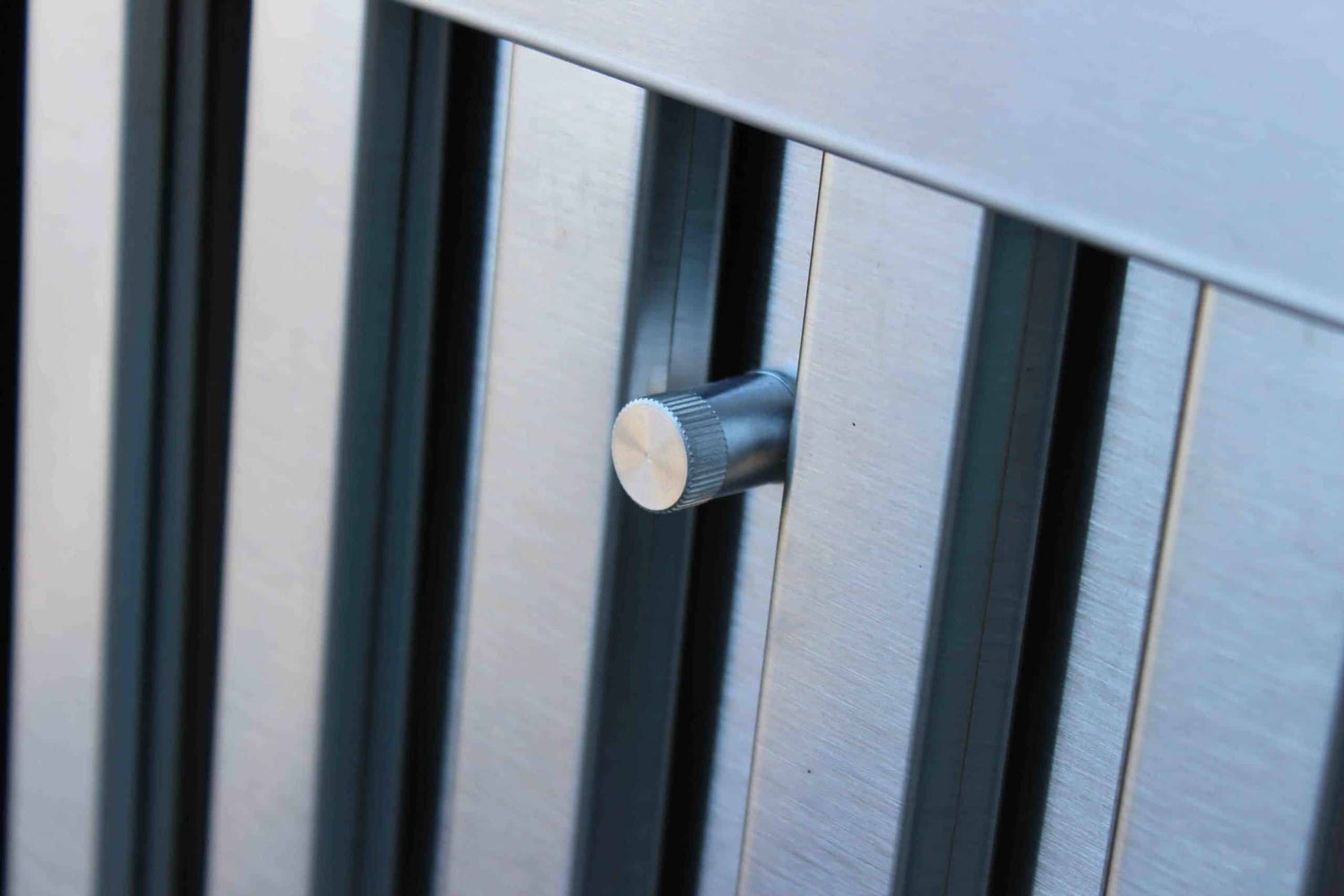

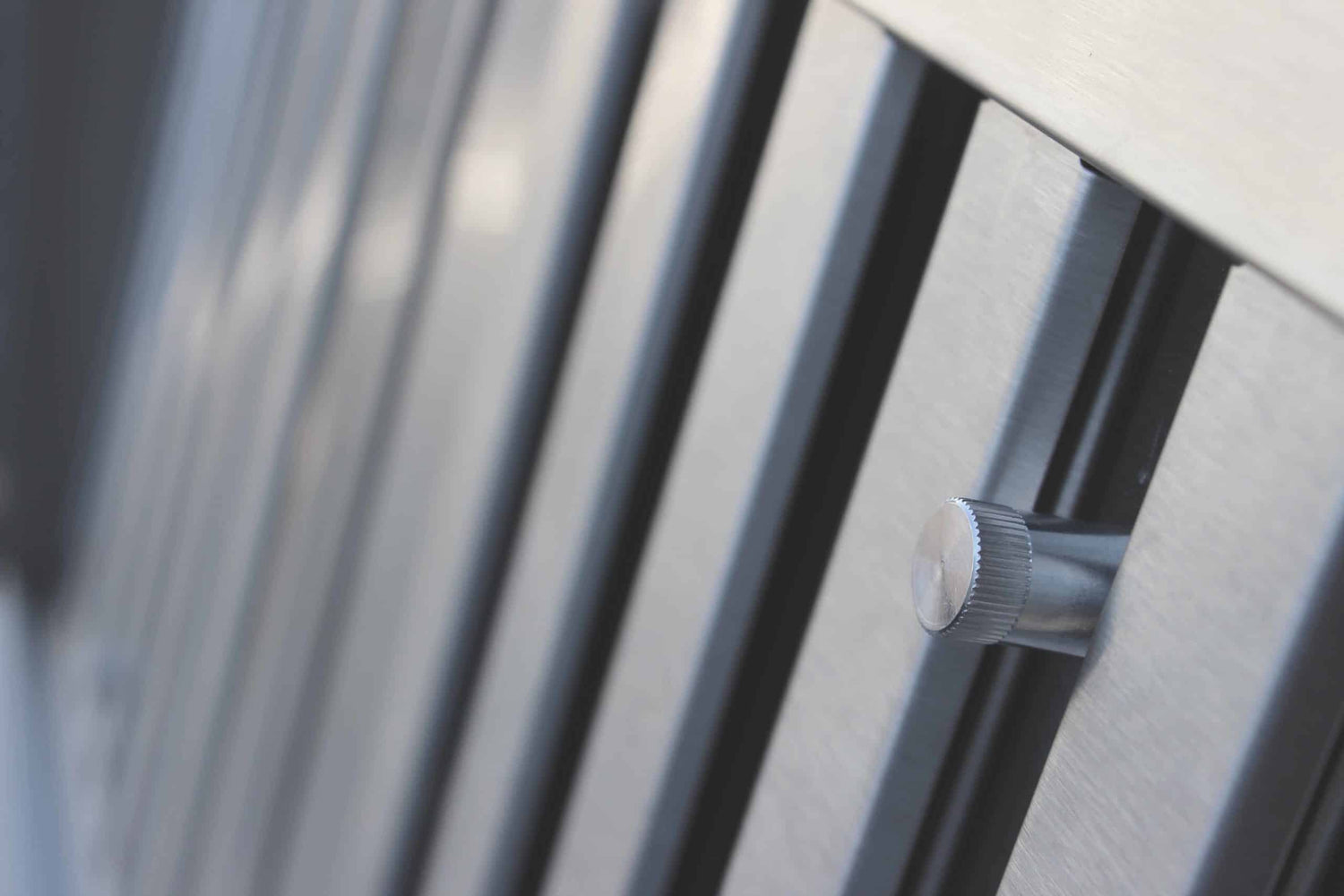

- Four 12 x 14 in. dishwasher-safe stainless steel baffle filters
- Dimmable 50 W halogen lights and variable light control
- Remote blower model, pre-wired for most in-line or exterior blowers

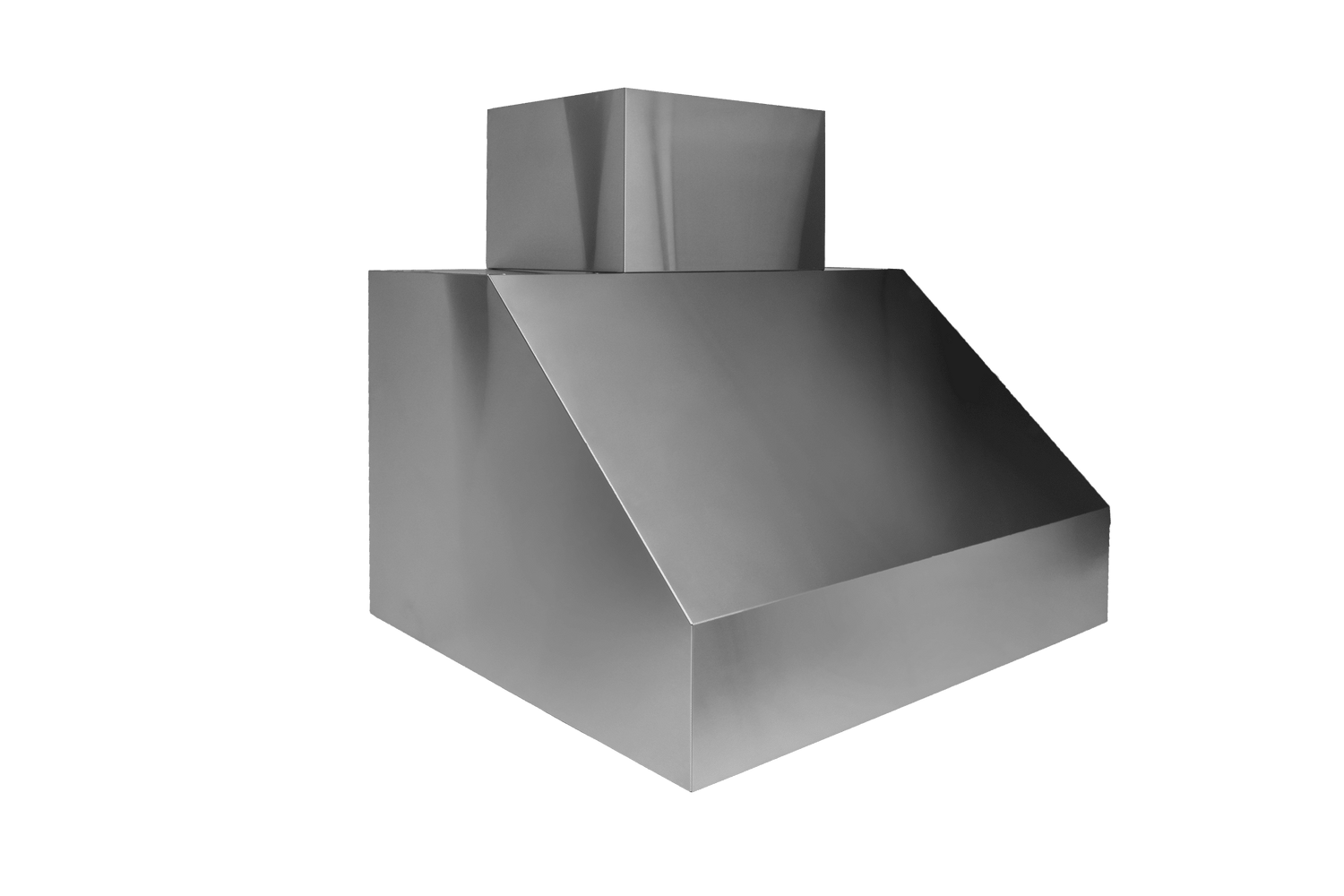

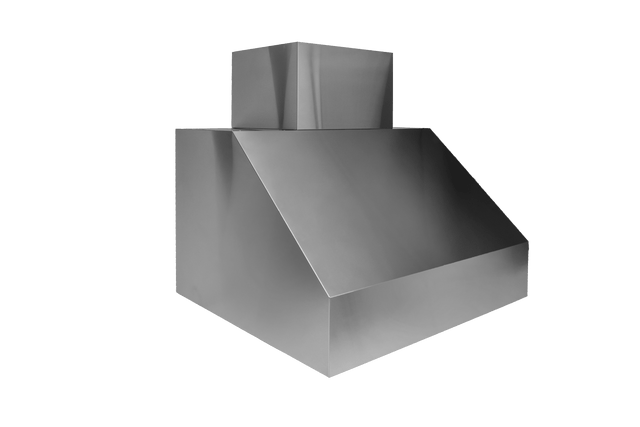

- Optional telescoping stainless duct covers for 9 to 12 ft ceilings
Key Specifications
| Model | S7236CD (remote blower; S723612CD is the 1,200 CFM internal-blower model) |
|---|---|
| Type | Wall-mount outdoor BBQ grill hood, convertible discharge |
| Blower | Not included; use an in-line or exterior blower (Trade-Wind PSD010XL, 1,266 CFM, optional) |
| Fan control | 6.0 A three-speed control supplied |
| Discharge | 10 in. round, top or rear |
| Filters | Four 12 x 14 in. stainless steel baffle filters |
| Lighting | Dimmable 50 W halogen |
| Construction | #304 stainless steel, #4 brushed finish |
| Electrical | 120V, 60 Hz, dedicated grounded circuit with 15 or 20 A breaker |
Dimensions
| Width | 36 in. |
|---|---|
| Depth | 32 in. (15 in. at the top) |
| Height | 24 in. (8 in. front face) |
| Duct | 10 in. round collar |
| Duct cover options | DC7201S for 9 to 10 ft ceilings, DC7200S for 10 to 12 ft ceilings |
What Is Included and What You Will Need
- Included: S7236CD hood with four baffle filters, halogen lights and three-speed fan control
- Required, sold separately: an in-line or exterior blower rated within the 6.0 A control, such as the Trade-Wind PSD010XL 1,266 CFM in-line blower
- Required: 10 in. metal duct, roof or wall cap and, ideally, a DPR010 10 in. damper
- Optional, selectable above: stainless duct cover for 9 to 10 ft or 10 to 12 ft ceilings
Installation Notes
Trade-Wind requires a covered location: the unit must have at least 3 ft of weatherproof roof coverage on every side not protected by an adjacent wall, and all duct work and roof openings must be sealed against water. Mount it to a solid surface, keep a combustible canopy at least 36 in. above the cooking surface (30 in. for a non-combustible canopy), use metal duct only and vent to the outdoors. Wire it on a dedicated, grounded 120V circuit with a 15 or 20 A breaker, GFCI protected. In New York City buildings, new exhaust ducts and roof or wall penetrations usually need building and code review, so confirm the duct route with your building before ordering. Book a design consultation to plan the hood, blower and duct route.
Documentation
- S7200CD Series Specification Sheet
- S7200CD Series Installation Instructions and Use and Care (Rev. 6/11/18)
Frequently Asked Questions
Does the S7236CD include a blower?
No. It is the remote-blower model and needs an in-line or exterior blower. The S723612CD has a 1,200 CFM internal blower.
Can it vent out the back?
Yes. The discharge converts from top to rear without any rewiring.
Can it go on an open patio?
No. Trade-Wind requires at least 3 ft of weatherproof roof coverage on every side not protected by a wall.
How high should it be mounted?
Keep a combustible canopy at least 36 in. above the cooking surface, or 30 in. for a non-combustible canopy.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
Trade-Wind limited warranty, per the installation instructions: 3 years from the date of purchase against defects in materials and workmanship, for the original user, with Trade-Wind repairing or replacing the complete unit or any defective component at its option. Light bulbs are not covered, and problems caused by undersized ducting, restrictive roof caps or unauthorized repairs are excluded.
