Description
Description
Available Sizes: Trade-Wind S7200CD Smooth Front for Remote Blowers
Overall Dimensions: 60 in. W x 32 in. D x 24 in. H, per Trade-Wind S7200CD spec sheet

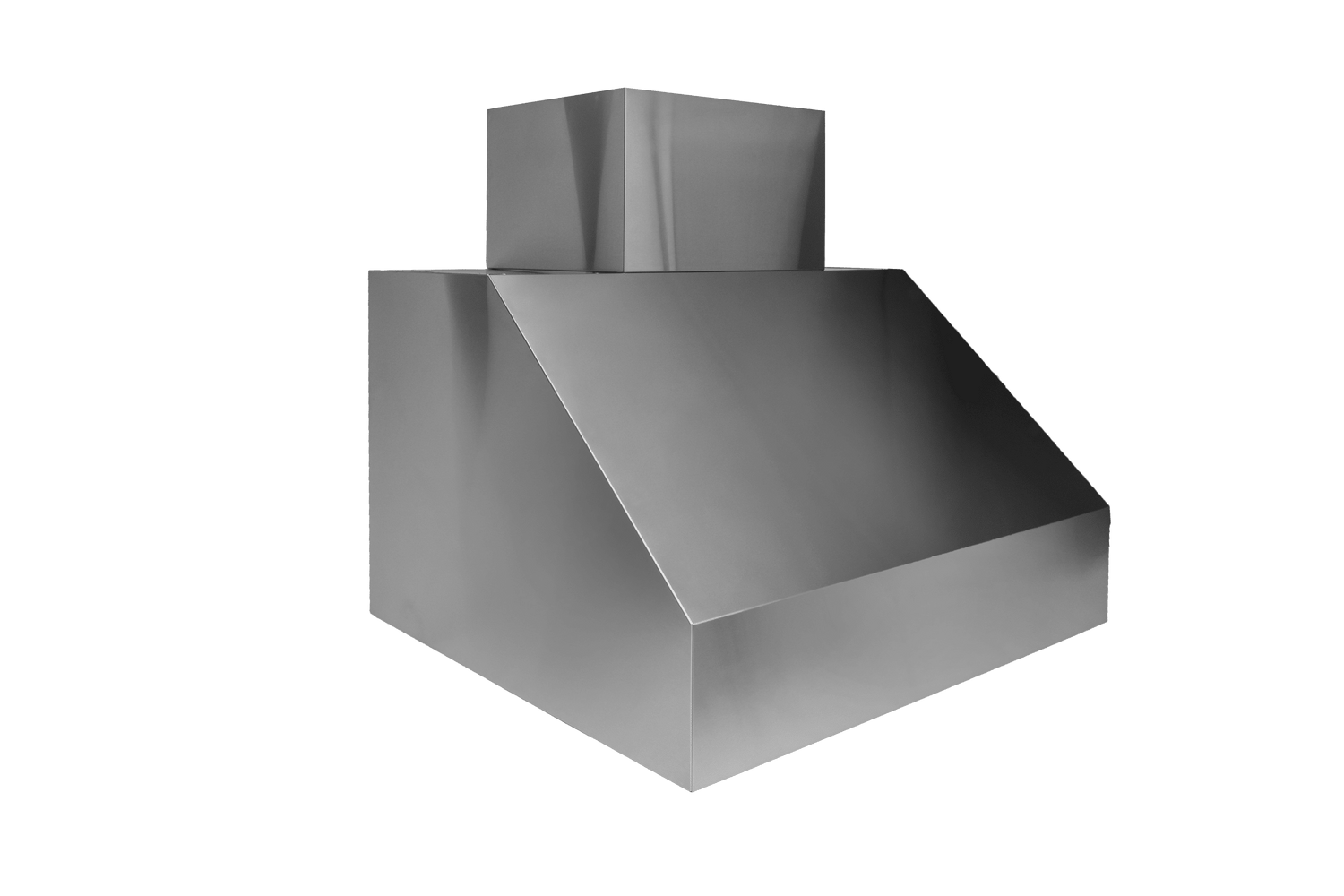

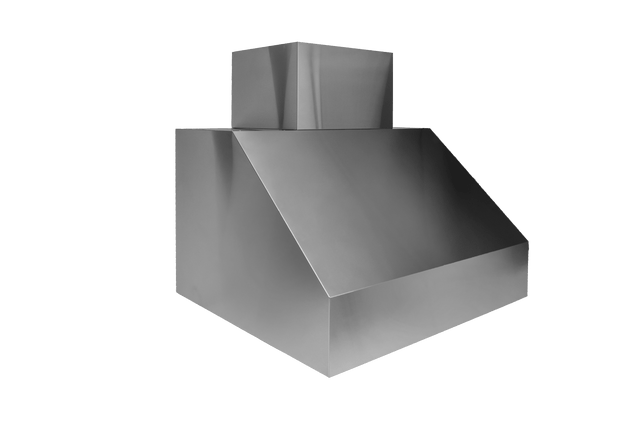

The Trade-Wind S7260CD is the 60 inch smooth-front, convertible discharge outdoor BBQ grill hood from the S7200CD series in its remote-blower version, pre-wired for an in-line or exterior blower. A remote blower moves motor noise away from the cooking area, and the 32 in. depth covers a large grill front to back.
It suits a 48 inch or larger grill line under a covered patio, and it is built in Phoenix, Arizona.
Key Specifications
| Model | S7260CD (S7200CD series, remote blower) |
|---|---|
| Width | 60 in. |
| Blower | Not included; pre-wired for in-line or exterior blowers (Trade-Wind in-line blower rated 1266 CFM) |
| Duct collar | 2 x 10 in. round; top discharge, convertible to rear |
| Lights | 4 dimmable 50 W halogen |

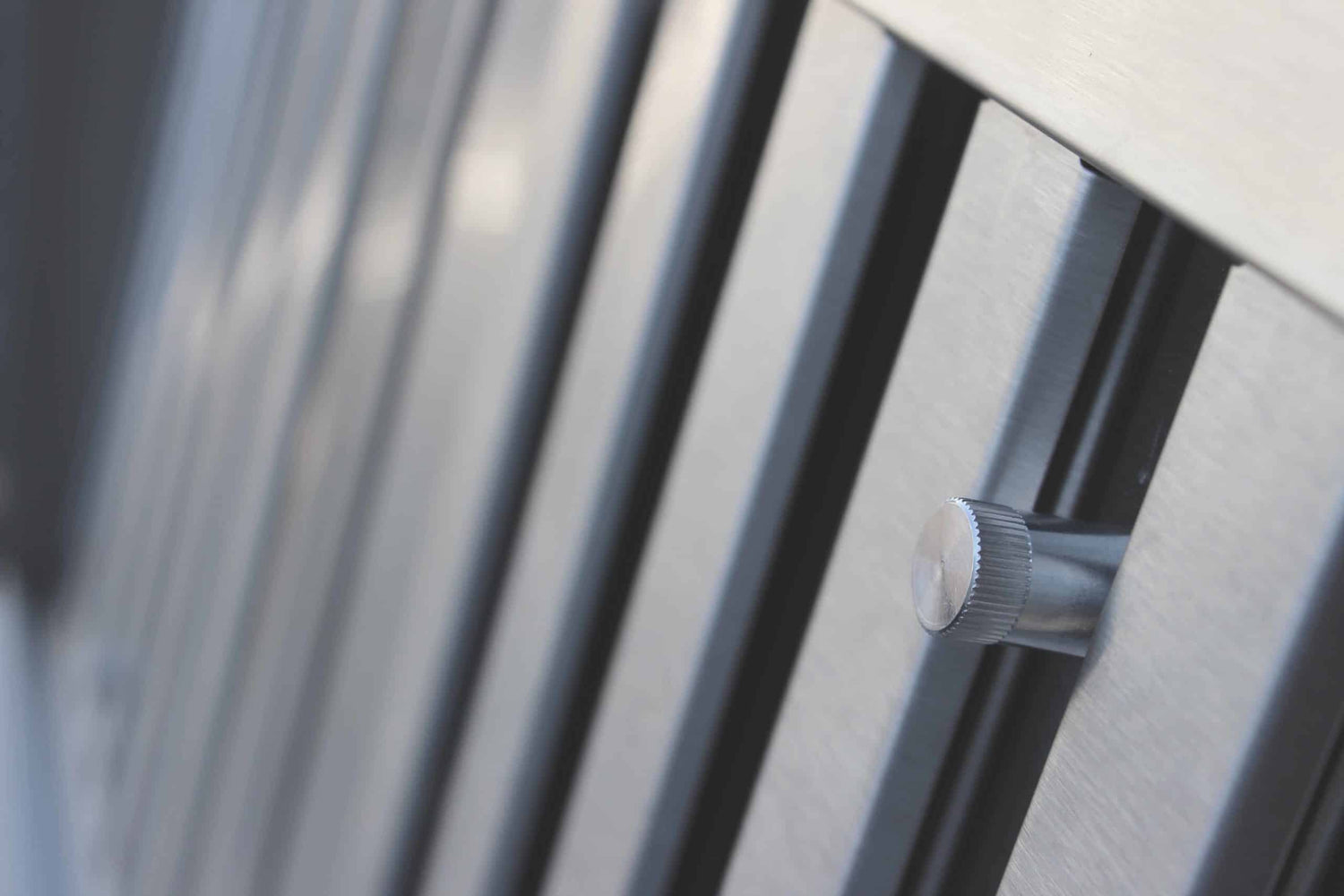

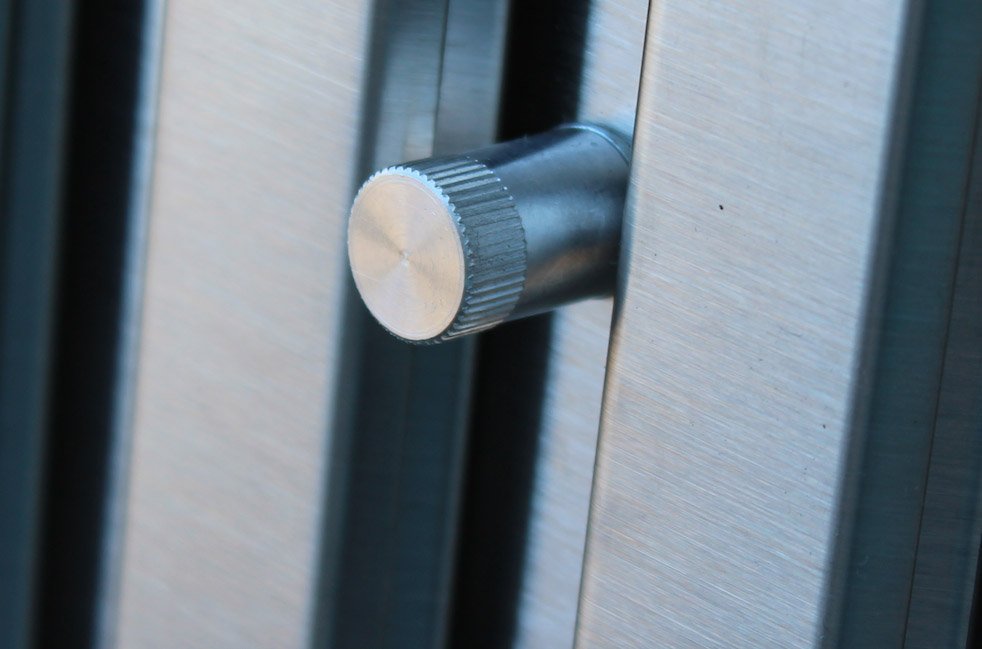

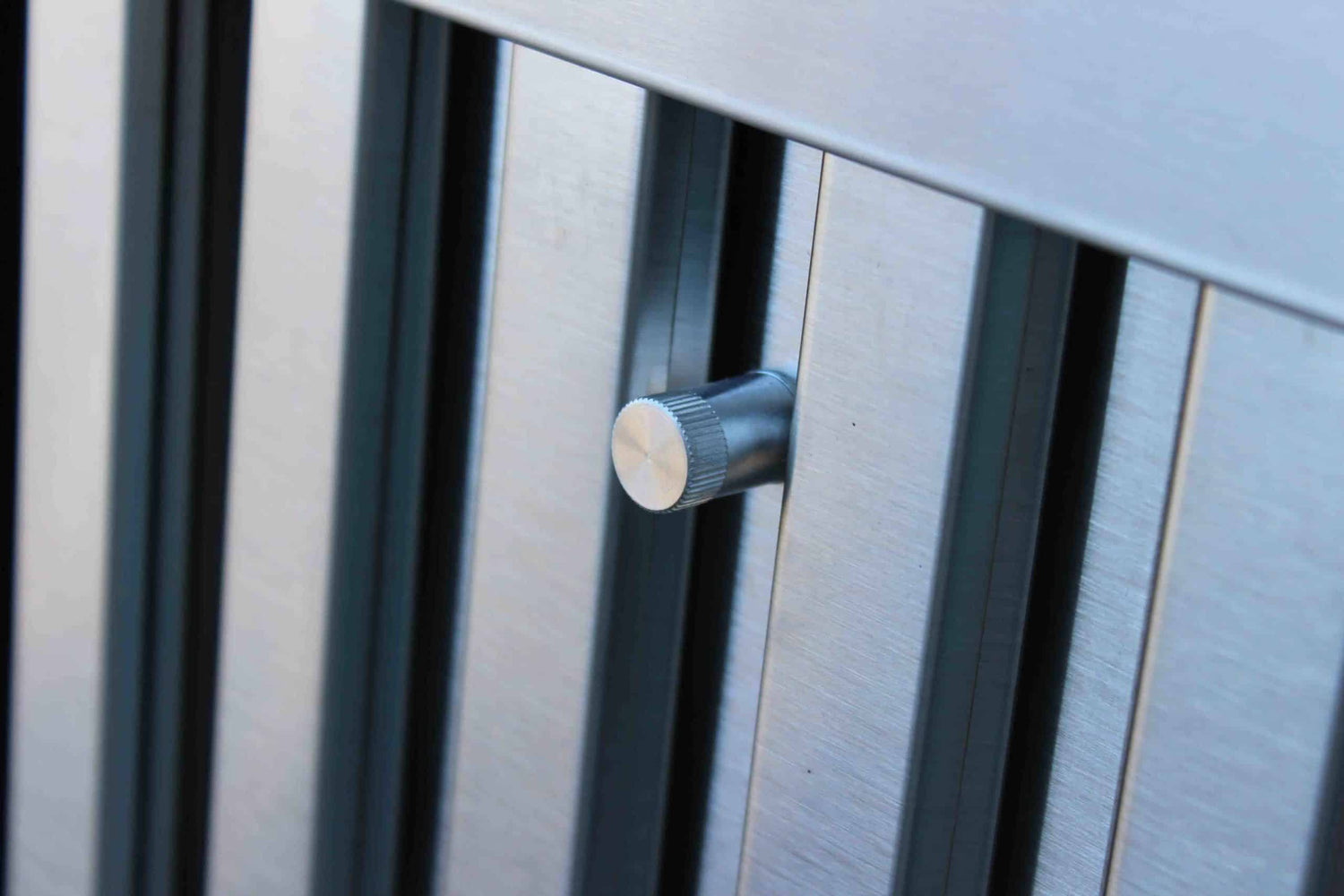

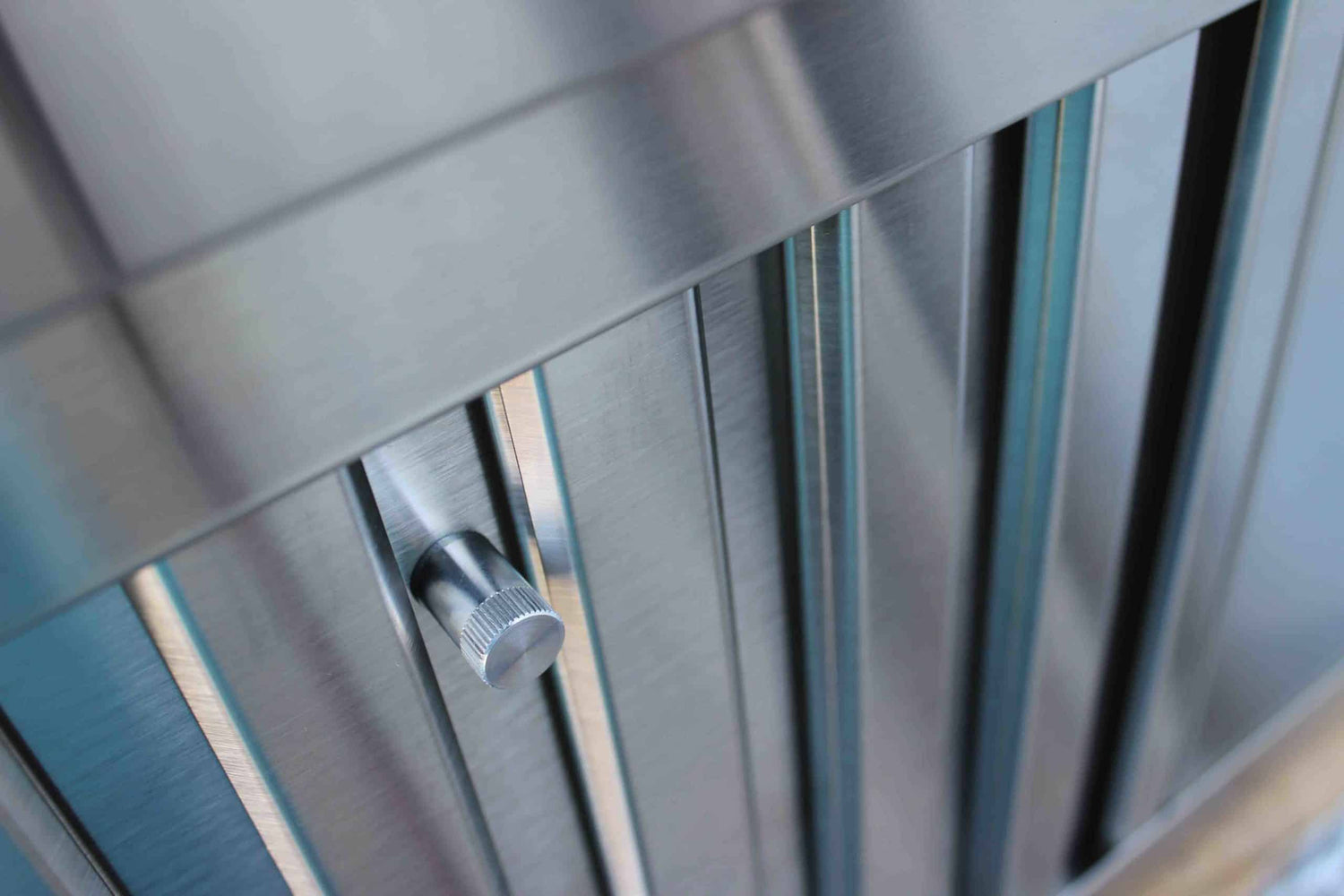

| Filters | Double bank of dishwasher-safe stainless baffle filters |
| Construction | #304 stainless steel with #4 brush finish and galvanized steel |
| Electrical | 120 V, 60 Hz individual grounded branch circuit on a 15 or 20 A breaker; GFCI protection recommended |
Dimensions and Cutout
| Hood (W x D x H) | 60 in. x 32 in. x 24 in. |
|---|---|
| Mounting height | 36 in. from cooking surface to the bottom of the canopy structure |
| Duct covers | Optional DC7201D for 9 to 10 ft ceilings or DC7200D for 10 to 12 ft ceilings (selectable above) |
| Weather protection | Minimum 3 ft of weatherproof roof coverage on unprotected sides |
Features
- Remote-blower design, pre-wired for in-line or exterior blowers
- 32 in. depth for full front-to-back grill coverage
- Top or rear discharge for vertical or horizontal ducting
- Double bank of dishwasher-safe baffle filters
- Four dimmable 50 W halogen lights
- Variable control with remote blowers
- Made in Phoenix, Arizona
What Is Included and What You Will Need
- Included: S7260CD hood with baffle filters and halogen light fixtures, pre-wired for a remote blower
- Required: a remote or in-line blower such as the Trade-Wind 1266 CFM in-line blower, rigid metal ducting to an approved cap (no damper), a dedicated 120 V circuit, a covered outdoor location
- Optional: DC7201D or DC7200D duct cover (selectable above)
Installation Notes
Mount the hood to solid framing 36 in. above the cooking surface, size the remote blower and ducting together, and run rigid metal duct as short and straight as possible to the outdoors per the S7200CD instructions. Trade-Wind requires at least 3 ft of weatherproof roof coverage on every side not protected by an adjacent wall and no back-draft damper in a BBQ application. In New York City, exhaust ducting through roofs or walls often needs building approval, so confirm the duct route early. Book a free outdoor kitchen design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
Is a blower included?
No. The S7260CD is the remote-blower model. The S726023CD has two internal blowers rated 2300 CFM.
Why choose a remote blower?
A remote or in-line blower moves motor noise away from the grill area; it must be sized with the duct run.
Can it vent out the back?
Yes. The discharge converts from top to rear for horizontal ducting.
How high should it be mounted?
Trade-Wind specifies 36 in. from the cooking surface to the canopy structure.
Related reading: Do You Need a Vent Hood Over an Outdoor Grill? and Outdoor Kitchen Planning Guide.
Warranty
Trade-Wind warrants its ventilation products to the original user against defects in materials and workmanship for 3 years from the date of purchase. Light bulbs and faulty installation are not covered.
